Temperature (107) Temperature is the most important variable in automatic control • Can only measured indirectly (inferred) • Temperature and pressure • Temperature and volume • Temperature and humidity Measured • Bimetallic thermometers • Filled system thermometers (mercury) • Electrical property thermometers (RTD & TC) • Radiation energy thermometers (pyrometers) (infrared) (color and brightness) •
(page 107)

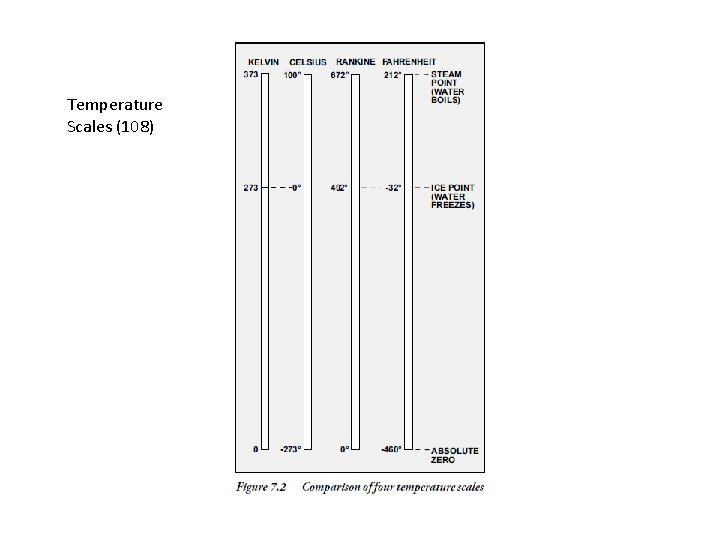

Temperature Scales (108)
Temperature • Filled Temperatures Systems (109 -110)
Temperature • Bimetallic Thermometers (112)
Temperature • Electronic Temperature Sensors 1. Thermoresistive elements (113) or RTD – resistive temperature detector (or device) • Resistance measurement and calibrated to temperature 2. Thermistors (114)
Temperature • Thermocouples (114)
Temperature • Two wire current transmitters (118)
Temperature • Smart Temperature Transmitters (118)
Temperature • Summary (124) • Review Exercise (125)
