Pneumatic Controls • Electronic controls, sensors, and measuring devices are significant developments that have advanced automation to a new level. • However, prior to electronic control mechanical and pneumatic controls were used. • We have already seen simple examples of mechanical controls. • Pneumatic controls are still used and learning about pneumatic controls leads to a better understanding of electronic controls.

Pneumatic Controls • Automatic controls perform self-correcting functions • Examples – cruise control and heating and cooling thermostats • On the pneumatic side we have pressure regulators for example • Pneumatic devices depend on pressure from an air supply. • The air supply must be held at a steady value or other words – the pressure must be regulated • Two types are used: weight-loaded and springloaded

Weight-loaded regulators • The diaphragm supports a properly sized weight which operates a double ported valve plug.

Spring-loaded regulators • A spring under compression replaces the weight. • These regulators are simple, light in weight, low maintenance and reliable.

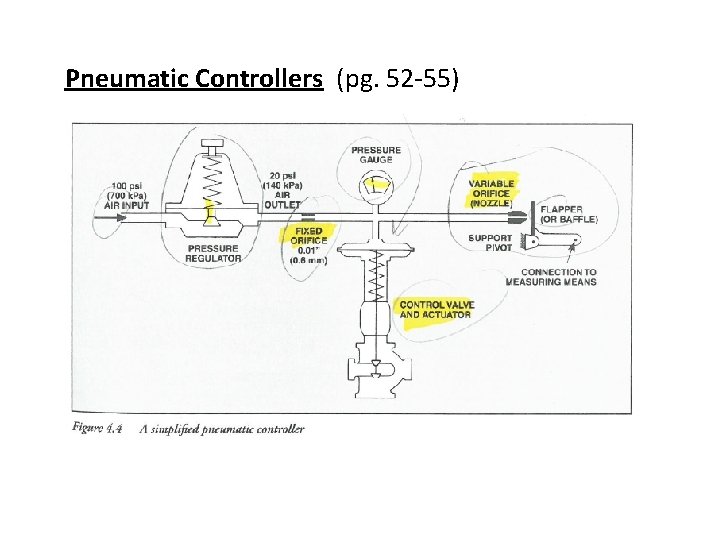

Pneumatic Controllers (pg. 52 -55)

Valve Positioners (pg. 65 -67) • Valve positioners accurately position valves. • Likewise the force valves with sticky stems or other problems to assume a precise position. • An air relay is used to accomplish this. • A change in the air relay output pressure repositions the control valve plug. • In an air relay – a small volume of air actuates the air relay valve which in turn controls large volume air impulses to drive the actuator. • A small volume bellows is used. Nozzle back pressure actuates the bellows. Which operates a push rod that operates a special ball-plug valve.

Volume Booster Relays (pg 64) • There may be a considerable distance between a controller and the valve to be pneumatically operated • Air line resistance and capacity of long connecting lines can slow valve action to a considerable degree. • A booster relay installed at the valve location overcomes most of the response lag.

Valve Positioners (pg. 65 -67)
