Perspective & Quick Sketch Methods Student Samples Perspective Drawing Quick Sketching • Students used floorplans and elevations from a previous drafting project to generate a hardline perspective drawing of the interior space. • In a timed drawing experience, students were instructed to overlay and sketch the entire contents of their hardline perspective drawing in five minutes. • The students then studied various modifications to one elevation of the interior and added architectural and interior components. • Using an overlay method, students explored various ways of accessorizing the space and created a composite hardline perspective. • This hardline drawing was used as a foundation for exploring and developing quick sketch techniques. • The timed drawing experience was repeated to give students more familiarity with the look and “feel” of quick sketching, ingraining the technique into muscle memory. • Further quick sketch studies were done using the overlay method and developing pure tone drawings, using line & texture or marker only. • The studies led to final composite sketches using marker and felt-tip to create line, tone, and texture.

Above: Hardline interior perspective of interior. Right: Architectural and interior components added. Above: Accessories were explored using overlays. Right: Composite hardline sketch created.

Timed Sketches DMT 253 Fall 2000 Perspective & Quick Sketch Methods Students overlayed the hardline perspectives and were instructed to sketch the interior and entourage in 5 minutes. Repeating the process, students were prompted to improve on the previous sketch within the same time frame. Students also prompted to refine the details and create a sense of value and texture.

1 2 Above left: Creating pure tone drawing using only line and texture Above right: Creating pure tone drawing using only marker, then adding some line and texture in overlay 3 Right: Combining line, tone, texture overlays for effect. Tone / Texture Studies

SAMPLE Final Composite Sketch

Pure tone study – line and texture only

Value / Texture study – line and marker composite

SAMPLE Value / Texture study – line and marker composite

SAMPLE Value / Texture study – line and marker composite

SAMPLE Final Composite Sketch

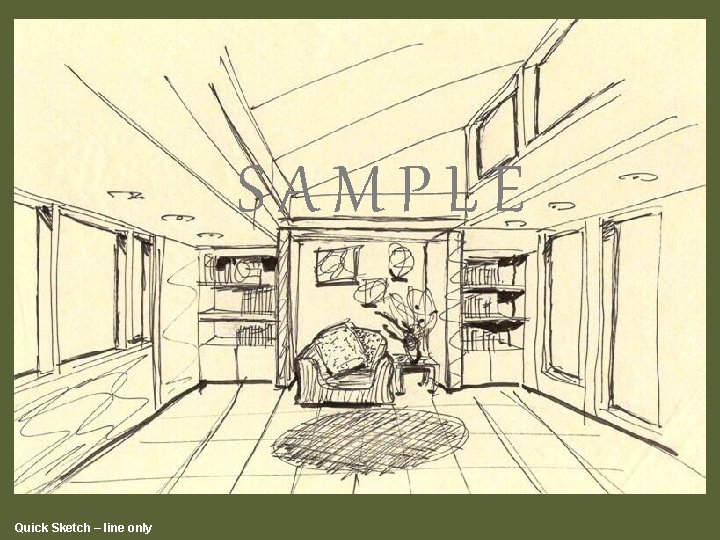

SAMPLE Quick Sketch – line only

SAMPLE Quick Sketch – line only

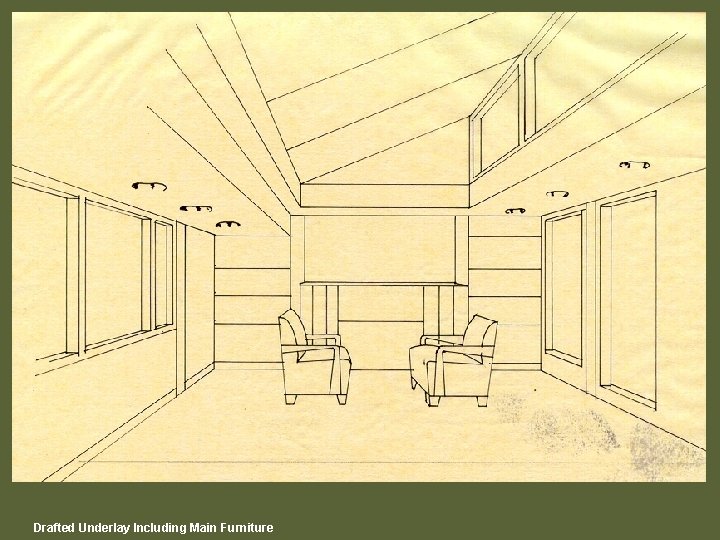

Drafted Underlay Including Main Furniture

SAMPLE Quick Sketch – line only

SAMPLE Final Composite Sketch

SAMPLE Final Composite Sketch

Effect of Toned Paper Behind Final Composite Sketch

SAMPLE REFINED Perspective Technique and Foundation Drawing Sequence

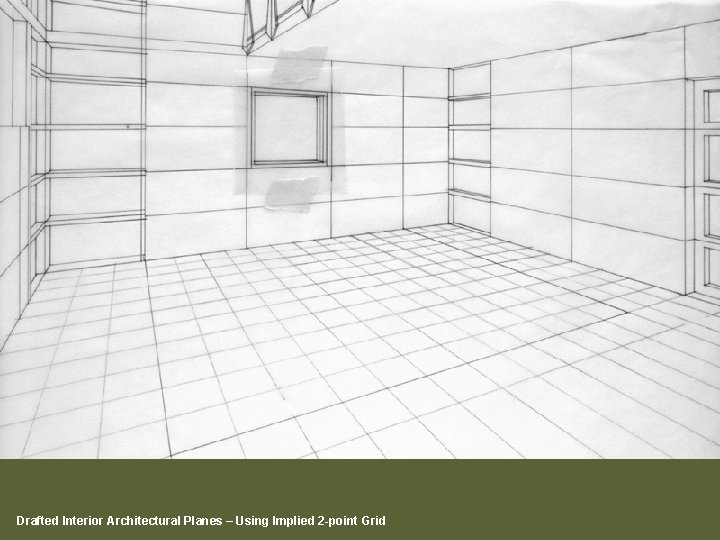

Drafted Interior Architectural Planes – Using Implied 2 -point Grid

First Attempt at Interior Components – Note straight-backed seating, lack of detail, apparent shortness of sofa seat

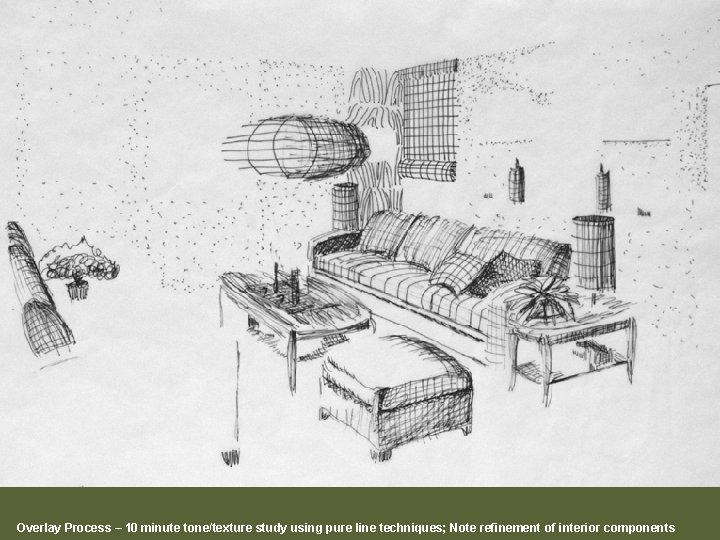

Overlay Process – 10 minute tone/texture study using pure line techniques; Note refinement of interior components

SAMPLE Final Composite Sketch – Freehand / black felt-tip pen / graphite / white Prismacolor pencil / gray marker

SAMPLE Final Composite Sketch – Design features FORM & SHAPE so rendering of tone/texture confined to architectural planes
