Perspective Drawing What is this type of drawing

Perspective Drawing What is this type of drawing called?

esson l r u o y k c i St top of e h t o t e objectiv your page Lesson Objective To be able to draw basic shapes in one and two point perspective A perspective drawing tries to show what something actually looks like. Smaller in the distance Larger close up

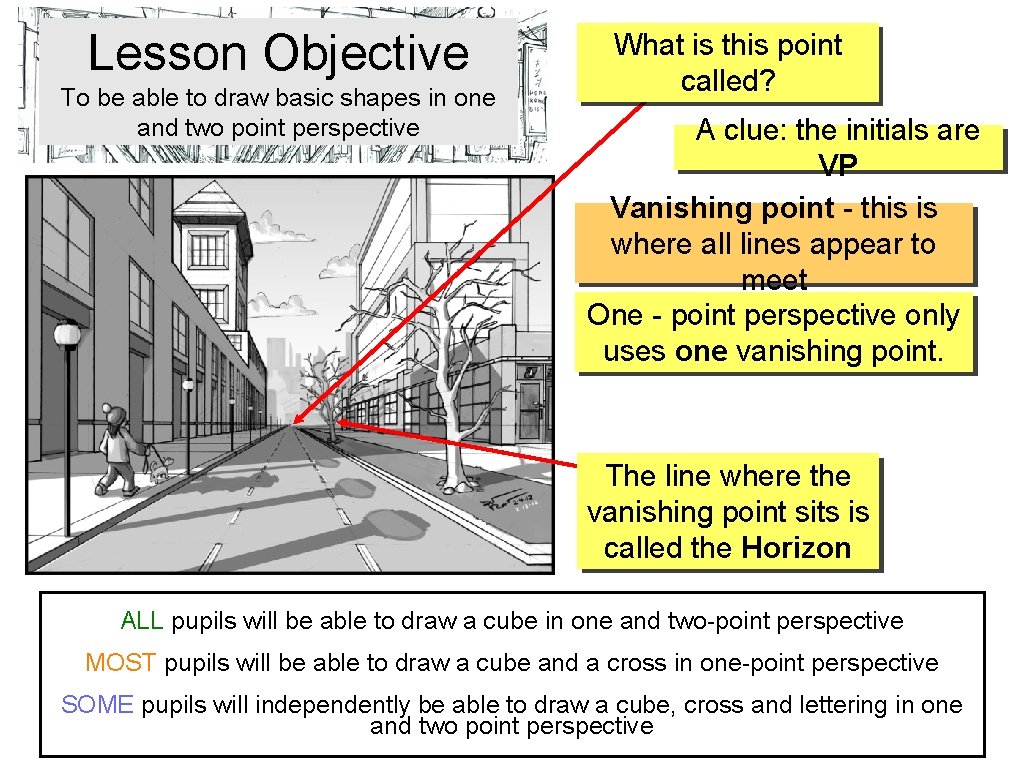

Lesson Objective To be able to draw basic shapes in one and two point perspective What is this point called? A clue: the initials are VP Vanishing point - this is where all lines appear to meet One - point perspective only uses one vanishing point. The line where the vanishing point sits is called the Horizon ALL pupils will be able to draw a cube in one and two-point perspective MOST pupils will be able to draw a cube and a cross in one-point perspective SOME pupils will independently be able to draw a cube, cross and lettering in one and two point perspective

Lesson Objective To be able to draw basic shapes in one and two point perspective TASK: Draw a cube in one-point perspective. 1. Draw a line across the middle of your page - this will be your horizon 2. In the centre put a small dot or cross to show the vanishing point 3. Draw the front view of a cube 6. Add thick and thin lines and rub out your unwanted construction lines. 5. Decide on the depth of your cube then draw horizontal and vertical parallel lines 4. From each corner take a light line to the vanishing point.

Lesson Objective To be able to draw basic shapes in one and two point perspective Two-point perspective shows objects edge-on. It uses two vanishing points NOT one! WHY USE IT? It gives a more realistic view of an object or product.

Lesson Objective To be able to draw basic shapes in one and two point perspective TASK: Draw a cube in two-point perspective. Explore what happens when you place your cube above, below and on the horizon line! 1. Draw a line across the middle of your page - this will be your horizon 2. Draw in two vanishing points 3. Draw one side of your cube - using projection lines to one vanishing point 6. Add thick and thin lines and rub out your unwanted construction lines. 5. Draw two projection lines to the vanishings point for the base draw in the outlines 4. Draw in the other side - once again using projection lines

Lesson Objective To be able to draw basic shapes in one and two point perspective TASK: Draw a cross in one-point perspective EXTENSION: Draw a letter in one or twopoint perspective then add tonal shading to it.

On your mini white board write down the answers to the three questions below What is the vanishing point? The point or points at which all lines in a perspective drawing meet What is the horizon? The line on which most vanishing points sit - usually where the sky meets the land What is the difference between one and two point perspective? One-point only has one vanishing point. Two-point is more realistic and has two vanishing points.

HOMEWORK Complete page 28 from your AQA Exam practice booklet

atch the image with correct descriptio You have 4 mins! (two-point s t in o p g Vanishin e) perspectiv at which all ts in o p r o t The poin drawing e v ti c e p s r e lines in a p meet line n o z i ost m Hor h c i wh n o sit e n s i t l n i e po Th g n i sky h s e i h n t a v here d) w y l l (usua ts the lan mee

Vanishing point (one-point perspective) The point or points at which all lines in a perspective drawing meet Vanishing points (two-point perspective) The point or points at which all lines in a perspective drawing meet Horizon line The line on which most vanishing points sit (usually where the sky meets the land) Construction lines Faint lines that aid the construction of your drawings. Usually rubbed out at the end.

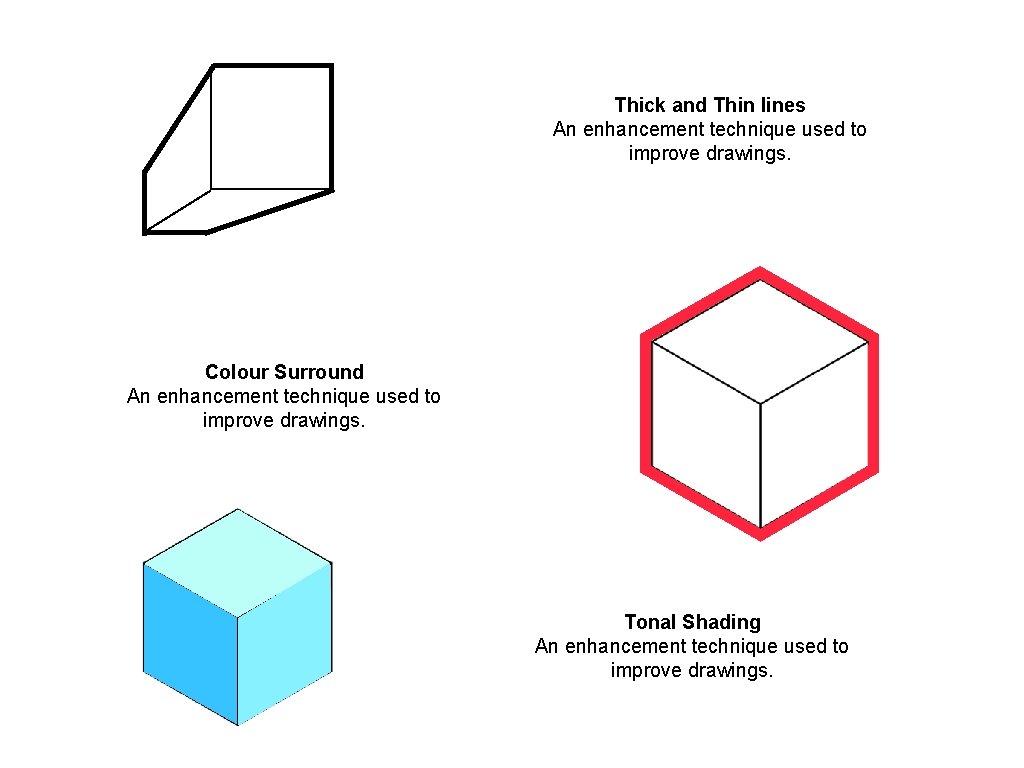

Thick and Thin lines An enhancement technique used to improve drawings. Colour Surround An enhancement technique used to improve drawings. Tonal Shading An enhancement technique used to improve drawings.

sson e l r u o y k Stic p of o t e h t objective your page Lesson Objective To be able to draw complex shapes in two point perspective TASK 1. Using the handout as a guide create a 2 point perspective house (the outside). 2. Add details to your work, such as trees, windows and pathways. 3. Add rendering and enhancement techniques such as textures and tonal shading to improve your work.

Lesson Objective To be able to draw complex shapes in two point perspective TASK: Draw a room in two-point perspective. 1. Draw a line across the middle of your page 2. Mark in two vanishing points at the end of each line 3. Draw a vertical line in the centre of the horizon

Lesson Objective To be able to draw complex shapes in two point perspective TASK: Draw a room in two-point perspective. 40 mm 1. Draw two diagonal lines from your VPs to meet the end of the centre line 2. Mark a dot at the 40 mm point on the centre line 3. Draw construction lines from your VPs to the new mark

Lesson Objective To be able to draw complex shapes in two point perspective TASK: Draw a room in two-point perspective. 1. Go over your construction lines to mark on the celling and the corner of the room 2. Draw two construction lines from your VPs to the base of your corner of your room 3. Press over these lines with a pencil to draw in the floor

Lesson Objective To be able to draw complex shapes in two point perspective TASK: Draw a room in two-point perspective. 1. Rub out your construction lines 2. Draw in windows and doors - remember to take the lines from the VPs! EXTENSION Add objects to your room, such as rung, chest of draws etc. . .
