Periodic Table and Periodic Trends

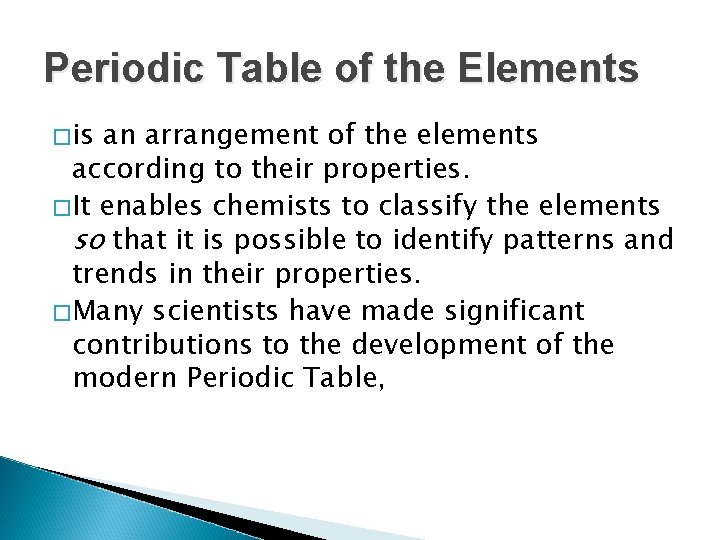

Periodic Table of the Elements �is an arrangement of the elements according to their properties. �It enables chemists to classify the elements so that it is possible to identify patterns and trends in their properties. �Many scientists have made significant contributions to the development of the modern Periodic Table,

Johann Doberiener (1829) � Arranged elements in groups of three (triads) � For example: Cl (mass 35) Br (mass 80) I (mass 127) Note: Average mass of the extreme elements =mass of the middle element

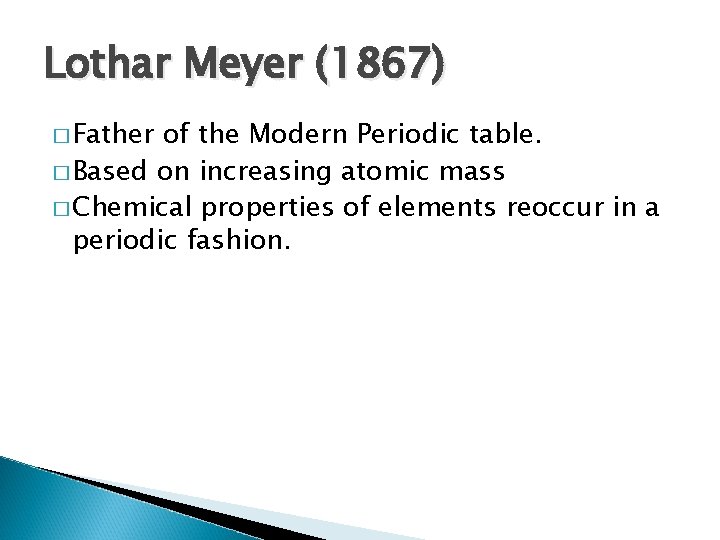

Lothar Meyer (1867) � Father of the Modern Periodic table. � Based on increasing atomic mass � Chemical properties of elements reoccur in a periodic fashion.

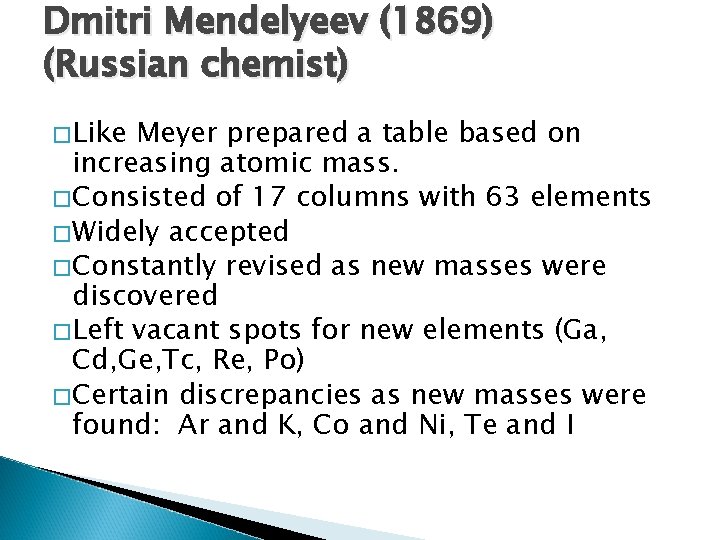

Dmitri Mendelyeev (1869) (Russian chemist) � Like Meyer prepared a table based on increasing atomic mass. � Consisted of 17 columns with 63 elements � Widely accepted � Constantly revised as new masses were discovered � Left vacant spots for new elements (Ga, Cd, Ge, Tc, Re, Po) � Certain discrepancies as new masses were found: Ar and K, Co and Ni, Te and I

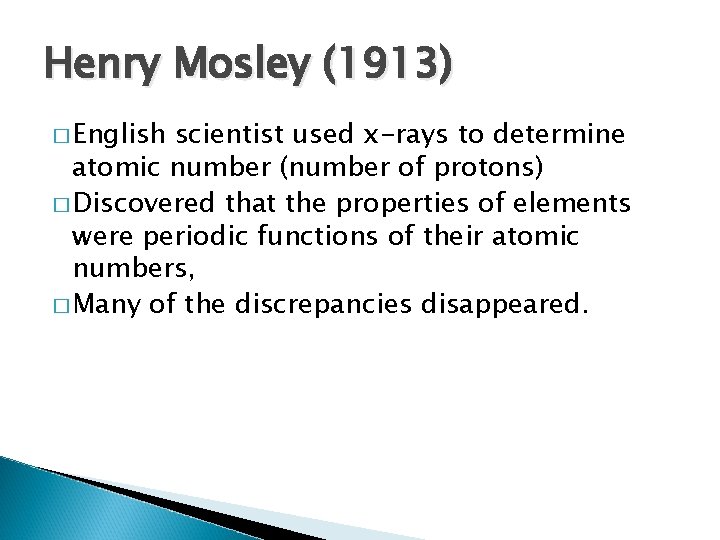

Henry Mosley (1913) � English scientist used x-rays to determine atomic number (number of protons) � Discovered that the properties of elements were periodic functions of their atomic numbers, � Many of the discrepancies disappeared.

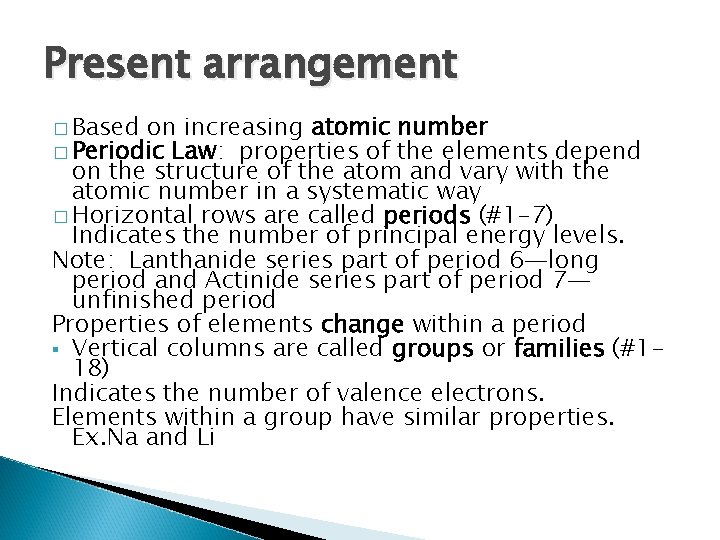

Present arrangement � Based on increasing atomic � Periodic Law: properties of number the elements depend on the structure of the atom and vary with the atomic number in a systematic way � Horizontal rows are called periods (#1 -7) Indicates the number of principal energy levels. Note: Lanthanide series part of period 6—long period and Actinide series part of period 7— unfinished period Properties of elements change within a period § Vertical columns are called groups or families (#118) Indicates the number of valence electrons. Elements within a group have similar properties. Ex. Na and Li

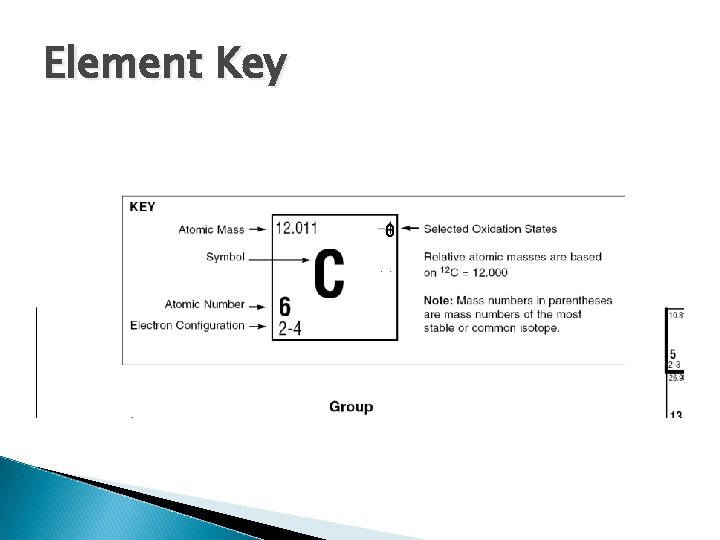

Element Key 0

Periodic Trends What is a trend? A trend is the general direction in which something tends to move.

Periodic Trends The elements on the Periodic Table of Elements show many trends in their physical and chemical properties. Across the rows (periods or series) Down the columns (groups or families)

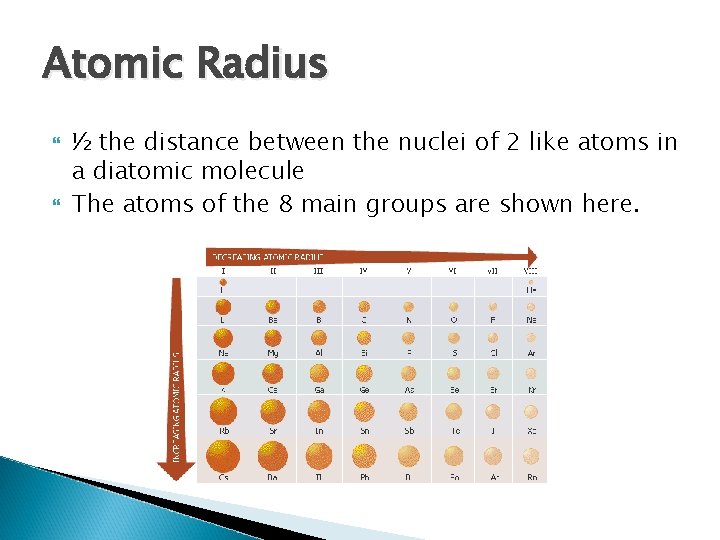

Atomic Radius ½ the distance between the nuclei of 2 like atoms in a diatomic molecule The atoms of the 8 main groups are shown here.

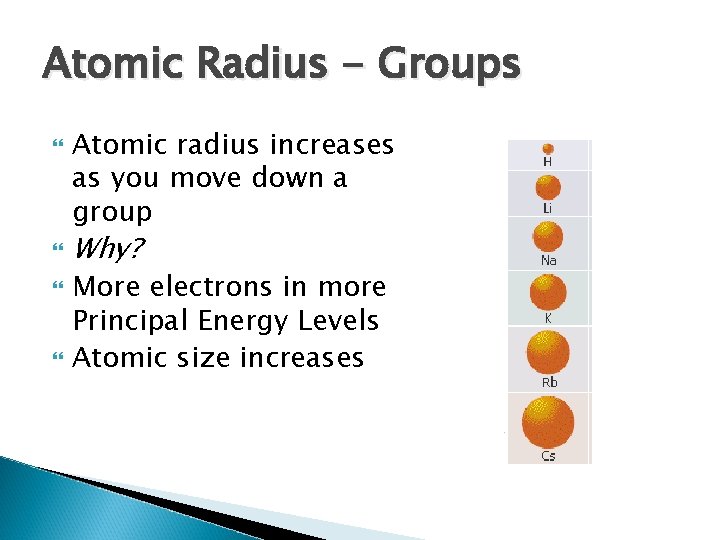

Atomic Radius - Groups Atomic radius increases as you move down a group Why? More electrons in more Principal Energy Levels Atomic size increases

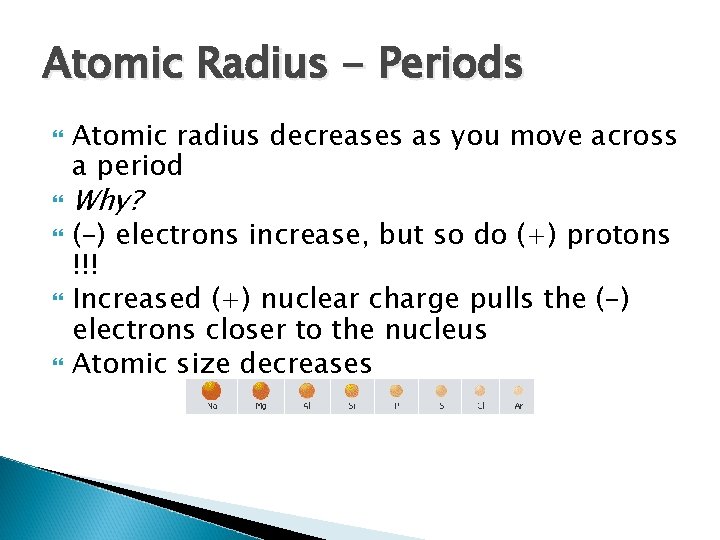

Atomic Radius - Periods Atomic radius decreases as you move across a period Why? (-) electrons increase, but so do (+) protons !!! Increased (+) nuclear charge pulls the (-) electrons closer to the nucleus Atomic size decreases

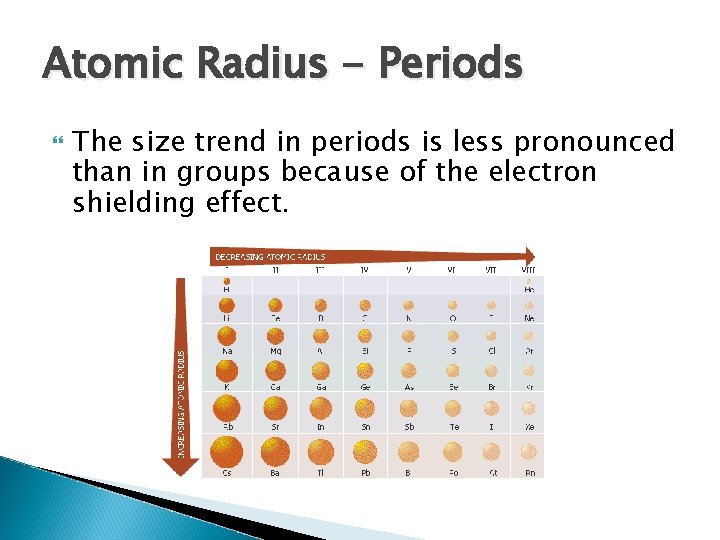

Atomic Radius - Periods The size trend in periods is less pronounced than in groups because of the electron shielding effect.

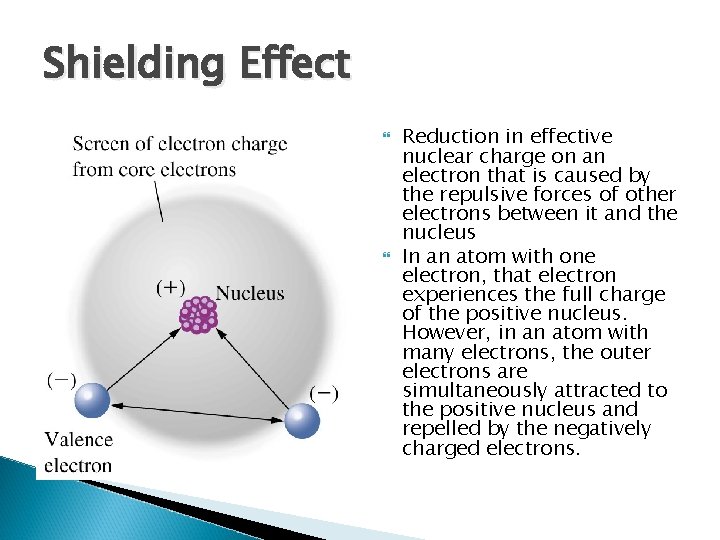

Shielding Effect Reduction in effective nuclear charge on an electron that is caused by the repulsive forces of other electrons between it and the nucleus In an atom with one electron, that electron experiences the full charge of the positive nucleus. However, in an atom with many electrons, the outer electrons are simultaneously attracted to the positive nucleus and repelled by the negatively charged electrons.

Atomic Radius - Graph

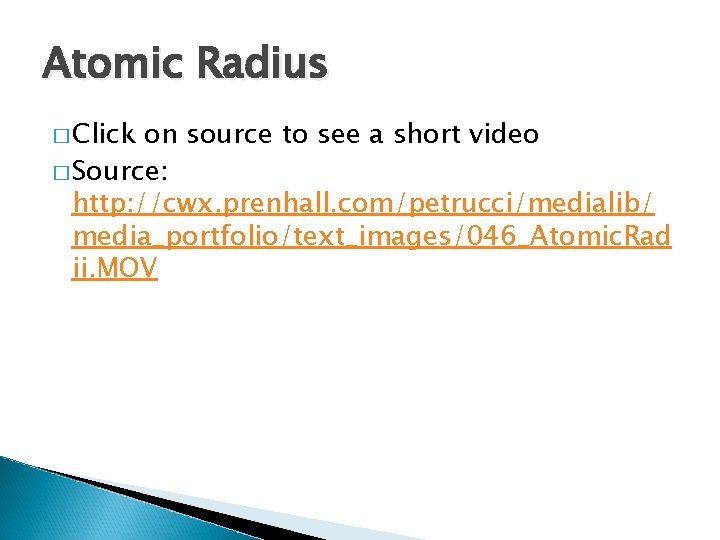

Atomic Radius � Click on source to see a short video � Source: http: //cwx. prenhall. com/petrucci/medialib/ media_portfolio/text_images/046_Atomic. Rad ii. MOV

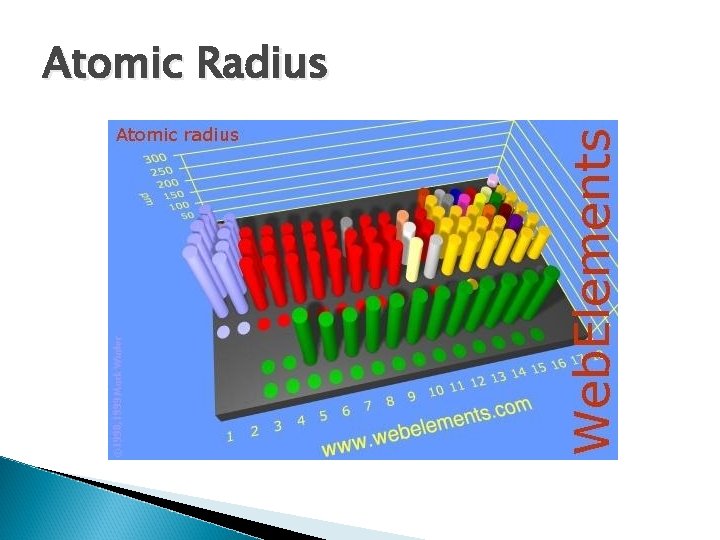

Atomic Radius

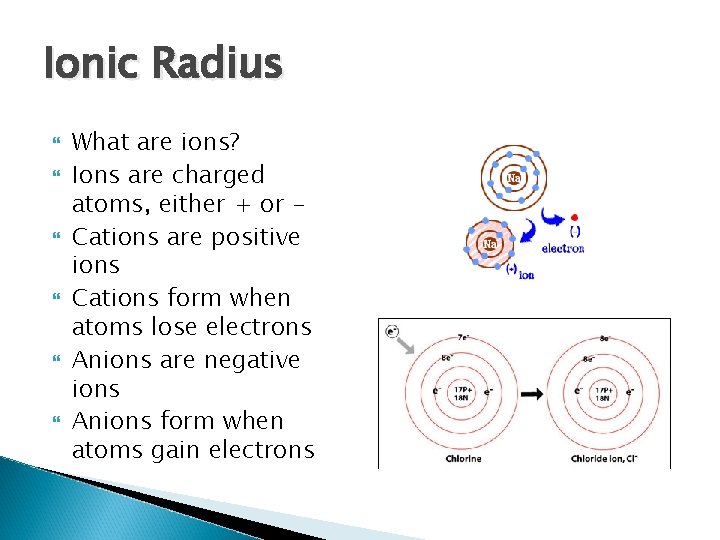

Ionic Radius What are ions? Ions are charged atoms, either + or Cations are positive ions Cations form when atoms lose electrons Anions are negative ions Anions form when atoms gain electrons

Ionic Radius

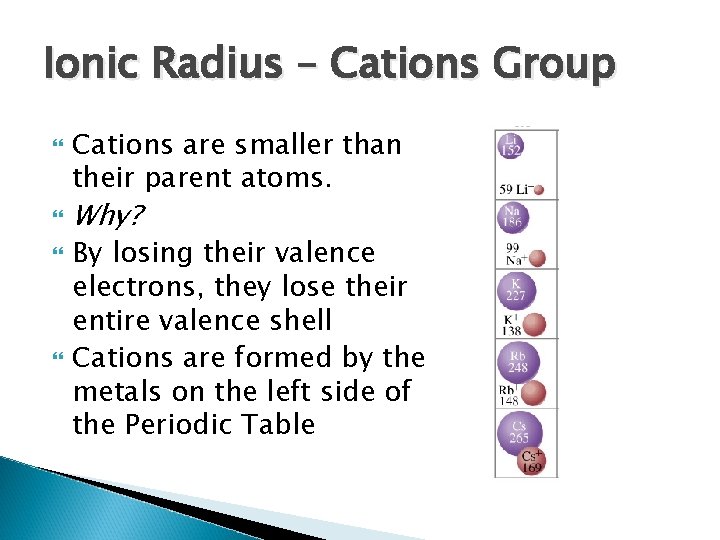

Ionic Radius – Cations Group Cations are smaller than their parent atoms. Why? By losing their valence electrons, they lose their entire valence shell Cations are formed by the metals on the left side of the Periodic Table

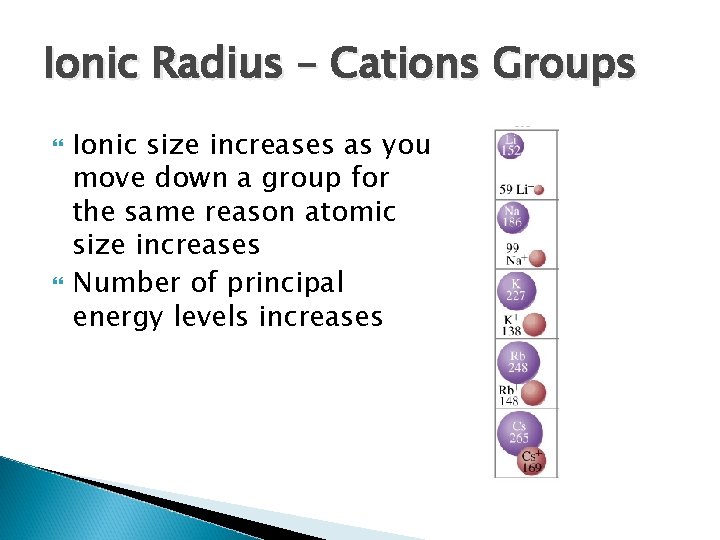

Ionic Radius – Cations Groups Ionic size increases as you move down a group for the same reason atomic size increases Number of principal energy levels increases

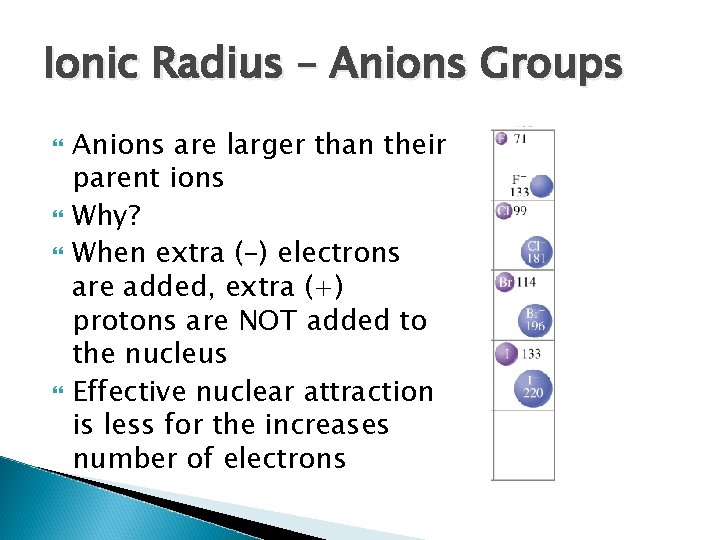

Ionic Radius – Anions Groups Anions are larger than their parent ions Why? When extra (-) electrons are added, extra (+) protons are NOT added to the nucleus Effective nuclear attraction is less for the increases number of electrons

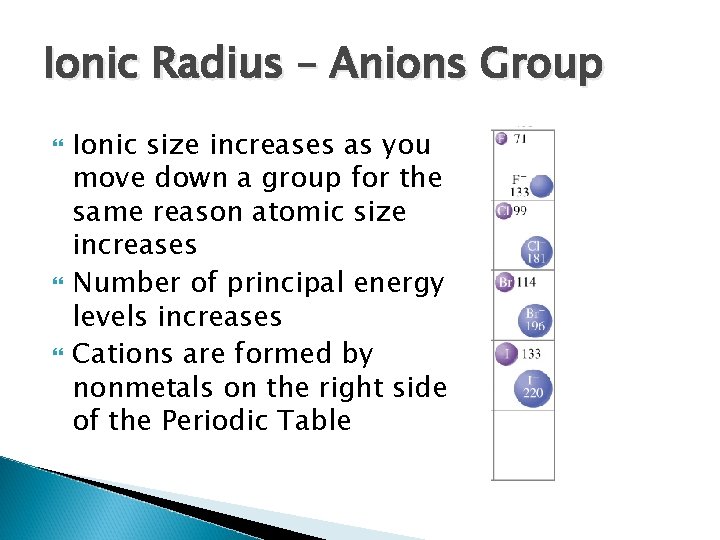

Ionic Radius – Anions Group Ionic size increases as you move down a group for the same reason atomic size increases Number of principal energy levels increases Cations are formed by nonmetals on the right side of the Periodic Table

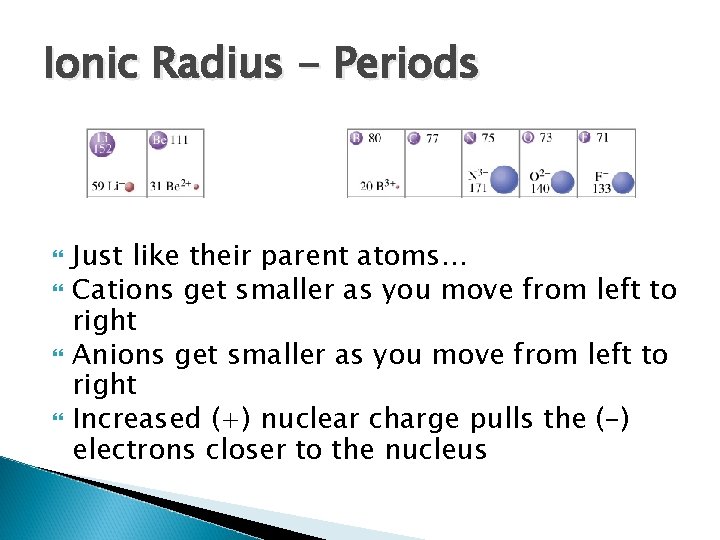

Ionic Radius - Periods Just like their parent atoms… Cations get smaller as you move from left to right Anions get smaller as you move from left to right Increased (+) nuclear charge pulls the (-) electrons closer to the nucleus

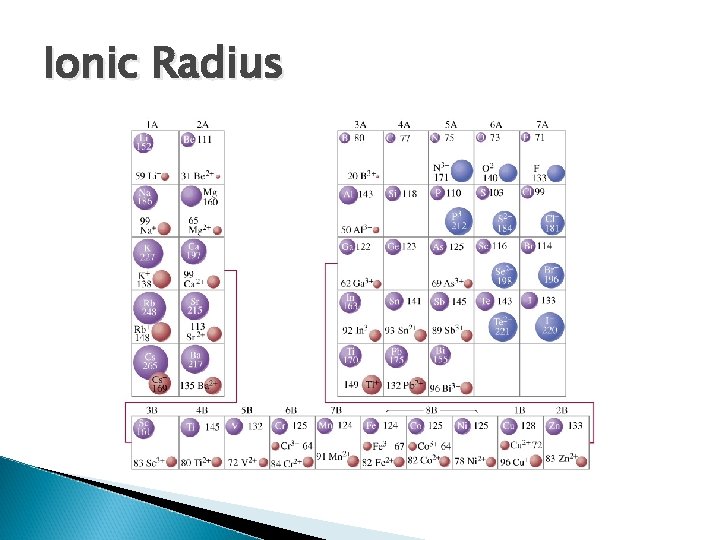

Ionic Radius

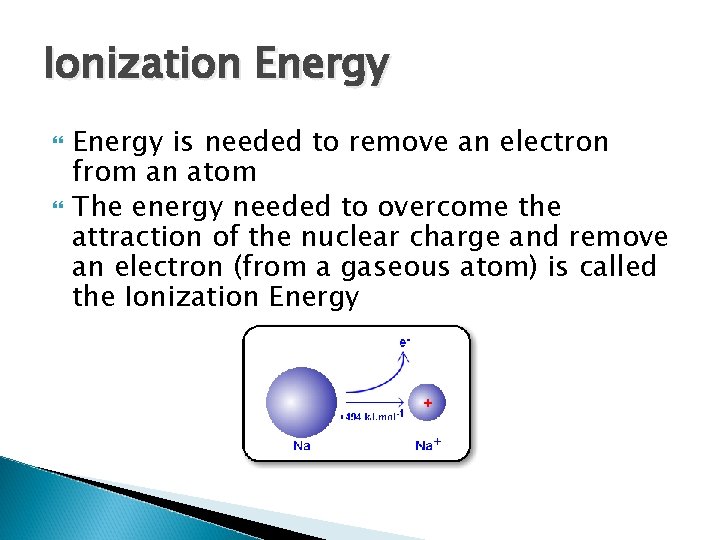

Ionization Energy is needed to remove an electron from an atom The energy needed to overcome the attraction of the nuclear charge and remove an electron (from a gaseous atom) is called the Ionization Energy

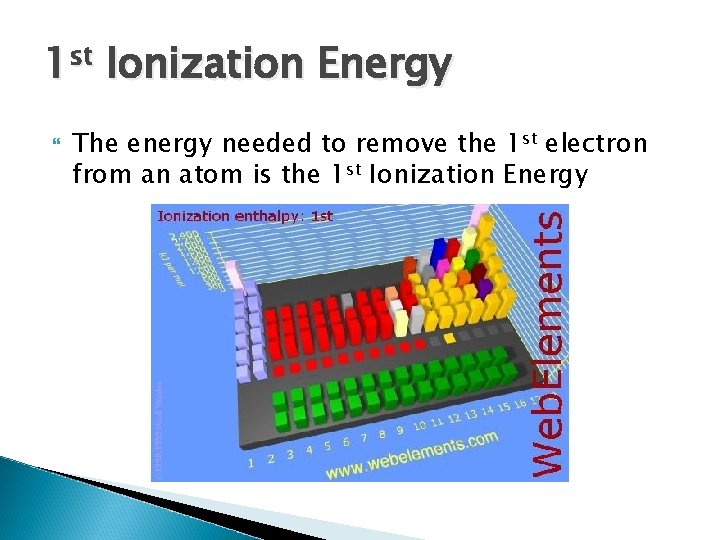

1 st Ionization Energy The energy needed to remove the 1 st electron from an atom is the 1 st Ionization Energy

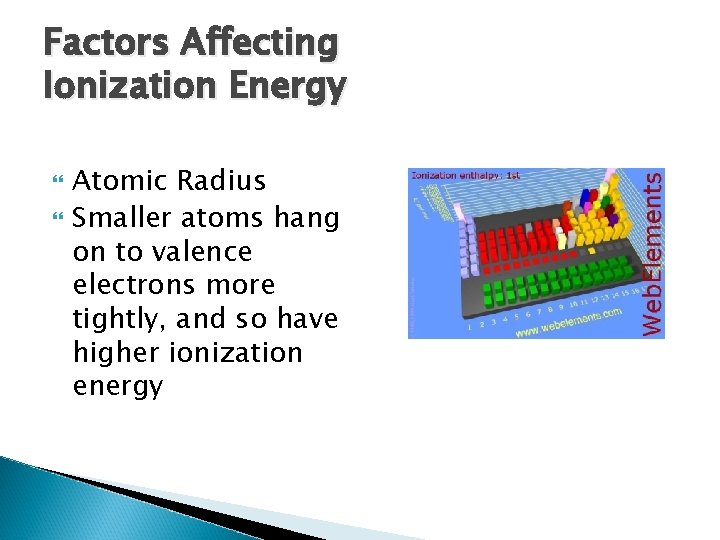

Factors Affecting Ionization Energy Atomic Radius Smaller atoms hang on to valence electrons more tightly, and so have higher ionization energy

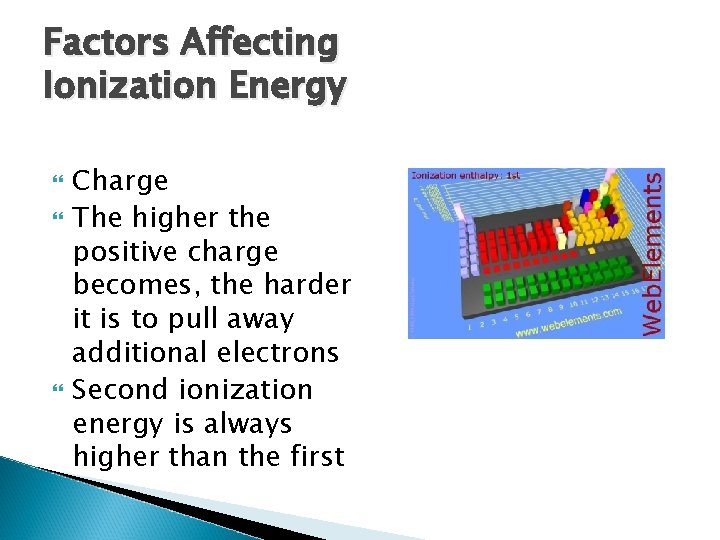

Factors Affecting Ionization Energy Charge The higher the positive charge becomes, the harder it is to pull away additional electrons Second ionization energy is always higher than the first

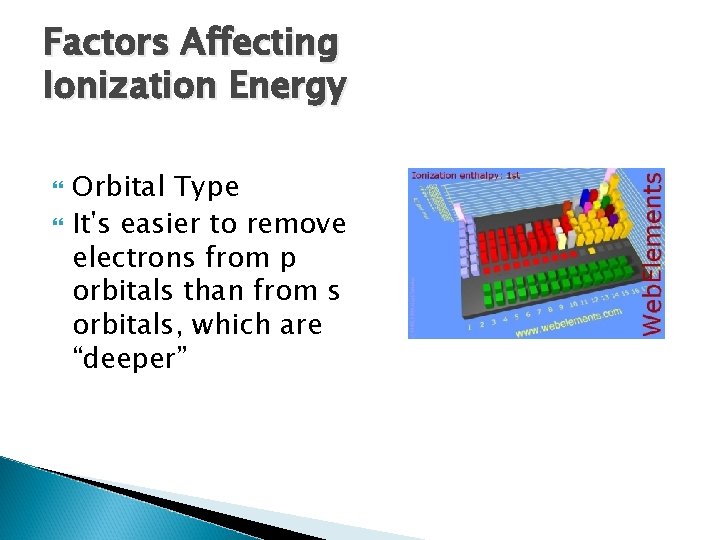

Factors Affecting Ionization Energy Orbital Type It's easier to remove electrons from p orbitals than from s orbitals, which are “deeper”

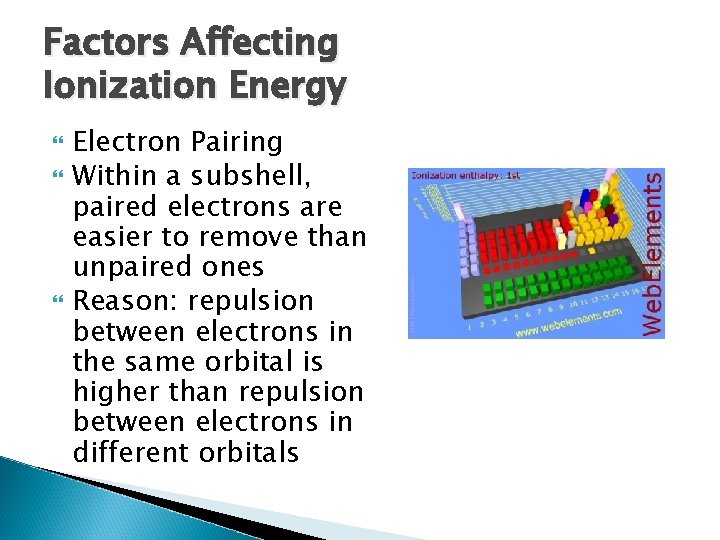

Factors Affecting Ionization Energy Electron Pairing Within a subshell, paired electrons are easier to remove than unpaired ones Reason: repulsion between electrons in the same orbital is higher than repulsion between electrons in different orbitals

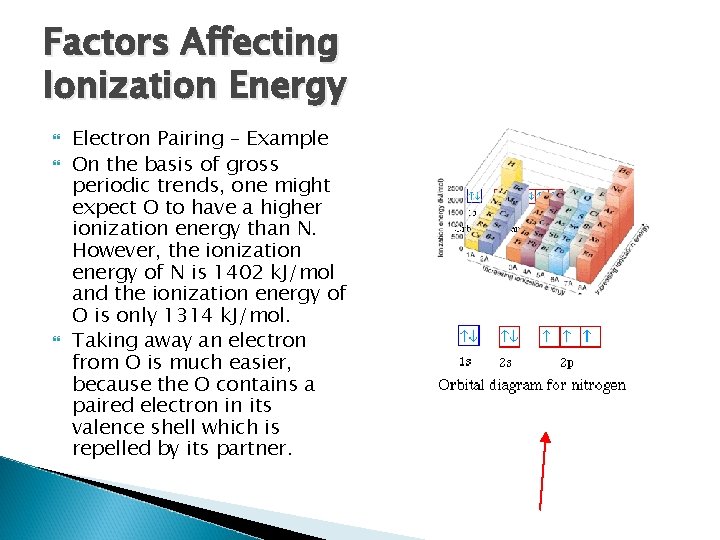

Factors Affecting Ionization Energy Electron Pairing – Example On the basis of gross periodic trends, one might expect O to have a higher ionization energy than N. However, the ionization energy of N is 1402 k. J/mol and the ionization energy of O is only 1314 k. J/mol. Taking away an electron from O is much easier, because the O contains a paired electron in its valence shell which is repelled by its partner.

1 st Ionization Energy

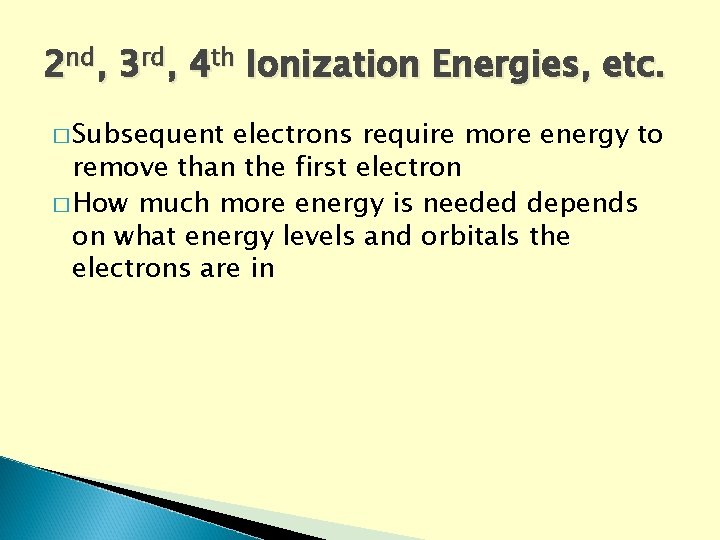

2 nd, 3 rd, 4 th Ionization Energies, etc. � Subsequent electrons require more energy to remove than the first electron � How much more energy is needed depends on what energy levels and orbitals the electrons are in

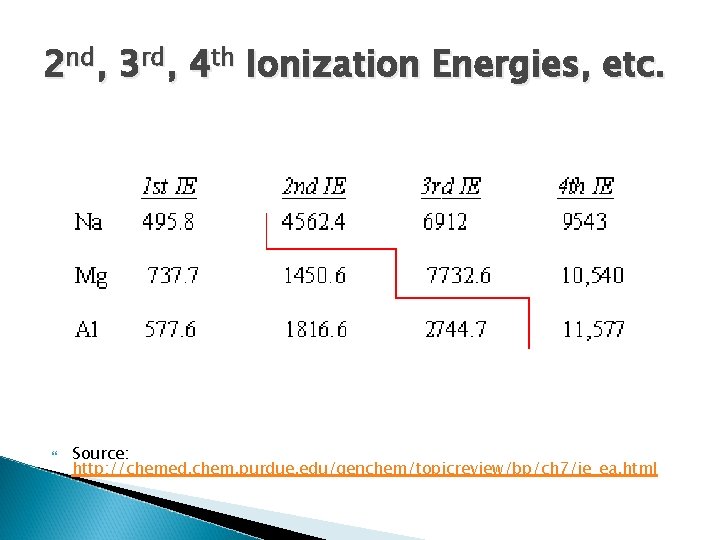

2 nd, 3 rd, 4 th Ionization Energies, etc. Source: http: //chemed. chem. purdue. edu/genchem/topicreview/bp/ch 7/ie_ea. html

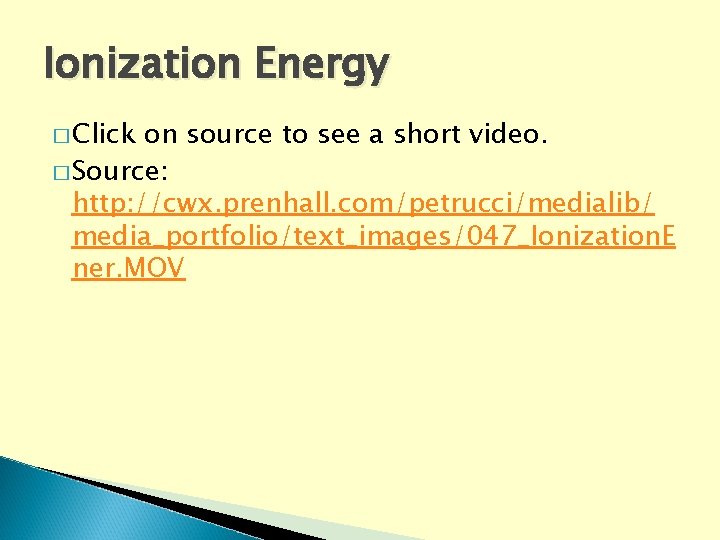

Ionization Energy � Click on source to see a short video. � Source: http: //cwx. prenhall. com/petrucci/medialib/ media_portfolio/text_images/047_Ionization. E ner. MOV

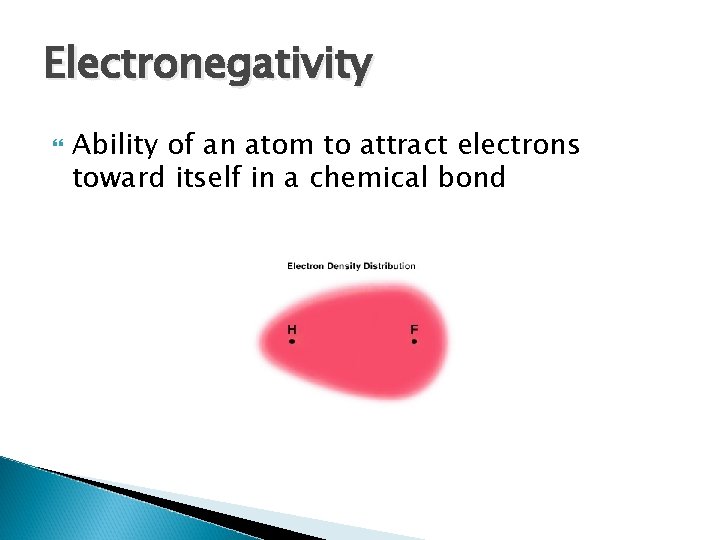

Electronegativity Ability of an atom to attract electrons toward itself in a chemical bond

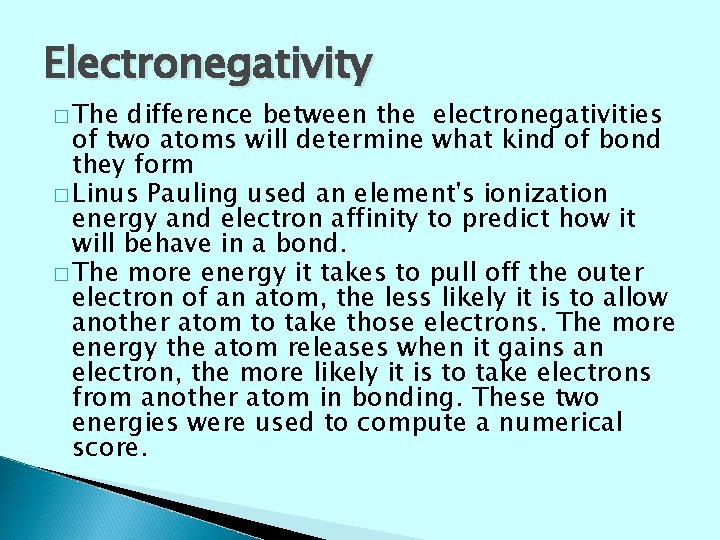

Electronegativity � The difference between the electronegativities of two atoms will determine what kind of bond they form � Linus Pauling used an element's ionization energy and electron affinity to predict how it will behave in a bond. � The more energy it takes to pull off the outer electron of an atom, the less likely it is to allow another atom to take those electrons. The more energy the atom releases when it gains an electron, the more likely it is to take electrons from another atom in bonding. These two energies were used to compute a numerical score.

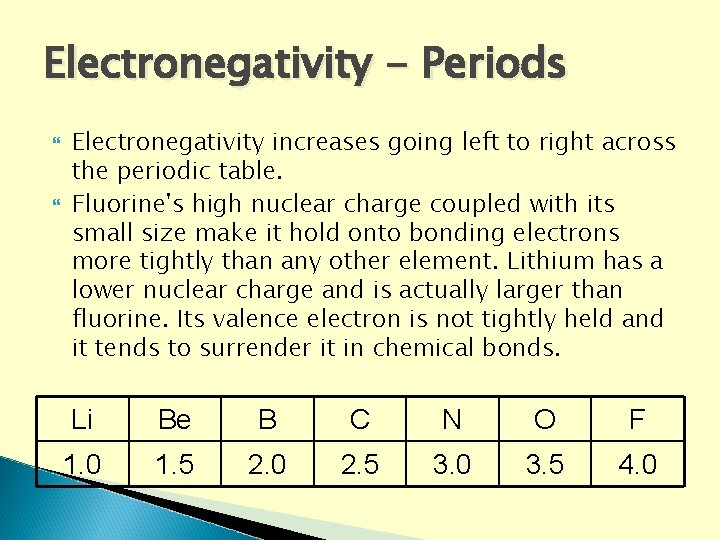

Electronegativity - Periods Electronegativity increases going left to right across the periodic table. Fluorine's high nuclear charge coupled with its small size make it hold onto bonding electrons more tightly than any other element. Lithium has a lower nuclear charge and is actually larger than fluorine. Its valence electron is not tightly held and it tends to surrender it in chemical bonds. Li Be B C N O F 1. 0 1. 5 2. 0 2. 5 3. 0 3. 5 4. 0

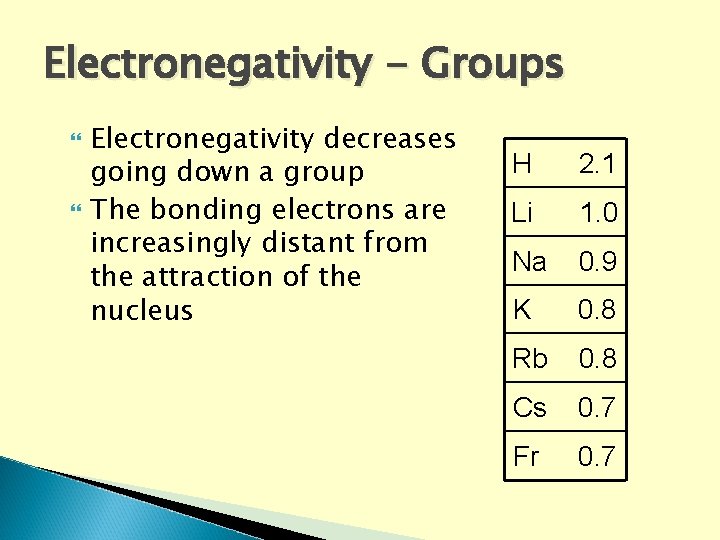

Electronegativity - Groups Electronegativity decreases going down a group The bonding electrons are increasingly distant from the attraction of the nucleus H 2. 1 Li 1. 0 Na 0. 9 K 0. 8 Rb 0. 8 Cs 0. 7 Fr 0. 7

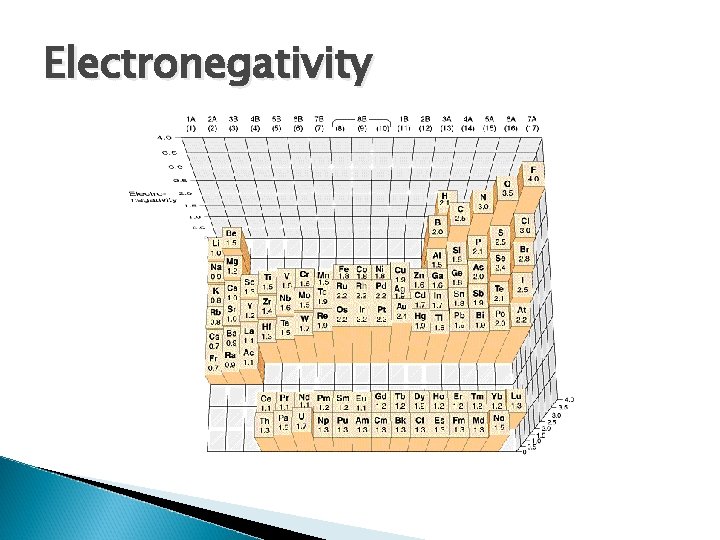

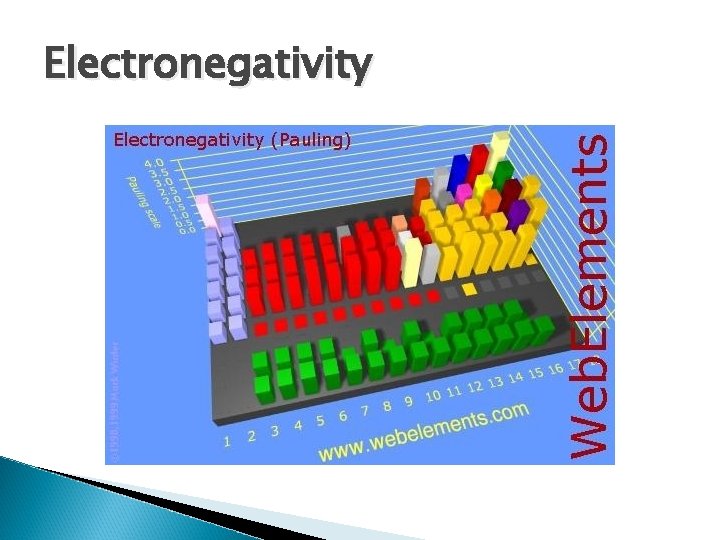

Electronegativity

Electronegativity

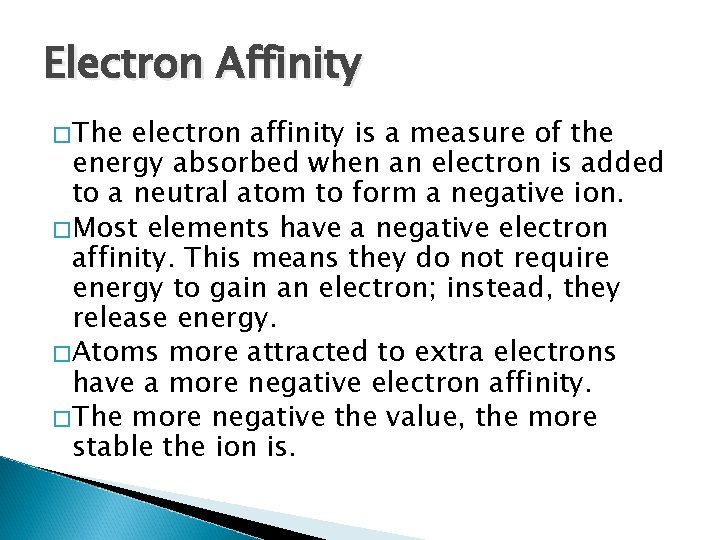

Electron Affinity �The electron affinity is a measure of the energy absorbed when an electron is added to a neutral atom to form a negative ion. �Most elements have a negative electron affinity. This means they do not require energy to gain an electron; instead, they release energy. �Atoms more attracted to extra electrons have a more negative electron affinity. �The more negative the value, the more stable the ion is.

Electron Affinity � Click on source to see a short video. � Source: http: //cwx. prenhall. com/petrucci/medialib/ media_portfolio/text_images/049_Electr. Affini ty. MOV

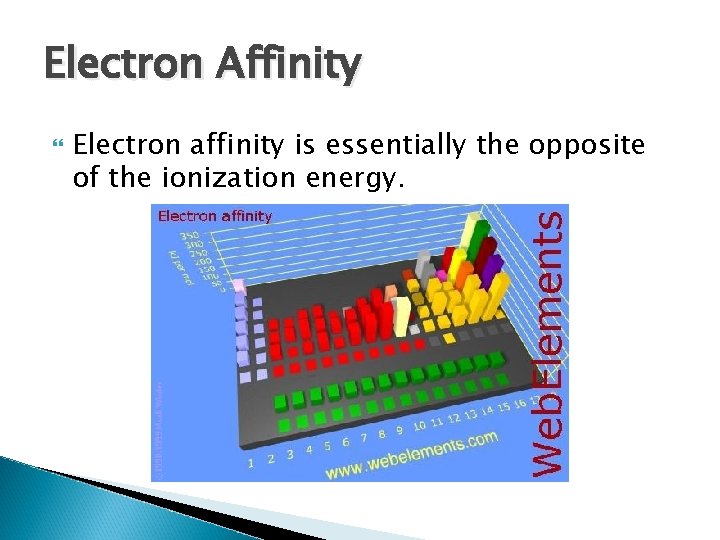

Electron Affinity Electron affinity is essentially the opposite of the ionization energy.

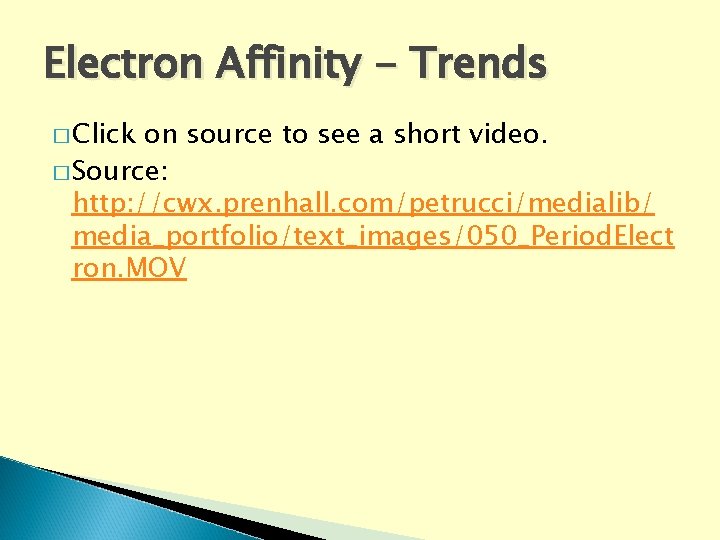

Electron Affinity - Trends � Click on source to see a short video. � Source: http: //cwx. prenhall. com/petrucci/medialib/ media_portfolio/text_images/050_Period. Elect ron. MOV

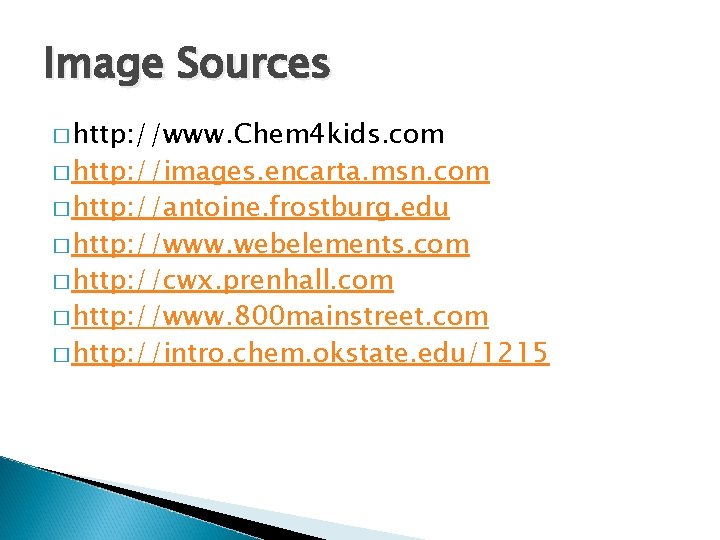

Image Sources � http: //www. Chem 4 kids. com � http: //images. encarta. msn. com � http: //antoine. frostburg. edu � http: //www. webelements. com � http: //cwx. prenhall. com � http: //www. 800 mainstreet. com � http: //intro. chem. okstate. edu/1215
