PERFORMANCE OF RECIPROCATING COMPRESSOR By MOH ARIS ASARI
PERFORMANCE OF RECIPROCATING COMPRESSOR By MOH. ARIS AS’ARI, S. Pd Visit us on : refacsmkn 1 cirebon. wordpress. com stay cool and always confident
RECIPROCATING COMPRESSOR Piston Displacement (Vp) Volumetric Efficiency (Ve) Compression Ratio (CR) Refrigerating Effect ( RE / qe ) Latent heat of vaporization (qlv ) Loss of Refrigeration Effect (qx ) Heat of Compression (qw ) Heat of Condensation Theoretical power (Thp) Coefficient of Performance (C. O. P)
Piston Displacement (Vp) § Piston Displacement adalah jumlah gas refrigeran yang dapat dikompresi dan dipindahkan oleh torak pada saat toraknya melangkah dari TMB ke TMA. Dimana: Di mana : Vp : Compressor displacement (cfm) D : Diameter piston (in) L : Langkah piston (in) n : Jumlah piston N : Putaran kompresor (rpm)

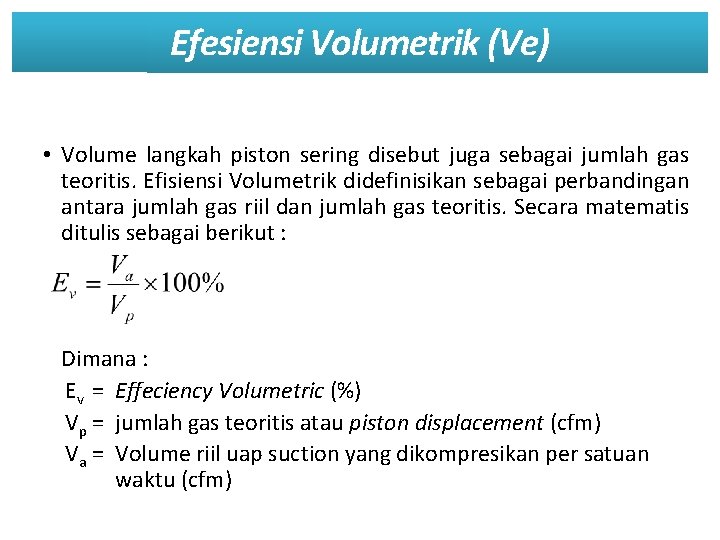

Efesiensi Volumetrik (Ve) • Volume langkah piston sering disebut juga sebagai jumlah gas teoritis. Efisiensi Volumetrik didefinisikan sebagai perbandingan antara jumlah gas riil dan jumlah gas teoritis. Secara matematis ditulis sebagai berikut : Dimana : Ev = Effeciency Volumetric (%) Vp = jumlah gas teoritis atau piston displacement (cfm) Va = Volume riil uap suction yang dikompresikan per satuan waktu (cfm)

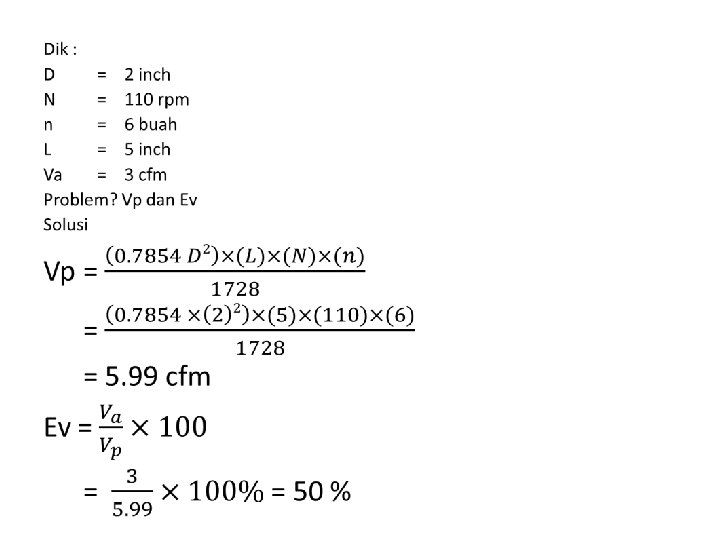

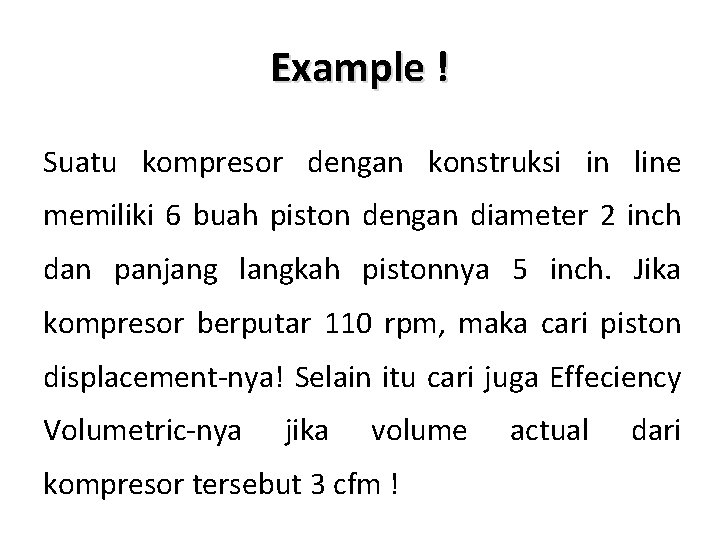

Example ! Suatu kompresor dengan konstruksi in line memiliki 6 buah piston dengan diameter 2 inch dan panjang langkah pistonnya 5 inch. Jika kompresor berputar 110 rpm, maka cari piston displacement-nya! Selain itu cari juga Effeciency Volumetric-nya jika volume kompresor tersebut 3 cfm ! actual dari

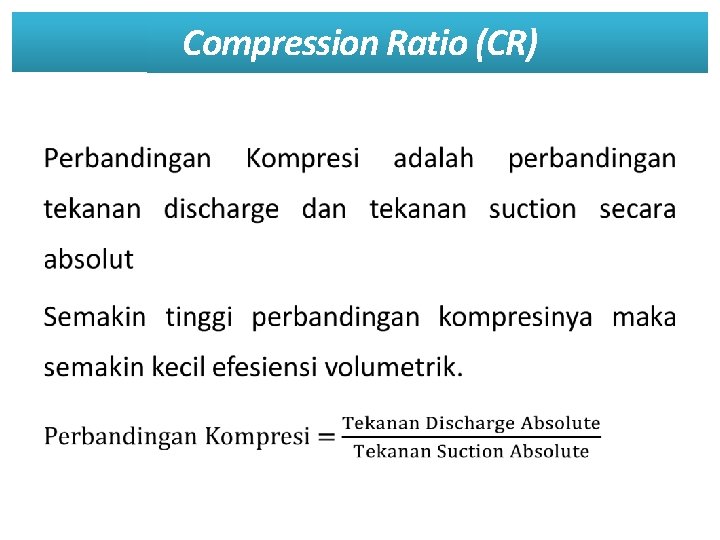

Compression Ratio (CR) •

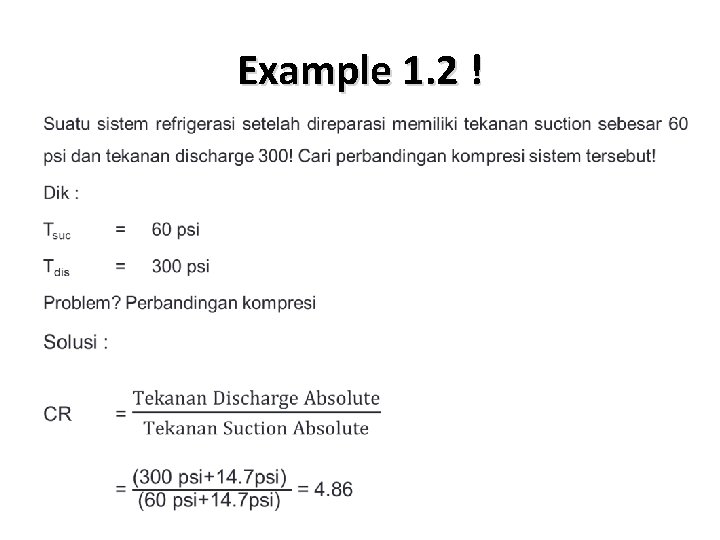

Example 1. 2 ! •

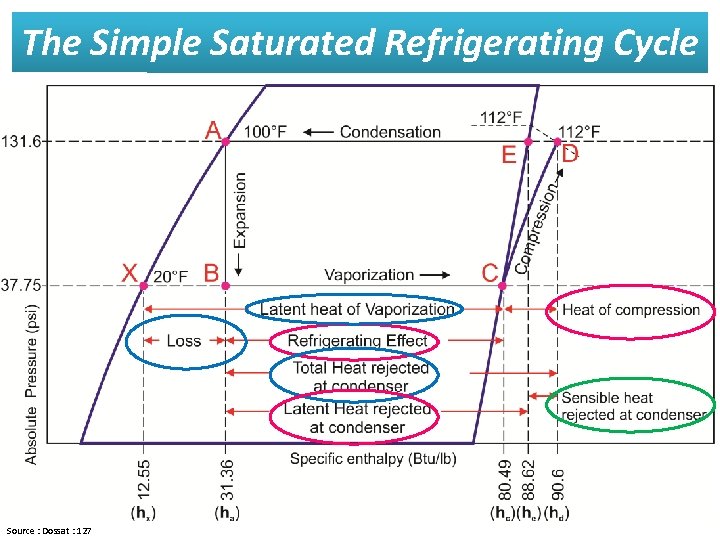

The Simple Saturated Refrigerating Cycle Source : Dossat : 127

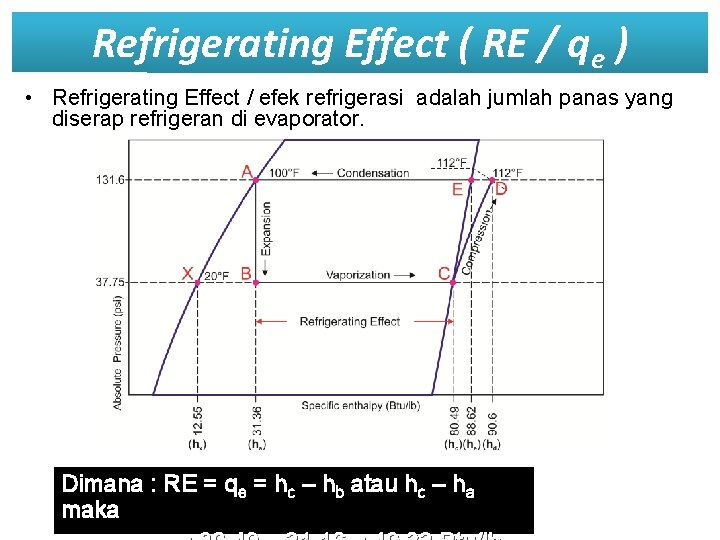

Refrigerating Effect ( RE / qe ) • Refrigerating Effect / efek refrigerasi adalah jumlah panas yang diserap refrigeran di evaporator. Dimana : RE = qe = hc – hb atau hc – ha maka

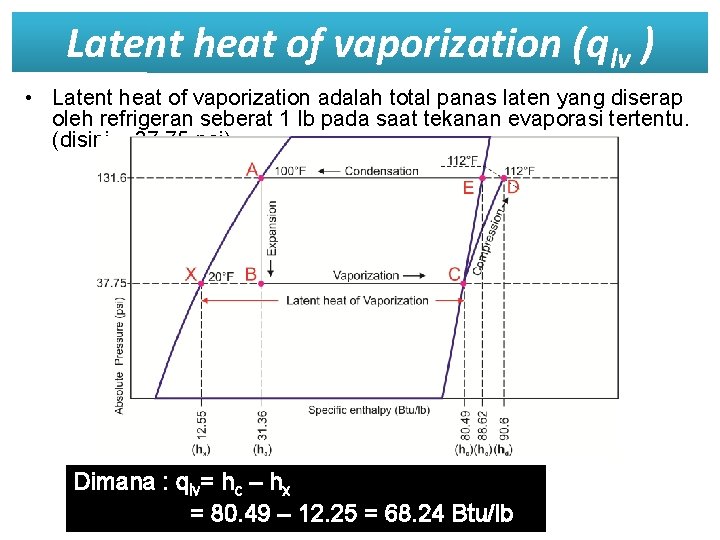

Latent heat of vaporization (qlv ) • Latent heat of vaporization adalah total panas laten yang diserap oleh refrigeran seberat 1 lb pada saat tekanan evaporasi tertentu. (disini = 37. 75 psi) Dimana : qlv= hc – hx = 80. 49 – 12. 25 = 68. 24 Btu/lb

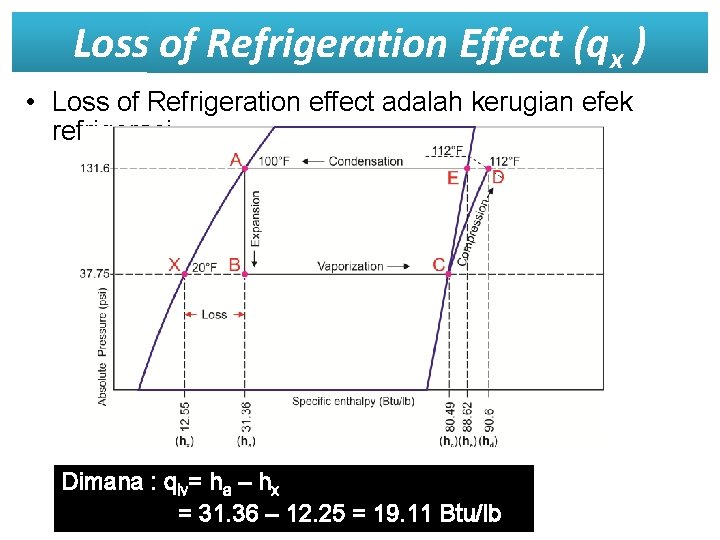

Loss of Refrigeration Effect (qx ) • Loss of Refrigeration effect adalah kerugian efek refrigerasi. Dimana : qlv= ha – hx = 31. 36 – 12. 25 = 19. 11 Btu/lb

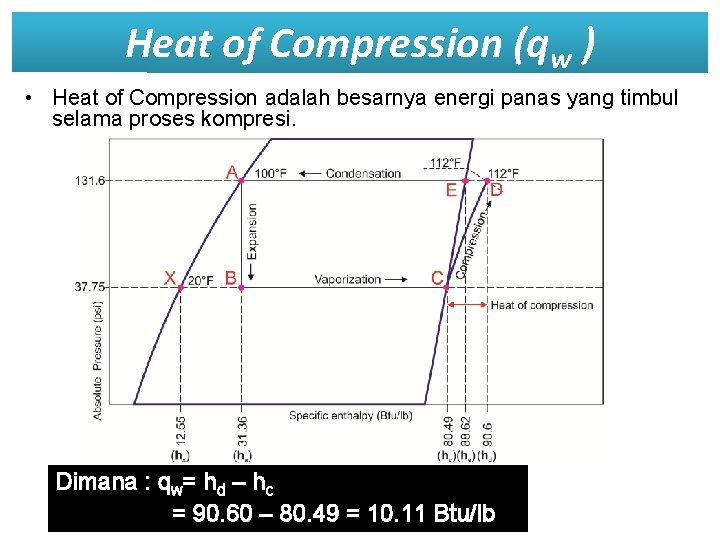

Heat of Compression (qw ) • Heat of Compression adalah besarnya energi panas yang timbul selama proses kompresi. Dimana : qw= hd – hc = 90. 60 – 80. 49 = 10. 11 Btu/lb

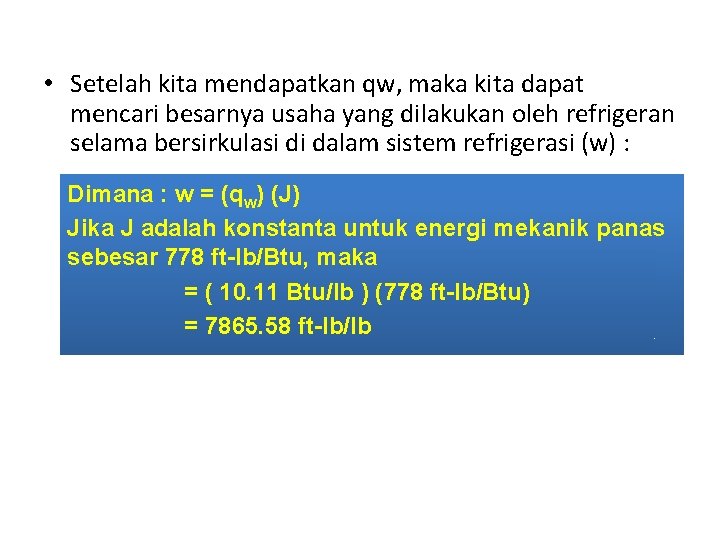

• Setelah kita mendapatkan qw, maka kita dapat mencari besarnya usaha yang dilakukan oleh refrigeran selama bersirkulasi di dalam sistem refrigerasi (w) : Dimana : w = (qw) (J) Jika J adalah konstanta untuk energi mekanik panas sebesar 778 ft-lb/Btu, maka = ( 10. 11 Btu/lb ) (778 ft-lb/Btu) = 7865. 58 ft-lb/lb

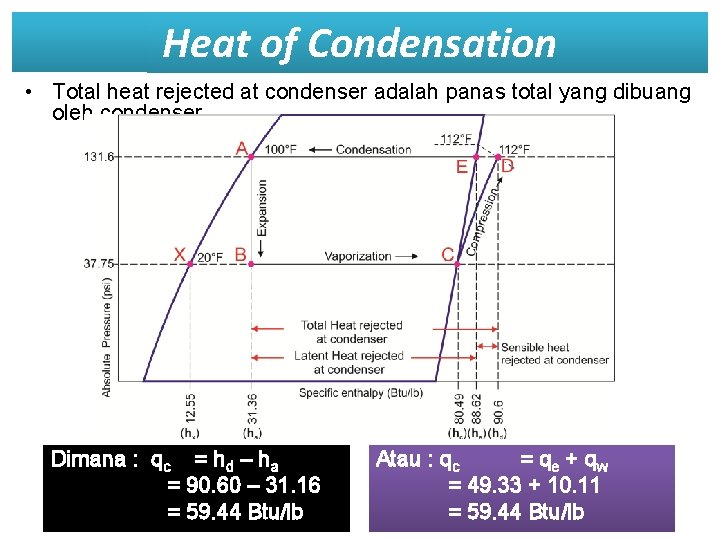

Heat of Condensation • Total heat rejected at condenser adalah panas total yang dibuang oleh condenser. Dimana : qc = hd – ha = 90. 60 – 31. 16 = 59. 44 Btu/lb Atau : qc = qe + q w = 49. 33 + 10. 11 = 59. 44 Btu/lb

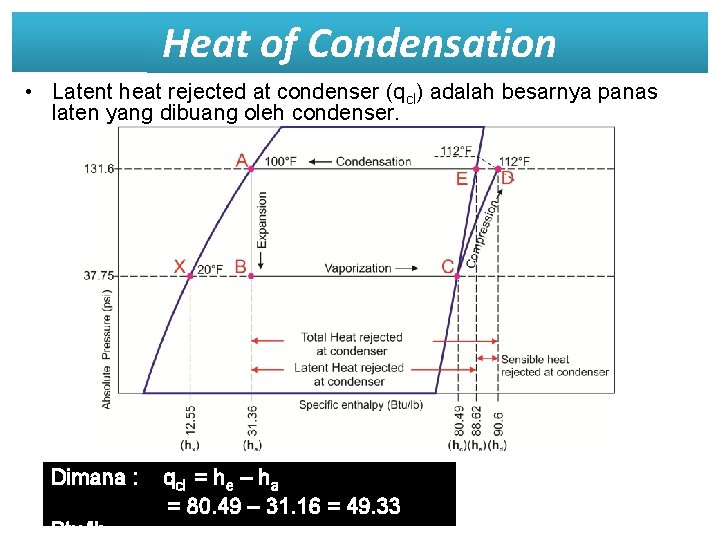

Heat of Condensation • Latent heat rejected at condenser (qcl) adalah besarnya panas laten yang dibuang oleh condenser. Dimana : Btu/lb qcl = he – ha = 80. 49 – 31. 16 = 49. 33

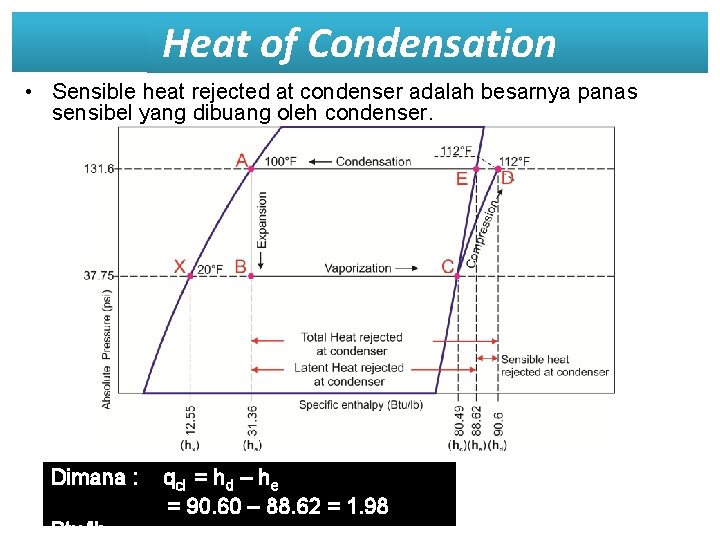

Heat of Condensation • Sensible heat rejected at condenser adalah besarnya panas sensibel yang dibuang oleh condenser. Dimana : Btu/lb qcl = hd – he = 90. 60 – 88. 62 = 1. 98

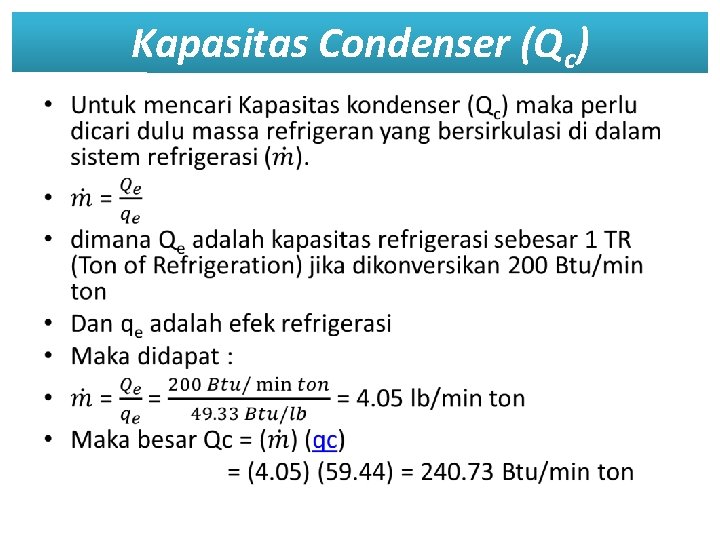

Kapasitas Condenser (Qc) •

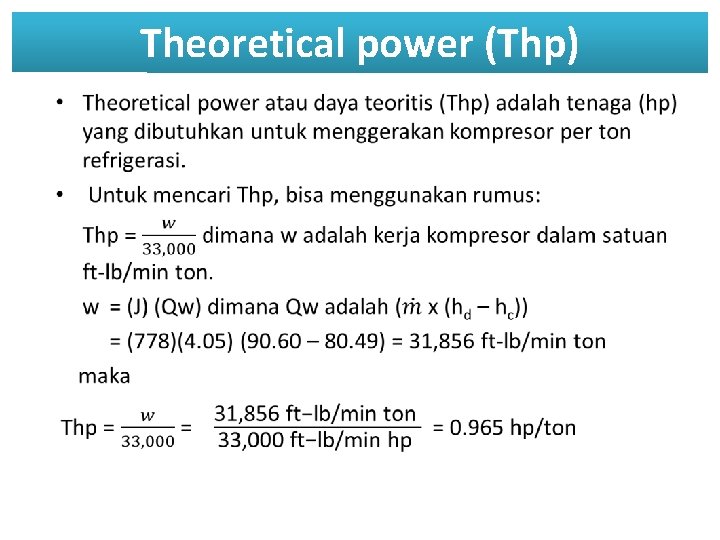

Theoretical power (Thp) •

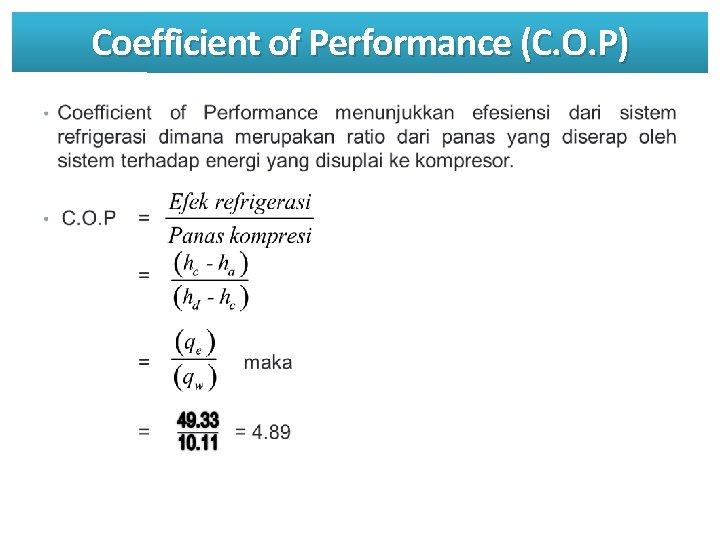

Coefficient of Performance (C. O. P) •

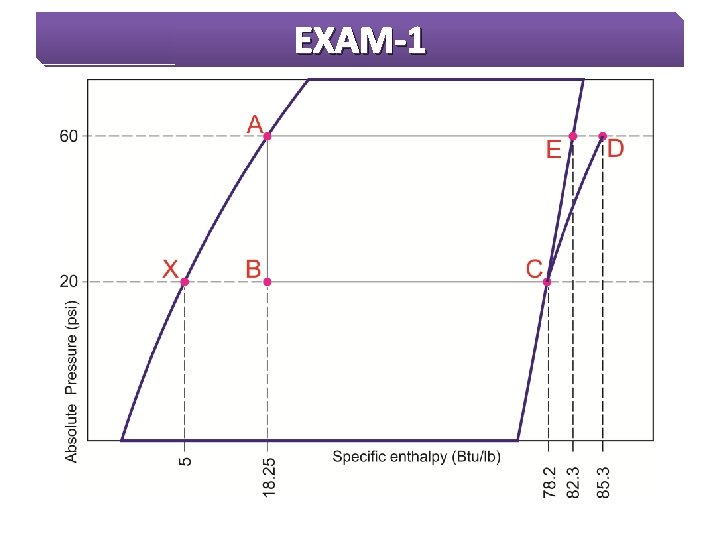

EXAM-1

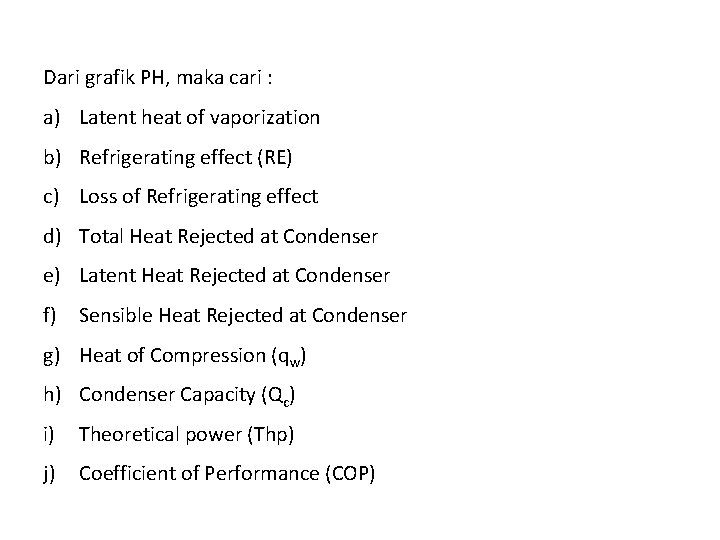

Dari grafik PH, maka cari : a) Latent heat of vaporization b) Refrigerating effect (RE) c) Loss of Refrigerating effect d) Total Heat Rejected at Condenser e) Latent Heat Rejected at Condenser f) Sensible Heat Rejected at Condenser g) Heat of Compression (qw) h) Condenser Capacity (Qc) i) Theoretical power (Thp) j) Coefficient of Performance (COP)

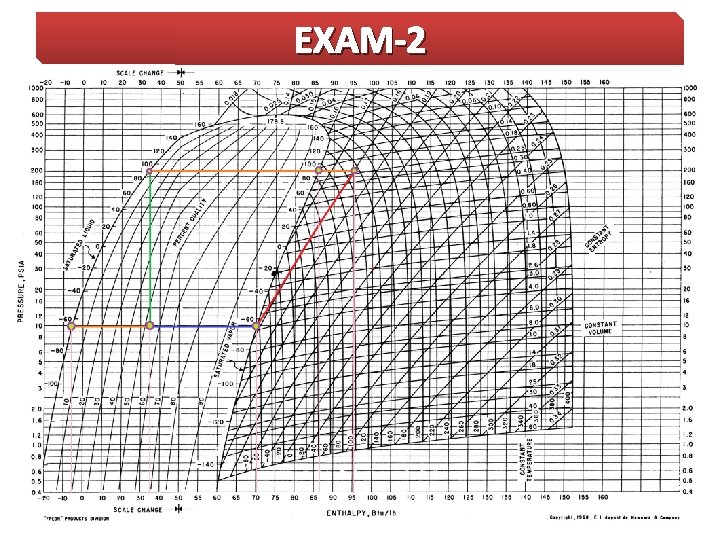

EXAM-2
Dari grafik PH, maka cari : a) Latent heat of vaporization b) Refrigerating effect (RE) c) Loss of Refrigerating effect d) Total Heat Rejected at Condenser e) Latent Heat Rejected at Condenser f) Sensible Heat Rejected at Condenser g) Heat of Compression (qw) h) Condenser Capacity (Qc) i) Theoretical power (Thp) j) Coefficient of Performance (COP)
