Performance of G H Link Genkai Hyeonhae Workshop

Performance of G / H Link Genkai / Hyeonhae Workshop in Fukuoka Feb. 27, 2003 Masaki Hirabaru masaki@isit. or. jp ISIT and Genkai

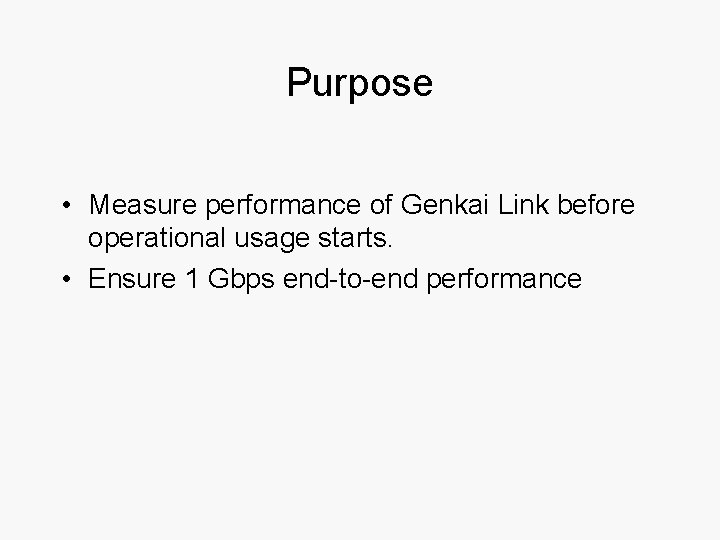

Purpose • Measure performance of Genkai Link before operational usage starts. • Ensure 1 Gbps end-to-end performance

Genkai / Hyeonhae Project Network Seoul XP Seoul Korea 2. 5 G Daejon KOREN 0. 3 G Taegu 0. 3 G Kwangju Busan 250 KJC ㎞ N 0. 15 G x 3 1 Gx 2 2. 5 G SONET Shimonoseki Kitakyushu Fukuoka Super SINET 1 Gx 2 Genkai XP QGPOP 1 G 0. 6 G APAN Tokyo XP Fukuoka Pref. Japan

Genkai Network Configuration at L 3 (February 26, 2002) Tokyo XP (KDDI Otemachi) Busan XP AS 7660 AS 9270 tpr 3 Cisco GSR 169 ATM/OC 12 161 203. 181. 249. 160/29 3 ffe: 8140: 101: 1 a: : /64 tpr 2 106 (IPv 4) 3 (IPv 6) 194 203. 181. 249. 104/30 203. 181. 249. 184/29 3 ffe: 8140: 101: 16: : /64 3 ffe: 8140: 101: 19: : /64 203. 181. 249. 168/29 3 ffe: 8140: 101: 17: : /64 170 Gb. E 203. 181. 248. 192/30 162 Gb. E fidcjuniper 185 apiijuniper AS 7660 ATM/OC 3 105 177 203. 181. 249. 176/29 133. 69. 164. 0/28 178 3 ffe: 8140: 101: 18: : /64 2001: 248: 180: 780: : /64 13 Gb. E AS 2523 133. 69. 152. 0/26 2001: 248: 180: 300: : /64 Genkai XP (Meinohama) FE 12 Gb. E momochi. IIJ dc-juniper AS 2497 Kyushu U AS 2523 193 6 hakozakicisco 2 15 hakozakijuniper FE Gb. E IMNET AS 2513 Super SINET AS 2907

Genkai Network Test #1: Router. Tester Cisco GSR Gb. E/SX 1 G x 2 Converter STM-16 Busan Throughput and Latency 2. 5 G Packet Size (byte) Converter 1 G x 2 Gb. E/T 5 it 1 G x 2 Gb. E/SX Juniper M 10 1 G x 2 5 it Gb. E/SX Fukuoka Gb. E/SX FI 4802 1 G x 2 Router. Tester Gb. E/SX A (red) B (orange) (Mbps / ms)* 250 834 / 0. 328 832 / 0. 120 500 895 / 0. 408 902 / 0. 213 1000 933 / 0. 383 945 / 0. 202 1500 944 / 0. 476 957 / 0. 285 *Max Throughput / Average Latency ** No packet losses

Genkai Network Test #2: Router. Tester Throughput (Mbps)* Cisco GSR Gb. E/SX Packet Size (byte) 1 G x 2 Converter STM-16 Busan 2. 5 G Converter 1 G x 2 Gb. E/T Juniper M 10 1 G x 2 5 it Gb. E/SX (IPv 4 / IPv 6) 250 833 / 832 850 / 850 500 896 / 895 915 / 915 1000 931 / 931 950 / 950 1500 943 / 943 961 / 961 1 G x 2 Gb. E/SX B (orange) *Max Throughput 5 it Juniper M 10 A (red) Latency (ms)* Fukuoka Gb. E/SX FI 4802 1 G x 2 Router. Tester Gb. E/SX Packet Size (byte) A (red) B (orange) (IPv 4 / IPv 6) 250 0. 209 / 0. 209 0. 002 / 0. 002 500 0. 196 / 0. 196 0. 003 / 0. 003 1000 0. 190 / 0. 189 0. 004 / 0. 004 1500 0. 187 / 0. 187 0. 004 / 0. 004 *Average Latency

Genkai Network Test #3: Iperf Throughput Cisco GSR Gb. E/SX 1 G x 2 Converter STM-16 Busan UDP (1470) 840 915 TCP (256 K) 172 158 TCP (2 M) 740 517 1 G x 2 Gb. E/T kou devil 5 it Gb. E/SX PC Spec 1 G x 2 Juniper M 10 1 G x 2 5 it B (orange) (Mbps) 2. 5 G Converter Gb. E/SX A (red) (Mbps) Fukuoka Gb. E/SX FI 4802 devil 203. 181. 249. 166 Dell Poweredge 1550 Linux 2. 4. 18 -SMP (RH 8. 0) CPU P 3 (Xeon) 860 MHz x 2 Memory 512 Mbyte Alteon(Tigon 2) 64 bit / 66 MHz kou 203. 181. 249. 174 Kitatsuji Linux 2. 4. 18 (RH 8. 0) CPU P 4 2. 4 GHz Memory 2 Gbyte 3 C 996 B-T(Tigon 3) 64 bit / 100 MHz

Genkai Network Test #4: Iperf Throughput Cisco GSR Gb. E/SX 1 G x 2 Converter STM-16 Busan UDP (1470) 839 903 TCP (256 K) 746 748 TCP (2 M) 790 812 1 G x 2 Gb. E/T kou devil 5 it Gb. E/SX 1 G x 2 Juniper M 10 1 G x 2 5 it B (orange) (Mbps) 2. 5 G Converter Gb. E/SX A (red) (Mbps) Fukuoka Gb. E/SX FI 4802 * udp: packet loss < 1%

Genkai Network Test #5: Iperf Gb. E/SX 1 G x 2 Converter STM-16 2. 5 G 1 G x 2 Gb. E/T kou Gb. E/SX 641 / 490 642 / 490 TCP (256 K) 369 / 320 352 / 290 TCP (2 M) 551 / 379 574 / 391 * udp: packet loss < 1% 1 G x 2 Juniper M 10 1 G x 2 Fukuoka PC Spec Gb. E/SX FI 4802 B (orange) Busan / Busan UDP (1470) devil 5 it A (red) Busan / Busan Converter Gb. E/SX Throughput ps-mgmt Cisco GSR ps-mgmt 203. 255. 251. 26 JH Lee Free. BSD 4. 6 CPU P 3 (Xeon) 700 MHz Memory 256 Mbyte Broadcom(Tigon 3) ? ? bit / ? ? MHz

Detecting Traffic Peaks Traffic Data of apii-juniper. qgpop. net at Genkai (ge-0/1/0. 1)

Summary • • • Free. BSD 4. 7 didn’t work well with some Gb. E cards. Linux 2. 4 works well. Iperf 1. 6. 5 is not well coded. (I needed to modify) Scripts to find the best parameters (automated). Every 10 seconds SNMP polling (too fast? ) Long term rrdtool records (from IU) ATM performance test by APAN Tokyo XP Next steps: IPv 6, Multicast Other measurements: IPv 4 / v 6 ping, hops, routes • Available at http: //mrtg. qgpop. net
