PENYAMBUNGAN KABEL PILCDSTAS Oleh RAIS BIN MAAT Institut

PENYAMBUNGAN KABEL PILCDSTAS Oleh: RAIS BIN MA’AT Institut Latihan dan Pembangunan Infrastruktur Ikram 6/4/2021 ITi. Di 1

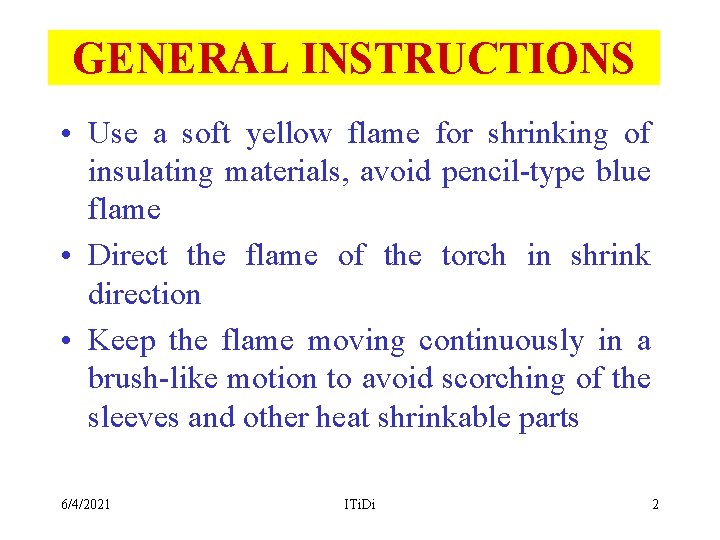

GENERAL INSTRUCTIONS • Use a soft yellow flame for shrinking of insulating materials, avoid pencil-type blue flame • Direct the flame of the torch in shrink direction • Keep the flame moving continuously in a brush-like motion to avoid scorching of the sleeves and other heat shrinkable parts 6/4/2021 ITi. Di 2

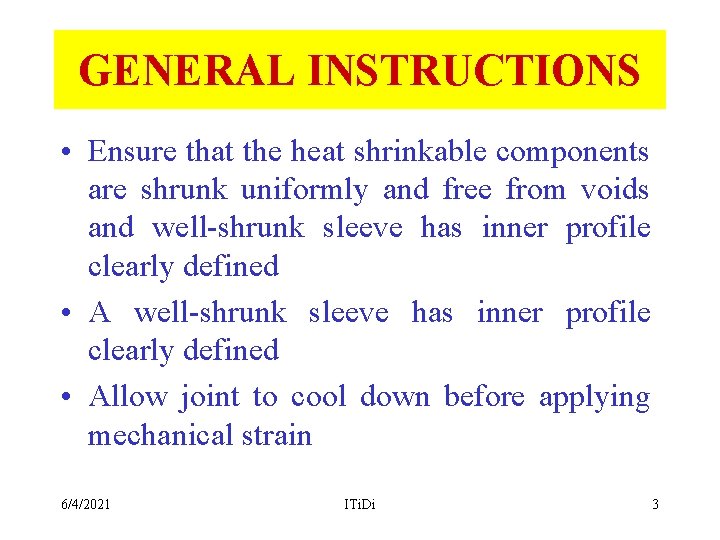

GENERAL INSTRUCTIONS • Ensure that the heat shrinkable components are shrunk uniformly and free from voids and well-shrunk sleeve has inner profile clearly defined • Allow joint to cool down before applying mechanical strain 6/4/2021 ITi. Di 3

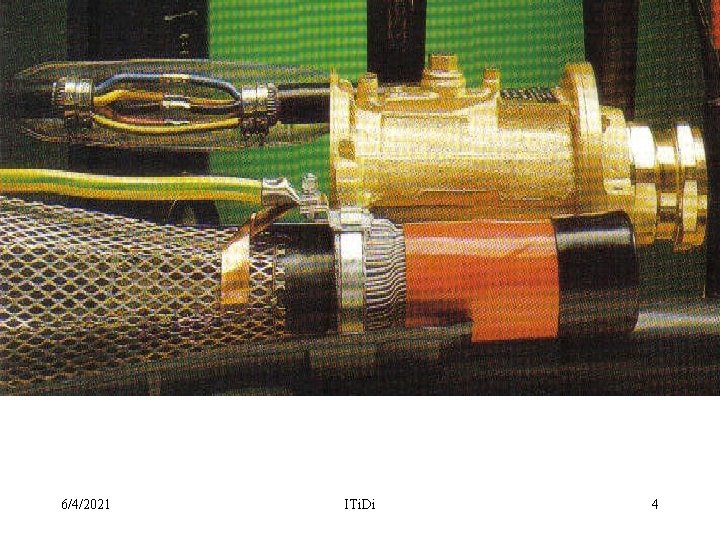

6/4/2021 ITi. Di 4

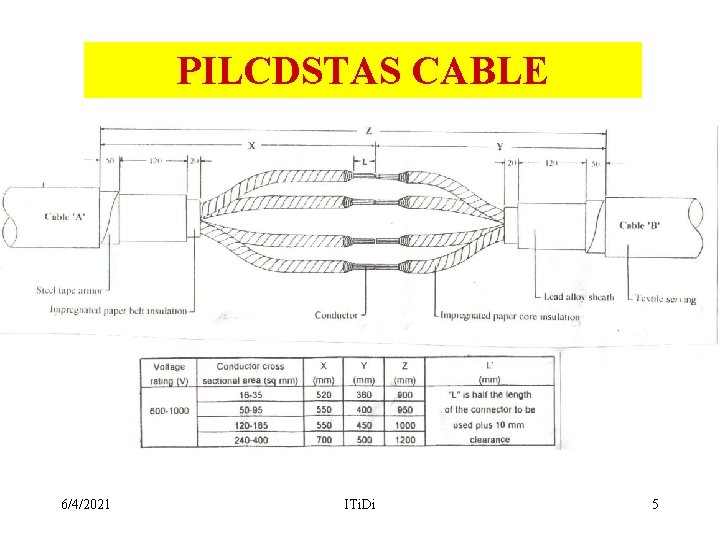

PILCDSTAS CABLE 6/4/2021 ITi. Di 5

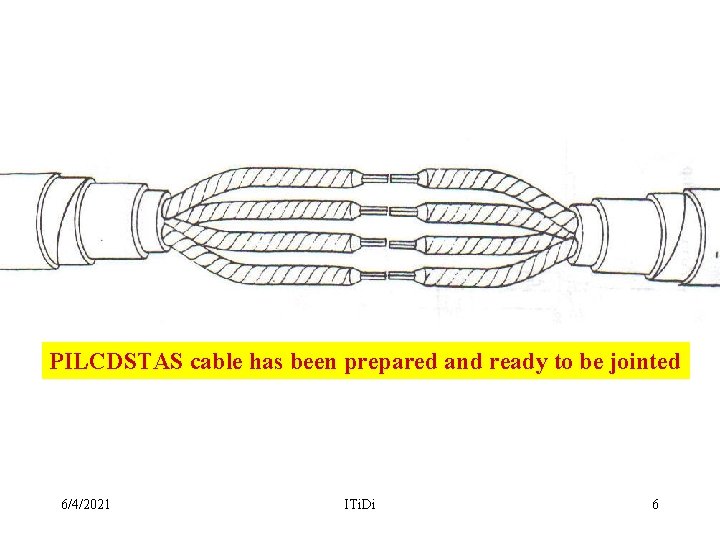

PILCDSTAS cable has been prepared and ready to be jointed 6/4/2021 ITi. Di 6

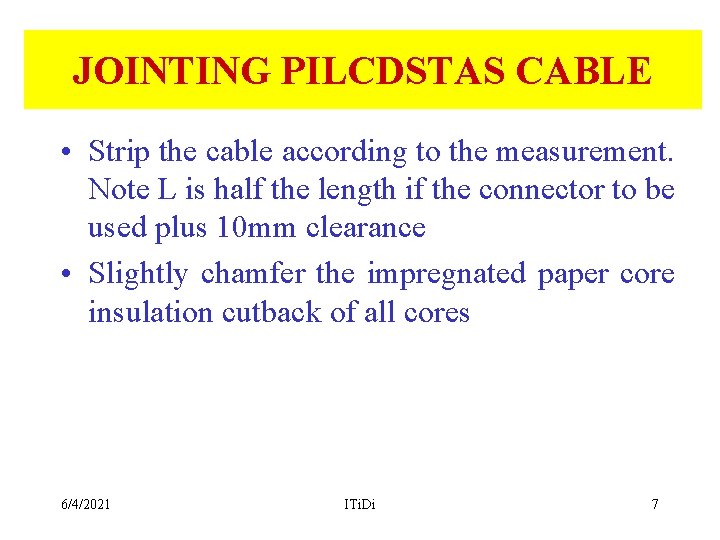

JOINTING PILCDSTAS CABLE • Strip the cable according to the measurement. Note L is half the length if the connector to be used plus 10 mm clearance • Slightly chamfer the impregnated paper core insulation cutback of all cores 6/4/2021 ITi. Di 7

6/4/2021 ITi. Di 8

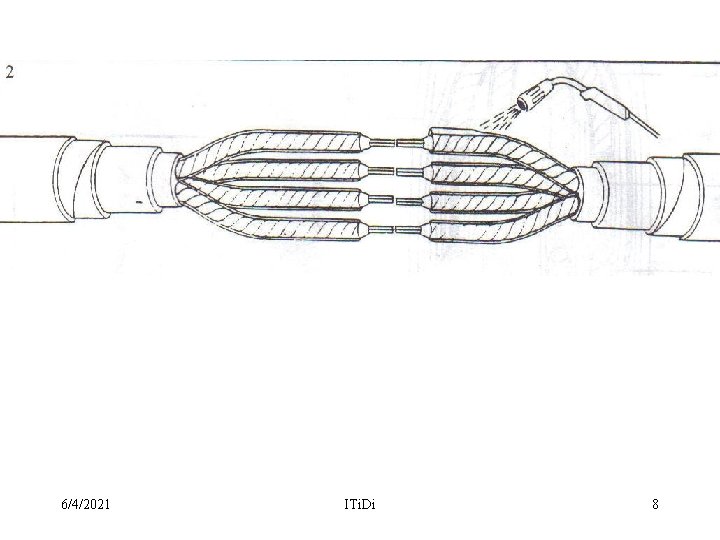

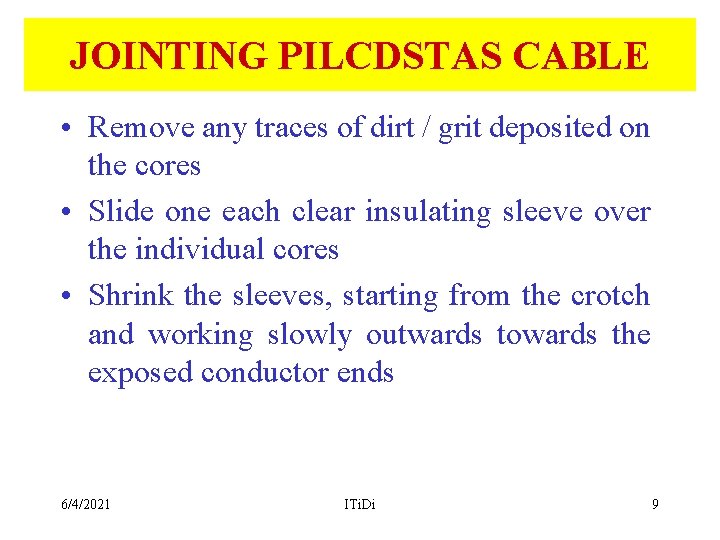

JOINTING PILCDSTAS CABLE • Remove any traces of dirt / grit deposited on the cores • Slide one each clear insulating sleeve over the individual cores • Shrink the sleeves, starting from the crotch and working slowly outwards towards the exposed conductor ends 6/4/2021 ITi. Di 9

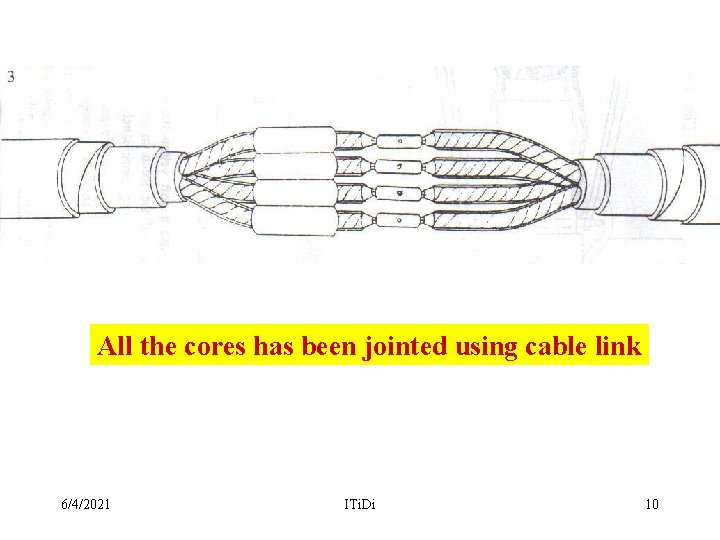

All the cores has been jointed using cable link 6/4/2021 ITi. Di 10

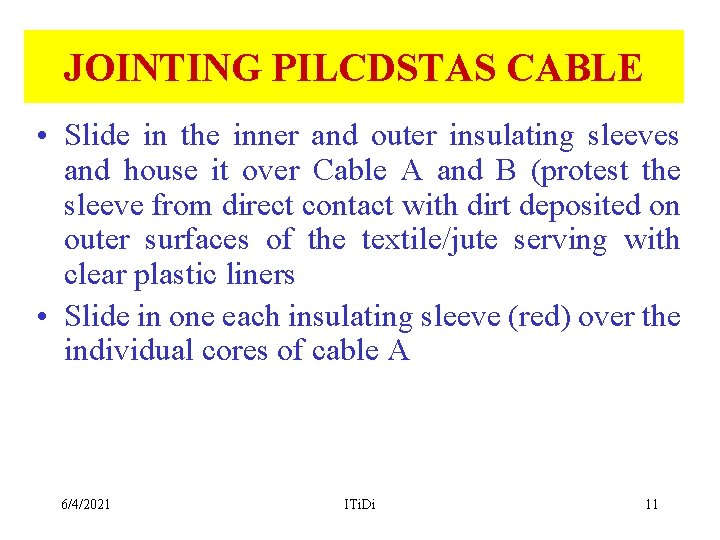

JOINTING PILCDSTAS CABLE • Slide in the inner and outer insulating sleeves and house it over Cable A and B (protest the sleeve from direct contact with dirt deposited on outer surfaces of the textile/jute serving with clear plastic liners • Slide in one each insulating sleeve (red) over the individual cores of cable A 6/4/2021 ITi. Di 11

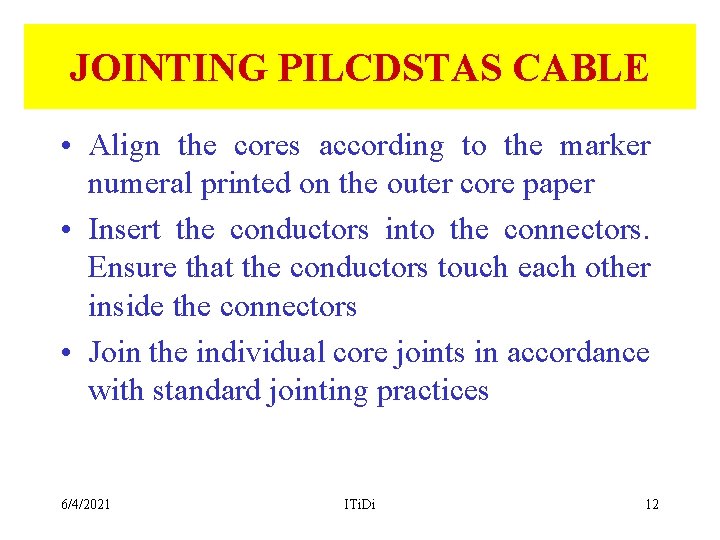

JOINTING PILCDSTAS CABLE • Align the cores according to the marker numeral printed on the outer core paper • Insert the conductors into the connectors. Ensure that the conductors touch each other inside the connectors • Join the individual core joints in accordance with standard jointing practices 6/4/2021 ITi. Di 12

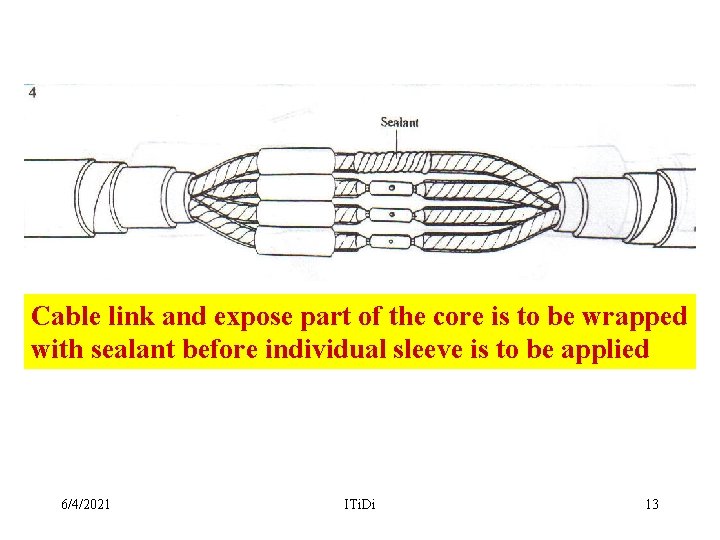

Cable link and expose part of the core is to be wrapped with sealant before individual sleeve is to be applied 6/4/2021 ITi. Di 13

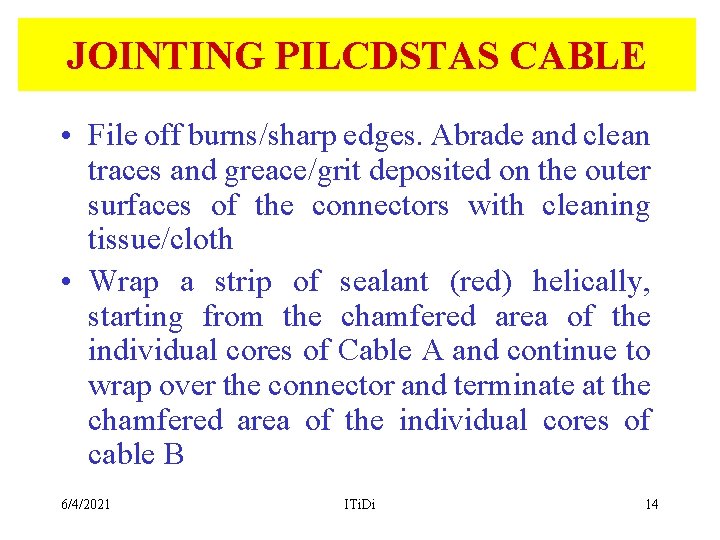

JOINTING PILCDSTAS CABLE • File off burns/sharp edges. Abrade and clean traces and greace/grit deposited on the outer surfaces of the connectors with cleaning tissue/cloth • Wrap a strip of sealant (red) helically, starting from the chamfered area of the individual cores of Cable A and continue to wrap over the connector and terminate at the chamfered area of the individual cores of cable B 6/4/2021 ITi. Di 14

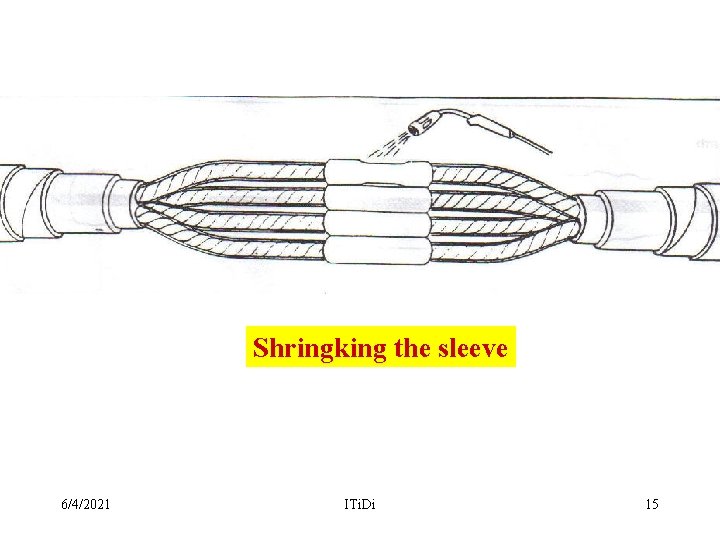

Shringking the sleeve 6/4/2021 ITi. Di 15

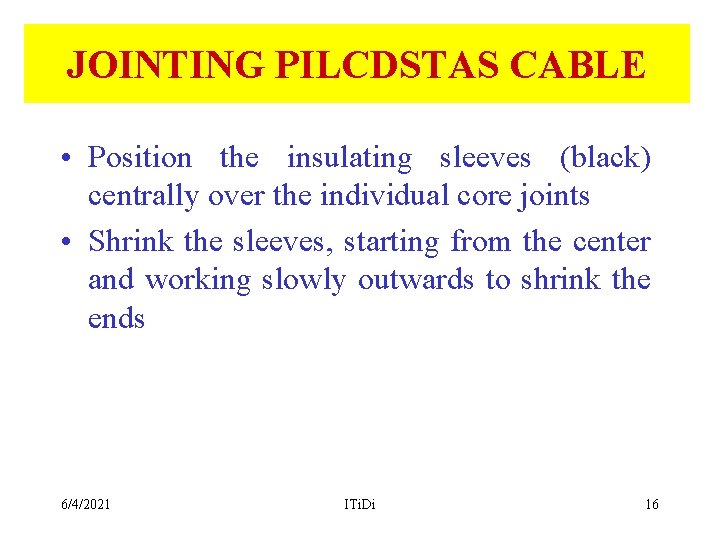

JOINTING PILCDSTAS CABLE • Position the insulating sleeves (black) centrally over the individual core joints • Shrink the sleeves, starting from the center and working slowly outwards to shrink the ends 6/4/2021 ITi. Di 16

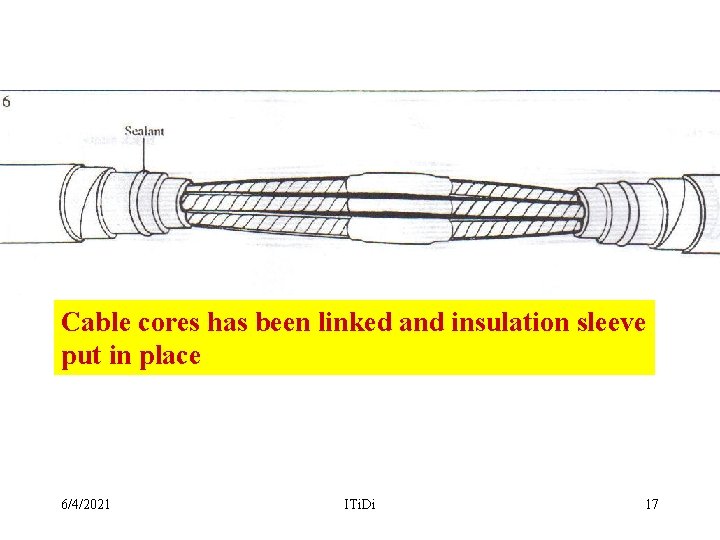

Cable cores has been linked and insulation sleeve put in place 6/4/2021 ITi. Di 17

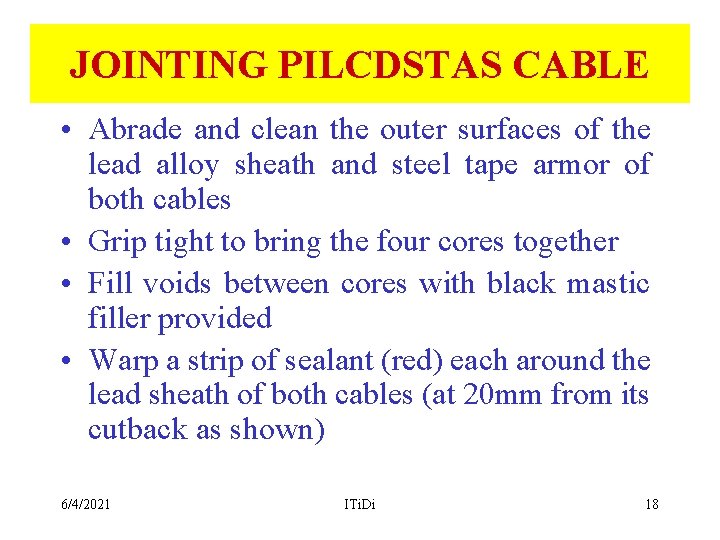

JOINTING PILCDSTAS CABLE • Abrade and clean the outer surfaces of the lead alloy sheath and steel tape armor of both cables • Grip tight to bring the four cores together • Fill voids between cores with black mastic filler provided • Warp a strip of sealant (red) each around the lead sheath of both cables (at 20 mm from its cutback as shown) 6/4/2021 ITi. Di 18

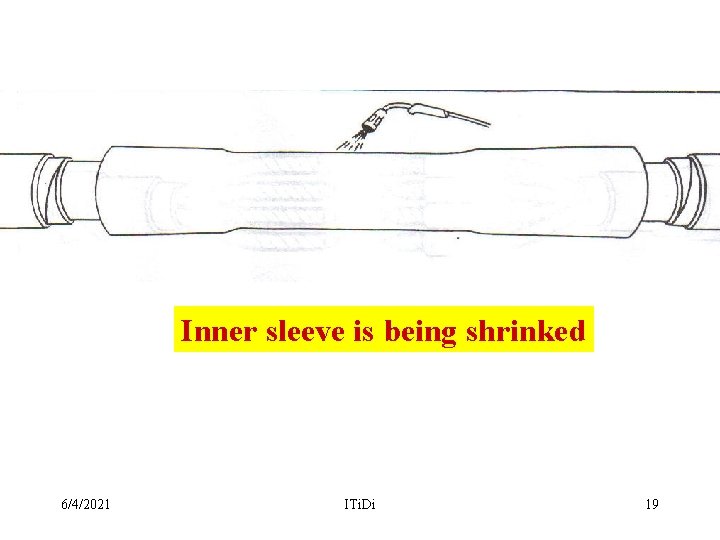

Inner sleeve is being shrinked 6/4/2021 ITi. Di 19

JOINTING PILCDSTAS CABLE • Slide out the inner insulating sleeve and position it centrally over the joint • Shrink the sleeve, starting from center and working slowly outwards to shrink the ends • Ensure that the sleeve shrinks uniformly over its entire length 6/4/2021 ITi. Di 20

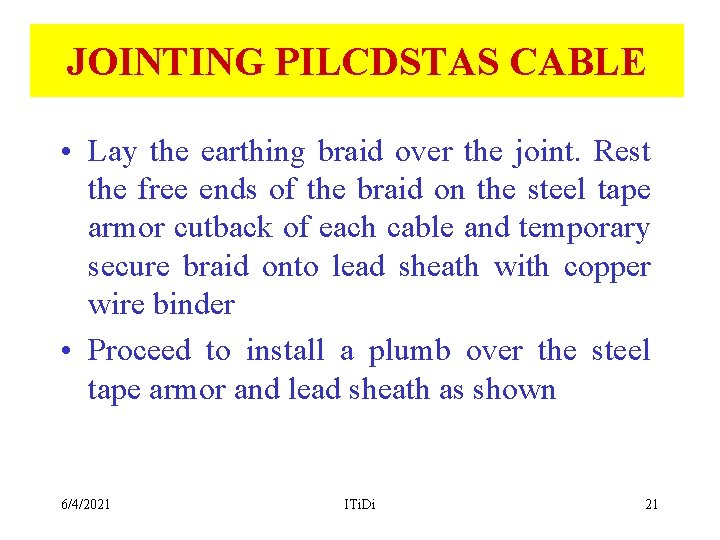

JOINTING PILCDSTAS CABLE • Lay the earthing braid over the joint. Rest the free ends of the braid on the steel tape armor cutback of each cable and temporary secure braid onto lead sheath with copper wire binder • Proceed to install a plumb over the steel tape armor and lead sheath as shown 6/4/2021 ITi. Di 21

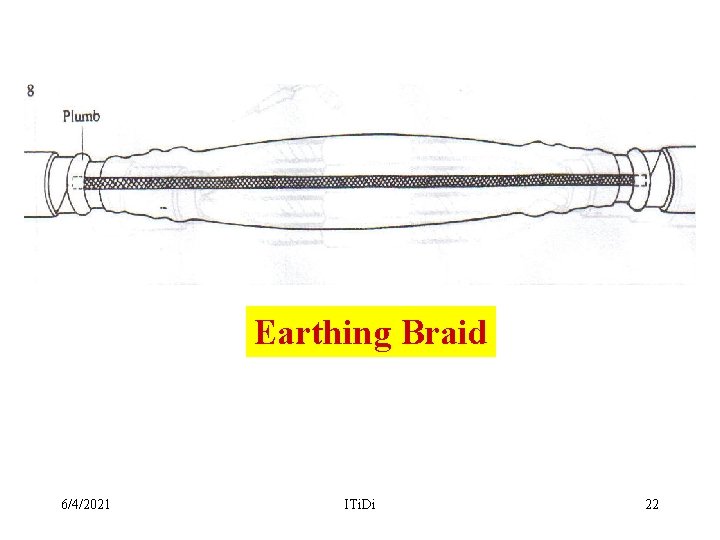

Earthing Braid 6/4/2021 ITi. Di 22

JOINTING PILCDSTAS CABLE • Install canister over the joint • Secure the center of the canister with copper wire binder and its ends with armor clamps provided • Cover the copper wire and armor clamps with black mastic filler 6/4/2021 ITi. Di 23

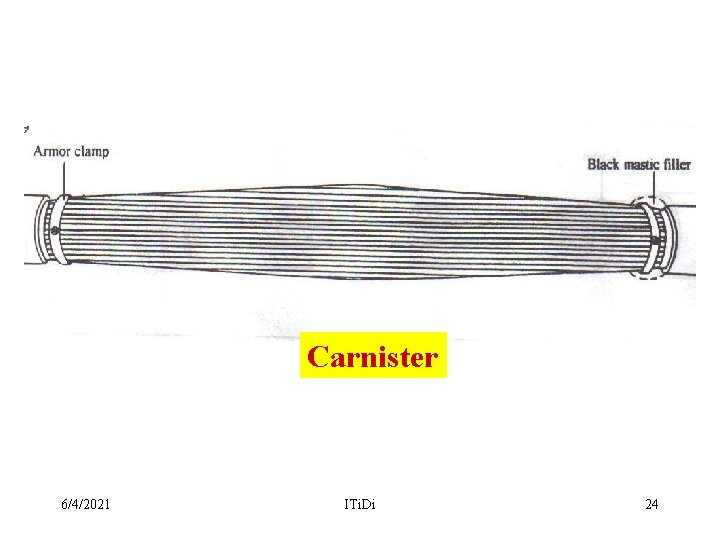

Carnister 6/4/2021 ITi. Di 24

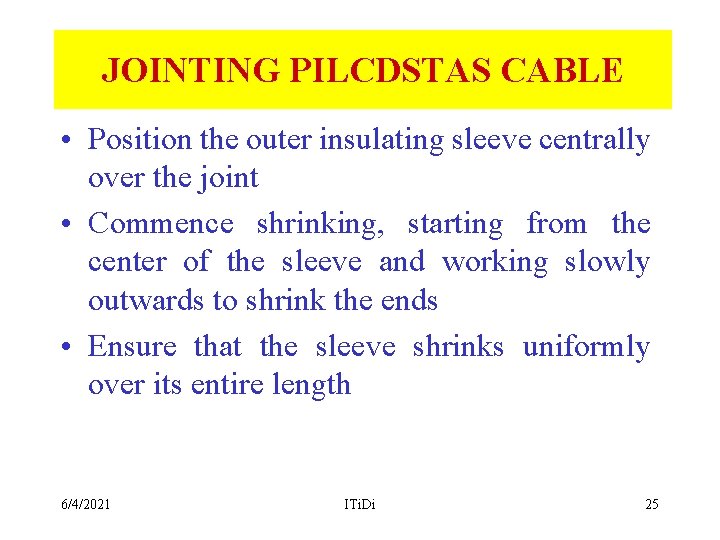

JOINTING PILCDSTAS CABLE • Position the outer insulating sleeve centrally over the joint • Commence shrinking, starting from the center of the sleeve and working slowly outwards to shrink the ends • Ensure that the sleeve shrinks uniformly over its entire length 6/4/2021 ITi. Di 25

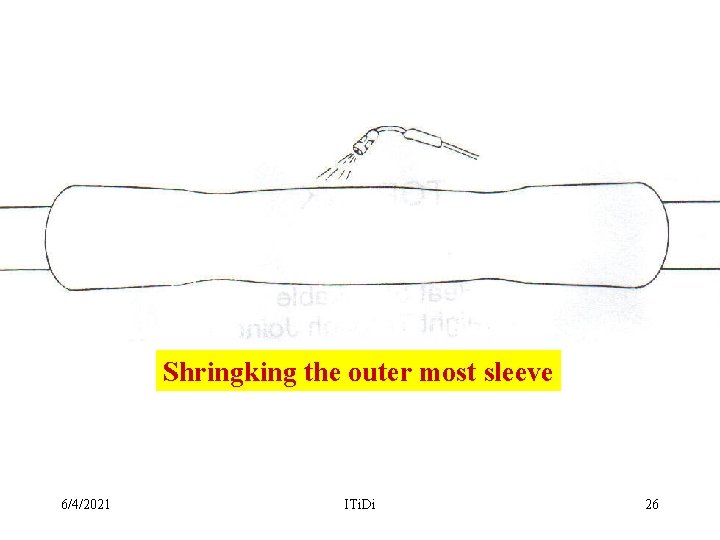

Shringking the outer most sleeve 6/4/2021 ITi. Di 26

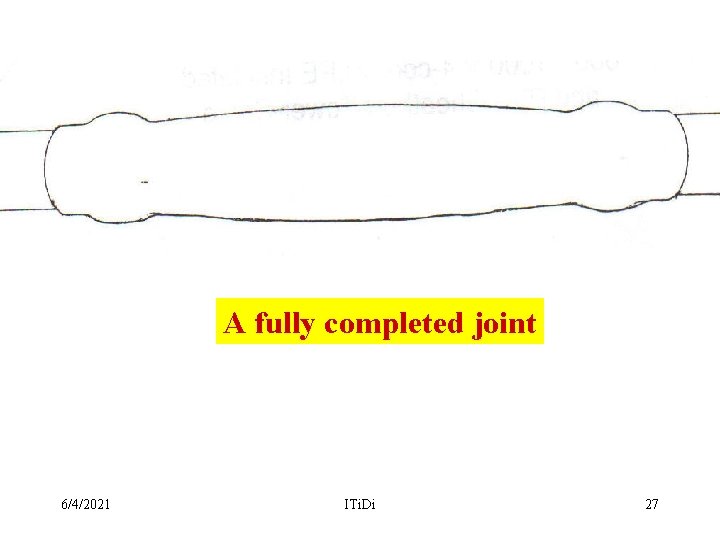

A fully completed joint 6/4/2021 ITi. Di 27

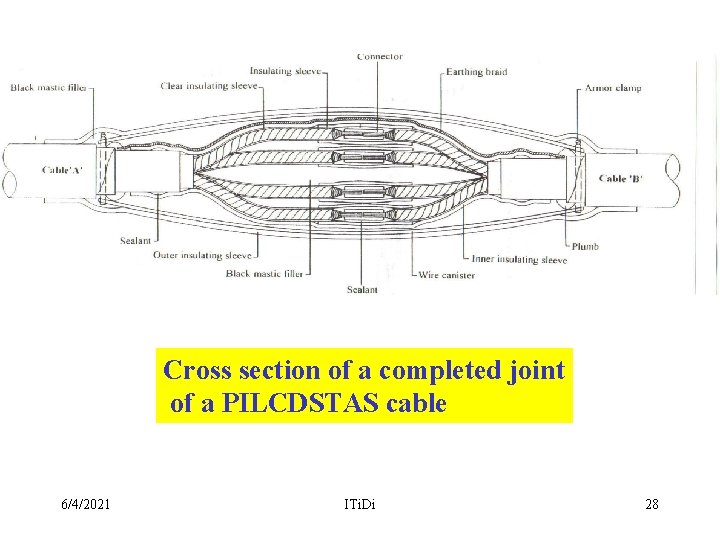

Cross section of a completed joint of a PILCDSTAS cable 6/4/2021 ITi. Di 28
