Pendulum Waves 600410137 What is Pendulum Wave What
- Slides: 13
Pendulum Waves 600410137
What is Pendulum Wave
What is Pendulum Wave • Many different period pendulums consist of Pendulum Waves. • The length of each pendulum and gravity determine the period of each pendulum. • By varying the length of a series of pendulums, some very interesting patterns emerge.
Outline • • Method Environment Result Future Work

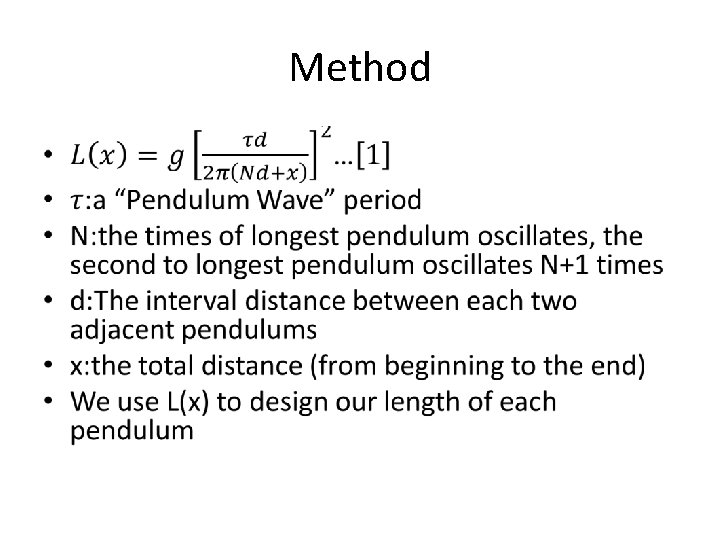

Method •
Method • According to L(x) equation and our parameter, we have got the result below. Pendulum 01 02 03 04 05 06 Length 9. 85 1. 04 1. 16 1. 23 1. 31 Pendulum 07 08 09 10 11 12 Length 1. 39 1. 48 1. 58 1. 69 1. 81 1. 95

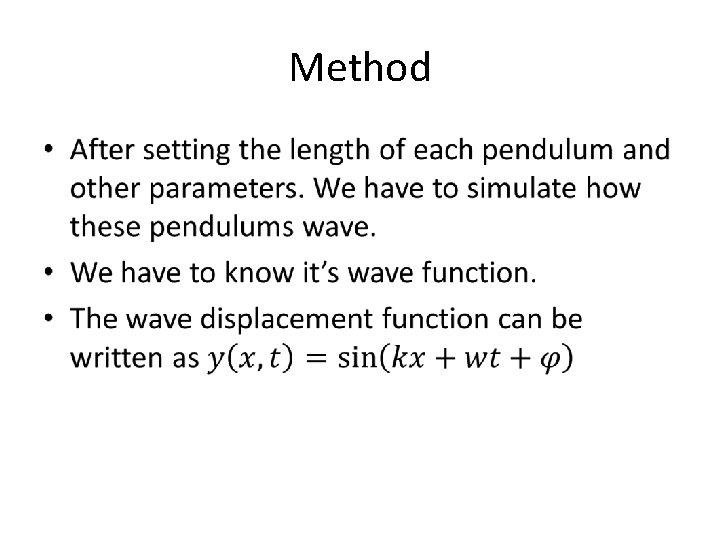

Method •
Method •

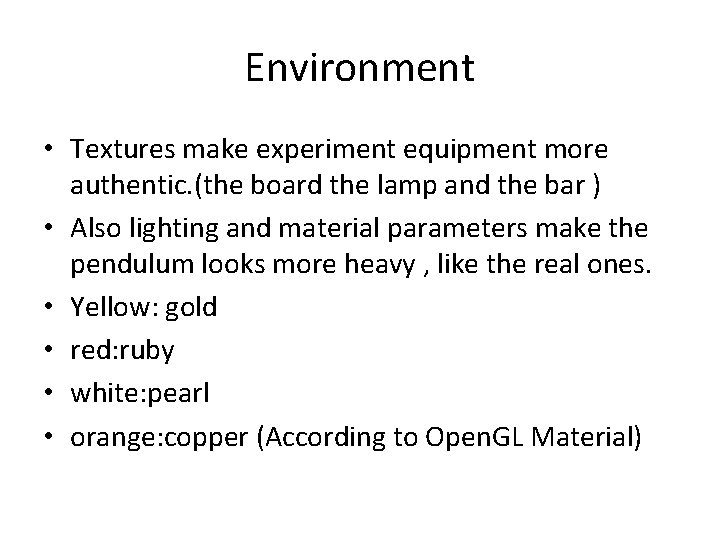

Environment • Textures make experiment equipment more authentic. (the board the lamp and the bar ) • Also lighting and material parameters make the pendulum looks more heavy , like the real ones. • Yellow: gold • red: ruby • white: pearl • orange: copper (According to Open. GL Material)

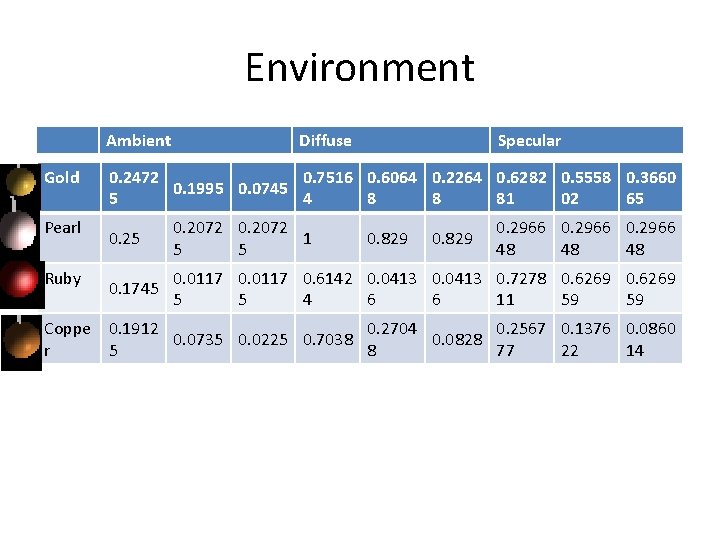

Environment Ambient Gold Pearl Ruby Diffuse Specular 0. 2472 0. 7516 0. 6064 0. 2264 0. 6282 0. 5558 0. 3660 0. 1995 0. 0745 5 4 8 8 81 02 65 0. 2072 1 5 5 0. 1745 0. 0117 0. 6142 0. 0413 0. 7278 0. 6269 5 5 4 6 6 11 59 59 0. 829 0. 2966 48 48 48 Coppe 0. 1912 0. 2704 0. 2567 0. 1376 0. 0860 0. 0735 0. 0225 0. 7038 0. 0828 r 5 8 77 22 14
Environment

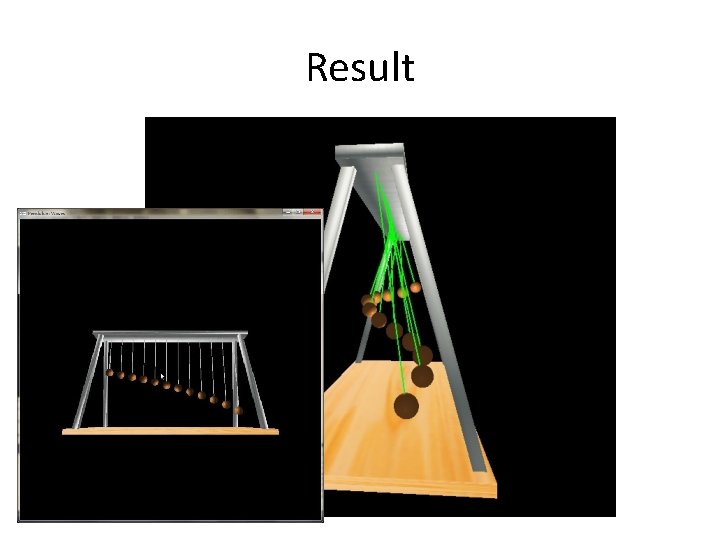

Result
Future Work • We need more accurate calculation, because after the whole pendulum waves loop a few cycles, the displacement of some pendulum strayed out a little bit. • GPU programming maybe suited to this simulation of Pendulum waves, because we can take apart these 12 pendulum waves as parallel process working simultaneously.
