PEERLESS PINNACLE Rev 2 PEERLESS PINNACLE Rev 2
- Slides: 68
PEERLESS PINNACLE ® ® Rev 2
PEERLESS PINNACLE ® ® Rev 2 Many States and Local Utilities Offer Additional Rebates Visit www. dsireusa. org/incentives to Find Rebates in Your Area.
PEERLESS PINNACLE ® ® Rev 2
PEERLESS PINNACLE ® ® Rev 2 Giannoni Stainless Steel Heat Exchanger Mono Block Top Vent Outlet for Simplified Vent Connection At the Heart of All Pure. Fire Heat Exchangers - the Stainless Steel Loop – Highly Resistant to Corrosion Bottom-Up Burner Connection Helps Keep Flue Gasses from Backing out at Shut-Down
PEERLESS PINNACLE ® ® Rev 2 Giannoni Stainless Steel Heat Exchanger Mono Block Boiler Return (In) Boiler Supply (Out) Supply Sensor Return Sensor Baffle in Manifold to Separate Supply & Return Water Drain/Purge Valve (Supplied) Separate Condensate Drain Connections for Heat Exchanger & Vent Connectors
PEERLESS PINNACLE ® ® Rev 2 Sleek & Functional Mono Design Display System Return (In) System Supply (Out) Main Control Left Side Panel Blower & Gas Valve Vent & Air Connections Service Switch Fuel Gas Connection Front Cover Condensate System Removable Front Plastic Cover - Removable Metal Side Panels Well-Sealed Cabinet - Prevents Combustion Odors which Promotes Healthy Indoor Air Top Connections – Fuel, Piping Wiring & Venting
PEERLESS PINNACLE ® ® Rev 2 Duo Block Design Stainless Steel Heat Exchanger Top Vent Outlet Connection Bottom-Up Burner Mounting Helps Keep Flue Gasses from Backing out at Shut-Down Duo Design Allows Smaller Boiler Footprint
PEERLESS PINNACLE ® ® Rev 2 Mono Block Design: 4 Inputs: 50, 80, 110 & 140 2 Cabinet Sizes Pure. Fire 50 & 80 Pure. Fire 110 & 140

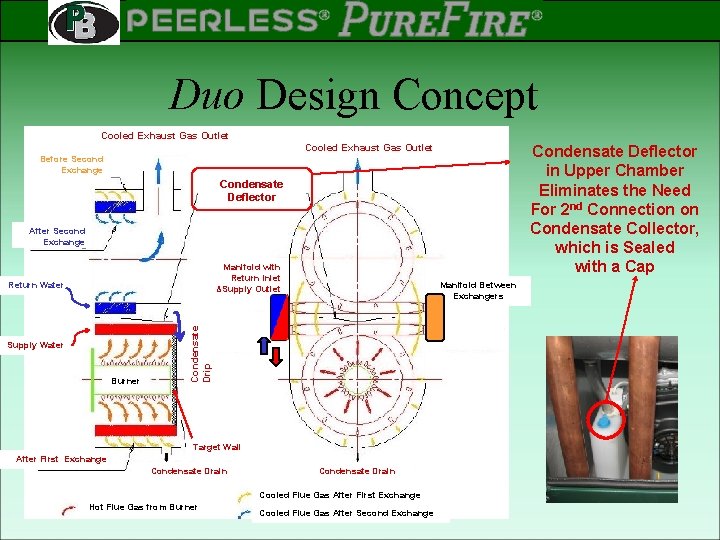

PEERLESS PINNACLE ® ® Rev 2 Duo Design Concept Cooled Exhaust Gas Outlet Condensate Deflector in Upper Chamber Eliminates the Need For 2 nd Connection on Condensate Collector, which is Sealed with a Cap Before Second Exchange Condensate Deflector After Second Exchange Manifold with Return Inlet &Supply Outlet Supply Water Burner Manifold Between Exchangers Condensate Drip Return Water Target Wall After First Exchange Condensate Drain Cooled Flue Gas After First Exchange Hot Flue Gas from Burner Cooled Flue Gas After Second Exchange

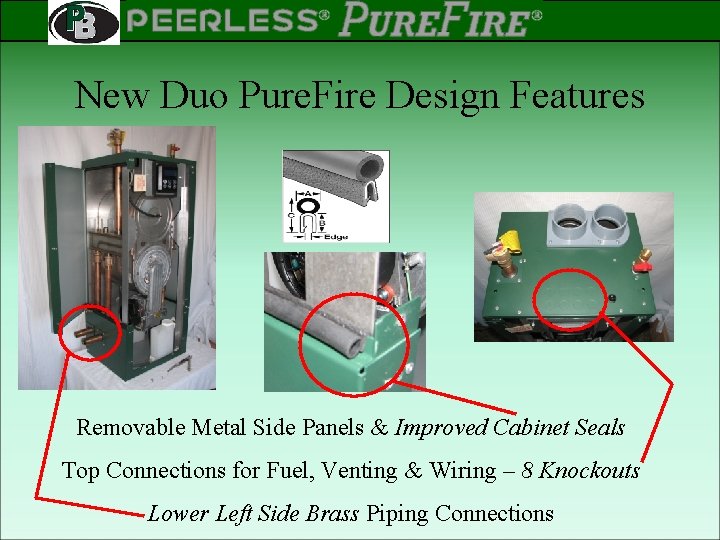

PEERLESS PINNACLE ® ® Rev 2 New Duo Pure. Fire Design Features Removable Metal Side Panels & Improved Cabinet Seals Top Connections for Fuel, Venting & Wiring – 8 Knockouts Lower Left Side Brass Piping Connections
PEERLESS PINNACLE ® ® Rev 2 Duo Heat Exchanger Tappings Flue Gas Sensor (Other Side) Return Sensor ⅝” Condensate Connection Boiler Return (In) Relief Valve Supply Sensor Vent Pressure Switch (Front Side) Baffle in Manifold to Separate Supply & Return Water Boiler Supply (Out) Drain/Purge Valve (Inside)
PEERLESS PINNACLE ® ® Rev 2 Duo Block Design - Inputs: 210 & 399 mbh 2 Cabinet Sizes

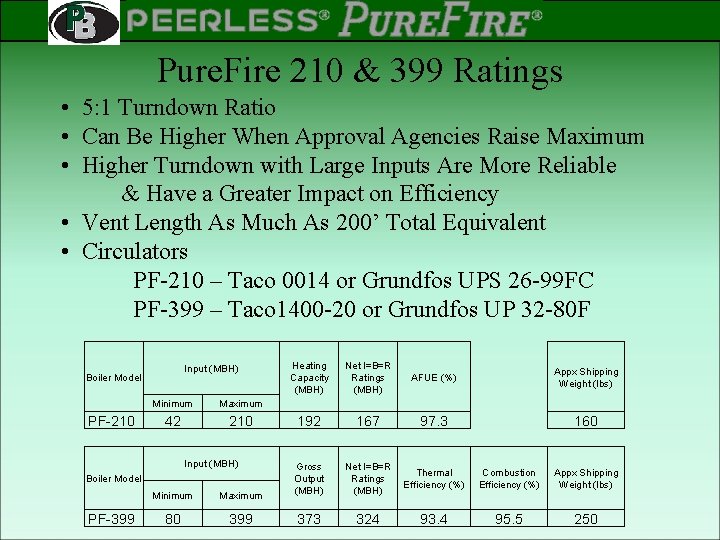

PEERLESS PINNACLE ® ® Rev 2 Pure. Fire 210 & 399 Ratings • 5: 1 Turndown Ratio • Can Be Higher When Approval Agencies Raise Maximum • Higher Turndown with Large Inputs Are More Reliable & Have a Greater Impact on Efficiency • Vent Length As Much As 200’ Total Equivalent • Circulators PF-210 – Taco 0014 or Grundfos UPS 26 -99 FC PF-399 – Taco 1400 -20 or Grundfos UP 32 -80 F Input (MBH) Boiler Model PF-210 Minimum Maximum 42 210 Input (MBH) Boiler Model PF-399 Minimum Maximum 80 399 Heating Capacity (MBH) Net I=B=R Ratings (MBH) AFUE (%) Appx Shipping Weight (lbs) 192 167 97. 3 160 Gross Output (MBH) Net I=B=R Ratings (MBH) Thermal Efficiency (%) Combustion Efficiency (%) Appx Shipping Weight (lbs) 373 324 93. 4 95. 5 250
PEERLESS PINNACLE ® ® Rev 2 Full-Featured & Easy-To-Use Boiler Control with Plain English Text Display No Need to Memorize Codes Most Features are Pre-Programmed & Ready-to-go
PEERLESS PINNACLE ® ® Rev 2 New Features Scheduled for Release with PF-210 & PF-399 in 2009 Display Main Control Same Location for Display As Mono Block Design New Location for Main Control for Easy Access
PEERLESS PINNACLE ® ® Rev 2 All Pure. Fire Boiler Controls Use Fuse Protection - Easily Replaceable Fuse - Main Control Fuse Size = 5 mm x 20 mm, 250 Volt, Slow Blow Available at Radio Shack (Part# 270 -1067) 4 -Pack - $2. 99
PEERLESS PINNACLE ® ® Rev 2 Molded Plastic Jacket With Tinted Clear Lens for Viewing Control Display
PEERLESS PINNACLE ® ® Rev 2 EBM-Papst Blowers Dungs Gas Valves Extensively Field. Tested by Peerless Patented Whirlwind Technology Promotes Better Fuel/Air Mixing for Better Combustion Various Swirl Plates for Different Boiler Sizes
PEERLESS PINNACLE ® ® Rev 2 Dungs Gas Valve Operation v Adjust CO 2 ONLY with Throttle Screw v Gas valves are preset at factory for fuel type v Fuel Pressure can be measured at Inlet Pressure Tap
PEERLESS PINNACLE ® ® Rev 2 Worgas Metal Mesh Burners Provide Stable and Reliable Flame Igniters & Flame Sensors Provide Dual Sensing of Burner Flame – Help Prevent Unnecessary Lockouts
PEERLESS PINNACLE ® ® Rev 2 Molded Plastic Vessels for Condensate Collection & Neutralizing Optional for PF-210 & 399
PEERLESS PINNACLE ® ® Rev 2 Simplified Electrical Connections Pre-Wired Harnesses & Split Terminal Strips
PEERLESS PINNACLE ® ® Rev 2 Additional Features Leveling Legs Courtesy Outlet
PEERLESS PINNACLE ® ® Rev 2 Features Outdoor Sensor For Outdoor Reset (Supplied as Standard Equipment) Knock-out Grommet For Low-Voltage Wires Helps Protect Wires & Keep Cabinet Sealed
PEERLESS PINNACLE ® ® Rev 2 Venting Options: PVC, CPVC & PP (M&G) with Stainless Steel, Concentric PVC & PP Termination Options
PEERLESS PINNACLE ® ® Control Display Sample Screens Rev 2
PEERLESS PINNACLE ® ® Control Display Sample Screens Rev 2
PEERLESS PINNACLE ® ® Rev 2 Control Features New or Enhanced in 2009 Feature Description Cascade Multiple boilers operate together in order to satisfy the heating or DHW demand. One Hour Retry One hour after a lockout on ignition or flame failure, the PUREFIRE control will reinitiate boiler operation. Restore System Defaults Allows the installer to reset all parameters to the factory defaults if desired. The installer can also save and restore site defaults. Adjustable Blower This feature allows the installer to increase the blower postpurge to counteract the Postpurge effects of high winds or unusual wind currents. This troubleshooting tool captures the flame signal at four increments during the Flame Signal Log two second flame proving period. This can help installers/service personnel to quickly diagnose problems with flame rectifications. Fault History The PUREFIRE control allows service personnel to access the last 15 Blocking Errors and the last 15 Lockout Errors in addition to records of the interval between Errors.
PEERLESS PINNACLE ® ® Rev 2 New Control Features Cascade Firing of Multiple Boilers • • Control up to 16 Boilers in One System No Extra Controls Required, Only 1 System Sensor Automatic Rotation of Boilers (Lead/Lag) No Extensive Programming Required - Most Options Are Pre-Selected, But Adjustable • Boilers will be Fired Proportionally with Timed Start and Stop for Maximum Efficiency & Longevity • All Pure. Fire™ Boilers will be Cascade Capable - After the Release of the new PF-210 & PF-399 - Existing PF Boilers Can Be Easily Upgraded • New Controls will be Compatible with Older Displays & Vice Versa
PEERLESS PINNACLE ® ® Rev 2 Cascade Functions with Multiple Boilers • The Control on Any Boiler can be the Master Control • Simple Instructions Explain How to Designate the Master Control and All Dependent Controls • All Sensors and Non-Boiler Pumps are Wired to the Master • Control & Status of All Boilers Including Resets can be Done Through Master • Each Dependent Boiler Controls Only Its Own Pump • Boiler Controls are Interconnected in Parallel with only 1 Set of Thermostat Wires Between Each Boiler • Future PC Connections can be made to Any Dependent Control
PEERLESS PINNACLE ® ® Rev 2 Control Features Safety & Efficiency Feature Freeze Protection Description Activates pumps if temperatures fall below the specified value. If the temperatures continue to fall, the boiler is activated. This feature is used to prevent short cycling in systems using very small zones. The Ramp Delay Step input rate is gradually increased from 20% to 100% over 2 minutes. When used, this Modulation only effects central heating operation. Add’l Safety Functions Allows the installer to choose between a low water cutoff and a flow switch for water level safety shutdown. Reduces the firing rate if the vent temperature approaches the maximum limit of the Vent Temperature vent material. If the vent temperature continues to climb, the PUREFIRE control will Safety Limit shut down the boiler. Service Notification If enabled, the PUREFIRE control will display a service notification after an installer defined number of hours or cycles. It can also display a notification based on a date of the installers choosing. System Test The PUREFIRE boiler will allow the installer to operate the boiler at low power, high power and ignition input for troubleshooting purposes.
PEERLESS PINNACLE ® ® Rev 2 Control Features Central Heating Feature Description Outdoor Reset The PUREFIRE control changes the boiler supply target temperature to compensate for changes in load due to milder outdoor temperatures. This increases the efficiency of the boiler and is more comfortable. System Type Presets By choosing the heat distribution type (finned tube baseboard, hydro air, cast iron radiators, cast iron baseboard, low mass radiant or high mass radiant) the installer can automatically select practical boiler design and mild weather temperatures. Temperature Boost The temperature boost function increases the boiler supply target to recover more quickly from setback conditions. Warm Weather Shutdown The PUREFIRE control will shut down the boilers CH functions if the outdoor temperature is above an installer defined maximum. This prevents the boiler from running during warm weather. Anti-Cycling The anti-cycling function prevents rapid on/off cycling of the boiler. This includes an override function to be sure that all loads are satisfied.
PEERLESS PINNACLE ® ® Outdoor Reset Rev 2

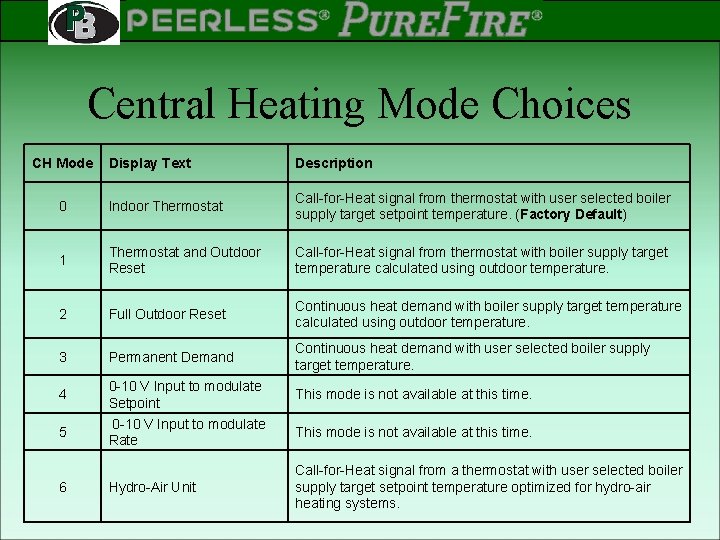

PEERLESS PINNACLE ® ® Rev 2 Central Heating Mode Choices CH Mode Display Text Description 0 Indoor Thermostat Call-for-Heat signal from thermostat with user selected boiler supply target setpoint temperature. (Factory Default) 1 Thermostat and Outdoor Reset Call-for-Heat signal from thermostat with boiler supply target temperature calculated using outdoor temperature. 2 Full Outdoor Reset Continuous heat demand with boiler supply target temperature calculated using outdoor temperature. 3 Permanent Demand Continuous heat demand with user selected boiler supply target temperature. 4 5 6 0 -10 V Input to modulate Setpoint 0 -10 V Input to modulate Rate Hydro-Air Unit This mode is not available at this time. Call-for-Heat signal from a thermostat with user selected boiler supply target setpoint temperature optimized for hydro-air heating systems.
PEERLESS PINNACLE ® ® Rev 2 Control Features Domestic Hot Water Feature Description DHW Tank Warm Hold Prevents boiler from ramping up to high power if the DHW demand is only to keep the tank warm. Limited DHW Priority The PUREFIRE control provides DHW priority for boiler operation. However, the control will automatically switch between CH and DHW loads after an installer determined switch time. DHW Heat Dump If enabled, the DHW heat dump function serves to dump heat from the boiler system to the DHW tank after a CH demand has ended.
PEERLESS PINNACLE ® ® Rev 2 DHW Mode Choices DHW Mode 0 1 2 Display Text Description No DHW No domestic hot water tank is used. (Factory Default) DHW store with sensor The domestic hot water tank is equipped with a temperature sensor. The PUREFIRE control modulates the boiler firing rate based on tank temperature. DHW store with thermostat The domestic hot water tank is equipped with a thermostat. The PUREFIRE control responds to the demand from thermostat and modulates the boiler firing rate targeting the DHW boiler setpoint

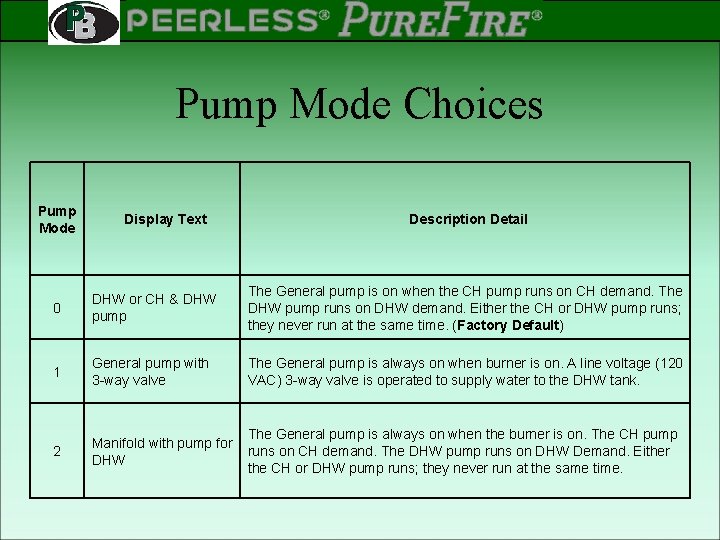

PEERLESS PINNACLE ® ® Rev 2 Pump Mode Choices Pump Mode Display Text Description Detail 0 DHW or CH & DHW pump The General pump is on when the CH pump runs on CH demand. The DHW pump runs on DHW demand. Either the CH or DHW pump runs; they never run at the same time. (Factory Default) 1 General pump with 3 -way valve The General pump is always on when burner is on. A line voltage (120 VAC) 3 -way valve is operated to supply water to the DHW tank. 2 Manifold with pump for DHW The General pump is always on when the burner is on. The CH pump runs on CH demand. The DHW pump runs on DHW Demand. Either the CH or DHW pump runs; they never run at the same time.
PEERLESS PINNACLE ® ® Rev 2 Typical Cast Iron Boiler Piping Parallel Piping Conversion to Primary/Secondary
PEERLESS PINNACLE ® ® Rev 2 Primary/Secondary Piping DHW Piped into Primary Loop X X Zone Relay
PEERLESS PINNACLE ® ® Rev 2 Primary/Secondary Piping DHW Piped into Boiler Loop Zone Relay X X
PEERLESS PINNACLE ® ® Rev 2 Low Voltage Wiring
PEERLESS PINNACLE ® ® Rev 2 Line Voltage Wiring
PEERLESS PINNACLE ® ® Rev 2 Wiring for PF-210 & PF-399
PEERLESS PINNACLE ® ® Rev 2 Line Voltage Wiring – High Amp Circ Pumps v Pure. Fire main control has a max amp draw of 5 amps including gas valve & other internal loads. v. Total amp draw of all operating Circulators must be less than about 4. 5 amps. v For example the General Circulator + the CH Circulator or the DHW circulator must be less than 4. 5 amps. v If the circulator amp draw is higher than 4. 5 amps, it must be isolated using a relay. v. A RIB 2401 B relay may be used for circulator motors up to 1 horsepower. v The wiring schematic below shows how to wire isolation relays to the circulators.
PEERLESS PINNACLE ® ® Rev 2 Accessories System Pipe Sensor To Aid in System Mixing For Multiple Boiler Systems DHW Sensor For Optional Control of Indirect Water Heater Control Tank Temp From Boiler
PEERLESS PINNACLE ® ® Rev 2 Accessories Wall Mounting Bracket Now Included with Boiler For All Four Sizes: 50, 80, 110, 140 Stainless Steel Table Adjustable Legs
PEERLESS PINNACLE ® ® Rev 2 Simple Fuel Conversion - LP & NG v Conversion Kit Included with Every Boiler v No Orifices to Install or Remove v Spelled Out in the Conversion Kit: v Adjust Throttle Screw WITH CO/CO 2 Meter
PEERLESS PINNACLE ® ® Rev 2 TESTING EQUIPMENT IS REQUIRED v Electronic CO/CO 2 Combustion Analyzers are CRITICAL for Maintaining Safe & Efficient Operation of ANY 90+ Efficiency Equipment v Allowable Carbon Monoxide (CO) emission levels in Pinnacle flue gases: Hi-Fire <100 ppm Lo-Fire < 20 ppm
PEERLESS PINNACLE ® ® Rev 2 All Pure. Fire Boilers are Thoroughly Tested At the Factory Test Record Sheet Is Included with IOM Manual
PEERLESS PINNACLE ® ® Rev 2 More Control Features Maximum Input Limits New in 2010 • Limit the Maximum Input on Any Boiler for Best Efficiency • Limits can be on either Central Heating, DHW or Both with Their Own Limits • Ideal for Applications Where DHW Load is Greater Than CH Load or Vice-Versa • Boiler Can be Sized for Future Expansion Without Sacrificing Efficiency Now
PEERLESS PINNACLE ® ® Rev 2 Optional Boiler Interface Board New in 2010 • Allows boiler(s) to be connected to a Building Management System (BMS) • Can be Used with Existing Boiler Control to Receive an External 0 -10 Volt Signal to Control Boiler Setpoint. • Can be Used to Connect to an External Alarm for Boiler Shutdown Through Lockout or Block Error. • Order as PFA-1 Inter. Face Board Kit (54271)
PEERLESS PINNACLE ® ® Rev 2 Optional Boiler Interface Board
PEERLESS PINNACLE ® Coming Soon: PC Software & USB Connection For Control ® Rev 2
PEERLESS PINNACLE ® ® Rev 2 Ratings & Designations • The Pure. Fire™ Name has been Granted Trademark Status. • PF 50, PF 80, PF 110 & PF 140 have been Approved for Mobil Homes and Manufactured Homes. • PF 50, PF 80, PF 110 & PF 140 have been Certified to the Strict California Air Quality Standards (SCAQMD)
PEERLESS PINNACLE ® ® Rev 2 Selling Pure. Fire • • • Literature, Features and Benefits Sheets Extended Warranties Advertising Support Custom ads available PB Energy Calculator Best Practices Training
PEERLESS PINNACLE ® ® Rev 2
PEERLESS PINNACLE ® ® Rev 2 Pure. Fire Extended Warranty Program • Standard Program -1 Yr parts and labor from 31 st day after install – Free if warranty card is returned • PUREFIRE Introductory Program - $99 cost (PF 50, 80, 110, 140 & PF 210) or $179 (PF 399) to Contractor/Dealer for a 5 Year Parts and Labor Program - 10 Year program Cost - $279 (PF 50, 80, 110, 140 & PF 210) or $432 (PF 399). • Program Administered by Corner. Stone United, a US/Canadian Warranty Administrator * Installer MUST Sign Up to be Registered Warranty Dealer

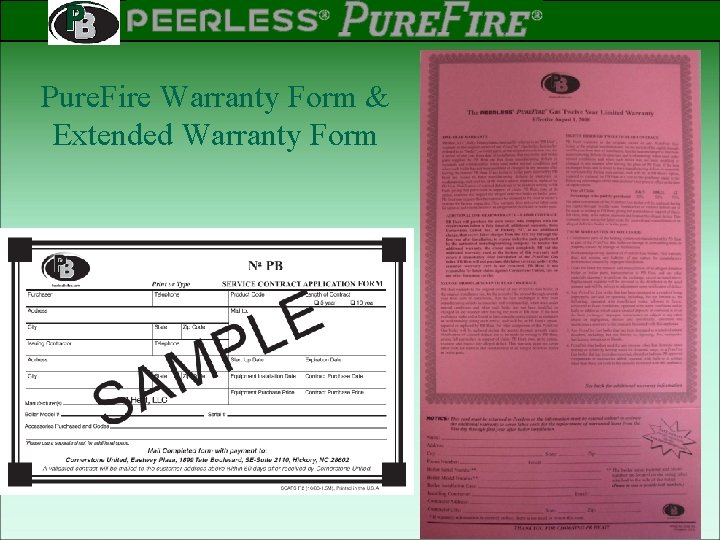

PEERLESS PINNACLE ® Pure. Fire Warranty Form & Extended Warranty Form ® Rev 2
PEERLESS PINNACLE ® ® Rev 2 Parts of Peerless Extended Warranty Dealer Forms
PEERLESS PINNACLE ® ® Rev 2 Peerless Extended Warranty Brochure
PEERLESS PINNACLE ® ® Rev 2 Energy Saving Calculator • Used by Installers to Help Sell High Efficiency to Homeowners by Showing Fuel Savings • Easy to Use 4 -Step procedure with Slide Windows and Most Factors Provided. Building Heat Loss & Fuel Type are Needed. • Handy Size, Attractive and Loaded with Information • Current Cost: $6 each (Oil Version & Natural Gas/LP Version) or $10 for both
PEERLESS PINNACLE ® ® Rev 2 AD Program for Pure. Fire • • • Custom ads on IMUS in the morning Trade magazines Local Meetings – Co-Op Pure. Fire PB Trailer for Live Fire Training Trade Shows Local Advertising Opportunities
PEERLESS PINNACLE ® ® Rev 2
PEERLESS PINNACLE ® • • • ® Rev 2 Financing What is Energy. Loan? The Energy. Loan is a special financing program offered by AFC First as a Fannie. Mae Approved Energy Loan Lender and in cooperation with our Approved Contractor/Dealers. Energy. Loan is an unsecured loan program with preferential interest rates and terms designed to make fast and affordable financing from $1, 000 to $20, 000 available to homeowners for most types of improvements that improve the energy efficiency of your home. • • • No Home Equity is Required You can qualify even if you are a new homeowner. "No Payment for 3 Months" Deferred First Payment Available No Closing Costs - The Energy. Loan has no fees of any kind. Term of Up to 10 Years with No Pre-Payment Penalty - Lower payments, but the flexibility to pay extra principal or pay the loan off early. Rates of 9. 99% to 12. 99%
PEERLESS PINNACLE ® ® Rev 2 Payment Calculator AMOUNT 10 Year 3 Year 5 Year $2, 500 $ 81 $ 56 $ 39 $5, 000 $ 161 $ 111 $ 78 $7, 500 $ 242 $ 167 $ 116 $10, 000 $ 342 $ 233 $ 155 $12, 500 $ 427 $ 291 $ 194 $15, 000 $ 513 $ 349 $ 233 $17, 500 $ 598 $ 407 $ 272 $20, 000 $ 683 $ 465 $ 310 Estimated payment is based on interest rates ranging from 9. 99% to 12. 99% APR. Actual rate and payment depends on customer's credit, term and other factors
PEERLESS PINNACLE ® ® Rev 2
PEERLESS PINNACLE ® ® Rev 2 THE END THANK YOU
