Peering in Japan 2015 Seiichi Kawamura BIGLOBE Inc

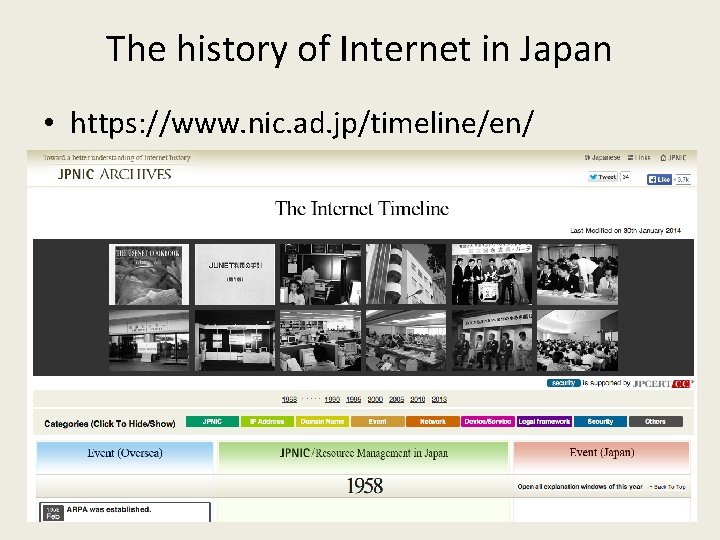

The history of Internet in Japan • https: //www. nic. ad. jp/timeline/en/ copyright (c)

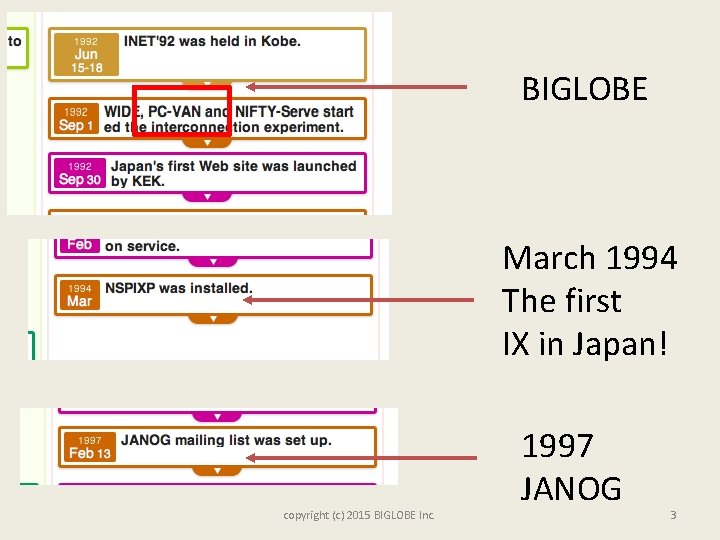

BIGLOBE March 1994 The first IX in Japan! copyright (c) 2015 BIGLOBE Inc. 1997

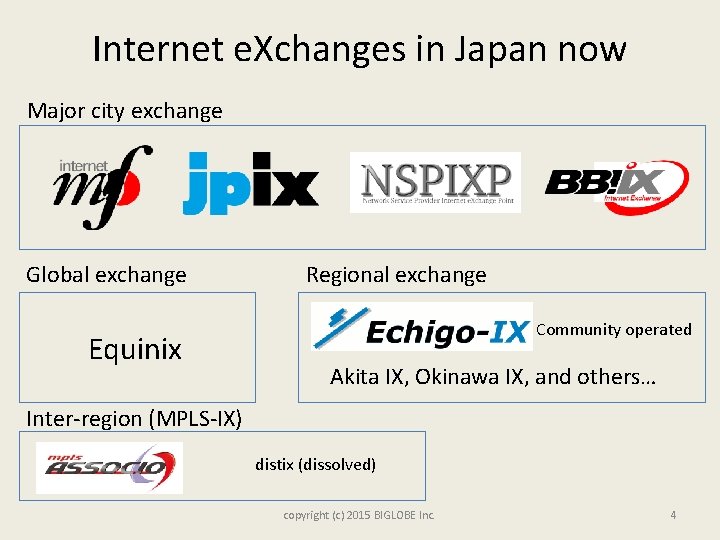

Internet e. Xchanges in Japan now Major city exchange Global exchange Equinix Regional exchange Community operated Akita IX, Okinawa IX, and others… Inter-region (MPLS-IX) distix (dissolved) copyright (c) 2015 BIGLOBE Inc. 4

Distribution throughout the country Cable Landing Stations Osaka: - JPNAP - BBIX - JPIX - NSPIXP 3 - Equinix Fukuoka: - BBIX Only major landing stations shown Akita: - Akita-IX Niigata: - Echigo-IX Nagoya: - BBIX - JPIX Tokyo: - JPNAP/JPNAP 2 - BBIX - JPIX - Equinix - dix-ie (nspixp 2) Okinawa: - OIX copyright (c) 2015 BIGLOBE Inc. 5

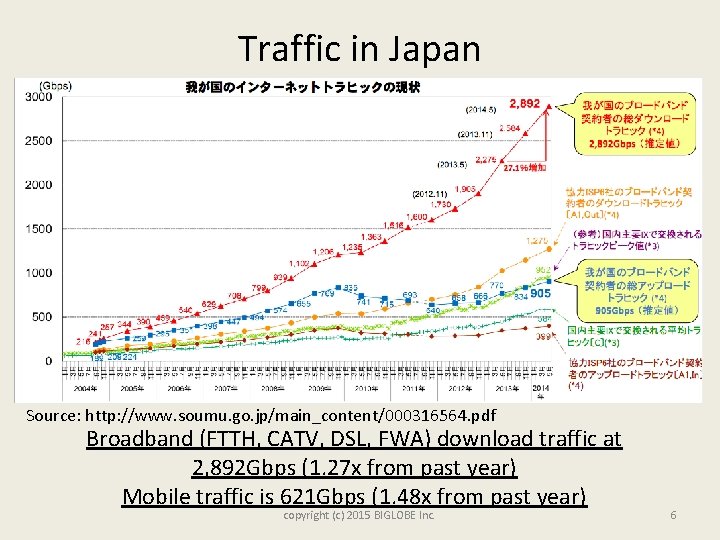

Traffic in Japan Source: http: //www. soumu. go. jp/main_content/000316564. pdf Broadband (FTTH, CATV, DSL, FWA) download traffic at 2, 892 Gbps (1. 27 x from past year) Mobile traffic is 621 Gbps (1. 48 x from past year) copyright (c) 2015 BIGLOBE Inc. 6

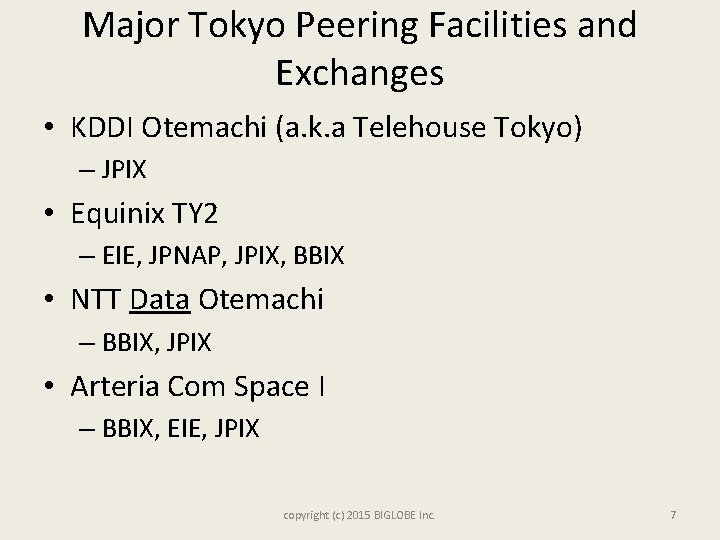

Major Tokyo Peering Facilities and Exchanges • KDDI Otemachi (a. k. a Telehouse Tokyo) – JPIX • Equinix TY 2 – EIE, JPNAP, JPIX, BBIX • NTT Data Otemachi – BBIX, JPIX • Arteria Com Space I – BBIX, EIE, JPIX copyright (c) 2015 BIGLOBE Inc. 7

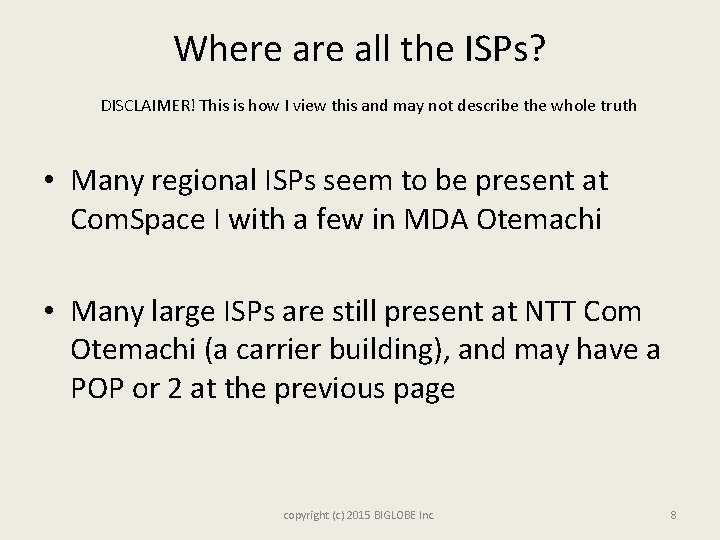

Where all the ISPs? DISCLAIMER! This is how I view this and may not describe the whole truth • Many regional ISPs seem to be present at Com. Space I with a few in MDA Otemachi • Many large ISPs are still present at NTT Com Otemachi (a carrier building), and may have a POP or 2 at the previous page copyright (c) 2015 BIGLOBE Inc. 8

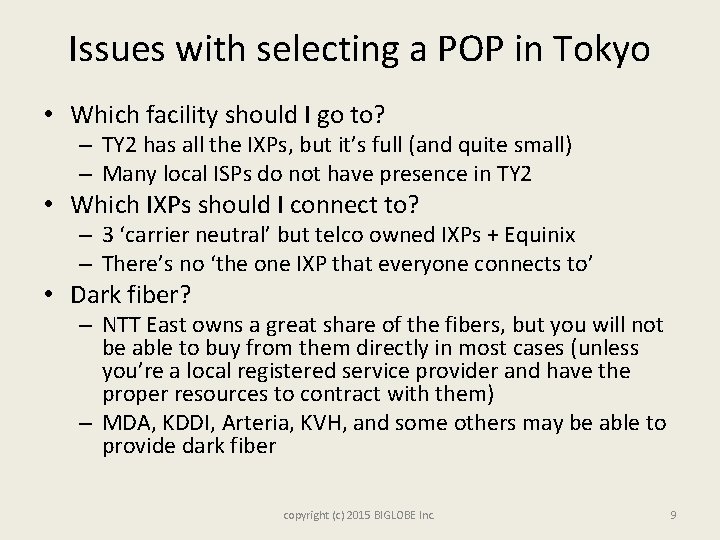

Issues with selecting a POP in Tokyo • Which facility should I go to? – TY 2 has all the IXPs, but it’s full (and quite small) – Many local ISPs do not have presence in TY 2 • Which IXPs should I connect to? – 3 ‘carrier neutral’ but telco owned IXPs + Equinix – There’s no ‘the one IXP that everyone connects to’ • Dark fiber? – NTT East owns a great share of the fibers, but you will not be able to buy from them directly in most cases (unless you’re a local registered service provider and have the proper resources to contract with them) – MDA, KDDI, Arteria, KVH, and some others may be able to provide dark fiber copyright (c) 2015 BIGLOBE Inc. 9

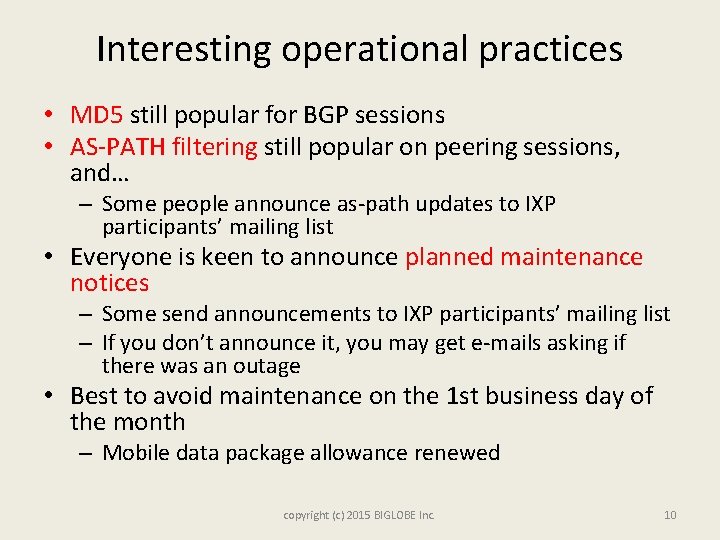

Interesting operational practices • MD 5 still popular for BGP sessions • AS-PATH filtering still popular on peering sessions, and… – Some people announce as-path updates to IXP participants’ mailing list • Everyone is keen to announce planned maintenance notices – Some send announcements to IXP participants’ mailing list – If you don’t announce it, you may get e-mails asking if there was an outage • Best to avoid maintenance on the 1 st business day of the month – Mobile data package allowance renewed copyright (c) 2015 BIGLOBE Inc. 10

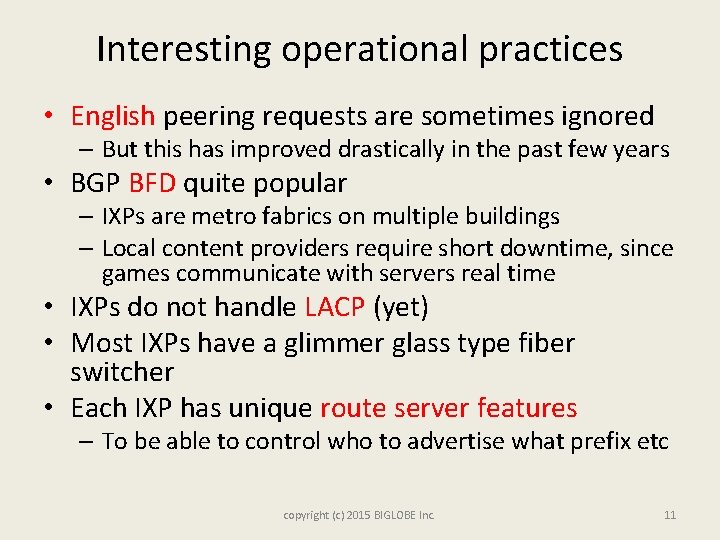

Interesting operational practices • English peering requests are sometimes ignored – But this has improved drastically in the past few years • BGP BFD quite popular – IXPs are metro fabrics on multiple buildings – Local content providers require short downtime, since games communicate with servers real time • IXPs do not handle LACP (yet) • Most IXPs have a glimmer glass type fiber switcher • Each IXP has unique route server features – To be able to control who to advertise what prefix etc copyright (c) 2015 BIGLOBE Inc. 11

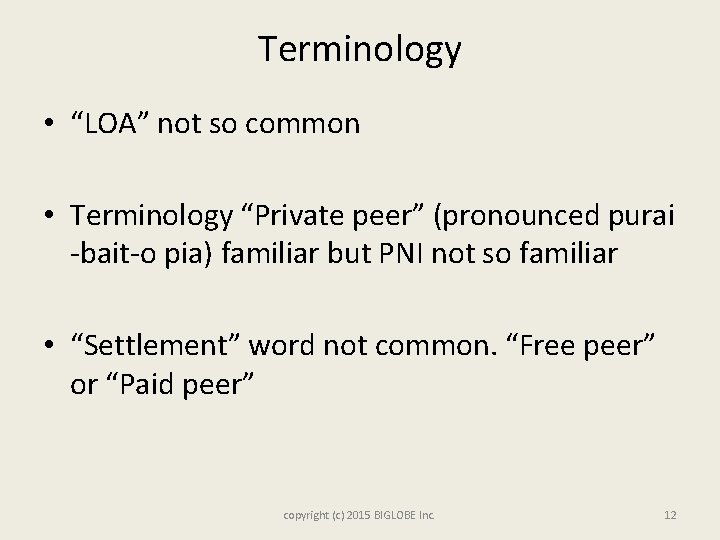

Terminology • “LOA” not so common • Terminology “Private peer” (pronounced purai -bait-o pia) familiar but PNI not so familiar • “Settlement” word not common. “Free peer” or “Paid peer” copyright (c) 2015 BIGLOBE Inc. 12

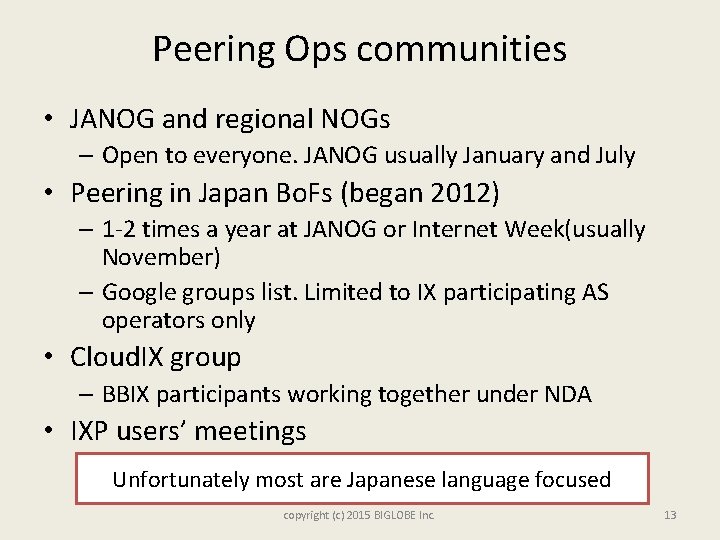

Peering Ops communities • JANOG and regional NOGs – Open to everyone. JANOG usually January and July • Peering in Japan Bo. Fs (began 2012) – 1 -2 times a year at JANOG or Internet Week(usually November) – Google groups list. Limited to IX participating AS operators only • Cloud. IX group – BBIX participants working together under NDA • IXP users’ meetings Unfortunately most are Japanese language focused copyright (c) 2015 BIGLOBE Inc. 13

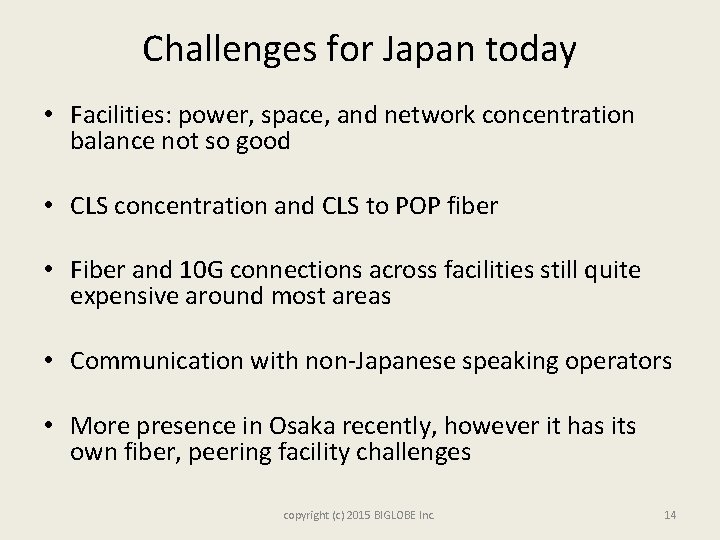

Challenges for Japan today • Facilities: power, space, and network concentration balance not so good • CLS concentration and CLS to POP fiber • Fiber and 10 G connections across facilities still quite expensive around most areas • Communication with non-Japanese speaking operators • More presence in Osaka recently, however it has its own fiber, peering facility challenges copyright (c) 2015 BIGLOBE Inc. 14
