Pediatric Wrist Pain Dr Leah Hillier MD CCFP

Pediatric Wrist Pain Dr. Leah Hillier MD CCFP (SEM) May 26 th, 2017 DAVID L. MACINTOSH SPORT MEDICINE CLINIC FACULTY of KINESIOLOGY and PHYSICAL EDUCATION UNIVERSITY of TORONTO

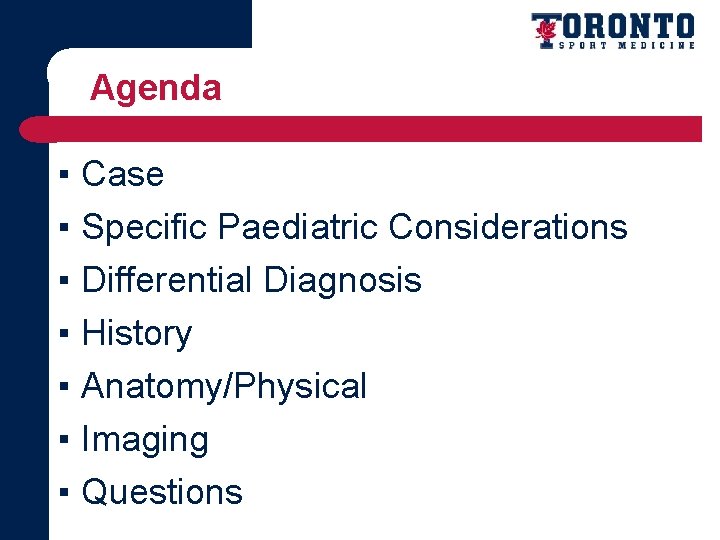

Agenda ▪ Case ▪ Specific Paediatric Considerations ▪ Differential Diagnosis ▪ History ▪ Anatomy/Physical ▪ Imaging ▪ Questions

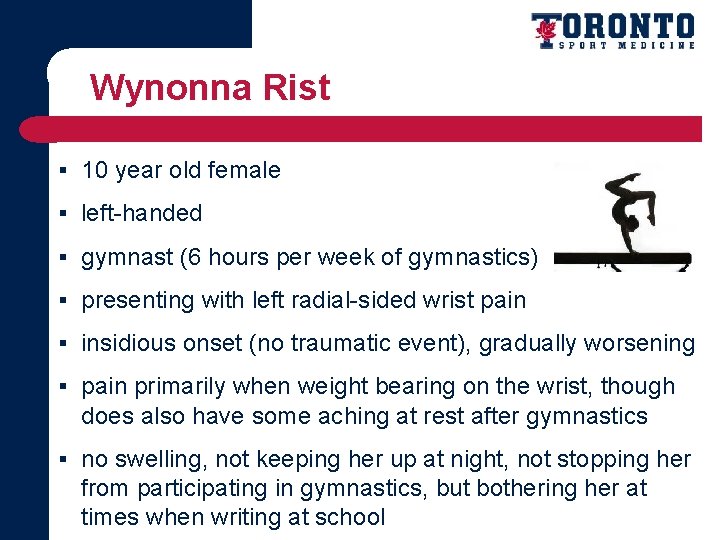

Wynonna Rist ▪ 10 year old female ▪ left-handed ▪ gymnast (6 hours per week of gymnastics) ▪ presenting with left radial-sided wrist pain ▪ insidious onset (no traumatic event), gradually worsening ▪ pain primarily when weight bearing on the wrist, though does also have some aching at rest after gymnastics ▪ no swelling, not keeping her up at night, not stopping her from participating in gymnastics, but bothering her at times when writing at school

PEDIATRIC CONSIDERATIONS

Pediatric considerations ▪ Children’s bones have more cartilage and collagen than adults’ ▪ The skeleton is relatively weaker, but has greater elasticity (Frost 2000, Davis 2010) ▪ Growth plates are still open ▪ The periosteum is more active and promotes rapid healing and remodelling (Dwek 2010) ▪ Children tend to have more injuries of epiphyses and apophyses

Pediatric considerations http: //bones. getthediagnosis. org

Normal pediatric bone development in the wrist Radiopaedia

Normal pediatric bone development in the wrist Age 6 Age 9 Age 11 Age 13 http: //bones. getthediagnosis. org

DIFFERENTIAL DIAGNOSIS

Pediatric wrist differential diagnosis TRAUMA ▪ Buckle, greenstick, complete, and physeal injuries ▪ Galeazzi-equivalent Fractures http: //pubs. rsna. org/doi/full/10. 1148/rg. 342135073

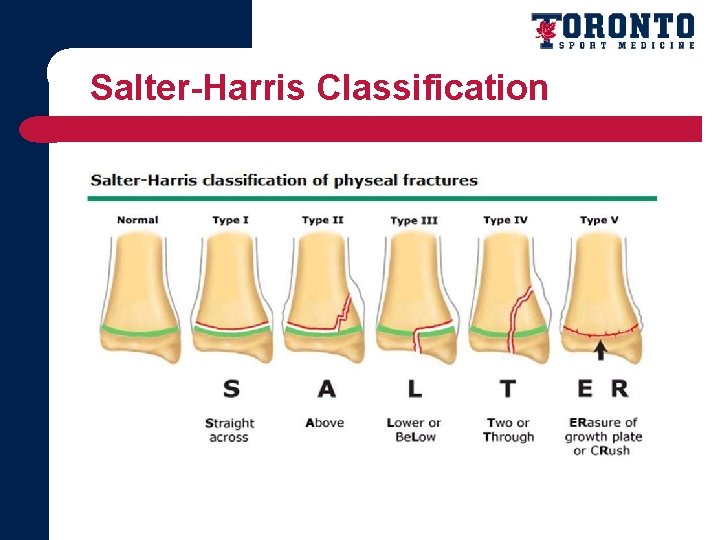

Salter-Harris Classification Buckle fractures

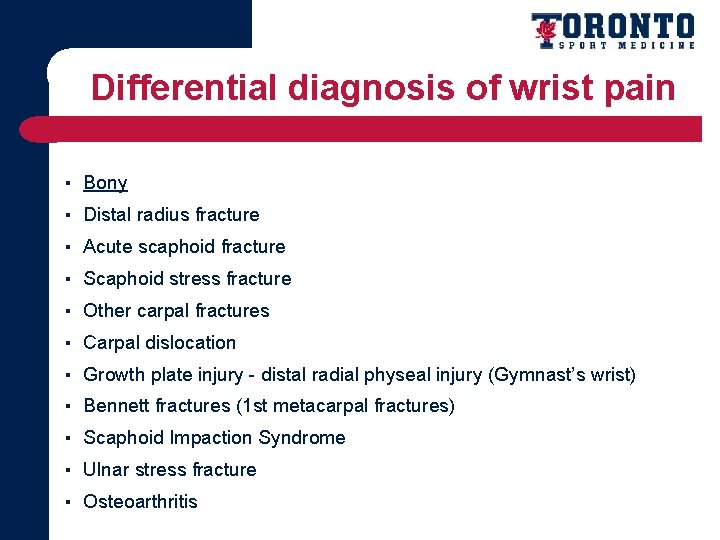

Differential diagnosis of wrist pain ▪ Bony ▪ Distal radius fracture ▪ Acute scaphoid fracture ▪ Scaphoid stress fracture ▪ Other carpal fractures ▪ Carpal dislocation ▪ Growth plate injury - distal radial physeal injury (Gymnast’s wrist) ▪ Bennett fractures (1 st metacarpal fractures) ▪ Scaphoid Impaction Syndrome ▪ Ulnar stress fracture ▪ Osteoarthritis

Differential diagnosis of wrist pain ▪ Soft Tissue ▪ De Quervain’s tenosynovitis (tenosynovitis of the tendons of the first extensor compartment of the wrist: the abductor pollicis longus and extensor pollicis brevis) ▪ UCL injury of the thumb ▪ Extensor carpi ulnaris (ECU) tendonitis (overuse injury of the ECU tendon in the wrist) ▪ Extensor carpi ulnaris subluxation (rupture to medial wall of the ECU tendon sheath secondary to sudden or repetitive flexion and ulnar deviation, causing subluxation of ECU. ) ▪ Intersection syndrome: inflammation at the crossing points of the tendons of the first dorsal compartment and the extensor radialis longus and brevis. This point is typically 2– 3 in. proximal to the radio-carpal joint. This entity is seen in sports involving repetitive wrist extension. ▪ Scapholunate injuries ▪ Lunotriquetral injuries ▪ Triangular fibrocartilage complex (TFCC) injuries ▪ Distal radioulnar joint injury ▪ Ganglion

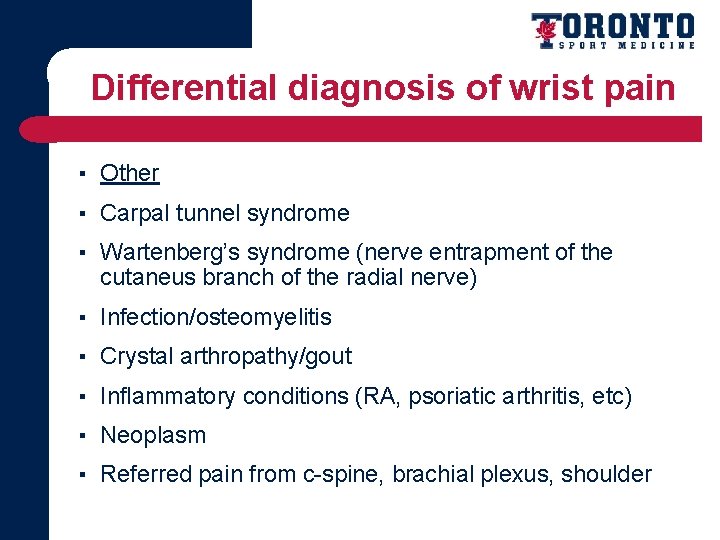

Differential diagnosis of wrist pain ▪ Other ▪ Carpal tunnel syndrome ▪ Wartenberg’s syndrome (nerve entrapment of the cutaneus branch of the radial nerve) ▪ Infection/osteomyelitis ▪ Crystal arthropathy/gout ▪ Inflammatory conditions (RA, psoriatic arthritis, etc) ▪ Neoplasm ▪ Referred pain from c-spine, brachial plexus, shoulder

History ID: includes dominant hand (in writing? in sport? ) CC: Location of pain (could you point to where you feel your discomfort? ) HPI: Start of symptoms (acute versus insidious onset) ? trauma ? mechanism of injury ? change in training load Aggravating and relieving factors Allergies/Meds/PMHx/Surg. Hx/Injuries Activities: Level of training, hours per week, level of competition, plans for the future in sport, other hobbies that involve hand/wrist (? guitar ? piano ? art) Development: Menarche, Growth spurt (how much? over what time period? ) Soc. Hx: Work in adults (? manual labour ? jackhammers ? manual dexterity ? repetitive motions) Fam. Hx: ? rheum ? connective tissue, etc Symptoms: pain, swelling, paresthesias, clicking, stiffness, function

Physical ▪ Having the patient show you the location of pain as a first step can often help to take a more efficient history ▪ both hands on pillow exposed above the elbows ▪ always compare to the contralateral side

Dorsal anatomy

Volar anatomy

Volar anatomy

Soft tissue anatomy

Key wrist landmarks

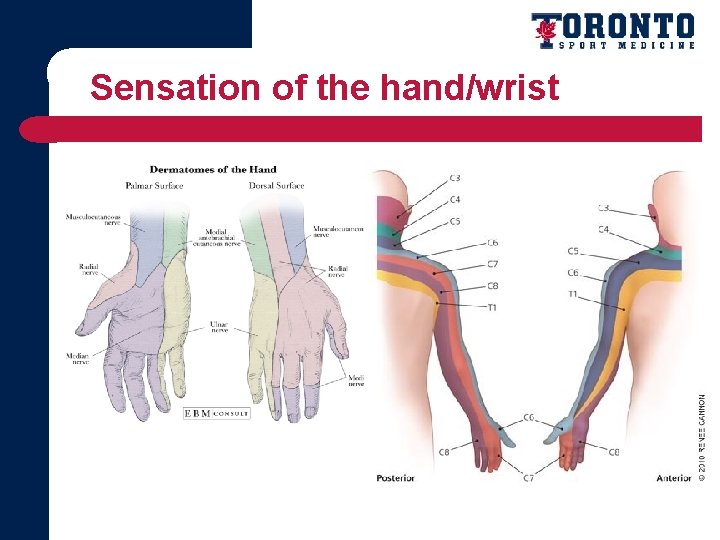

Sensation of the hand/wrist

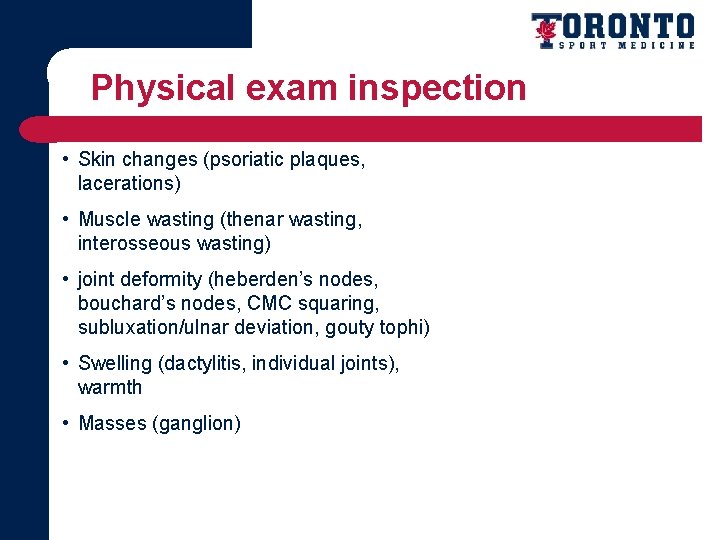

Physical exam inspection • Skin changes (psoriatic plaques, lacerations) • Muscle wasting (thenar wasting, interosseous wasting) • joint deformity (heberden’s nodes, bouchard’s nodes, CMC squaring, subluxation/ulnar deviation, gouty tophi) • Swelling (dactylitis, individual joints), warmth • Masses (ganglion)

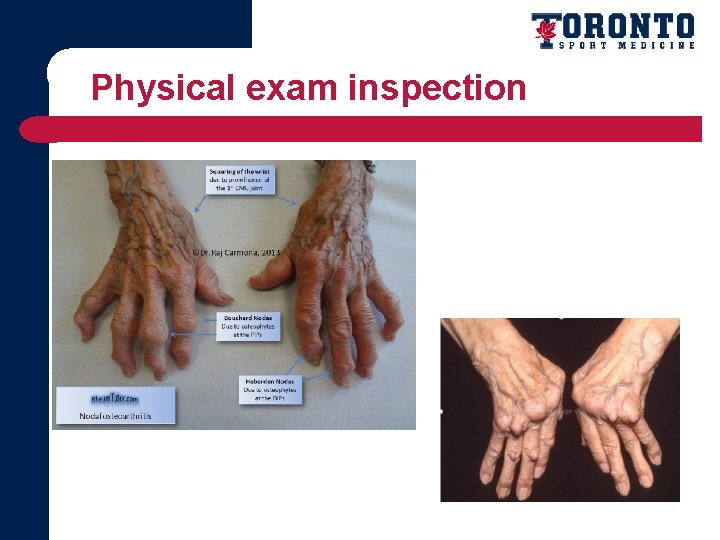

Physical exam inspection

Physical exam inspection

Physical exam inspection

Physical exam inspection

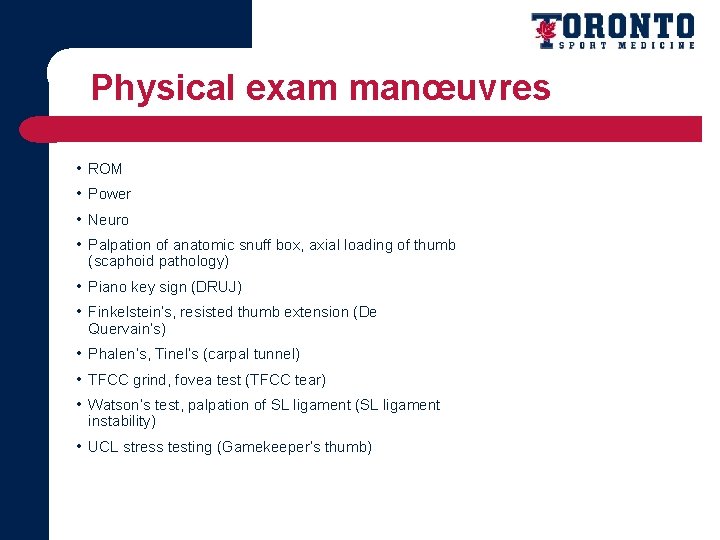

Physical exam manœuvres • ROM • Power • Neuro • Palpation of anatomic snuff box, axial loading of thumb (scaphoid pathology) • Piano key sign (DRUJ) • Finkelstein’s, resisted thumb extension (De Quervain’s) • Phalen’s, Tinel’s (carpal tunnel) • TFCC grind, fovea test (TFCC tear) • Watson’s test, palpation of SL ligament (SL ligament instability) • UCL stress testing (Gamekeeper’s thumb)

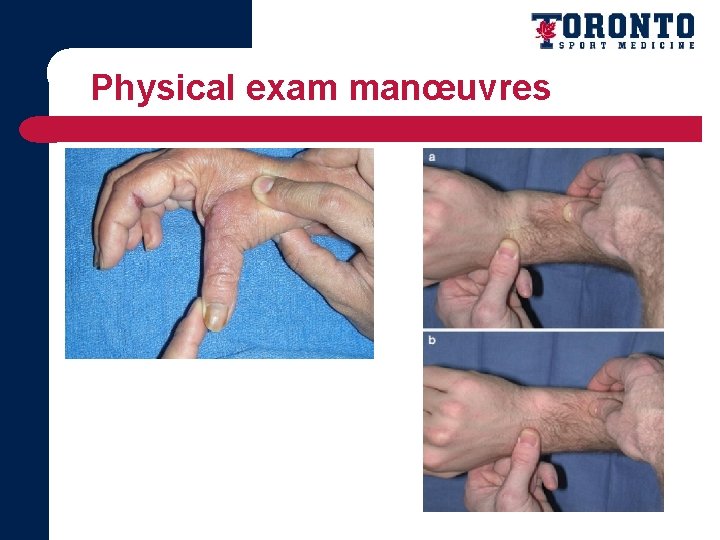

Physical exam manœuvres
