Pediatric Umbilical Abnormalities Scott Nguyen MD Mount Sinai

Pediatric Umbilical Abnormalities Scott Nguyen MD Mount Sinai School of Medicine Dept of Surgery

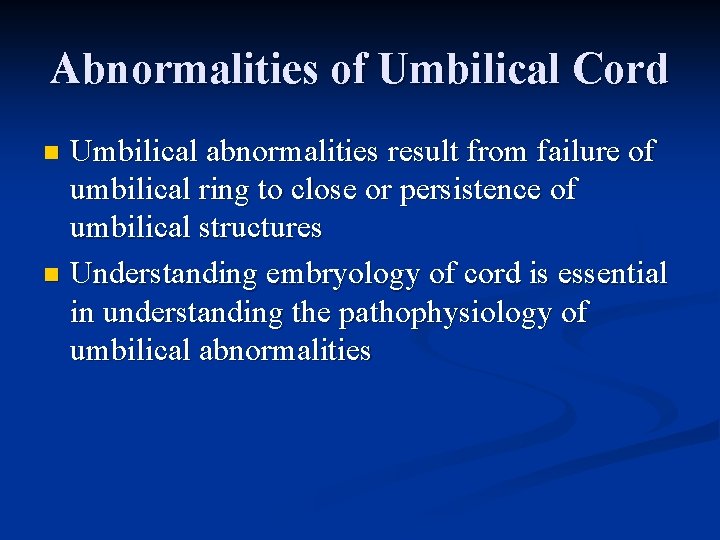

Abnormalities of Umbilical Cord Umbilical abnormalities result from failure of umbilical ring to close or persistence of umbilical structures n Understanding embryology of cord is essential in understanding the pathophysiology of umbilical abnormalities n

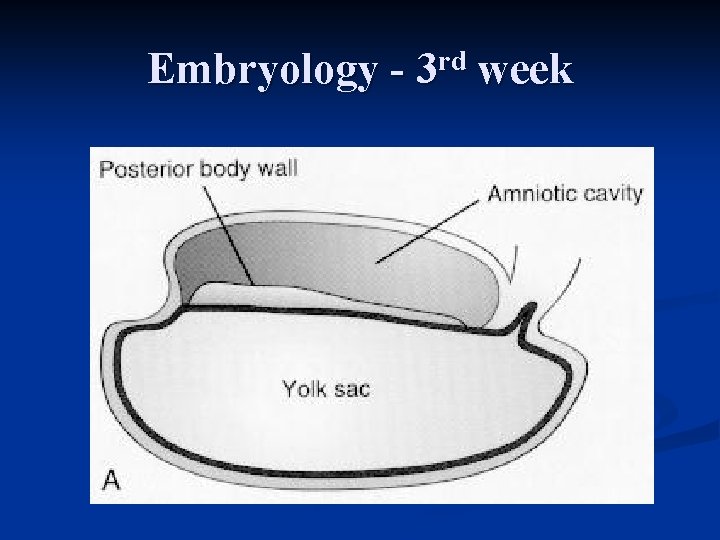

Embryology - 3 rd week

Embryology

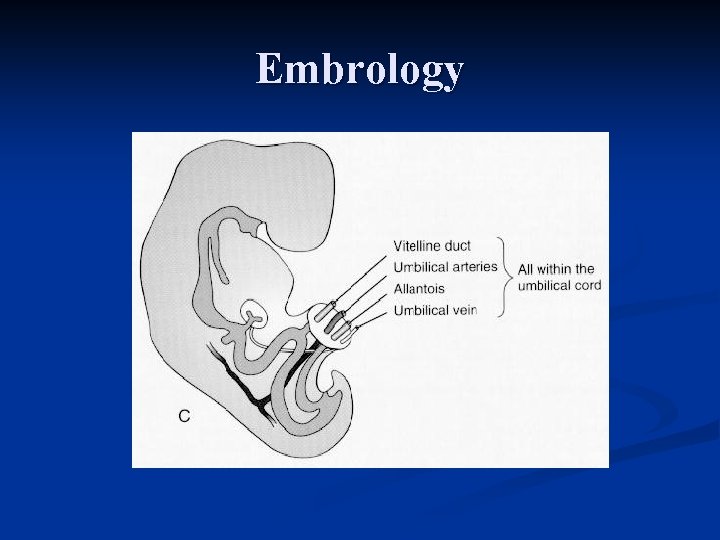

Embrology

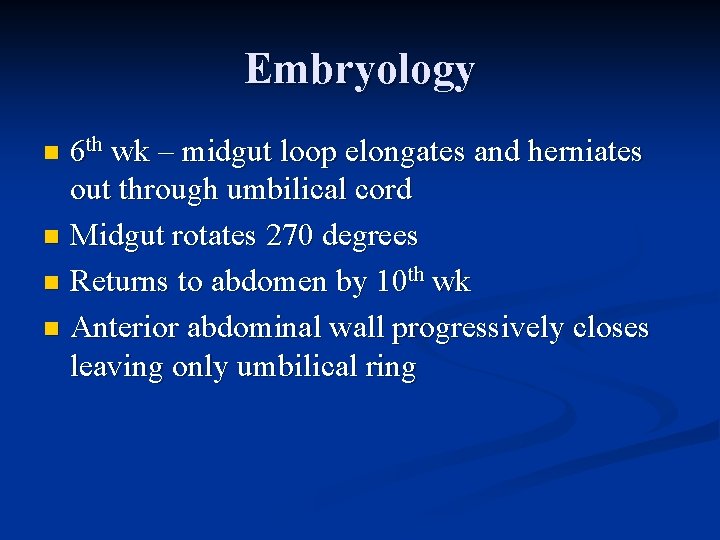

Embryology 6 th wk – midgut loop elongates and herniates out through umbilical cord n Midgut rotates 270 degrees n Returns to abdomen by 10 th wk n Anterior abdominal wall progressively closes leaving only umbilical ring n

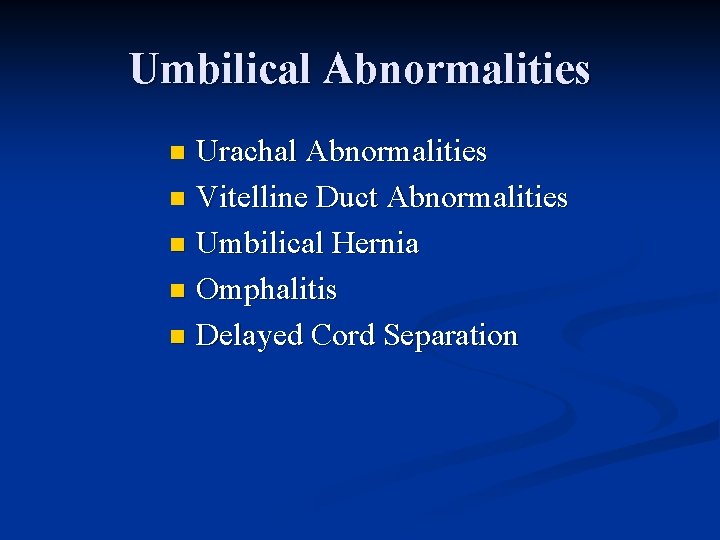

Umbilical Abnormalities Urachal Abnormalities n Vitelline Duct Abnormalities n Umbilical Hernia n Omphalitis n Delayed Cord Separation n

Umbilical granuloma

Urachal formation n Bladder forms from ventral portion of cloaca Bladder descends into pelvis w/ urachus connecting apex to umbilicus Usually urachus involutes to a fibrous cord – median umbilical ligament

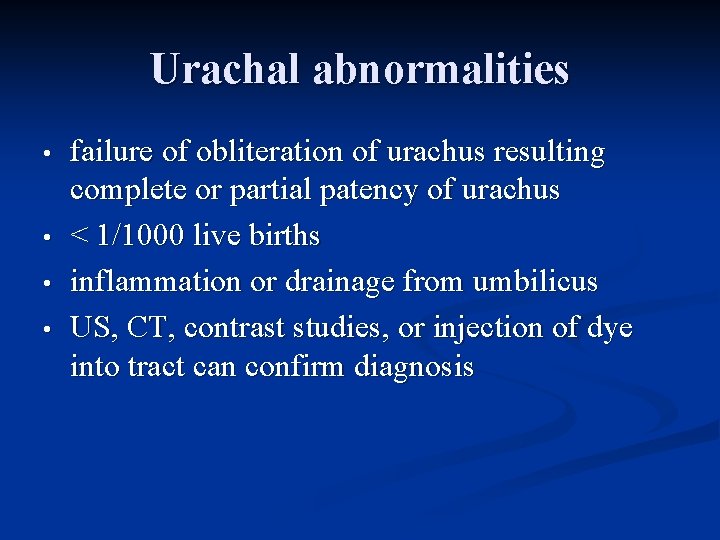

Urachal abnormalities • • failure of obliteration of urachus resulting complete or partial patency of urachus < 1/1000 live births inflammation or drainage from umbilicus US, CT, contrast studies, or injection of dye into tract can confirm diagnosis

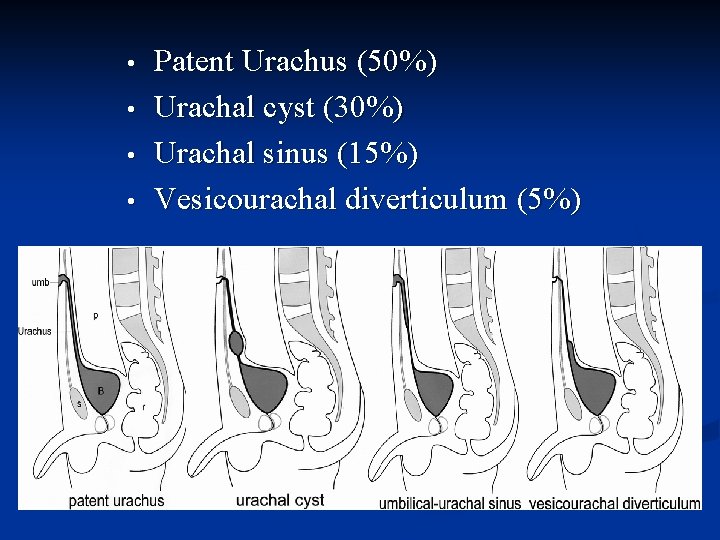

• • Patent Urachus (50%) Urachal cyst (30%) Urachal sinus (15%) Vesicourachal diverticulum (5%)

Patent Urachus

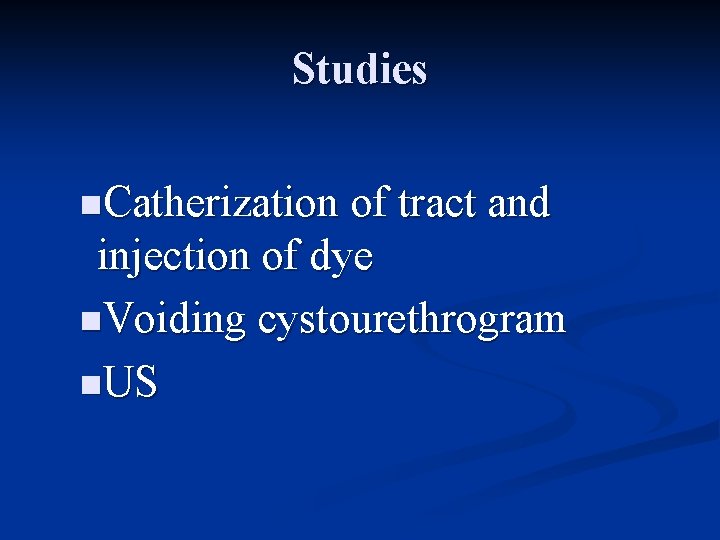

Studies n. Catherization of tract and injection of dye n. Voiding cystourethrogram n. US

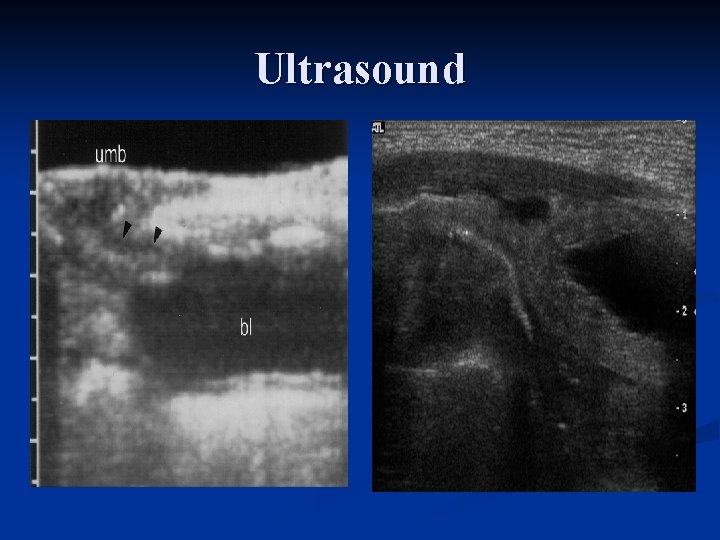

Ultrasound

CT

VCUG

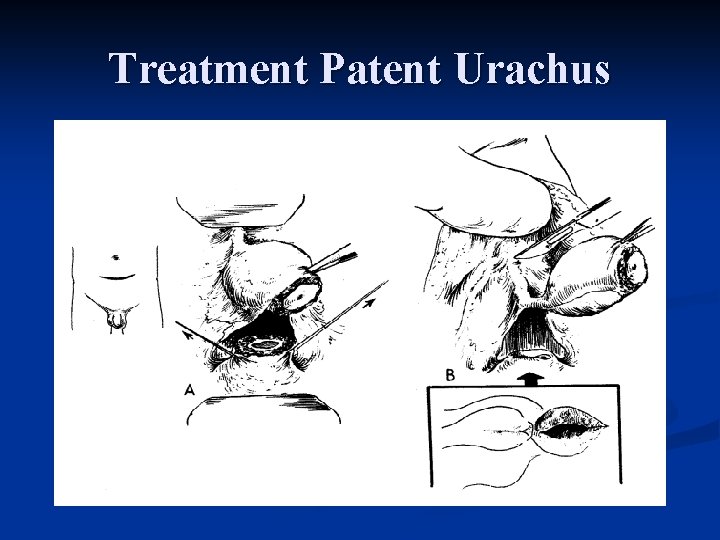

Treatment Patent Urachus

Patent Urachus

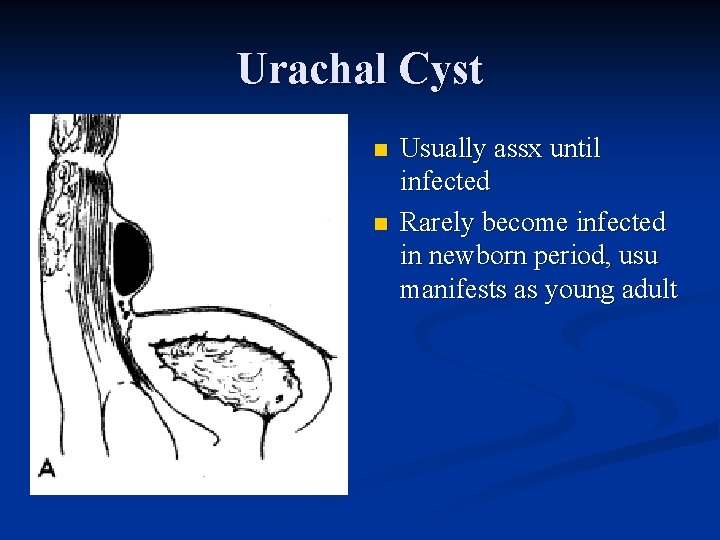

Urachal Cyst n n Usually assx until infected Rarely become infected in newborn period, usu manifests as young adult

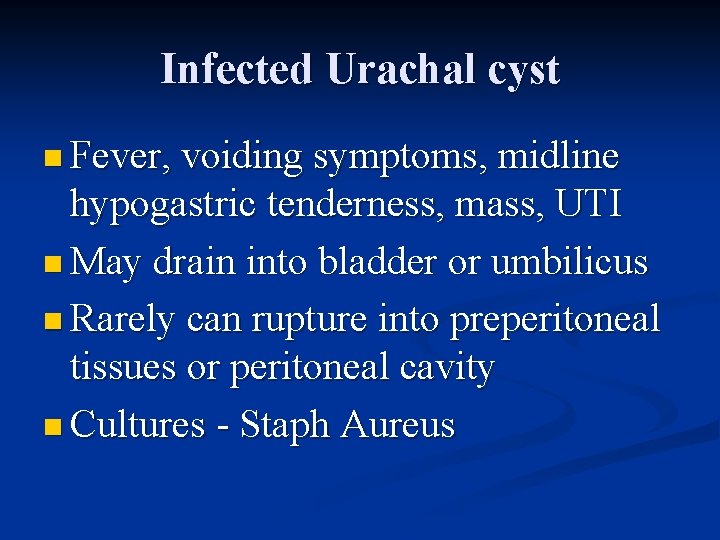

Infected Urachal cyst n Fever, voiding symptoms, midline hypogastric tenderness, mass, UTI n May drain into bladder or umbilicus n Rarely can rupture into preperitoneal tissues or peritoneal cavity n Cultures - Staph Aureus

US

CT

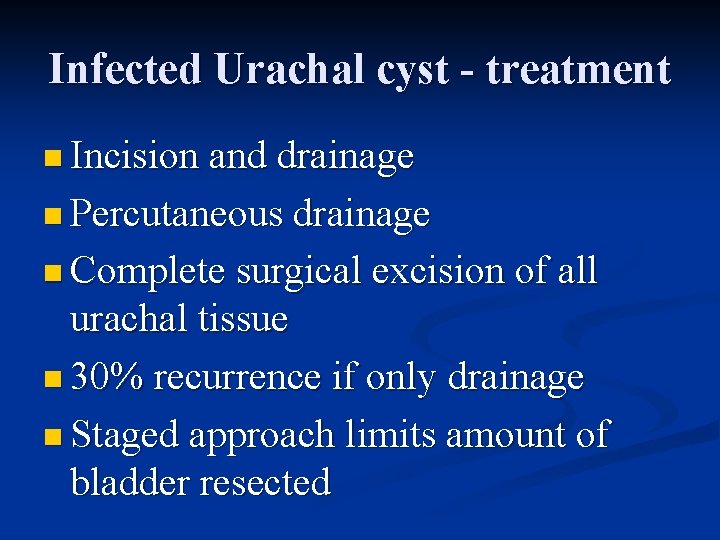

Infected Urachal cyst - treatment n Incision and drainage n Percutaneous drainage n Complete surgical excision of all urachal tissue n 30% recurrence if only drainage n Staged approach limits amount of bladder resected

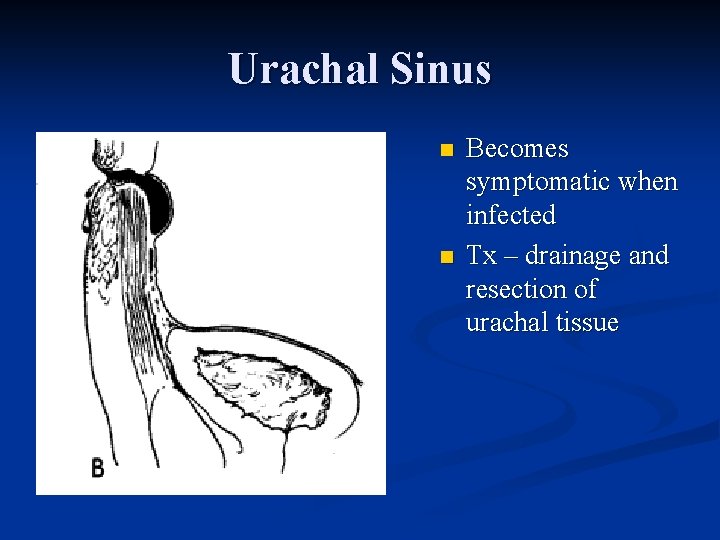

Urachal Sinus n n Becomes symptomatic when infected Tx – drainage and resection of urachal tissue

Sinogram

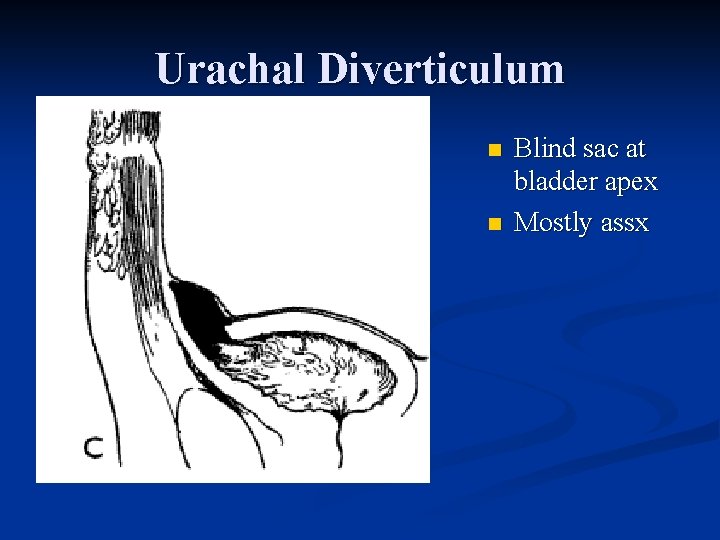

Urachal Diverticulum n n Blind sac at bladder apex Mostly assx

Urachal Diverticulum

Vitelline Duct Abnormalities

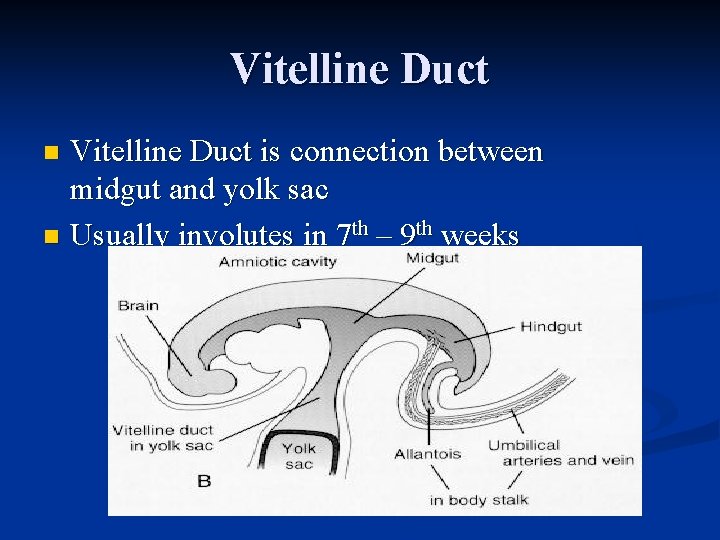

Vitelline Duct is connection between midgut and yolk sac n Usually involutes in 7 th – 9 th weeks n

Vitelline duct abnormalities

Meckel’s Diverticulum

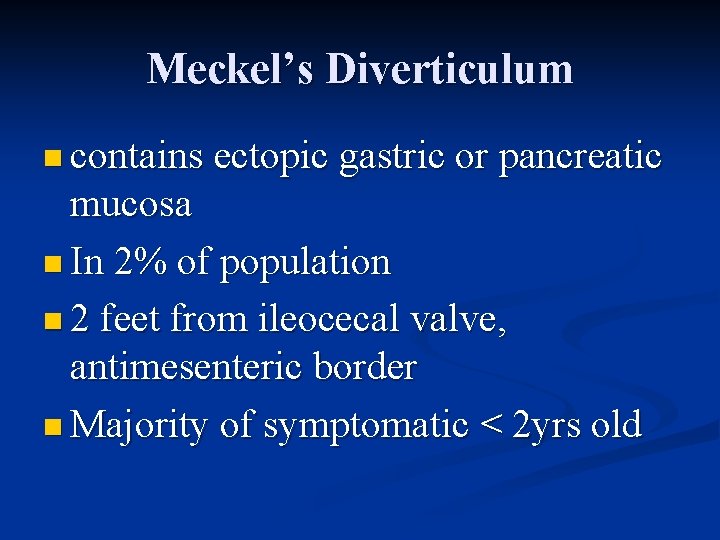

Meckel’s Diverticulum n contains ectopic gastric or pancreatic mucosa n In 2% of population n 2 feet from ileocecal valve, antimesenteric border n Majority of symptomatic < 2 yrs old

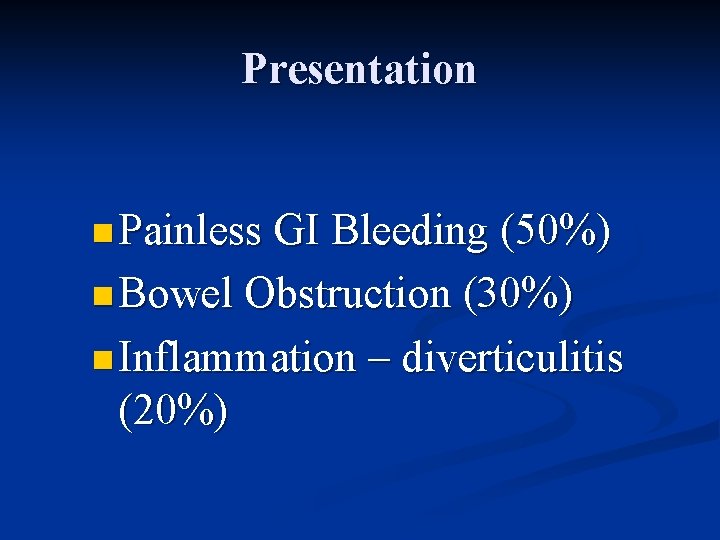

Presentation n Painless GI Bleeding (50%) n Bowel Obstruction (30%) n Inflammation – (20%) diverticulitis

GI Bleeding n Most common cause of bleeding in children n Painless, massive, usually self resolving n Due to mucosal ulceration from acid secretion

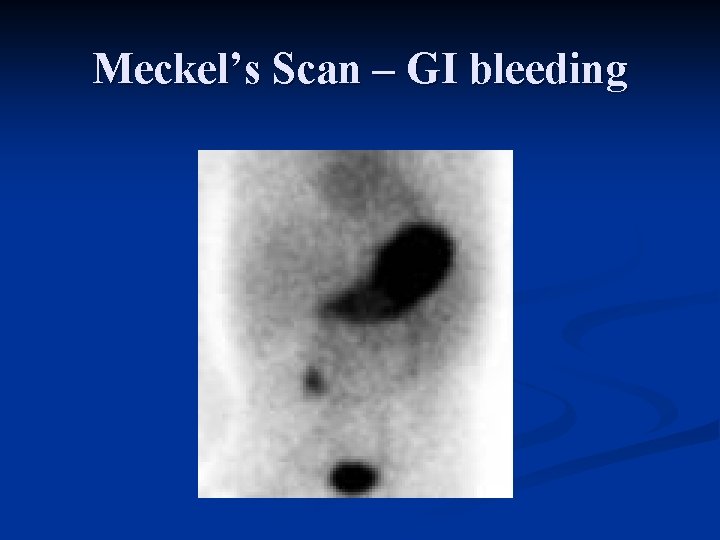

Meckel’s Scan – GI bleeding

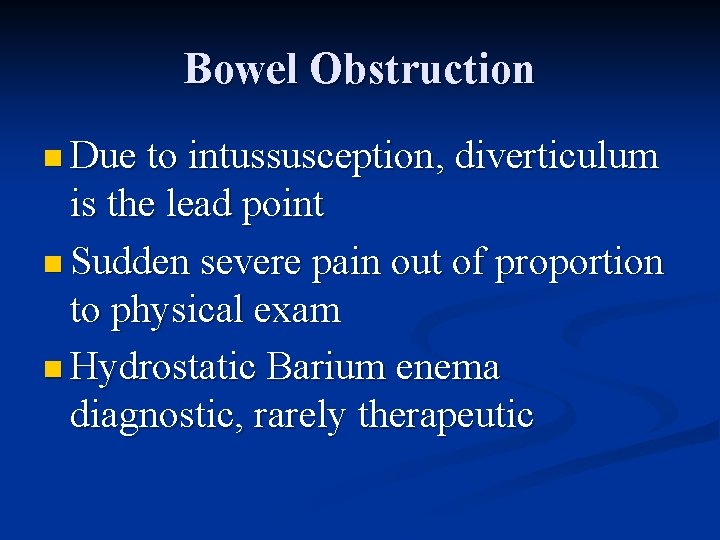

Bowel Obstruction n Due to intussusception, diverticulum is the lead point n Sudden severe pain out of proportion to physical exam n Hydrostatic Barium enema diagnostic, rarely therapeutic

Intussusception

Intussusseption

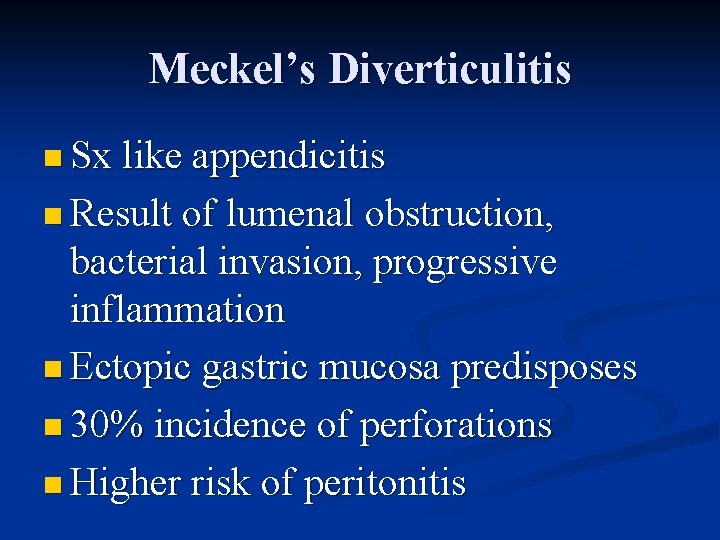

Meckel’s Diverticulitis n Sx like appendicitis n Result of lumenal obstruction, bacterial invasion, progressive inflammation n Ectopic gastric mucosa predisposes n 30% incidence of perforations n Higher risk of peritonitis

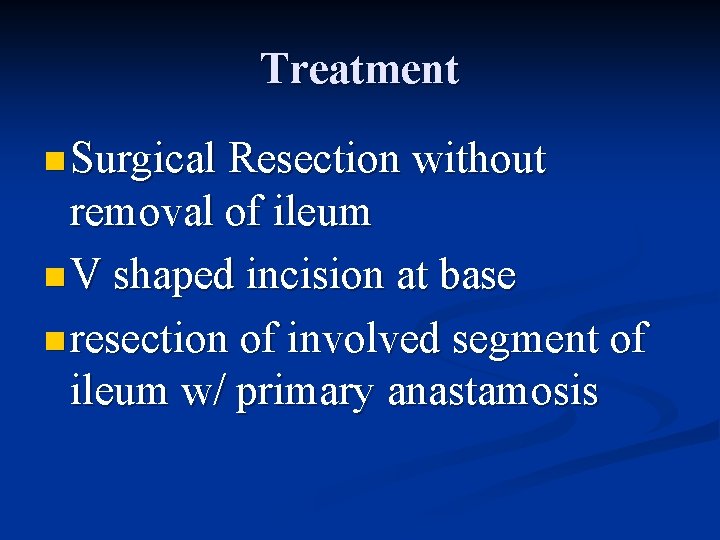

Treatment n Surgical Resection without removal of ileum n V shaped incision at base n resection of involved segment of ileum w/ primary anastamosis

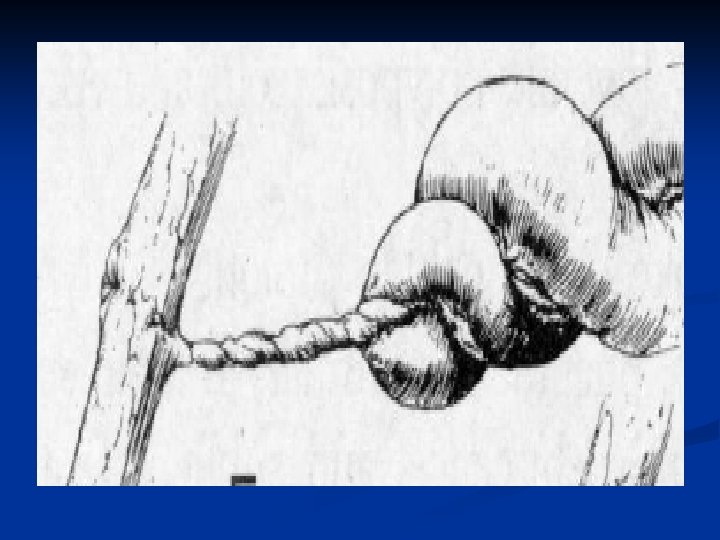

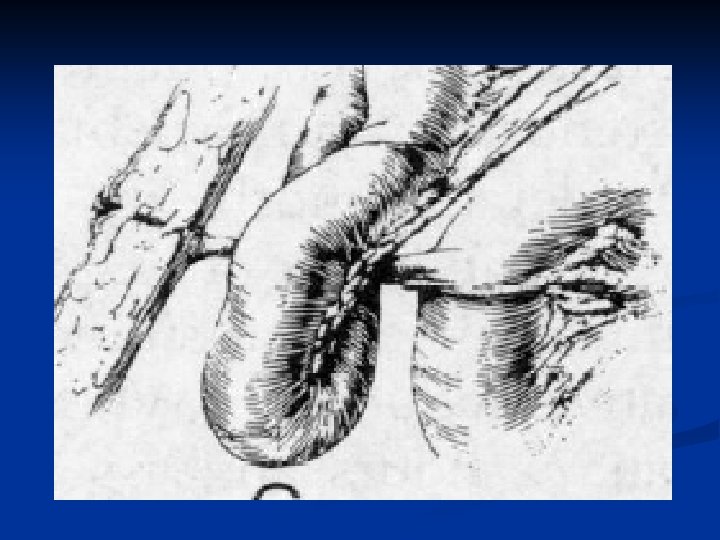

Fibrous Vitelline Remnant

Fibrous Vitelline Remnant

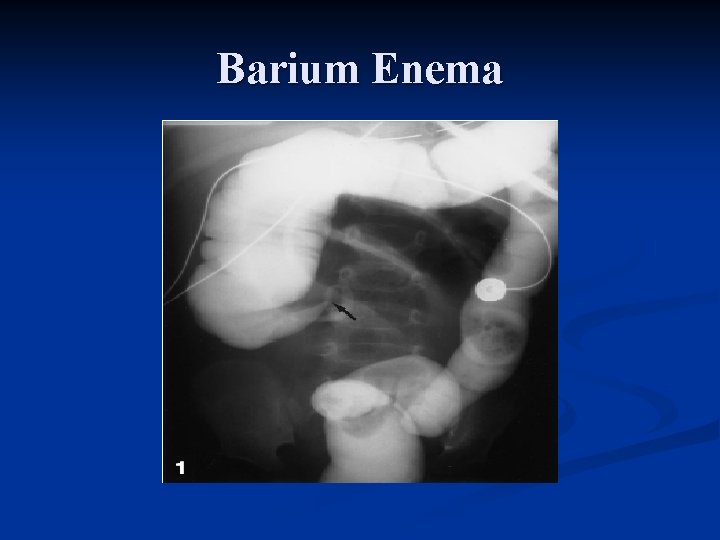

Barium Enema

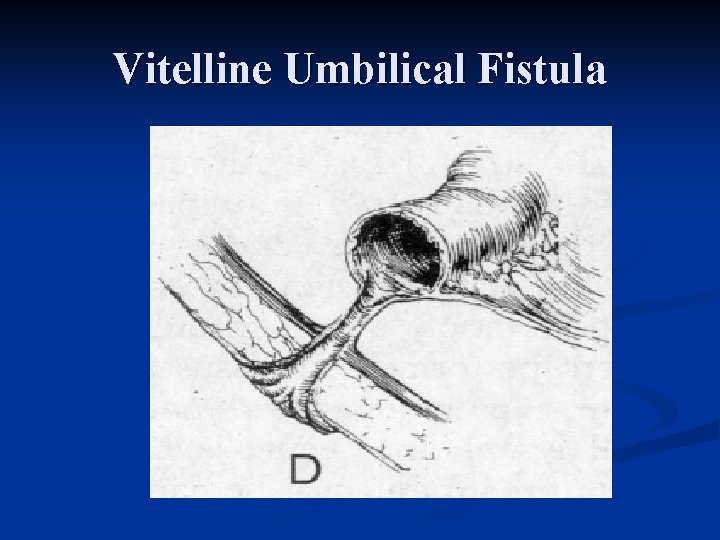

Vitelline Umbilical Fistula

n Umbilical polyp Vitelline Umbilical fistula n May drain enteric contents n Fistulogram shows communication w/ bowel

Herniation

Umbilical Hernia

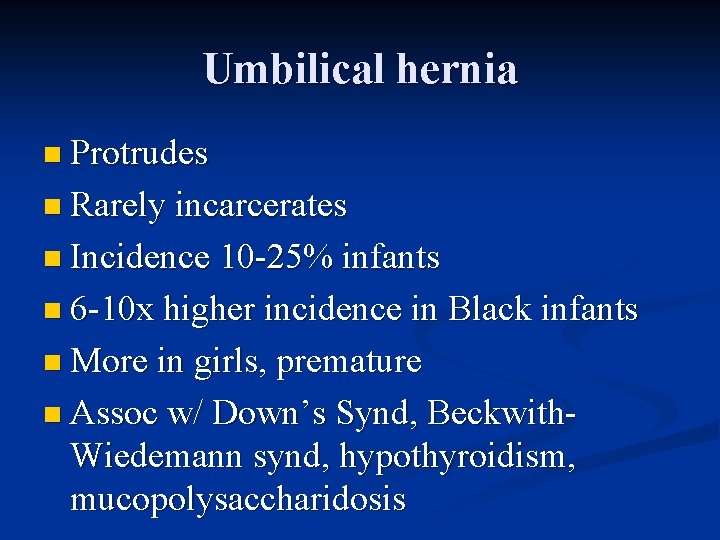

Umbilical hernia n Protrudes n Rarely incarcerates n Incidence 10 -25% infants n 6 -10 x higher incidence in Black infants n More in girls, premature n Assoc w/ Down’s Synd, Beckwith- Wiedemann synd, hypothyroidism, mucopolysaccharidosis

Treatment n Most close by 3 -4 years age (>90%) n Defect greater than 1. 5 – 2 cm less likely to close n Surgical closure indicated in kids >5 years age

Proboscoid Umbilical Hernias

Proboscoid umbilical hernias n 15 -20% of umbilical hernias n Same sized fascial defect n Same likelihood of closing spontaneously n Excessive redundant umbilical skin n Surgical repair for social and cosmetic reasons

Omphalitis

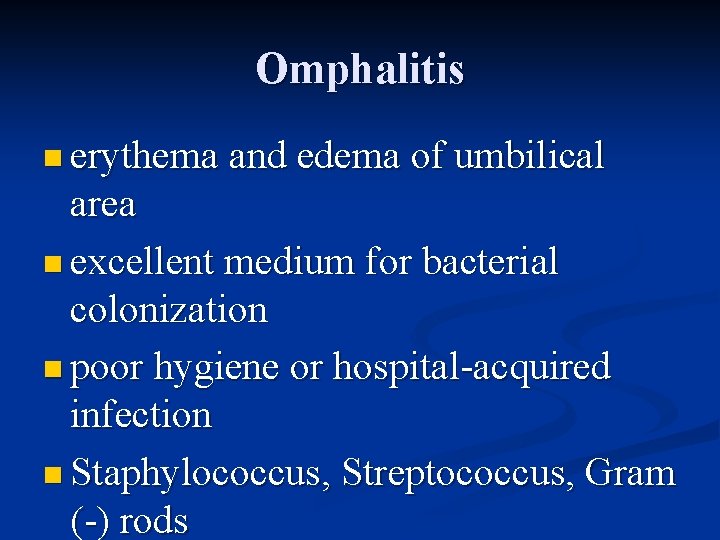

Omphalitis n erythema and edema of umbilical area n excellent medium for bacterial colonization n poor hygiene or hospital-acquired infection n Staphylococcus, Streptococcus, Gram (-) rods

Treatment n IV Antibiotics n Local cleaning w/ Etoh n Can rapidly progress to Necrotizing fasciitis (16%) n Usually polymicrobial n Rapidly fatal (50%) n Surgical debridement necessary

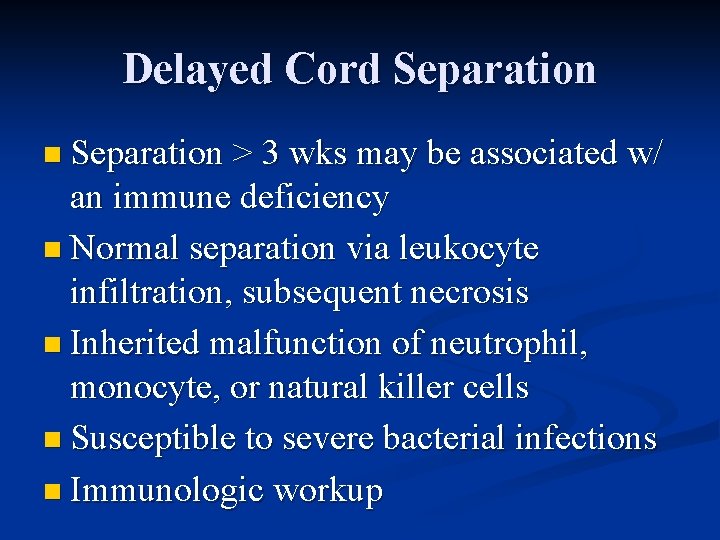

Delayed Cord Separation n Separation > 3 wks may be associated w/ an immune deficiency n Normal separation via leukocyte infiltration, subsequent necrosis n Inherited malfunction of neutrophil, monocyte, or natural killer cells n Susceptible to severe bacterial infections n Immunologic workup

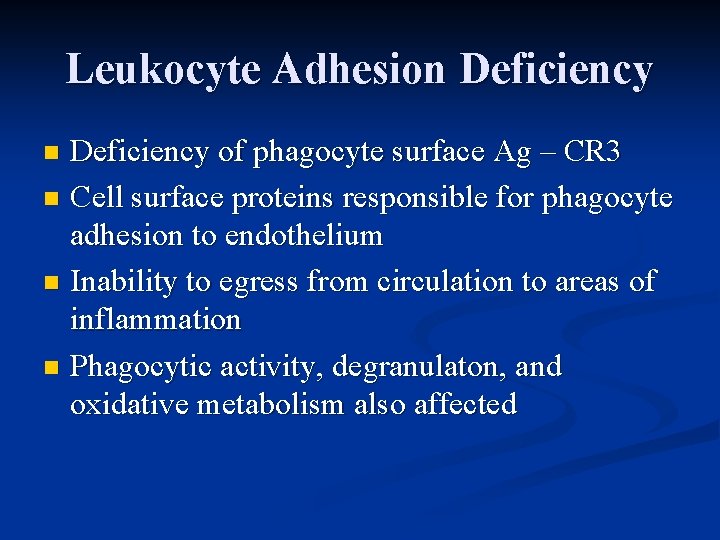

Leukocyte Adhesion Deficiency of phagocyte surface Ag – CR 3 n Cell surface proteins responsible for phagocyte adhesion to endothelium n Inability to egress from circulation to areas of inflammation n Phagocytic activity, degranulaton, and oxidative metabolism also affected n

Thank You!!!
