Pediatric Limb Deficiency Ramona M Okumura C P

Pediatric Limb Deficiency Ramona M. Okumura, C. P. /L. P. Clinical Prosthetist Senior Lecturer, Division of Prosthetics Orthotics Department of Rehabilitation Medicine School of Medicine University of Washington

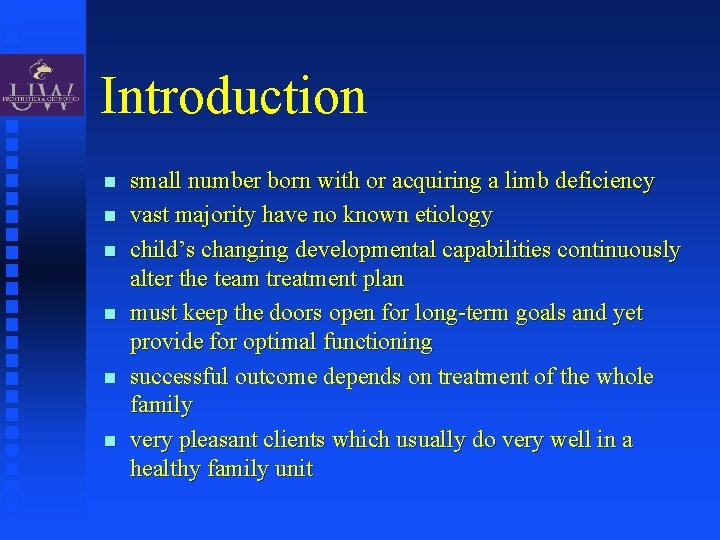

Introduction small number born with or acquiring a limb deficiency vast majority have no known etiology child’s changing developmental capabilities continuously alter the team treatment plan must keep the doors open for long-term goals and yet provide for optimal functioning successful outcome depends on treatment of the whole family very pleasant clients which usually do very well in a healthy family unit

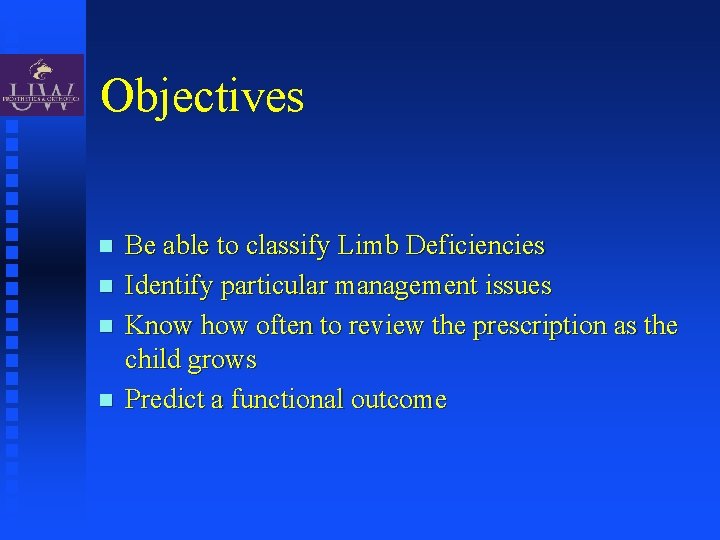

Objectives Be able to classify Limb Deficiencies Identify particular management issues Know how often to review the prescription as the child grows Predict a functional outcome

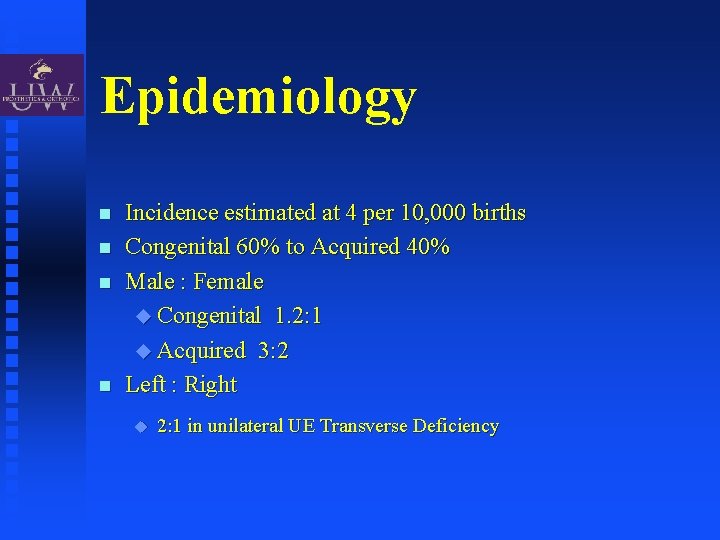

Epidemiology Incidence estimated at 4 per 10, 000 births Congenital 60% to Acquired 40% Male : Female Congenital 1. 2: 1 Acquired 3: 2 Left : Right 2: 1 in unilateral UE Transverse Deficiency

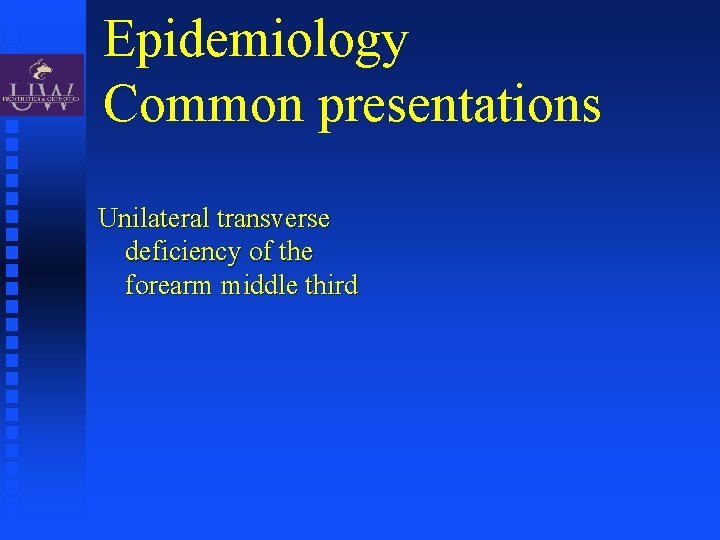

Epidemiology Common presentations Unilateral transverse deficiency of the forearm middle third

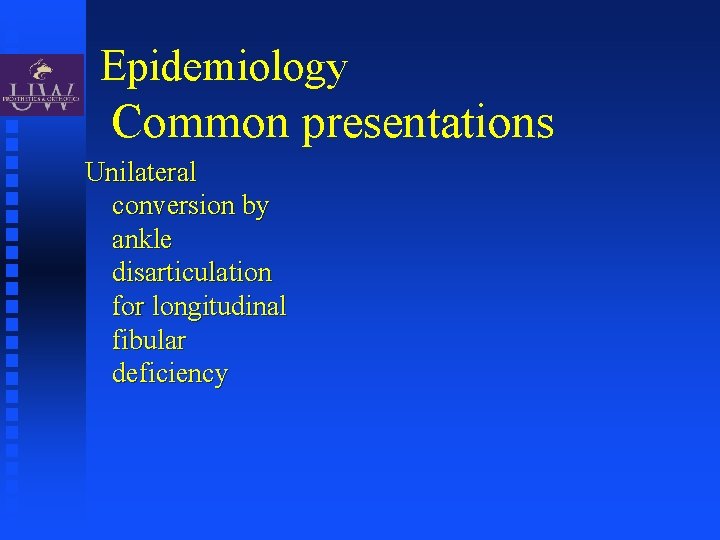

Epidemiology Common presentations Unilateral conversion by ankle disarticulation for longitudinal fibular deficiency

Embryology Limbs form 4 -7 weeks gestation Proximal to distal in sequence Upper limb develops slightly ahead of the lower limb Simultaneously with organ development Associated with Radial deficiency

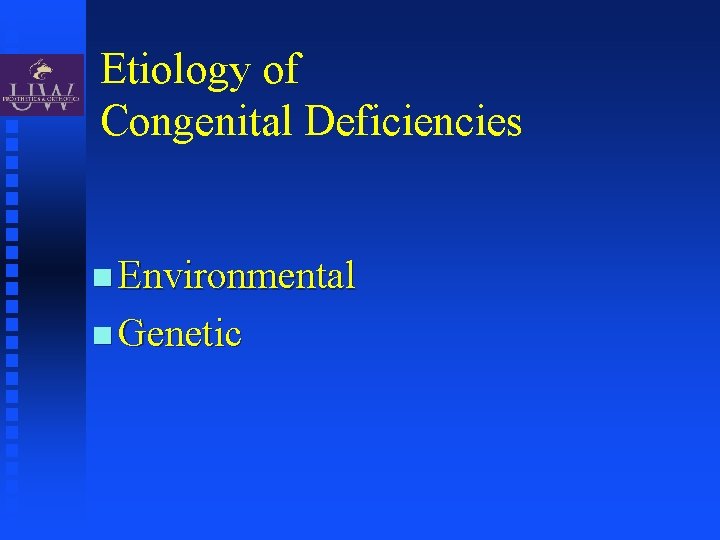

Etiology of Congenital Deficiencies Environmental Genetic

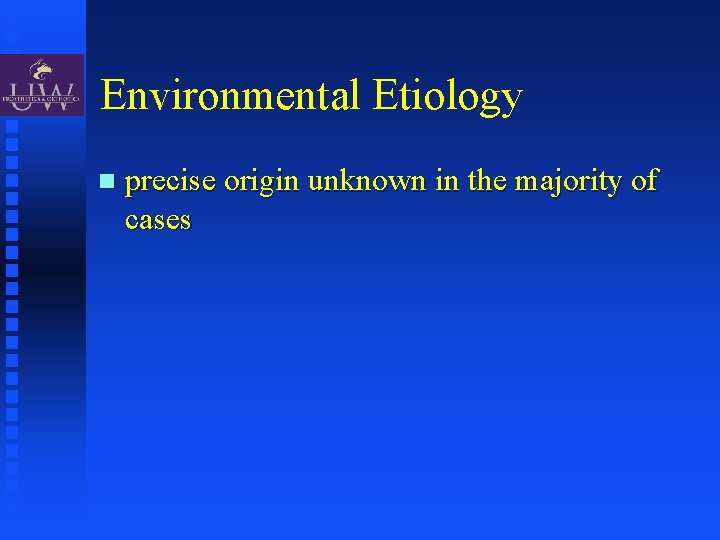

Environmental Etiology precise origin unknown in the majority of cases

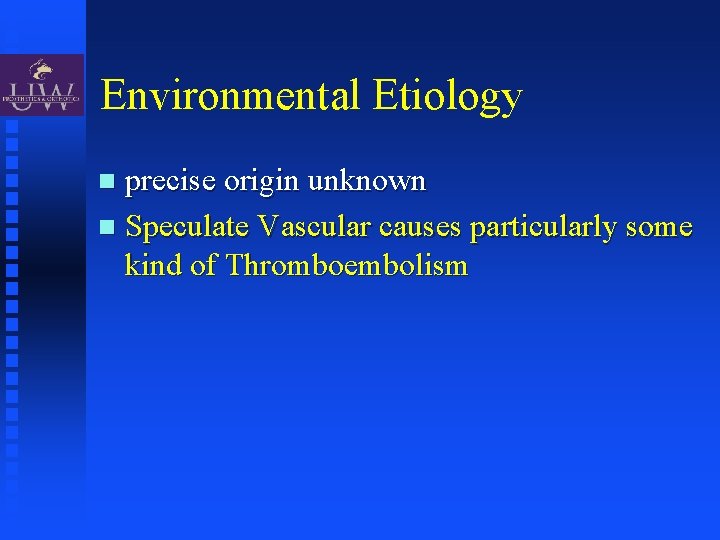

Environmental Etiology precise origin unknown Speculate Vascular causes particularly some kind of Thromboembolism

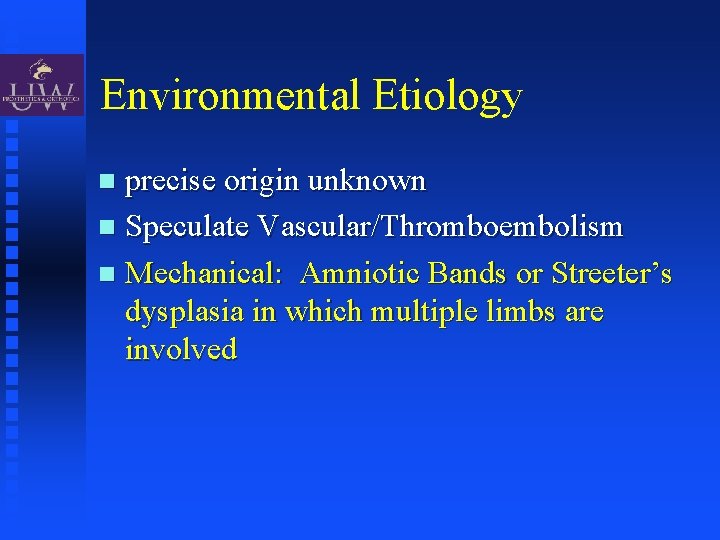

Environmental Etiology precise origin unknown Speculate Vascular/Thromboembolism Mechanical: Amniotic Bands or Streeter’s dysplasia in which multiple limbs are involved

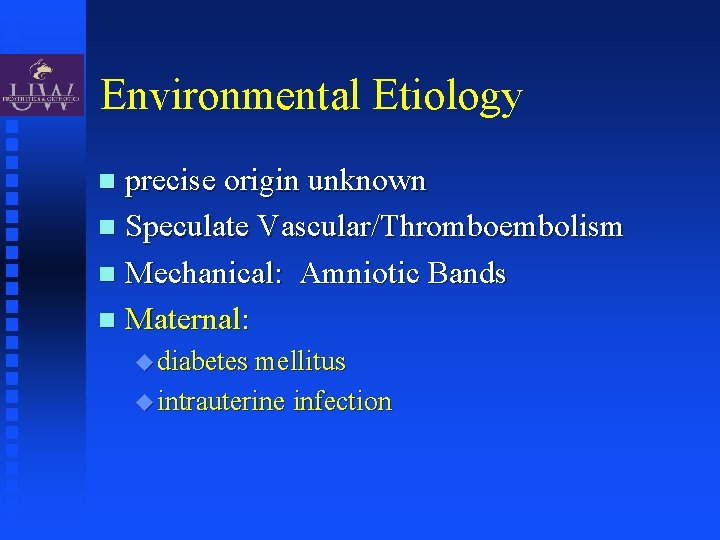

Environmental Etiology precise origin unknown Speculate Vascular/Thromboembolism Mechanical: Amniotic Bands Maternal: diabetes mellitus intrauterine infection

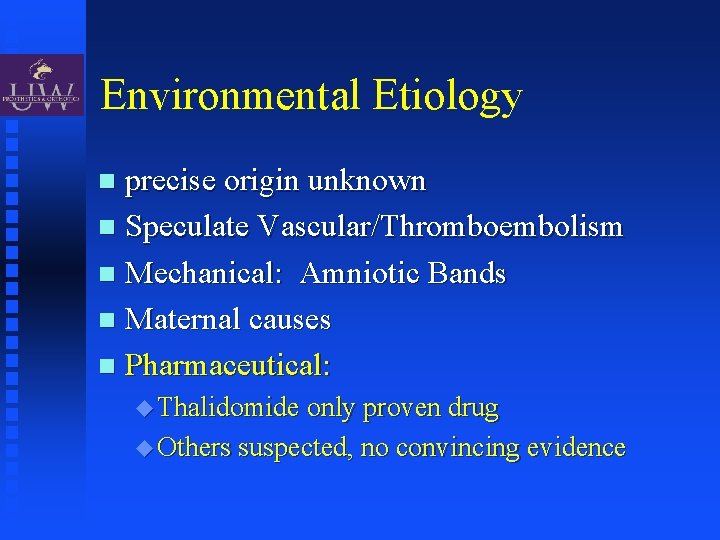

Environmental Etiology precise origin unknown Speculate Vascular/Thromboembolism Mechanical: Amniotic Bands Maternal causes Pharmaceutical: Thalidomide only proven drug Others suspected, no convincing evidence

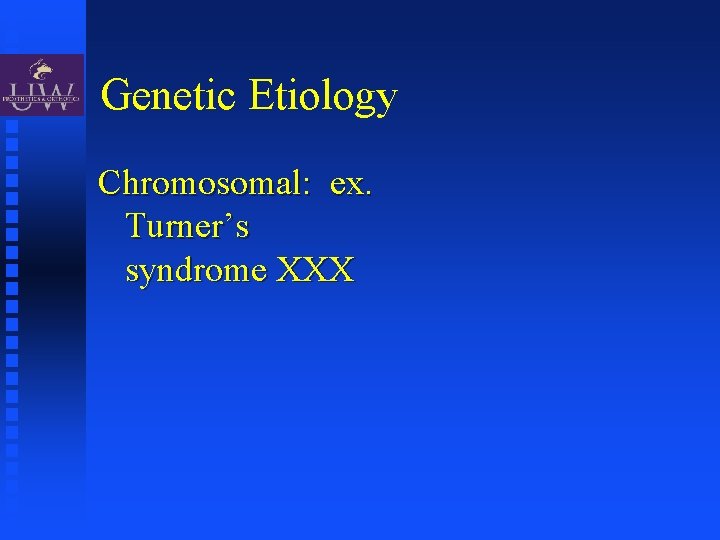

Genetic Etiology Chromosomal: ex. Turner’s syndrome XXX

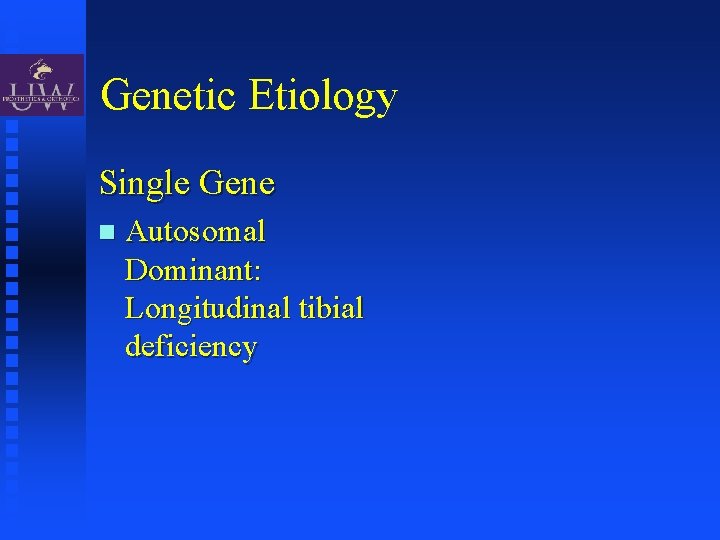

Genetic Etiology Single Gene Autosomal Dominant: Longitudinal tibial deficiency

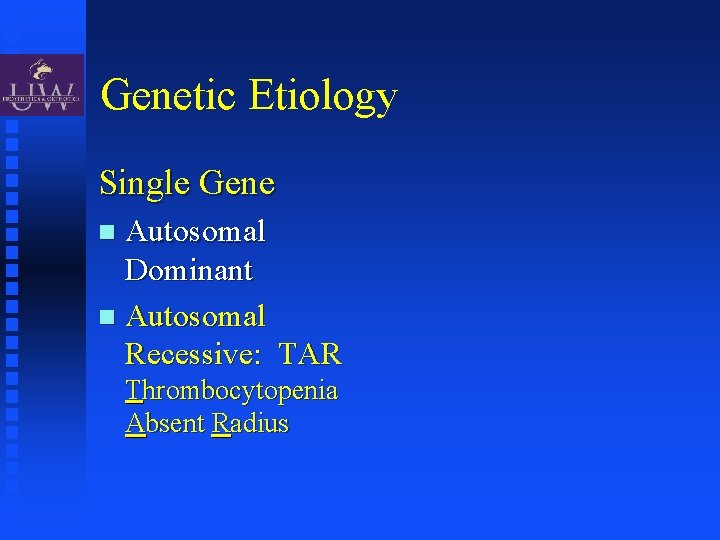

Genetic Etiology Single Gene Autosomal Dominant Autosomal Recessive: TAR Thrombocytopenia Absent Radius

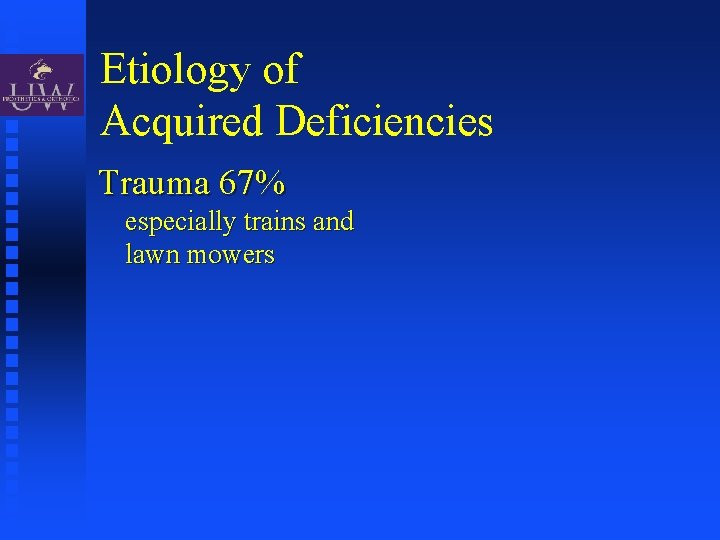

Etiology of Acquired Deficiencies Trauma 67% especially trains and lawn mowers

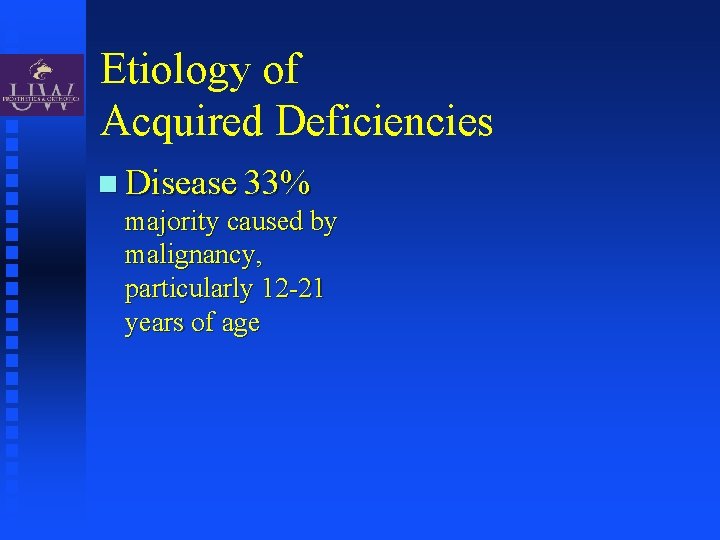

Etiology of Acquired Deficiencies Disease 33% majority caused by malignancy, particularly 12 -21 years of age

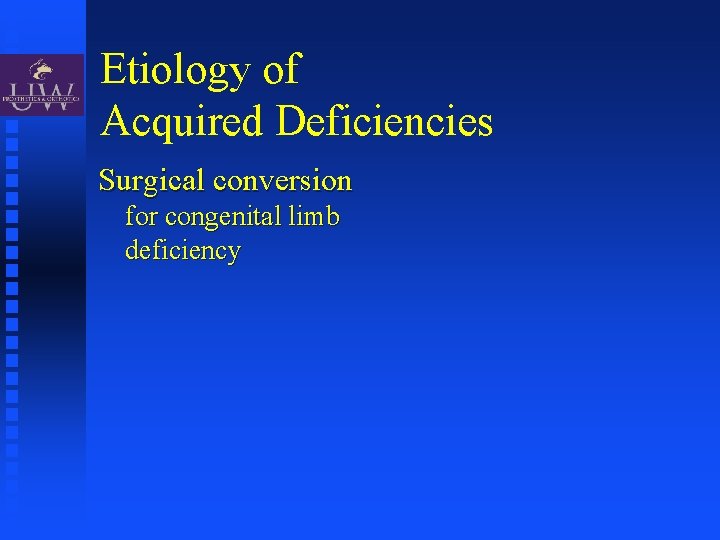

Etiology of Acquired Deficiencies Surgical conversion for congenital limb deficiency

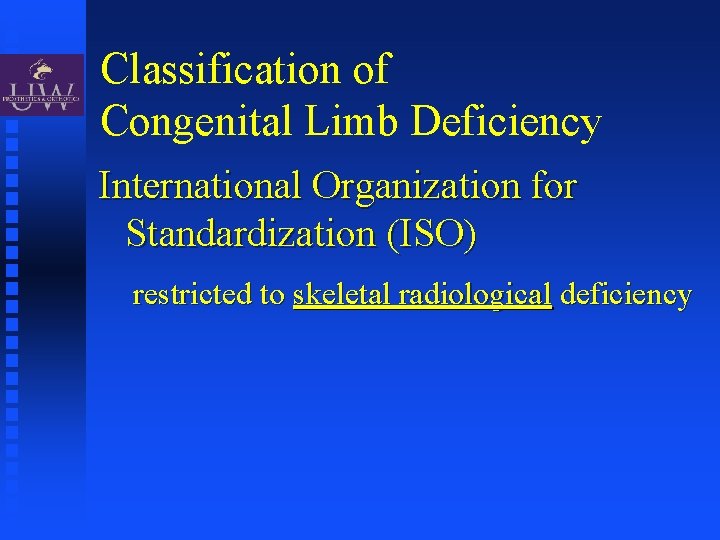

Classification of Congenital Limb Deficiency International Organization for Standardization (ISO) restricted to skeletal radiological deficiency

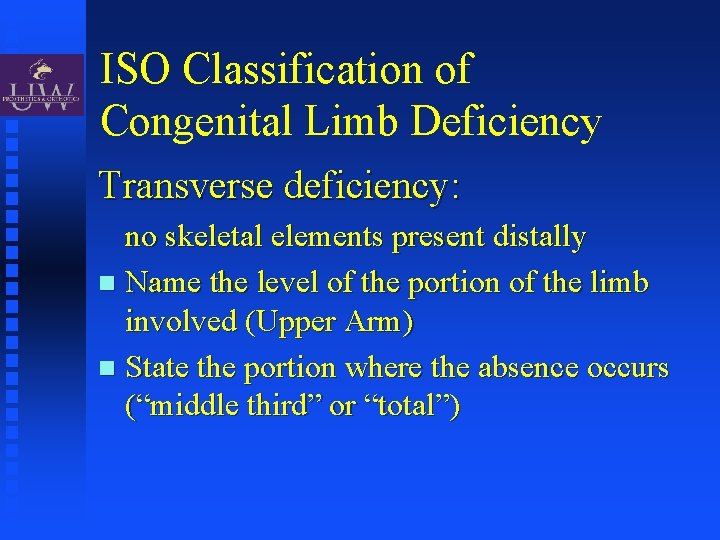

ISO Classification of Congenital Limb Deficiency Transverse deficiency: no skeletal elements present distally Name the level of the portion of the limb involved (Upper Arm) State the portion where the absence occurs (“middle third” or “total”)

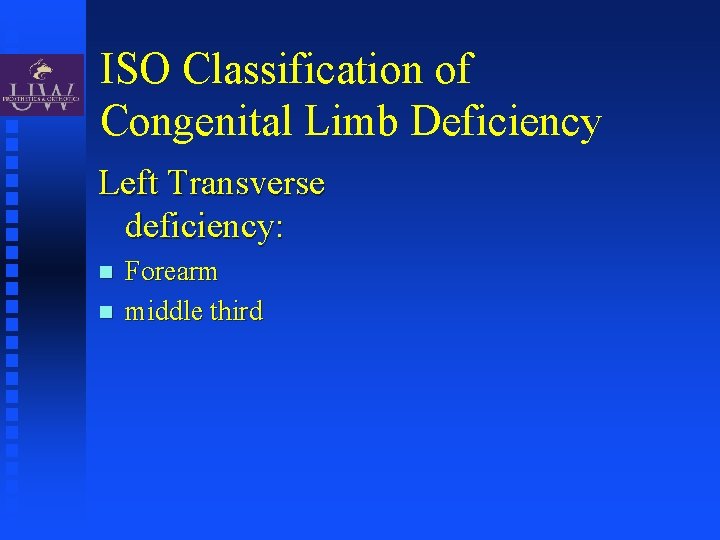

ISO Classification of Congenital Limb Deficiency Left Transverse deficiency: Forearm middle third

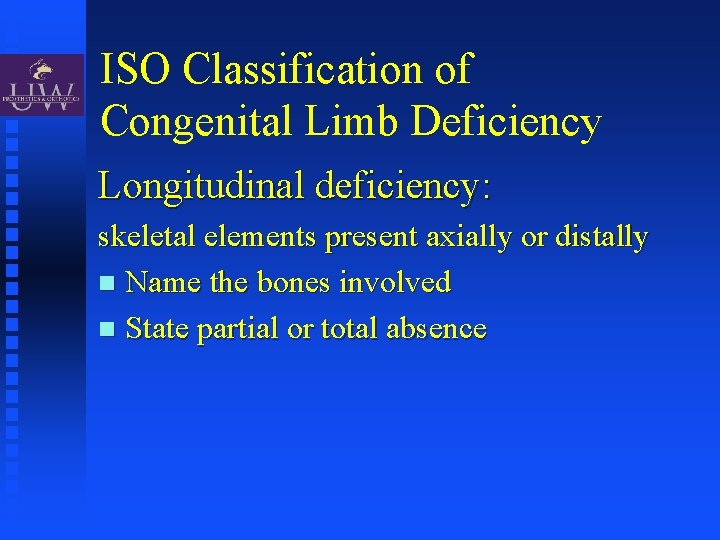

ISO Classification of Congenital Limb Deficiency Longitudinal deficiency: skeletal elements present axially or distally Name the bones involved State partial or total absence

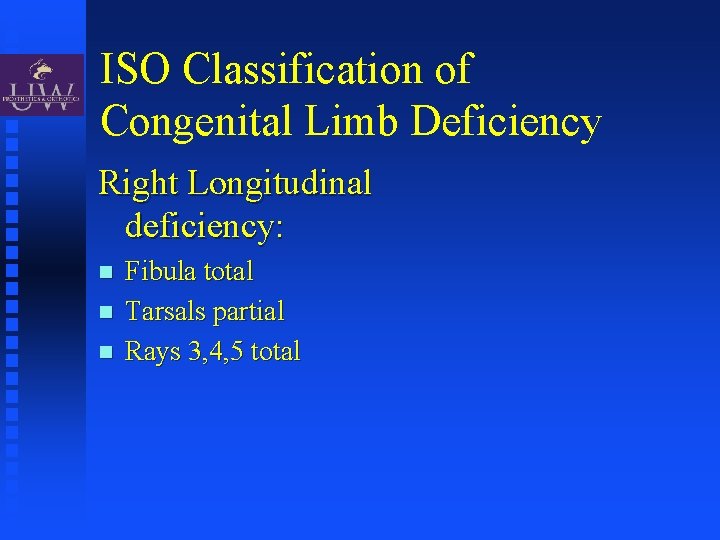

ISO Classification of Congenital Limb Deficiency Right Longitudinal deficiency: Fibula total Tarsals partial Rays 3, 4, 5 total

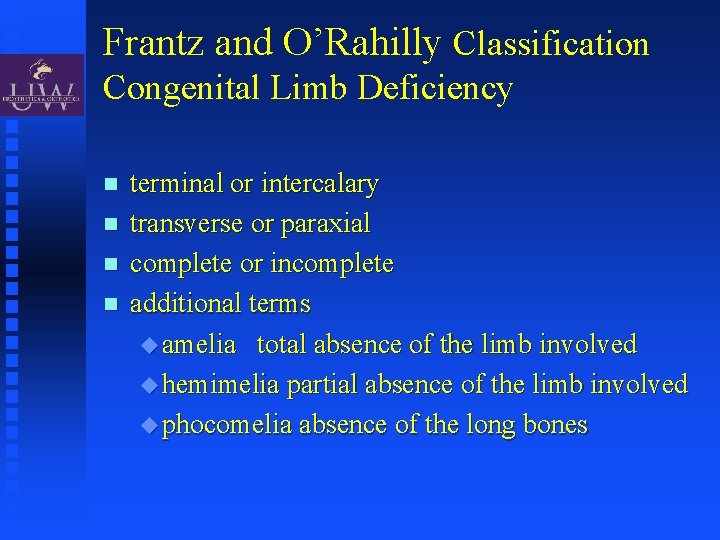

Frantz and O’Rahilly Classification Congenital Limb Deficiency terminal or intercalary transverse or paraxial complete or incomplete additional terms amelia total absence of the limb involved hemimelia partial absence of the limb involved phocomelia absence of the long bones

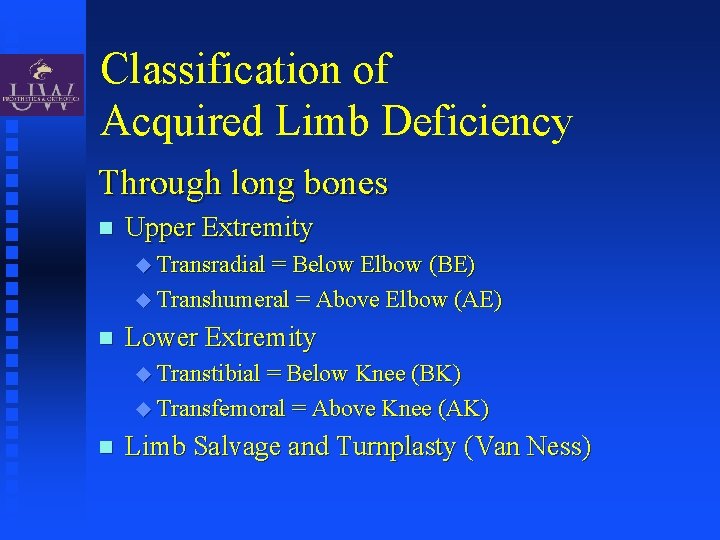

Classification of Acquired Limb Deficiency Through long bones Upper Extremity Transradial = Below Elbow (BE) Transhumeral = Above Elbow (AE) Lower Extremity Transtibial = Below Knee (BK) Transfemoral = Above Knee (AK) Limb Salvage and Turnplasty (Van Ness)

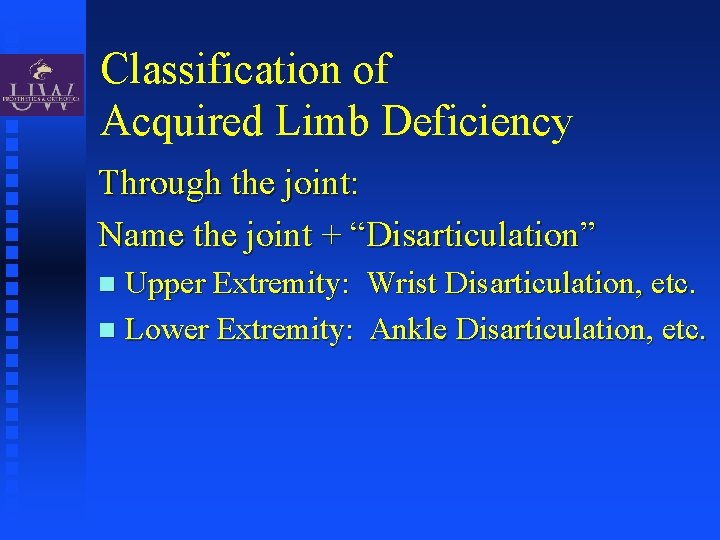

Classification of Acquired Limb Deficiency Through the joint: Name the joint + “Disarticulation” Upper Extremity: Wrist Disarticulation, etc. Lower Extremity: Ankle Disarticulation, etc.

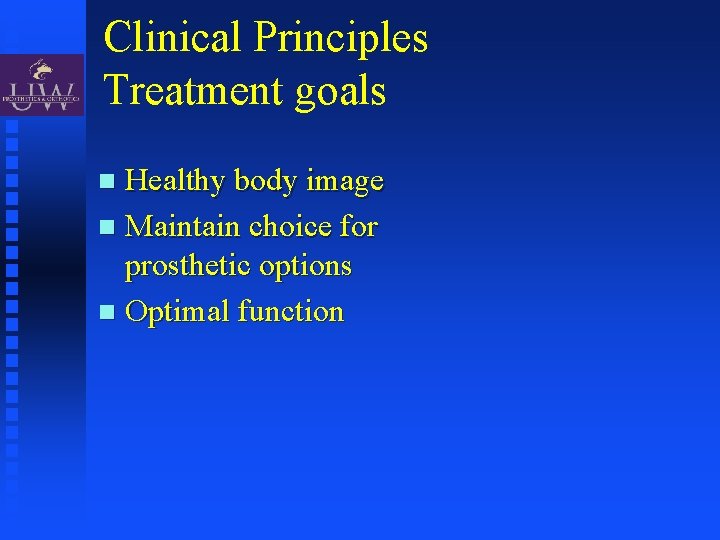

Clinical Principles Treatment goals Healthy body image Maintain choice for prosthetic options Optimal function

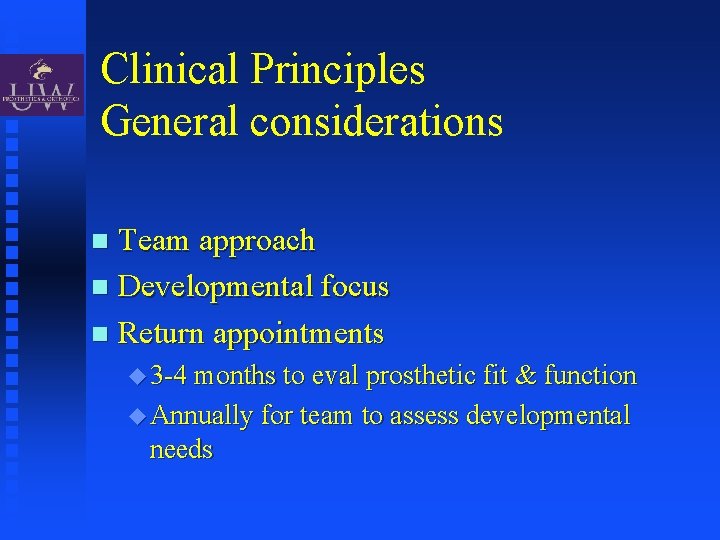

Clinical Principles General considerations Team approach Developmental focus Return appointments 3 -4 months to eval prosthetic fit & function Annually for team to assess developmental needs

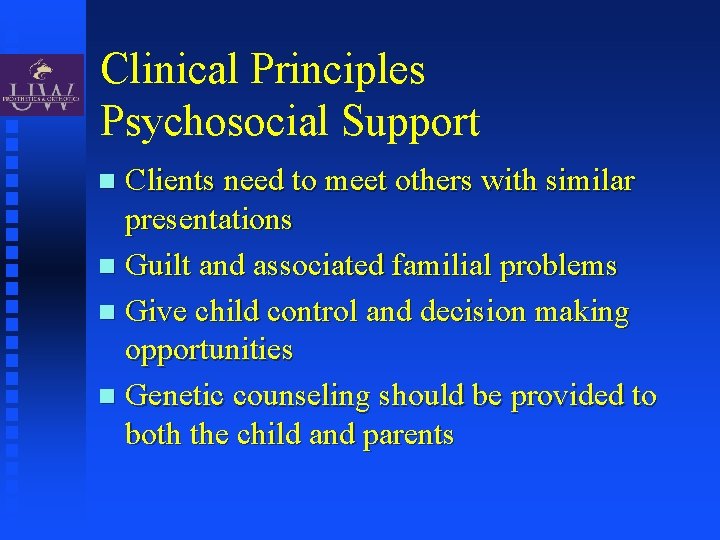

Clinical Principles Psychosocial Support Clients need to meet others with similar presentations Guilt and associated familial problems Give child control and decision making opportunities Genetic counseling should be provided to both the child and parents

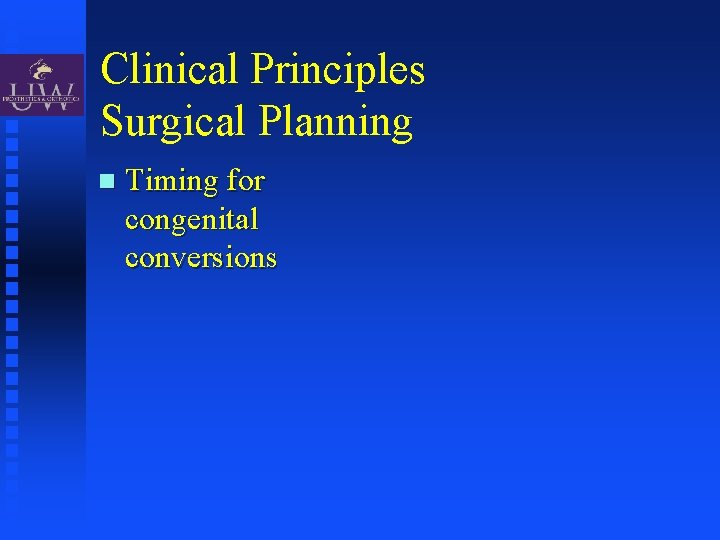

Clinical Principles Surgical Planning Timing for congenital conversions

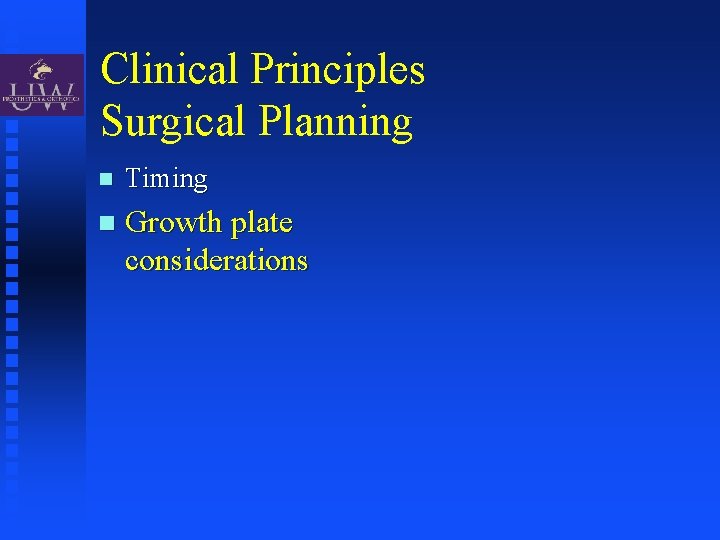

Clinical Principles Surgical Planning Timing Growth plate considerations

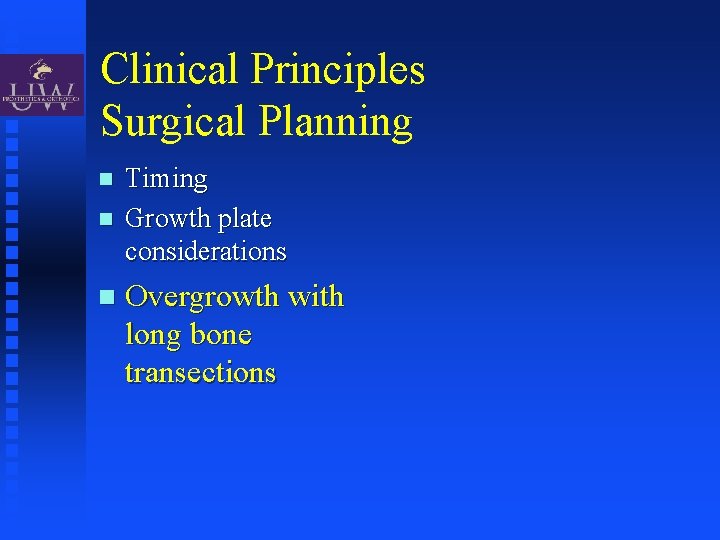

Clinical Principles Surgical Planning Timing Growth plate considerations Overgrowth with long bone transections

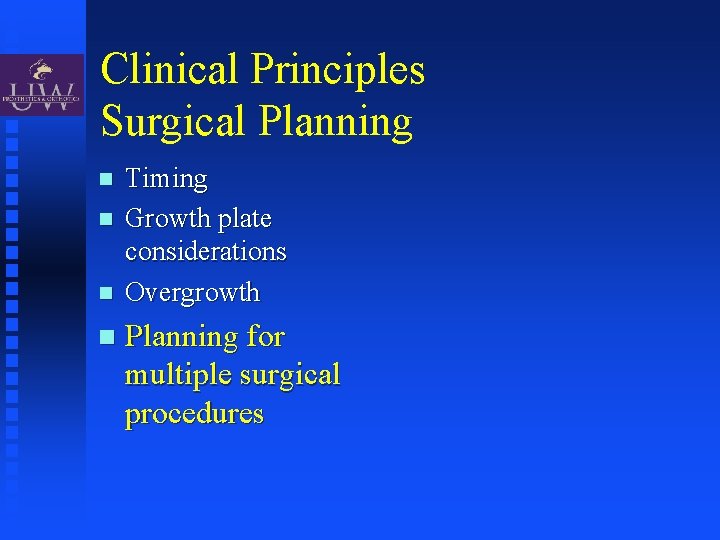

Clinical Principles Surgical Planning Timing Growth plate considerations Overgrowth Planning for multiple surgical procedures

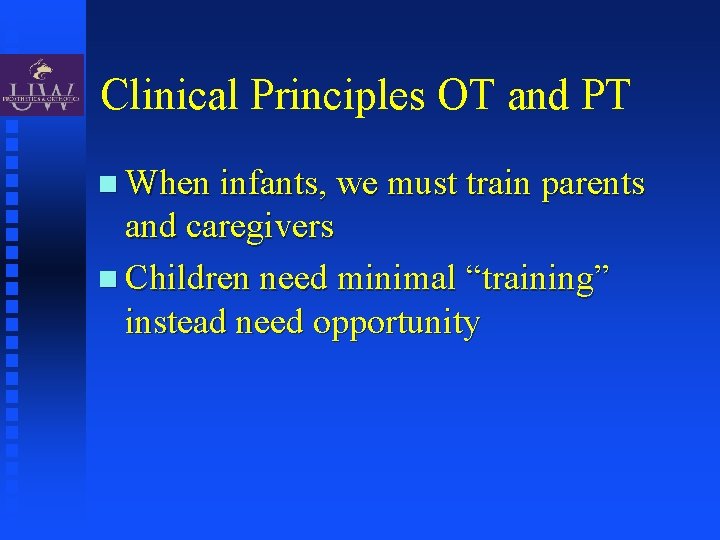

Clinical Principles OT and PT When infants, we must train parents and caregivers Children need minimal “training” instead need opportunity

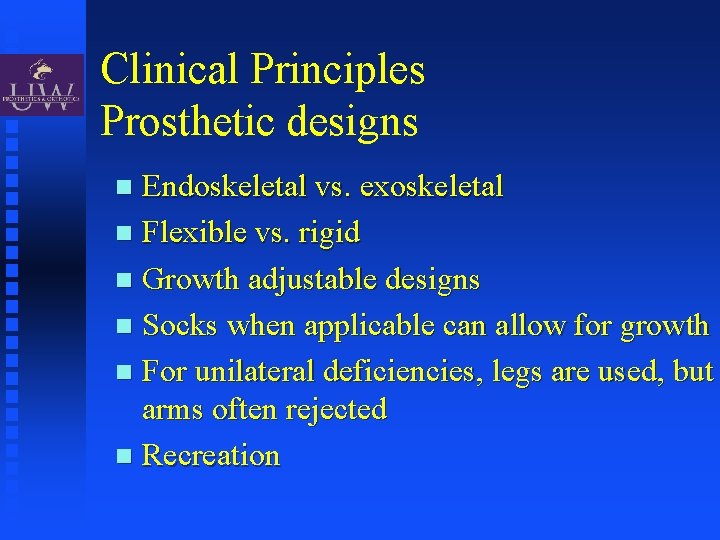

Clinical Principles Prosthetic designs Endoskeletal vs. exoskeletal Flexible vs. rigid Growth adjustable designs Socks when applicable can allow for growth For unilateral deficiencies, legs are used, but arms often rejected Recreation

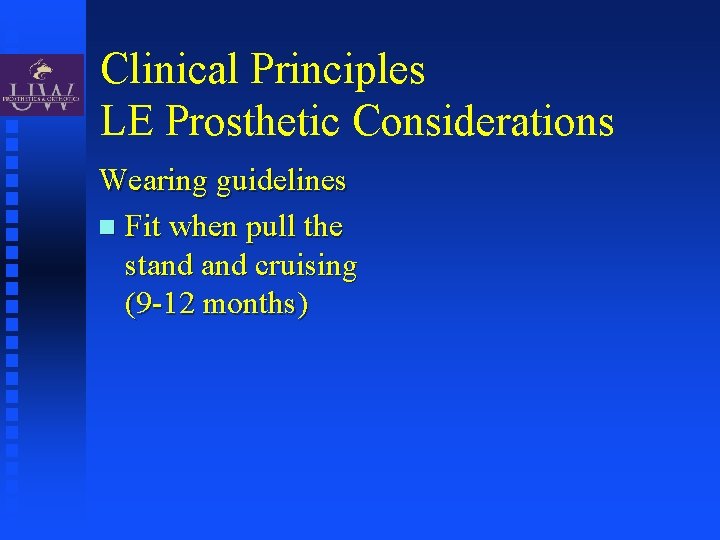

Clinical Principles LE Prosthetic Considerations Wearing guidelines Fit when pull the stand cruising (9 -12 months)

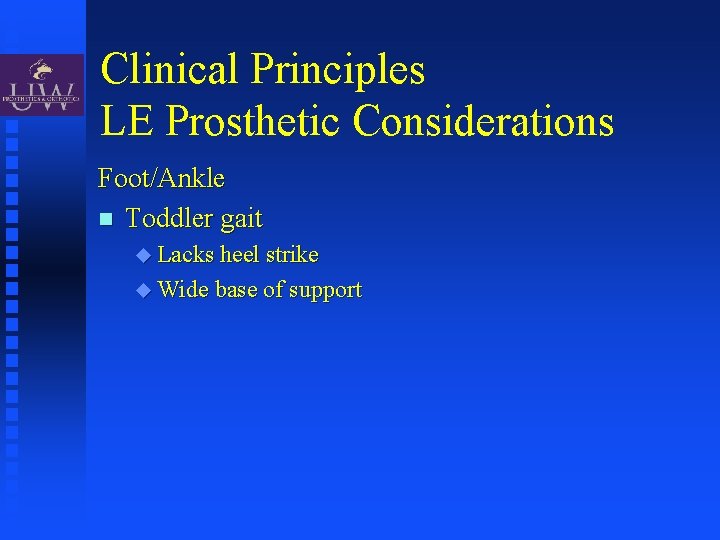

Clinical Principles LE Prosthetic Considerations Foot/Ankle Toddler gait Lacks heel strike Wide base of support

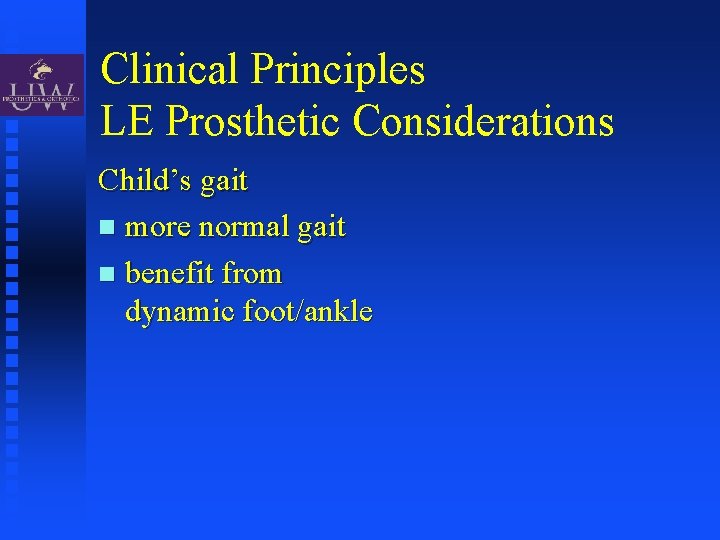

Clinical Principles LE Prosthetic Considerations Child’s gait more normal gait benefit from dynamic foot/ankle

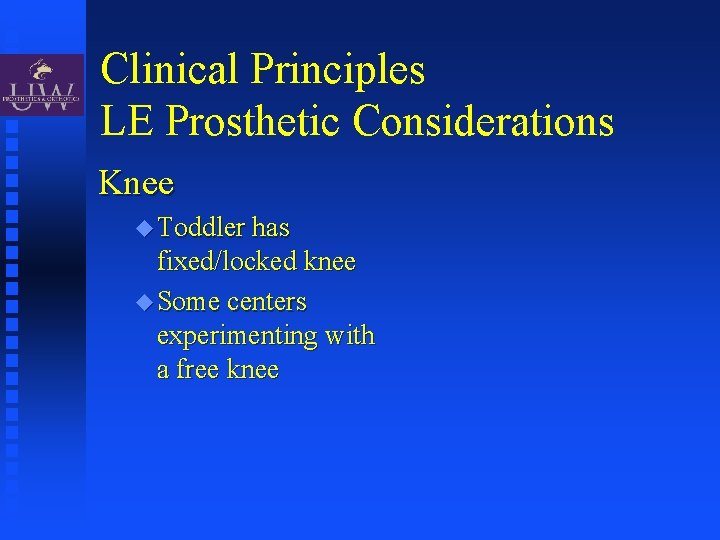

Clinical Principles LE Prosthetic Considerations Knee Toddler has fixed/locked knee Some centers experimenting with a free knee

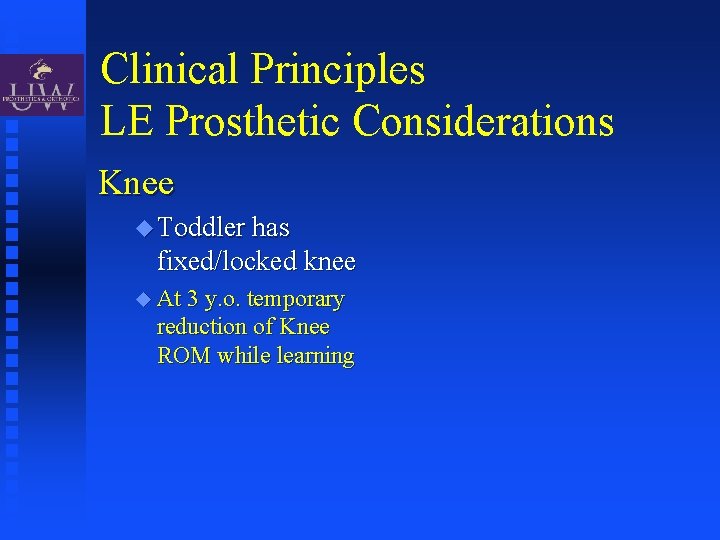

Clinical Principles LE Prosthetic Considerations Knee Toddler has fixed/locked knee At 3 y. o. temporary reduction of Knee ROM while learning

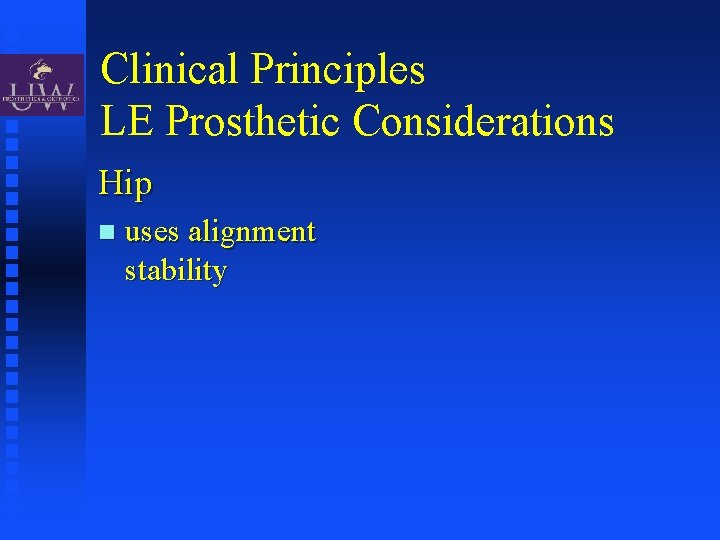

Clinical Principles LE Prosthetic Considerations Hip uses alignment stability

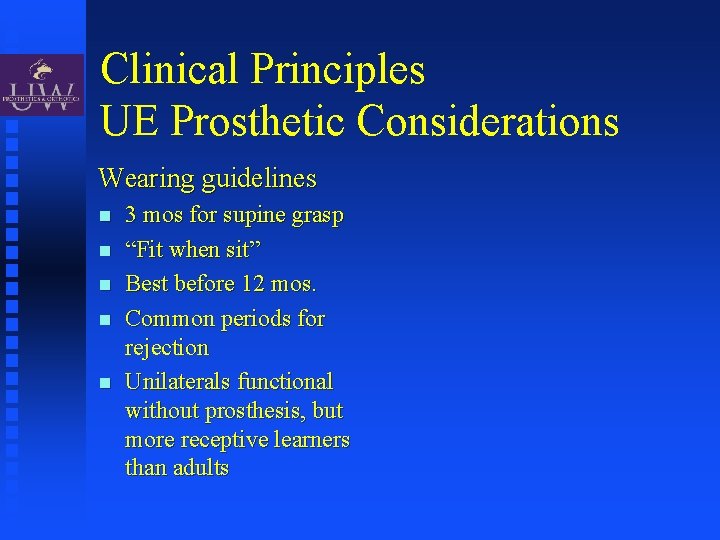

Clinical Principles UE Prosthetic Considerations Wearing guidelines 3 mos for supine grasp “Fit when sit” Best before 12 mos. Common periods for rejection Unilaterals functional without prosthesis, but more receptive learners than adults

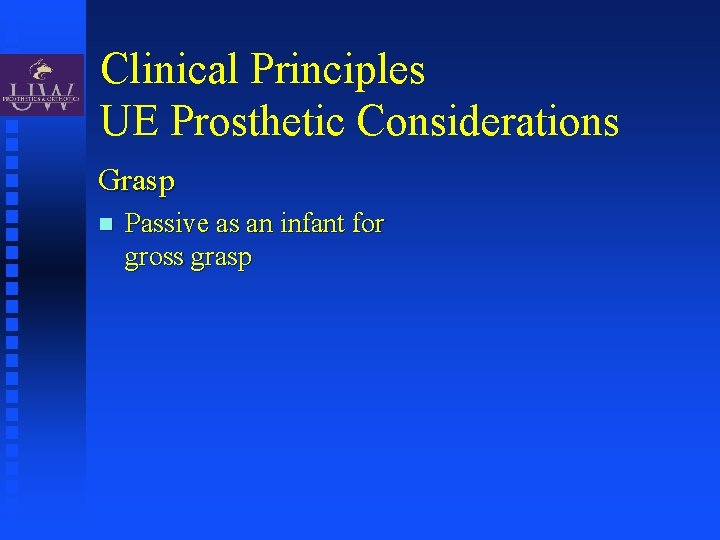

Clinical Principles UE Prosthetic Considerations Grasp Passive as an infant for gross grasp

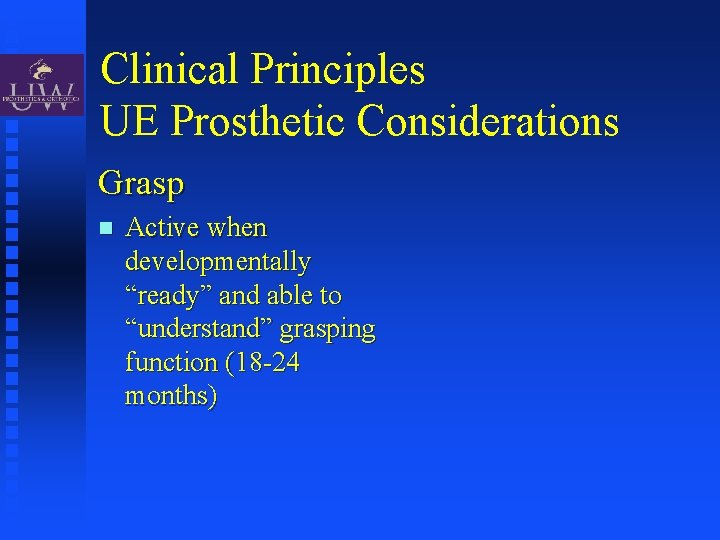

Clinical Principles UE Prosthetic Considerations Grasp Active when developmentally “ready” and able to “understand” grasping function (18 -24 months)

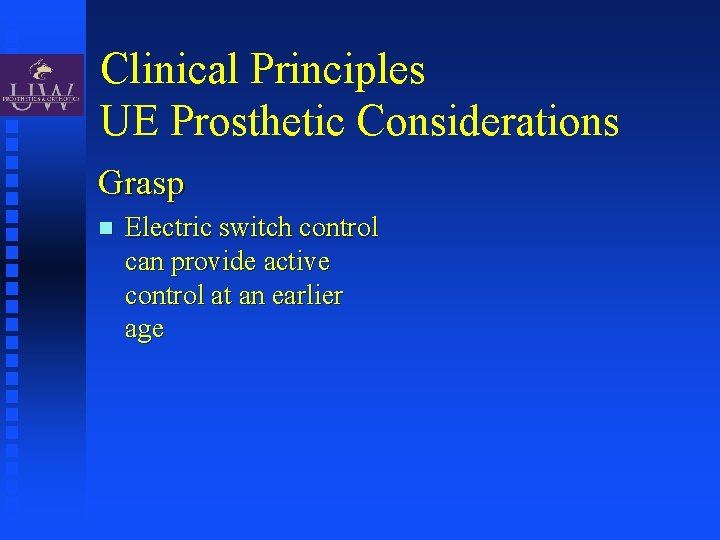

Clinical Principles UE Prosthetic Considerations Grasp Electric switch control can provide active control at an earlier age

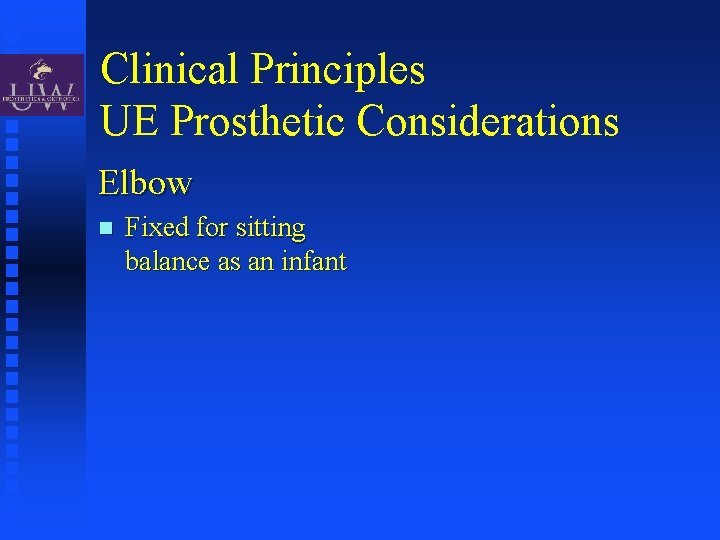

Clinical Principles UE Prosthetic Considerations Elbow Fixed for sitting balance as an infant

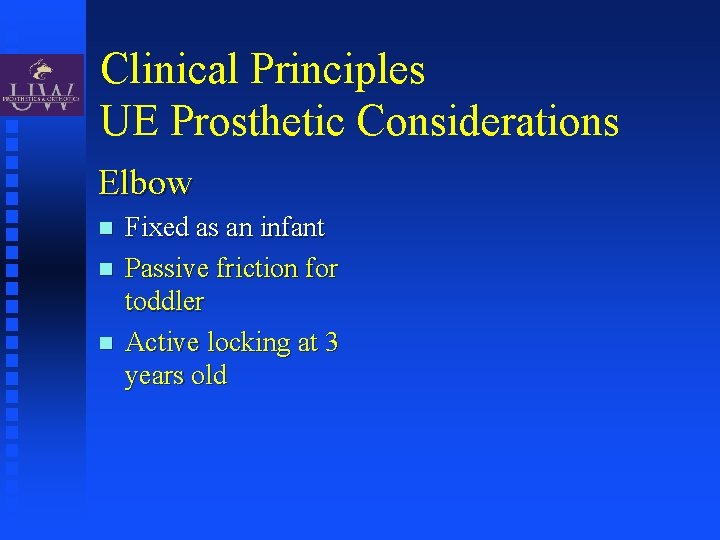

Clinical Principles UE Prosthetic Considerations Elbow Fixed as an infant Passive friction for toddler Active locking at 3 years old

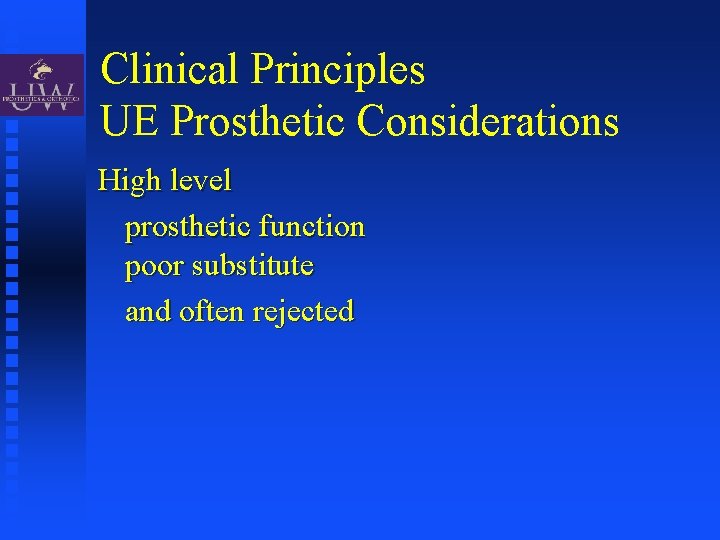

Clinical Principles UE Prosthetic Considerations High level prosthetic function poor substitute and often rejected

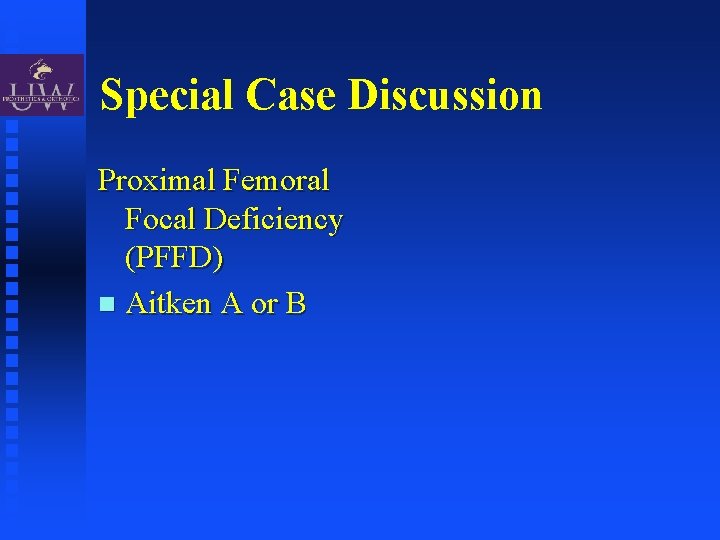

Special Case Discussion Proximal Femoral Focal Deficiency (PFFD) Aitken A or B

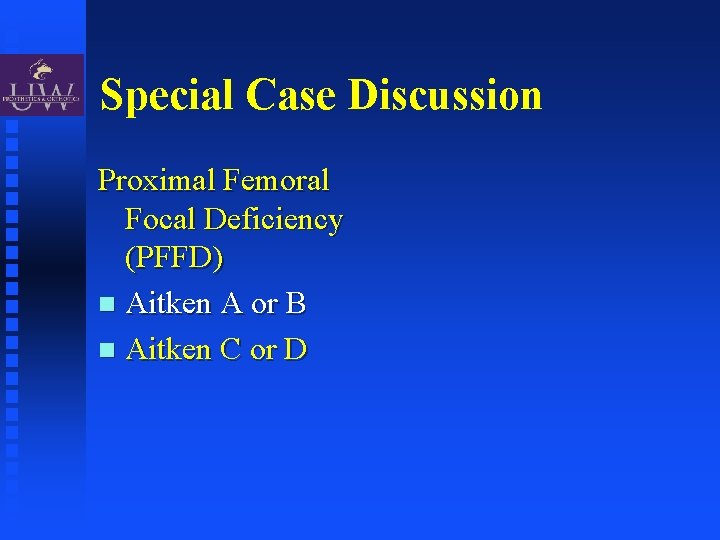

Special Case Discussion Proximal Femoral Focal Deficiency (PFFD) Aitken A or B Aitken C or D

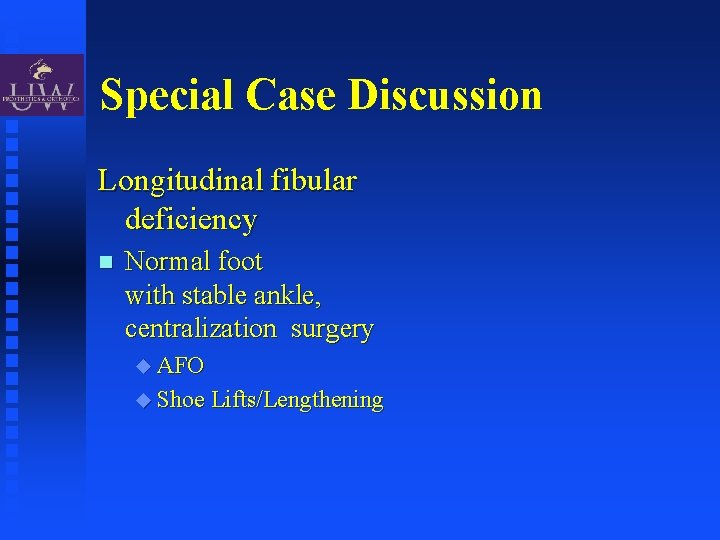

Special Case Discussion Longitudinal fibular deficiency Normal foot with stable ankle, centralization surgery AFO Shoe Lifts/Lengthening

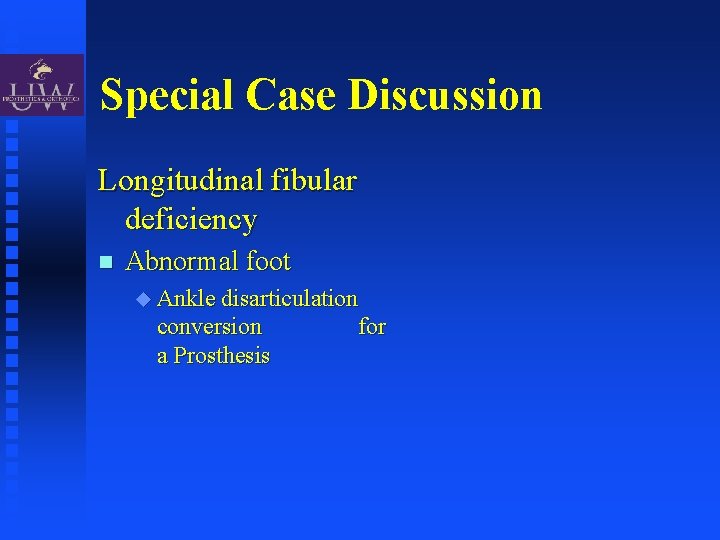

Special Case Discussion Longitudinal fibular deficiency Abnormal foot Ankle disarticulation conversion a Prosthesis for

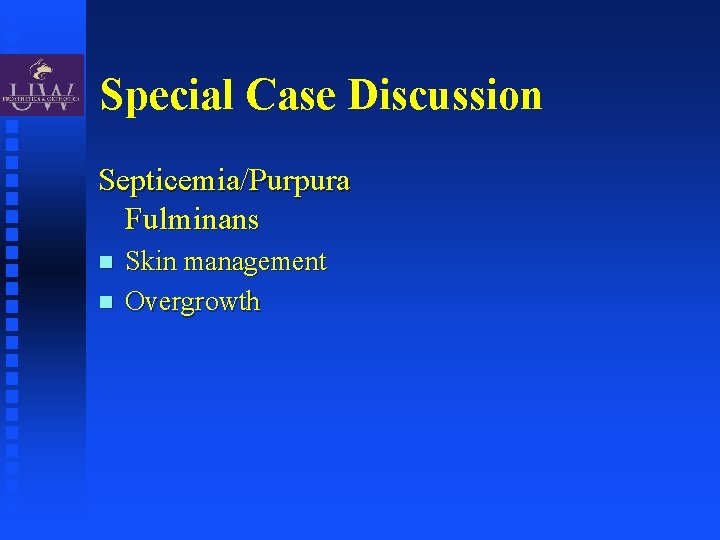

Special Case Discussion Septicemia/Purpura Fulminans Skin management Overgrowth

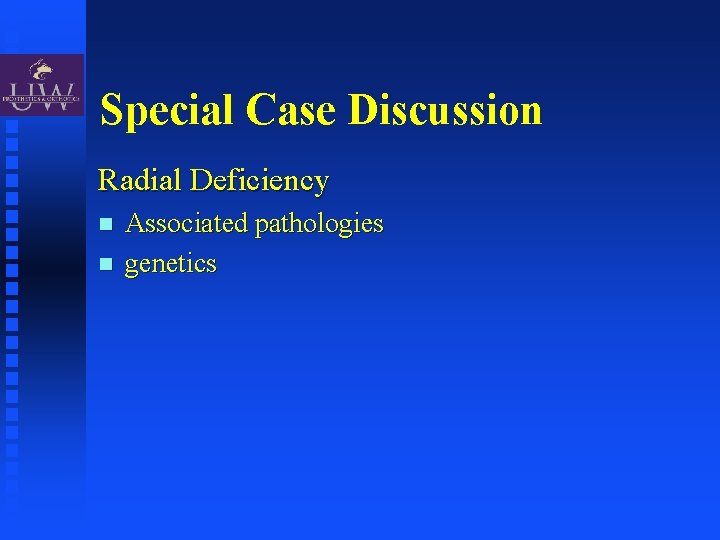

Special Case Discussion Radial Deficiency Associated pathologies genetics

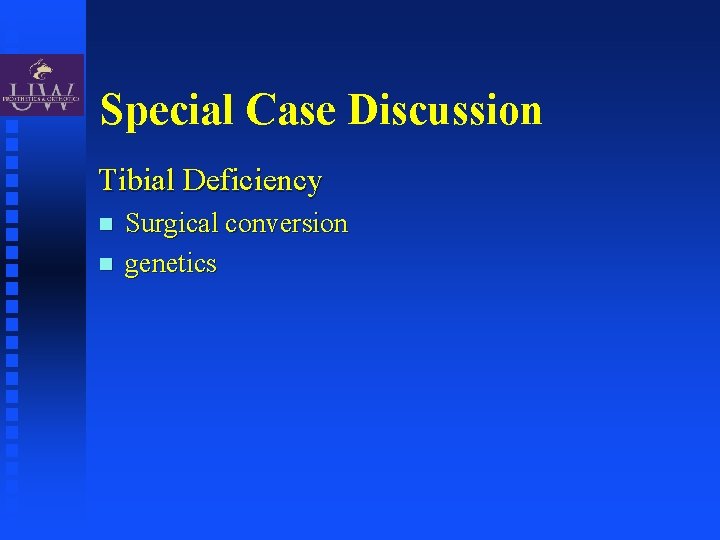

Special Case Discussion Tibial Deficiency Surgical conversion genetics

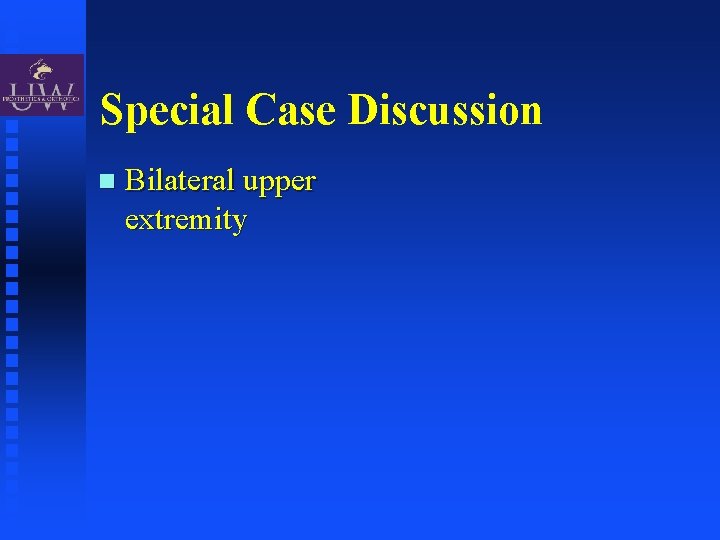

Special Case Discussion Bilateral upper extremity

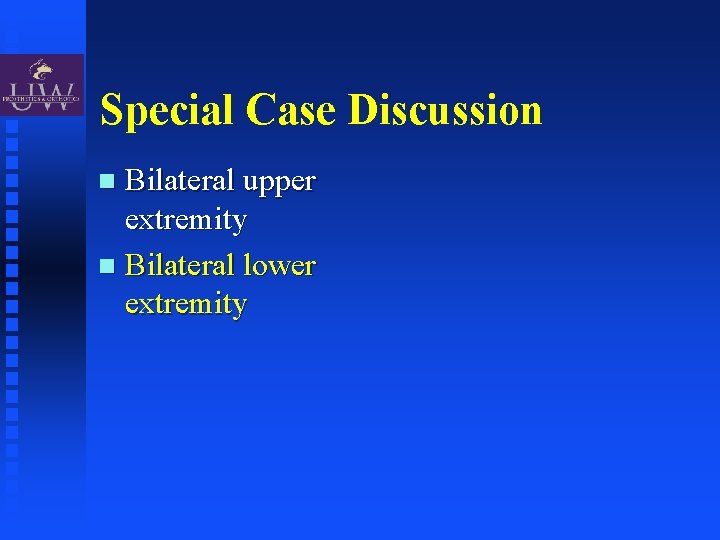

Special Case Discussion Bilateral upper extremity Bilateral lower extremity

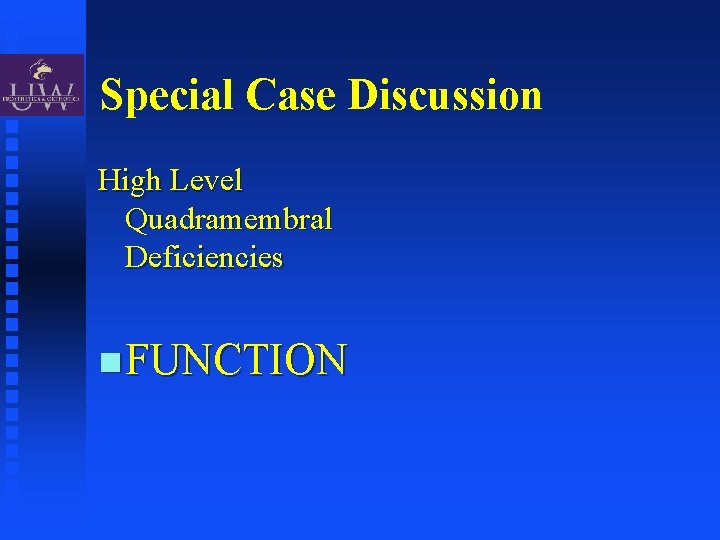

Special Case Discussion High Level Quadramembral Deficiencies FUNCTION
