Pedagogy for Online and Blended Teaching – Learning Process FLIPPED CLASSROOM ACTIVITY CONSTRUCTOR – USING EXISTING CONTENT Prepared by Dr. M. BALASUBRAMANIAN Dr. Assistant Professor, Department of Mechanical Engineering Anna University, University College of Engineering Ramanathapuram Campus, Ramanathapuram – 623 513 Tamilnadu, India. Anna University - University College of Engineering Ramanathapuram 1

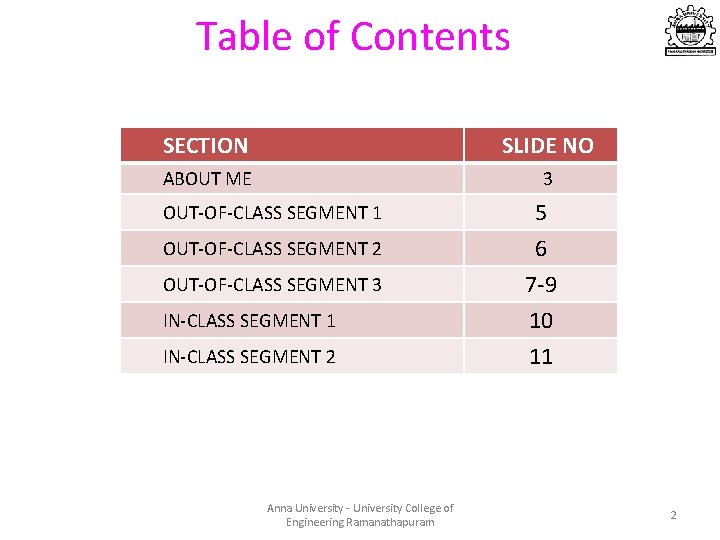

Table of Contents SECTION SLIDE NO ABOUT ME 3 OUT-OF-CLASS SEGMENT 1 5 OUT-OF-CLASS SEGMENT 2 6 OUT-OF-CLASS SEGMENT 3 7 -9 IN-CLASS SEGMENT 1 10 IN-CLASS SEGMENT 2 11 Anna University - University College of Engineering Ramanathapuram 2

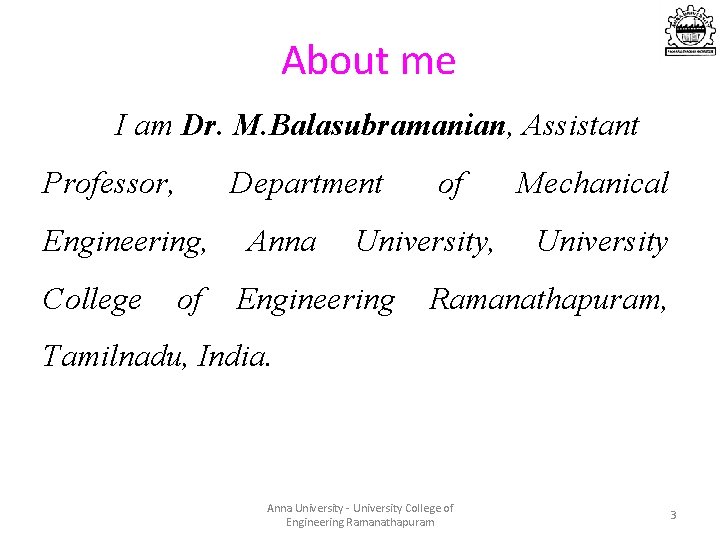

About me I am Dr. M. Balasubramanian, Assistant Professor, Department Engineering, College of Anna of University, Engineering Mechanical University Ramanathapuram, Tamilnadu, India. Anna University - University College of Engineering Ramanathapuram 3

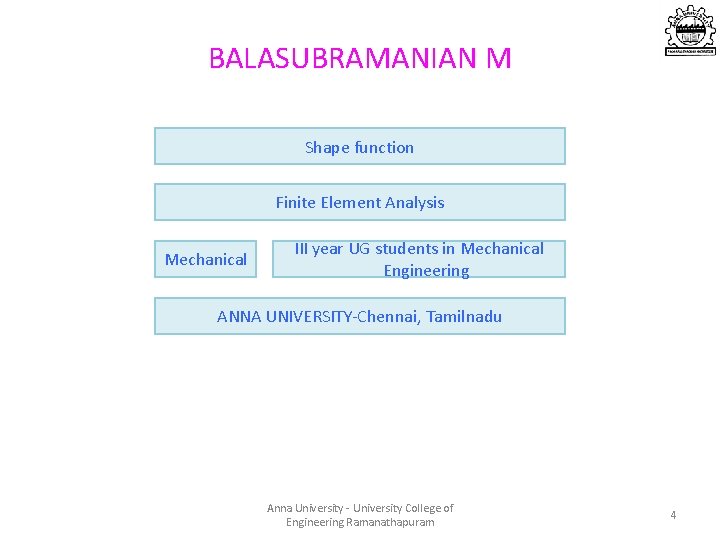

BALASUBRAMANIAN M Shape function Finite Element Analysis Mechanical III year UG students in Mechanical Engineering ANNA UNIVERSITY-Chennai, Tamilnadu Anna University - University College of Engineering Ramanathapuram 4

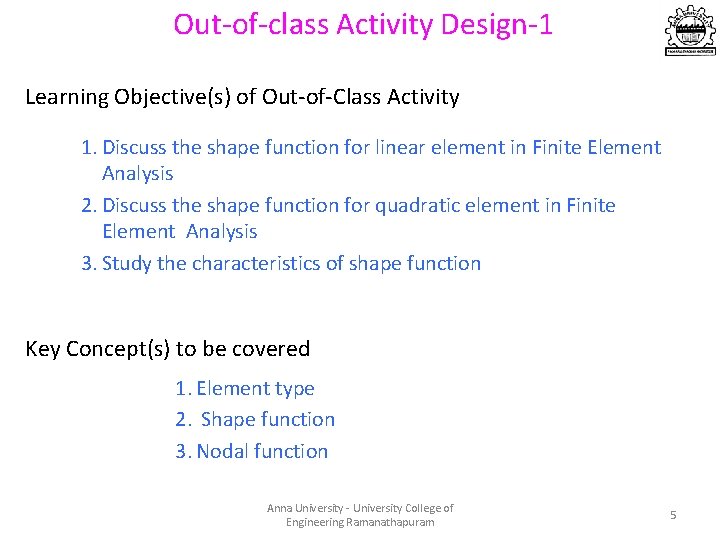

Out-of-class Activity Design-1 Learning Objective(s) of Out-of-Class Activity 1. Discuss the shape function for linear element in Finite Element Analysis 2. Discuss the shape function for quadratic element in Finite Element Analysis 3. Study the characteristics of shape function Key Concept(s) to be covered 1. Element type 2. Shape function 3. Nodal function Anna University - University College of Engineering Ramanathapuram 5

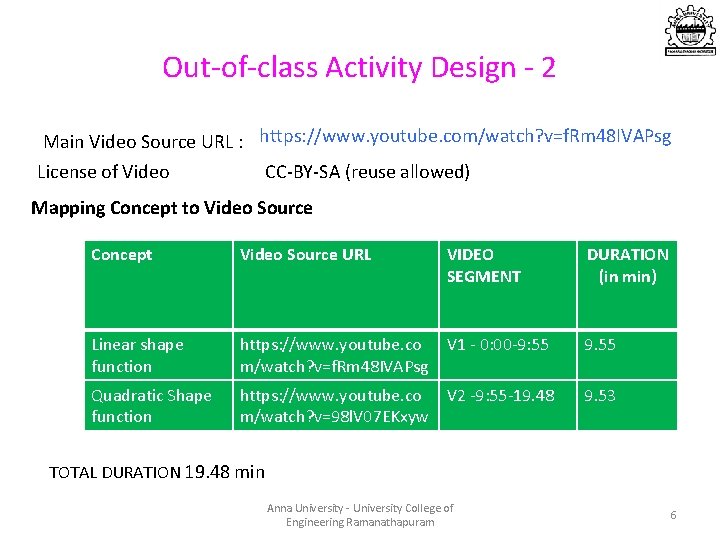

Out-of-class Activity Design - 2 Main Video Source URL : https: //www. youtube. com/watch? v=f. Rm 48 IVAPsg License of Video CC-BY-SA (reuse allowed) Mapping Concept to Video Source Concept Video Source URL VIDEO SEGMENT DURATION (in min) Linear shape function https: //www. youtube. co V 1 - 0: 00 -9: 55 m/watch? v=f. Rm 48 IVAPsg 9. 55 Quadratic Shape function https: //www. youtube. co V 2 -9: 55 -19. 48 m/watch? v=98 l. V 07 EKxyw 9. 53 TOTAL DURATION 19. 48 min Anna University - University College of Engineering Ramanathapuram 6

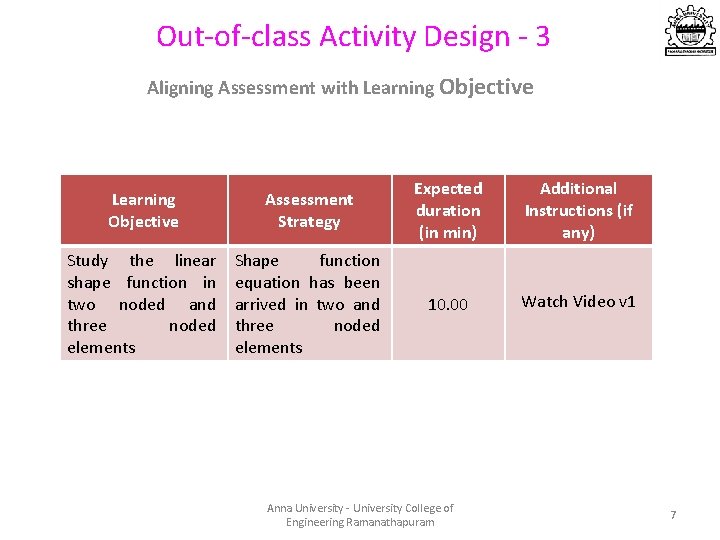

Out-of-class Activity Design - 3 Aligning Assessment with Learning Objective Assessment Strategy Expected duration (in min) Additional Instructions (if any) Study the linear shape function in two noded and three noded elements Shape function equation has been arrived in two and three noded elements 10. 00 Watch Video v 1 Anna University - University College of Engineering Ramanathapuram 7

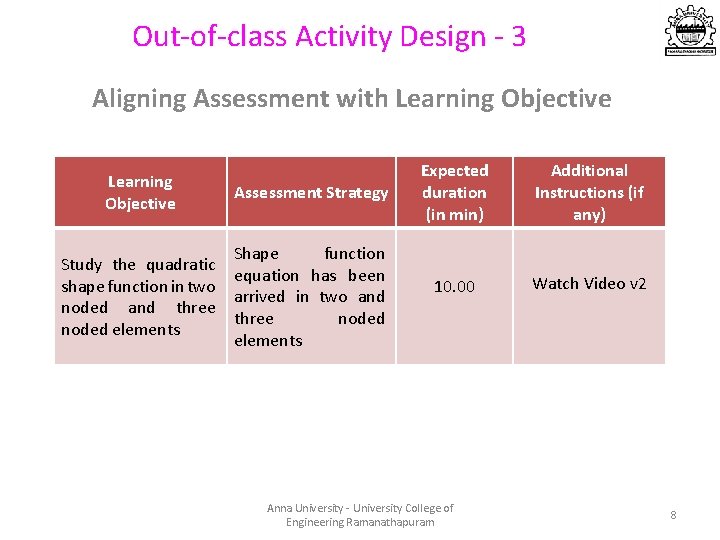

Out-of-class Activity Design - 3 Aligning Assessment with Learning Objective Assessment Strategy Study the quadratic shape function in two noded and three noded elements Shape function equation has been arrived in two and three noded elements Expected duration (in min) Additional Instructions (if any) 10. 00 Watch Video v 2 Anna University - University College of Engineering Ramanathapuram 8

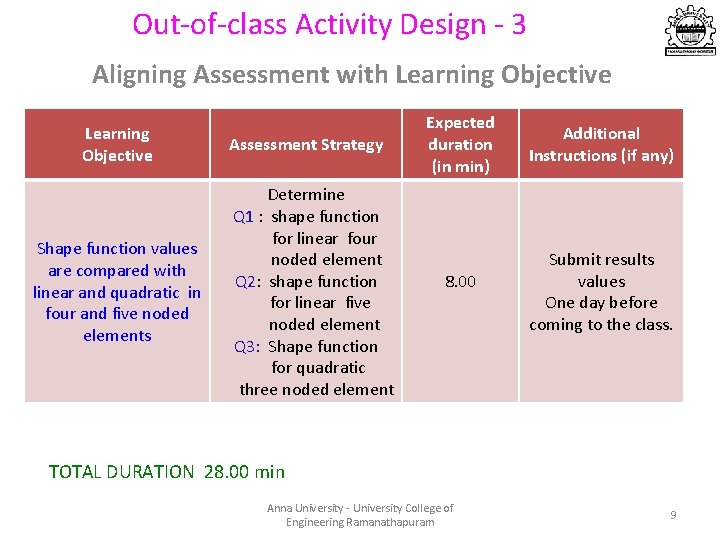

Out-of-class Activity Design - 3 Aligning Assessment with Learning Objective Shape function values are compared with linear and quadratic in four and five noded elements Assessment Strategy Determine Q 1 : shape function for linear four noded element Q 2: shape function for linear five noded element Q 3: Shape function for quadratic three noded element Expected duration (in min) 8. 00 Additional Instructions (if any) Submit results values One day before coming to the class. TOTAL DURATION 28. 00 min Anna University - University College of Engineering Ramanathapuram 9

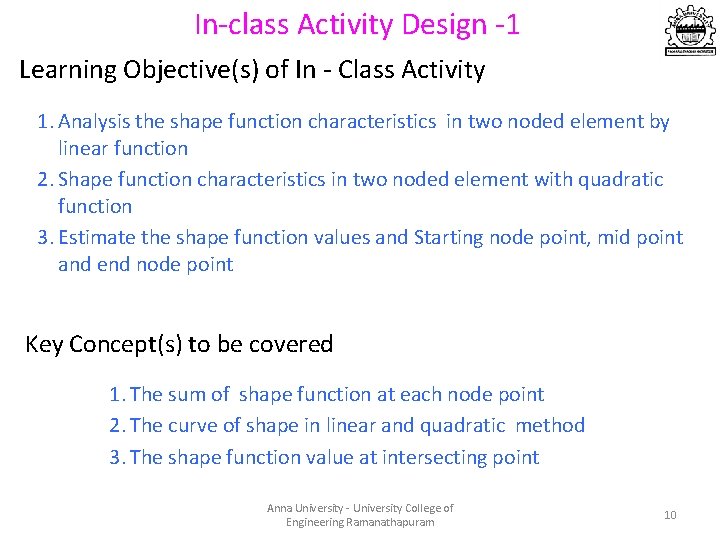

In-class Activity Design -1 Learning Objective(s) of In - Class Activity 1. Analysis the shape function characteristics in two noded element by linear function 2. Shape function characteristics in two noded element with quadratic function 3. Estimate the shape function values and Starting node point, mid point and end node point Key Concept(s) to be covered 1. The sum of shape function at each node point 2. The curve of shape in linear and quadratic method 3. The shape function value at intersecting point Anna University - University College of Engineering Ramanathapuram 10

In-class Activity Design -2 Active Learning activity(ies) that you plan to do 1. Discuss shape function for different noded element using Think pair share activity 2. Explained characterization of shape function at different node point in linear and quadratic method Explain the strategy by giving details of 1. The sum of shape function unity for any noded element 2. The shape function in its own node has one and other node point is zero. 3. The mid point of node is half of the value for linear. Justify why the above is an active learning strategy 1. The linear shape function equation is simplicity to solve the all kind noded element 2. The linear function used to model complicated structure within short period Anna University - University College of Engineering Ramanathapuram 11

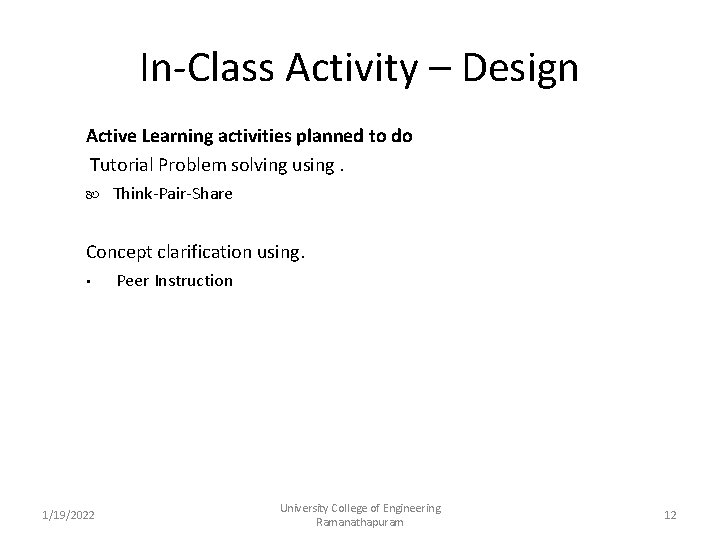

In-Class Activity – Design Active Learning activities planned to do Tutorial Problem solving using. Think-Pair-Share Concept clarification using. • 1/19/2022 Peer Instruction University College of Engineering Ramanathapuram 12

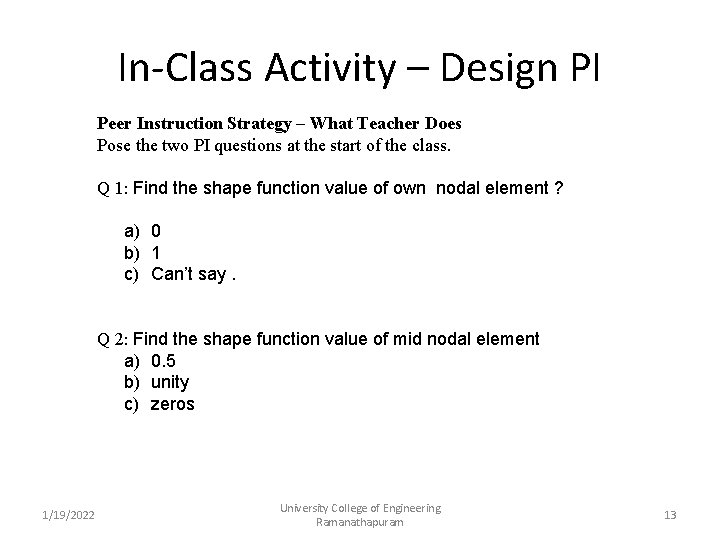

In-Class Activity – Design PI Peer Instruction Strategy – What Teacher Does Pose the two PI questions at the start of the class. Q 1: Find the shape function value of own nodal element ? a) 0 b) 1 c) Can’t say. Q 2: Find the shape function value of mid nodal element a) 0. 5 b) unity c) zeros 1/19/2022 University College of Engineering Ramanathapuram 13

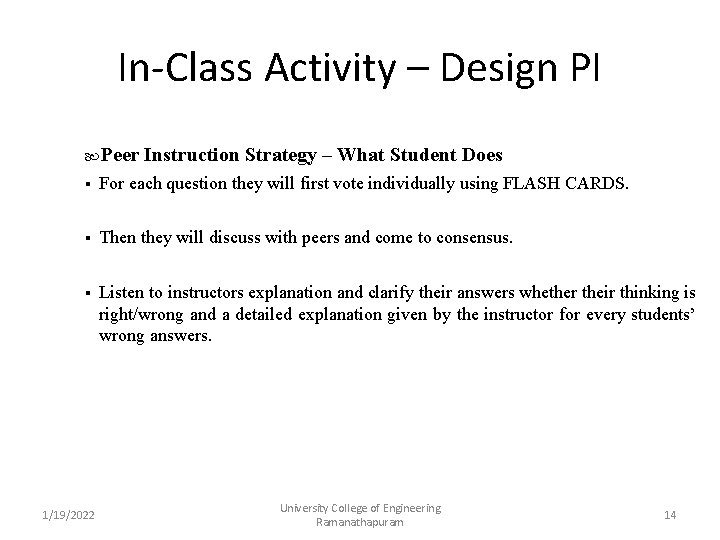

In-Class Activity – Design PI Peer Instruction Strategy – What Student Does § For each question they will first vote individually using FLASH CARDS. § Then they will discuss with peers and come to consensus. § Listen to instructors explanation and clarify their answers whether their thinking is right/wrong and a detailed explanation given by the instructor for every students’ wrong answers. 1/19/2022 University College of Engineering Ramanathapuram 14

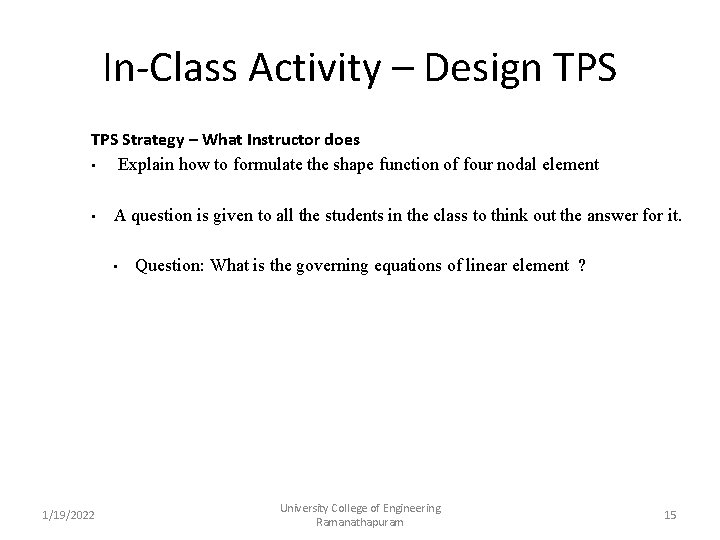

In-Class Activity – Design TPS Strategy – What Instructor does • Explain how to formulate the shape function of four nodal element • A question is given to all the students in the class to think out the answer for it. • 1/19/2022 Question: What is the governing equations of linear element ? University College of Engineering Ramanathapuram 15

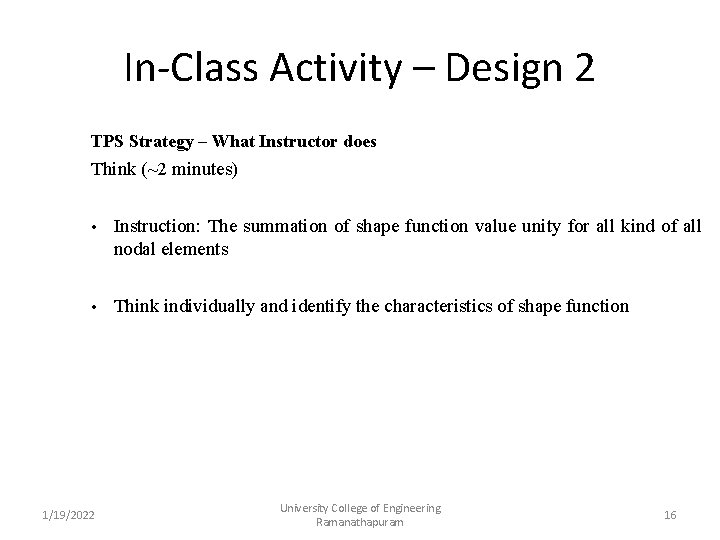

In-Class Activity – Design 2 TPS Strategy – What Instructor does Think (~2 minutes) • Instruction: The summation of shape function value unity for all kind of all nodal elements • Think individually and identify the characteristics of shape function 1/19/2022 University College of Engineering Ramanathapuram 16

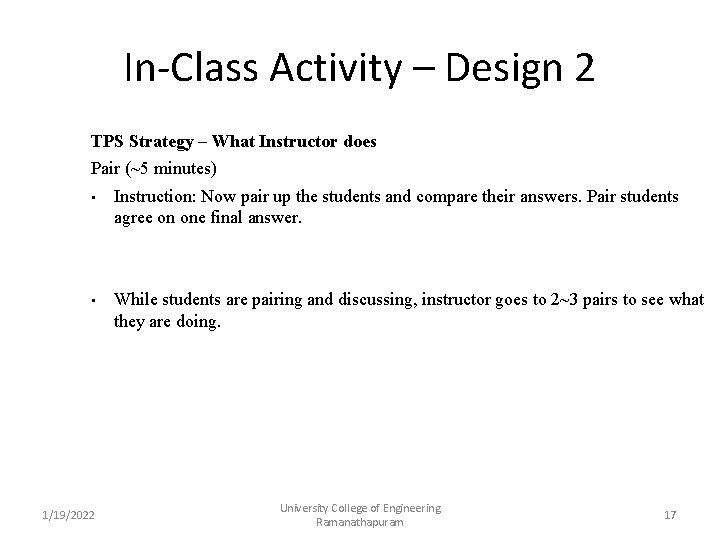

In-Class Activity – Design 2 TPS Strategy – What Instructor does Pair (~5 minutes) • Instruction: Now pair up the students and compare their answers. Pair students agree on one final answer. • While students are pairing and discussing, instructor goes to 2~3 pairs to see what they are doing. 1/19/2022 University College of Engineering Ramanathapuram 17

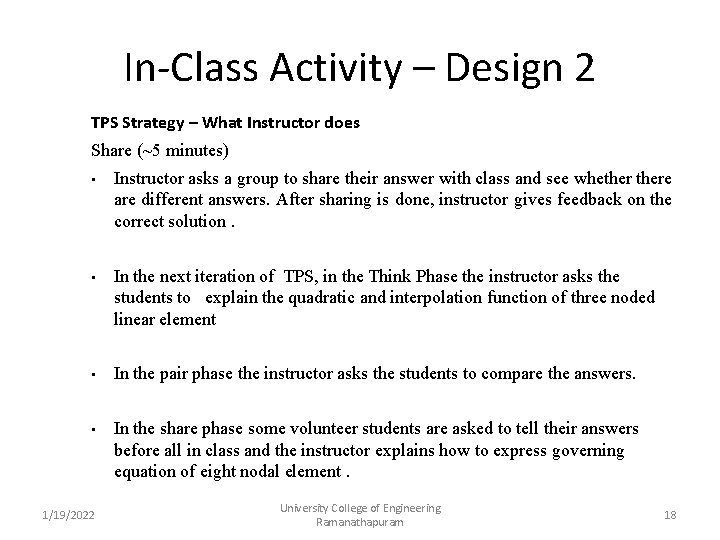

In-Class Activity – Design 2 TPS Strategy – What Instructor does Share (~5 minutes) • Instructor asks a group to share their answer with class and see whethere are different answers. After sharing is done, instructor gives feedback on the correct solution. • In the next iteration of TPS, in the Think Phase the instructor asks the students to explain the quadratic and interpolation function of three noded linear element • In the pair phase the instructor asks the students to compare the answers. • In the share phase some volunteer students are asked to tell their answers before all in class and the instructor explains how to express governing equation of eight nodal element. 1/19/2022 University College of Engineering Ramanathapuram 18

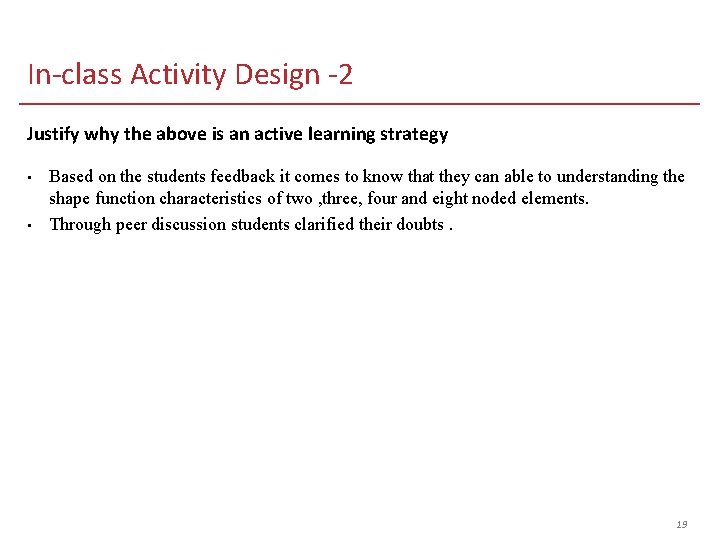

In-class Activity Design -2 Justify why the above is an active learning strategy • • Based on the students feedback it comes to know that they can able to understanding the shape function characteristics of two , three, four and eight noded elements. Through peer discussion students clarified their doubts. 19

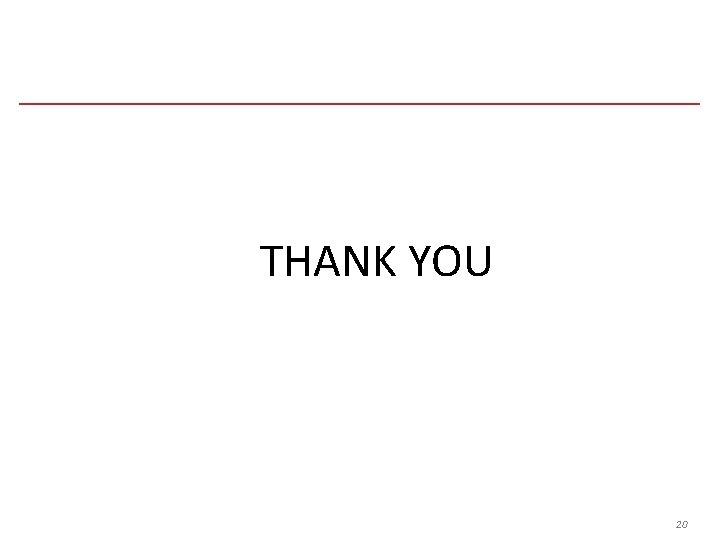

THANK YOU 20
