PDS 4 Mission Report MAVEN PDS Management Council

PDS 4 Mission Report: MAVEN PDS Management Council April 3, 2013 J. Mafi PPI MAVEN Report PDS MC April 2013

PDS 4 MAVEN Report: Overview • MAVEN Status: – Mission Timeline – SIS Development • PDS 4 MAVEN Support Readiness: – Information Model – Documentation – Tools PPI MAVEN Report 1 PDS MC April 2013

MAVEN Timeline Date Event Nov 2012 MAVEN SIS Template Mar 2013 SIS initial draft May 2013 SIS revised version Aug 2013 MAVEN FRR/ORR Nov-Dec 2013 Launch Window Opens Mar 2014 Final SIS updates due Jul-Aug 2014 MAVEN Raw Data Peer Review Sep 2014 or later Mars Orbital Insertion Nov 2014 or later Start of Science Operations (5 weeks after MOI) Nov-Dec 2014 MAVEN Calibrated Data Peer Review Apr 2015 or later First Data Deliver Due (6 months after Start of Science Ops) PPI MAVEN Report 2 PDS MC April 2013

SIS Development Status • Initial draft (due Mar 2013): – Of 8 instruments, 1 SIS delivered: SWIA – NGIMS team working with ATMOS on SIS for LADEE; will be very basis for NGIMS SIS • Revised version (due May 2013) • Signed version for FRR/ORR (due Aug 2013) • Final updates (due Mar 2014) • Requires release (locked) version of the Information Model – SIS development – Instrument software development PPI MAVEN Report 3 PDS MC April 2013

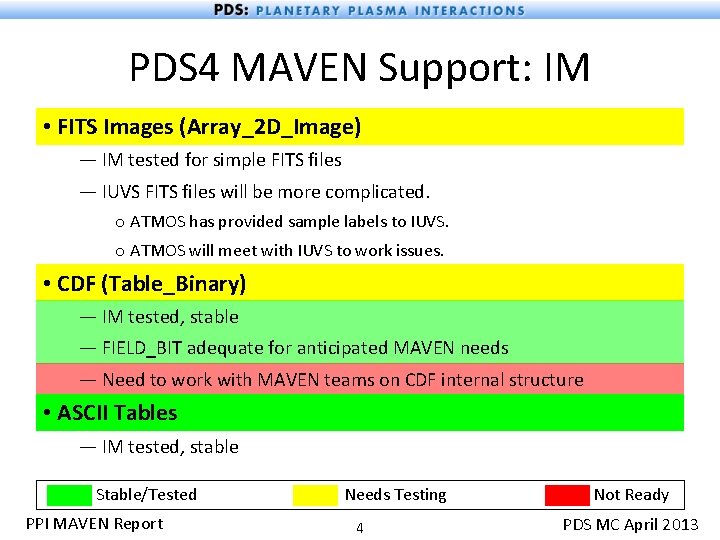

PDS 4 MAVEN Support: IM • FITS Images (Array_2 D_Image) — IM tested for simple FITS files — IUVS FITS files will be more complicated. o ATMOS has provided sample labels to IUVS. o ATMOS will meet with IUVS to work issues. • CDF (Table_Binary) — IM tested, stable — FIELD_BIT adequate for anticipated MAVEN needs — Need to work with MAVEN teams on CDF internal structure • ASCII Tables — IM tested, stable Stable/Tested PPI MAVEN Report Needs Testing 4 Not Ready PDS MC April 2013

PDS 4 MAVEN Support: IM • Bundle — IM tested; stable • Collection — IM tested; stable • Context — IM tested; stable • Document — need more testing • SPICE_kernel — need more testing • Browse (? ) — need more testing PPI MAVEN Report 5 PDS MC April 2013

PDS 4 MAVEN Support: Documentation Mission Documents • Archive SIS — most teams behind schedule in delivering SIS — requires release (locked) version of the PDS IM PDS Documents • Concepts Document • Data Provider’s Handbook • Standards Reference • Examples • Data Dictionary PPI MAVEN Report 6 PDS MC April 2013

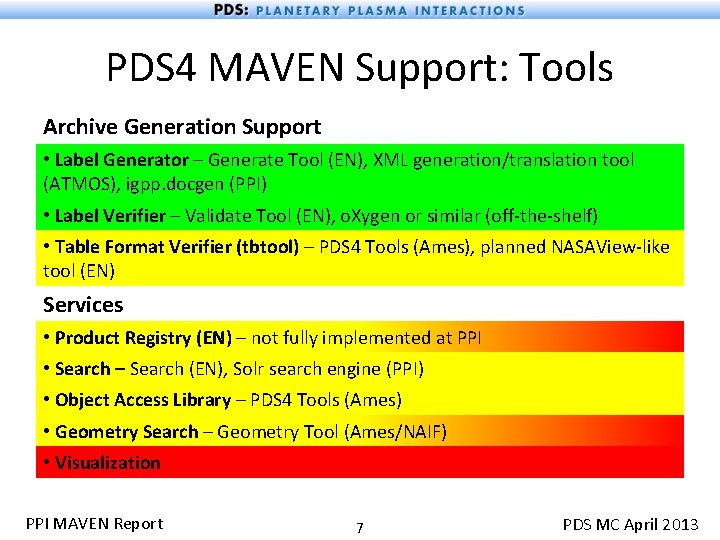

PDS 4 MAVEN Support: Tools Archive Generation Support • Label Generator – Generate Tool (EN), XML generation/translation tool (ATMOS), igpp. docgen (PPI) • Label Verifier – Validate Tool (EN), o. Xygen or similar (off-the-shelf) • Table Format Verifier (tbtool) – PDS 4 Tools (Ames), planned NASAView-like tool (EN) Services • Product Registry (EN) – not fully implemented at PPI • Search – Search (EN), Solr search engine (PPI) • Object Access Library – PDS 4 Tools (Ames) • Geometry Search – Geometry Tool (Ames/NAIF) • Visualization PPI MAVEN Report 7 PDS MC April 2013

Backup Slides PPI MAVEN Report 8 PDS MC April 2013

MAVEN Data Products Node Instrument Products ATMOS Remote Sensing (RS)/Imaging Ultraviolet Spectrograph (IUVS) Raw – FITS images Calibrated – FITS images Neutral Gas and Ion Mass Spectrometer (NGIMS) Raw – Binary Tables (Packets) Calibrated – ASCII Tables Langmuir Probe and Waves (LPW) and EUV Raw – Binary Tables (Packets) Calibrated – Binary Tables (CDF) Magnetometer (MAG) Raw – Binary Tables (Packets) Calibrated – ASCII Tables Solar Energetic Particle (SEP) Raw – Binary Tables (Packets) Calibrated – Binary Tables (CDF) Suprathermal and Thermal Ion Composition (STATIC) Raw – Binary Tables (Packets) Calibrated – Binary Tables (CDF) Solar Wind Electron Analyzer (SWEA) Raw – Binary Tables (Packets) Calibrated – Binary Tables (CDF) Solar Wind Ion Analyzer (SWIA) Raw – Binary Tables (Packets) Calibrated – Binary Tables (CDF) PPI MAVEN Report 9 PDS MC April 2013
