PDR PRESENTATION Montgomery, AL. John Mathews Derek Sears Michelle Bailey Clem Pin Andrew Coulter Architectural/Structural Foundation Fluid Systems Building Thermal Systems Solar Thermal Systems
FLOOR PLAN LAYOUT- OPTION 1 1 st floor 2 nd floor Basement
FLOOR PLAN LAYOUT-OPTION 2 1 st Floor 2 nd Floor Basement

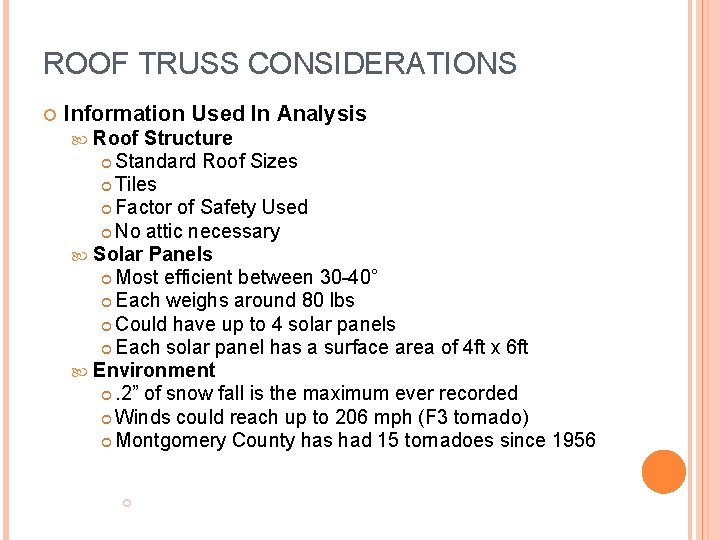

ROOF TRUSS CONSIDERATIONS Information Used In Analysis Roof Structure Standard Roof Sizes Tiles Factor of Safety Used No attic necessary Solar Panels Most efficient between 30 -40° Each weighs around 80 lbs Could have up to 4 solar panels Each solar panel has a surface area of 4 ft x 6 ft Environment . 2” of snow fall is the maximum ever recorded Winds could reach up to 206 mph (F 3 tornado) Montgomery County has had 15 tornadoes since 1956

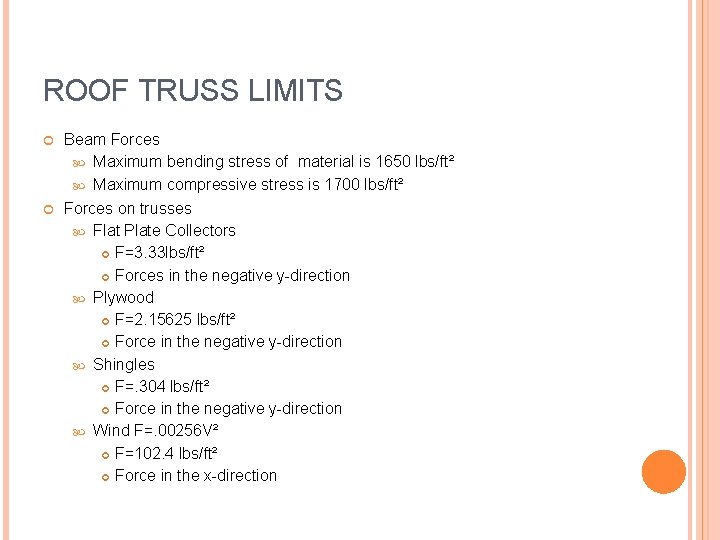

ROOF TRUSS LIMITS Beam Forces Maximum bending stress of material is 1650 lbs/ft² Maximum compressive stress is 1700 lbs/ft² Forces on trusses Flat Plate Collectors F=3. 33 lbs/ft² Forces in the negative y-direction Plywood F=2. 15625 lbs/ft² Force in the negative y-direction Shingles F=. 304 lbs/ft² Force in the negative y-direction Wind F=. 00256 V² F=102. 4 lbs/ft² Force in the x-direction
ROOF TRUSS DATA COLLECTION Factor of Safety (FOS) turns out to be 4. 7 Beam Loading(2”x 12”) Compressive loading failure is 24225 lbs Bending moment failure is 313680 lbs-inches Worst Case Scenario Calculations Compressive load is 546. 465 lbs Bending moment is 66667 lbs-inches
WALL CROSS-SECTION
WALL INSULATION Pink Fiberglass Insulation Cellulose Insulation option 1 option 2 R 13 R-13 # bales needed batt area (ft^2) 44 106. 56 40 batt cost ($) 24. 5 8. 98 # batts needed 23 61 total cost ($) 563. 5 547. 78 436. 92

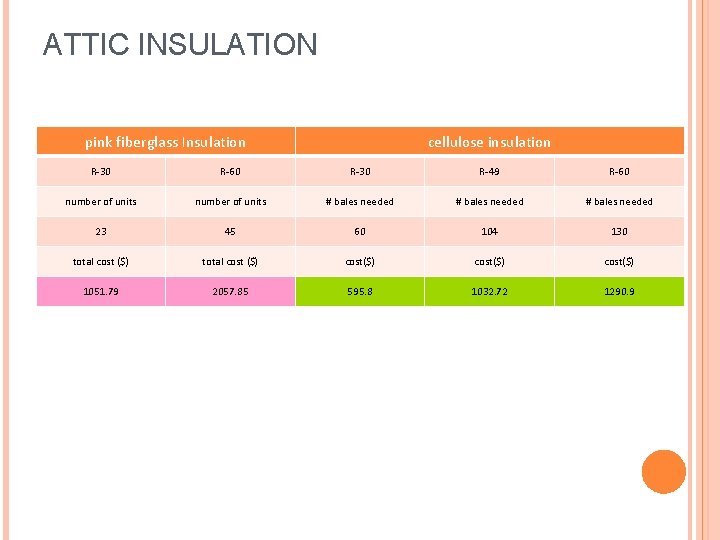

ATTIC INSULATION pink fiberglass Insulation cellulose insulation R-30 R-60 R-30 R-49 R-60 number of units # bales needed 23 45 60 104 130 total cost ($) cost($) 1051. 79 2057. 85 595. 8 1032. 72 1290. 9
WINDOWS AND DOORS Windows Doors - Use low. E 2 glass - U value of. 36 Patio Doors - use low. E 2 glass - U-value of. 35 Front Door - insulated metal with a wood print - U-value of. 26
SOLAR WATER HEATING SYSTEMS Hydronic System Analysis Closed loop – Active system Potable water routed to storage tank Working Fluid circulates through collectors Potable water is heated through heat exchanger System requires auxiliary components like expansion tank, valves, etc.
BASIC ILLUSTRATION
MAJOR COMPONENTS ANALYZED analysis & selection of suitable pump selection of appropriate heat exchanger selection of main water storage tank. primary plumbing components – pipes For Each: options, benefits and costs analyzed
HYDRONIC SYSTEM PUMP ANLAYSIS How the analysis was carried out : 1. Design analysis was based on Architectural & Solar Thermal systems & options were considered 2. Architectural: basement & overall house dimensions 3. Solar Thermal: two possible options of Flat Plate Collectors with varying flow rates, dimensions and pressure losses. 4. Result of Total System Head Loss : No. of FPC’s 4 4 Flow Rate (GPM) 0. 35 0. 52 Pressure drop (Psi) 0. 87 4. 86 Cumulative Head Loss (Ft) 6 14

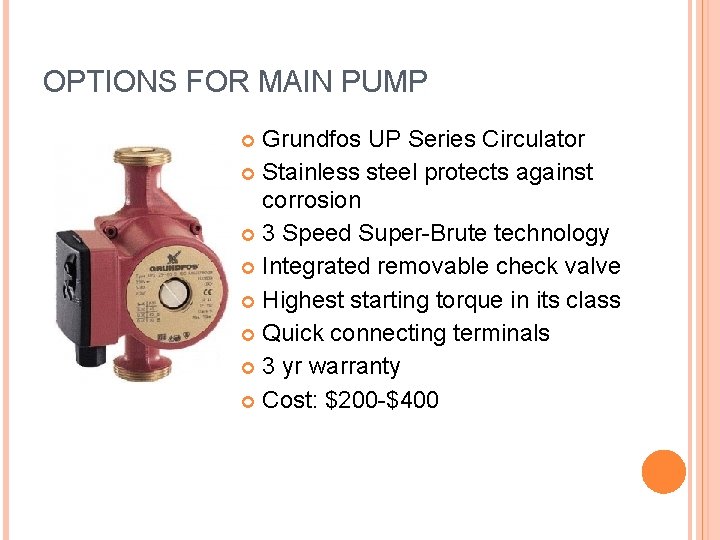

OPTIONS FOR MAIN PUMP Grundfos UP Series Circulator Stainless steel protects against corrosion 3 Speed Super-Brute technology Integrated removable check valve Highest starting torque in its class Quick connecting terminals 3 yr warranty Cost: $200 -$400
PUMP PERFORMANCE CURVE CLOSED SYSTEMS-UP SERIES

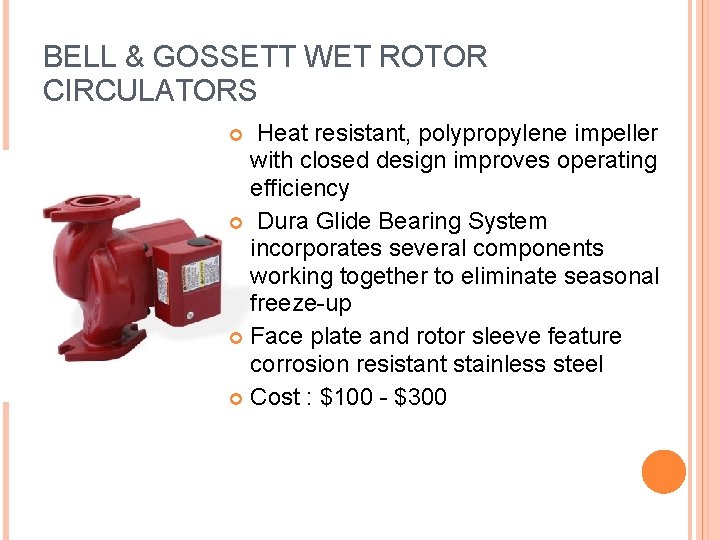

BELL & GOSSETT WET ROTOR CIRCULATORS Heat resistant, polypropylene impeller with closed design improves operating efficiency Dura Glide Bearing System incorporates several components working together to eliminate seasonal freeze-up Face plate and rotor sleeve feature corrosion resistant stainless steel Cost : $100 - $300
PUMP PERFORMANCE CURVE WET ROTOR CIRCULATOR – NRF SERIES
HEAT EXCHANGER GEA FP HYDRONIC SERIES Grazed Flat Plate 3”X 8”, 14 plates, 8 GPM @ 5 Psi PD Higher heat transfer coefficient High pressure ratings Smaller size & weight Cost: $200
STORAGE TANK W/INTEGRATED HX SOLARIDE HE SERIES Heat exchanger: copper tubing wrapped & secured to the tank. Double wall, vented design for leak detection Anode rod equalizes aggressive water action for prolonged tank life Temperature and pressure relief valve included Max Pressure 150 Psi Pressure Drop thru coil @ 2 Gpm is 4. 8 ft Cost : $1700, 6 yr Limited Warranty
PLUMBING PIPES COPPER Impermeable to contaminants & Biostatic Will not burn or give off toxic fumes when exposed to fire Withstand rapid temperature & pressure changes Can leach lead/copper into water supply Cost : Cerro 3/4 “ x 10 Ft. @ $18 PVC Resistant to corrosion & abrasion Lightweight, high impact strength No water hammer Easy, cost-effective installation compared to copper Relative price stability over time Cost: 3/4 In. x 10 Ft. PVC @ $2
Flat Plate Solar Collector – Sunmaxx M 2 Thermal f-value Output
Flat Plate Solar Collector – Sunmaxx M 2 21. 53 ft 2 aperture area 0. 35 gpm flow rate Lower cost Smaller surface area and slower flow rate produce less hot water than SH Would handle 39. 4% of hot water needs
Flat Plate Solar Collector – Enerworks SH 10 US Thermal f-value Output
Flat Plate Solar Collector – Enerworks SH 10 US 28. 97 ft 2 aperture area 0. 52 gpm flow rate Higher cost Higher flow rate and larger surface area produce more hot water than M 2 Would handle 47% of hot water needs
FOUNDATIONS Strength Needed vs. Cost ($) Strength Needed vs. Cost FOS=2 FOS=4 FOS=6 Compressive Strength Needed (psi) Compressive Strength of Concrete (psi)
Strength vs. Wall Thickness Cathedral Ceiling Compressive Strength (psi) Open Floor FOS=2 FOS=4 FOS=6 Wall Thickness (in. )

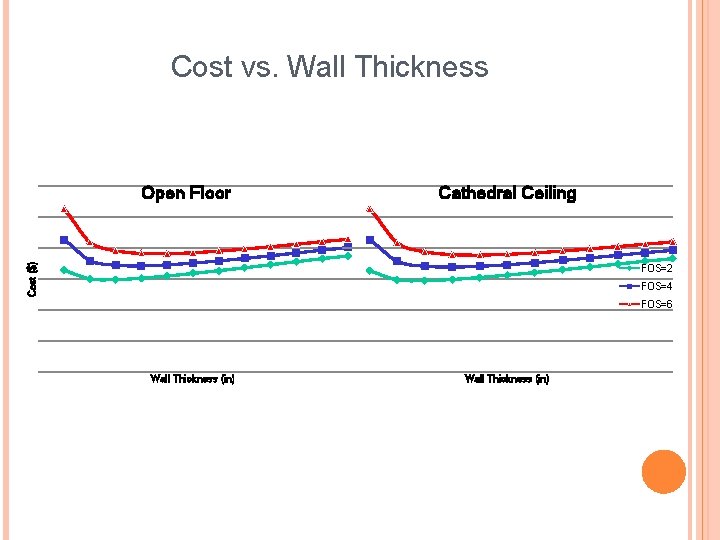

Cost vs. Wall Thickness Cathedral Ceiling Cost ($) Open Floor FOS=2 FOS=4 FOS=6 Wall Thickness (in)
REFERENCES Window information http: //www. americancraftsmanwin. com/product. Detail. cfm? MID=1200&cat=RP&type=double Cellulose Insulation Specification Sheet http: //www. homedepot. com/catalog/pdf. Images/81/8123987 d-90 ca-46 d 2 -b 21 fdcf 0 a 2 ebe 578. pdf Fiberglass Information http: //www. homedepot. com/Building-Materials-Insulation-Fiberglass-Rolls/h_d 1/N 5 yc 1 v. Z 1 xih. Zbay 7/h_d 2/Navigation? &store. Id=10051&catalog. Id=10053&lang. Id=-1 Shingle Data http: //bestmaterial. com/detail. aspx? ID=16297 Lumber Data http: //www. fpl. fs. fed. us/documnts/fplgtr 113/ch 06. pdf http: //www. fpl. fs. fed. us/documnts/fplgtr 07. pdf
REFERNCES – FLUID SYSTEMS Pumps & Performance Curves www. grundfos. us/ & www. bellgossett. com/ Heat Exchangers & Specifications http: //www. gea-phe. com/usa/themes/products/brazed-plate-heat-exchangers-ecobraze/gbxseries/ & http: //www. rheem. com/products/tank_water_heaters/ Plumbing Pipes http: //www. copper. org/Applications/plumbing/techref/guidespecs/gde_specs_main. html & homedepot. com REFERNCES – Solar Thermal Sunmaxx http: //www. siliconsolar. com/visual-directory/flat-plate-solar-collectors. html Enerworks http: //www. enerworks. com/
References- Foundations Building http: //www. ornl. gov/sci/roofs+walls/foundation/ORNL_CON 295. pdf R-values for Concrete http: //www. allwallsystem. com/design/RValue. Table. html Wage Estimates http: //www. bls. gov/oes/2008/may/naics 5_238110. htm Conrete Cost Estimates http: //www. cabq. gov/purchase/staff-commodityassignments/purbch/concrete-readymix/Concrete%20 Ready%20 Mix Soil Density ftp: //sidads. colorado. edu/pub/DATASETS/AVDM/data/soil_m oisture/SMEX 03/Alabama/ground_soil_moisture/regional_GS M/BD_AL_v 2. txt
