PD Adapter Overview SPS Spotlight Series November 2013
PD² Adapter Overview SPS Spotlight Series November 2013 INFORMATION DEPLOYED. SOLUTIONS ADVANCED. MISSIONS ACCOMPLISHED.

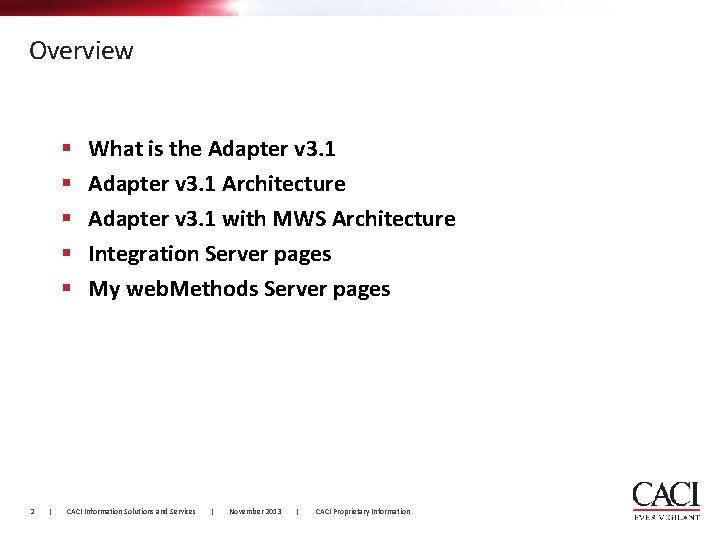

Overview § § § What is the Adapter v 3. 1 Architecture Adapter v 3. 1 with MWS Architecture Integration Server pages My web. Methods Server pages 2 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

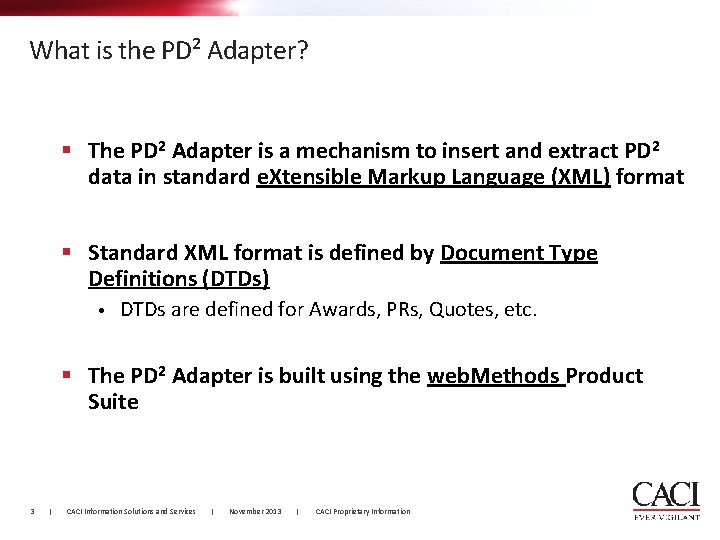

What is the PD² Adapter? § The PD 2 Adapter is a mechanism to insert and extract PD 2 data in standard e. Xtensible Markup Language (XML) format § Standard XML format is defined by Document Type Definitions (DTDs) • DTDs are defined for Awards, PRs, Quotes, etc. § The PD 2 Adapter is built using the web. Methods Product Suite 3 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

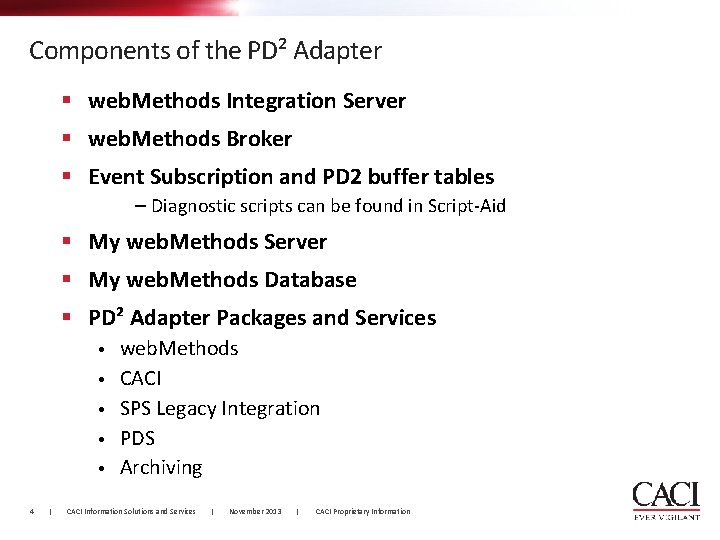

Components of the PD² Adapter § web. Methods Integration Server § web. Methods Broker § Event Subscription and PD 2 buffer tables − Diagnostic scripts can be found in Script-Aid § My web. Methods Server § My web. Methods Database § PD² Adapter Packages and Services • • • web. Methods CACI SPS Legacy Integration PDS Archiving 4 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

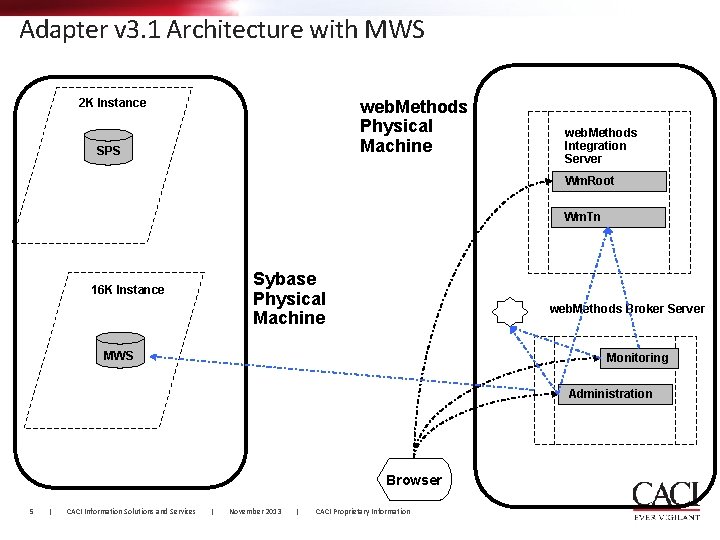

Adapter v 3. 1 Architecture with MWS 2 K Instance web. Methods Physical Machine SPS web. Methods Integration Server Wm. Root Wm. Tn 16 K Instance Sybase Physical Machine web. Methods Broker Server MWS Monitoring Administration Browser 5 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

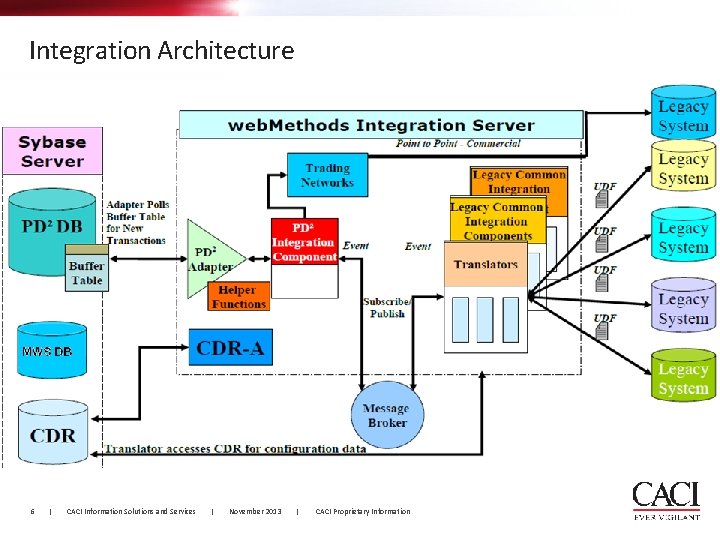

Integration Architecture 6 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

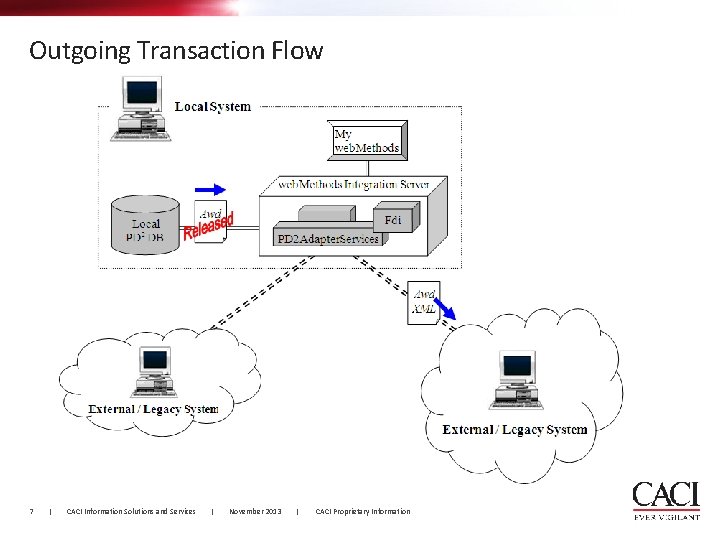

Outgoing Transaction Flow 7 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
Outgoing Transaction Flow (cont. ) § A document is released in PD² § The document gets inserted into the PD 2 Buffer table § The Multi. Poll scheduler polls the buffer table for data to be extracted § Documents are only extracted if the corresponding event is configured and enabled in the event subscription table § If extracted successfully, will show up in MWS 8 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

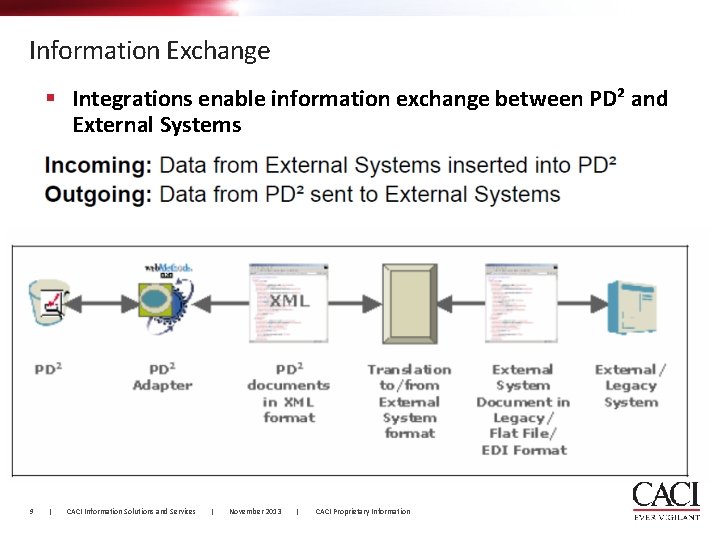

Information Exchange § Integrations enable information exchange between PD² and External Systems 9 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

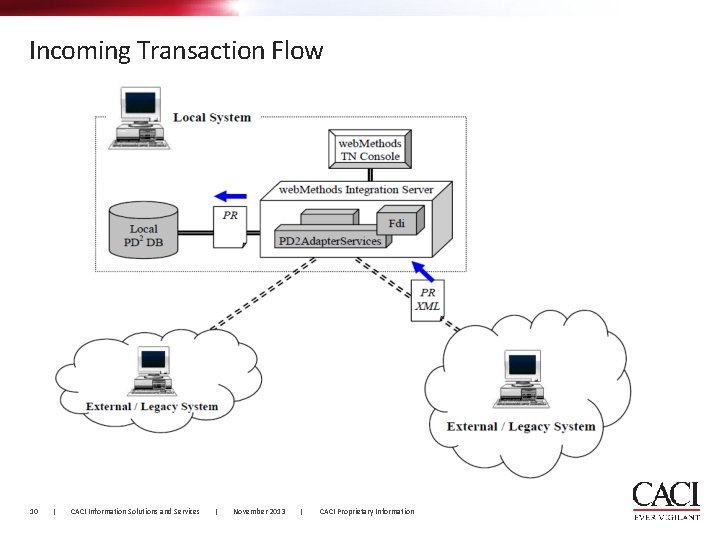

Incoming Transaction Flow 10 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

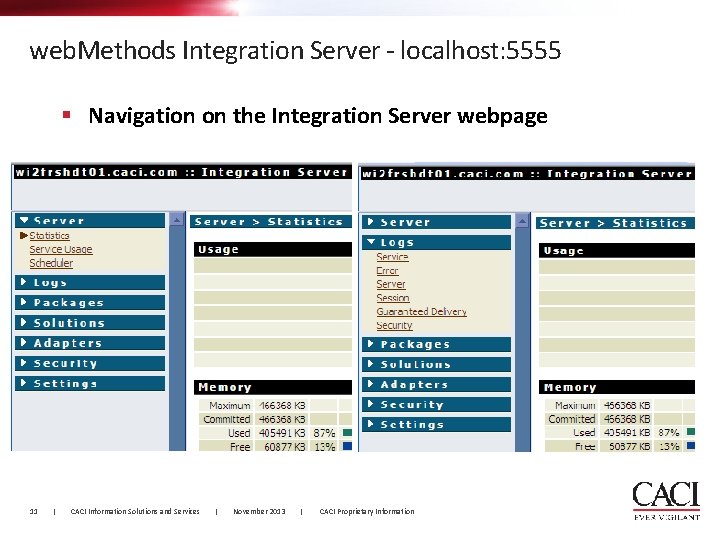

web. Methods Integration Server - localhost: 5555 § Navigation on the Integration Server webpage 11 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

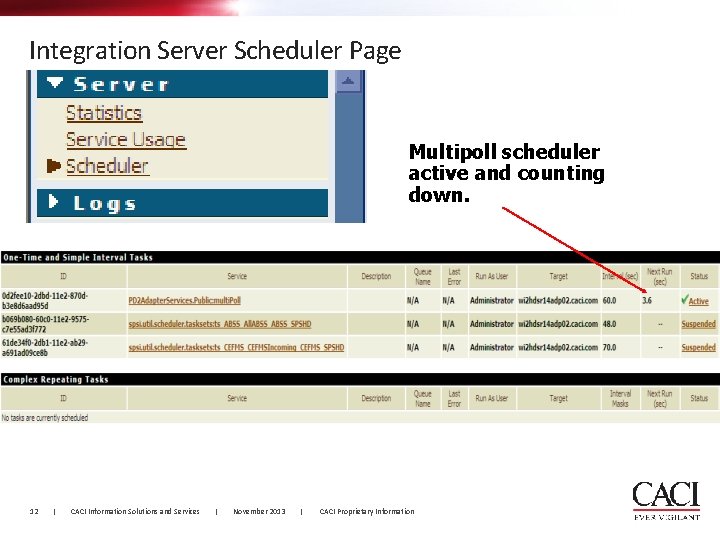

Integration Server Scheduler Page Multipoll scheduler active and counting down. 12 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

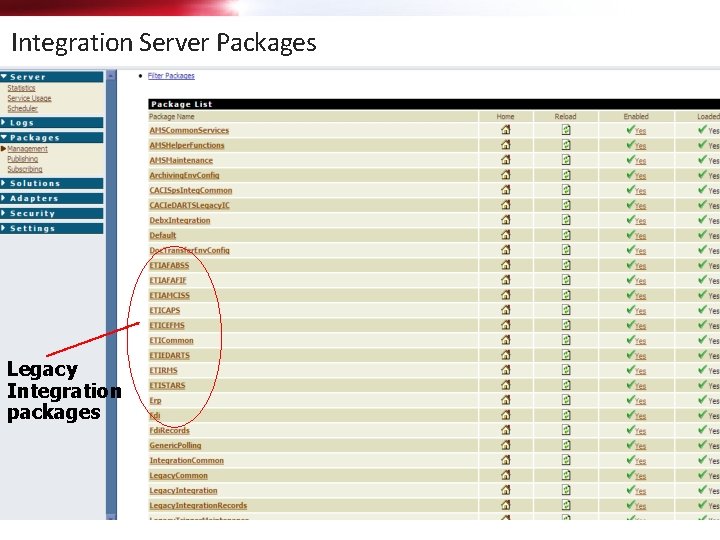

Integration Server Packages Legacy Integration packages 13 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
Package Version Verification 14 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
Integration Server – JDBC Pools Page Testing connection to MWS DB 15 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

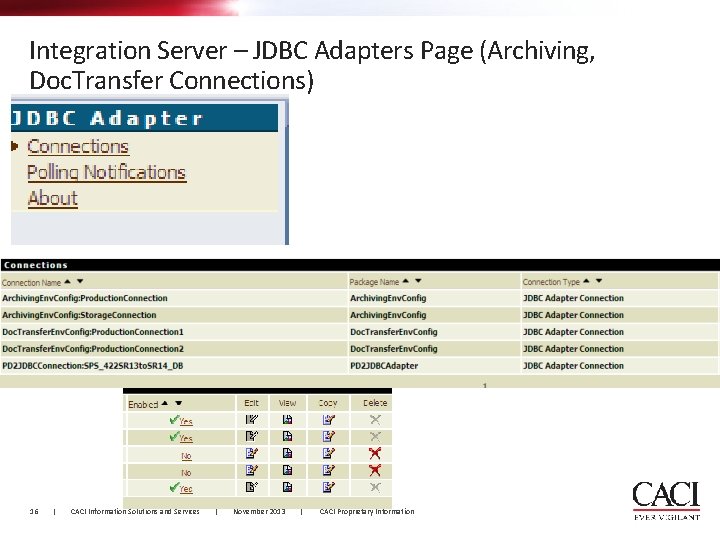

Integration Server – JDBC Adapters Page (Archiving, Doc. Transfer Connections) 16 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

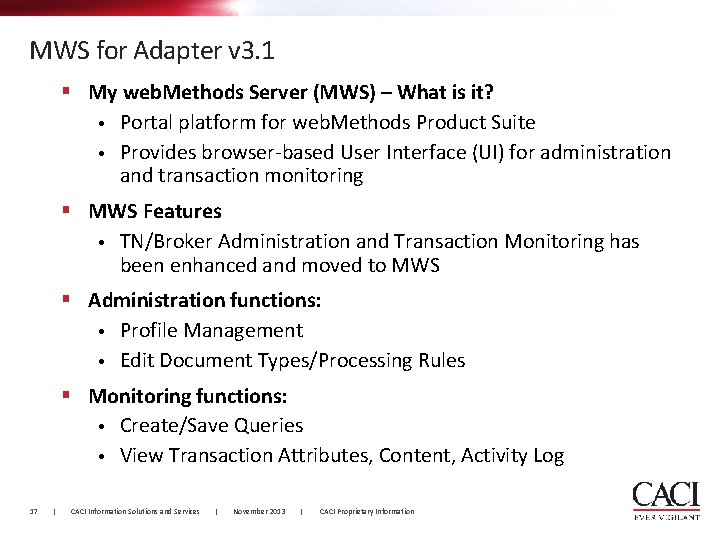

MWS for Adapter v 3. 1 § My web. Methods Server (MWS) – What is it? • Portal platform for web. Methods Product Suite • Provides browser-based User Interface (UI) for administration and transaction monitoring § MWS Features • TN/Broker Administration and Transaction Monitoring has been enhanced and moved to MWS § Administration functions: • Profile Management • Edit Document Types/Processing Rules § Monitoring functions: • Create/Save Queries • View Transaction Attributes, Content, Activity Log 17 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

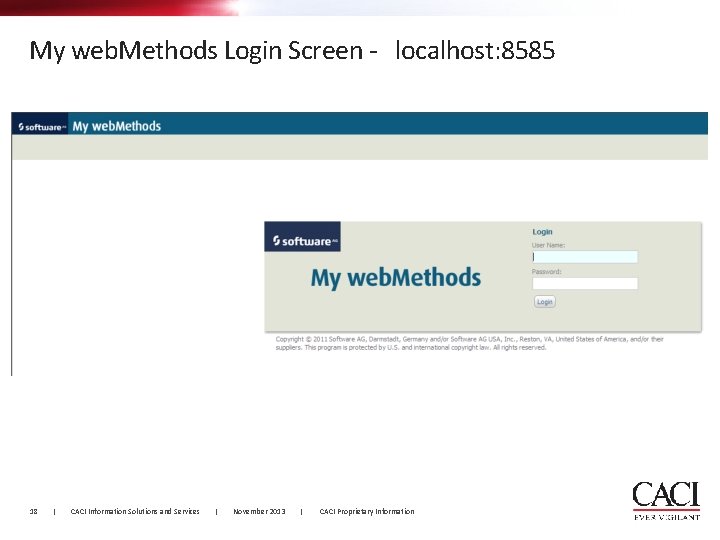

My web. Methods Login Screen - localhost: 8585 18 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

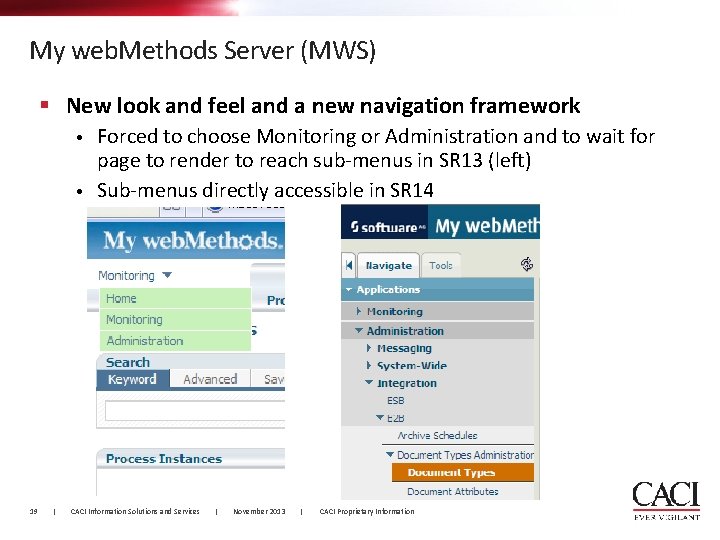

My web. Methods Server (MWS) § New look and feel and a new navigation framework • • Forced to choose Monitoring or Administration and to wait for page to render to reach sub-menus in SR 13 (left) Sub-menus directly accessible in SR 14 19 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

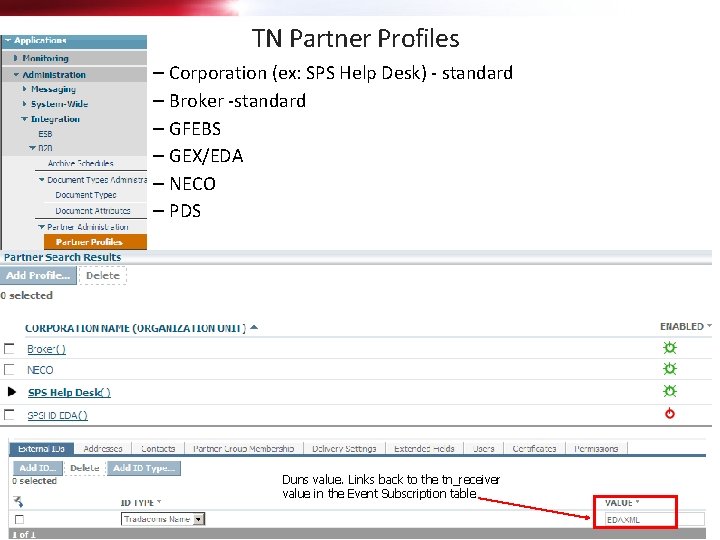

TN Partner Profiles − Corporation (ex: SPS Help Desk) - standard − Broker -standard − GFEBS − GEX/EDA − NECO − PDS Duns value. Links back to the tn_receiver value in the Event Subscription table 20 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

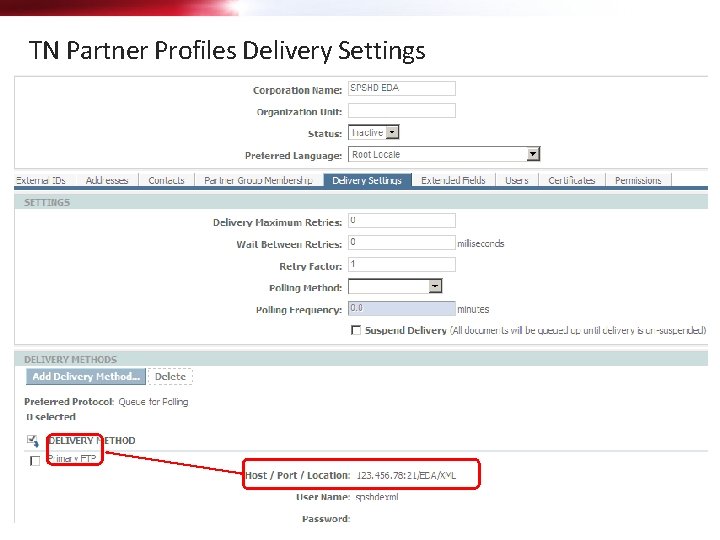

TN Partner Profiles Delivery Settings 21 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
MWS Transactions page 22 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
MWS Transactions page: Activity Log 23 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

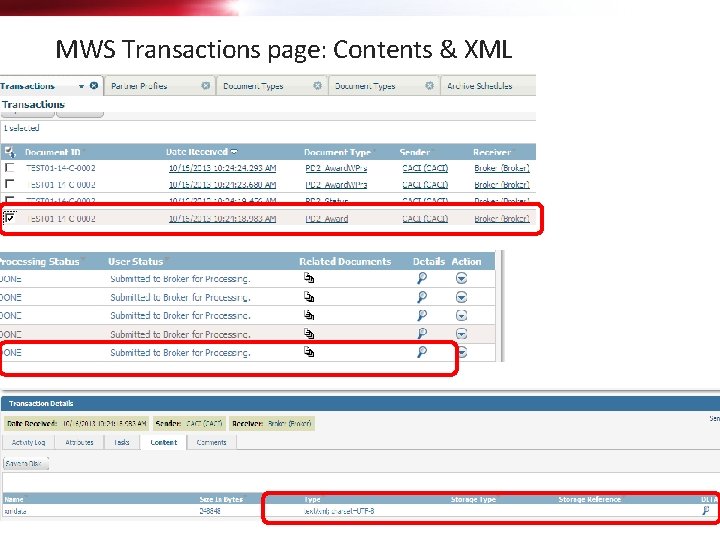

MWS Transactions page: Contents & XML 24 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

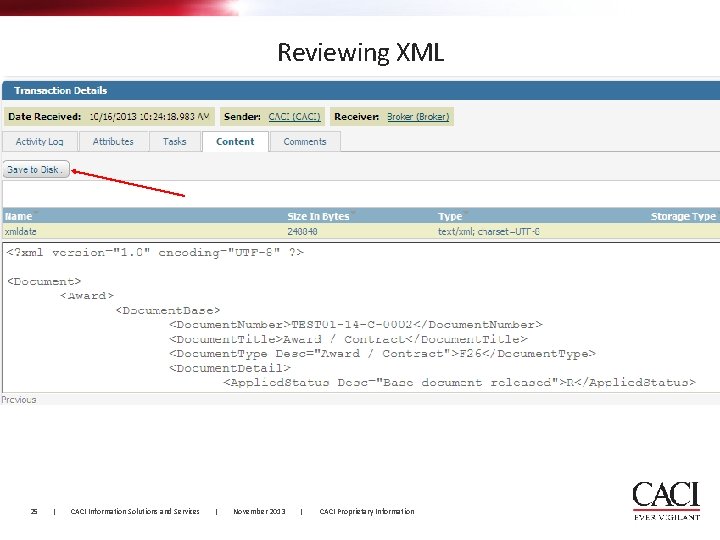

Reviewing XML 25 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

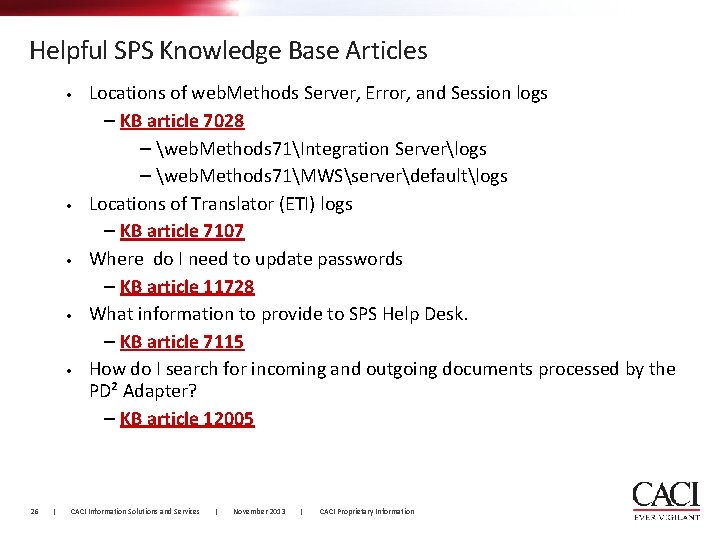

Helpful SPS Knowledge Base Articles • • • Locations of web. Methods Server, Error, and Session logs − KB article 7028 − web. Methods 71Integration Serverlogs − web. Methods 71MWSserverdefaultlogs Locations of Translator (ETI) logs − KB article 7107 Where do I need to update passwords − KB article 11728 What information to provide to SPS Help Desk. − KB article 7115 How do I search for incoming and outgoing documents processed by the PD² Adapter? − KB article 12005 26 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
Questions & Answers: 27 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
Q&A § Please explain what a package is. • A: An Adapter package is a set of compiled code or instructions that is executed by My web. Methods to perform an intended function. Some examples include the checking for the existence of Standard Data, document numbers, and clauses. § Is there a difference between GEX and EDA? • A: There is no difference between the two. They are one in the same. § Can I remotely log into the MWS? If so, how? • A: Since the MWS is a rendered web page it is possible to view/access the MWS remotely however this is dependent on a site's respective firewall and internet restrictions. Assuming there are no restrictions in place that would prevent the ability to remotely access the MWS over the site's network, the MWS should be able to be accessed by utilizing the Adapter server's IP Address combined with the Port number. An example would appear as follows: http: //123. 123: 8585 § Do I need to have all of the Adapter Packages installed? • A: The standard packages for the Adapter must be installed. However the SPS Legacy Integrations, Archiving, Doc Transfer, and PDS are packages that can be optionally installed. 28 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

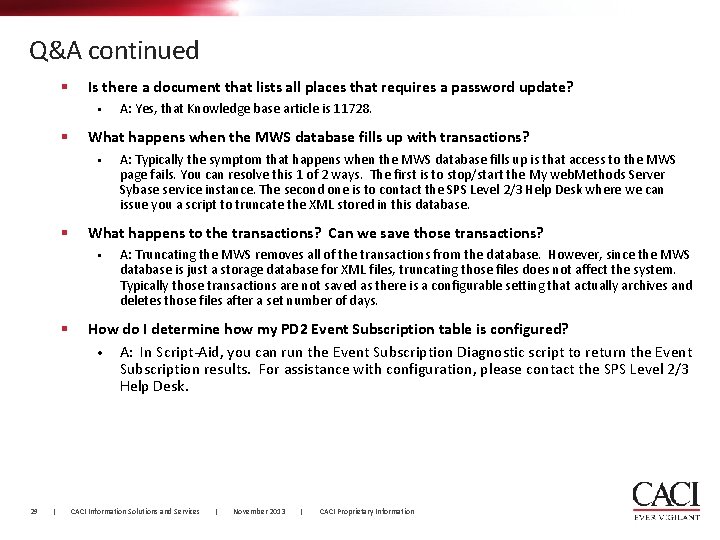

Q&A continued § Is there a document that lists all places that requires a password update? • § What happens when the MWS database fills up with transactions? • § A: Typically the symptom that happens when the MWS database fills up is that access to the MWS page fails. You can resolve this 1 of 2 ways. The first is to stop/start the My web. Methods Server Sybase service instance. The second one is to contact the SPS Level 2/3 Help Desk where we can issue you a script to truncate the XML stored in this database. What happens to the transactions? Can we save those transactions? • § A: Yes, that Knowledge base article is 11728. A: Truncating the MWS removes all of the transactions from the database. However, since the MWS database is just a storage database for XML files, truncating those files does not affect the system. Typically those transactions are not saved as there is a configurable setting that actually archives and deletes those files after a set number of days. How do I determine how my PD 2 Event Subscription table is configured? • A: In Script-Aid, you can run the Event Subscription Diagnostic script to return the Event Subscription results. For assistance with configuration, please contact the SPS Level 2/3 Help Desk. 29 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

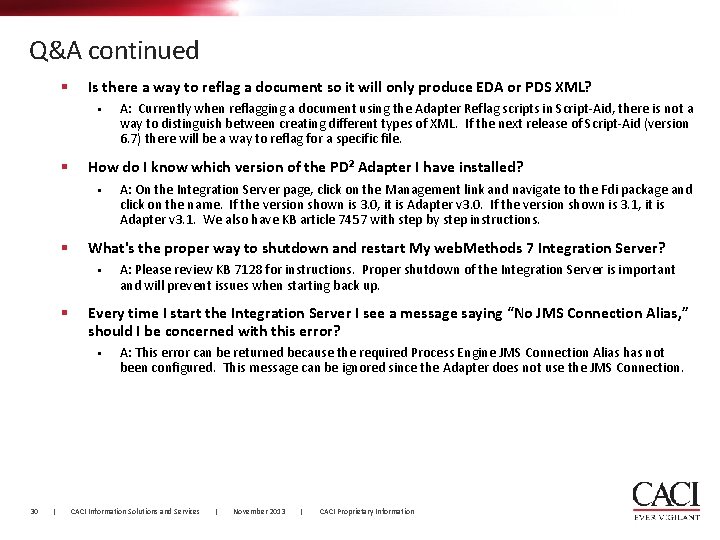

Q&A continued § Is there a way to reflag a document so it will only produce EDA or PDS XML? • § How do I know which version of the PD² Adapter I have installed? • § A: On the Integration Server page, click on the Management link and navigate to the Fdi package and click on the name. If the version shown is 3. 0, it is Adapter v 3. 0. If the version shown is 3. 1, it is Adapter v 3. 1. We also have KB article 7457 with step by step instructions. What's the proper way to shutdown and restart My web. Methods 7 Integration Server? • § A: Currently when reflagging a document using the Adapter Reflag scripts in Script-Aid, there is not a way to distinguish between creating different types of XML. If the next release of Script-Aid (version 6. 7) there will be a way to reflag for a specific file. A: Please review KB 7128 for instructions. Proper shutdown of the Integration Server is important and will prevent issues when starting back up. Every time I start the Integration Server I see a message saying “No JMS Connection Alias, ” should I be concerned with this error? • A: This error can be returned because the required Process Engine JMS Connection Alias has not been configured. This message can be ignored since the Adapter does not use the JMS Connection. 30 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

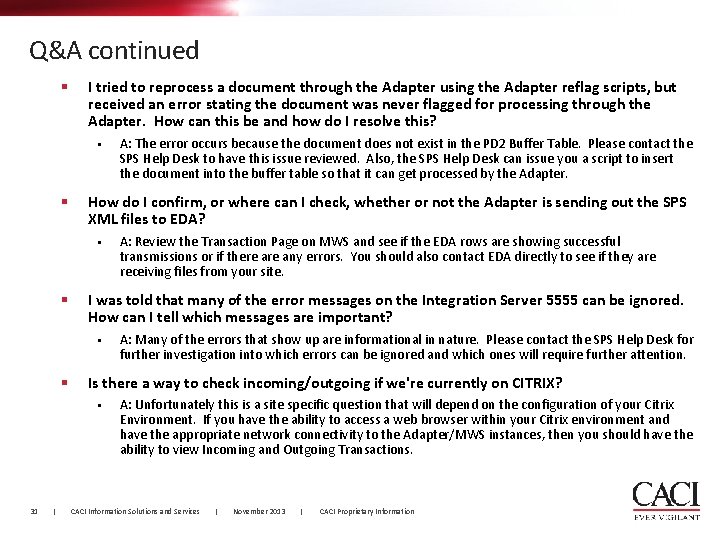

Q&A continued § I tried to reprocess a document through the Adapter using the Adapter reflag scripts, but received an error stating the document was never flagged for processing through the Adapter. How can this be and how do I resolve this? • § How do I confirm, or where can I check, whether or not the Adapter is sending out the SPS XML files to EDA? • § A: Review the Transaction Page on MWS and see if the EDA rows are showing successful transmissions or if there any errors. You should also contact EDA directly to see if they are receiving files from your site. I was told that many of the error messages on the Integration Server 5555 can be ignored. How can I tell which messages are important? • § A: The error occurs because the document does not exist in the PD 2 Buffer Table. Please contact the SPS Help Desk to have this issue reviewed. Also, the SPS Help Desk can issue you a script to insert the document into the buffer table so that it can get processed by the Adapter. A: Many of the errors that show up are informational in nature. Please contact the SPS Help Desk for further investigation into which errors can be ignored and which ones will require further attention. Is there a way to check incoming/outgoing if we're currently on CITRIX? • A: Unfortunately this is a site specific question that will depend on the configuration of your Citrix Environment. If you have the ability to access a web browser within your Citrix environment and have the appropriate network connectivity to the Adapter/MWS instances, then you should have the ability to view Incoming and Outgoing Transactions. 31 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information

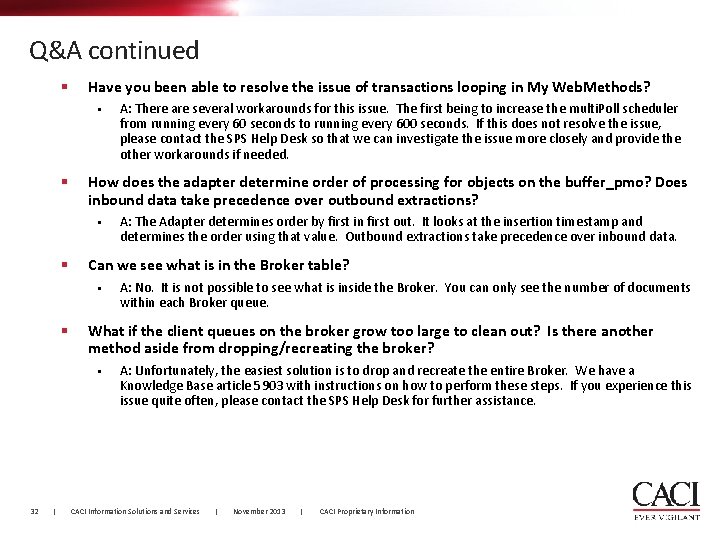

Q&A continued § Have you been able to resolve the issue of transactions looping in My Web. Methods? • § How does the adapter determine order of processing for objects on the buffer_pmo? Does inbound data take precedence over outbound extractions? • § A: The Adapter determines order by first in first out. It looks at the insertion timestamp and determines the order using that value. Outbound extractions take precedence over inbound data. Can we see what is in the Broker table? • § A: There are several workarounds for this issue. The first being to increase the multi. Poll scheduler from running every 60 seconds to running every 600 seconds. If this does not resolve the issue, please contact the SPS Help Desk so that we can investigate the issue more closely and provide the other workarounds if needed. A: No. It is not possible to see what is inside the Broker. You can only see the number of documents within each Broker queue. What if the client queues on the broker grow too large to clean out? Is there another method aside from dropping/recreating the broker? • A: Unfortunately, the easiest solution is to drop and recreate the entire Broker. We have a Knowledge Base article 5903 with instructions on how to perform these steps. If you experience this issue quite often, please contact the SPS Help Desk for further assistance. 32 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
Q&A continued § My server has MWS services, but no webmethods directory. How can I tell if I have it installed or not? • § If we see the multi. Poll scheduled task stuck in a 'running' status for a period of several hours (without documents sent to the MWS), what are the recommended steps toward resolution? • § A: Fresh installs of Adapter 3. 1 (My web. Methods 8. 2) may get installed into the Software. AG folder. This is a My web. Methods/Software. AG feature. A: There are several steps you can take. The first one would be to delete and recreate the Multi. Poll scheduler to see if that resolve the issue. The next step would be to check the Broker queues to see if documents are backing up in any of the queues. Also, try to restart the entire Adapter machine. If none of these resolve the issue, please contact the SPS Help Desk for further assistance. Our JDBC Connection area only includes PD 2 JDBC Connection. . . , and it is not enabled. Is that a concern? • A: The PD 2 JDBCConnection should be enabled in order to ensure documents are processed to and from the PD² production database successfully. If this connection is disabled, you can attempt to enable it through the JDBC Adapter connections page or open a Service Request with the SPS Help Desk so that this issue can be investigated as necessary. 33 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
Q&A continued § Is EDA's IP address required to transmit files? • A: In order to successfully interface with the Global Exchange (GEX), you will need both the destination IP Address and Port number as well as an active EDAXML account to transmit the EDAXML data successfully to GEX. § We have to manually enable and disable multi. Poll multiple times a day or the actions constantly repeat themselves and cause multiple errors and fill up MWS. Has this been looked into anymore? Is there a solution? We are using SR 13. • A: While there is no permanent fix to address this issue, there a few work-arounds that can be implemented. Please reach out to the SPS Help Desk to ensure you are currently using all available work-arounds for this issue. § Does the password have to be set every 90 days? • A: That is a configurable option in Sybase Central and is dependent on each site’s security policy and the JPMO/Do. D policy. § If a document processes for some interfaces but not others, and reflagging does not help, can a script fix that too? • A: This all depends on why the document failed to extract. If the document is not eligible for processing due to a difference in processing rules, then no script could be provided to "FORCE" the document to be extracted however you should contact the SPS Help Desk to investigate this issue further and accurately identify why this may not be extracting as you had hoped. 34 | CACI Information Solutions and Services | November 2013 | CACI Proprietary Information
