PCE DISC and TC MIB Modules Emile Stephan

PCE DISC and TC MIB Modules Emile Stephan emile. stephan@orange-ftgroup. com draft-ietf-pce-disc-mib PCE WG, 71 st IETF, Philadelphia, March 2008 draft-ietf-pce-tc-mib

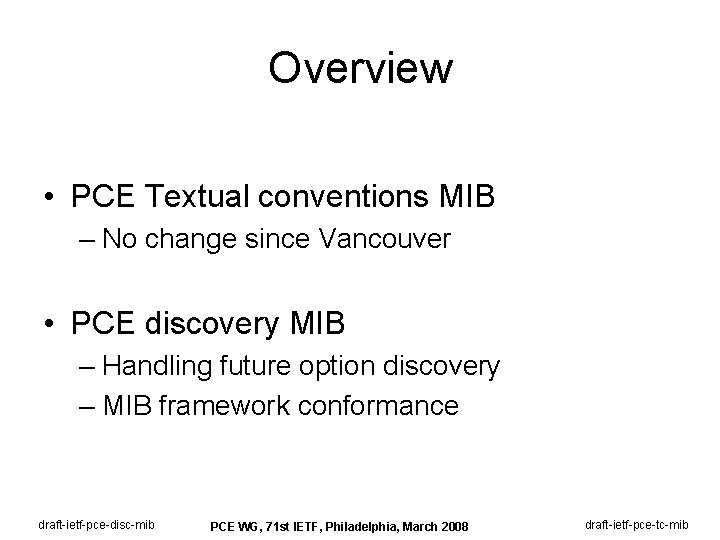

Overview • PCE Textual conventions MIB – No change since Vancouver • PCE discovery MIB – Handling future option discovery – MIB framework conformance draft-ietf-pce-disc-mib PCE WG, 71 st IETF, Philadelphia, March 2008 draft-ietf-pce-tc-mib

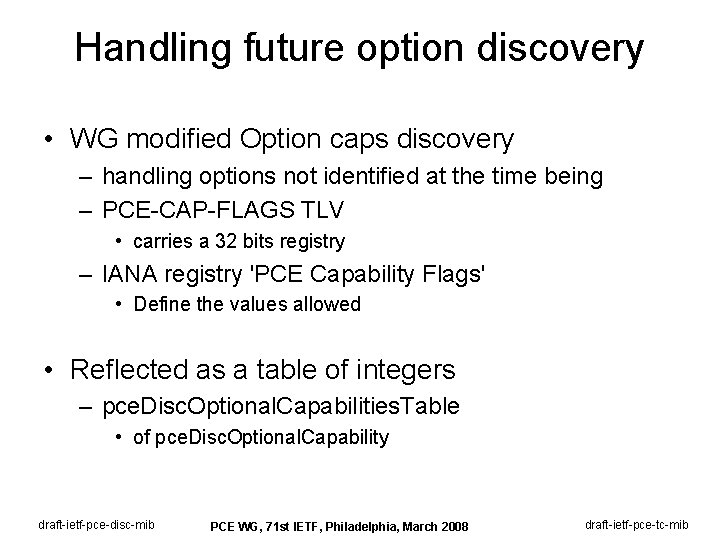

Handling future option discovery • WG modified Option caps discovery – handling options not identified at the time being – PCE-CAP-FLAGS TLV • carries a 32 bits registry – IANA registry 'PCE Capability Flags' • Define the values allowed • Reflected as a table of integers – pce. Disc. Optional. Capabilities. Table • of pce. Disc. Optional. Capability draft-ietf-pce-disc-mib PCE WG, 71 st IETF, Philadelphia, March 2008 draft-ietf-pce-tc-mib

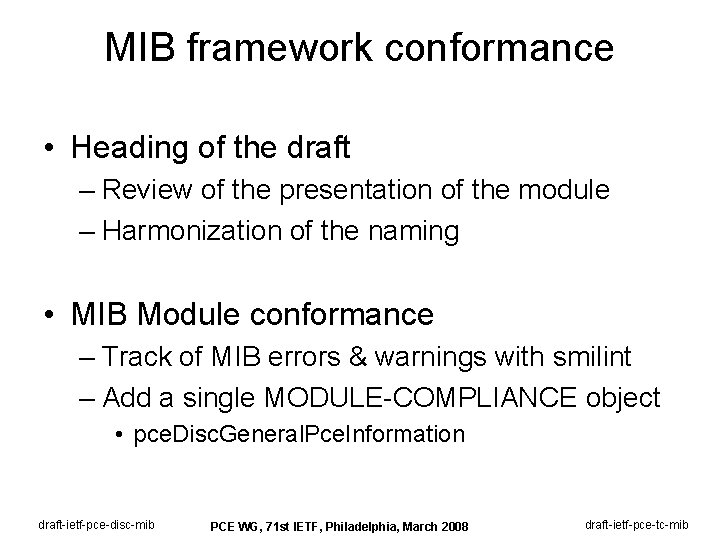

MIB framework conformance • Heading of the draft – Review of the presentation of the module – Harmonization of the naming • MIB Module conformance – Track of MIB errors & warnings with smilint – Add a single MODULE-COMPLIANCE object • pce. Disc. General. Pce. Information draft-ietf-pce-disc-mib PCE WG, 71 st IETF, Philadelphia, March 2008 draft-ietf-pce-tc-mib

PCE discovery MIB structure Pces discovered • pce. Discovery. Table + Numbers Capabilities they support • pce. Disc. Path. Scope. Table • pce. Disc. Domain. Table • pce. Disc. Neighbor. Domain. Table Options they support • pce. Disc. Optional. Capabilities. Table Pces Activity • pce. Disc. Activity. Table draft-ietf-pce-disc-mib PCE WG, 71 st IETF, Philadelphia, March 2008 draft-ietf-pce-tc-mib

Conclusion • WGLC requested for MIB DISC – WG documents related to discovery gain RFC. – MIB module reflects all the management needs in term of Discovery • If not, the WGLC will raise them draft-ietf-pce-disc-mib PCE WG, 71 st IETF, Philadelphia, March 2008 draft-ietf-pce-tc-mib
