PCBS FOR HIGH POWER BATTERY CHARGER 1 PCB
PCB’S FOR HIGH POWER BATTERY CHARGER 1

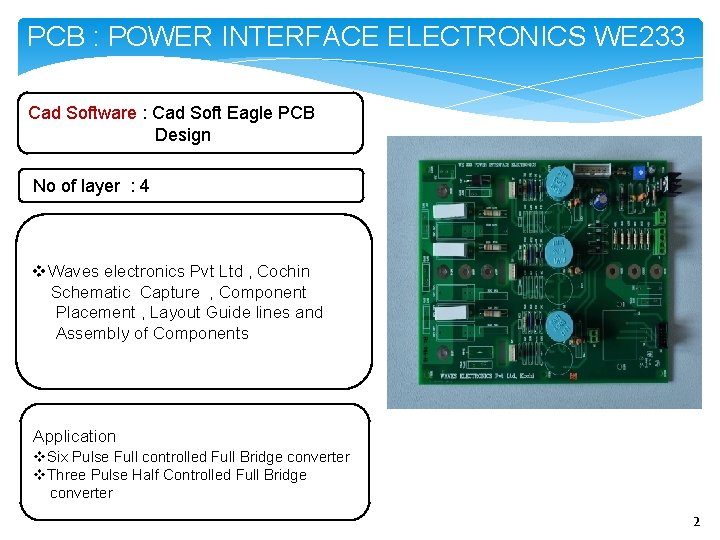

PCB : POWER INTERFACE ELECTRONICS WE 233 Cad Software : Cad Soft Eagle PCB Design No of layer : 4 v. Waves electronics Pvt Ltd , Cochin Schematic Capture , Component Placement , Layout Guide lines and Assembly of Components Application v. Six Pulse Full controlled Full Bridge converter v. Three Pulse Half Controlled Full Bridge converter 2
PCB : SIX /THREE PULSE SCR CONTROLLER WE 234 Cad Software : Cad Soft Eagle PCB Design No of layer : 4 Design & Developed v. Waves electronics Pvt Ltd , Cochin Application v. Six Pulse Full controlled Full Bridge converter v. Three Pulse Half Controlled Full Bridge converter 3

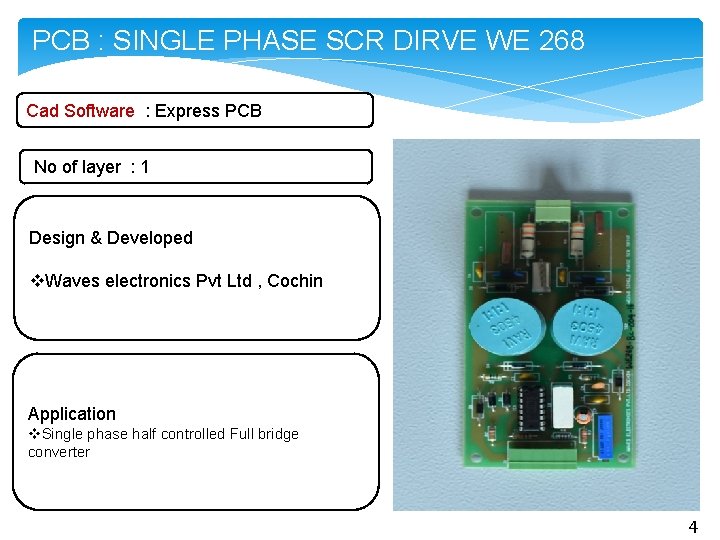

PCB : SINGLE PHASE SCR DIRVE WE 268 Cad Software : Express PCB No of layer : 1 Design & Developed v. Waves electronics Pvt Ltd , Cochin Application v. Single phase half controlled Full bridge converter 4
PCB : SINGLE PHASE SCR CONTROLLER WE 269 Cad Software : Cad Soft Eagle PCB Design No of layer : 2 Design & Developed v. Waves electronics Pvt Ltd , Cochin Application v. Single phase half controlled Full bridge converter 5
PCB : CAS – PROCESSOR WE 251 Cad Software : Cad Soft Eagle PCB Design No of layer : 4 Design & Developed v. Waves electronics Pvt Ltd , Cochin Application Six Pulse Full controlled Full Bridge converter Three Pulse Half Controlled Full Bridge converter 6
PCB : CAS - INDICATOR WE 252 Cad Software : Cad Soft Eagle PCB Design No of layer : 4 Design & Developed v. Waves electronics Pvt Ltd , Cochin Application v. Six Pulse Full controlled Full Bridge converter v. Three Pulse Half Controlled Full Bridge converter 7
PCB : HALL EFFECT BASED MULTI CHANNELCURRENT SENSOR PCB AND PLC INTERFACE WE 245 Cad Software : Cad Soft Eagle PCB Design No of layer : 4 Design & Developed v. Waves electronics Pvt Ltd , Cochin Application v Navigation light (incandescent lamp – AC&DC ) control panel 8
PCB : SOLID SATE CURRENT SENSOR WE 265 Cad. Software: : Cad. Soft. Eagle. PCB Cad Design No of layer : 4 Design & Developed v. Waves electronics Pvt Ltd , Cochin Application v. Navigation light (LED lamp – AC&DC ) control panel 9
PCB: DUAL IGBT DRIVE WE 281 Cad Software : Cad Soft Eagle PCB Design No of layer : 4 Design & Developed v. Waves electronics Pvt Ltd , Cochin Application : Hybrid Integrated IGBT / MOSFET driver designed for driving N Channel IGBT /MOSEFT Electrical isolation voltage between input and output with opto coupler 10
