PCBased ECG Systems PC Based ECG Systems Holter
PC-Based ECG Systems
PC Based ECG Systems Holter Systems Rest and Stress Systems Net. ECG Systems
Holter Systems New Holter ECG Recorder Ø 1, 2, 3 independent channels or 12 -CH ECG ØWireless (Bluetooth®) communication ØIntegrated 3 D motion detection ØPacemaker Detection ØLow Power Consumption ØGreyscale LCD EC-1 H, EC-2 H, EC-3 H, EC-
Holter Systems New Holter ECG Recorder Ø 1, 2, 3 independent channels or 12 -CH ECG ØWireless (Bluetooth®) communication ØIntegrated 3 D motion detection ØPacemaker Detection ØLow Power Consumption ØGreyscale LCD EC-1 H, EC-2 H, EC-3 H, EC-

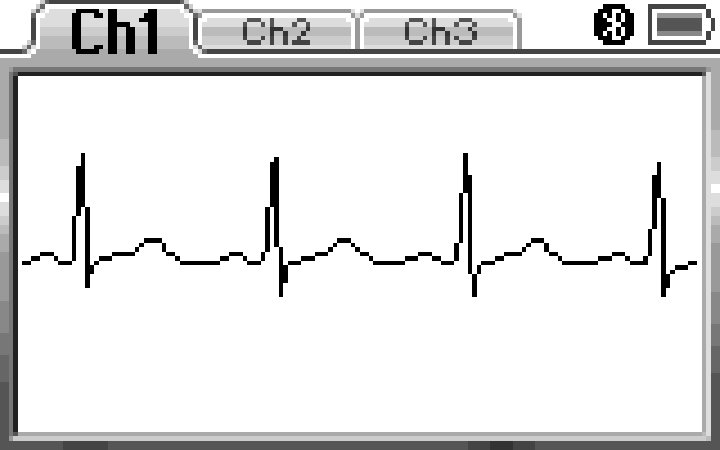

Holter Systems ØRecording duration: 24, 48, 72 hours, 1 week ØRecording rate: 128, 256, 512, 1024 Hz ØADC resolution: 16 bit ØDynamic range: +/- 20 m. V ØCMRR: 120 d. B ØPowered by only 1 AAA battery
Holter Systems ØRecording duration: 24, 48, 72 hours, 1 week ØRecording rate: 128, 256, 512, 1024 Hz ØADC resolution: 16 bit ØDynamic range: +/- 20 m. V ØCMRR: 120 d. B ØPowered by only 1 AAA battery
Holter Systems New USB-02 Wireless Interface ØWireless Bluetooth® connection ØConvenient, reliable, easy to use ØSimple, quick pairing ØFully compatible with Windows® XP, Vista, and 7 (32/64 bit)

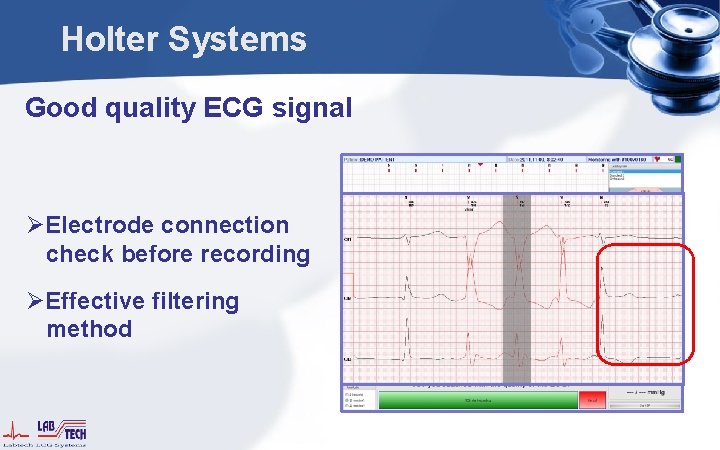

Holter Systems Good quality ECG signal ØElectrode connection check before recording ØEffective filtering method
Holter Systems Fast and reliable analysis with editing possibilities Channel-selective Automatic noise. QRS detection ØPrecise QRS detection ØQRS template classification
Holter Systems Several types of computed parameters ØArrhythmia analysis ØHR and Patient motion graphs ØQT, QTc graphs ØST level and slope ØSAECG
Holter Systems Several types of computed parameters ØHRV time and frequency ØAtrial fibrillation ØHeart rate turbulence ØMicrovolt T alternans ØPacemaker analysis ØBlood pressure graphs AF AF
Holter Systems Informatics support SERVER rd co Re t Interne et n r e Int ØRecord, report forwarding rd co ØNetwork application Re FTP Server te In d or Re c rd rne t CLIENT co Inte Re Email Server et rn ØInterfaces CLIENT
PC Based ECG Systems Holter Systems Rest and Stress Systems Net. ECG Systems
Rest and Stress Systems Wireless Resting And/Or Stress Test Device Ø 12 channels resting and/or stress ECG ØBuilt-in Blood Pressure Monitor ØWireless Bluetooth® connection ØLow Power Consumption ØSmall size, compact build-up EC-12 R, EC-12 R/S, EC-1
Rest and Stress Systems Resting ECG Ø 5, 10, 20 s and long record (up to 7 hrs) ØBuilt-in diagnostic system ØComparison of ECG records
Rest and Stress Systems Large ergometer and treadmill database Ø 17 ergometer, 18 treadmill protocols ØMaster. Step protocol ØWalking protocol
Rest and Stress Systems Several types of computed parameters ØHR, BP ØDouble product, MET ØSAECG ØST level and slope, HRST loop Ø Several kinds of printable reports
Rest and Stress Systems Alarm and stop criterias ØHeart rate ØST level ØBP systole ØBP diastole
Rest and Stress Systems Informatics support SERVER rd co Re t Interne et n r e Int ØRecord, report forwarding rd co ØNetwork application Re FTP Server te In d or Re c rd rne t CLIENT co Inte Re Email Server et rn ØInterfaces CLIENT
PC Based ECG Systems Holter Systems Rest and Stress Systems Net. ECG Systems

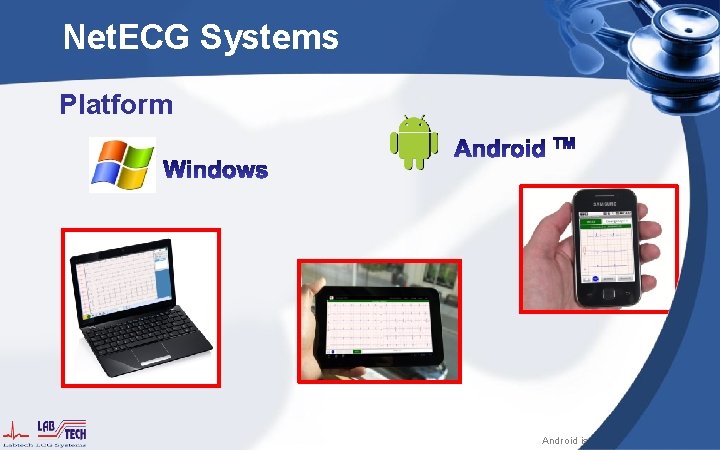

Net. ECG Systems Platform Android is a trademark of Google Inc.
Net. ECG Systems Software characteristics ØReal-time ECG display Ø 12 -channel resting ECG ØPortrait and landscape display mode ØBluetooth connection with the ECG recorder ØSend reports in JPG or MFER format via email ØSave records to SD card then syncronise to Cardiospy software via USB cable ØSend records to Cardiospy's “cloud” application
Net. ECG Systems The product is ideal to use in an emergency car, because: patient the „It „Wireless „Itperforms immediately technology preliminary provides eliminates analysis „The tablet isareceives use, it isto „Records are easy to upload appropriate sooner as of the feedback the inconvenience patient ontreatment the on his patient’s ofway using to the small and mobile. ” an emergency centre where they patient registration takes less hospital. ” cables. ” condition. ” are immediately evaluated by time. ” Cardiospy’s „cloud” application. ”
