PCB procurement WG Status report PCB WG status, 25/03/2014 Joerg Wotschack
PCB specification document § Review of specs by Rui de Oliveira § Update concerning the accuracy on the cutting of the edges § Pressure for glueing can be reduced from 30 kg/cm 2 to 15 kg/cm 2 (tests done at CERN show no problem) § Interconnected lines (shorts) § Interrupted lines (resulting in partly dead strips) § Questions § How many defects of each type can we accept? § Shall we specify limits for these defects in the specs for the PCB producers and, if yes, which? PCB WG status, 25/03/2014 Joerg Wotschack

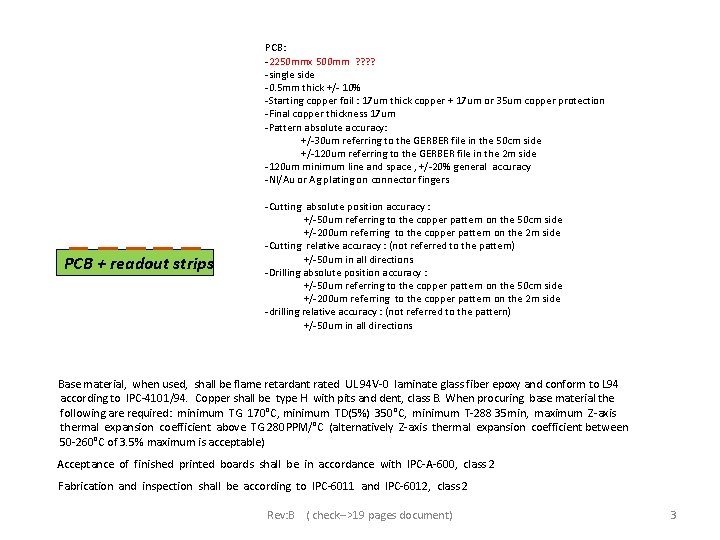

PCB: -2250 mmx 500 mm ? ? -single side -0. 5 mm thick +/- 10% -Starting copper foil : 17 um thick copper + 17 um or 35 um copper protection -Final copper thickness 17 um -Pattern absolute accuracy: +/-30 um referring to the GERBER file in the 50 cm side +/-120 um referring to the GERBER file in the 2 m side -120 um minimum line and space , +/-20% general accuracy -NI/Au or Ag plating on connector fingers PCB + readout strips -Cutting absolute position accuracy : +/-50 um referring to the copper pattern on the 50 cm side +/-200 um referring to the copper pattern on the 2 m side -Cutting relative accuracy : (not referred to the pattern) +/-50 um in all directions -Drilling absolute position accuracy : +/-50 um referring to the copper pattern on the 50 cm side +/-200 um referring to the copper pattern on the 2 m side -drilling relative accuracy : (not referred to the pattern) +/-50 um in all directions Base material, when used, shall be flame retardant rated UL 94 V-0 laminate glass fiber epoxy and conform to L 94 according to IPC-4101/94. Copper shall be type H with pits and dent, class B. When procuring base material the following are required: minimum TG 170°C, minimum TD(5%) 350°C, minimum T-288 35 min, maximum Z-axis thermal expansion coefficient above TG 280 PPM/°C (alternatively Z-axis thermal expansion coefficient between 50 -260°C of 3. 5% maximum is acceptable) Acceptance of finished printed boards shall be in accordance with IPC-A-600, class 2 Fabrication and inspection shall be according to IPC-6011 and IPC-6012, class 2 Rev: B ( check-->19 pages document) 3
How to deal with defects § We have observed some defects in the readout strips (metallic) in a number of boards delivered by ELTOS for the MMSW chambers (as presented by Fabian Kuger, e. g. , in the Würzburg Meeting) § Defects are § Interconnected lines (shorts) § Interrupted lines (resulting in partly dead strips) § Questions § How many defects of each type can we accept? § Shall we specify limits for these defects in the specs for the PCB producers and, if yes, which? PCB WG status, 25/03/2014 Joerg Wotschack

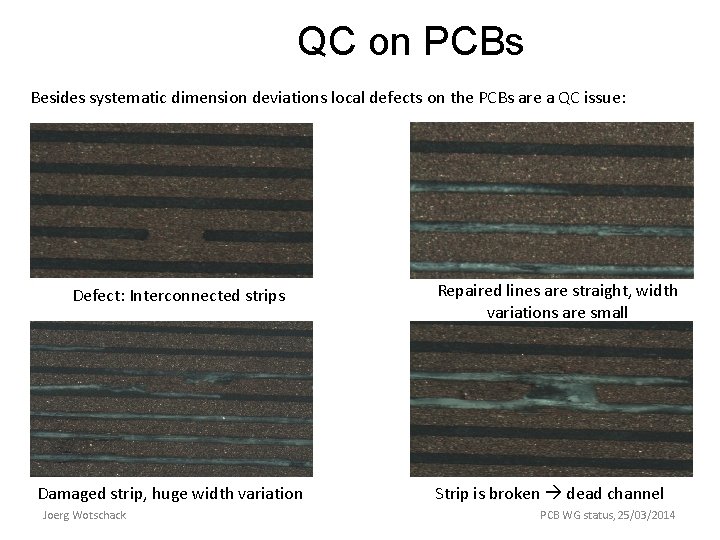

QC on PCBs Besides systematic dimension deviations local defects on the PCBs are a QC issue: Defect: Interconnected strips Damaged strip, huge width variation Joerg Wotschack Repaired lines are straight, width variations are small Strip is broken dead channel PCB WG status, 25/03/2014
Considerations for the discussion § Tracks from the IP have inclinations between 7 and 35 degrees § Typical cluster sizes (track projection onto readout strips) are 10 – 28 mm or 3(4) to 8(10) strips. § A missing or interconnected strip will lead to a missing or wrong strip signal and thus to a larger position error § Comparable effects are created by the pillars (1% inefficiency) § Proposal: accept defects at a similar level as the inefficiency created by the pillars § ≤ 10 interconnected lines (shorts) as long as they are distributed; minimum distance between defects: 10 strips § ≤ 10 interrupted lines/PCB (1024 channels) as long as they are distributed; minimum distance between defects: 10 strips § The sum of interconnects and shorts: ≤ 10/PCB; minimum distance between defects: 10 strips PCB WG status, 25/03/2014 Joerg Wotschack
What about spares? § How many PCBs of each type do we want to order? Minimum is 64 PCBs of each type § To cope with defects § To allow for selection of PCBs § To allow for accidents during panel construction § Is it cheaper to accept defects and to produce 10– 20% more boards? § Option on re-processing after full delivery PCB WG status, 25/03/2014 Joerg Wotschack
Test glueing status § End of last year we decided to ask industry for tests for Kapton foil glueing and pillar deposition over the (almost) full size PCBs (0. 5 x 2. 16 m) § Labs agreed to take responsibility for getting these tests done § Saclay deals with ELVIA § Frascati with ELTOS § US with Triangle Lab (tbc) § Goal is to have results by beginning of May PCB WG status, 25/03/2014 Joerg Wotschack
Next steps § PCB layout version 0 exists (Givi) § Try to get agreement on general features today § Next steps § Integration with mechanics and FE board layout (AZ) and possibly other electronics boards until 15 April § Final checks with PCB lab until end April § Drawings ready for Module-0 ordering by 1 May § Need to order ≈100 PCBs for Module-0 s § Order in three industries (ELTOS, ELVIA, Triangle Lab) ? PCB WG status, 25/03/2014 Joerg Wotschack
