PC Support & Repair Chapter 3 Computer Assembly- Step by Step

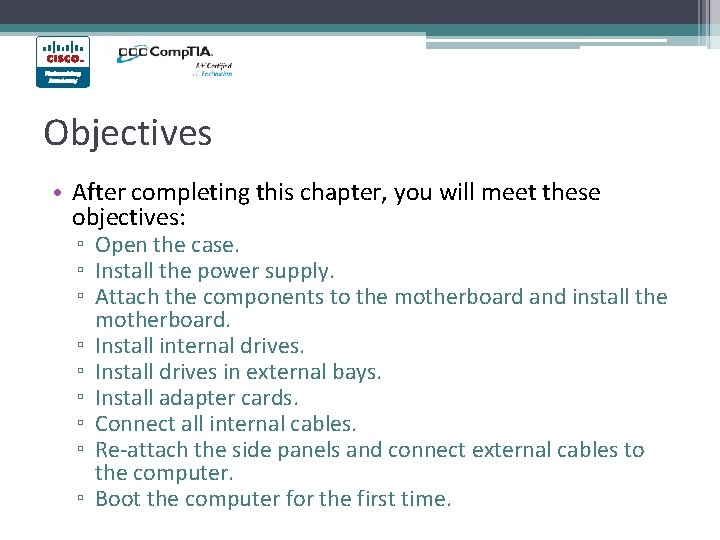

Objectives • After completing this chapter, you will meet these objectives: ▫ Open the case. ▫ Install the power supply. ▫ Attach the components to the motherboard and install the motherboard. ▫ Install internal drives. ▫ Install drives in external bays. ▫ Install adapter cards. ▫ Connect all internal cables. ▫ Re-attach the side panels and connect external cables to the computer. ▫ Boot the computer for the first time.

Open the Case • Size & shape is the ? ▫ Form factor • Prepare ▫ Lighting, antistatic mats, container for screws • Each case opens differently

Install the Power Supply • Fits one way • Screws attach it to mobo • VIRTUAL DESKTOP: POWER SUPPLY • LAB 3. 2 INSTALL POWER SUPPLY

Install CPU & Fan • Put in before mobo goes in case • Put on mat & wear strap • DO NOT touch CPU contacts • Match up Pin 1 • What kind of socket is pictured?

Install CPU & Fan • Apply thermal compound ▫ Helps conduct heat away from CPU • If using an old CPU ▫ Clean off old compound ▫ Isopropyl alcohol ONLY

Heat Sink & Fan • Heat sink draws heat away from CPU • Has a 3 -pin power connector fan • Visit site…

Install RAM • Make sure it’s compatible! • RAM ▫ Temp data storage ▫ Volatile ▫ More= better performance • Align notches • Press until side tabs click

Install Motherboard • Standoffs/spacers prevent mobo from touching case • Align I/O with case • Align screw holes • Tighten screws

Lab • Virtual Desktop: Motherboard • Lab 3. 3. 3: Install Motherboard

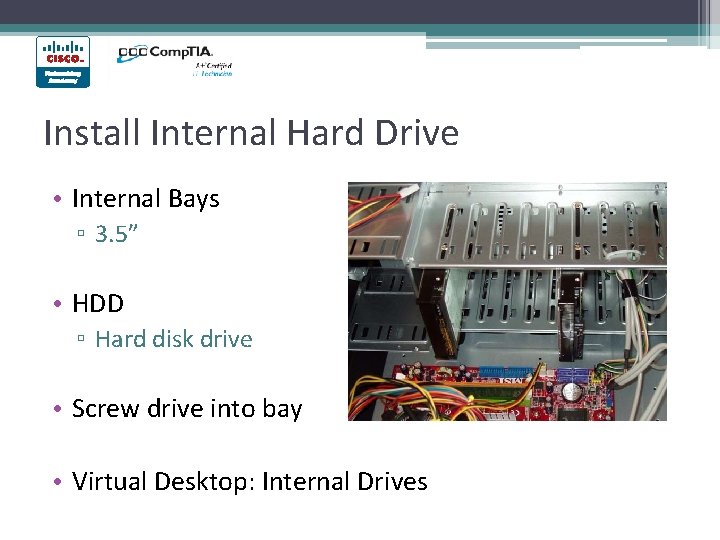

Install Internal Hard Drive • Internal Bays ▫ 3. 5” • HDD ▫ Hard disk drive • Screw drive into bay • Virtual Desktop: Internal Drives

Install Optical Drive in External Bay • External Bay ▫ Accessible outside case ▫ 5. 25” • Optical CD/DVD ▫ Molex power connector ▫ PATA (IDE/EIDE) data cable • Screw into bay

Install Floppy Drive in External Bay • External Bay ▫ Accessible outside case ▫ 3. 5” • Floppy Drive (FDD) ▫ Berg power connector ▫ FDD data cable (wider) • Screw into bay

Lab • Virtual Desktop: Drives in External Bays • Lab 3. 5. 2: Install Drives

Install Adapter Cards • PCIe • AGP • NIC • Wireless NIC • Video Card

Lab • Virtual Desktop: Adapter Cards • Lab 3. 6. 3: Install Adapter Cards

Connect the Power Cables • Data, Power, LED lights ▫ Mobo power & AUX ▫ SATA power (15 -pin) ▫ Molex power ▫ Berg power ▫ Fan (3 -pin)

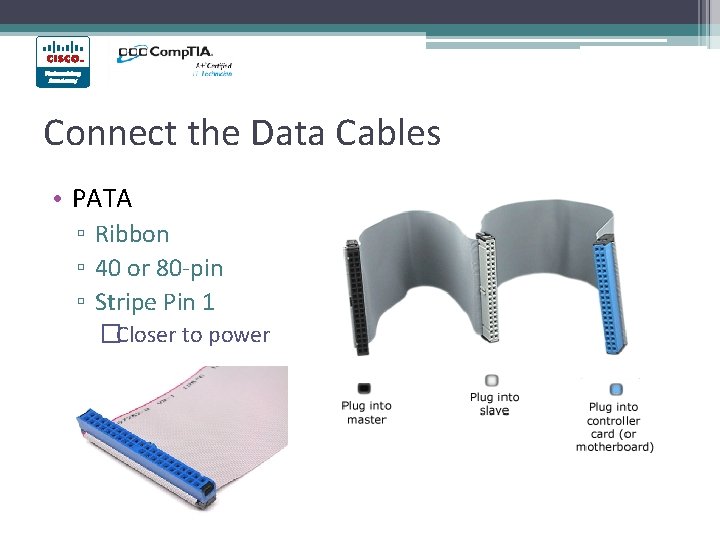

Connect the Data Cables • PATA ▫ Ribbon ▫ 40 or 80 -pin ▫ Stripe Pin 1 �Closer to power

Connect the Data Cables • SATA ▫ 7 -pin

Connect the Data Cables • Floppy ▫ 34 -pin ▫ Stripe for pin 1 ▫ Put in backwards �Drive activity light flash

Lab • Virtual Desktop: Internal Cables • Lab 3. 2. 7: Install Internal Cables

Finishing Up • Reattach Case with screws • Connect external cables ▫ ▫ ▫ Monitor Keyboard Mouse USB Ethernet Power (LAST)

Booting Up 1 st Time • BIOS does a check of internal components ▫ POST �All hardware works �Beeps indicate info �Codes differ � 1 usually= GOOD

BIOS • BIOS data saved to CMOS ▫ Complementary Metal Oxide Semiconductor ▫ Powered by battery ▫ Battery dies= lost BIOS data • To enter/change BIOS settings… ▫ Press key during POST ▫ DEL or F 12, depends on PC ▫ What is ours? �F 2

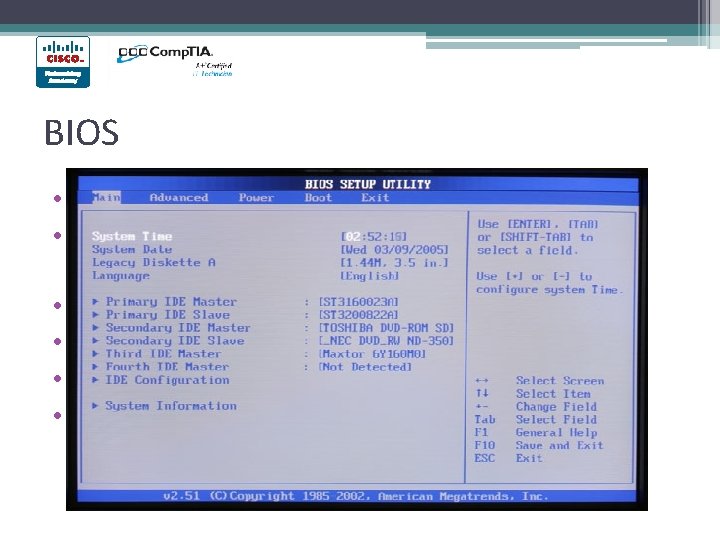

BIOS • Main – System time, date, HDD type, etc. • Advanced – Infrared port settings, parallel port settings, etc. • Security – Password settings to setup utility • Others – Low battery alarm, system beep, etc. • Boot – Boot order of the computer • Exit – Setup utility exit

Lab • Lab 3. 9. 2: Boot the Computer

Review
