PC 222 IOZ AG What Design Visio Shapes
- Slides: 40

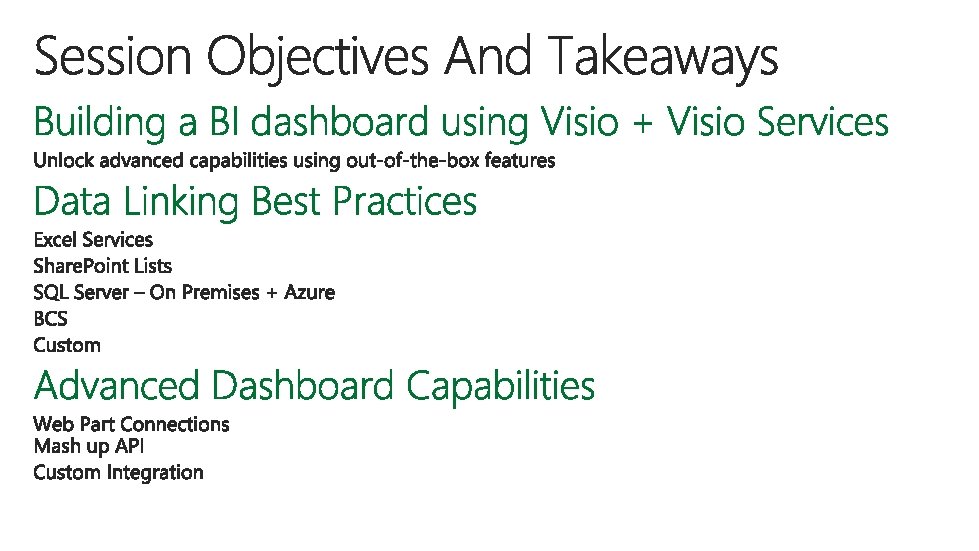

PC 222
© IOZ AG

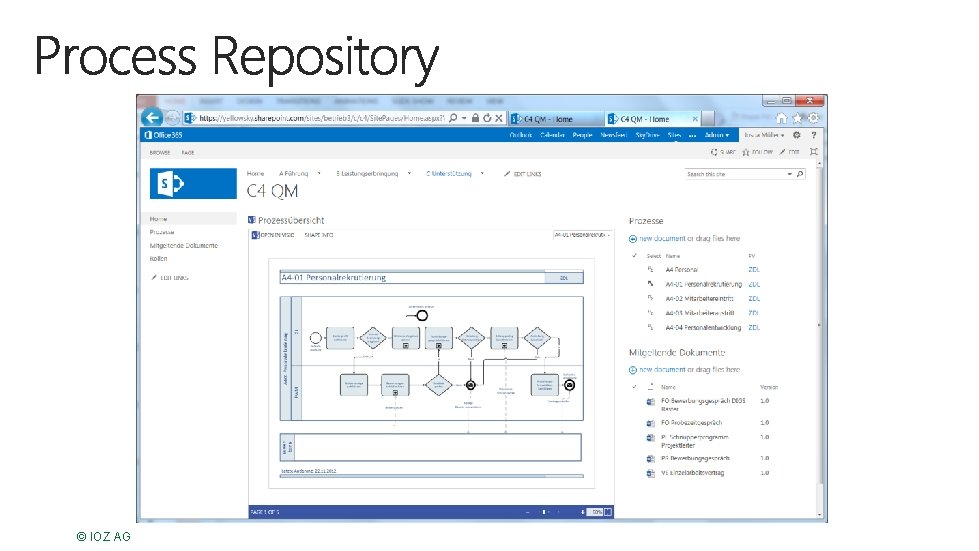

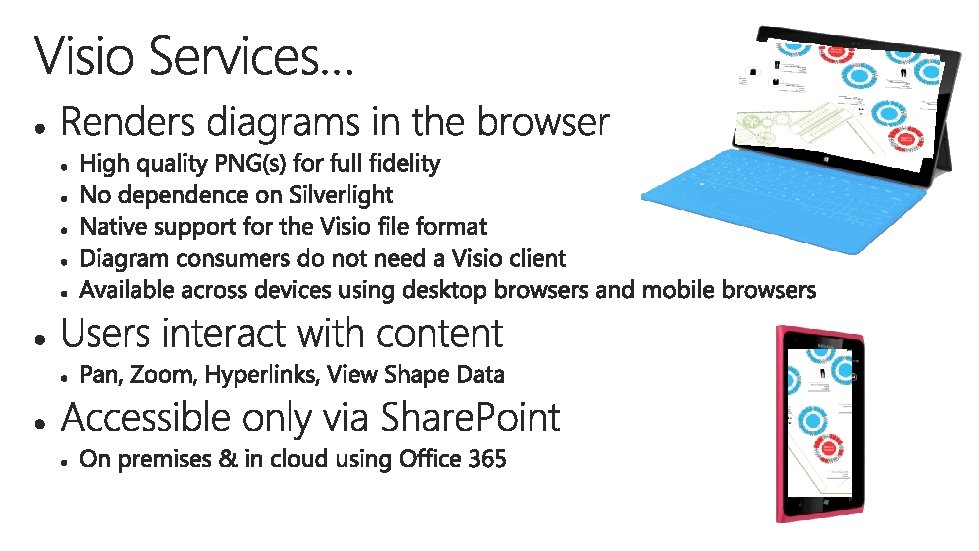

What Design? Visio Shapes Data Graphics Custom Shapes Images Clipart CAD SVG … What Data? Share. Point Excel SQL …

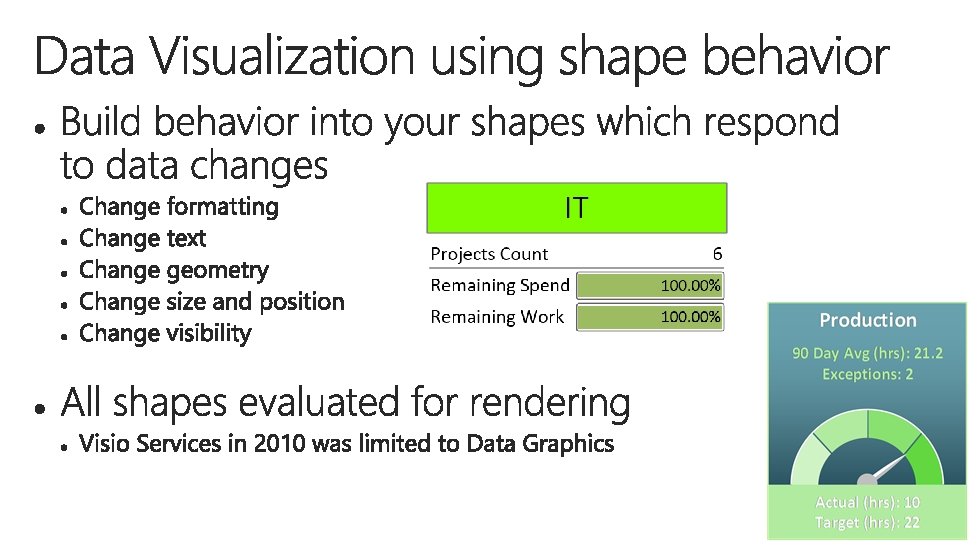

Icon Sets Text Callouts Data Bars Color By Value

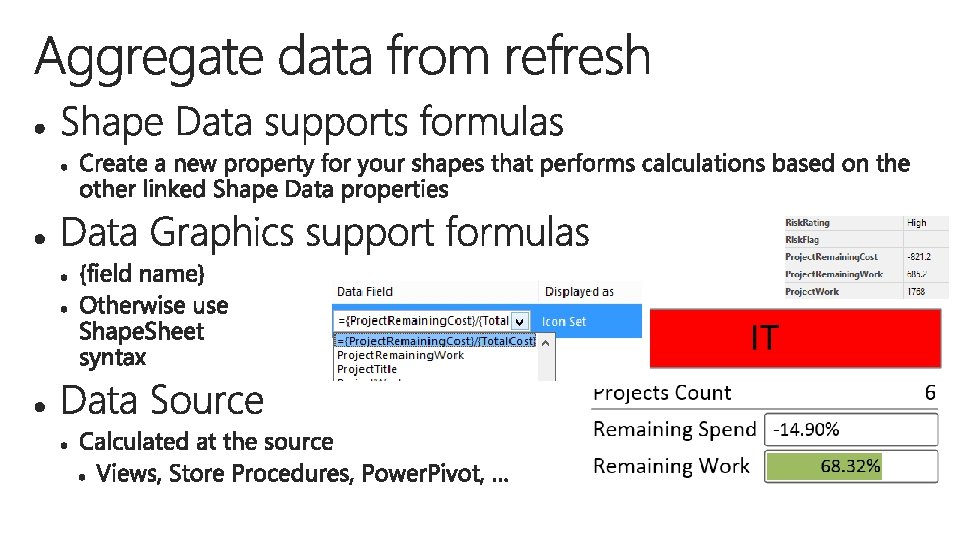

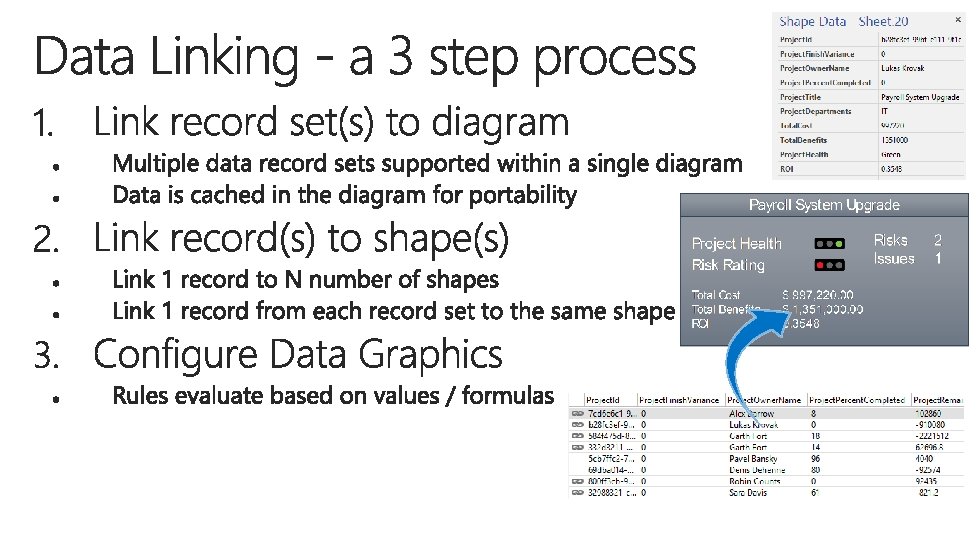

Hyperlink to detail pages Aggregate using Property Formulas Combine Data Graphic Items Link records to multiple shapes
Excel Services SP Lists + Custom OLEDB ODBC . NET BCS

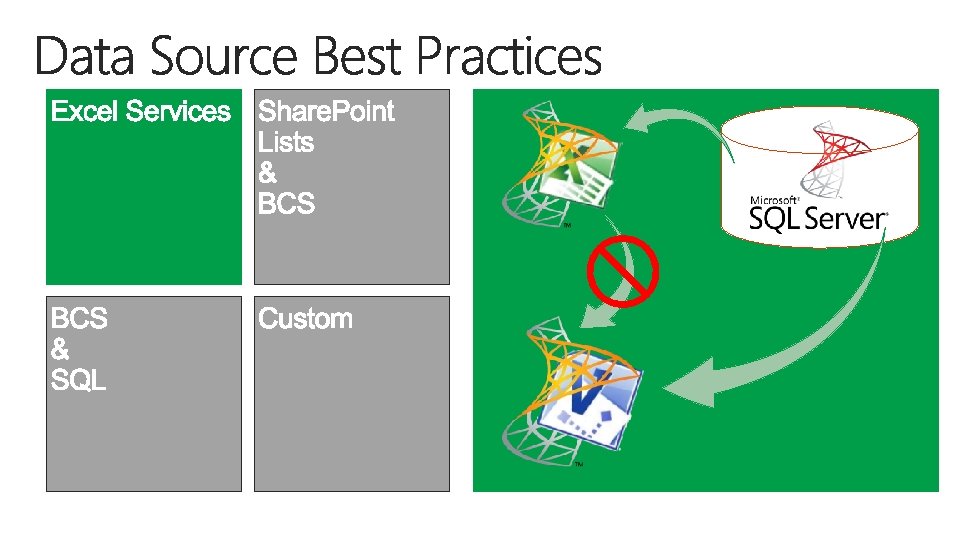

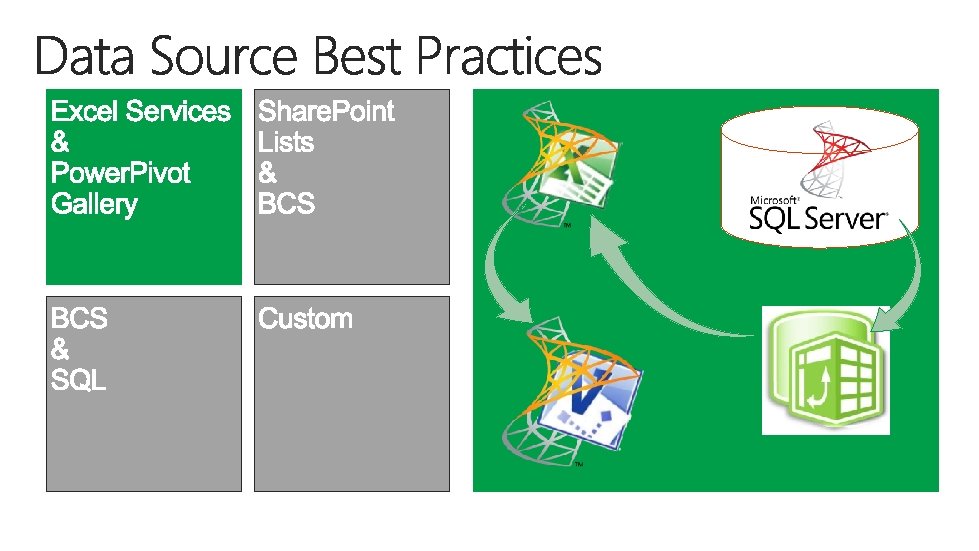

• Refreshed using current user credentials • User needs access to the diagram and workbook locations • Must reside in a document library • No network shares • VSDX and XLSX on the same farm • XLSX format, no old XLS formats • Link and Refresh from • Sheets / Tables • Named Ranges / Custom Range • Refreshed using OLEDB driver • Provider=Microsoft. ACE. OLEDB. 12…
• Share. Point Lists are an easy yet powerful data source • Same farm as the Visio diagram • User needs read access to the list • Get your data in a list and VGS can refresh from it • • • Manual Edit Share. Point Workflow Timer Job Web Service Power. Shell Script Applications or Services
• BCS allows you to configure external content types for connecting to • • • External SQL DBs SQL On Premises SQL Azure WCF Services Custom. NET providers • External Lists are fully supported in Visio 2013 • BCS add-in for 2010
• Support for SQL Server 7. 0 –> 2012 • + SQL Azure • No Analysis Services or Reporting Services • at least not directly • Tables & Views • provided via Visio Data Linking dialog • Can we refresh from Stored Procedures? • Yes! • Not available in the Visio client UI for the SQL data source option • Configure BCS to execute the stored procedure – connect Visio via External List

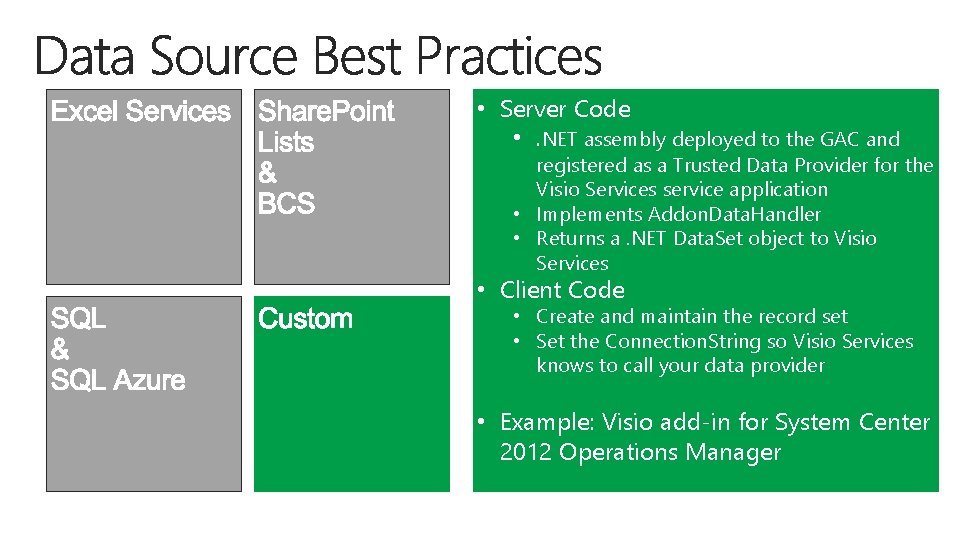

• Server Code • . NET assembly deployed to the GAC and registered as a Trusted Data Provider for the Visio Services service application • Implements Addon. Data. Handler • Returns a. NET Data. Set object to Visio Services • Client Code • Create and maintain the record set • Set the Connection. String so Visio Services knows to call your data provider • Example: Visio add-in for System Center 2012 Operations Manager
• Project Server / Project Online provides project data from Odata based web services. • Data connect Visio diagrams to the pivot tables in Power. Pivot • Incorporate Power. View in a Mashup with Visio Services connected to the same data source

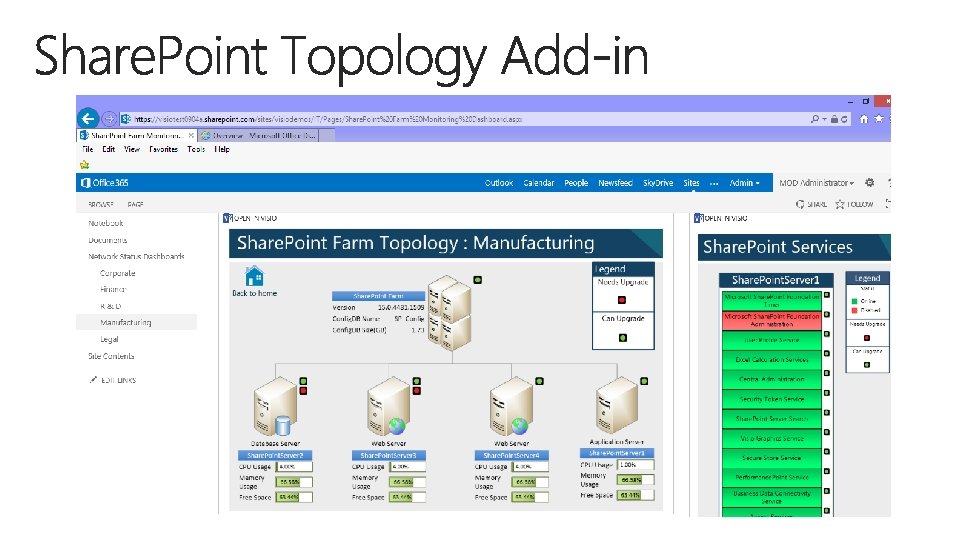

• System Center contains a wealth of information • Visio add-in for System Center 2012 Operations Manager • BCS • Power. Shell • Solution code
• SAP • Dynamics • Web Services • XML, JSON • BCS • Power. Shell • Solution code
