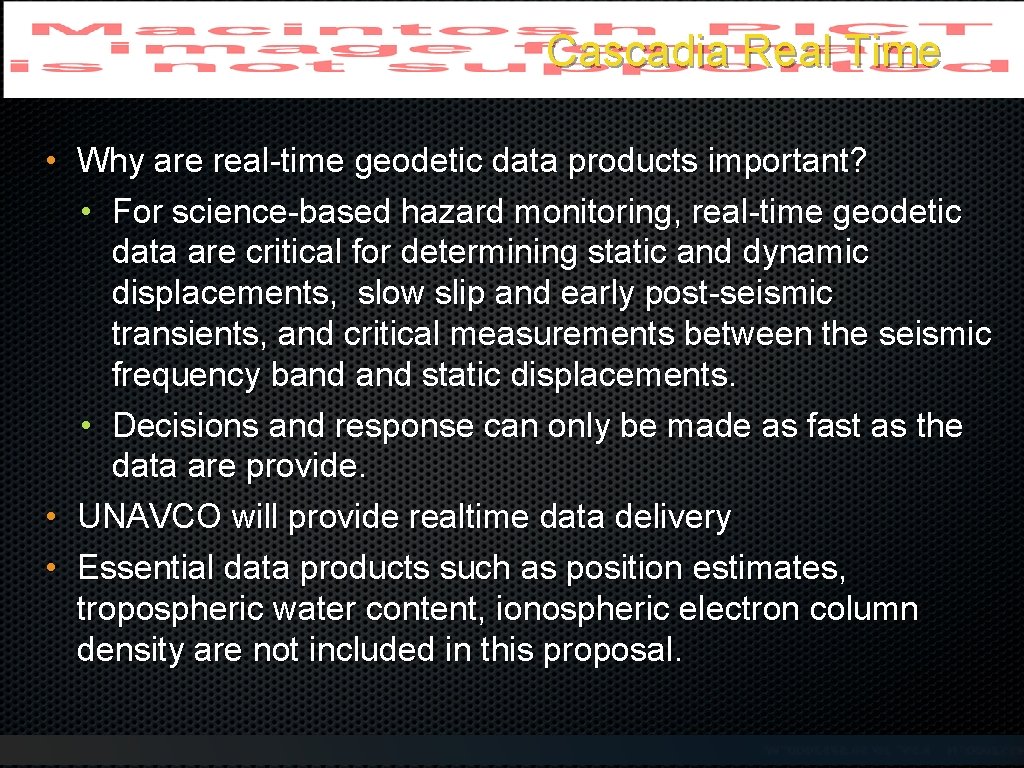

Cascadia Real Time • Why are real-time geodetic data products important? • For science-based hazard monitoring, real-time geodetic data are critical for determining static and dynamic displacements, slow slip and early post-seismic transients, and critical measurements between the seismic frequency band static displacements. • Decisions and response can only be made as fast as the data are provide. • UNAVCO will provide realtime data delivery • Essential data products such as position estimates, tropospheric water content, ionospheric electron column density are not included in this proposal.

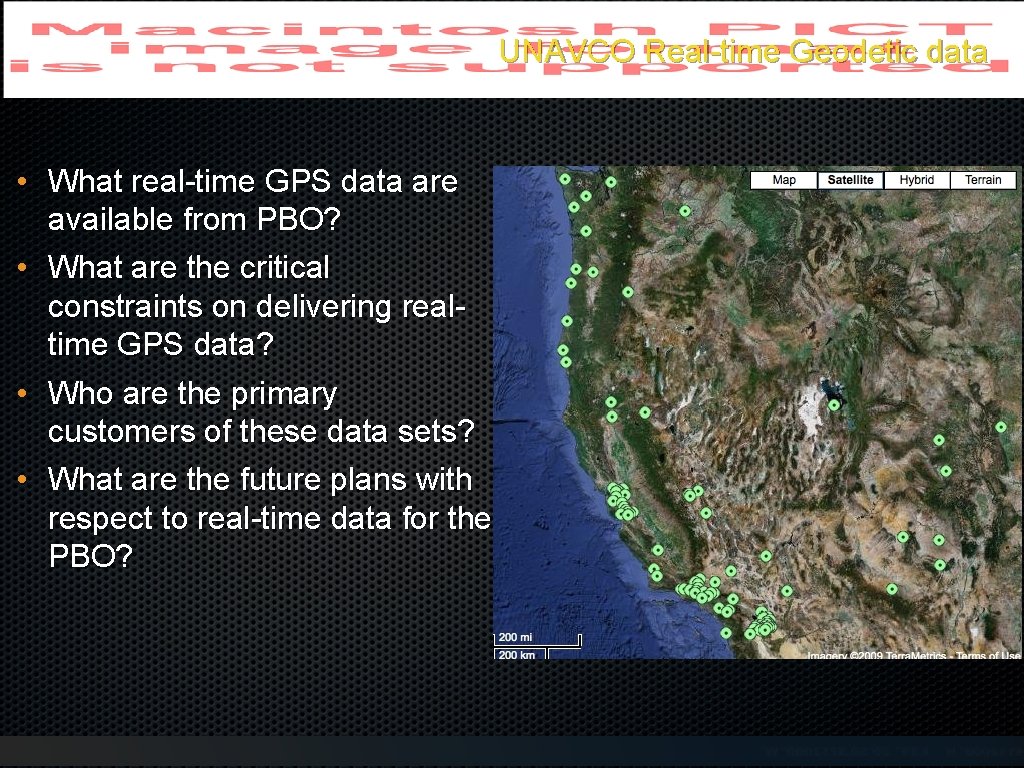

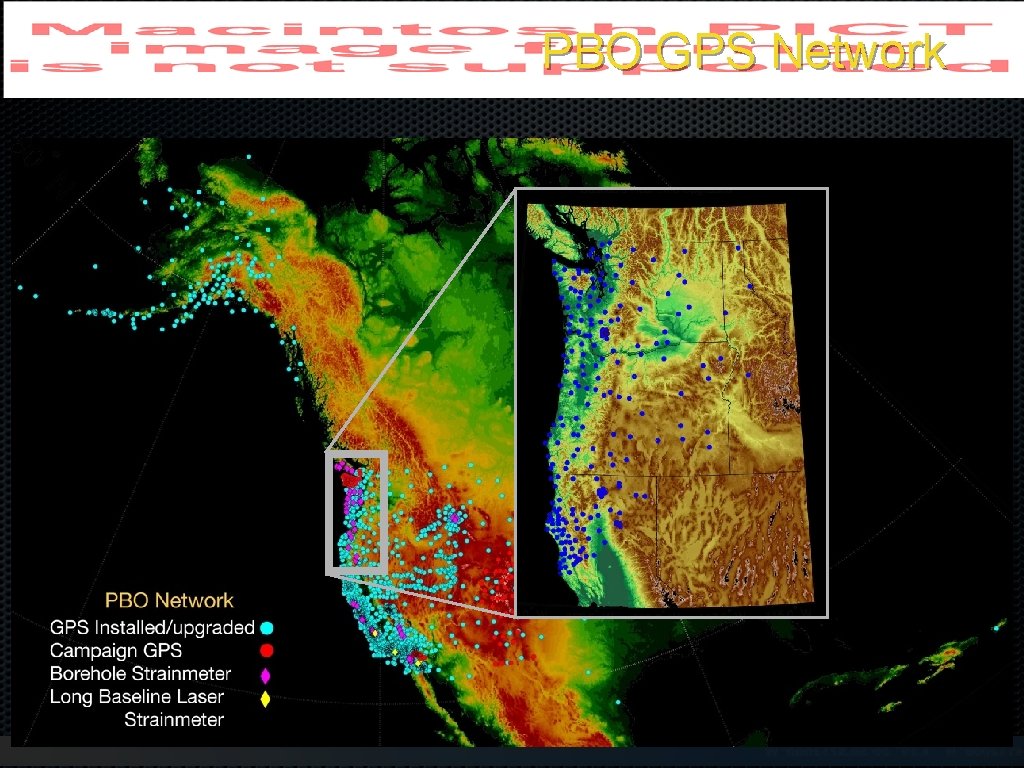

UNAVCO Real-time Geodetic data • What real-time GPS data are available from PBO? • What are the critical constraints on delivering realtime GPS data? • Who are the primary customers of these data sets? • What are the future plans with respect to real-time data for the PBO?

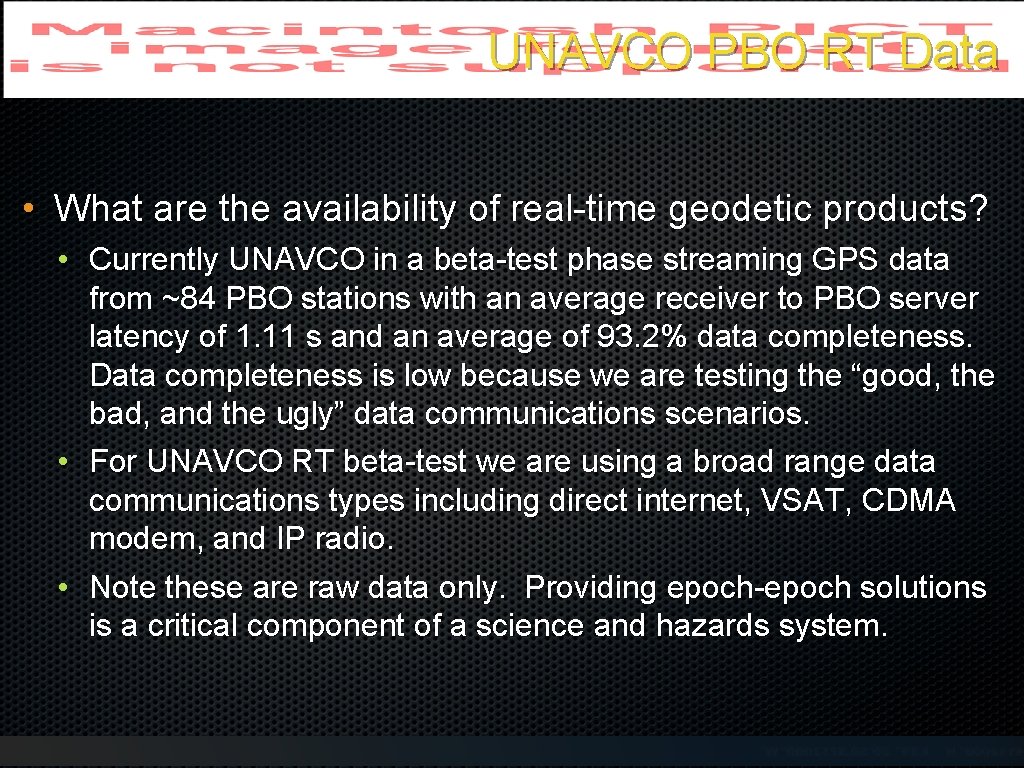

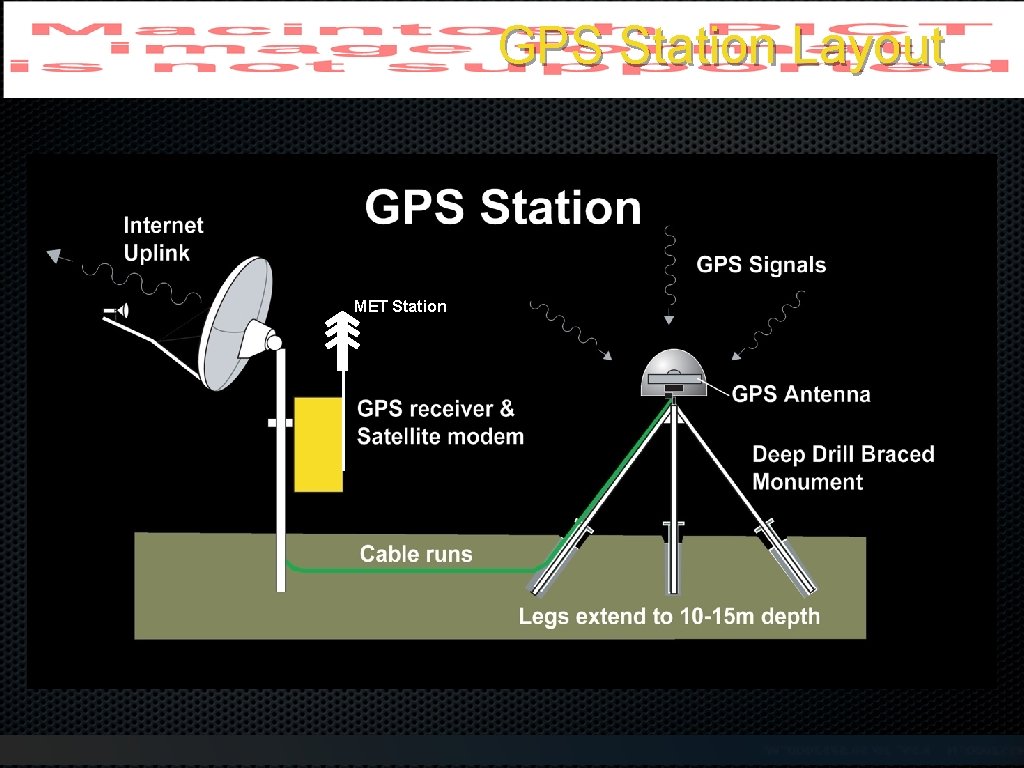

UNAVCO PBO RT Data • What are the availability of real-time geodetic products? • Currently UNAVCO in a beta-test phase streaming GPS data from ~84 PBO stations with an average receiver to PBO server latency of 1. 11 s and an average of 93. 2% data completeness. Data completeness is low because we are testing the “good, the bad, and the ugly” data communications scenarios. • For UNAVCO RT beta-test we are using a broad range data communications types including direct internet, VSAT, CDMA modem, and IP radio. • Note these are raw data only. Providing epoch-epoch solutions is a critical component of a science and hazards system.

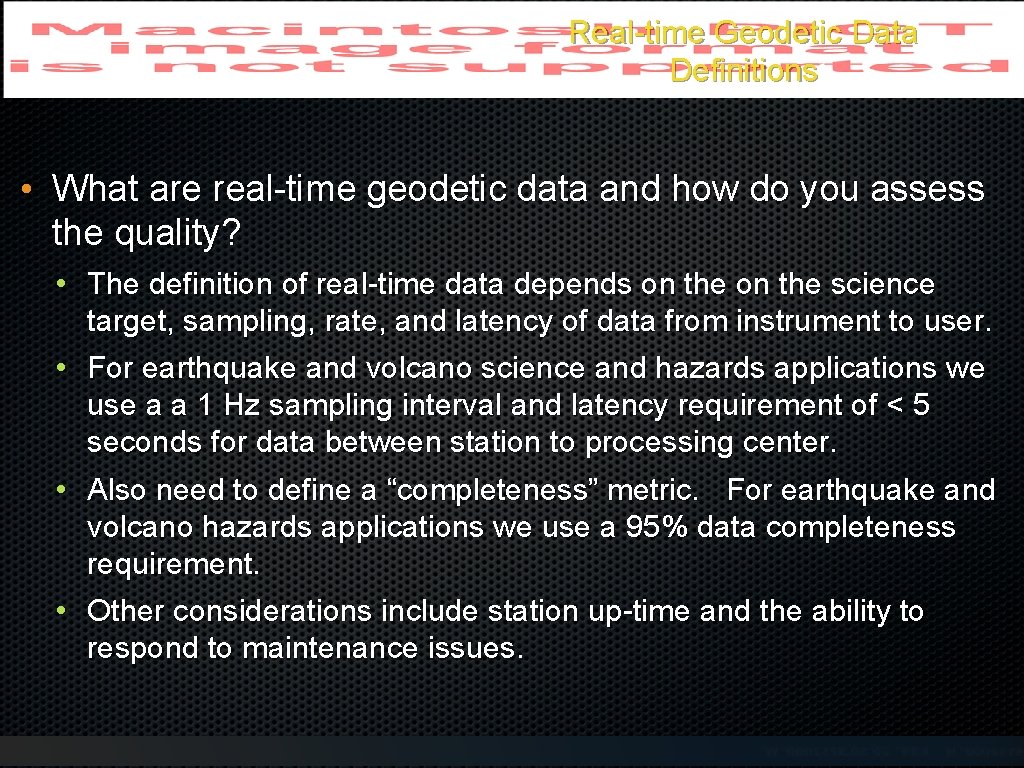

Real-time Geodetic Data Definitions • What are real-time geodetic data and how do you assess the quality? • The definition of real-time data depends on the science target, sampling, rate, and latency of data from instrument to user. • For earthquake and volcano science and hazards applications we use a a 1 Hz sampling interval and latency requirement of < 5 seconds for data between station to processing center. • Also need to define a “completeness” metric. For earthquake and volcano hazards applications we use a 95% data completeness requirement. • Other considerations include station up-time and the ability to respond to maintenance issues.

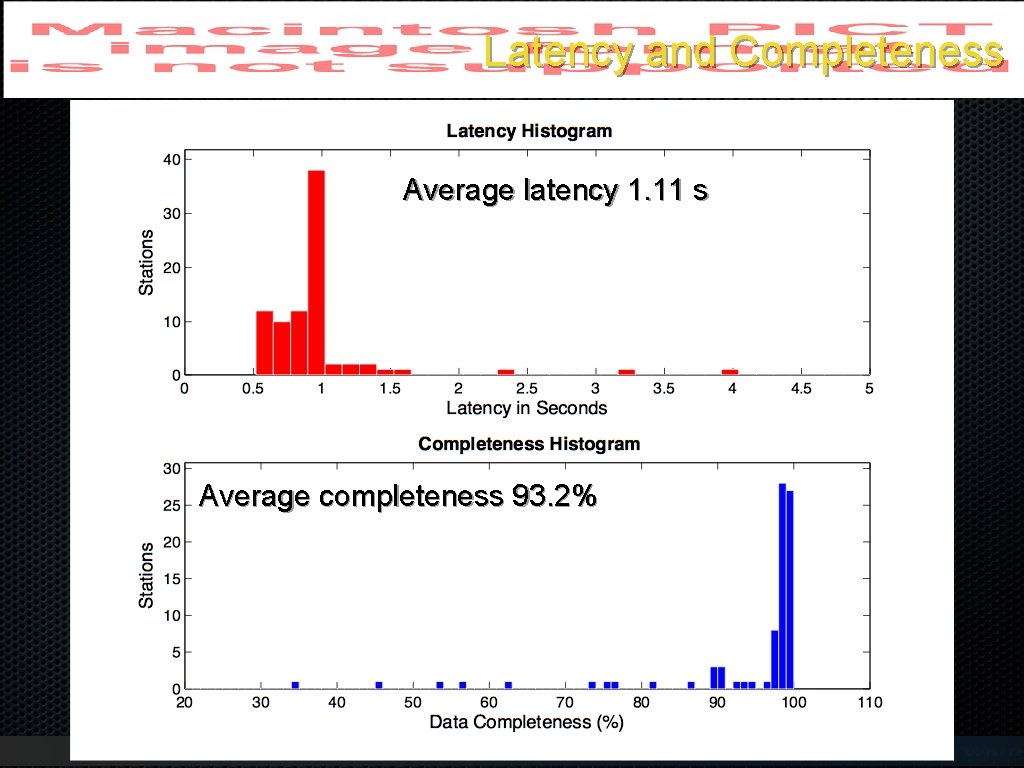

Latency and Completeness Average latency 1. 11 s Average completeness 93. 2%

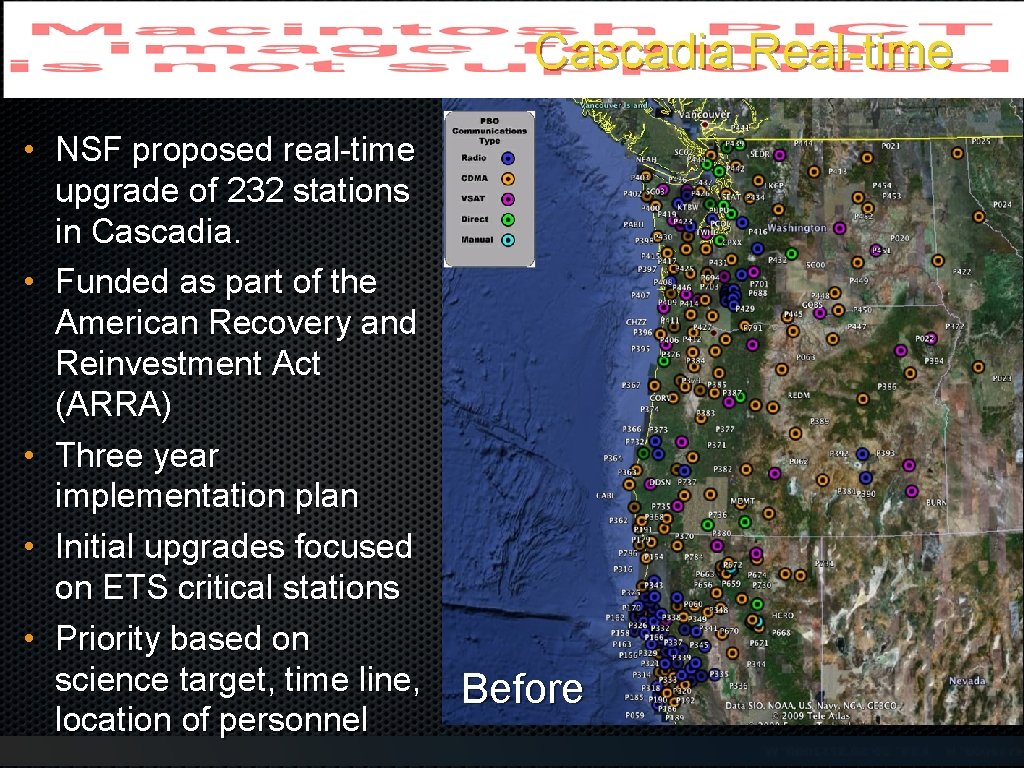

Cascadia Real-time • NSF proposed real-time upgrade of 232 stations in Cascadia. • Funded as part of the American Recovery and Reinvestment Act (ARRA) • Three year implementation plan • Initial upgrades focused on ETS critical stations • Priority based on science target, time line, location of personnel Before

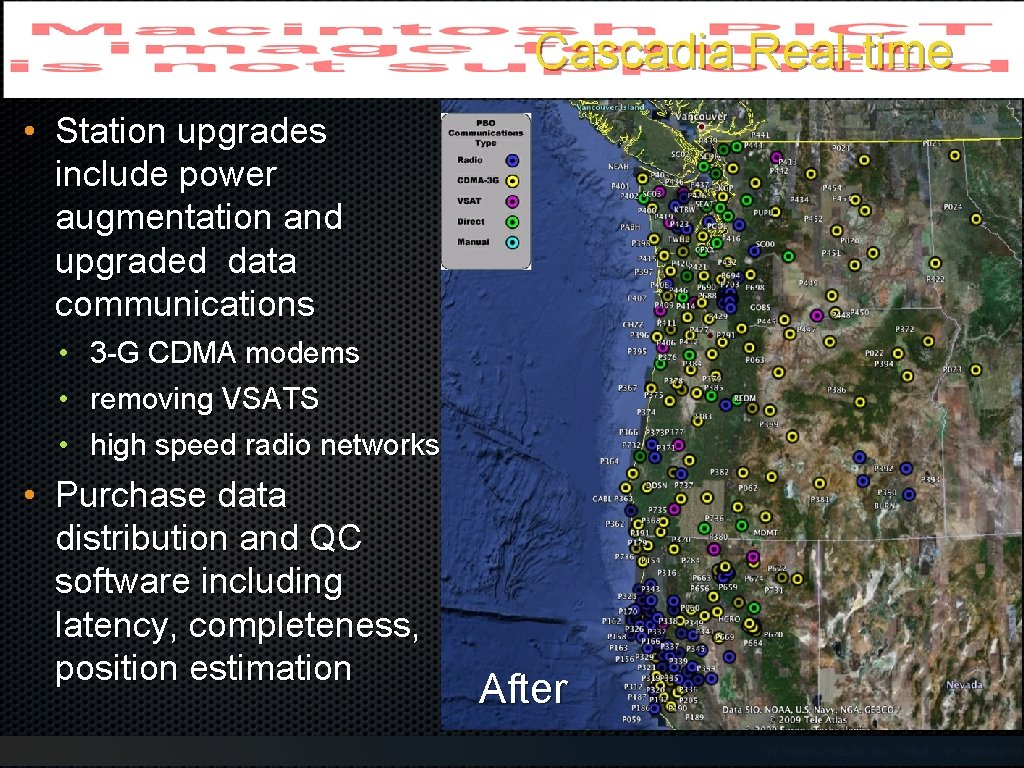

Cascadia Real-time • Station upgrades include power augmentation and upgraded data communications • 3 -G CDMA modems • removing VSATS • high speed radio networks • Purchase data distribution and QC software including latency, completeness, position estimation After

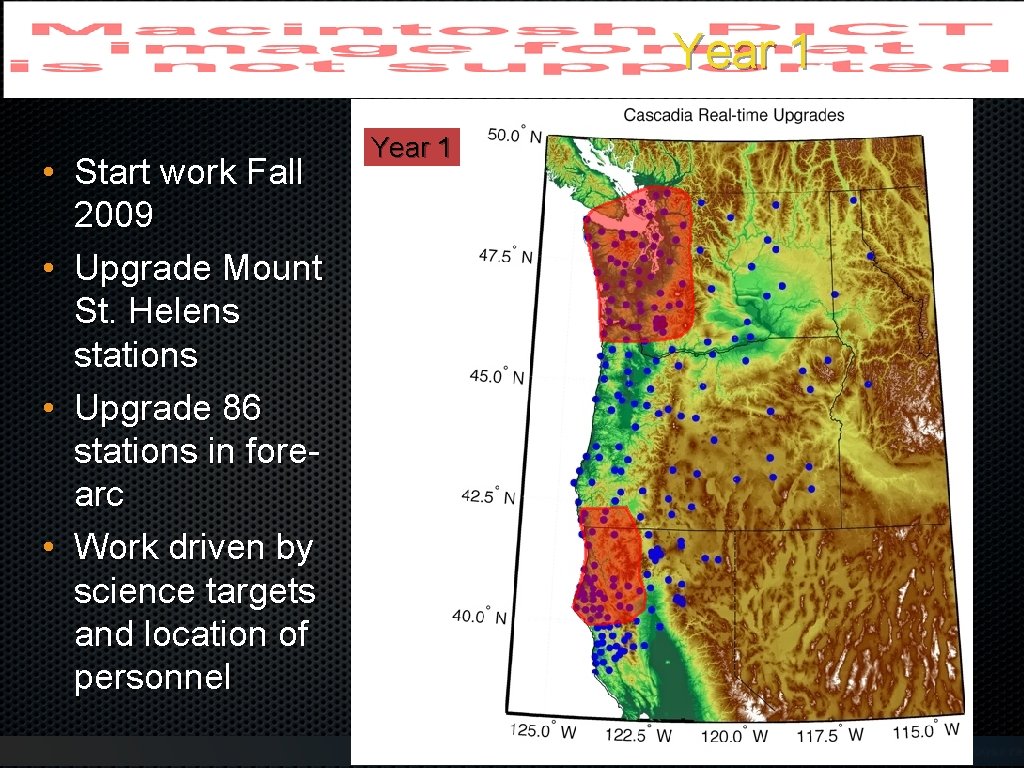

Year 1 • Start work Fall 2009 • Upgrade Mount St. Helens stations • Upgrade 86 stations in forearc • Work driven by science targets and location of personnel Year 1

Year 2 Year 1 Year 2 • Upgrade 37 forearc stations in Oregon • Upgrade high altitude sites including Mt. Shasta/Lassen

Year 3 Year 1 Year 2 Year 3 • Upgrade remainder of back-arc stations

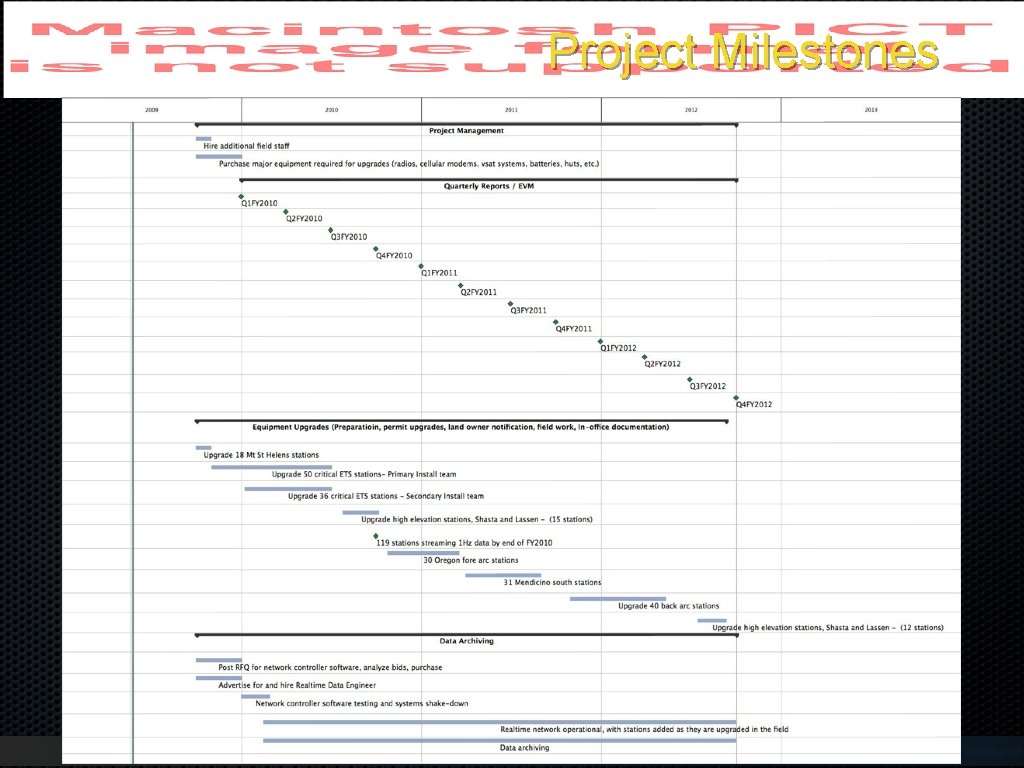

Project Milestones

Budget

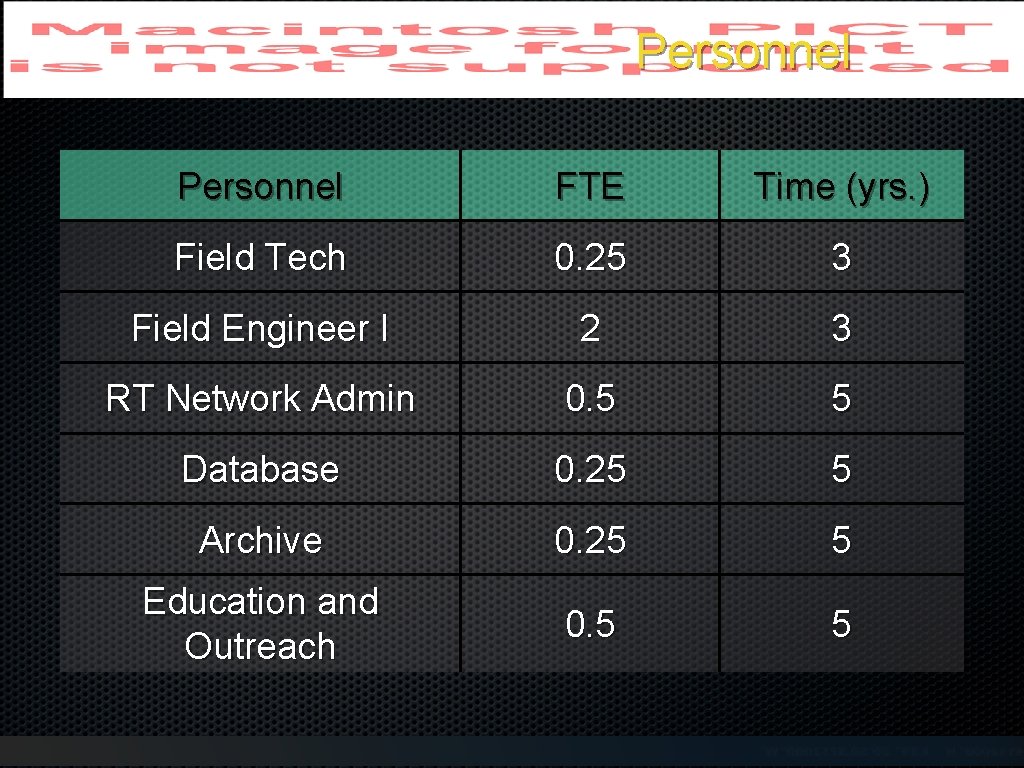

Personnel FTE Time (yrs. ) Field Tech 0. 25 3 Field Engineer I 2 3 RT Network Admin 0. 5 5 Database 0. 25 5 Archive 0. 25 5 Education and Outreach 0. 5 5

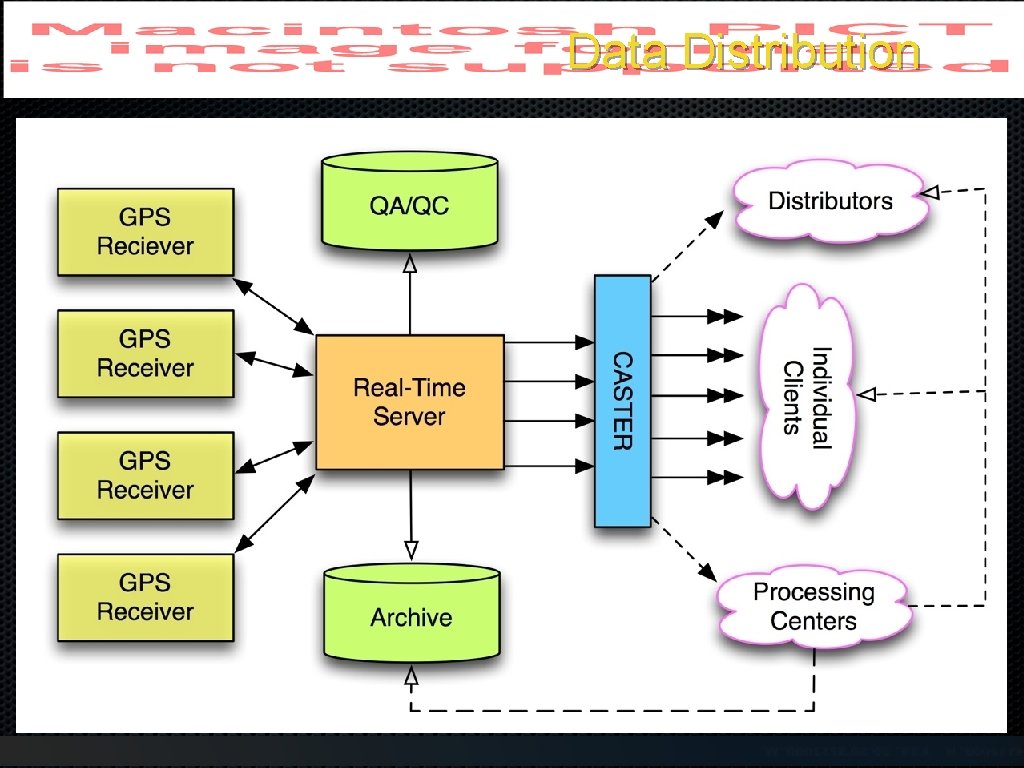

Data Distribution
