Pathfinding CSE 35415541 Matt Boggus Pathfinding problem statement

Pathfinding CSE 3541/5541 Matt Boggus

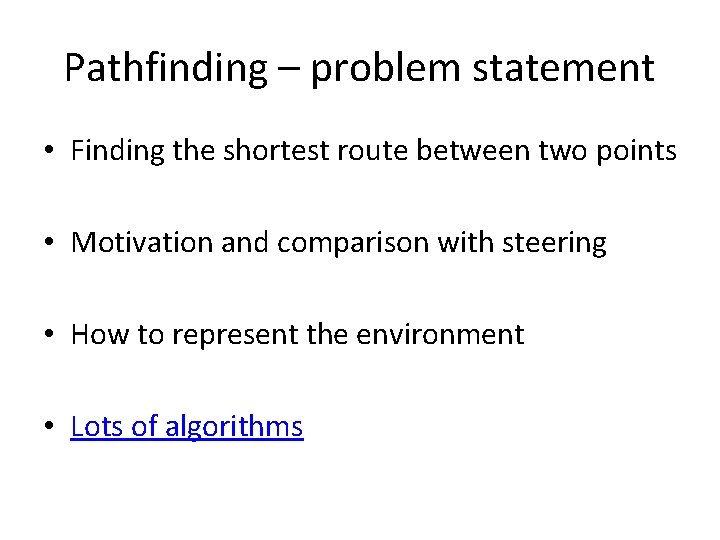

Pathfinding – problem statement • Finding the shortest route between two points • Motivation and comparison with steering • How to represent the environment • Lots of algorithms

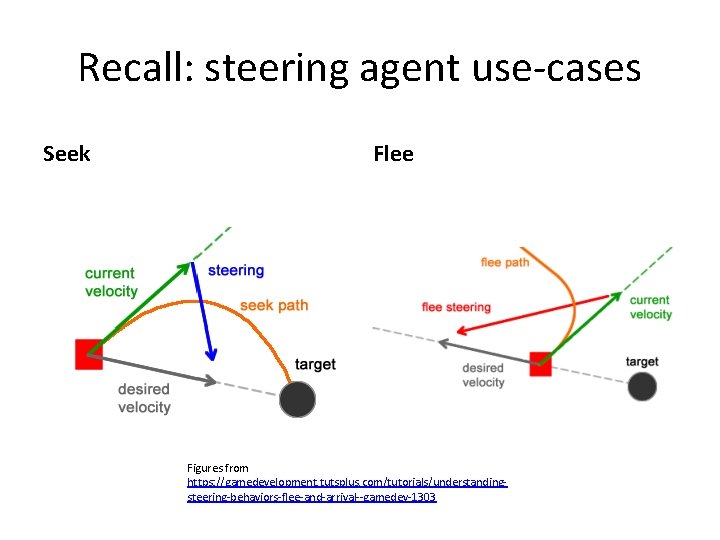

Recall: steering agent use-cases Seek Flee Figures from https: //gamedevelopment. tutsplus. com/tutorials/understandingsteering-behaviors-flee-and-arrival--gamedev-1303

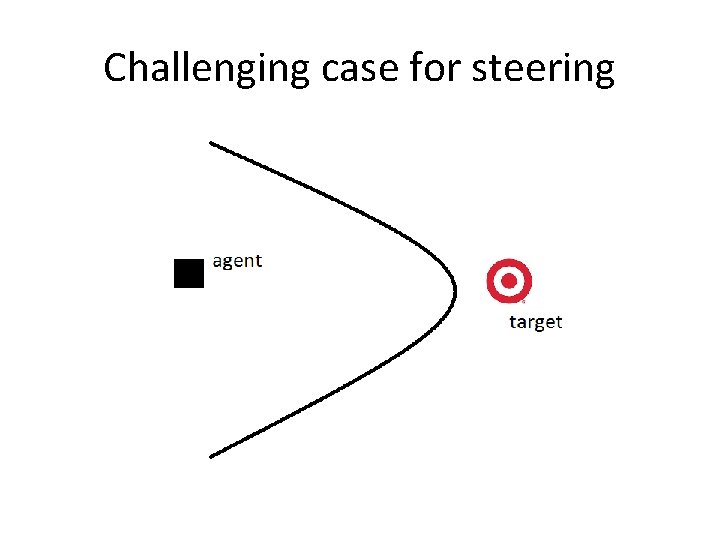

Challenging case for steering

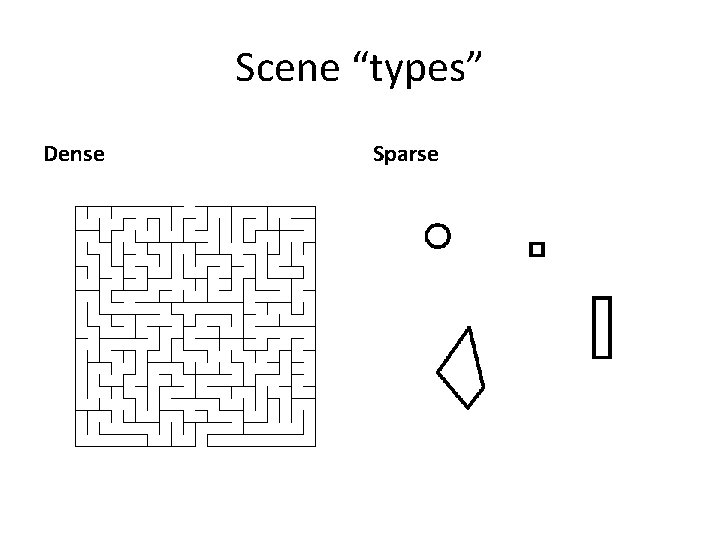

Scene “types” Dense Sparse

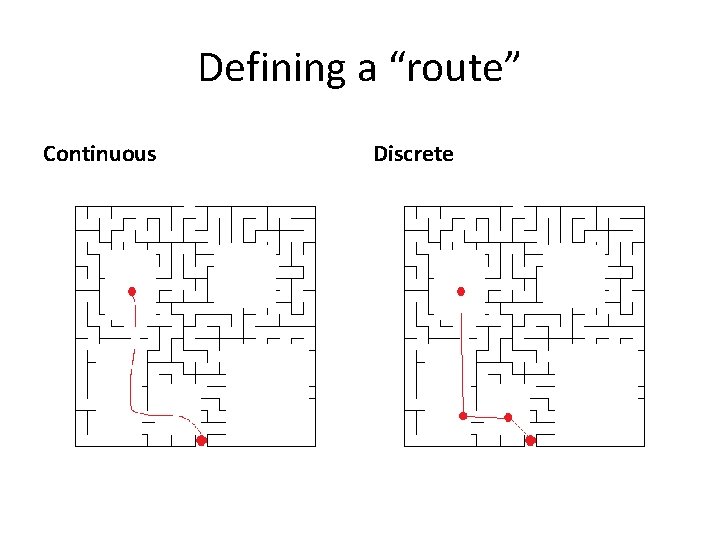

Defining a “route” Continuous Discrete

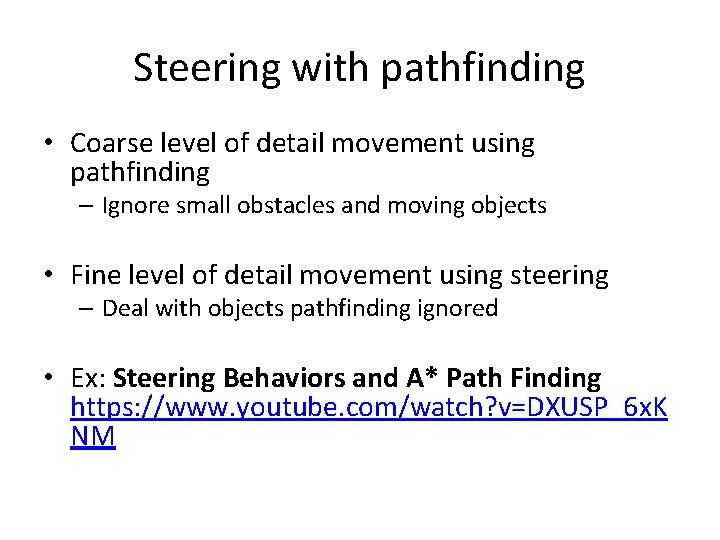

Steering with pathfinding • Coarse level of detail movement using pathfinding – Ignore small obstacles and moving objects • Fine level of detail movement using steering – Deal with objects pathfinding ignored • Ex: Steering Behaviors and A* Path Finding https: //www. youtube. com/watch? v=DXUSP_6 x. K NM

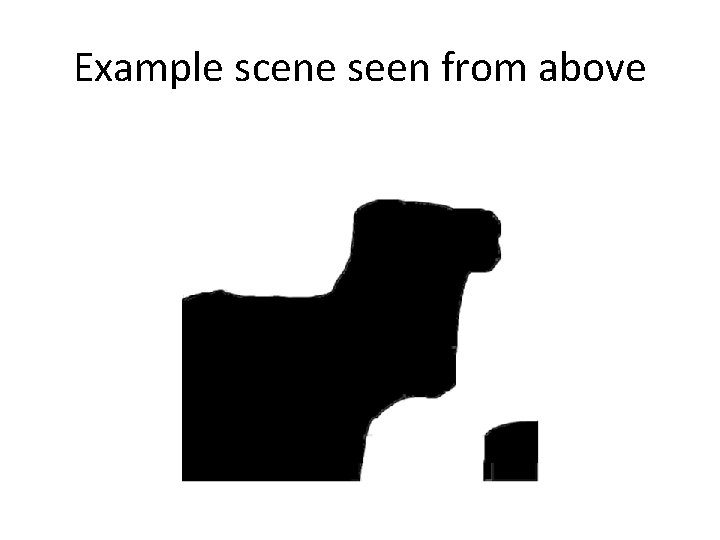

Example scene seen from above

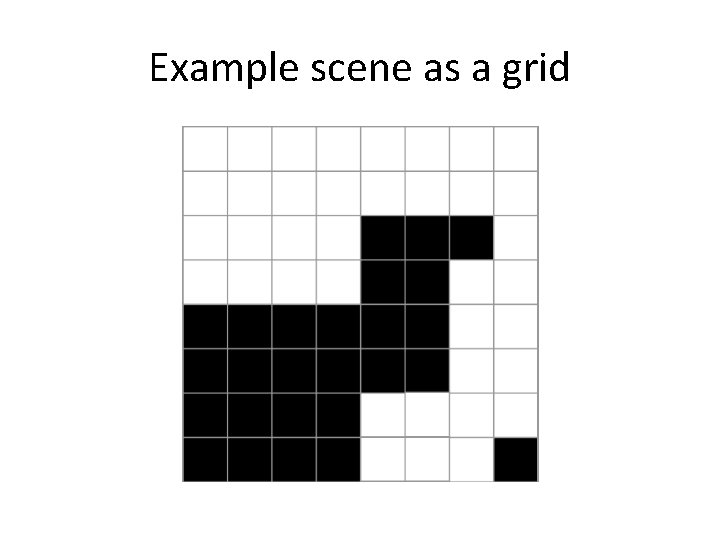

Example scene as a grid

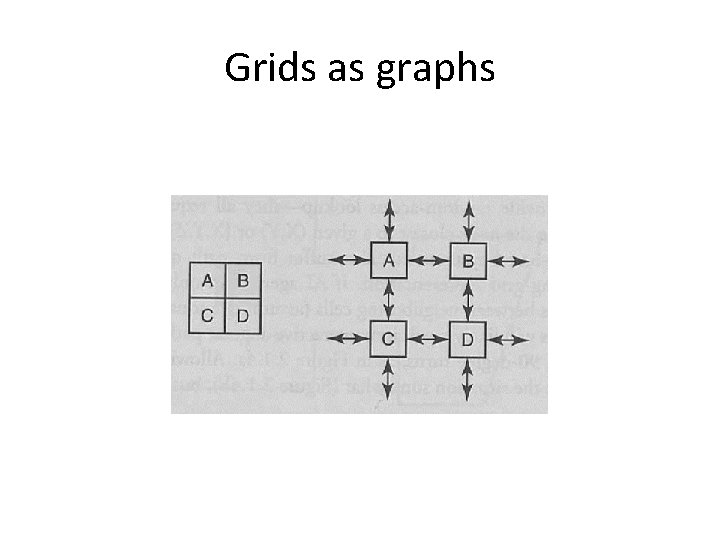

Grids as graphs

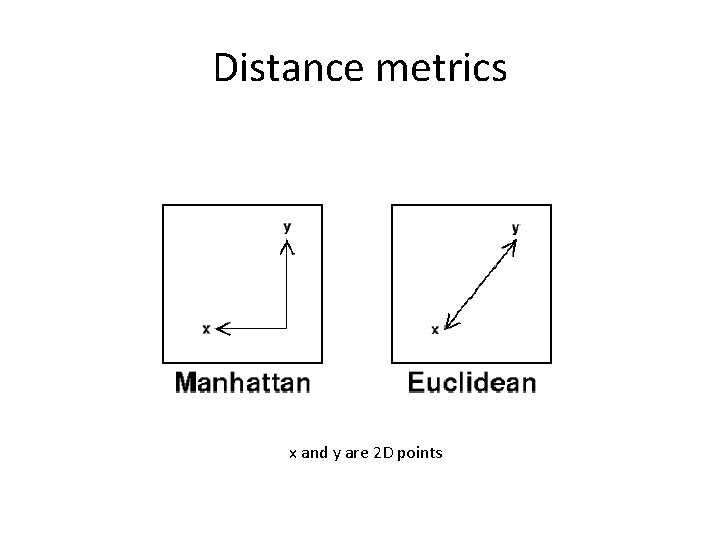

Distance metrics x and y are 2 D points

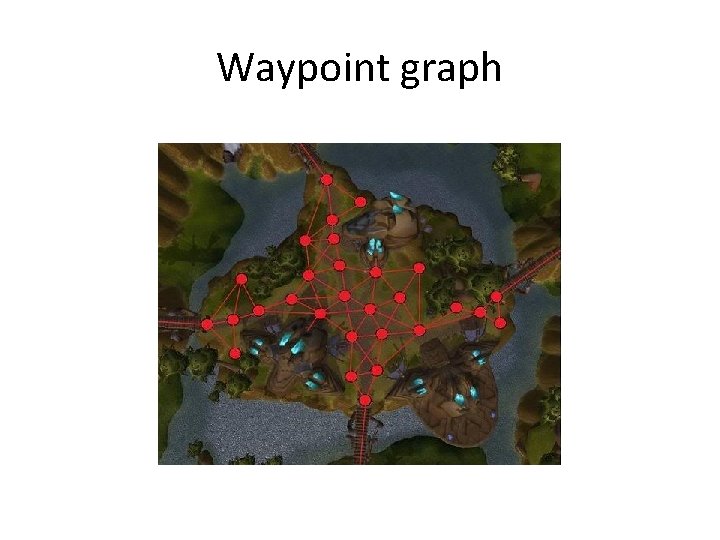

Waypoint graph

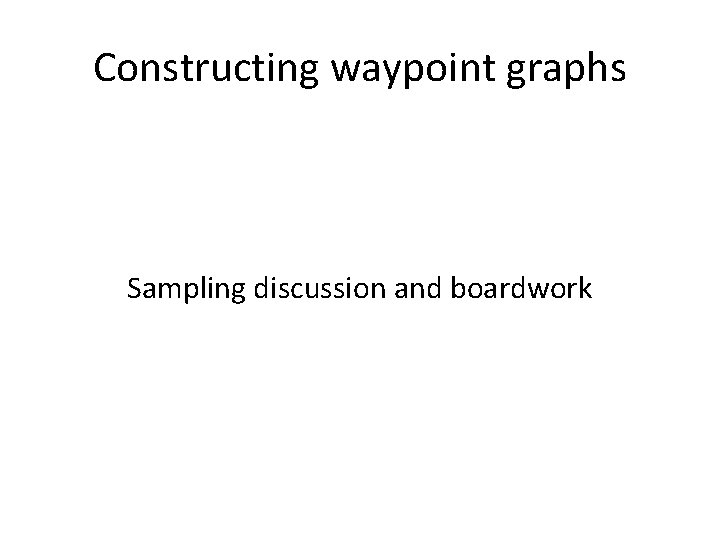

Constructing waypoint graphs Sampling discussion and boardwork

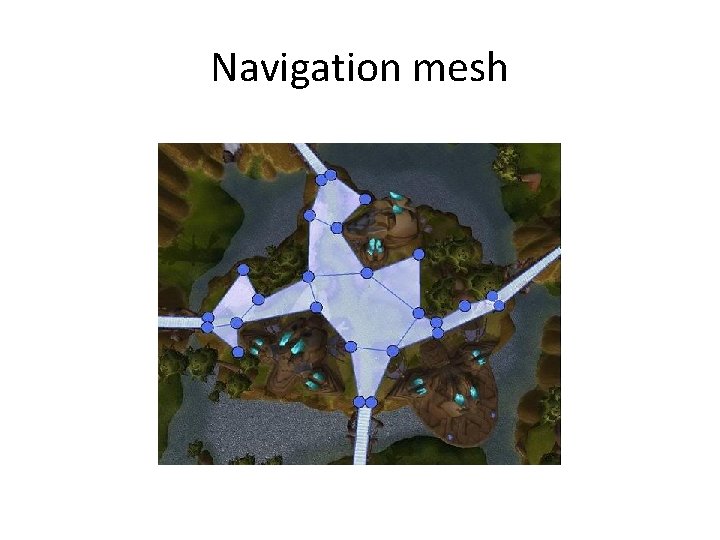

Navigation mesh

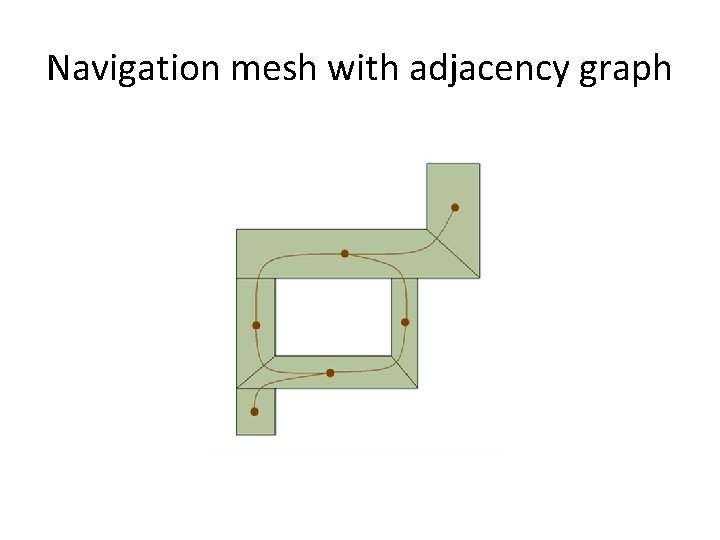

Navigation mesh with adjacency graph

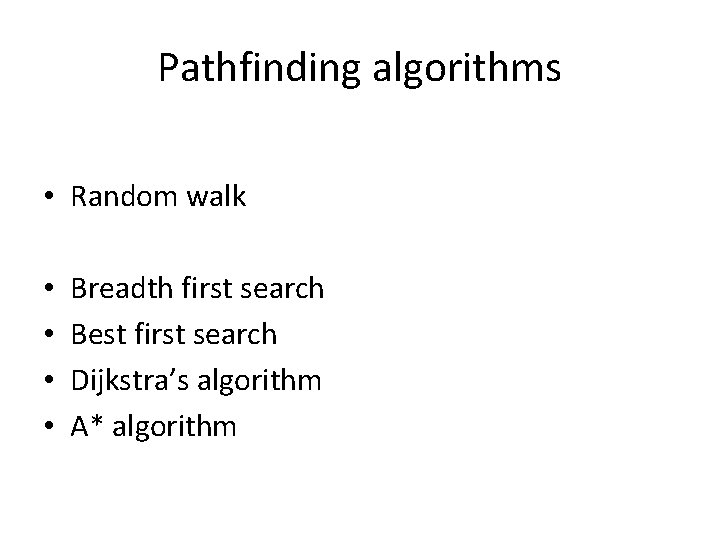

Pathfinding algorithms • Random walk • • Breadth first search Best first search Dijkstra’s algorithm A* algorithm

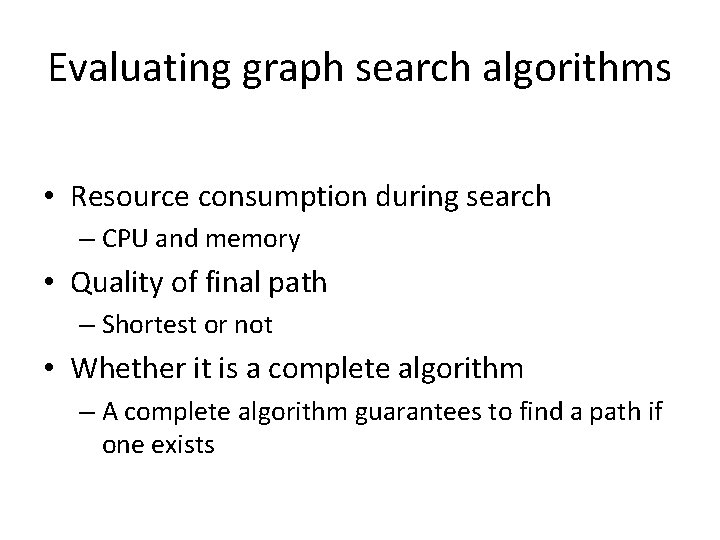

Evaluating graph search algorithms • Resource consumption during search – CPU and memory • Quality of final path – Shortest or not • Whether it is a complete algorithm – A complete algorithm guarantees to find a path if one exists

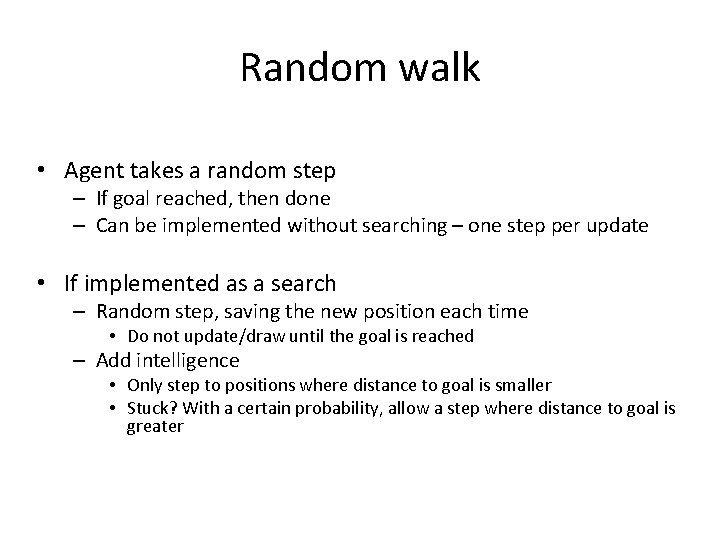

Random walk • Agent takes a random step – If goal reached, then done – Can be implemented without searching – one step per update • If implemented as a search – Random step, saving the new position each time • Do not update/draw until the goal is reached – Add intelligence • Only step to positions where distance to goal is smaller • Stuck? With a certain probability, allow a step where distance to goal is greater

Random walk performance

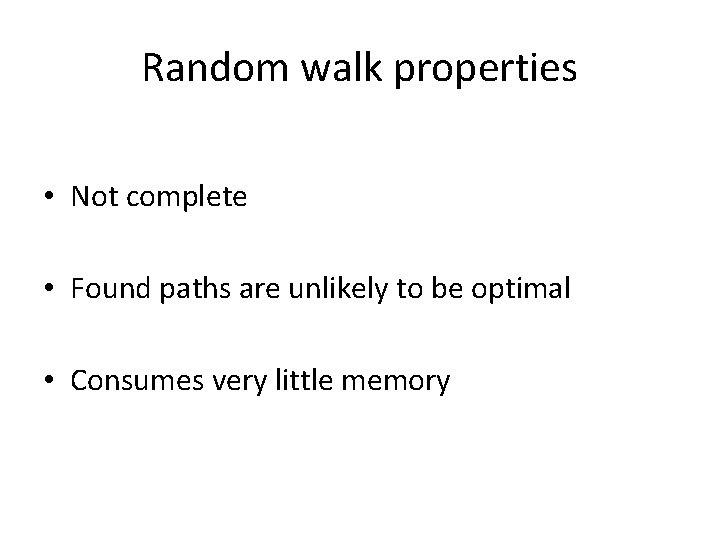

Random walk properties • Not complete • Found paths are unlikely to be optimal • Consumes very little memory

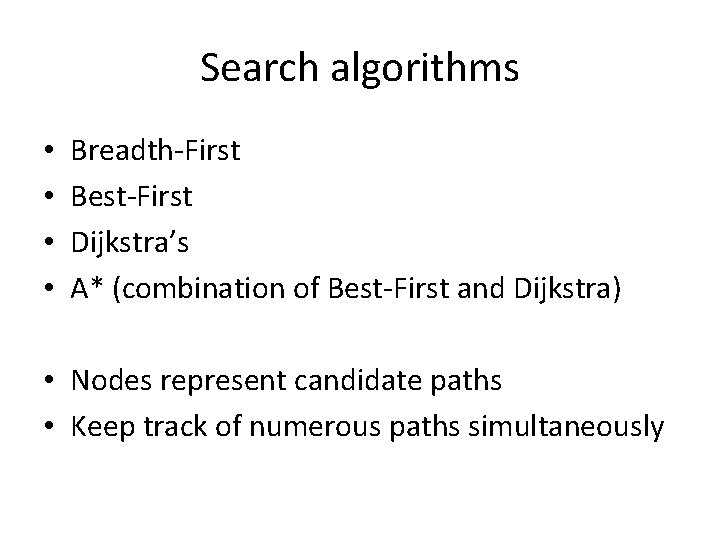

Search algorithms • • Breadth-First Best-First Dijkstra’s A* (combination of Best-First and Dijkstra) • Nodes represent candidate paths • Keep track of numerous paths simultaneously

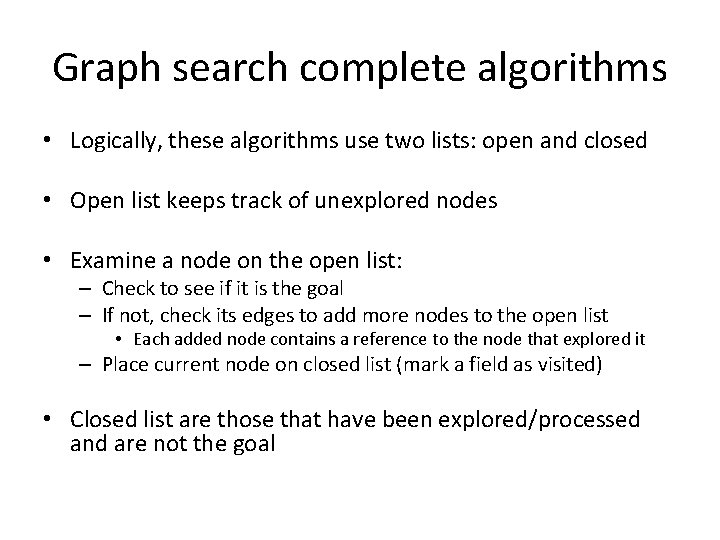

Graph search complete algorithms • Logically, these algorithms use two lists: open and closed • Open list keeps track of unexplored nodes • Examine a node on the open list: – Check to see if it is the goal – If not, check its edges to add more nodes to the open list • Each added node contains a reference to the node that explored it – Place current node on closed list (mark a field as visited) • Closed list are those that have been explored/processed and are not the goal

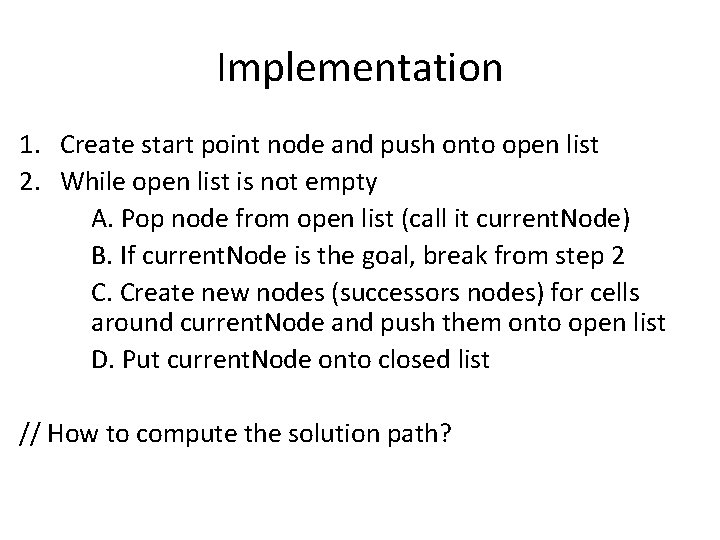

Implementation 1. Create start point node and push onto open list 2. While open list is not empty A. Pop node from open list (call it current. Node) B. If current. Node is the goal, break from step 2 C. Create new nodes (successors nodes) for cells around current. Node and push them onto open list D. Put current. Node onto closed list // How to compute the solution path?

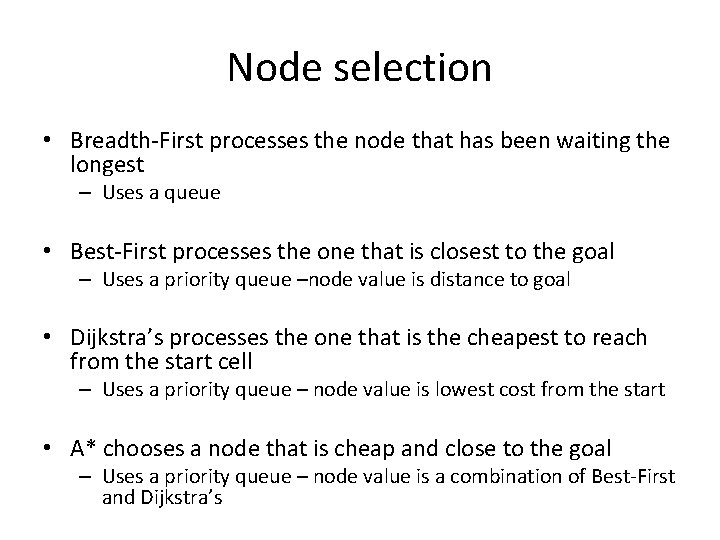

Node selection • Breadth-First processes the node that has been waiting the longest – Uses a queue • Best-First processes the one that is closest to the goal – Uses a priority queue –node value is distance to goal • Dijkstra’s processes the one that is the cheapest to reach from the start cell – Uses a priority queue – node value is lowest cost from the start • A* chooses a node that is cheap and close to the goal – Uses a priority queue – node value is a combination of Best-First and Dijkstra’s

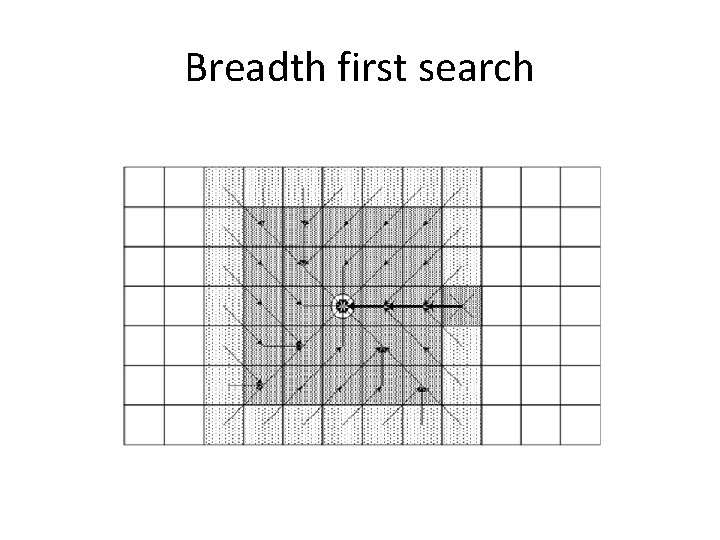

Breadth first search

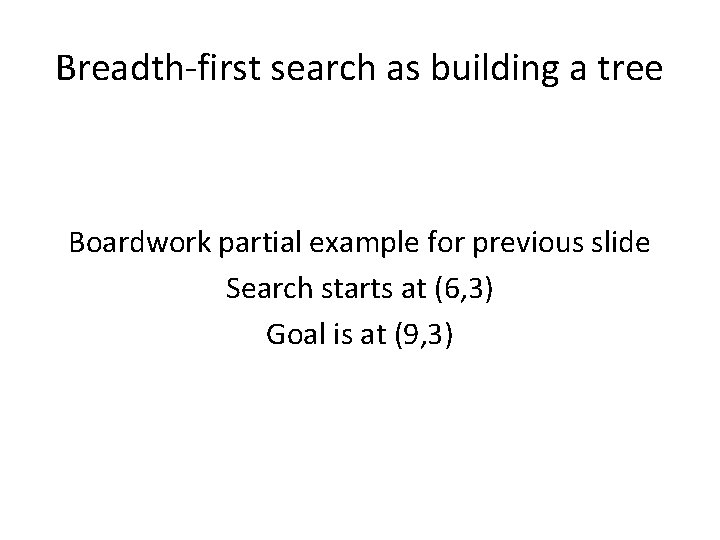

Breadth-first search as building a tree Boardwork partial example for previous slide Search starts at (6, 3) Goal is at (9, 3)

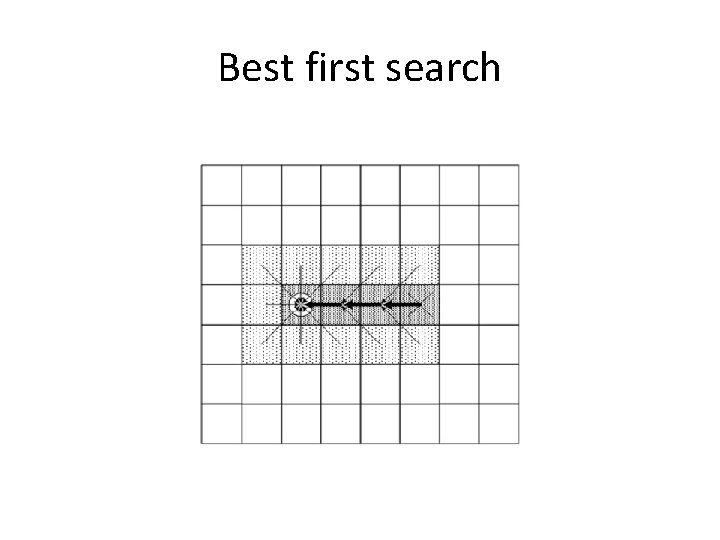

Best first search

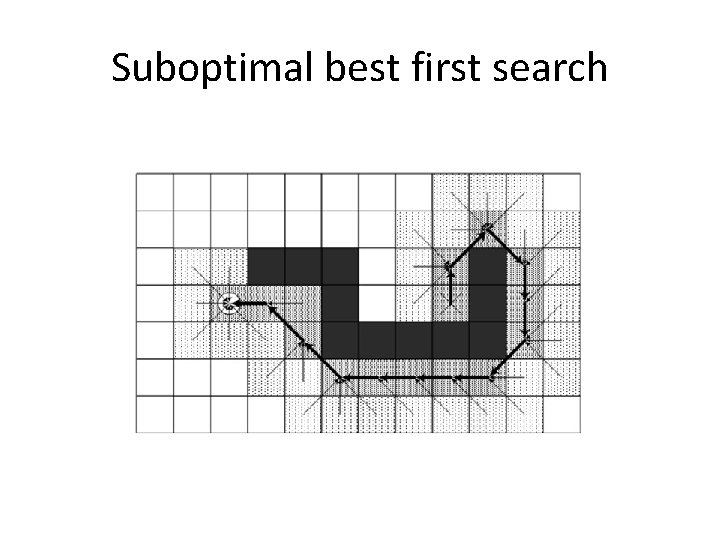

Suboptimal best first search

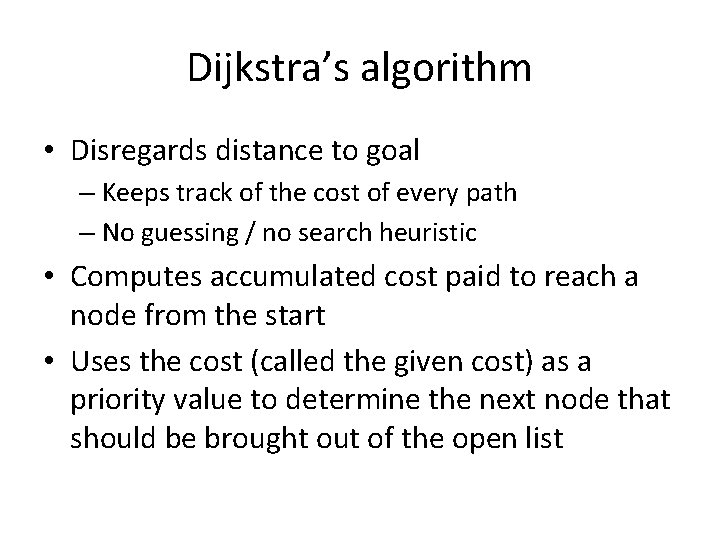

Dijkstra’s algorithm • Disregards distance to goal – Keeps track of the cost of every path – No guessing / no search heuristic • Computes accumulated cost paid to reach a node from the start • Uses the cost (called the given cost) as a priority value to determine the next node that should be brought out of the open list

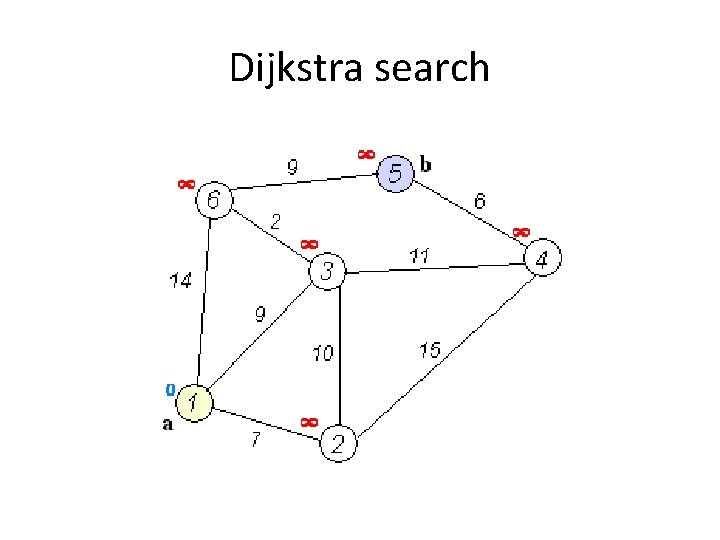

Dijkstra search

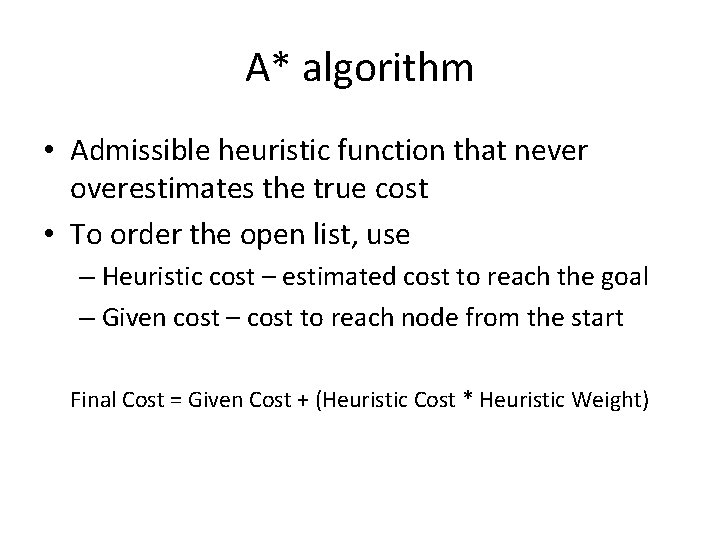

A* algorithm • Admissible heuristic function that never overestimates the true cost • To order the open list, use – Heuristic cost – estimated cost to reach the goal – Given cost – cost to reach node from the start Final Cost = Given Cost + (Heuristic Cost * Heuristic Weight)

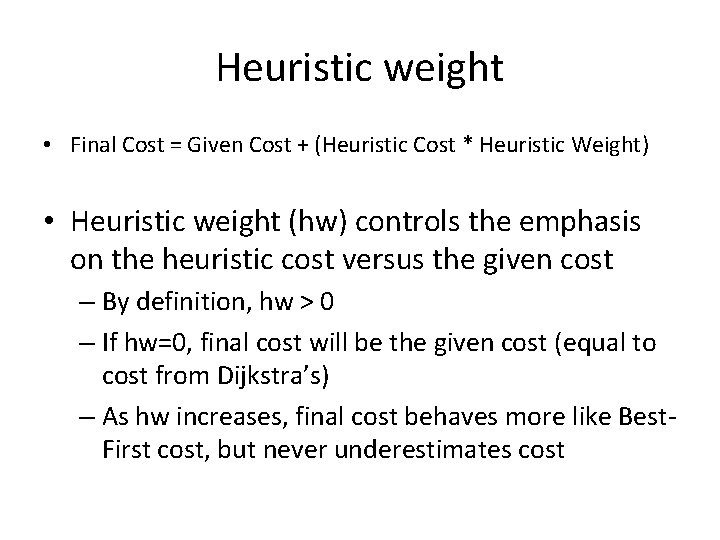

Heuristic weight • Final Cost = Given Cost + (Heuristic Cost * Heuristic Weight) • Heuristic weight (hw) controls the emphasis on the heuristic cost versus the given cost – By definition, hw > 0 – If hw=0, final cost will be the given cost (equal to cost from Dijkstra’s) – As hw increases, final cost behaves more like Best. First cost, but never underestimates cost

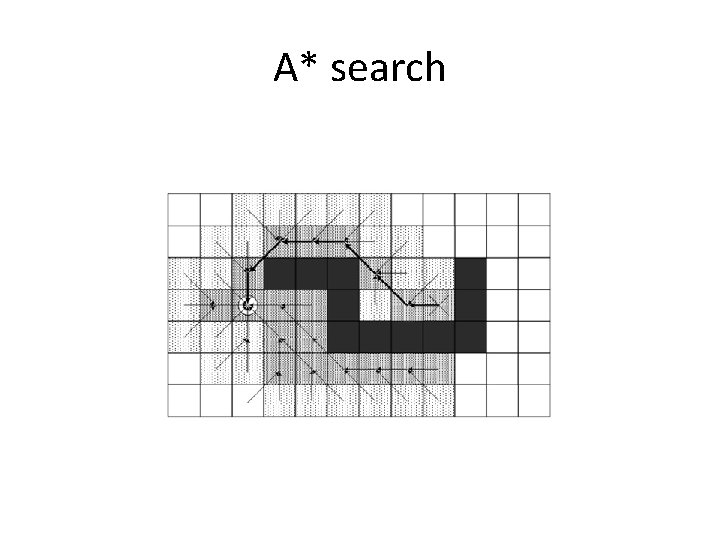

A* search

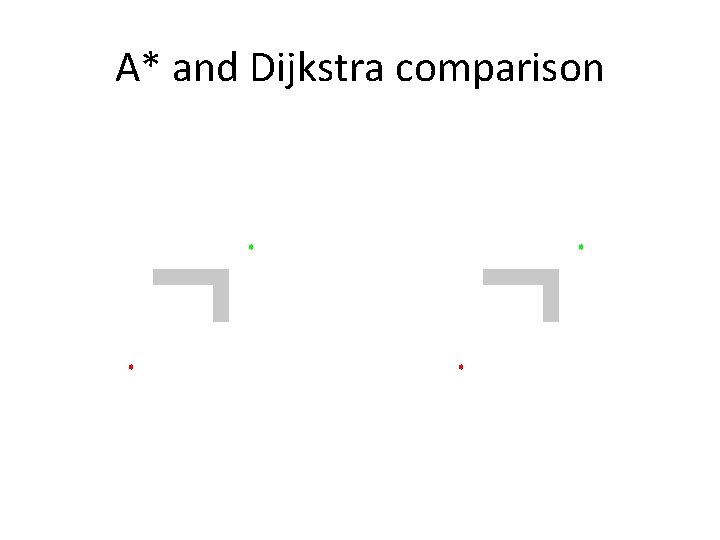

A* and Dijkstra comparison

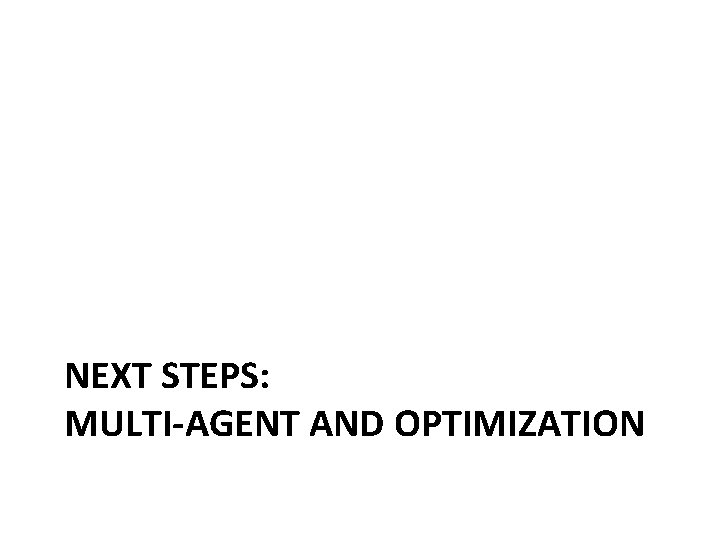

NEXT STEPS: MULTI-AGENT AND OPTIMIZATION

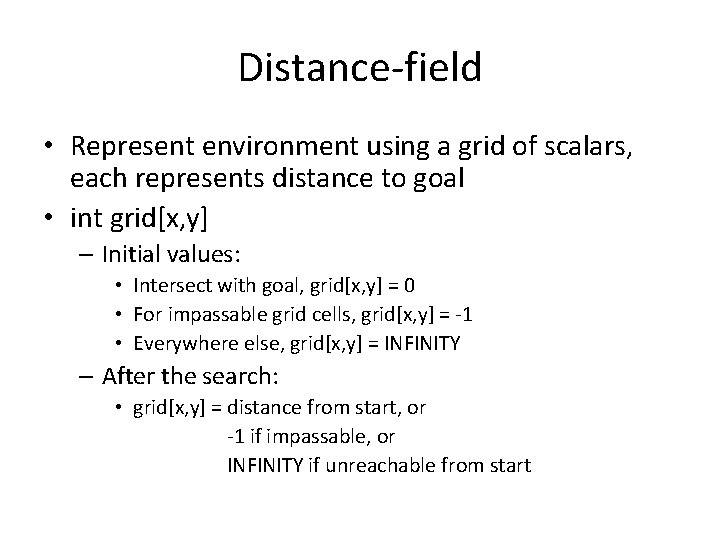

Distance-field • Represent environment using a grid of scalars, each represents distance to goal • int grid[x, y] – Initial values: • Intersect with goal, grid[x, y] = 0 • For impassable grid cells, grid[x, y] = -1 • Everywhere else, grid[x, y] = INFINITY – After the search: • grid[x, y] = distance from start, or -1 if impassable, or INFINITY if unreachable from start

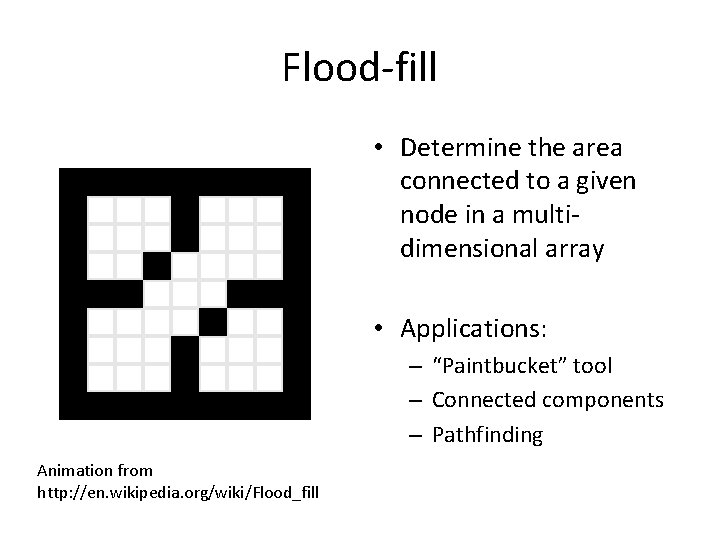

Flood-fill • Determine the area connected to a given node in a multidimensional array • Applications: – “Paintbucket” tool – Connected components – Pathfinding Animation from http: //en. wikipedia. org/wiki/Flood_fill

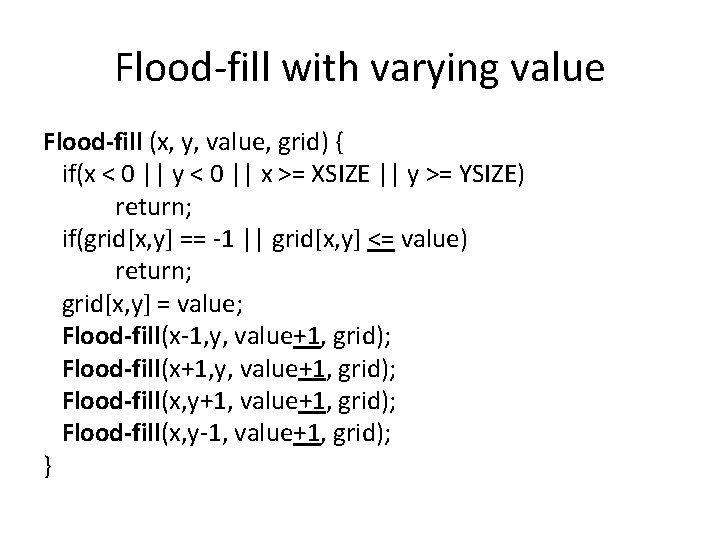

Flood-fill with varying value Flood-fill (x, y, value, grid) { if(x < 0 || y < 0 || x >= XSIZE || y >= YSIZE) return; if(grid[x, y] == -1 || grid[x, y] <= value) return; grid[x, y] = value; Flood-fill(x-1, y, value+1, grid); Flood-fill(x+1, y, value+1, grid); Flood-fill(x, y+1, value+1, grid); Flood-fill(x, y-1, value+1, grid); }

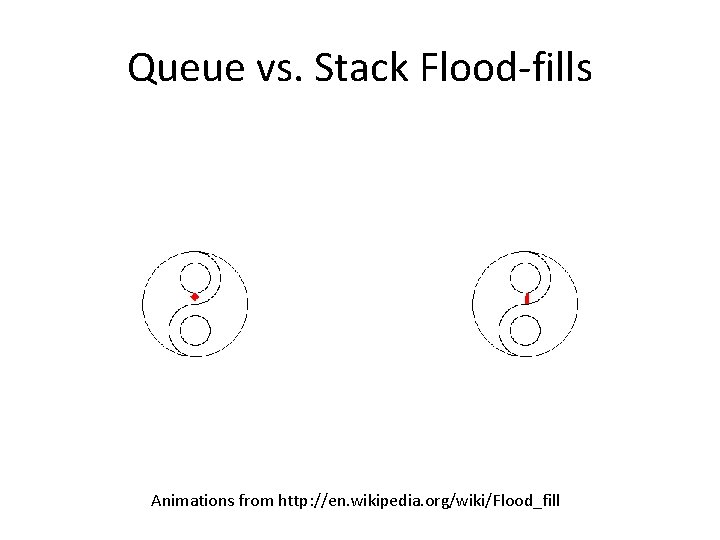

Queue vs. Stack Flood-fills Animations from http: //en. wikipedia. org/wiki/Flood_fill

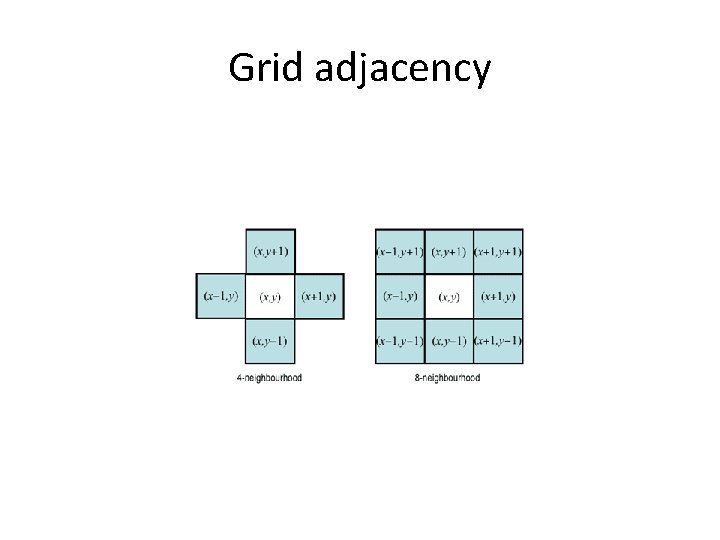

Grid adjacency

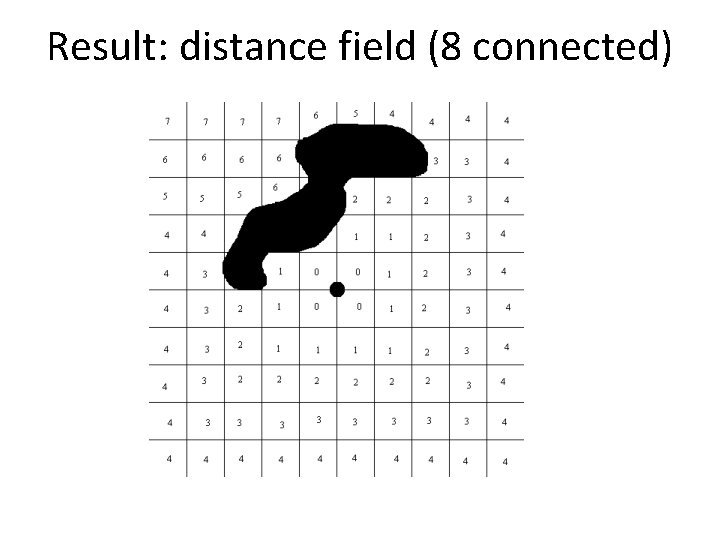

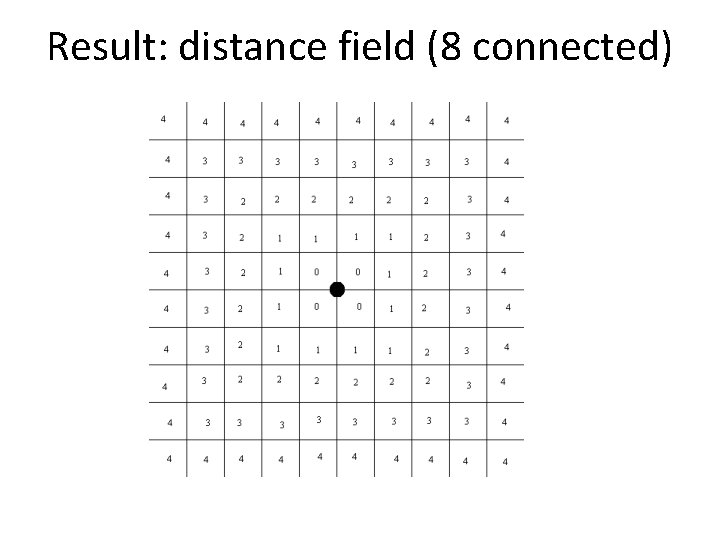

Result: distance field (8 connected)

Result: distance field (8 connected)

Pathfinding optimization on graphs

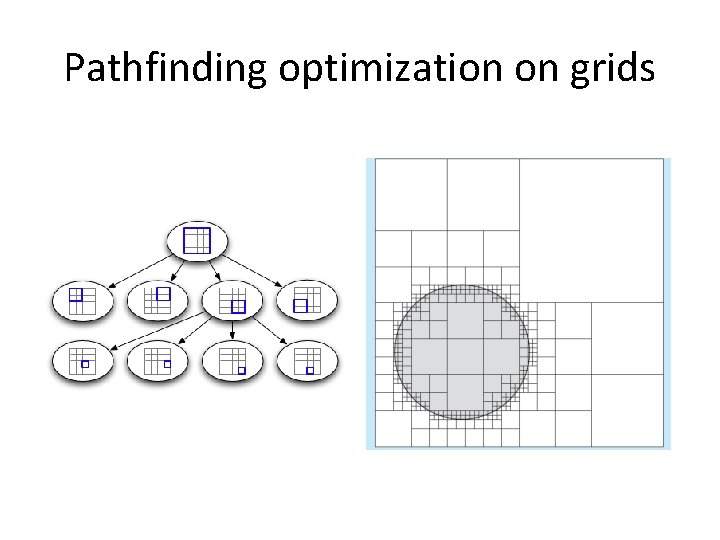

Pathfinding optimization on grids

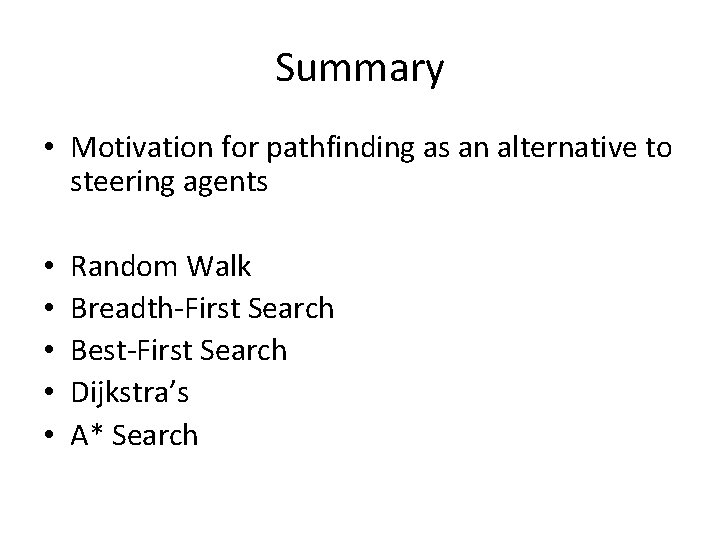

Summary • Motivation for pathfinding as an alternative to steering agents • • • Random Walk Breadth-First Search Best-First Search Dijkstra’s A* Search

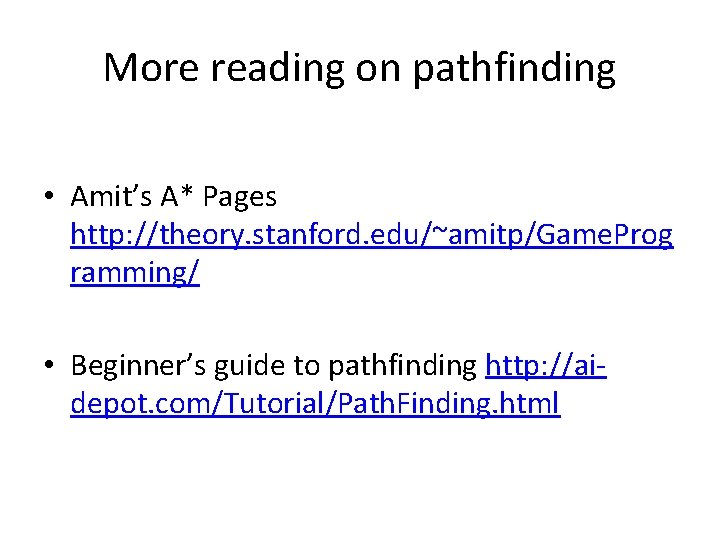

More reading on pathfinding • Amit’s A* Pages http: //theory. stanford. edu/~amitp/Game. Prog ramming/ • Beginner’s guide to pathfinding http: //aidepot. com/Tutorial/Path. Finding. html

ADDITIONAL SLIDES (MOST WORKED INTO EARLIER SLIDESETS)

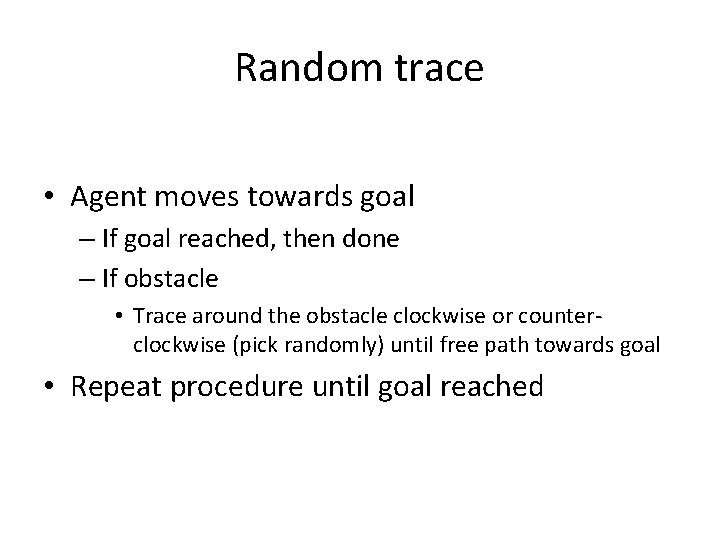

Random trace • Agent moves towards goal – If goal reached, then done – If obstacle • Trace around the obstacle clockwise or counterclockwise (pick randomly) until free path towards goal • Repeat procedure until goal reached

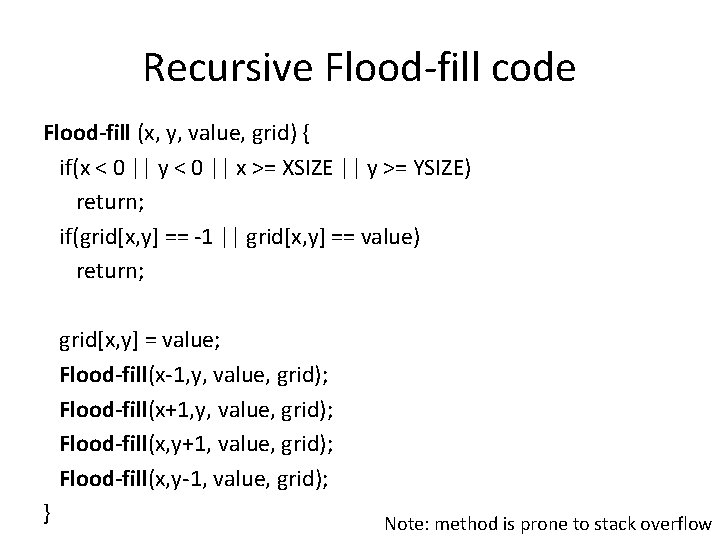

Recursive Flood-fill code Flood-fill (x, y, value, grid) { if(x < 0 || y < 0 || x >= XSIZE || y >= YSIZE) return; if(grid[x, y] == -1 || grid[x, y] == value) return; grid[x, y] = value; Flood-fill(x-1, y, value, grid); Flood-fill(x+1, y, value, grid); Flood-fill(x, y+1, value, grid); Flood-fill(x, y-1, value, grid); } Note: method is prone to stack overflow

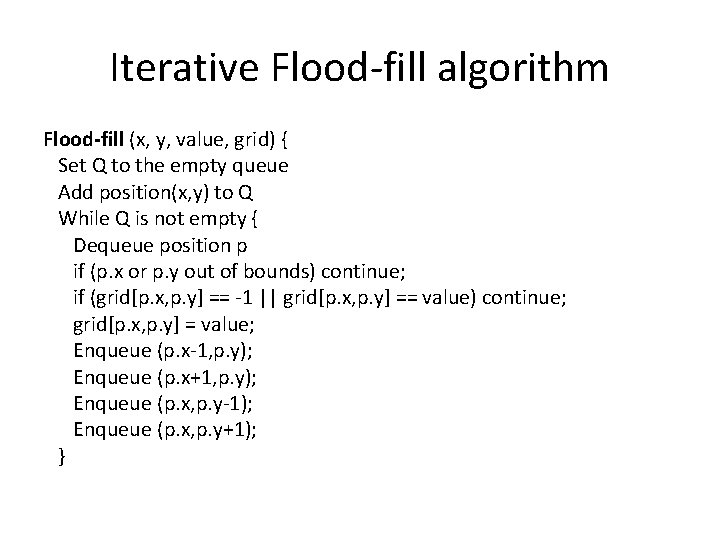

Iterative Flood-fill algorithm Flood-fill (x, y, value, grid) { Set Q to the empty queue Add position(x, y) to Q While Q is not empty { Dequeue position p if (p. x or p. y out of bounds) continue; if (grid[p. x, p. y] == -1 || grid[p. x, p. y] == value) continue; grid[p. x, p. y] = value; Enqueue (p. x-1, p. y); Enqueue (p. x+1, p. y); Enqueue (p. x, p. y-1); Enqueue (p. x, p. y+1); }

Mazes Maze taken from Image-guided maze construction, Xu and Kaplan 2007, Siggraph

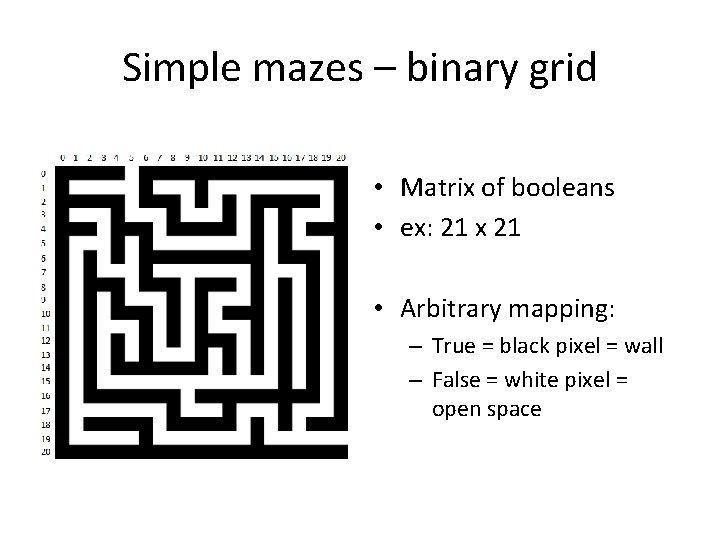

Simple mazes – binary grid • Matrix of booleans • ex: 21 x 21 • Arbitrary mapping: – True = black pixel = wall – False = white pixel = open space

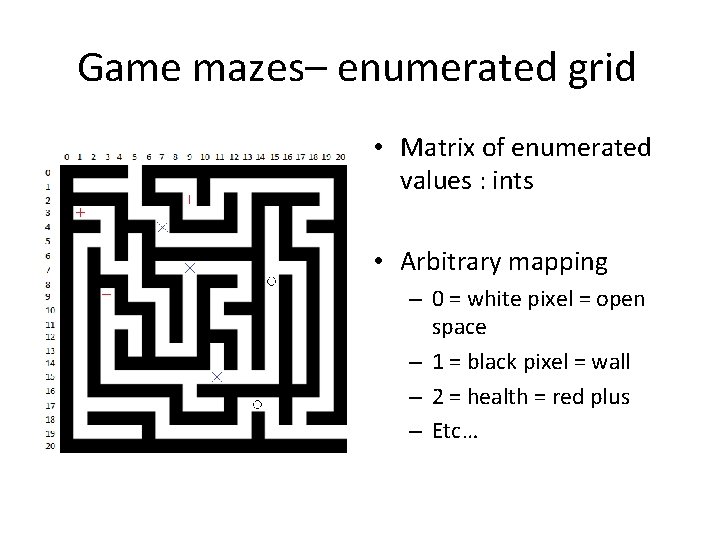

Game mazes– enumerated grid • Matrix of enumerated values : ints • Arbitrary mapping – 0 = white pixel = open space – 1 = black pixel = wall – 2 = health = red plus – Etc…

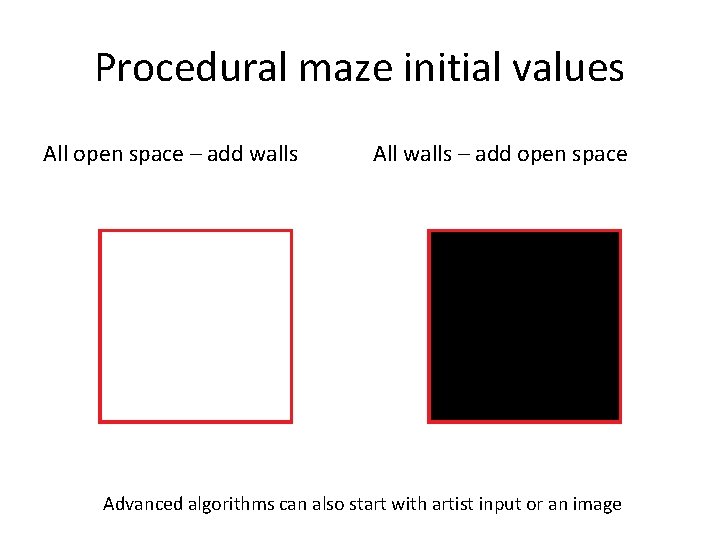

Procedural maze initial values All open space – add walls All walls – add open space Advanced algorithms can also start with artist input or an image

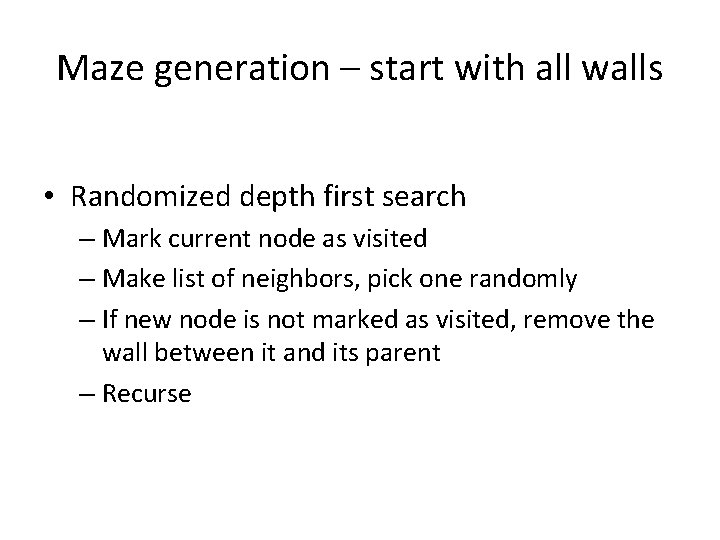

Maze generation – start with all walls • Randomized depth first search – Mark current node as visited – Make list of neighbors, pick one randomly – If new node is not marked as visited, remove the wall between it and its parent – Recurse

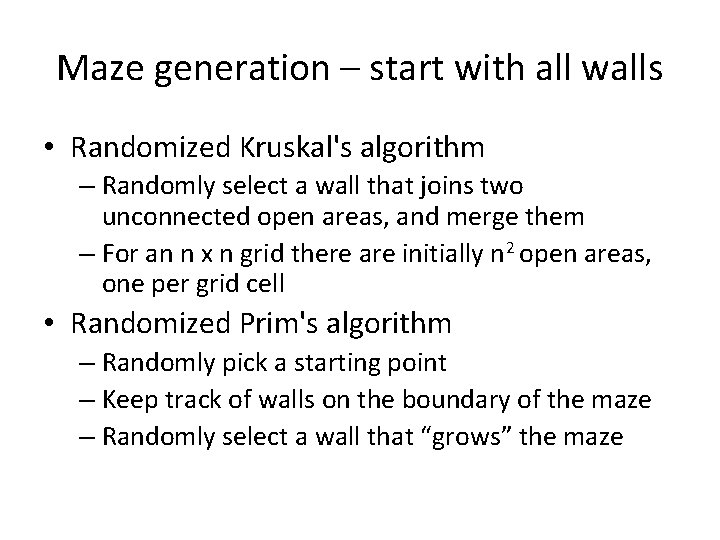

Maze generation – start with all walls • Randomized Kruskal's algorithm – Randomly select a wall that joins two unconnected open areas, and merge them – For an n x n grid there are initially n 2 open areas, one per grid cell • Randomized Prim's algorithm – Randomly pick a starting point – Keep track of walls on the boundary of the maze – Randomly select a wall that “grows” the maze

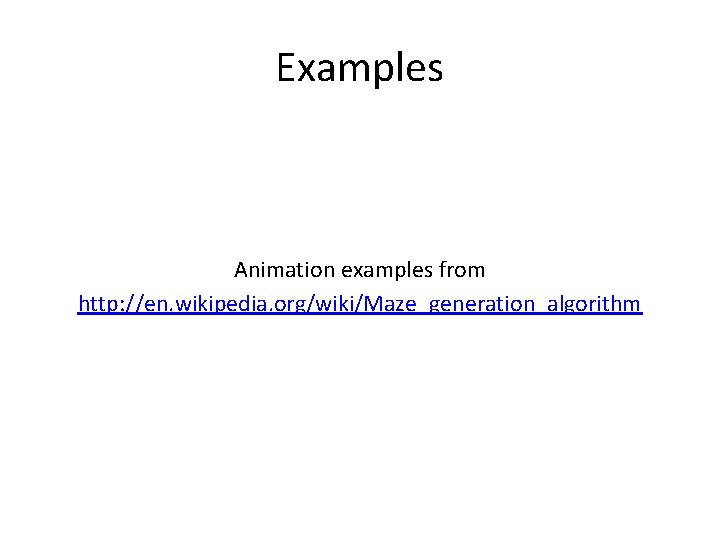

Examples Animation examples from http: //en. wikipedia. org/wiki/Maze_generation_algorithm
