Topics �What is sonar �Snell’s Law �Factors for ranges/how it is measured �Military history

Topics �What is sonar �Snell’s Law �Factors for ranges/how it is measured �Military history of sonar �Passive sonar - types -how it is used UNCLASSIFIED

What is sonar? �Sonar is actually not a word but an acronym SOund Navigation

What is sonar? �Sonar is actually not a word but an acronym SOund Navigation And Ranging UNCLASSIFIED

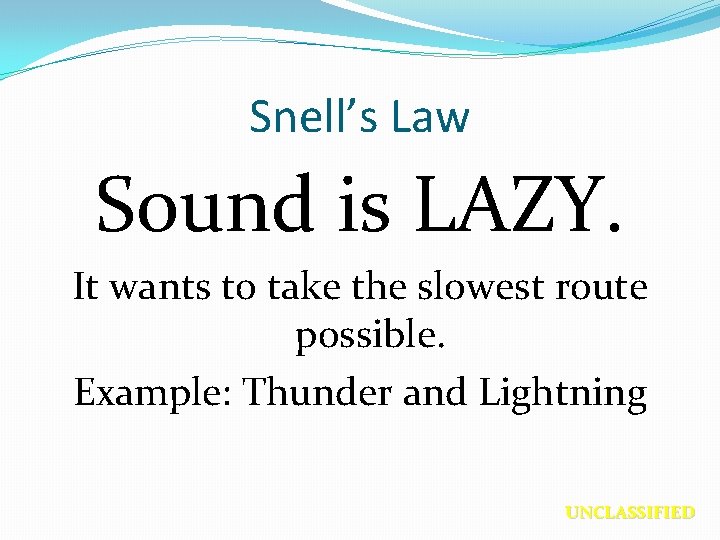

Snell’s Law Sound is LAZY. It wants to take the slowest route possible. Example:

Snell’s Law Sound is LAZY. It wants to take the slowest route possible. Example: Thunder and Lightning UNCLASSIFIED

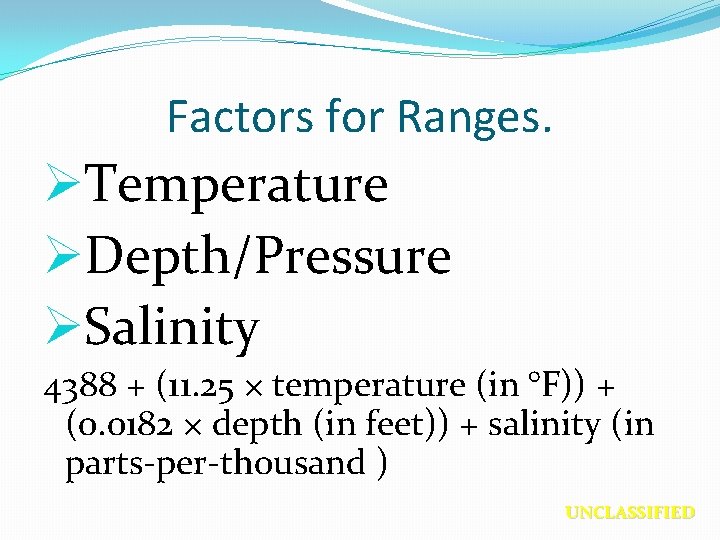

Factors for Ranges. ØTemperature ØDepth/Pressure ØSalinity 4388 + (11. 25 × temperature (in °F))

Factors for Ranges. ØTemperature ØDepth/Pressure ØSalinity 4388 + (11. 25 × temperature (in °F)) + (0. 0182 × depth (in feet)) + salinity (in parts-per-thousand ) UNCLASSIFIED

Expendable Bathythermograph (XBT) UNCLASSIFIED

Expendable Bathythermograph (XBT) UNCLASSIFIED

XBT Drop UNCLASSIFIED

XBT Drop UNCLASSIFIED

Sonar and the Military � World War I- 1915 passive systems to locate submarines

Sonar and the Military � World War I- 1915 passive systems to locate submarines � World War II- saw the first active sonar systems � 1945 - sonobuoys UNCLASSIFIED

Passive Sonar UNCLASSIFIED

Passive Sonar UNCLASSIFIED

Types of Passive Sonar �AN/SQS-53 C Hull Mounted Sonar �AN/SQR-19 Towed. Array Sonar �AN/SQQ-28

Types of Passive Sonar �AN/SQS-53 C Hull Mounted Sonar �AN/SQR-19 Towed. Array Sonar �AN/SQQ-28 LAMPS MK III Sonobuoy Processing System �AN/AQS-13 F Dipping Sonar �Undersea Surveillance System (IUSS) UNCLASSIFIED

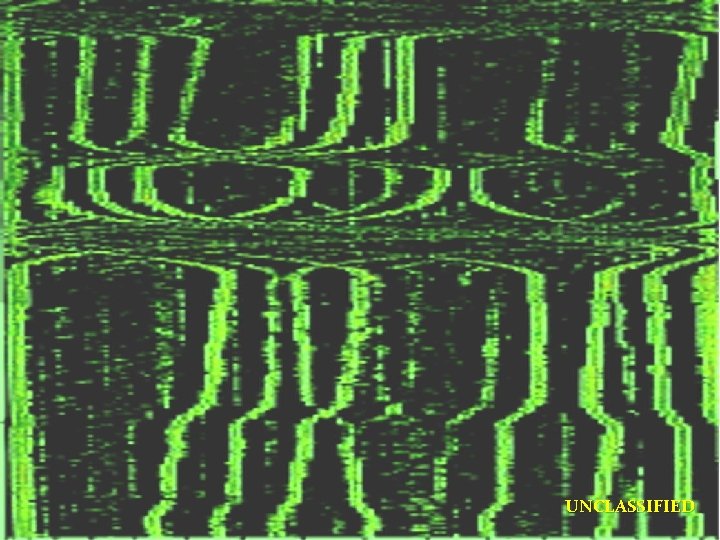

A sound wave turned into a digital picture. UNCLASSIFIED

A sound wave turned into a digital picture. UNCLASSIFIED

UNCLASSIFIED

UNCLASSIFIED

UNCLASSIFIED

UNCLASSIFIED

What can be determined with passive sonar? �Blade rate �Shaft rate �# of blades

What can be determined with passive sonar? �Blade rate �Shaft rate �# of blades �Cylinder firing rate �# of cylinders �Power plant �Turbine rate �‘Fog horns’ UNCLASSIFIED

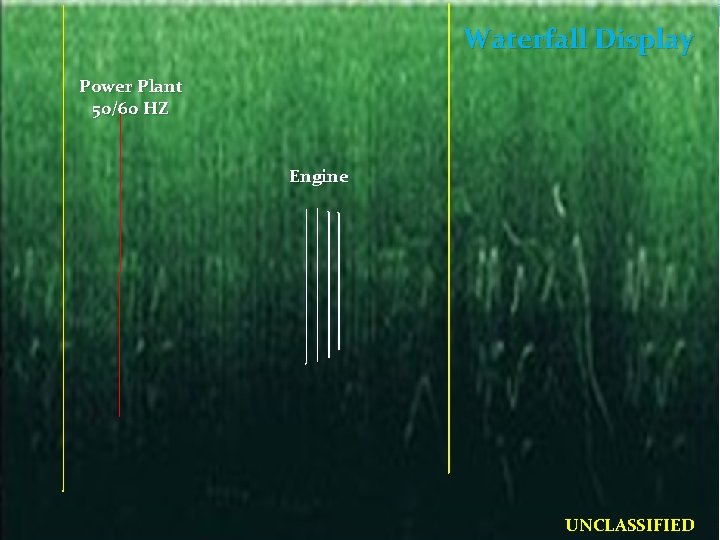

Waterfall Display Power Plant 50/60 HZ Engine UNCLASSIFIED

Waterfall Display Power Plant 50/60 HZ Engine UNCLASSIFIED

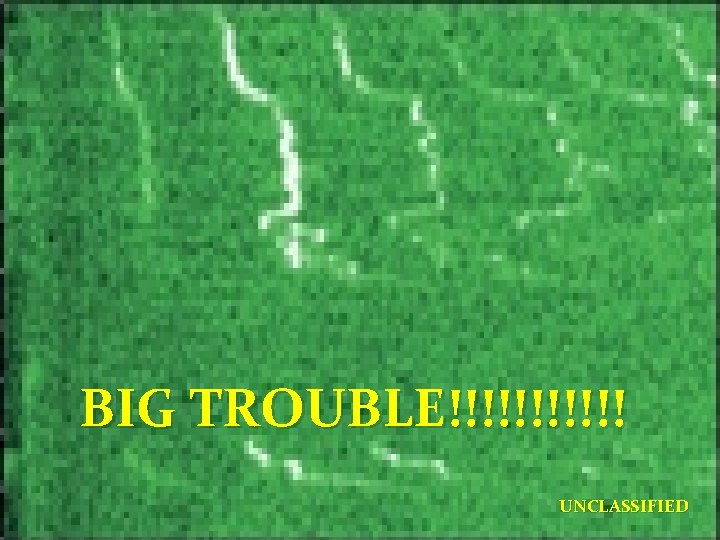

BIG TROUBLE!!!!!! UNCLASSIFIED

BIG TROUBLE!!!!!! UNCLASSIFIED

Review �What is sonar �Snell’s Law �Factors for ranges/how it is measured �The military

Review �What is sonar �Snell’s Law �Factors for ranges/how it is measured �The military history of sonar �Passive sonar - types -how it is used UNCLASSIFIED
