Parts of the Sewing Machine Bernina 330

1. Handwheel Can be turned TOWARD YOU to raise and lower the needle.

2. Quick Reverse Button or Backstitch Button Creates backstitching to keep seams from coming apart.

3. Needle Holds the needle in place. Clamp

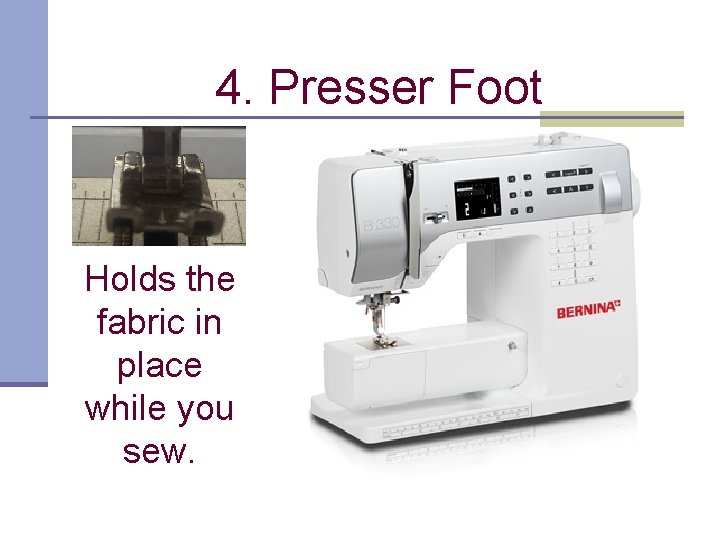

4. Presser Foot Holds the fabric in place while you sew.

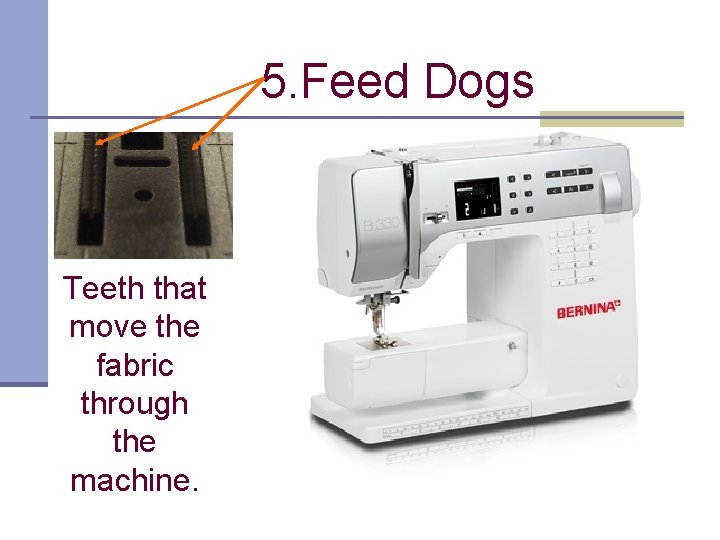

5. Feed Dogs Teeth that move the fabric through the machine.

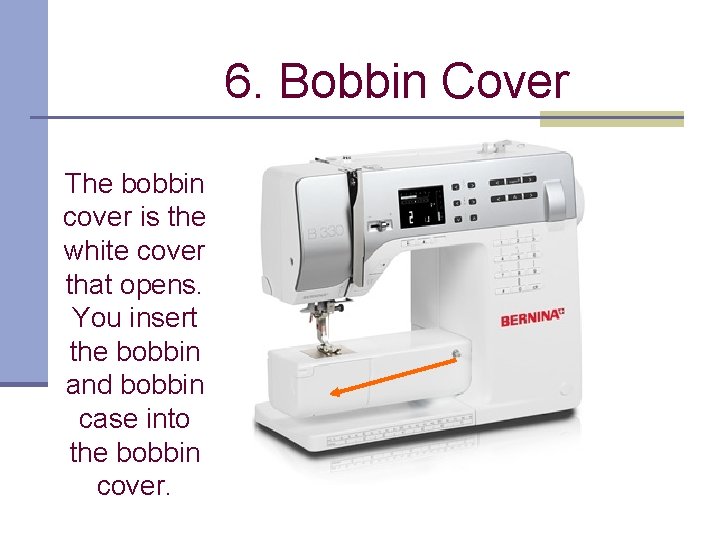

6. Bobbin Cover The bobbin cover is the white cover that opens. You insert the bobbin and bobbin case into the bobbin cover.

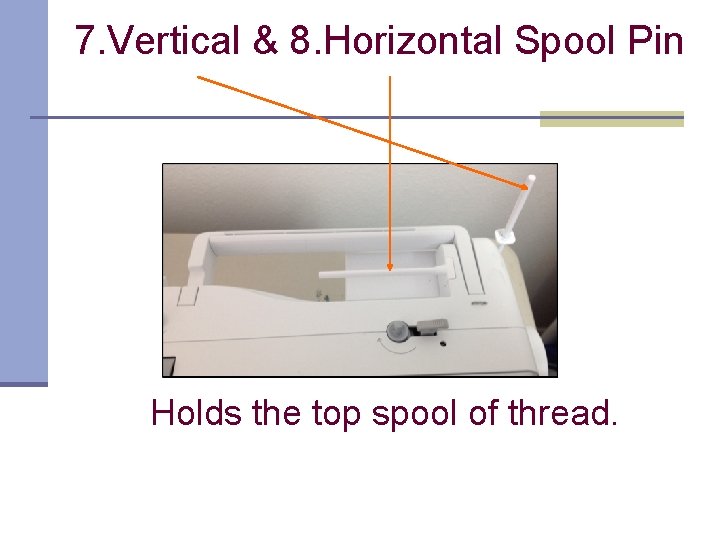

7. Vertical & 8. Horizontal Spool Pin Holds the top spool of thread.

Bobbin Winder Guide It looks like a staple and is used to help guide thread when a bobbin is being wound.

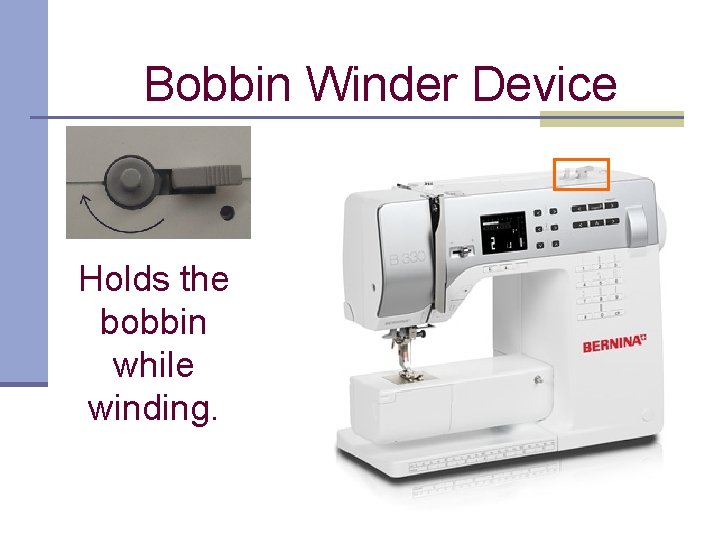

Bobbin Winder Device Holds the bobbin while winding.

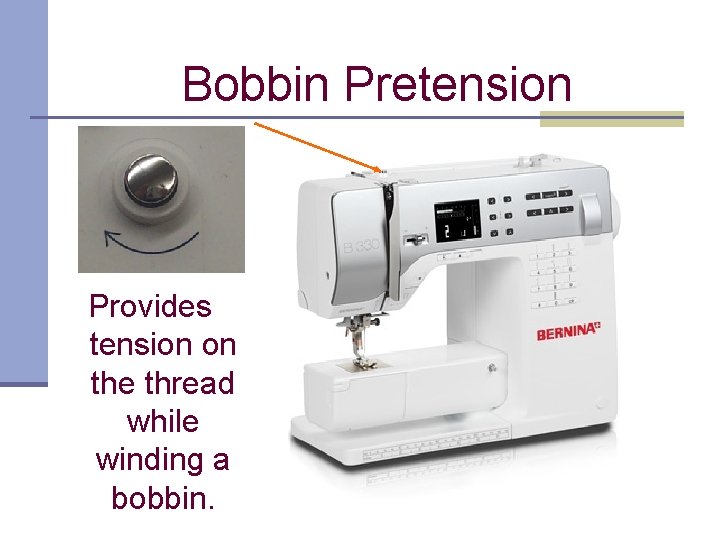

Bobbin Pretension Provides tension on the thread while winding a bobbin.

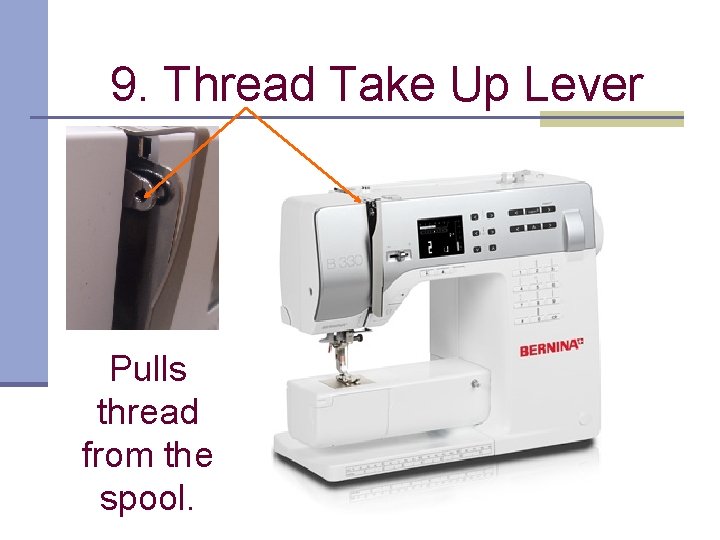

9. Thread Take Up Lever Pulls thread from the spool.

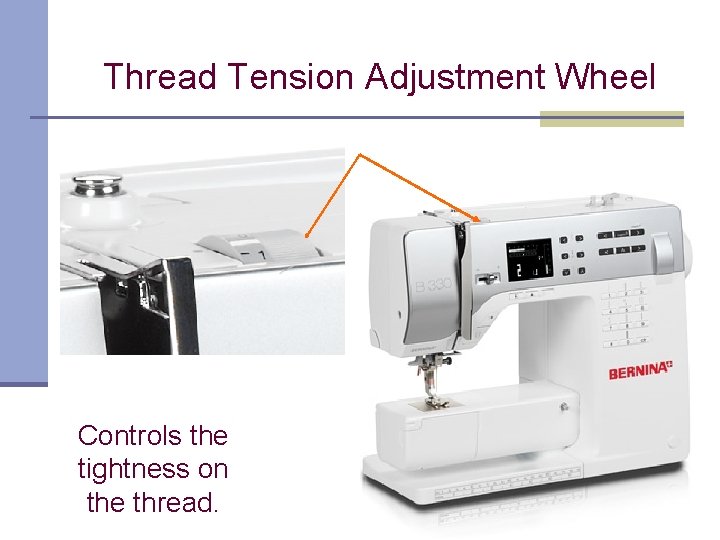

Thread Tension Adjustment Wheel Controls the tightness on the thread.

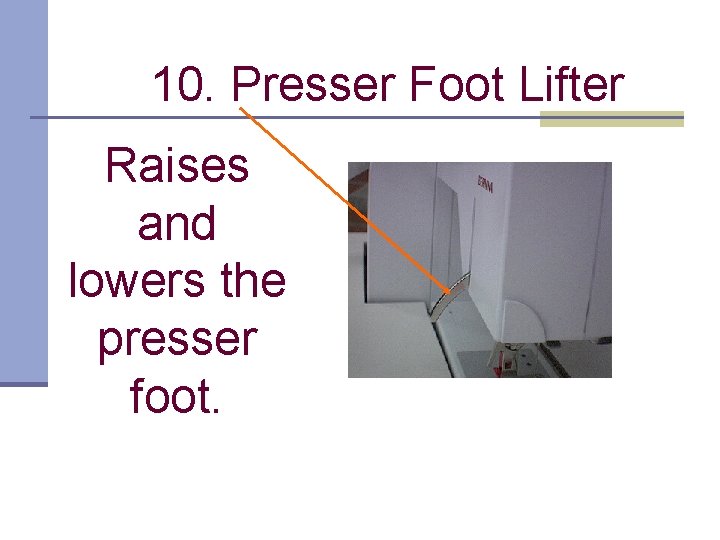

10. Presser Foot Lifter Raises and lowers the presser foot.

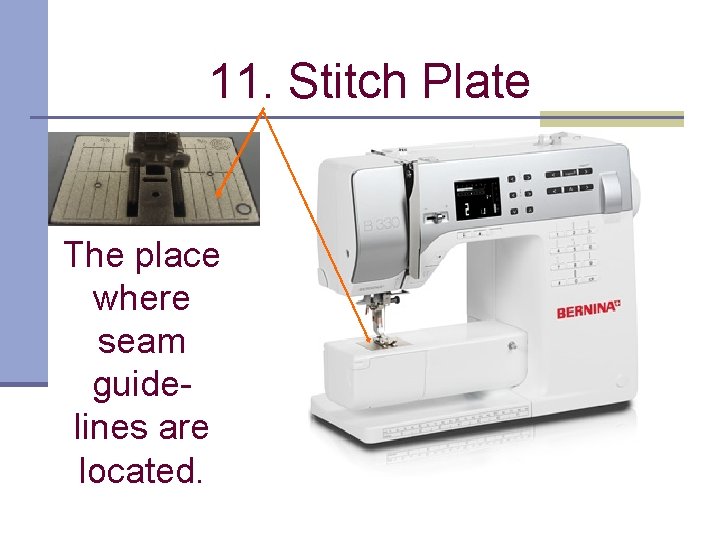

11. Stitch Plate The place where seam guidelines are located.

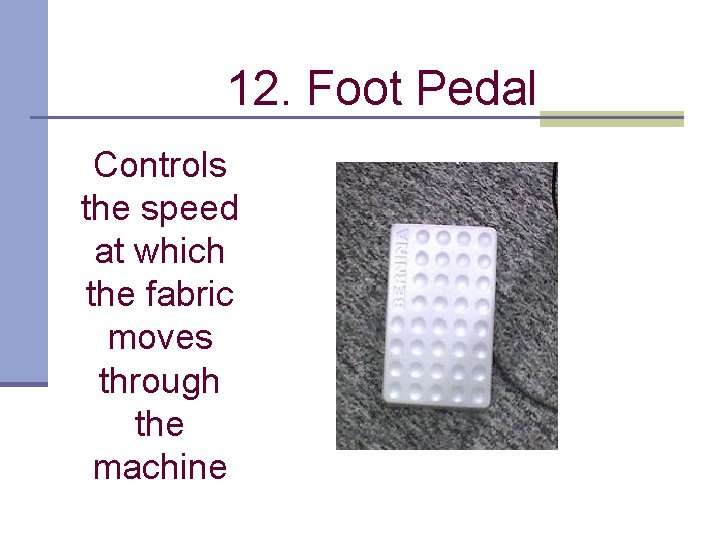

12. Foot Pedal Controls the speed at which the fabric moves through the machine

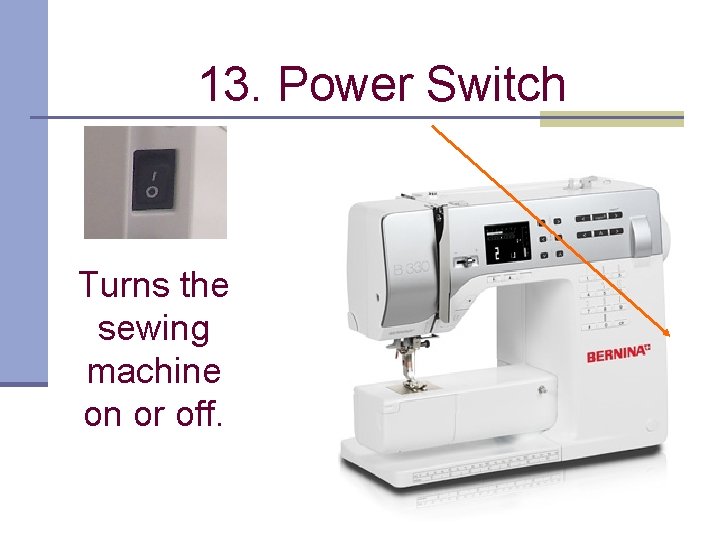

13. Power Switch Turns the sewing machine on or off.

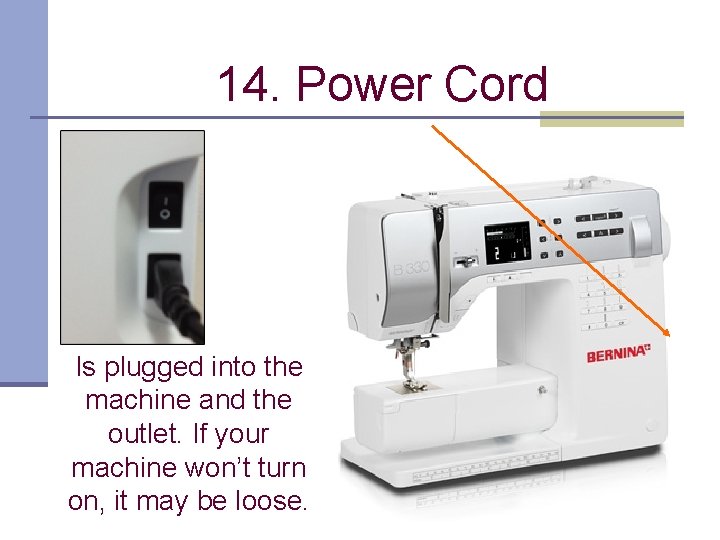

14. Power Cord Is plugged into the machine and the outlet. If your machine won’t turn on, it may be loose.

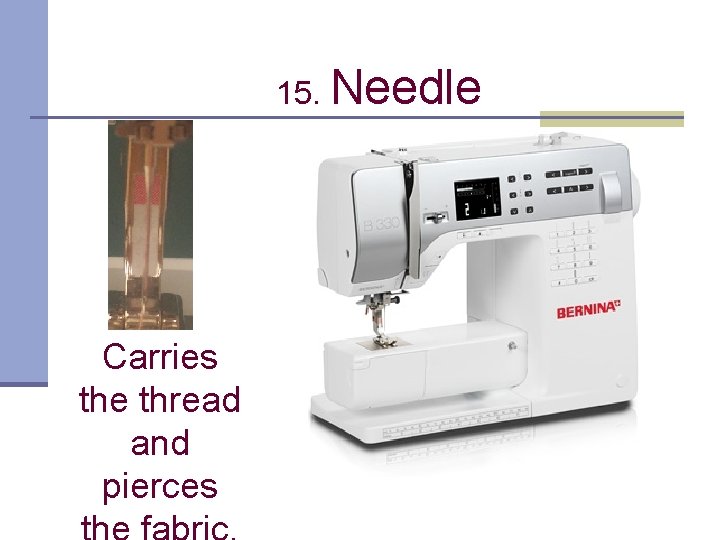

15. Needle Carries the thread and pierces

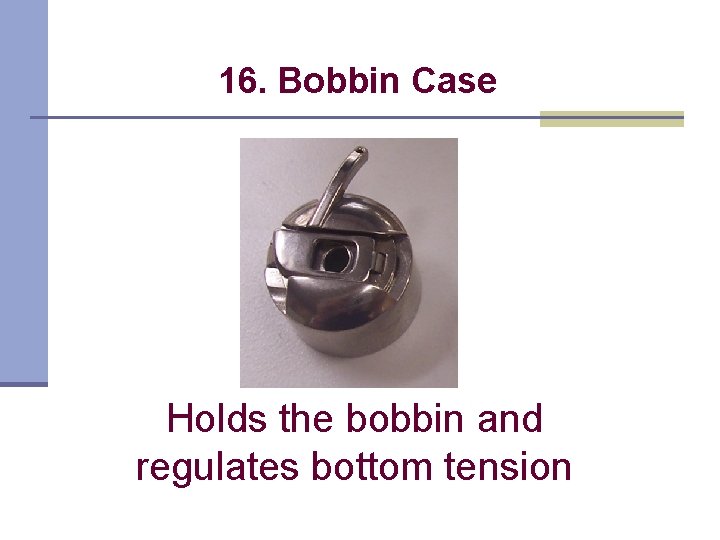

16. Bobbin Case Holds the bobbin and regulates bottom tension

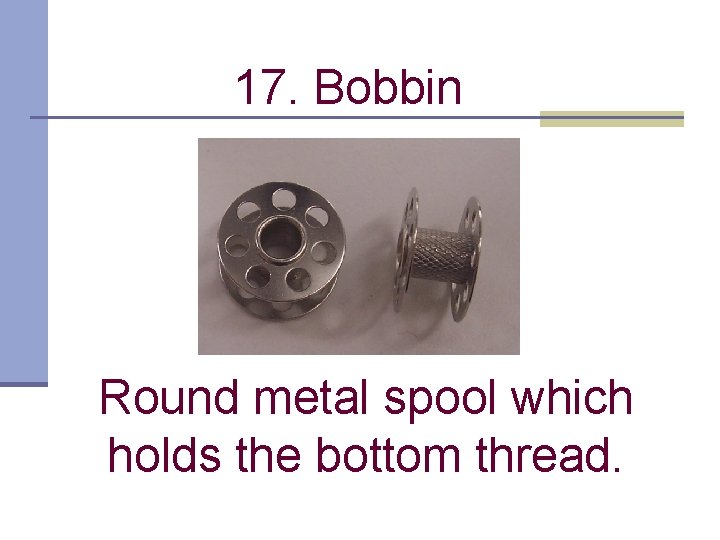

17. Bobbin Round metal spool which holds the bottom thread.
