Parts of the Microscope and Their Function On the next slide there is an

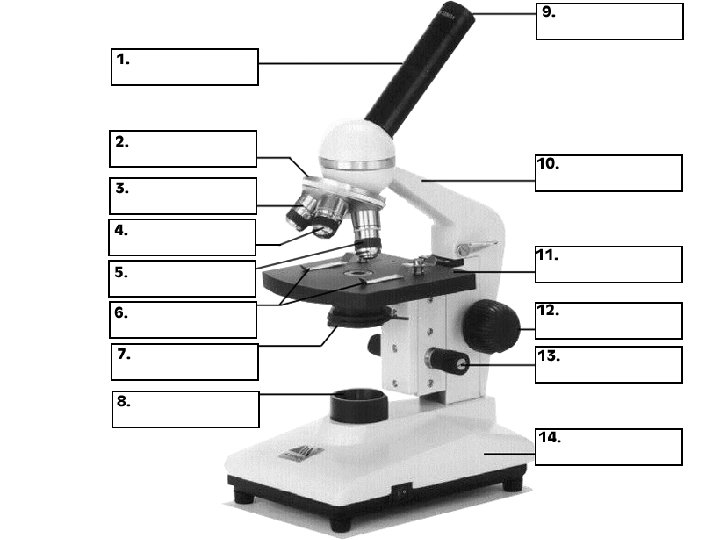

Parts of the Microscope and Their Function On the next slide there is an image of a microscope, very similar to the scopes we use in class. Click on the boxes to see the name and function of each part of the microscope.

Click on Me Click on Me Click on Me Click on Me

Click on Me Click on Me Click on Me Click on Me

#1 Tube – Reflects light up to the viewers eye Click Here to Return

#1 Tube – Reflects light up to the viewers eye Click Here to Return to the Main Slide

#2 Nosepiece– Holds the low and high power objective lenses; can be rotated to

#2 Nosepiece– Holds the low and high power objective lenses; can be rotated to change power. Click Here to Return to the Main Slide

#3 Low Power Objective – The first lens you use. 10 x Click Here

#3 Low Power Objective – The first lens you use. 10 x Click Here to Return to the Main Slide

#4 Medium Power Objective – Click Here to Return to the Main Slide

#4 Medium Power Objective – Click Here to Return to the Main Slide

#5 High Power Objective – The highest magnification used. 40 x. Click Here to

#5 High Power Objective – The highest magnification used. 40 x. Click Here to Return to the Main Slide

#6 Stage Clips – Hold the slide in place. Click Here to Return to

#6 Stage Clips – Hold the slide in place. Click Here to Return to the Main Slide

#7 Diaphragm – Regulates the amount of light on the specimen Click Here to

#7 Diaphragm – Regulates the amount of light on the specimen Click Here to Return to the Main Slide

#8 Light Source – Projects light up through the diaphragm, the specimen, and the

#8 Light Source – Projects light up through the diaphragm, the specimen, and the lenses Click Here to Return to the Main Slide

#9 Eye Piece—Contains the ocular lens. 10 x Click Here to Return to the

#9 Eye Piece—Contains the ocular lens. 10 x Click Here to Return to the Main Slide

#10 Arm – Used to hold the microscope when carried Click Here to Return

#10 Arm – Used to hold the microscope when carried Click Here to Return to the Main Slide

#11 Stage – Supports the slide being viewed Click Here to Return to the

#11 Stage – Supports the slide being viewed Click Here to Return to the Main Slide

#12 Coarse Adjustment Knob – Moves the stage up and down for focusing Click

#12 Coarse Adjustment Knob – Moves the stage up and down for focusing Click Here to Return to the Main Slide

#13 Fine Adjustment Knob – Moves the stage slightly to sharpen the image Click

#13 Fine Adjustment Knob – Moves the stage slightly to sharpen the image Click Here to Return to the Main Slide

#14 Base – Supports the microscope Click Here to Return to the Main Slide

#14 Base – Supports the microscope Click Here to Return to the Main Slide
