Parts of the Brain Dr Ajith Sominanda Department

Parts of the Brain Dr Ajith Sominanda Department of Anatomy

Nervous System Environmental stimuli Information Processing Effects

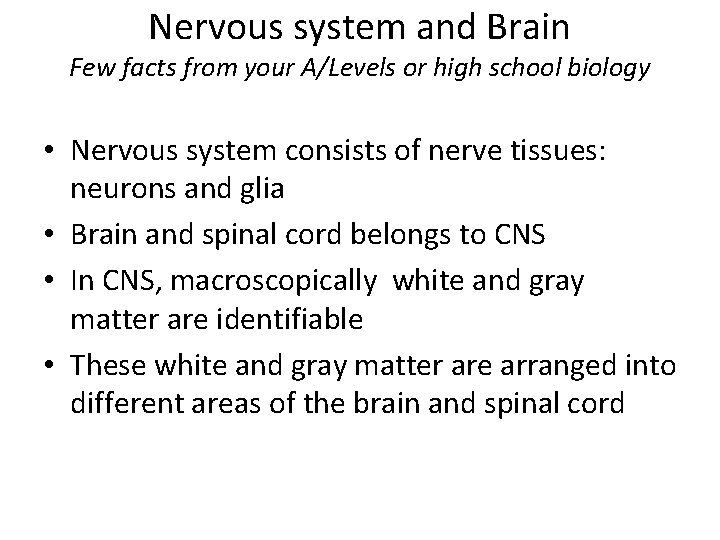

Nervous system and Brain Few facts from your A/Levels or high school biology • Nervous system consists of nerve tissues: neurons and glia • Brain and spinal cord belongs to CNS • In CNS, macroscopically white and gray matter are identifiable • These white and gray matter are arranged into different areas of the brain and spinal cord

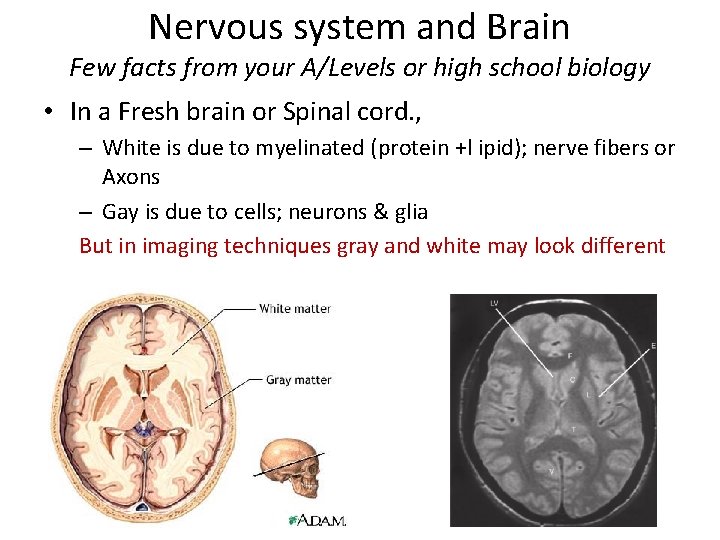

Nervous system and Brain Few facts from your A/Levels or high school biology • In a Fresh brain or Spinal cord. , – White is due to myelinated (protein +l ipid); nerve fibers or Axons – Gay is due to cells; neurons & glia But in imaging techniques gray and white may look different

Nervous system and Brain Few facts from your A/Levels or high school biology

Brain in the cranial cavity • video

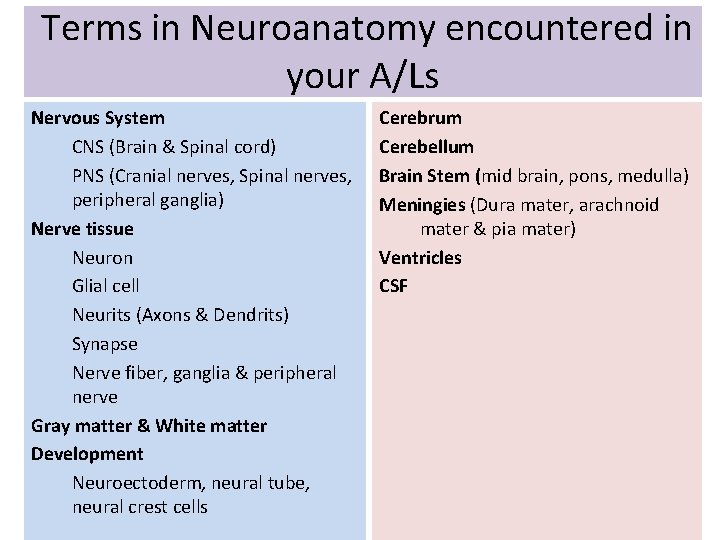

Terms in Neuroanatomy encountered in your A/Ls Nervous System CNS (Brain & Spinal cord) PNS (Cranial nerves, Spinal nerves, peripheral ganglia) Nerve tissue Neuron Glial cell Neurits (Axons & Dendrits) Synapse Nerve fiber, ganglia & peripheral nerve Gray matter & White matter Development Neuroectoderm, neural tube, neural crest cells Cerebrum Cerebellum Brain Stem (mid brain, pons, medulla) Meningies (Dura mater, arachnoid mater & pia mater) Ventricles CSF

Is the key to understand its structure

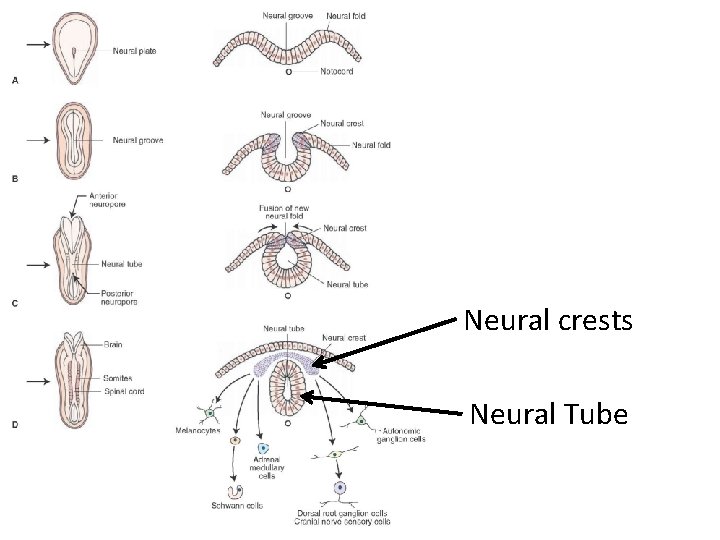

Neural crests Neural Tube

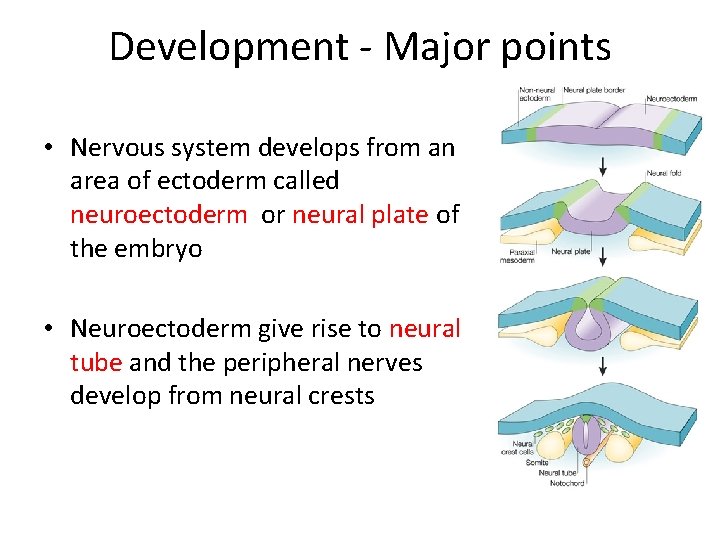

Development - Major points • Nervous system develops from an area of ectoderm called neuroectoderm or neural plate of the embryo • Neuroectoderm give rise to neural tube and the peripheral nerves develop from neural crests

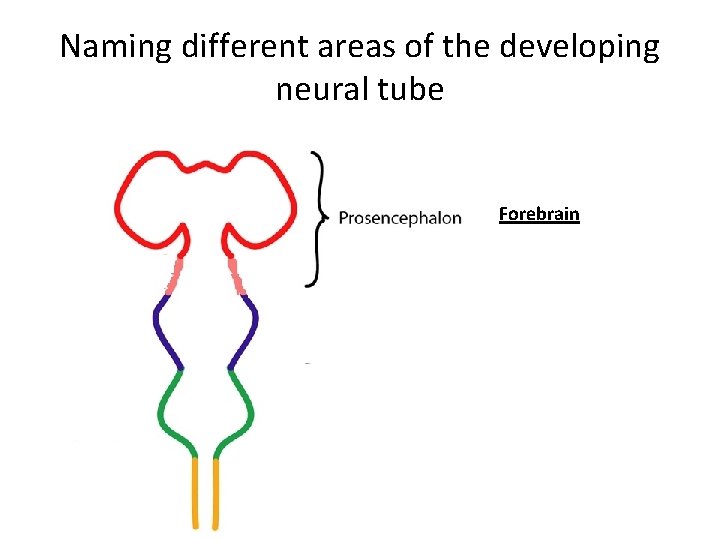

Naming different areas of the developing neural tube Forebrain Midbrain Hindbrain

neural tube bends and grow Pontine flexure Cephalic flexure Embryo Cervical flexure Swollen & Folded neural tube

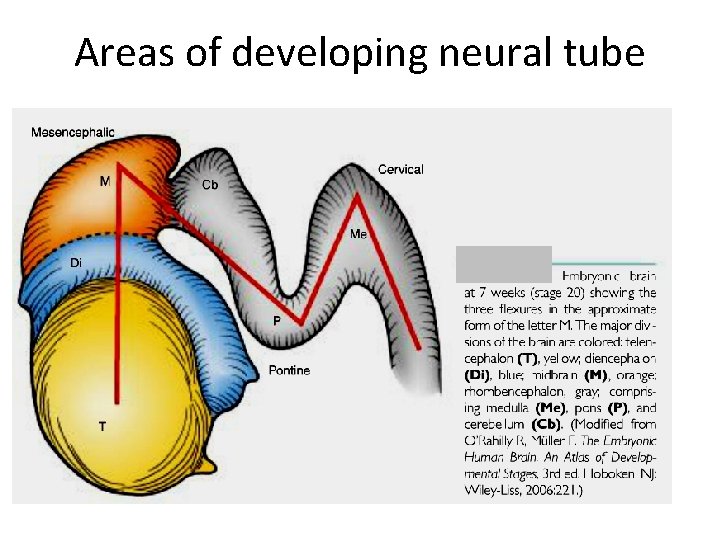

Areas of developing neural tube

Areas of developing neural tube and their future components Hindbrain Midbrain Forebrain

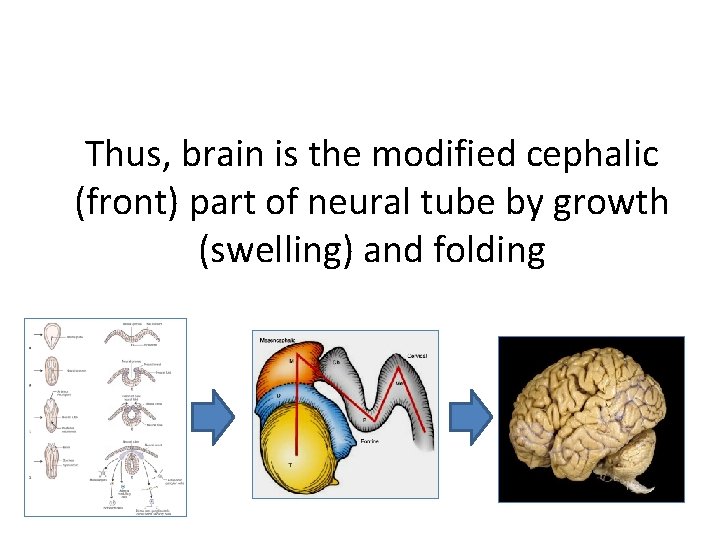

Thus, brain is the modified cephalic (front) part of neural tube by growth (swelling) and folding

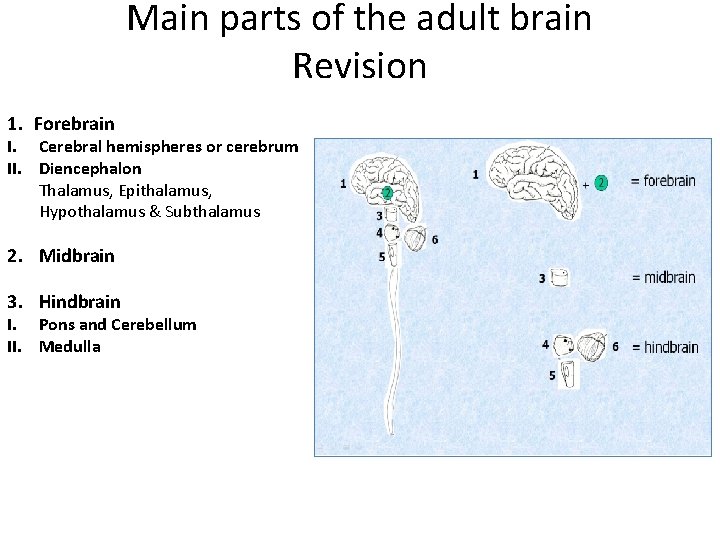

Main parts of the adult brain Revision 1. Forebrain I. Cerebral hemispheres or cerebrum II. Diencephalon Thalamus, Epithalamus, Hypothalamus & Subthalamus 2. Midbrain 3. Hindbrain I. Pons and Cerebellum II. Medulla

CEREBRUM OR CEREBRAL HEMISPHERES

Forebrain Cerebrum or Cerebral hemispheres • • • Represent the largest part of the brain Has extensively convoluted cerebral cortex Has internal white matter fiber bundles Has internal masses of gray matter Also contains cavities; lateral ventricles Two hemispheres are connected by a bundle of white matter called corpus callosum

Forebrain Cerebrum or Cerebral hemispheres

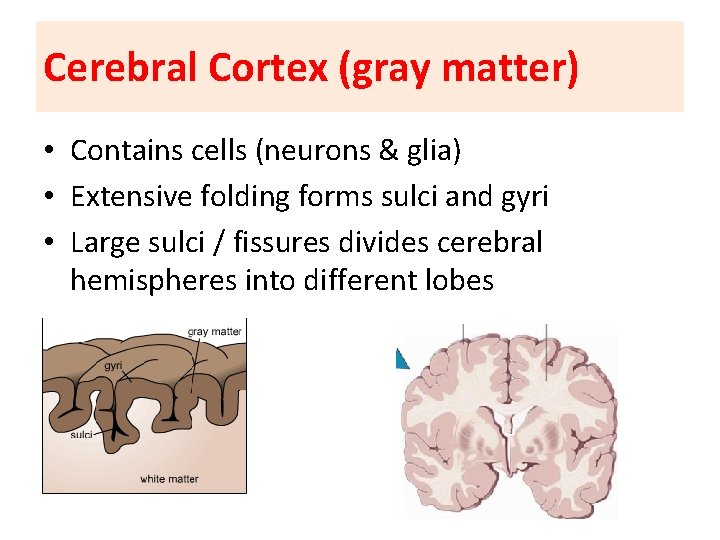

Cerebral Cortex (gray matter) • Contains cells (neurons & glia) • Extensive folding forms sulci and gyri • Large sulci / fissures divides cerebral hemispheres into different lobes

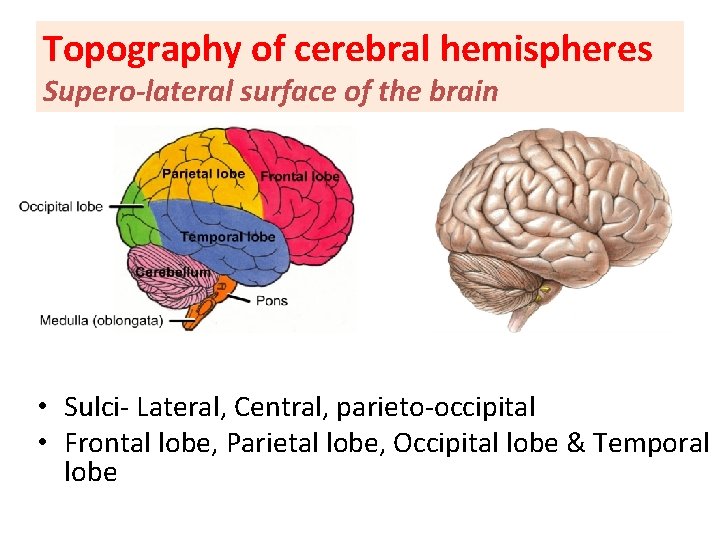

Topography of cerebral hemispheres Supero-lateral surface of the brain • Sulci- Lateral, Central, parieto-occipital • Frontal lobe, Parietal lobe, Occipital lobe & Temporal lobe

Main Sulci and Gyri Draw

Topography of cerebral hemispheres medial surface of the brain • Cingulate gyrus, cuneus, lingular gyrus • Cingulate sulcus, calcarine sulcus

Insular lobe

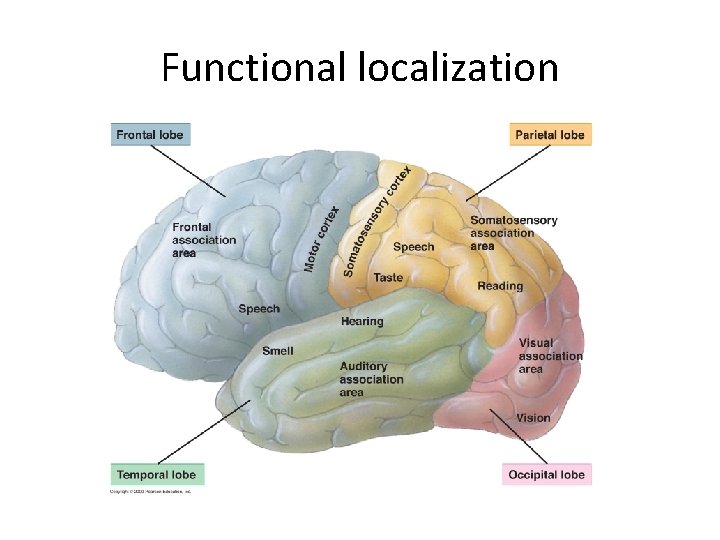

Functional localization

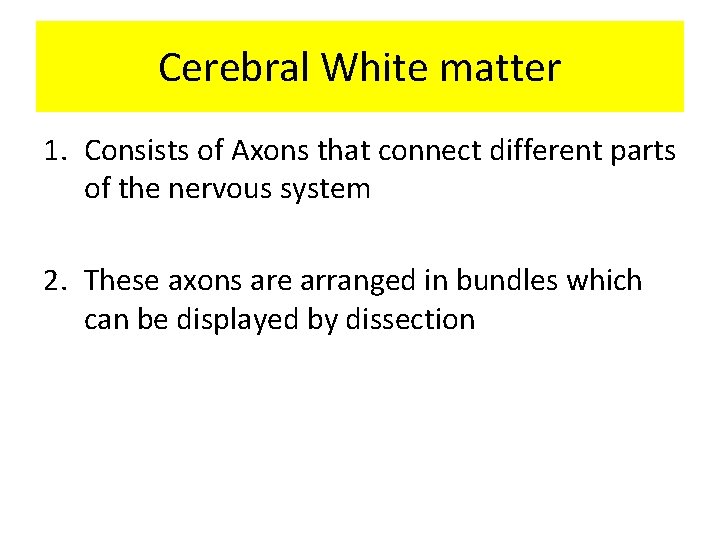

Cerebral White matter 1. Consists of Axons that connect different parts of the nervous system 2. These axons are arranged in bundles which can be displayed by dissection

Cerebral White matter Three types of axon bundles (fasciculi) are present in cerebral white matter: A. Association fibers Confined to a hemisphere and connects cortical areas within the hemisphere B. Transverse or Commissural fibers • • Connects 2 hemispheres Axons runs in corpus callosum and anterior commissure, C. Projection fibers Connect cerebral cortex with subcortical structures, brain stem and spinal cord

Cerebral White matter

Cerebral White matter

Cerebral White matter

Cerebral White matter Corpus Callosum (Transverse or Commissural fibers)

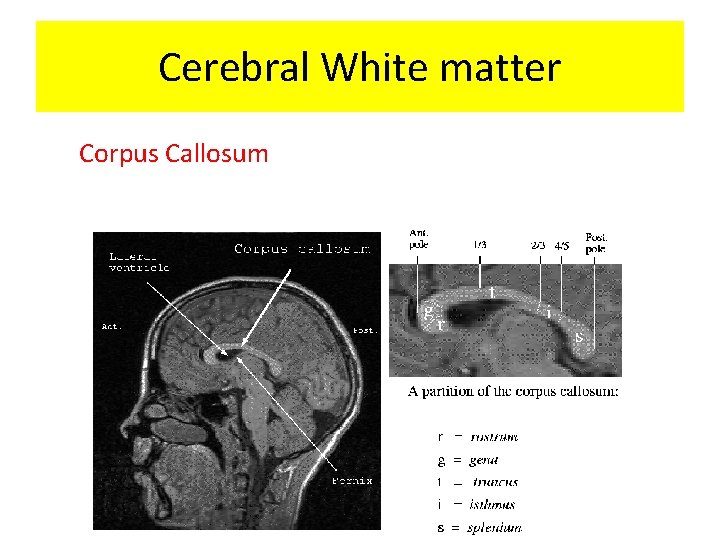

Cerebral White matter Corpus Callosum

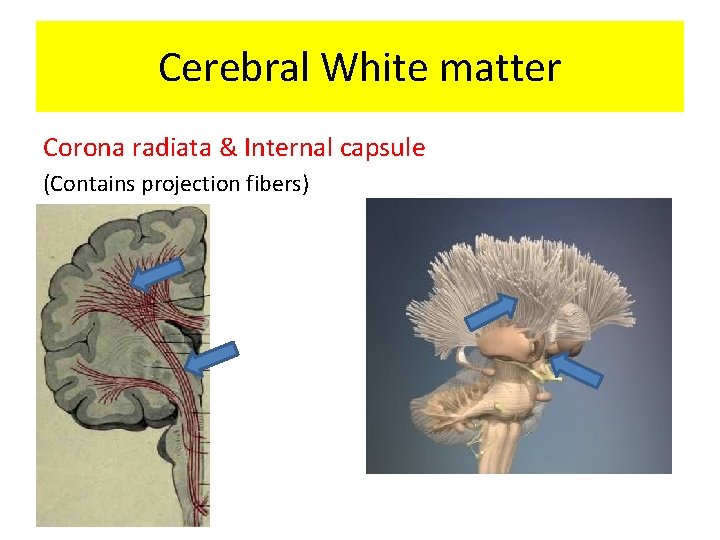

Cerebral White matter Corona radiata & Internal capsule (Contains projection fibers)

Cerebral White matter More details during the practical sessions

Other internal structures of cerebral hemispheres • Diencephalic structures (Thalamus, hypothalamus, epi thalamus and sub thalamus)

Other internal structures of cerebral hemispheres • Telencephalic gray matter – Corpus striatum (telencephalic gray matter associated with lateral ventricles) • Striatum (caudate nucleus, nucleus accumbens & putamen) • Pallidium (globus pallidus)

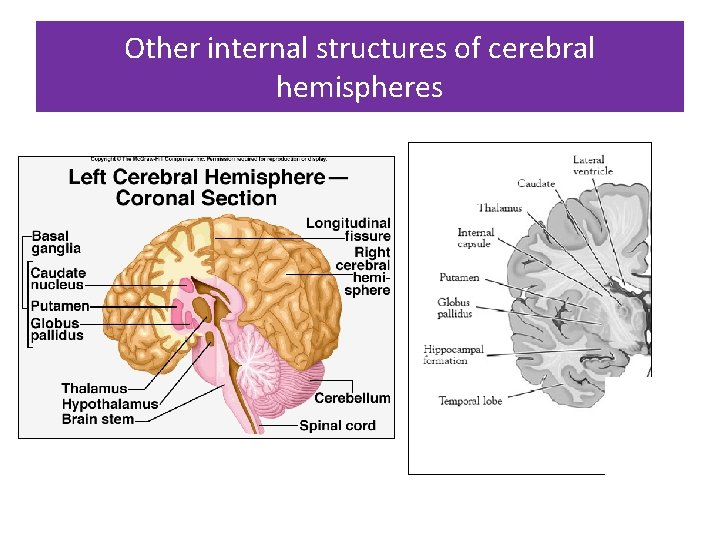

Other internal structures of cerebral hemispheres

Histology of cerebral cortex • Cerebral gray and white matter is (histologically) arranged in layers • Three Histologically different areas can be identified: 1. Paleocortex (olfactory system) 3 layers 2. Archicortex (hipocampal formation) 3. Neocortex (rest of cerebral cortex) - 6 layers

Histology of cerebral cortex Neocortical Histology

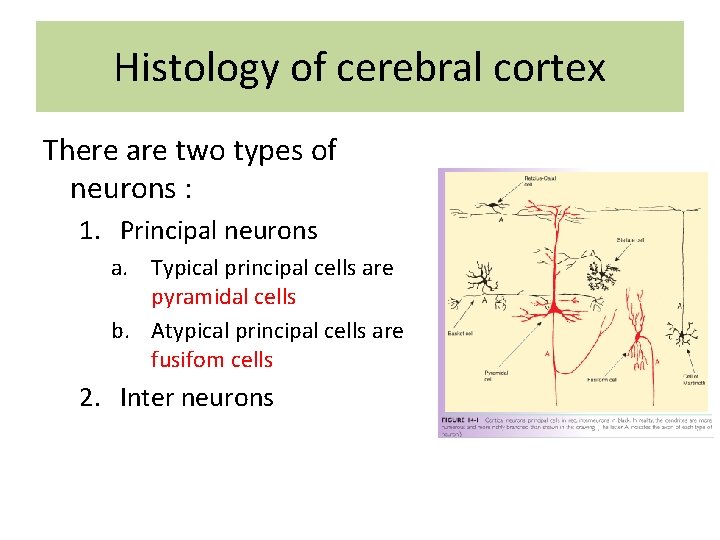

Histology of cerebral cortex There are two types of neurons : 1. Principal neurons a. Typical principal cells are pyramidal cells b. Atypical principal cells are fusifom cells 2. Inter neurons

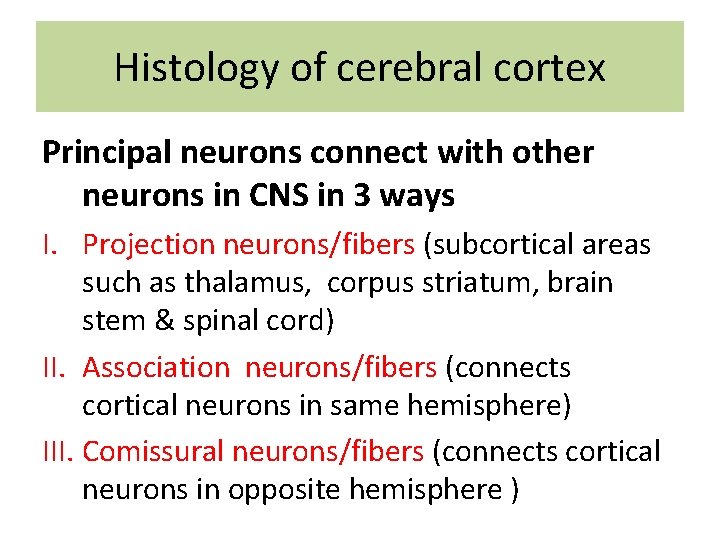

Histology of cerebral cortex Principal neurons connect with other neurons in CNS in 3 ways I. Projection neurons/fibers (subcortical areas such as thalamus, corpus striatum, brain stem & spinal cord) II. Association neurons/fibers (connects cortical neurons in same hemisphere) III. Comissural neurons/fibers (connects cortical neurons in opposite hemisphere )
