Parts of a Compound Light Microscope

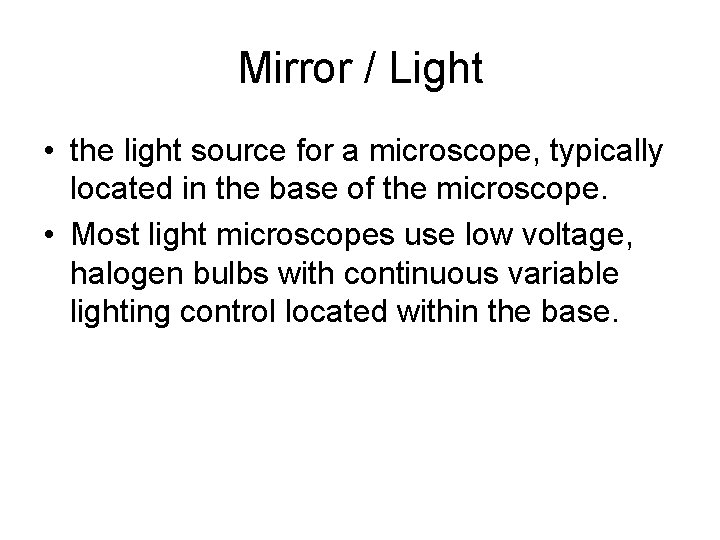

Mirror / Light • the light source for a microscope, typically located in the base of the microscope. • Most light microscopes use low voltage, halogen bulbs with continuous variable lighting control located within the base.

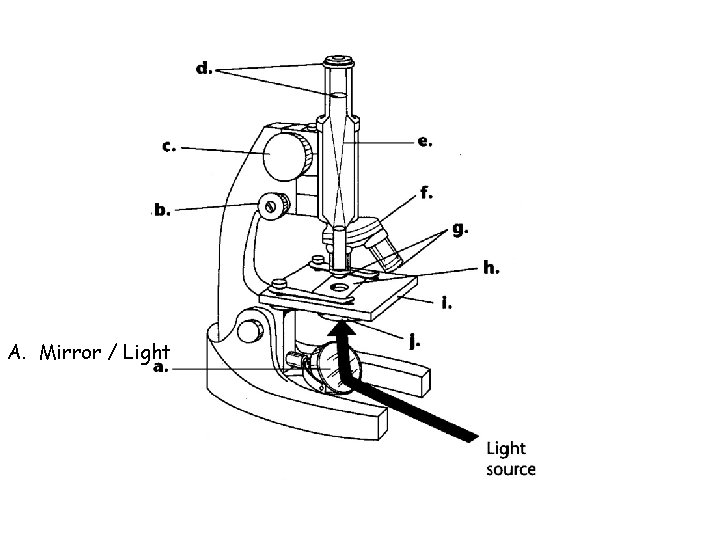

A. Mirror / Light

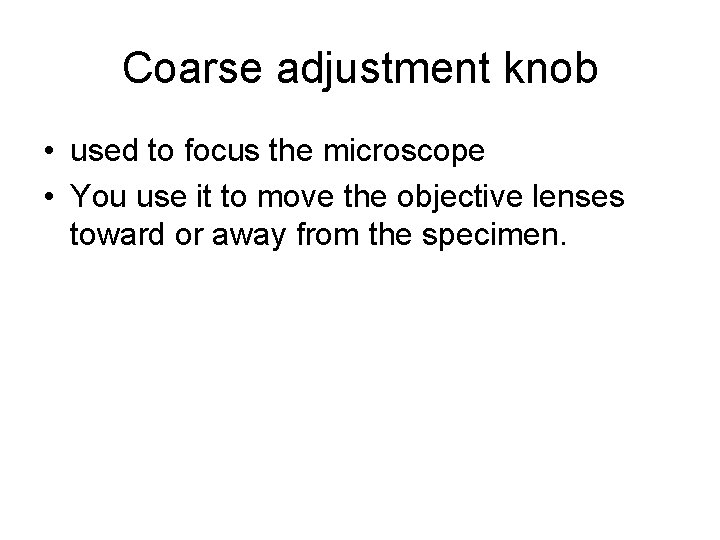

Coarse adjustment knob • used to focus the microscope • You use it to move the objective lenses toward or away from the specimen.

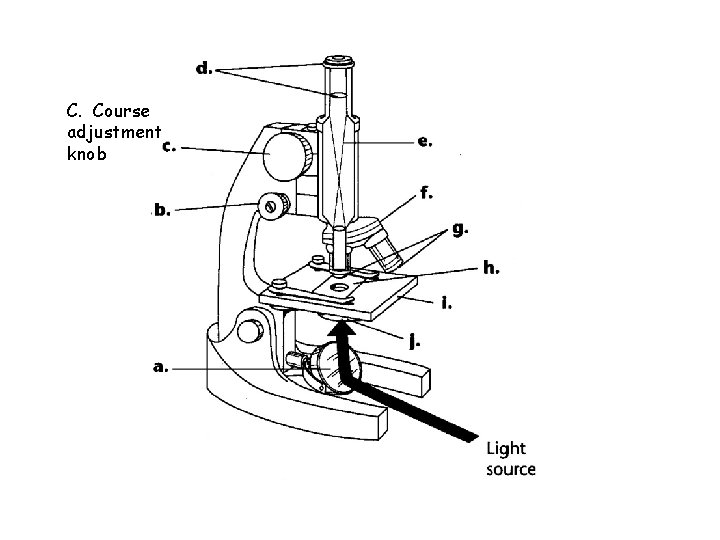

C. Course adjustment knob

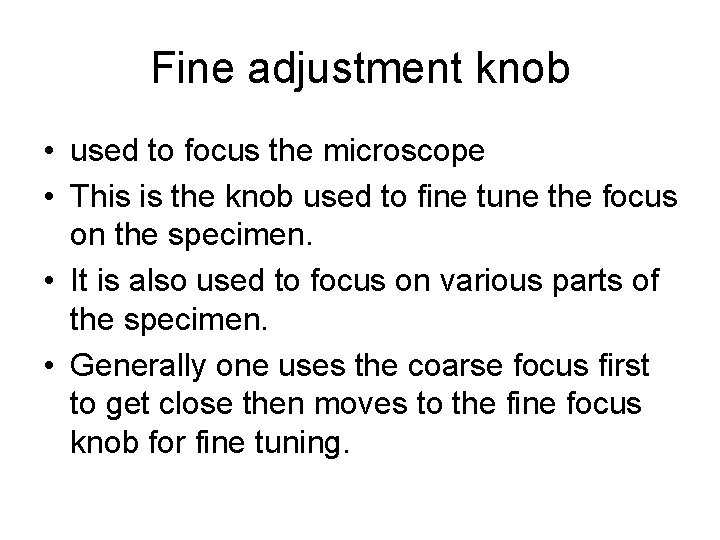

Fine adjustment knob • used to focus the microscope • This is the knob used to fine tune the focus on the specimen. • It is also used to focus on various parts of the specimen. • Generally one uses the coarse focus first to get close then moves to the fine focus knob for fine tuning.

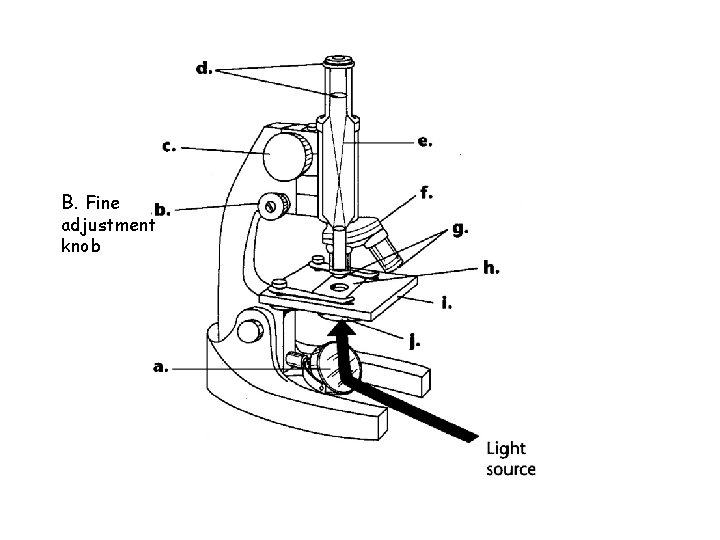

B. Fine adjustment knob

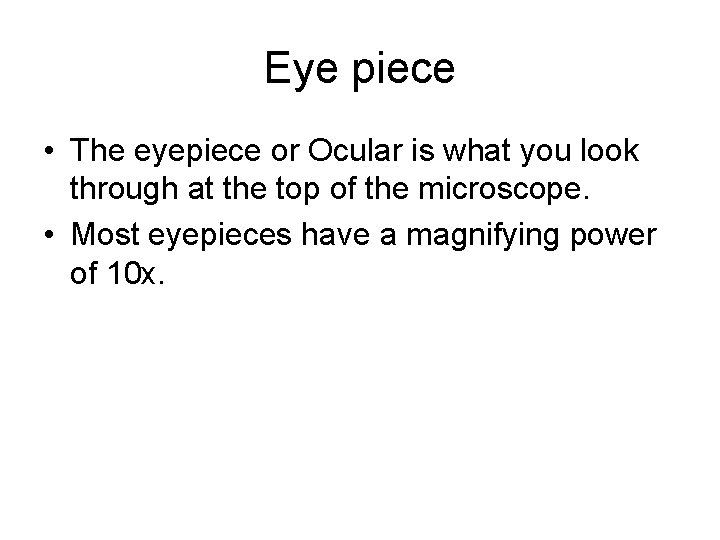

Eye piece • The eyepiece or Ocular is what you look through at the top of the microscope. • Most eyepieces have a magnifying power of 10 x.

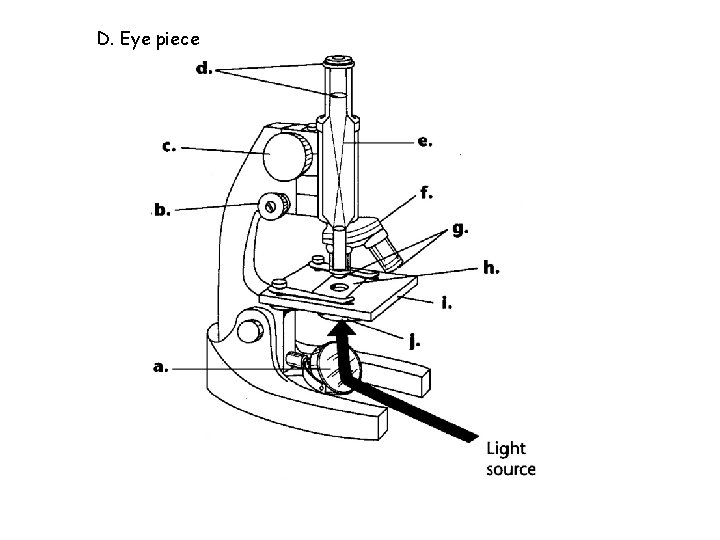

D. Eye piece

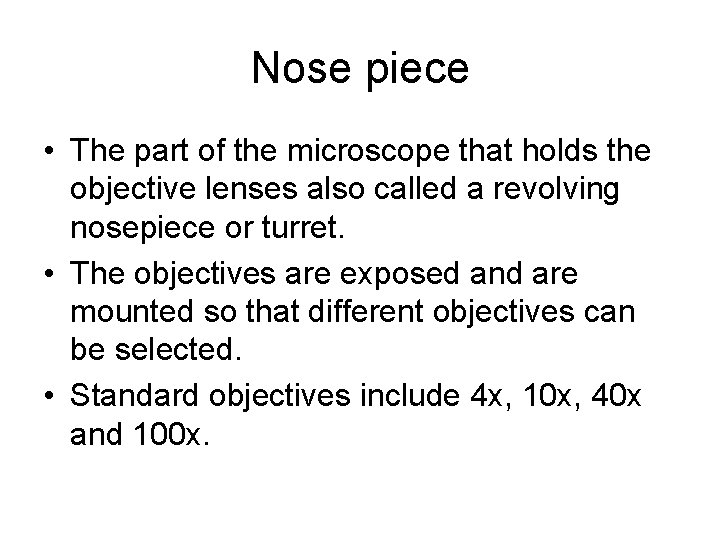

Nose piece • The part of the microscope that holds the objective lenses also called a revolving nosepiece or turret. • The objectives are exposed and are mounted so that different objectives can be selected. • Standard objectives include 4 x, 10 x, 40 x and 100 x.

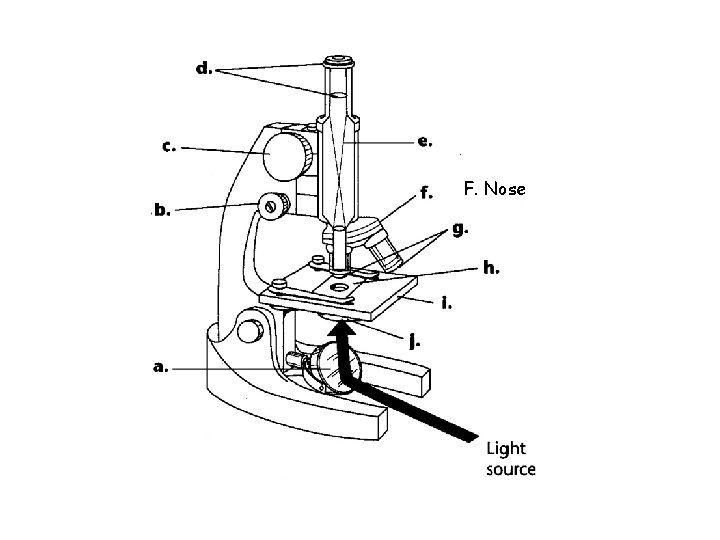

F. Nose

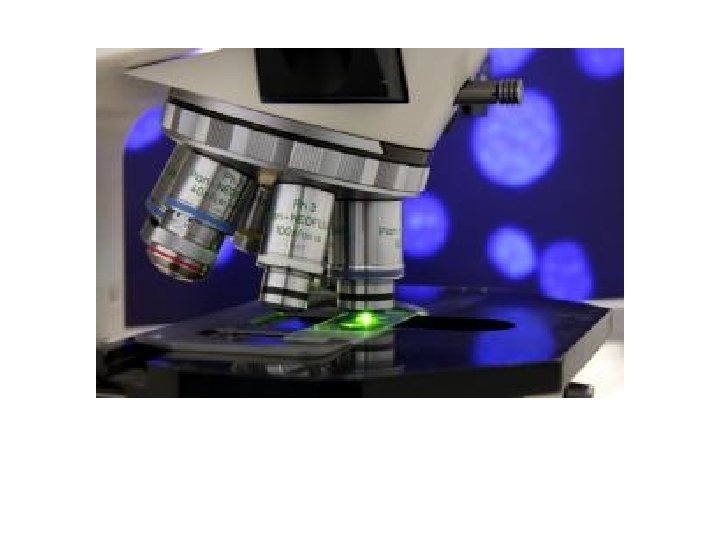

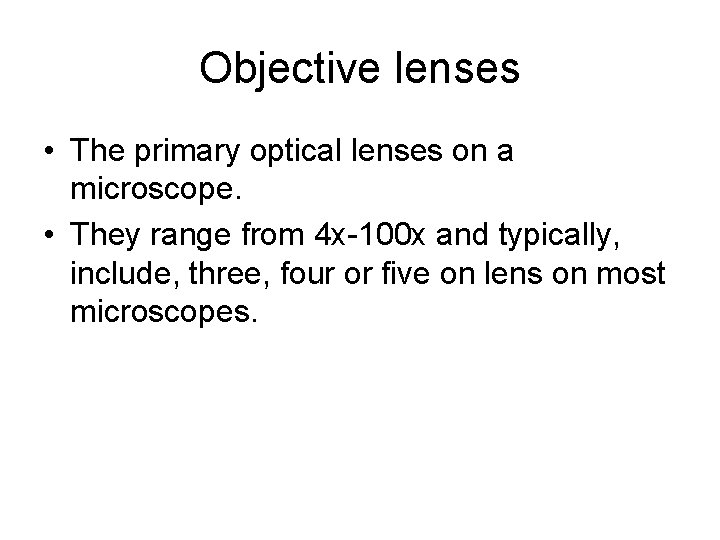

Objective lenses • The primary optical lenses on a microscope. • They range from 4 x-100 x and typically, include, three, four or five on lens on most microscopes.

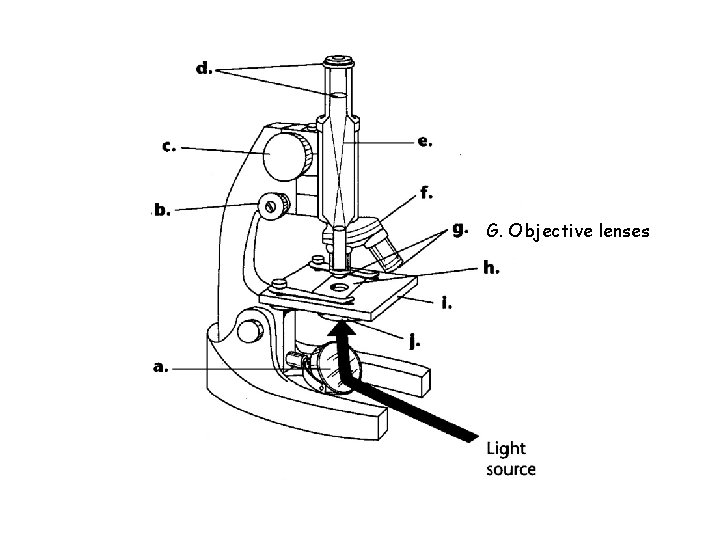

G. Objective lenses

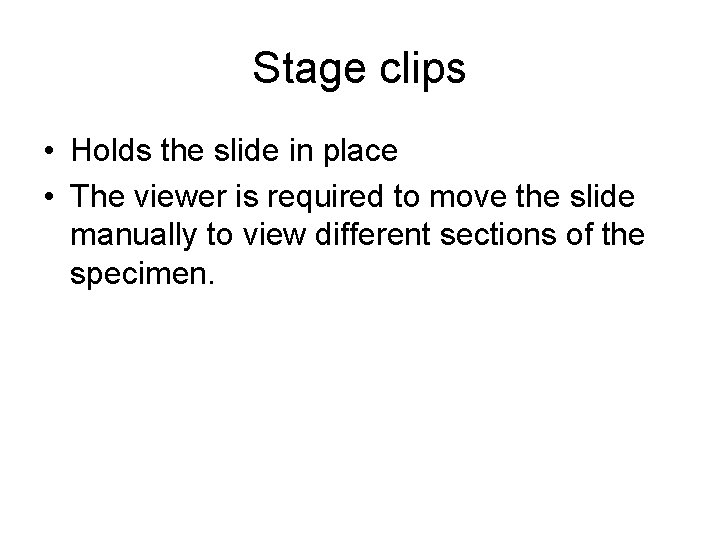

Stage clips • Holds the slide in place • The viewer is required to move the slide manually to view different sections of the specimen.

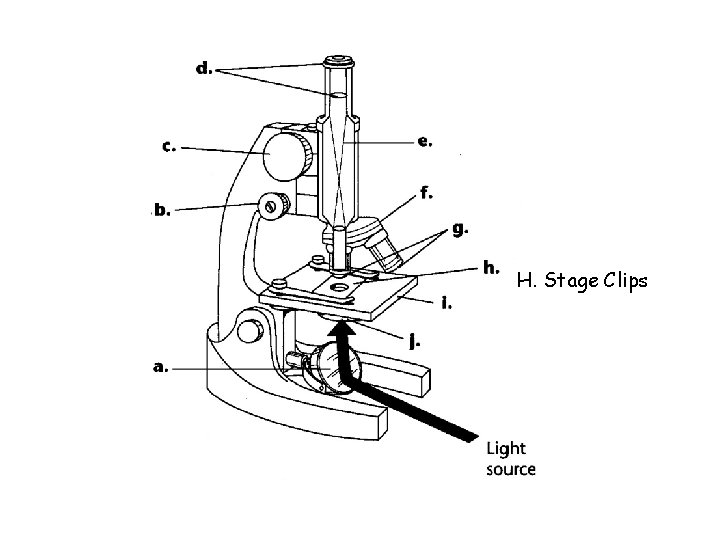

H. Stage Clips

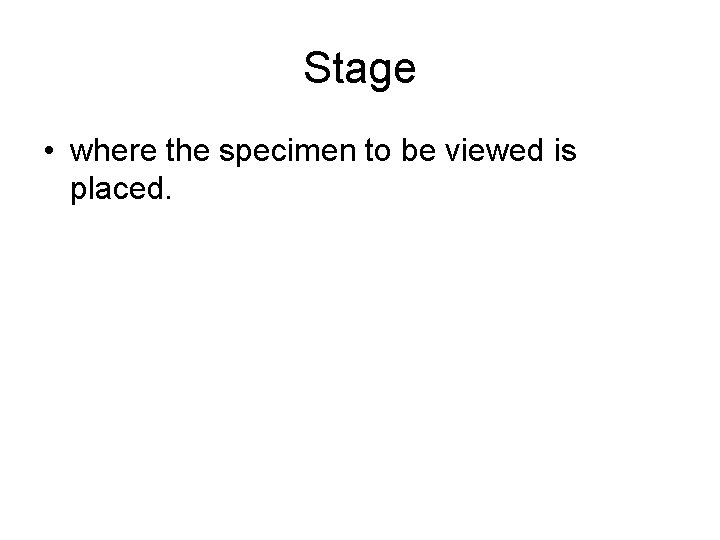

Stage • where the specimen to be viewed is placed.

I. Stage

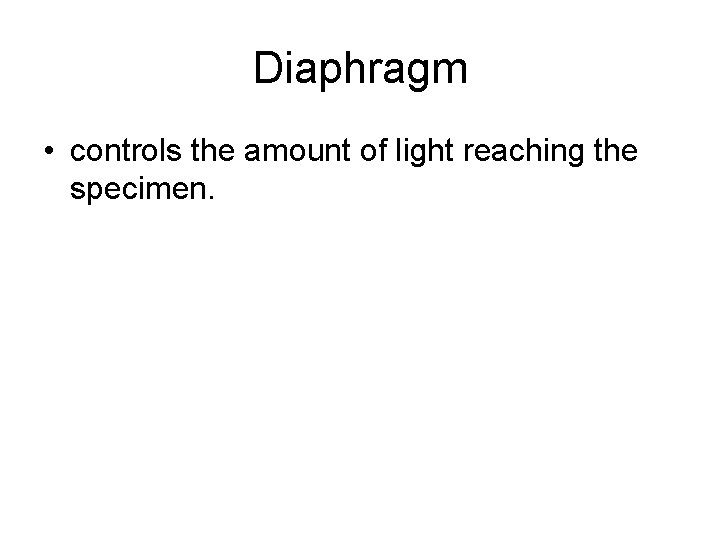

Diaphragm • controls the amount of light reaching the specimen.

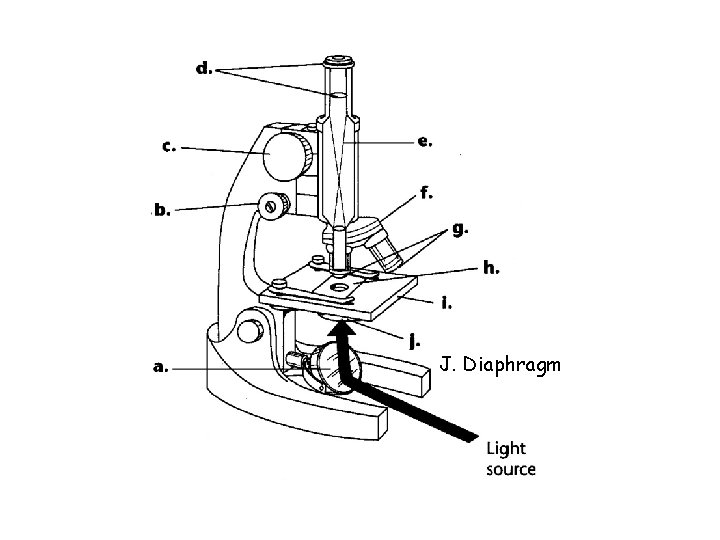

J. Diaphragm

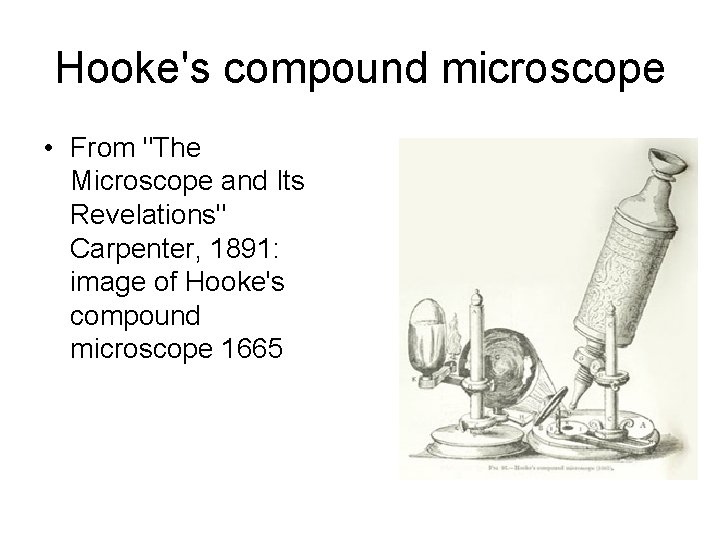

Hooke's compound microscope • From "The Microscope and Its Revelations" Carpenter, 1891: image of Hooke's compound microscope 1665

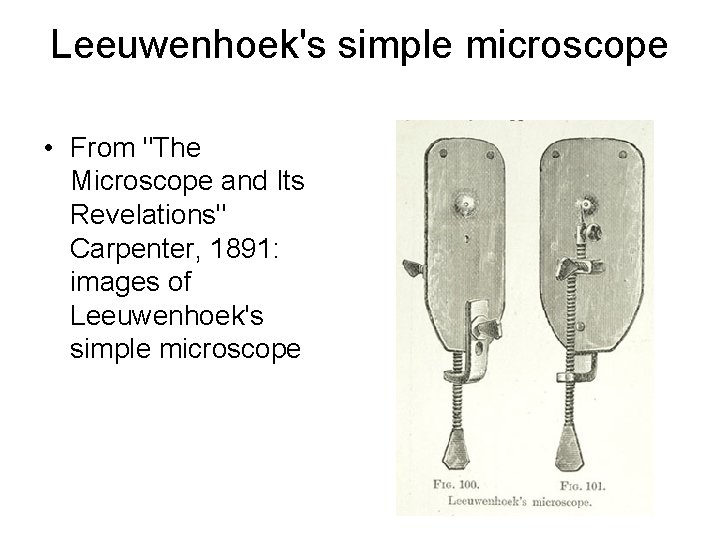

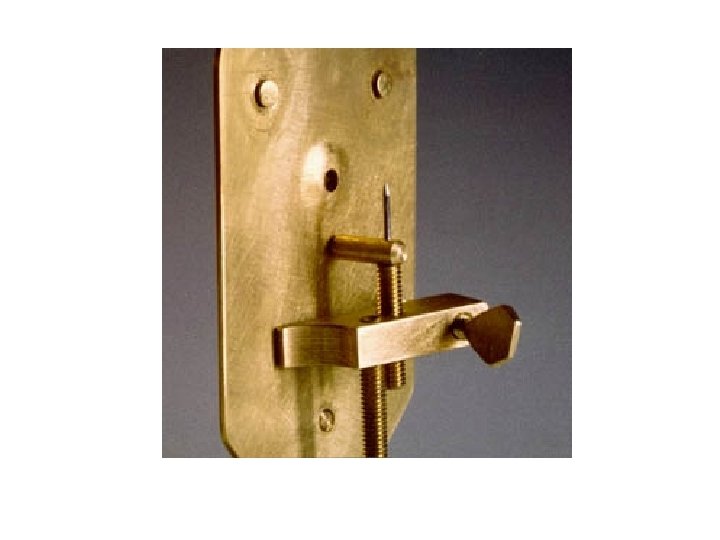

Leeuwenhoek's simple microscope • From "The Microscope and Its Revelations" Carpenter, 1891: images of Leeuwenhoek's simple microscope

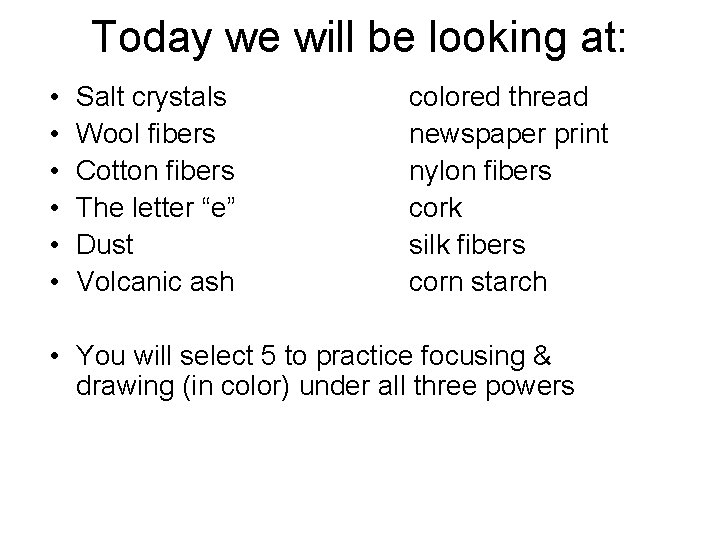

Today we will be looking at: • • • Salt crystals Wool fibers Cotton fibers The letter “e” Dust Volcanic ash colored thread newspaper print nylon fibers cork silk fibers corn starch • You will select 5 to practice focusing & drawing (in color) under all three powers

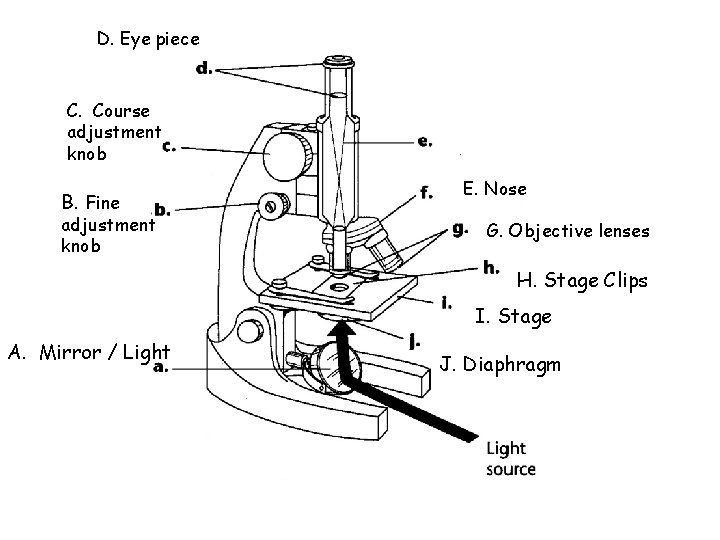

D. Eye piece C. Course adjustment knob B. Fine adjustment knob E. Nose G. Objective lenses H. Stage Clips I. Stage A. Mirror / Light J. Diaphragm
