Partnering QXtend with e. Commerce for a 3 PL Solution Glen Diener – Excel Industries James Jarosz – Rocket Software

About: ¡Manufacturer of Hustler Turf (since 1960) and Big. Dog mowers experiencing significant growth over the past 5 years. ¡Located in Central Kansas (about 40 minutes north of Wichita). ¡More than 1200 U. S. dealers and more than 40 distributors worldwide. ¡Employ approximately 800 people with over 200 QAD users. ¡Have been using QAD since 2005 and currently using QAD 2010 se. ¡Our mission is to provide the most dependable, useful, and timesaving products in turf care, while providing unmatched customer loyalty and the best warranty in the business. © 2015 Rocket Software, Inc. All Rights Reserved. 2

Who is ? 8 0 0 2 2014 20 © 2015 Rocket Software, Inc. All Rights Reserved. 11 3

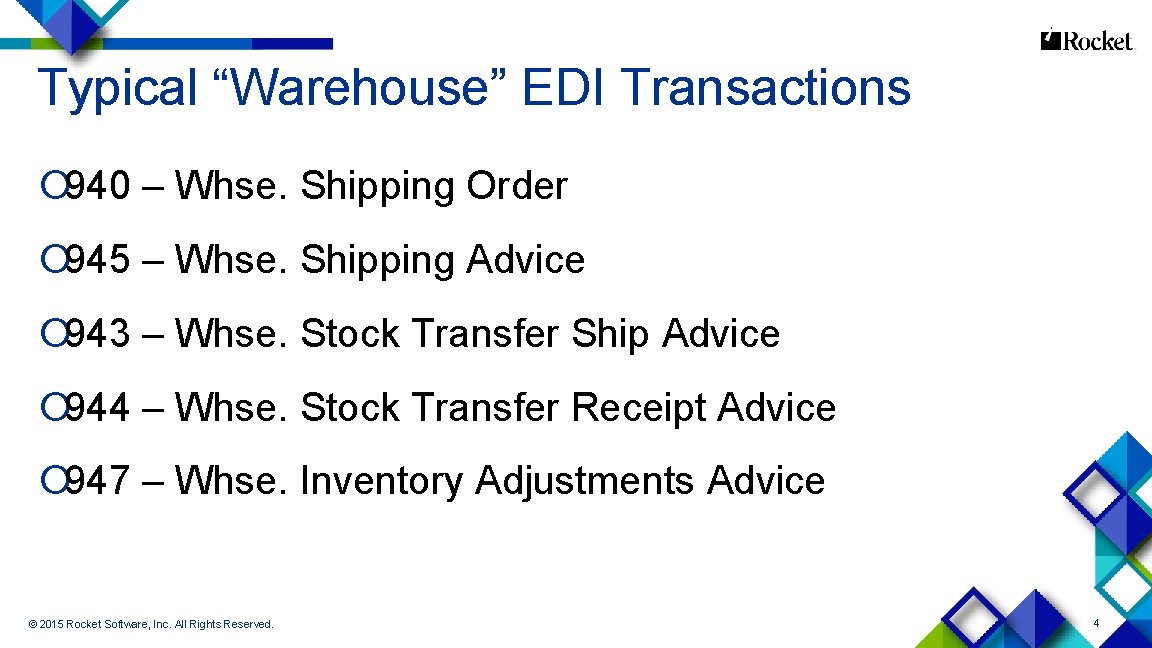

Typical “Warehouse” EDI Transactions ¡ 940 – Whse. Shipping Order ¡ 945 – Whse. Shipping Advice ¡ 943 – Whse. Stock Transfer Ship Advice ¡ 944 – Whse. Stock Transfer Receipt Advice ¡ 947 – Whse. Inventory Adjustments Advice © 2015 Rocket Software, Inc. All Rights Reserved. 4

How does QAD integrate with 3 PL EDI Documents? 5

“Typical” Ordering Process 6

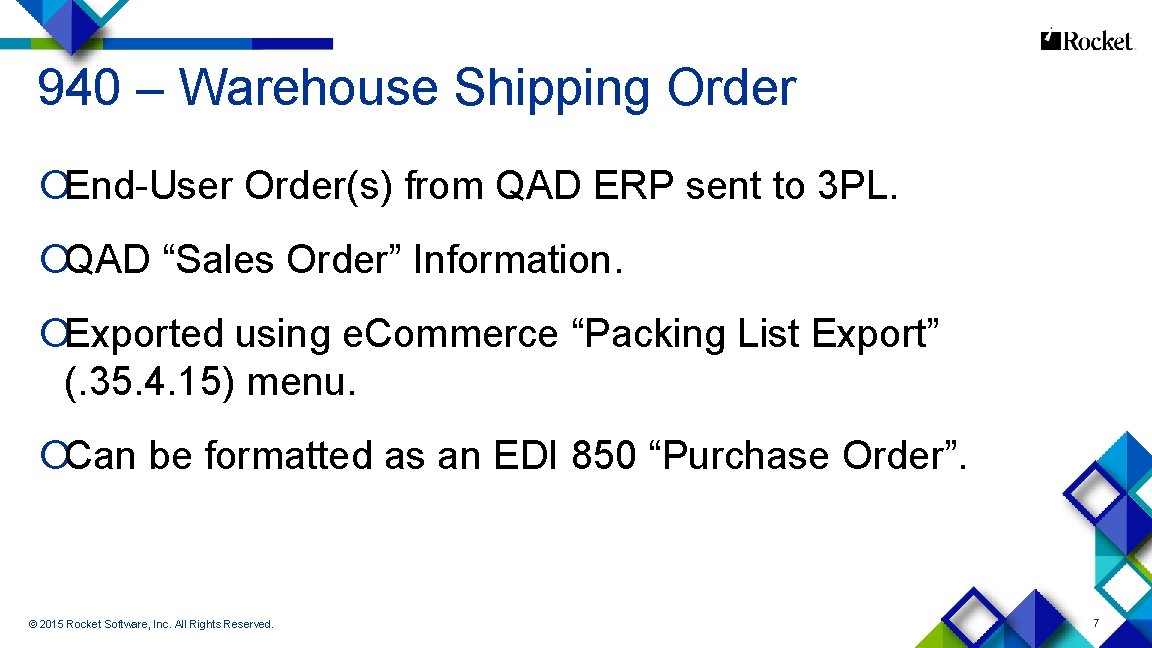

940 – Warehouse Shipping Order ¡End-User Order(s) from QAD ERP sent to 3 PL. ¡QAD “Sales Order” Information. ¡Exported using e. Commerce “Packing List Export” (. 35. 4. 15) menu. ¡Can be formatted as an EDI 850 “Purchase Order”. © 2015 Rocket Software, Inc. All Rights Reserved. 7

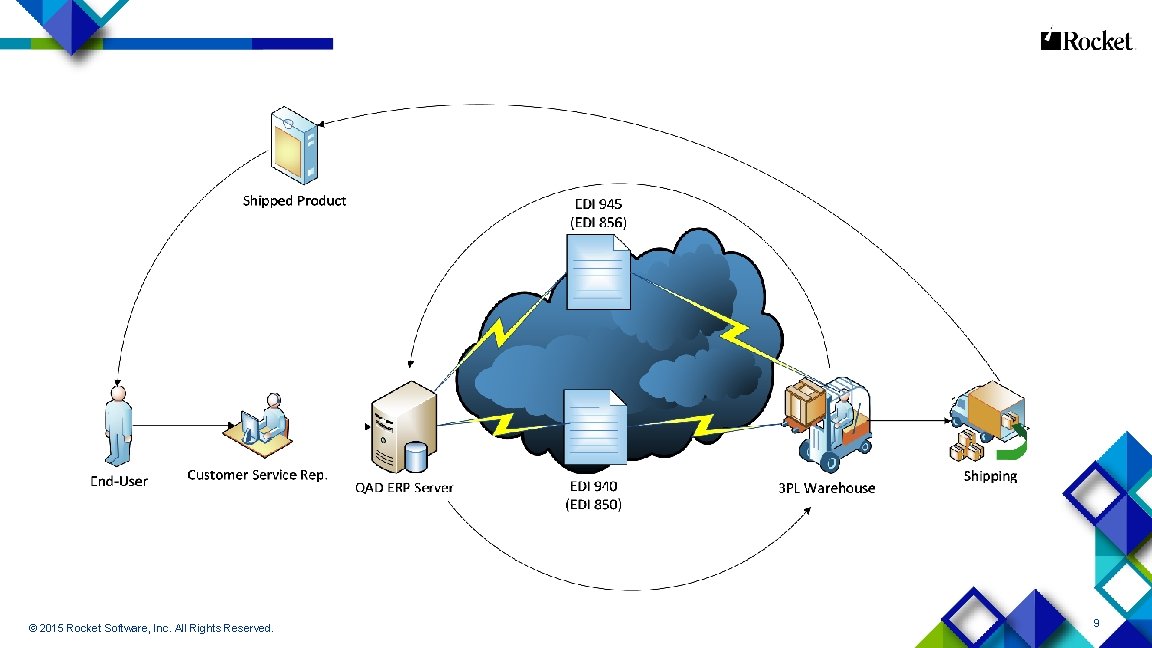

945 – Warehouse Shipping Advice ¡Order Shipment information from 3 PL is sent to QAD ERP System. ¡Imported using e. Commerce “Sales Order Shipper” Gateway. ¡Documents are viewable in Pre-Shipper/Shipper Workbench (. 7. 9. 2). ¡Can be formatted as an EDI 856 “Ship Notice”. © 2015 Rocket Software, Inc. All Rights Reserved. 8

© 2015 Rocket Software, Inc. All Rights Reserved. 9

“Typical” Stocking Process 10

943 – Whse. Stock Transfer Shipment Advice ¡Bulk Stock Order from QAD ERP sent to 3 PL. ¡QAD “Purchase Order” or “Distribution Order” Information. ¡Exported using e. Commerce “Purchase Order Export” (. 35. 4. 9) or “Distribution Order Shipment” (. 35. 4. 18). © 2015 Rocket Software, Inc. All Rights Reserved. 11

944 – Whse. Stock Transfer Receipt Advice ¡Bulk Stock Receipt from 3 PL sent to QAD ERP. ¡Imported using e. Commerce “Purchase Order Receipt” or “Distribution Order Receipt” Gateway. ¡PO Receipt viewable in QAD menu (. 5. 13. 1) ¡DO Receipt viewable in QAD menu (. 12. 15. 20) © 2015 Rocket Software, Inc. All Rights Reserved. 12

© 2015 Rocket Software, Inc. All Rights Reserved. 13

Review: “Typical” Order/Stocking Process Flow ¡Business Documents originate from the Manufacturer and flow to the 3 PL. ¡ 3 PL transmits responding Business Documents. ¡Closed Loop. ¡All transactions can be handed by QAD’s e. Commerce Gateways using Traditional EDI. © 2015 Rocket Software, Inc. All Rights Reserved. 14

Excel Industries 3 PL Process Flow 15

End-User Orders/Receipts ¡Order Processing will follow a “Typical” 3 PL process flow. ¡ 3 PL required the use of the EDI 850 over 940, and 856 over 945 transactions. ¡Chose to create “Shippers” in Pre-Shipper/Shipper Workbench allowing for future EDI business growth. • Shippers will allow for 856 ASN exports to customer who require Ship Notifications via EDI. ¡ 3 PL will invoice Excel for carrier and service fees on a per -shipment basis using an EDI 810 document. © 2015 Rocket Software, Inc. All Rights Reserved. 16

© 2015 Rocket Software, Inc. All Rights Reserved. 17

Review: Excel/3 PL Order Process Flow ¡Orders (EDI 850) and Shipment (EDI 856) documents follow “Typical” QAD/3 PL Document Flow. ¡Added an Invoice (EDI 810) Document from 3 PL to Excel for services rendered. ¡There is no e. Commerce Gateway that can receive the EDI 810 and create a Voucher in QAD’s “Voucher Maintenance” (. 28. 1). © 2015 Rocket Software, Inc. All Rights Reserved. 18

Stocking Orders/Receipts ¡ 3 PL will manage stock levels and purchase and manufactured items via EDI 850 Purchase Order to Excel. ¡Purchase Orders for purchased items need to be entered into QAD and must originate from Excel, not the 3 PL. • Need to create a QAD PO (menu. 5. 7) ¡Purchase Orders for manufactured items need to be entered into QAD • Need to create a QAD Material Order (menu. 10. 7. 1) ¡EDI 944’s will be sent from 3 PL to Excel and imported into QAD to reconcile PO’s (menu. 5. 13. 1) and MO’s (menu. 3. 4. 3). © 2015 Rocket Software, Inc. All Rights Reserved. 19

© 2015 Rocket Software, Inc. All Rights Reserved. 20

Review: Excel/3 PL Bulk Stock Process Flow ¡ALL EDI Business Documents originate from 3 PL. ¡Not a “Closed Loop” Process Flow. ¡Needs PO’s created in QAD for purchasing from external supply chain. ¡Needs MO’s created in QAD for manufactured stocking components. ¡Need to create Receipts in QAD to reconcile PO’s and MO’s. © 2015 Rocket Software, Inc. All Rights Reserved. 21

Review: Excel/3 PL Bulk Stock Process Flow ¡No e. Commerce Gateway that will create a PO in QAD’s “Purchase Order Maintenance” (menu. 5. 7). ¡No e. Commerce Gateway that will create a MO in QAD’s “Material Order Maintenance” (menu. 10. 7. 1) ¡No e. Commerce Gateway that will create a MO Receipt in QAD’s “Transfer with Lot/Serial Change” (menu. 3. 4. 3). © 2015 Rocket Software, Inc. All Rights Reserved. 22

How do we create a QAD Voucher, PO, MO, and MO Receipt using EDI? 23

QXtend! 24

EDI to QXtend Workflow ¡ 3 PL sends EDI Transaction not supported by e. Commerce. ¡Rocket TRUedx receives EDI document and transforms the EDI message to the required QXtend document format. ¡Excel picks up the file, transforms to a QDoc and submits to QXtend Broker. ¡Optionally, TRUedx could create the QDoc from EDI data and directly submit to the QXtend Broker. Due to project time and resource constraints, the implementation was completed with a flat-file to QDoc process. © 2015 Rocket Software, Inc. All Rights Reserved. 25

© 2015 Rocket Software, Inc. All Rights Reserved. 26

Review: EDI to QXtend ¡EDI 810 (Invoice form the 3 PL) creates a QAD Voucher with the maintain. Voucher QDoc. ¡EDI 850 PO (PO for purchased goods) creates a QAD PO with maintain. Purchase. Order QDoc. ¡EDI 850 MO (PO for manufactured goods) creates a QAD Material Order with maintain. Material. Order QDoc. ¡EDI 944 MO (Receipt for manufactured goods) creates an Inventory Transfer with inventory. Transfer QDoc. ¡All of the above are standard UI API adapters provided with QAD’s Qxtend module. © 2015 Rocket Software, Inc. All Rights Reserved. 27

Questions? Glen Diener – gdiener@excelii. com – www. excelii. com James Jarosz – jjarosz@rocketsoftware. com – www. rocketsoftware. com 28
