Ruckus Zone. Flex 7352/72 Midrange APs Dual-band 802. 11 n 2 x 2: 2 Indoor Access Point RUCKUS WIRELESS PROPRIETARY AND CONFIDENTIAL
Zone. Flex 7352 & 7372 in a nutshell § § 6. 2” (15. 8 cm) 1. 6” (4 cm) 6. 2” (15. 8 cm) 802. 11 abgn 2 x 2: 2 Access Points • ZF 7352: Single Band (2. 4 GHz) • ZF 7372: Dual Band Concurrent • ZF 7372 -E: External Antenna Version Mobile ready Polarization Diversity (PD-MRC) Spectrum Analysis Advanced location capabilities Beam. Flex adaptive antennas, 128 patterns per band § Advanced 802. 11 n features: STBC, LDPC, MLD, Tx. BF, A-MPDU & A-MSDU Packet Aggregation § Supports up to 512 clients per 7372 § Industry standard 802. 3 af/at or 12 VDC § Mounting support for acoustical ceiling, hard wall/ceiling, and accessory bracket featuring pad-lock security. Pin-hole security mechanism for wall mount. § Software support: ZD/FM 9. 5. 1
Indoor 2 -stream Dual Band APs 7372 7363 802. 11 abgn 2 X 2: 2 Dual-band conc. Antenna Technology • Beam. Flex • Polarization Diversity • Patterns (2. 4 / 5 GHz) Yes 128 / 128 Yes No 256 / 64 Max EIRP (2. 4 / 5 GHz) 32 / 30 d. Bm 29 / 27 d. Bm Yes No Wi-Fi Co-location filter Advanced chipset features: • • • STBC LDPC ML Decoding Tx. BF Advanced Packet aggregation Spectrum Analysis RTT-based Client Distance Measurement Yes Yes Yes (Release 9. 6) Yes No No No Supported No Ethernet 1 x 10/1000 1 x 10/100/1000 2 x 10/100 Size 6. 2 x 1. 6 in 7 x 1. 4 in 0. 77 lbs (. 35 g) 0. 88 lbs (. 4 kg) Weight
Improvements over ZF 7363 (1) Product Improvement User Benefit Dual polarity antennas and PD-MRC support Performance robustness regardless of client device orientation Increased signal strength received by client Improved client downlink performance Spectrum Analysis Ability to measure RF energy across frequencies Spectrum Analysis feature in release 9. 6 – graphic of RF power versus frequency RTT-Based Client Distance Measurement Ability to measure precise distance to clients Support for Network Based Positioning* Polarization Diversity Transmit Beamforming Requires future software support
Improvements over ZF 7363 (2) Product Improvement User Benefit Space Time Block Coding (STBC) Optimized spreading of spatial streams across MIMO antennas Low Density Parity Check (LDPC) Improved PHY error detection & correction Improved client uplink performance Improved receive signal demodulation Improved client uplink performance Increased MAC-layer link efficiency Improved client downlink performance Maximum Likelihood Decoding (MLD) Packet Aggregation Improved client downlink performance

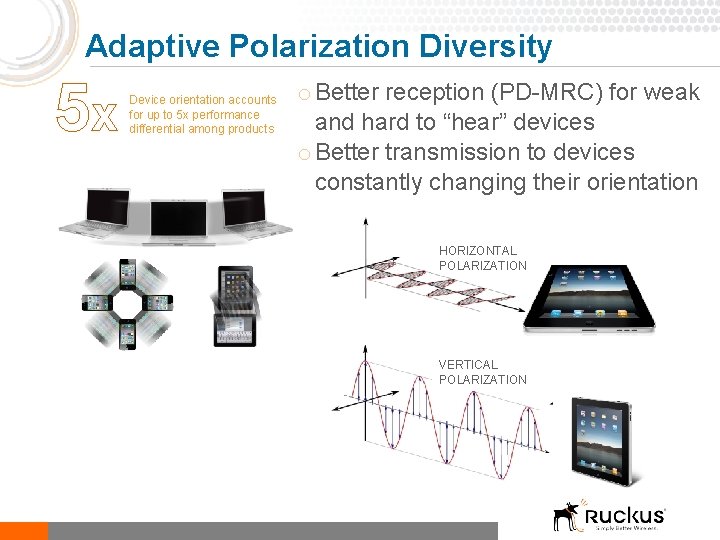

Adaptive Polarization Diversity 5 x Device orientation accounts for up to 5 x performance differential among products o Better reception (PD-MRC) for weak and hard to “hear” devices o Better transmission to devices constantly changing their orientation HORIZONTAL POLARIZATION VERTICAL POLARIZATION
Extending Performance at Range Adaptive Antennas and Transmit Beamforming Working Together 3 d. B Classic Beamforming 9 d. B 6 d. B Ruckus Beam. Flex™ Optimizing phase/signal-gain Optimizing throughput “wasting” a radio-chain Adaptive antenna (and additive to Tx. BF) Client dependent (one-hand clapping) Works with all 802. 11 clients Wasting energy Focused energy No interference mitigation Interference mitigation (“nulls”)
Competition 7372 Aruba 105 Cisco 1602 i Aerohive AP 121 802. 11 a/b/g/n 2 x 2: 2 Dual Band Concurrent 802. 11 a/b/g/n 3 x 3: 2 Dual Band Concurrent 802. 11 a/b/g/n 2 x 2: 2 Dual Band Concurrent 600 Mbps Transmit power per chain (2. 4 / 5 GHz) 23 d. Bm / 21 d. Bm 23 d. Bm / 23 d. Bm 22 d. Bm / 22 d. Bm 19 d. Bm / 21 d. Bm Rx sensitivity (2. 4 / 5 GHz) -101 d. Bm / -97 d. Bm -96 d. Bm / -96 d. Bm -101 d. Bm / -92 d. Bm -100 d. Bm / -95 d. Bm Antenna gain (2. 4 / 5 GHz) • Physical gain • Statistical Beam. Flex gain • PD-MRC gain 3. 0 / 3. 0 d. Bi 4. 0 / 4. 0 d. Bi 3. 0 / 4. 5 d. Bi 0 / 0 d. Bi 4. 0 / 4. 0 d. Bi 0 / 0 d. Bi Omni switched reflector 128 Yes Omni 1 No Wi. Fi Max Data Rate Antennas • Type • Patterns per band • Polarization Diversity Ethernet Ports Power options Max Power Draw Dimensions (1) 10/1000 + Po. E (1) 10/100/1000 + Po. E (1) RJ 45 console port 12 V wall adapter 802. 3 af Po. E 48 V wall adapter 802. 3 af Po. E 10 W 12. 5 W 12. 95 W Not specified (8 W typical) 160 x 40 mm 132 x 135 x 45 mm 221 x 47 mm 170 x 41 mm
