PARTICULATE AIR POLLUTION AND MYOCARDIAL INFARCTION: EXPLAINING THE CONNECTION Howard M. Kipen, MD, MPH NJ Clean Air Council April 13, 2005

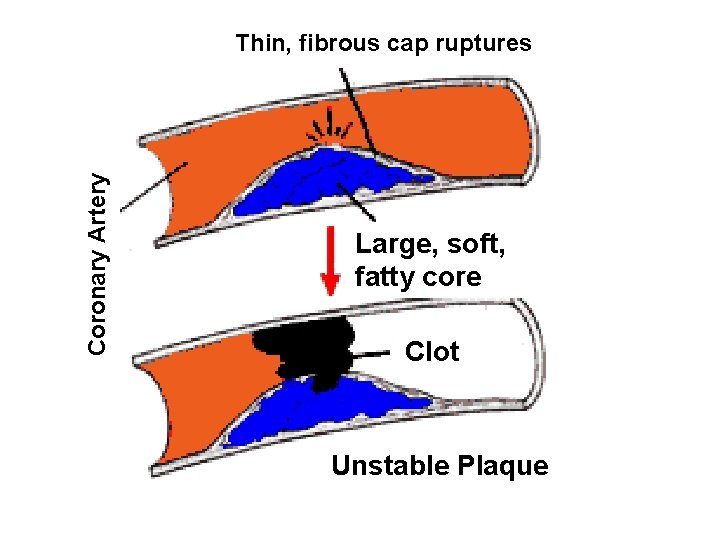

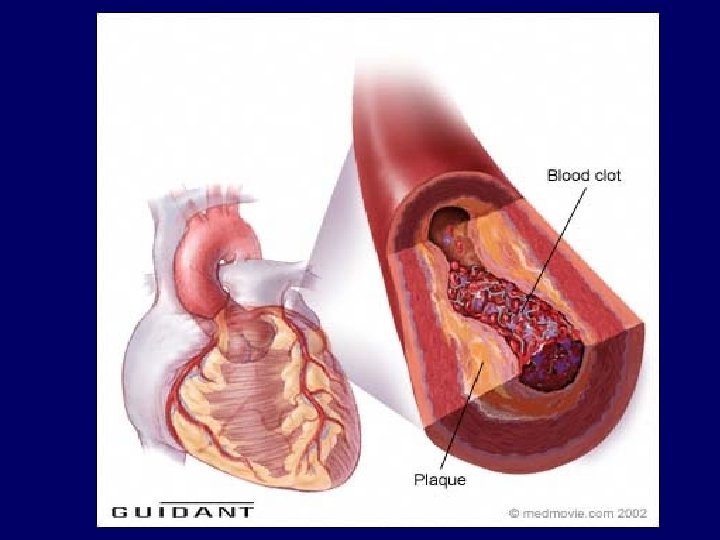

Coronary Artery Thin, fibrous cap ruptures Large, soft, fatty core Clot Unstable Plaque

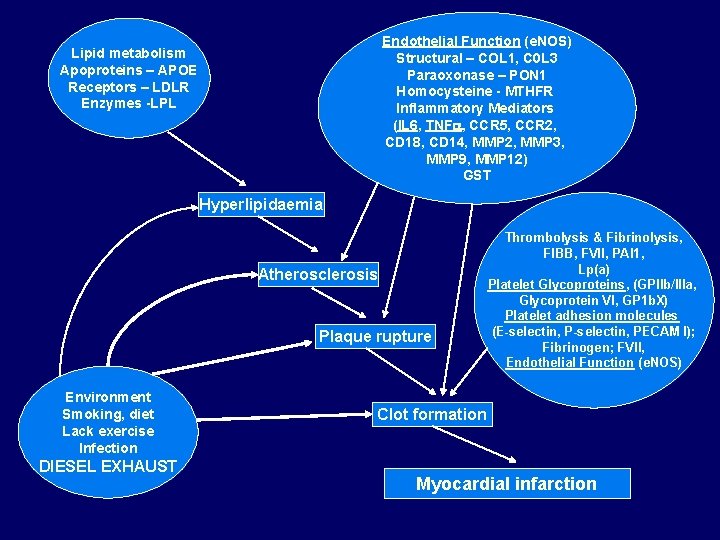

Endothelial Function (e. NOS) Structural – COL 1, C 0 L 3 Paraoxonase – PON 1 Homocysteine - MTHFR Inflammatory Mediators (IL 6, TNF , CCR 5, CCR 2, CD 18, CD 14, MMP 2, MMP 3, MMP 9, MMP 12) GST Lipid metabolism Apoproteins – APOE Receptors – LDLR Enzymes -LPL Hyperlipidaemia Atherosclerosis Plaque rupture Environment Smoking, diet Lack exercise Infection DIESEL EXHAUST Thrombolysis & Fibrinolysis, FIBB, FVII, PAI 1, Lp(a) Platelet Glycoproteins, (GPllb/llla, Glycoprotein VI, GP 1 b. X) Platelet adhesion molecules (E-selectin, PECAM I); Fibrinogen; FVII, Endothelial Function (e. NOS) Clot formation Myocardial infarction

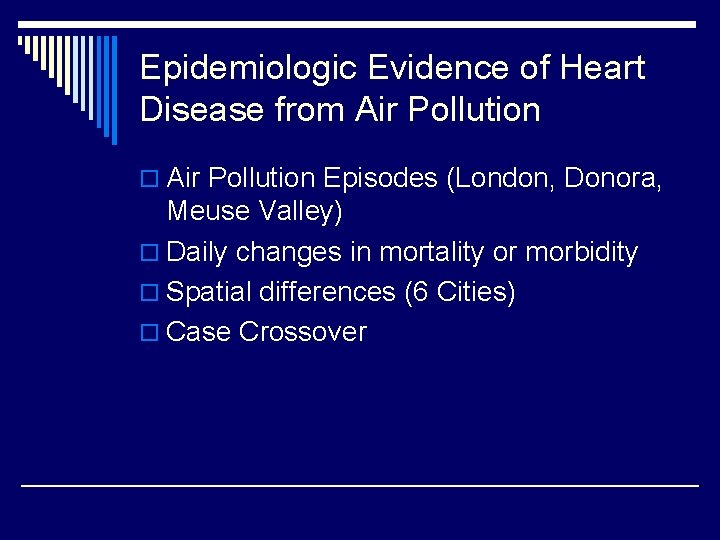

Epidemiologic Evidence of Heart Disease from Air Pollution o Air Pollution Episodes (London, Donora, Meuse Valley) o Daily changes in mortality or morbidity o Spatial differences (6 Cities) o Case Crossover

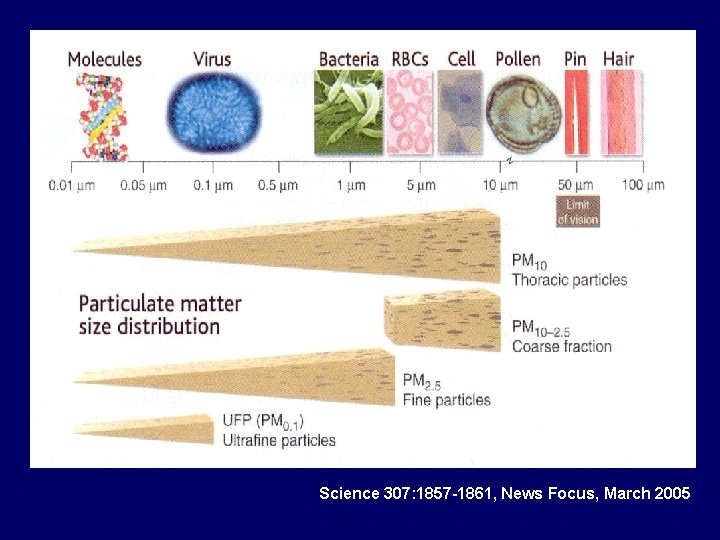

Science 307: 1857 -1861, News Focus, March 2005

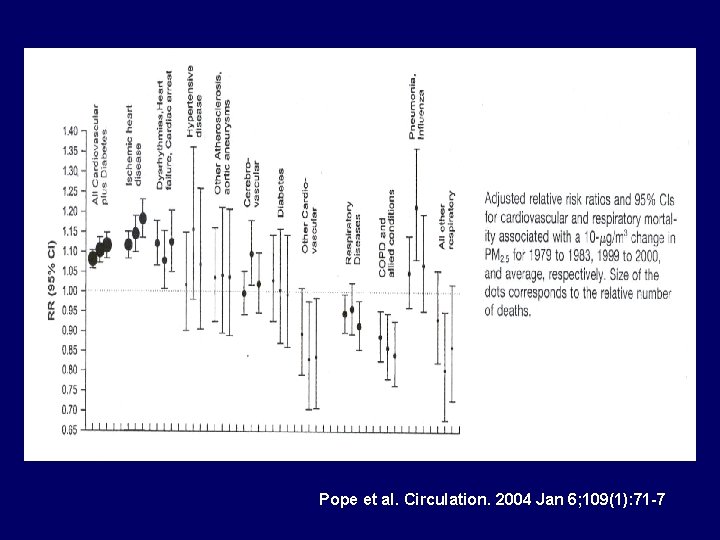

Pope et al. Circulation. 2004 Jan 6; 109(1): 71 -7

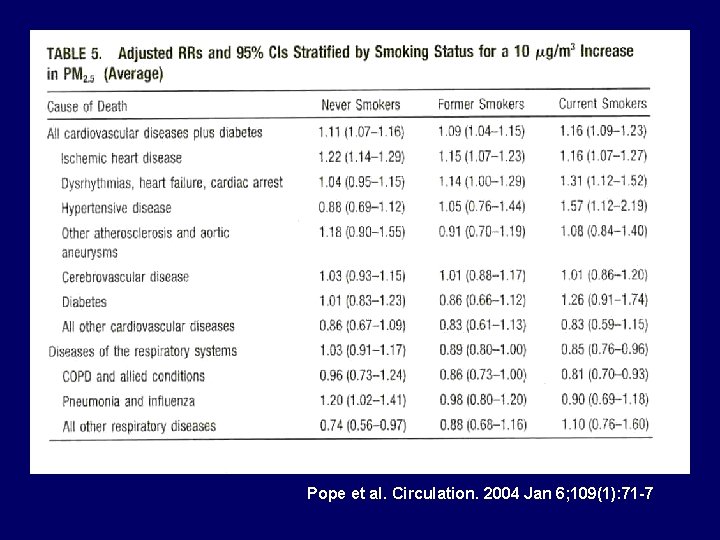

Pope et al. Circulation. 2004 Jan 6; 109(1): 71 -7

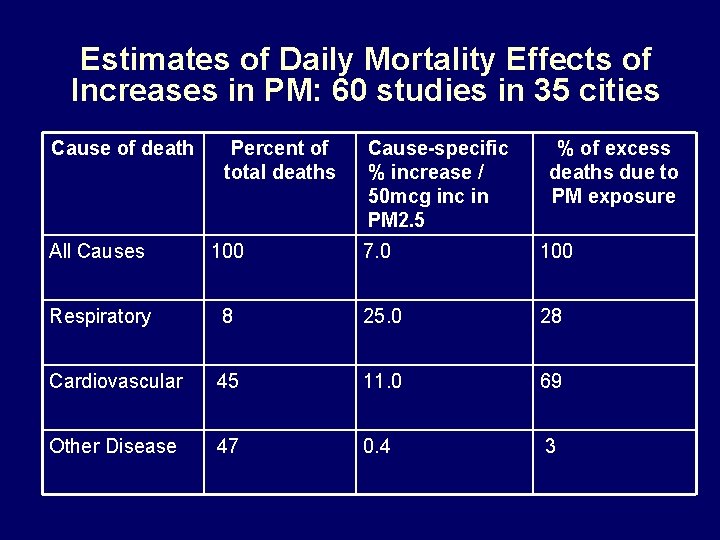

Estimates of Daily Mortality Effects of Increases in PM: 60 studies in 35 cities Cause of death Percent of total deaths Cause-specific % increase / 50 mcg inc in PM 2. 5 % of excess deaths due to PM exposure All Causes 100 7. 0 100 Respiratory 8 25. 0 28 Cardiovascular 45 11. 0 69 Other Disease 47 0. 4 3

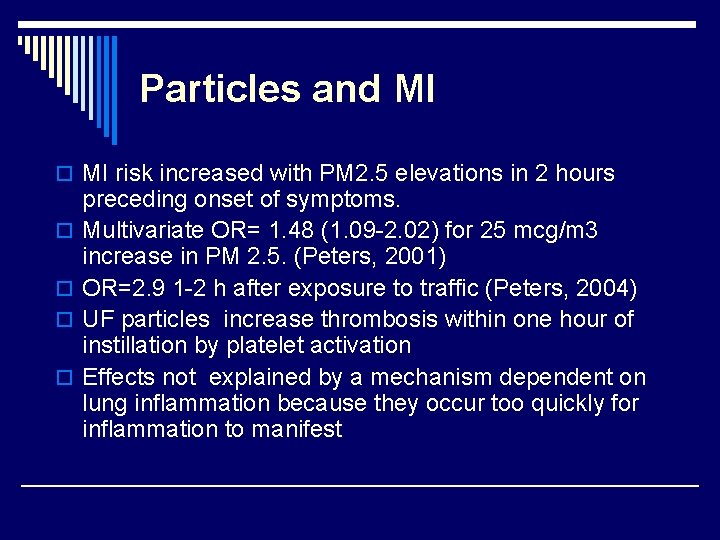

Particles and MI o MI risk increased with PM 2. 5 elevations in 2 hours o o preceding onset of symptoms. Multivariate OR= 1. 48 (1. 09 -2. 02) for 25 mcg/m 3 increase in PM 2. 5. (Peters, 2001) OR=2. 9 1 -2 h after exposure to traffic (Peters, 2004) UF particles increase thrombosis within one hour of instillation by platelet activation Effects not explained by a mechanism dependent on lung inflammation because they occur too quickly for inflammation to manifest

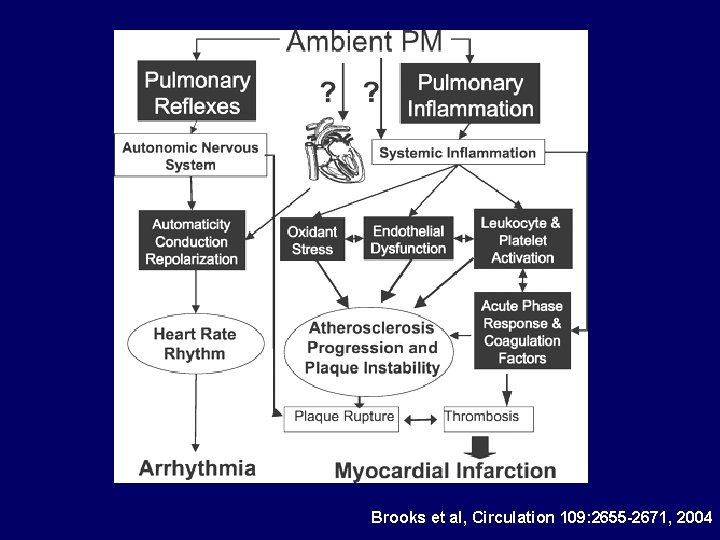

Brooks et al, Circulation 109: 2655 -2671, 2004

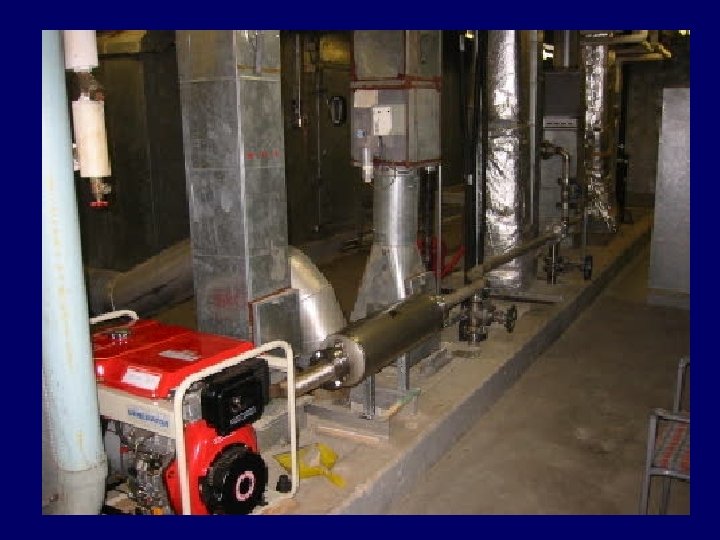

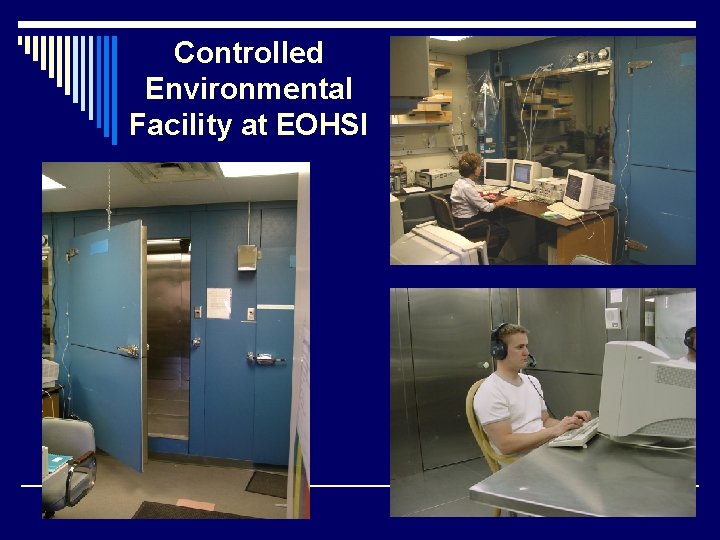

Controlled Environmental Facility at EOHSI

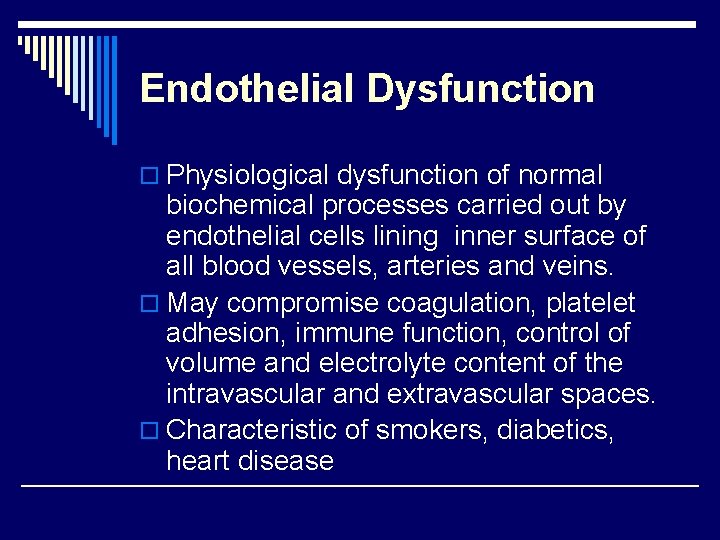

Endothelial Dysfunction o Physiological dysfunction of normal biochemical processes carried out by endothelial cells lining inner surface of all blood vessels, arteries and veins. o May compromise coagulation, platelet adhesion, immune function, control of volume and electrolyte content of the intravascular and extravascular spaces. o Characteristic of smokers, diabetics, heart disease

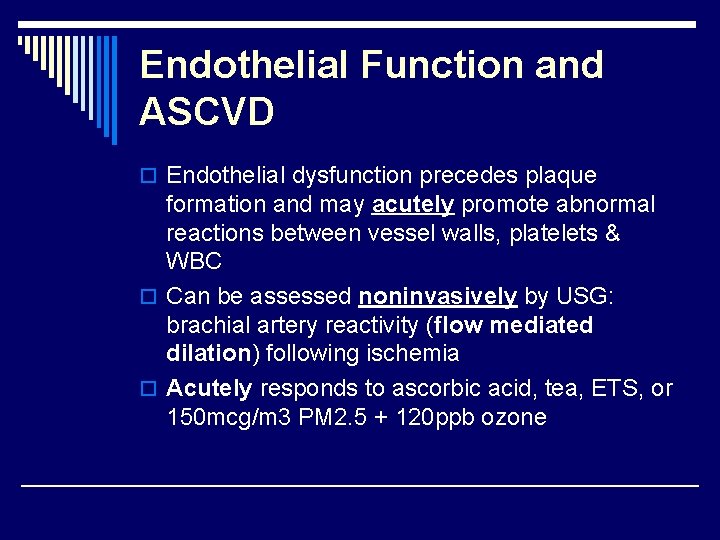

Endothelial Function and ASCVD o Endothelial dysfunction precedes plaque formation and may acutely promote abnormal reactions between vessel walls, platelets & WBC o Can be assessed noninvasively by USG: brachial artery reactivity (flow mediated dilation) following ischemia o Acutely responds to ascorbic acid, tea, ETS, or 150 mcg/m 3 PM 2. 5 + 120 ppb ozone

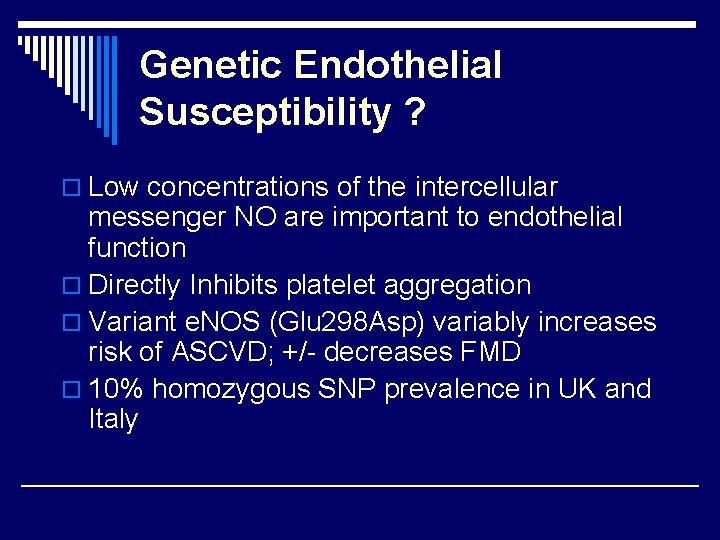

Genetic Endothelial Susceptibility ? o Low concentrations of the intercellular messenger NO are important to endothelial function o Directly Inhibits platelet aggregation o Variant e. NOS (Glu 298 Asp) variably increases risk of ASCVD; +/- decreases FMD o 10% homozygous SNP prevalence in UK and Italy

RESTING PLATELET ACTIVATED PLATELET PAC 1 Fibrinogen receptors granul e P-selectin GP 11 b-IIIa complex Thrombin P-selectin GPIV GP 11 b-IIIa complex GP 1 b-IX complex GPIV GP 1 b-IX complex

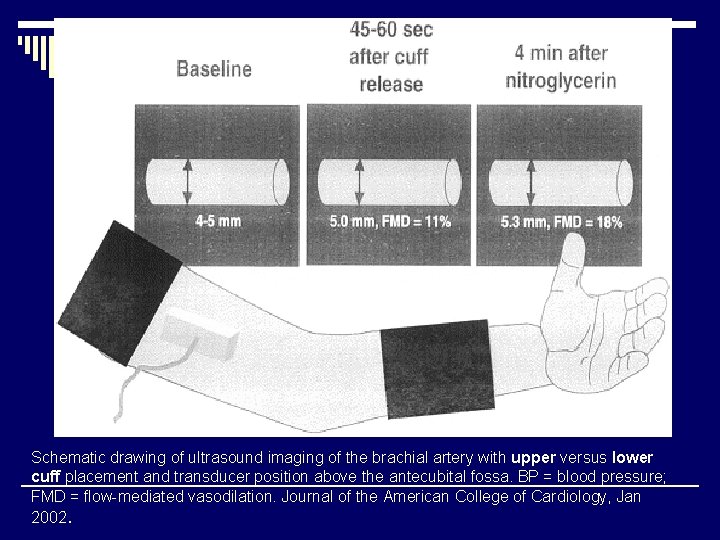

Schematic drawing of ultrasound imaging of the brachial artery with upper versus lower cuff placement and transducer position above the antecubital fossa. BP = blood pressure; FMD = flow-mediated vasodilation. Journal of the American College of Cardiology, Jan 2002.

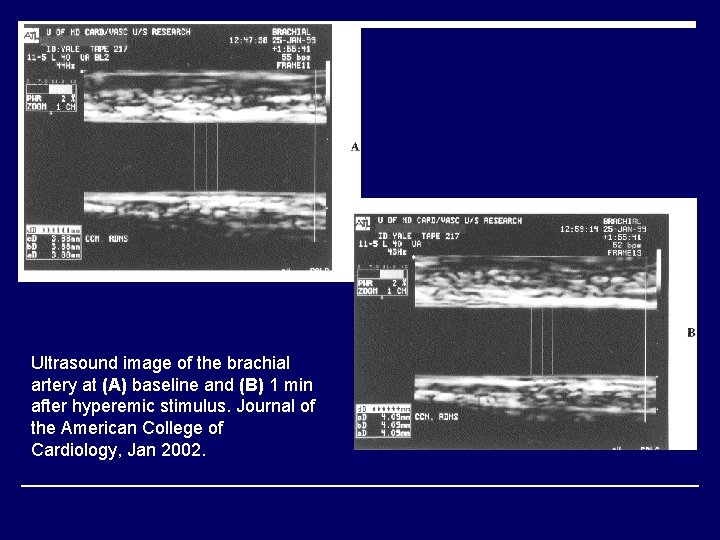

Ultrasound image of the brachial artery at (A) baseline and (B) 1 min after hyperemic stimulus. Journal of the American College of Cardiology, Jan 2002.

Specific Aims of 4 Year EPA Study o 50 healthy, young, non-smoking volunteers o Two hour exposure to freshly generated aerosols (200 mcg/m 3) o Measure endothelial function as brachial artery reactivity change o Measure platelet activation markers o independent of pulmonary inflammation o Determine if individuals with genetically increased risk for ASCVD and endothelial dysfunction exhibit enhanced sensitivity for above endpoints

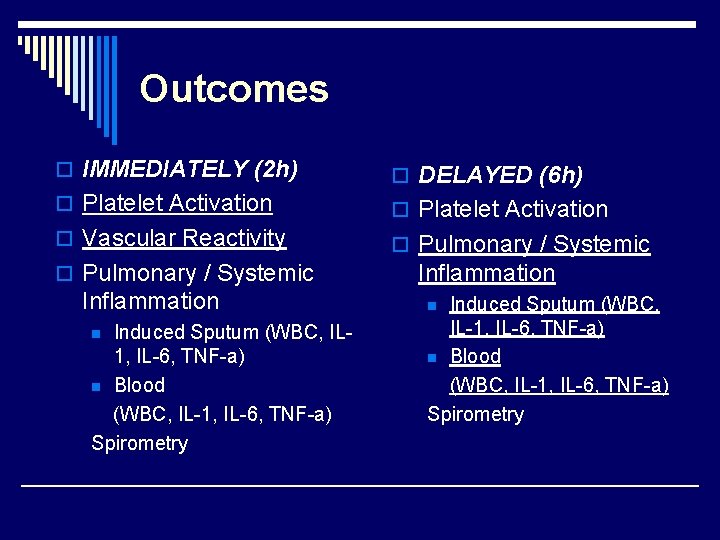

Outcomes o IMMEDIATELY (2 h) o DELAYED (6 h) o Platelet Activation o Vascular Reactivity o Pulmonary / Systemic Inflammation Induced Sputum (WBC, IL 1, IL-6, TNF-a) n Blood (WBC, IL-1, IL-6, TNF-a) Spirometry n Inflammation Induced Sputum (WBC, IL-1, IL-6, TNF-a) n Blood (WBC, IL-1, IL-6, TNF-a) Spirometry n

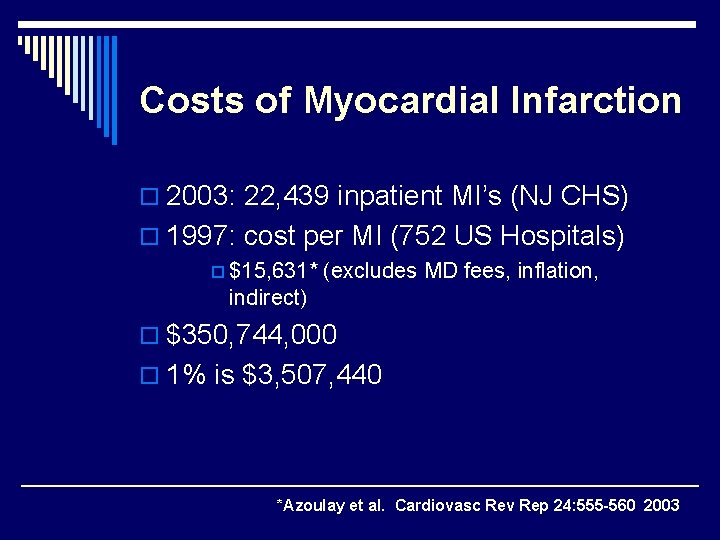

Costs of Myocardial Infarction o 2003: 22, 439 inpatient MI’s (NJ CHS) o 1997: cost per MI (752 US Hospitals) p $15, 631* (excludes MD fees, inflation, indirect) o $350, 744, 000 o 1% is $3, 507, 440 *Azoulay et al. Cardiovasc Rev Rep 24: 555 -560 2003

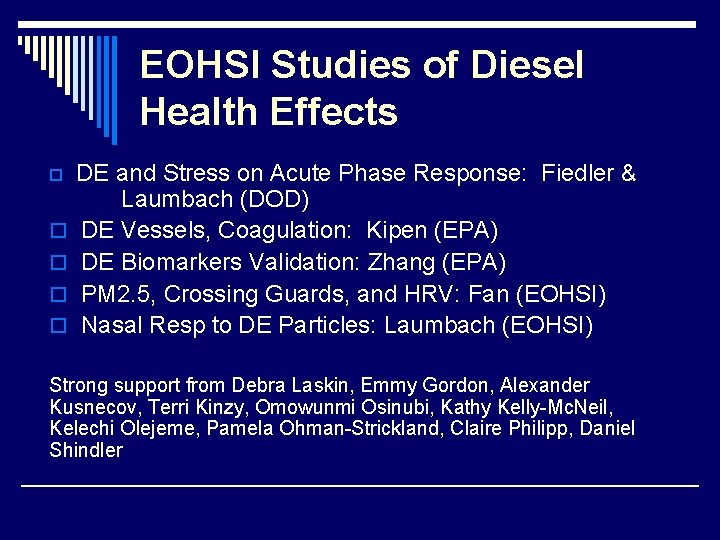

EOHSI Studies of Diesel Health Effects o o o DE and Stress on Acute Phase Response: Fiedler & Laumbach (DOD) DE Vessels, Coagulation: Kipen (EPA) DE Biomarkers Validation: Zhang (EPA) PM 2. 5, Crossing Guards, and HRV: Fan (EOHSI) Nasal Resp to DE Particles: Laumbach (EOHSI) Strong support from Debra Laskin, Emmy Gordon, Alexander Kusnecov, Terri Kinzy, Omowunmi Osinubi, Kathy Kelly-Mc. Neil, Kelechi Olejeme, Pamela Ohman-Strickland, Claire Philipp, Daniel Shindler
