Participatory Backcasting Approach in Energy Planning An Experience
Participatory Backcasting Approach in Energy Planning –An Experience from the City of Niš Marija Zivkovic Assistant professor University of Belgrade-Faculty of mining and geology The 7 th International Scientific Conference on Energy and Climate Change, Athens, 8 -10 October, 2014.
Three classes of scenarios • What will happen? • What could happen? • What should happen?

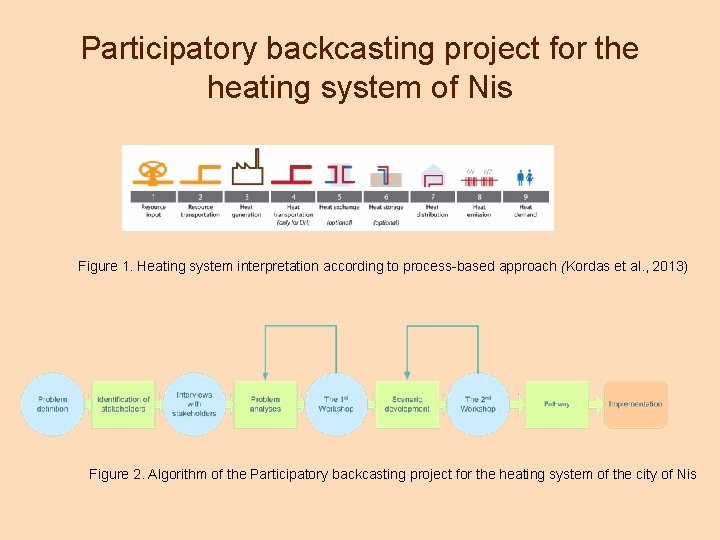

Participatory backcasting project for the heating system of Nis Figure 1. Heating system interpretation according to process-based approach (Kordas et al. , 2013) Figure 2. Algorithm of the Participatory backcasting project for the heating system of the city of Nis
Participatory backcasting project for the heating system of Nis WORKSHOP I • • Current state overview Problem analyses, Visioning (consensus among stakeholders)- qualitative description Criteria determination and ranking (consensus within groups) Inventory of drivers and their influence to the future system, Determination of key uncertainties, Stories of the future, by groups that consists from stakeholders with the same roles (for example: consumers, local authorities, producers, etc…) WORKSHOP II • • • Weighting of criteria, Selection of two key uncertainties, Scenarios testing against criteria, Robustness test, Scenario(s) selection, Pathway development.
Current state overview and problem analyses Figure 3. Structure of final energy consumption for the heat demand in the household sector in 2010. (Sustainable Energy Action Plan for the City of Nis) Figure 4. Structure of final energy consumption for the heat demand in the public sector in 2010. (Sustainable Energy Action Plan for the City of N
Household sector 90, 3 kg CO 2/m 2

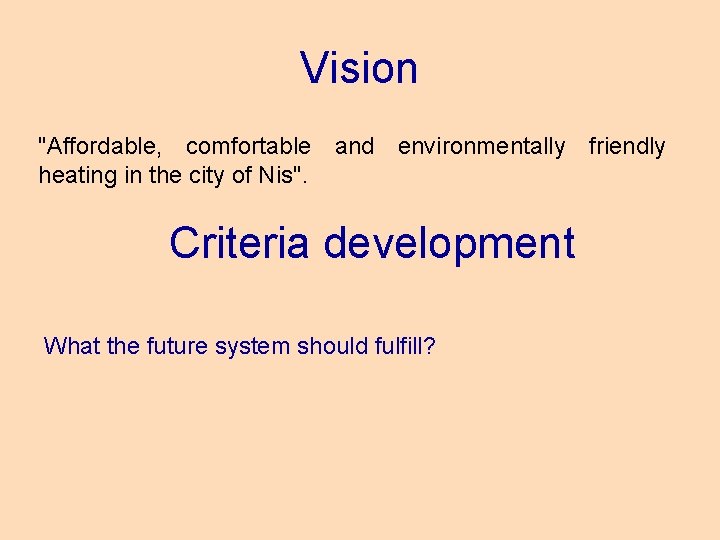

Vision "Affordable, comfortable and environmentally friendly heating in the city of Nis". Criteria development What the future system should fulfill?
Criteria with subcriteria
Criteria ranking CRITERIA Group 1 Group 2 Group 3 Reliability and availability 0, 35 0, 30 Affordability 0, 25 Environmental acceptance (environmentally friendly) 0, 10 0, 15 0, 20 Comfortable 0, 10 0, 20 0, 10 Energy efficiency 0, 20 0, 15

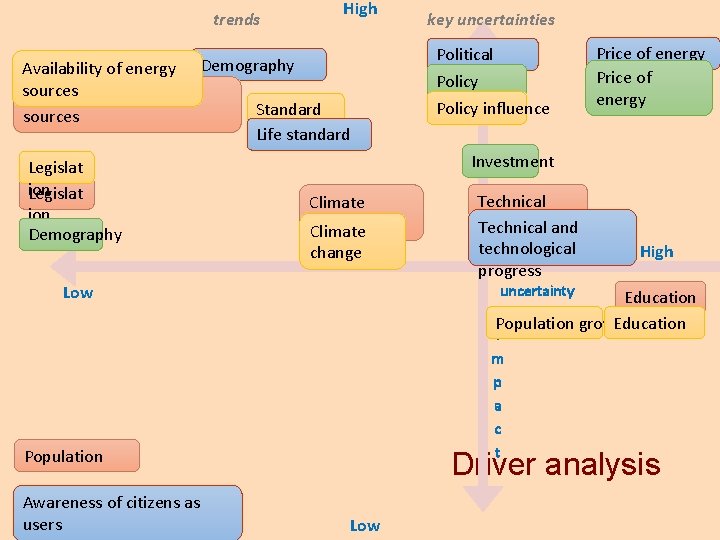

trends Availability of energy sources Legislat ion Demography High Demography Standard of life Life standard Political situation Policy influence Price of energy Investment Climate change Technical Solutions Technical and technological progress High uncertainty Low Education Population growth I m p a c t Population Awareness of citizens as users key uncertainties Driver analysis Low
Options for solutions 1. Level of centralization Individual solutions 2. Basic/Input resources Fossile fuels Expansion of DH - 100% multystory+privat (Fully connected system) Renewable resources 3. Advancement of technology Low tech High (smart) technology 4. Energy efficiency of buildings Low Passive buildings, 5. Natural-focus Not focused Fully focused

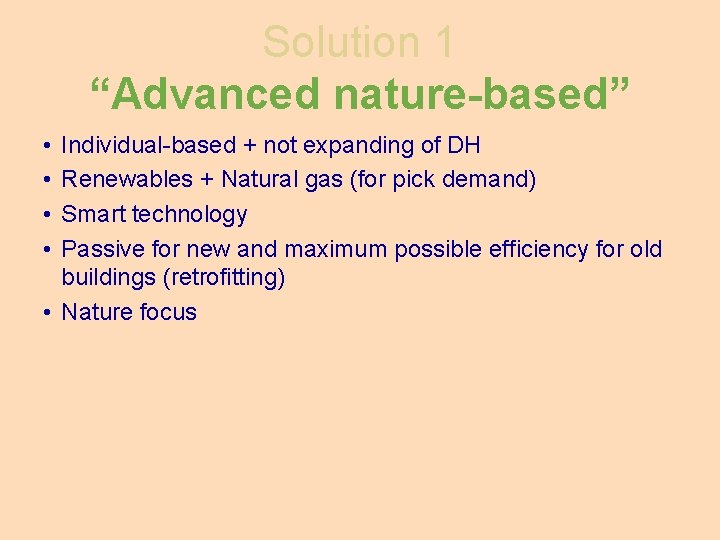

Solution 1 “Advanced nature-based” • • Individual-based + not expanding of DH Renewables + Natural gas (for pick demand) Smart technology Passive for new and maximum possible efficiency for old buildings (retrofitting) • Nature focus
Solution 2 “Advanced renewable-based” • No nature focus • Passive for new and maximum possible efficiency for old • Smart technology • Renewables + Natural gas (for pick demand) • Individual-based (no expanding DH)
Solution 3 “DH expansion + building efficiency” • No nature focus • Passive for new and maximum possible efficiency for old • More advanced technology introduced (co-generation, etc) • Renewables (waste incineration+biomass CHE, heat pump on geothermal and waste water, solar accumulators)+natural gas (pick demand) • DH expansion
Solution 4 “DH expansion based on renewables” • No nature focus • Efficiency of building is almost the same as it is now (Example: new buildings – standard “C”, minor improvements for old buildings) • More advanced technology introduced (co-generation etc) • Renewables-based Examples: waste incineration & biomass-based CHE, heat pump on geothermal and waste water, solar accumulators + natural gas for pick demand • DH expansion and connection to the maximum (covers even private sector of the city)

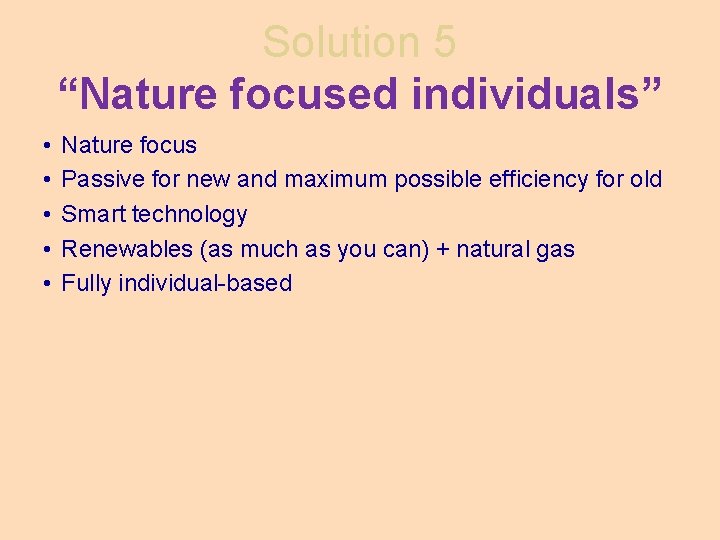

Solution 5 “Nature focused individuals” • • • Nature focus Passive for new and maximum possible efficiency for old Smart technology Renewables (as much as you can) + natural gas Fully individual-based

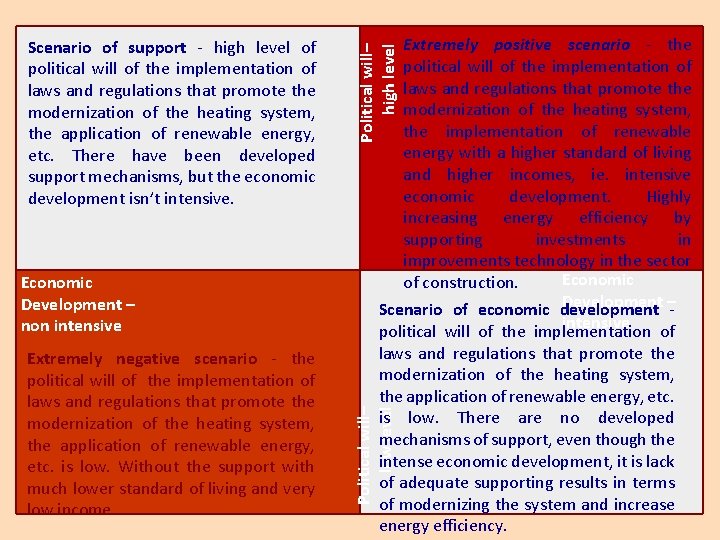

Economic Development – non intensive Extremely negative scenario - the political will of the implementation of laws and regulations that promote the modernization of the heating system, the application of renewable energy, etc. is low. Without the support with much lower standard of living and very low income. Political will– high level Extremely positive scenario - the political will of the implementation of laws and regulations that promote the modernization of the heating system, the implementation of renewable energy with a higher standard of living and higher incomes, ie. intensive economic development. Highly increasing energy efficiency by supporting investments in improvements technology in the sector Economic of construction. Development –Scenario of economic development intensive political will of the implementation of laws and regulations that promote the modernization of the heating system, the application of renewable energy, etc. is low. There are no developed mechanisms of support, even though the intense economic development, it is lack of adequate supporting results in terms of modernizing the system and increase energy efficiency. Political will– low level Scenario of support - high level of political will of the implementation of laws and regulations that promote the modernization of the heating system, the application of renewable energy, etc. There have been developed support mechanisms, but the economic development isn’t intensive.
S 2 Politička volja – visok nivo S 1 S 4 Ekonomski razvoj– slab Politička volja – nizak nivo Group 3 S 3 Ekonomski razvoj– intenzivan S 5
Present and future Figure 5. Comparison of energy demand for heating in 2030, by scenario
Thank you for attention!
