Partial Differential Equation PDE An ordinary differential equation

Partial Differential Equation (PDE) An ordinary differential equation is a differential equation that has only one independent variable. For example, the angular position of a swinging pendulum as a function of time: q=q(t). However, most physical systems cannot be modeled by an ordinary differential equation because they usually depends on more than one variables. A differential equation involving more than one independent variables is called a partial differential equation. For example, the equations governing tidal waves should deal with the description of wave propagation varying both in time and space. Wfront=Wfront(x, y, z, t).

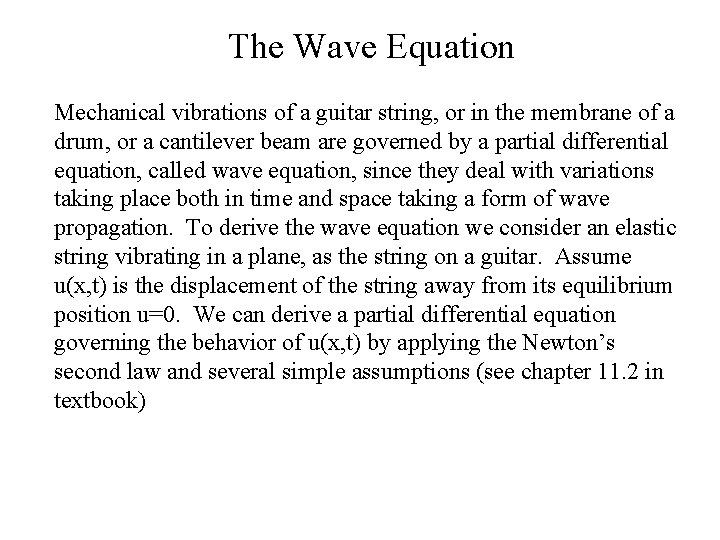

The Wave Equation Mechanical vibrations of a guitar string, or in the membrane of a drum, or a cantilever beam are governed by a partial differential equation, called wave equation, since they deal with variations taking place both in time and space taking a form of wave propagation. To derive the wave equation we consider an elastic string vibrating in a plane, as the string on a guitar. Assume u(x, t) is the displacement of the string away from its equilibrium position u=0. We can derive a partial differential equation governing the behavior of u(x, t) by applying the Newton’s second law and several simple assumptions (see chapter 11. 2 in textbook)

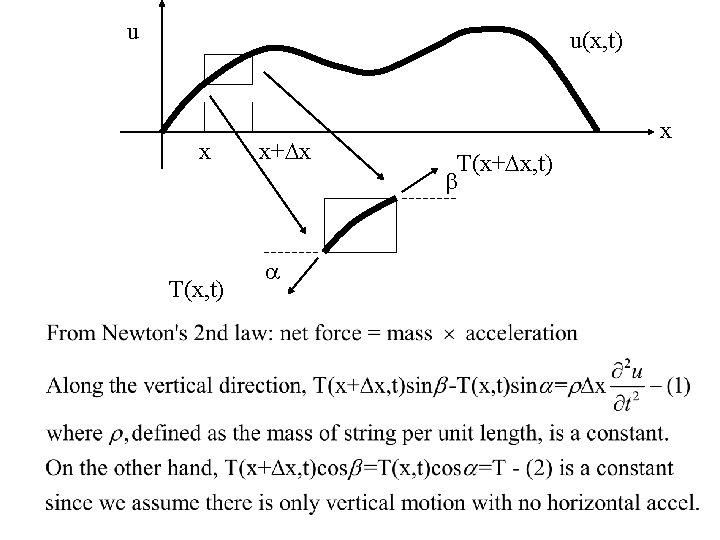

u u(x, t) x T(x, t) x+Dx a x T(x+Dx, t) b
