PART V INSPECTION AND MAINTENANCE OF P WAY
- Slides: 48
PART V - INSPECTION AND MAINTENANCE OF P. WAY 5. TOOLS & EQUIPMENTS(8 Periods) 5. 1 Measuring tools, Pway inspection kit & its demonstration (6 Periods) 5. 2 Regular Maintenance Tools. (2 Periods)
5. 1 Measuring tools, Pway inspection kit & its demonstration

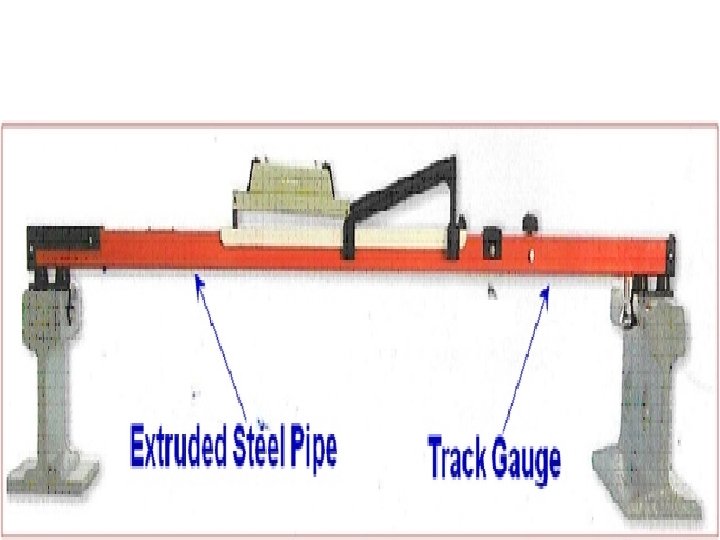

• A high precision gauge cum level with easy to read dial type cant device and built in spirit level. Accurate to 1 mm. Made of extruded steel tubing. Useful for inspection and research work. Folding type also available.
(2) INSULATED TRACK GAUGE CUM LEVEL: MODEL ST-2

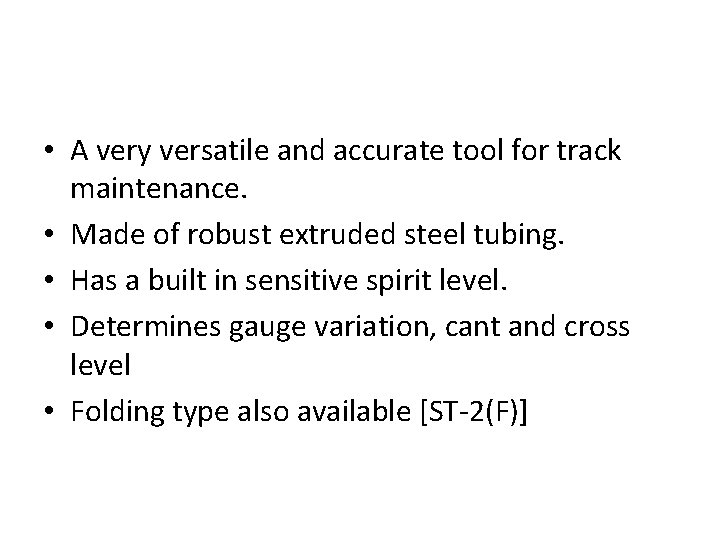

• A very versatile and accurate tool for track maintenance. • Made of robust extruded steel tubing. • Has a built in sensitive spirit level. • Determines gauge variation, cant and cross level • Folding type also available [ST-2(F)]
3) INSULATED TRACK GAUGE CUM LEVEL: MODEL ST-3
• A rugged tool for track maintenance & laying gangs. • Made of robust extruded steel tubing. • Requires optional spirit level (Model SL-2). • Determines gauge variation, cant and cross level.
4) INSULATED TRACK GAUGE CUM LEVEL: MODEL ST-1
• Made of extruded steel tubing. • With built in Spirit Level. • Determines gauge variation and checks cross level difference. • Super elevation measurement requires optional cant board. • Folding type also available [ST-1(F)].
(5) MODEL LG-2(I) • Made of high tensile aluminium extrusion. • Determines track gauge variation, cant and cross level. • Requires optional spirit level (Model SL-2) • Generally as per IR standards
6) CUSTOM BUILT TRACK GAUGE CUM LEVELS
Custom Built Gauges • To meet the requirement of worldwide clients, PIE provides customized solutions to suit the rail standards of different countries. Gauges for the following track gauges are readily available: • 1000 mm/1676 mm/1673 mm/1432 mm/1435 mm/. Other track gauges can be made on order. • Gauges used in track laying to maintain center line of curved track as per the designed alignment. • Gauges with modified rail seating for use with raised check rails and conductor rails. • Gauges with simultaneous measurement of check rail gauge and flange way clearances along with the usual running gauge and cant measurements. • Gauges with readings in inches also available. • Gauges with fixed gauge for track layers. (Model ST-0) • Digital track gauges
(b)Spirit Levels (I) SENSITIVE SPIRIT LEVEL SL-2 • Made of high tensile alloy aluminum tubing. • Has double housing to withstand falls. • Provided with arrangement for subsequent adjustment. • Accurate to 0. 70 mm / meter. (II) GRADIENT SPIRIT LEVEL MODEL SL-G • This is a gradient spirit level with magnetic attachment and is used to provide the 1 in 20 (5%) inclination of rails. Useful for track layers. • Digital version also available
(c)Rail Thermometers A) Magnetic Base Rail Thermometer Model MFMBT-A – Pocket size and time tested rugged thermometer. – Has a prismatic mercury filled capillary. – Double metal housing for safety in transit & storage. – Magnet does not get demagnetized even at high temperatures. – Conforms to NPL & RDSO standards. – Following ranges available -50 to 850 C or -100 to 1000 C
Magnetic base Rail Thermometer Round Type Rail Thermometer

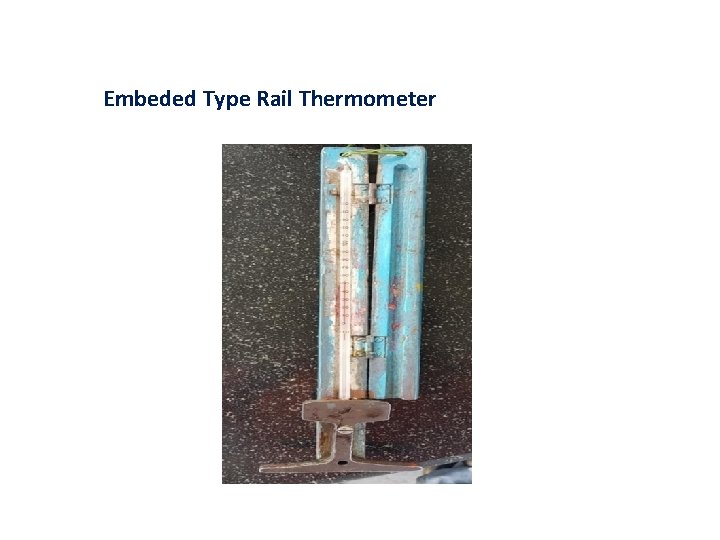

Embeded Type Rail Thermometer

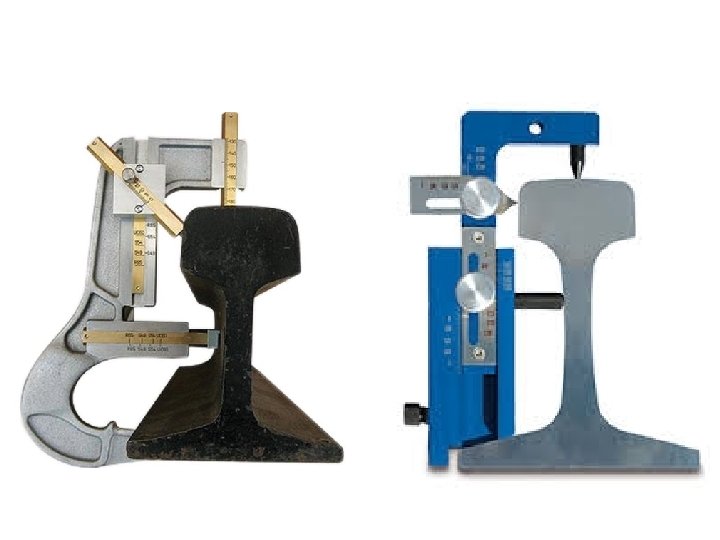

(d)Rail Wear Gauge MODEL RWG-1 – Measures head wear and side wear (gauge face wear). – Spring loaded for faster and accurate readings. – Gives direct readings, no calculations required. – Available for UIC 60 Kg / 52 kg & 90 R sections. – Measuring range of 0 -19 mm.
(e) Versine Measurement kit

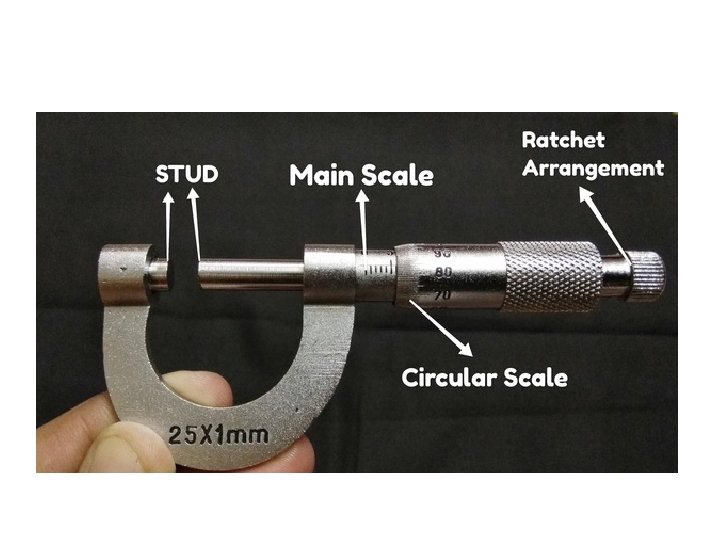

(f) Vernier Callipers
(g) Non Metallic Tapes

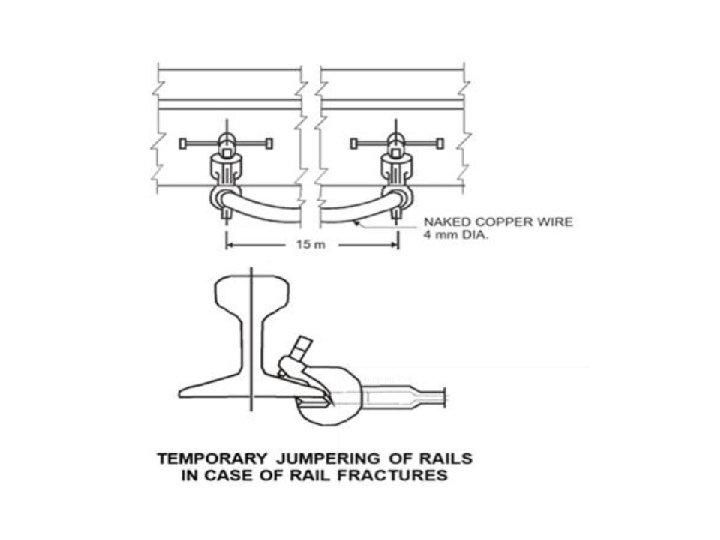

SSE (P. Way) Tool kit Box
First aid box : -
Whistel
5. 2 Regular Maintenance Tools.
Routine Activity to be done • Opening of track: by showel , claw bar • Squaring of sleepers: by right angle • Slewing to correct alignment and Lifting to correct level: crow bar or trailes • Packing of sleepers: beater or off line tampers
SPANNERS
HAMMER
Various gang Tools.
Opening of track- Remove Ballast up to 50 mm below sleeper bottom Use of showel 32
Cross Level Examination 6/17/2021 SPCE 33
Squaring of sleepers: T-square
Slewing to correct alignment
Portable track lifting and slewing device (Tralis )
6/17/2021 Lifting to correct level SPCE 37
Hydraulic track jack Mechanical track jack
Packing of sleepers: by beater
Repacking of joint sleepers
Checking Soundness of packing 41
Boxing, tidying up: Claw bar
Boxing & tidying dressing of ballast by Claw bar: Panja SPCE
Job well-done
Chamfering kit
Light weight rail (mono) cum road trolley
