Parameterized Object Sensitivity for Pointsto Analysis for Java

Parameterized Object Sensitivity for Points-to Analysis for Java Presented By: Anand Bahety Dan Bucatanschi

Presentation Roadmap • • • Introduction Terms and Definitions Application of previous techniques to OOP Imprecision analyzed Object Sensitive analysis and its advantages Parameterized Object Sensitivity

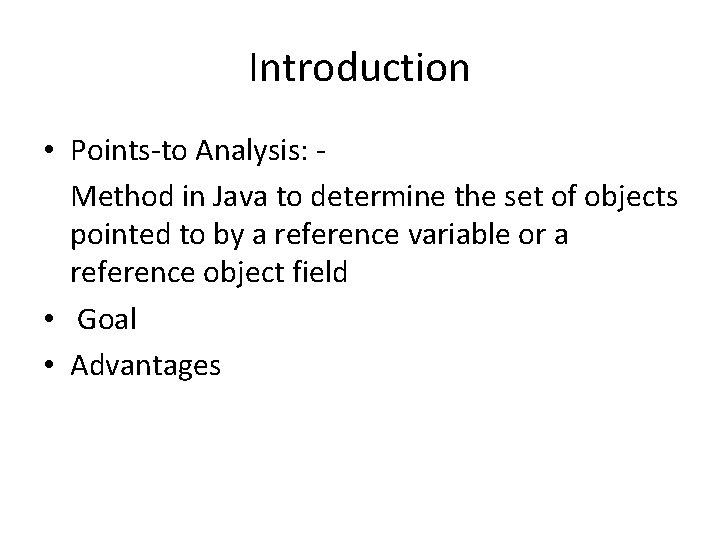

Introduction • Points-to Analysis: Method in Java to determine the set of objects pointed to by a reference variable or a reference object field • Goal • Advantages

Terms and Definitions • • • Side-effect analysis Def-use analysis Flow sensitive & flow insensitive Context sensitive & context insensitive Object sensitivity

Sample points-to graph

Object Oriented Programing • Encapsulation • Inheritance • Collection (Containers)… Lets try to analyze these features using flow insensitive and context insensitive analysis

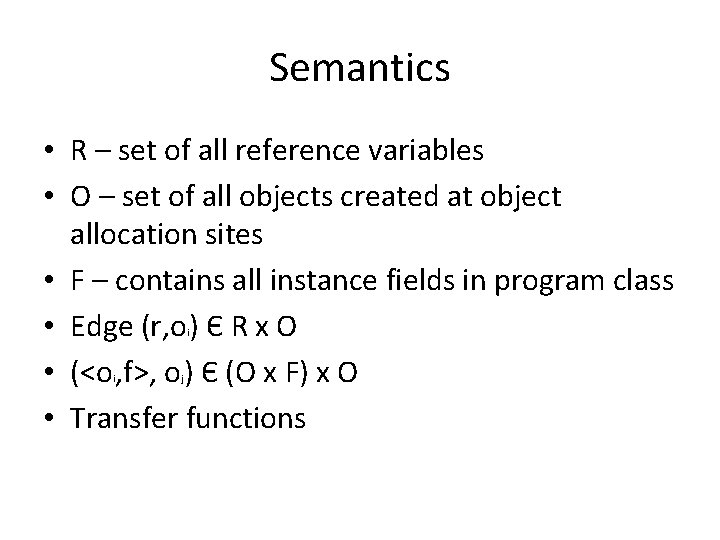

Semantics • R – set of all reference variables • O – set of all objects created at object allocation sites • F – contains all instance fields in program class • Edge (r, o ) Є R x O • (<o , f>, o ) Є (O x F) x O • Transfer functions i i j

Encapsulation x 1 O 2 x 2 f f y 1 O 3 x this y 2 O 4

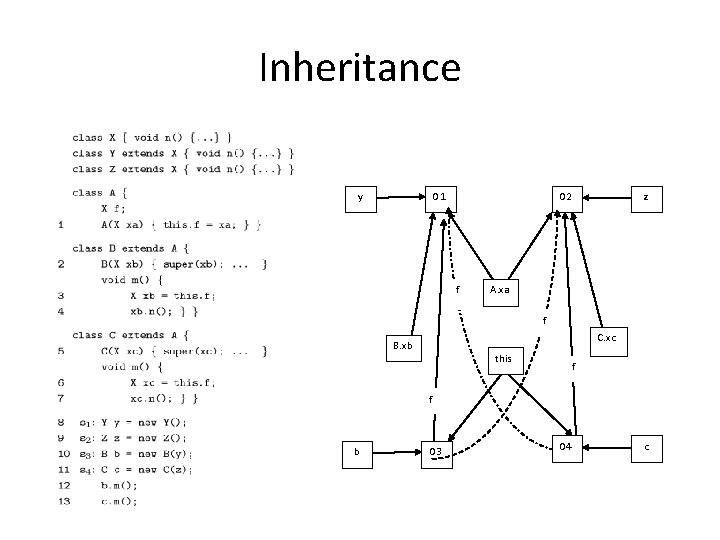

Inheritance y O 1 O 2 f z A. xa f C. xc B. xb this f f b O 3 O 4 c

Imprecision • Encapsulation • Inheritance – Both of these are strong concepts of OOP – But not captured properly with old techniques – Solution is Object sensitivity

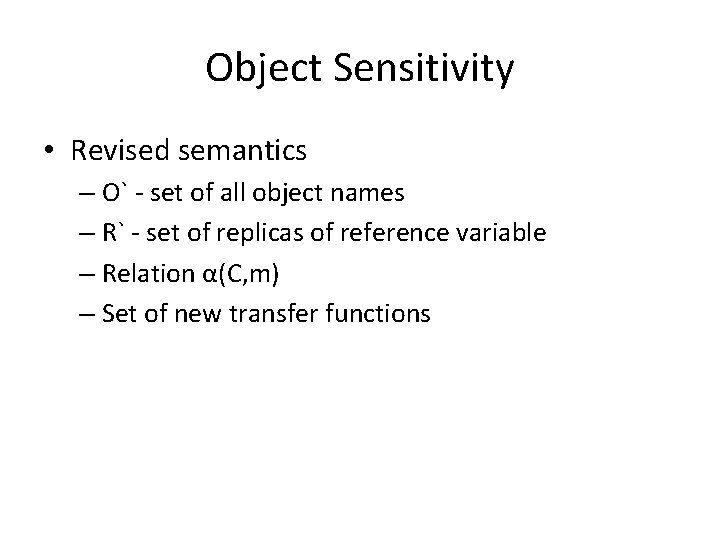

Object Sensitivity • Revised semantics – O` - set of all object names – R` - set of replicas of reference variable – Relation α(C, m) – Set of new transfer functions

Context sensitivity included y O 1 O 2 f z A. xa C. thiso 4, C. xco 4, A. xao 4 f C. xc B. xb this f f b O 3 O 4 Older representation • B. thiso 3, B. xbo 3, A. xao 3 c

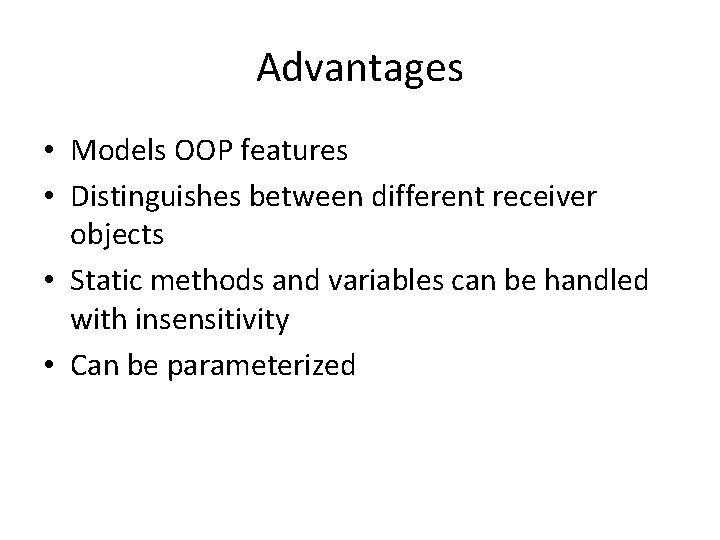

Advantages • Models OOP features • Distinguishes between different receiver objects • Static methods and variables can be handled with insensitivity • Can be parameterized

Parameterized Object Sensitivity • Two dimensions – Degree of precision in naming scheme o 21 , o 31 – Set R* of reference variables for which multiple points-to sets should be maintained

Implementation and Performance • Techniques for implementation and optimization • Side-effect analysis (MOD) • Def-Use analysis • Empirical Results • Conclusions • Future Work

Techniques for Implementation • Typical implementation of flow- and contextinsensitive analysis (Andersen’s technique): – Statement processing routine: processes different kinds of program statements – Virtual dispatch routine: models the semantics of virtual calls

Techniques for Implementation • Implementation of parameterized objectsensitive analysis: – Implement function map(v, c) – Process each statement once for every possible context – Augment the virtual dispatch routine to map the return variable and the formal parameters of the invoked method to the corresponding context.

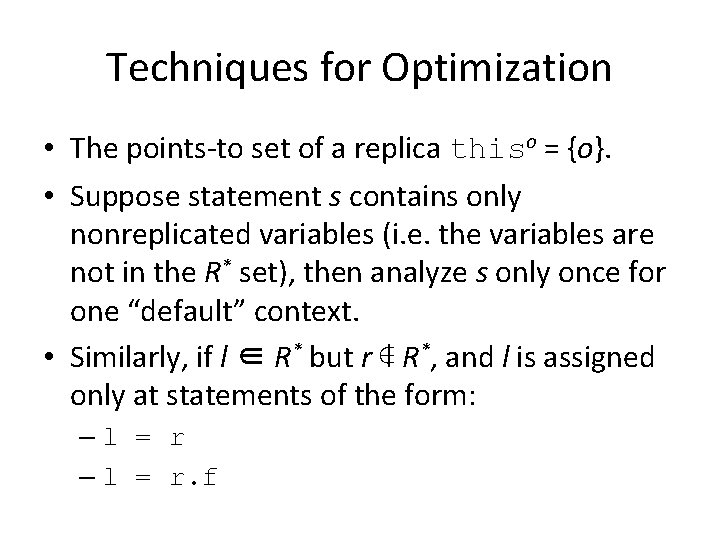

Techniques for Optimization • The points-to set of a replica thiso = {o}. • Suppose statement s contains only nonreplicated variables (i. e. the variables are not in the R* set), then analyze s only once for one “default” context. • Similarly, if l ∈ R* but r ∉ R*, and l is assigned only at statements of the form: –l = r – l = r. f

Techniques for Optimization • Suppose l ∈ R* and p ∉ R*. • Consider the assignments: l. f=p, p=l. f, and p. f=l. • We can add a nonreplicated variable l’ and a new (context-dependent) statement l’=l. • Then the points-to set of l’ is the union of the points-to sets of all context copies of l. • So the statements can be analyzed contextindependently.

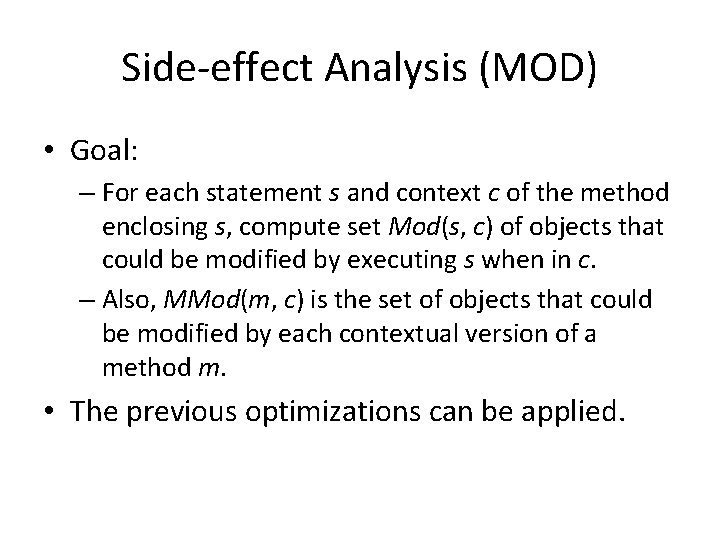

Side-effect Analysis (MOD) • Goal: – For each statement s and context c of the method enclosing s, compute set Mod(s, c) of objects that could be modified by executing s when in c. – Also, MMod(m, c) is the set of objects that could be modified by each contextual version of a method m. • The previous optimizations can be applied.

Side-effect Analysis (MOD) Instance field assignments Virtual method calls Typo: should be c Static method calls

Def-Use Analysis • Goal: compute def-use associations between pairs of statements. • A def-use association for a memory location l is a pair of statements (m, n) such that m assigns a value to l and subsequently n uses that value.

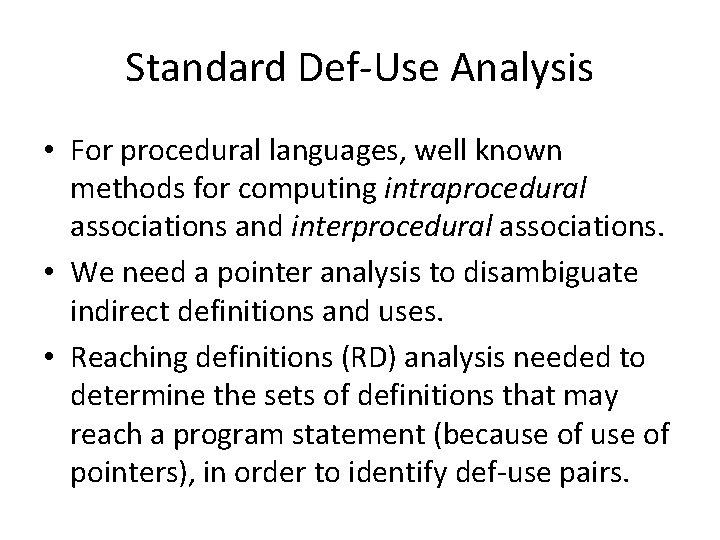

Standard Def-Use Analysis • For procedural languages, well known methods for computing intraprocedural associations and interprocedural associations. • We need a pointer analysis to disambiguate indirect definitions and uses. • Reaching definitions (RD) analysis needed to determine the sets of definitions that may reach a program statement (because of pointers), in order to identify def-use pairs.

Object Sensitivity in Def-Use Analysis • Points-to analysis must be used in order to determine which objects may be accessed by expressions of the form p. f. • ∀ oi ∈Pt(p), memory location oi. f is added to the DEF or USE set for the corresponding statement. • MDEF(m) contains definitions created in method m and in all direct and indirect callees of m.

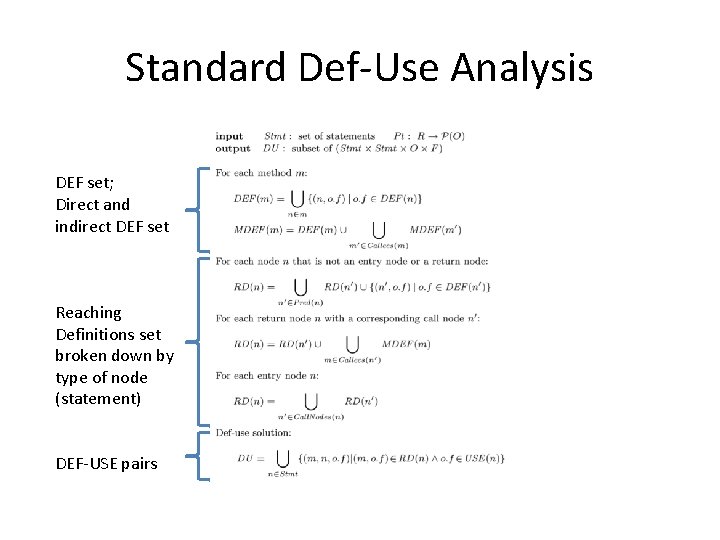

Standard Def-Use Analysis DEF set; Direct and indirect DEF set Reaching Definitions set broken down by type of node (statement) DEF-USE pairs

Implementations • Parameterized object-sensitive points-to analysis (context depth = 1): – Obj. Sens 1: keeps context-sensitive information for implicit parameters this and formal parameters of instance methods and constructors. – Obj. Sens 2: the same as Obj. Sens 1, but it also keeps track of return variables.

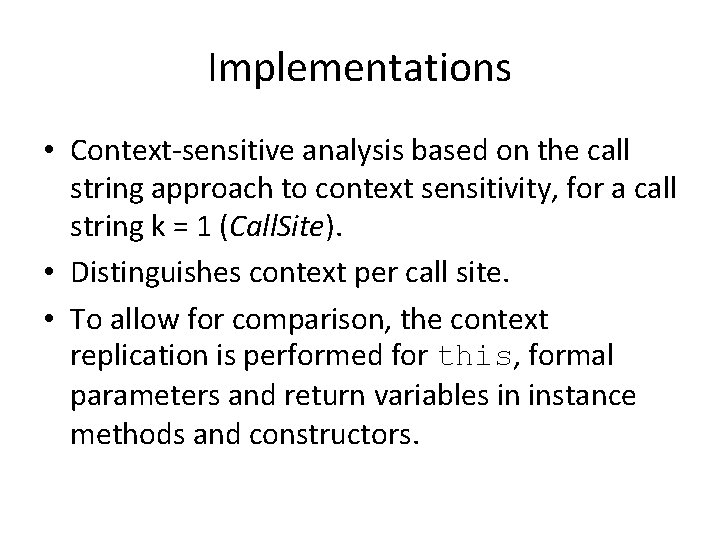

Implementations • Context-sensitive analysis based on the call string approach to context sensitivity, for a call string k = 1 (Call. Site). • Distinguishes context per call site. • To allow for comparison, the context replication is performed for this, formal parameters and return variables in instance methods and constructors.

Implementations • The 3 context-sensitive analyses were built on top of an existing implementation of Andersen’s context-insensitive points-to analysis (And). • The analyses are using the optimization techniques we discussed. • The Soot framework was used to process Java bytecode and to build a typed intermediate representation.

Characteristics of Programs

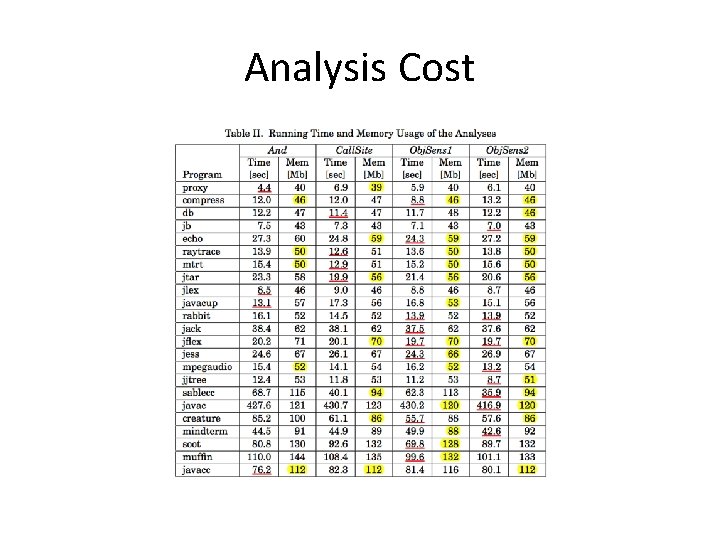

Analysis Cost

Discussion • Time and memory cost is comparable to Andersen’s analysis. • Amount of work is similar: And has to consider all possible objects for a statement s. Even though context-sensitive analyses do more work to keep track of different contexts, they eventually end up doing less work per statement s. • For the majority of programs, adding the return values to R* does not increase cost.

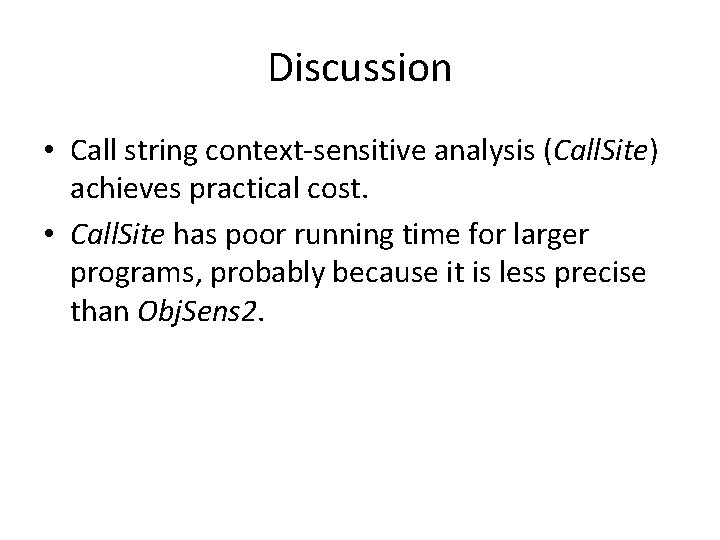

Discussion • Call string context-sensitive analysis (Call. Site) achieves practical cost. • Call. Site has poor running time for larger programs, probably because it is less precise than Obj. Sens 2.

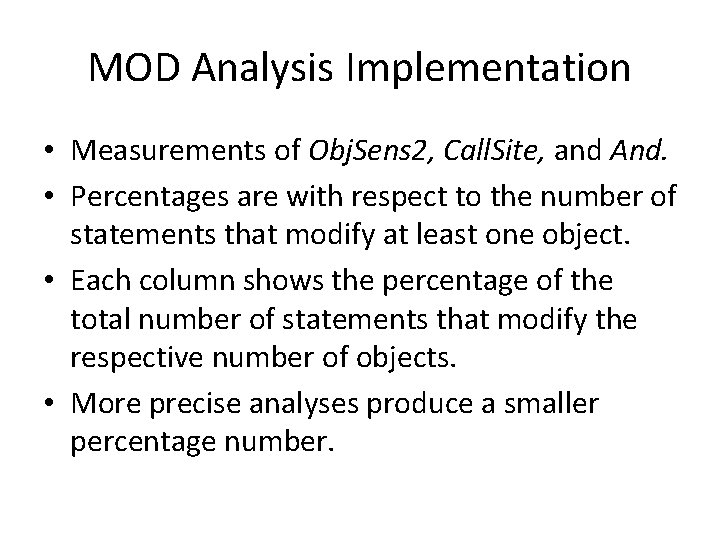

MOD Analysis Implementation • Measurements of Obj. Sens 2, Call. Site, and And. • Percentages are with respect to the number of statements that modify at least one object. • Each column shows the percentage of the total number of statements that modify the respective number of objects. • More precise analyses produce a smaller percentage number.

MOD Analysis Precision

Conclusions • Presented a framework for parameterized object-sensitive points-to analysis, and sideeffect and def-use analyses based on it. • Object-sensitive analysis achieves significantly better precision than context-insensitive analysis, while remaining efficient and practical.

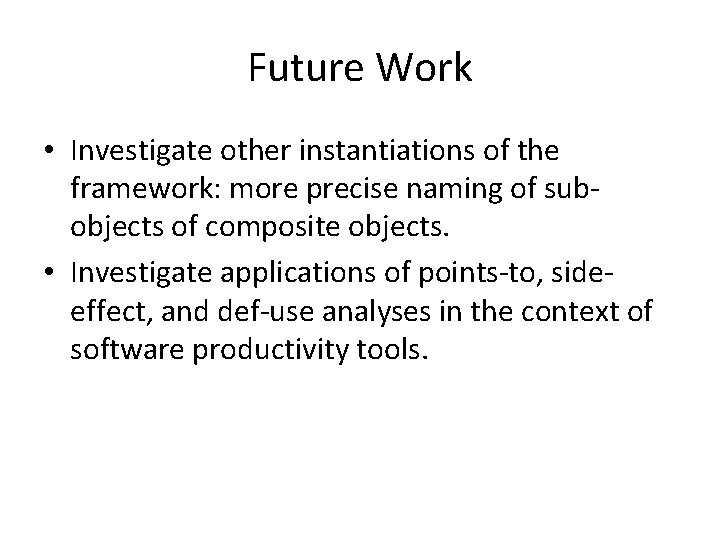

Future Work • Investigate other instantiations of the framework: more precise naming of subobjects of composite objects. • Investigate applications of points-to, sideeffect, and def-use analyses in the context of software productivity tools.
