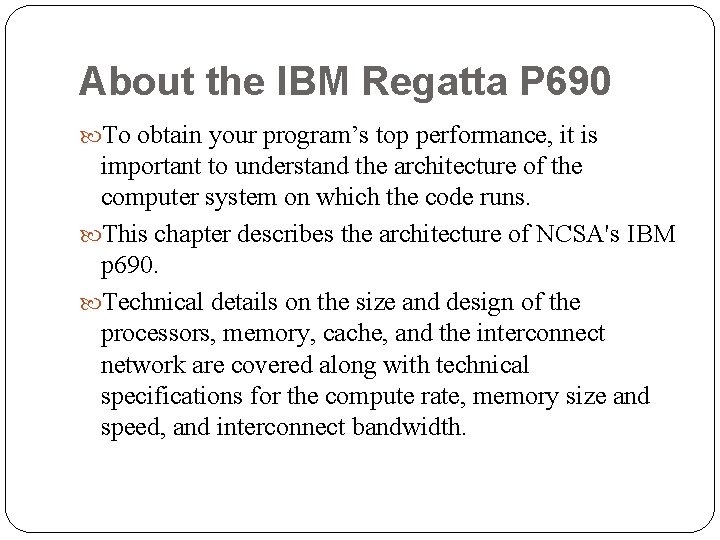

About the IBM Regatta P 690 To obtain your program’s top performance, it is important to understand the architecture of the computer system on which the code runs. This chapter describes the architecture of NCSA's IBM p 690. Technical details on the size and design of the processors, memory, cache, and the interconnect network are covered along with technical specifications for the compute rate, memory size and speed, and interconnect bandwidth.

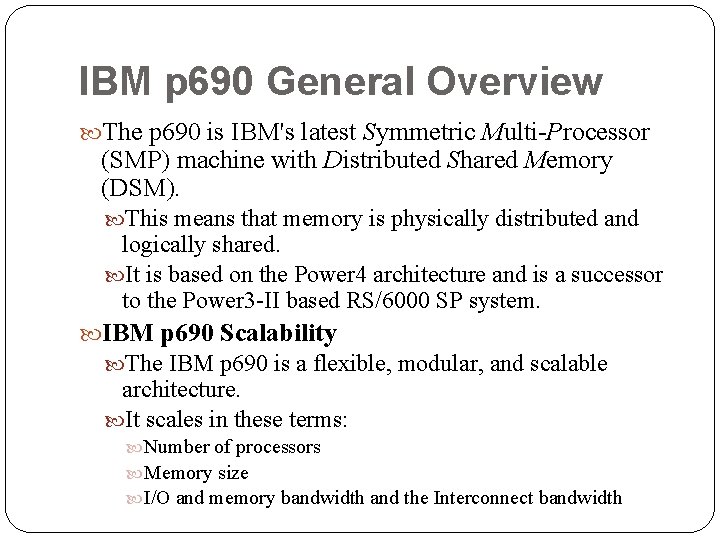

IBM p 690 General Overview The p 690 is IBM's latest Symmetric Multi-Processor (SMP) machine with Distributed Shared Memory (DSM). This means that memory is physically distributed and logically shared. It is based on the Power 4 architecture and is a successor to the Power 3 -II based RS/6000 SP system. IBM p 690 Scalability The IBM p 690 is a flexible, modular, and scalable architecture. It scales in these terms: Number of processors Memory size I/O and memory bandwidth and the Interconnect bandwidth

Agenda 9 About the IBM Regatta P 690 9. 1 IBM p 690 General Overview 9. 2 IBM p 690 Building Blocks 9. 2. 1 Power 4 Core 9. 2. 2 Multi-Chip Modules 9. 2. 3 The Processor 9. 2. 4 Cache Architecture 9. 2. 5 Memory Subsystem 9. 3 Features Performed by the Hardware 9. 4 The Operating System 9. 5 Further Information

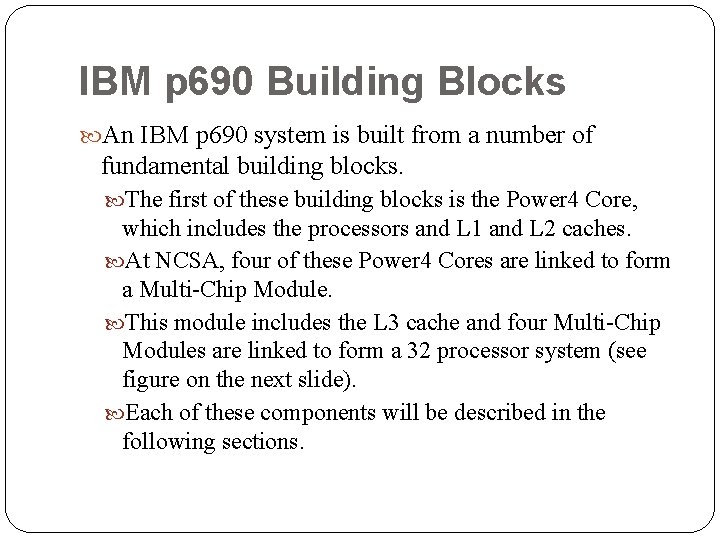

IBM p 690 Building Blocks An IBM p 690 system is built from a number of fundamental building blocks. The first of these building blocks is the Power 4 Core, which includes the processors and L 1 and L 2 caches. At NCSA, four of these Power 4 Cores are linked to form a Multi-Chip Module. This module includes the L 3 cache and four Multi-Chip Modules are linked to form a 32 processor system (see figure on the next slide). Each of these components will be described in the following sections.

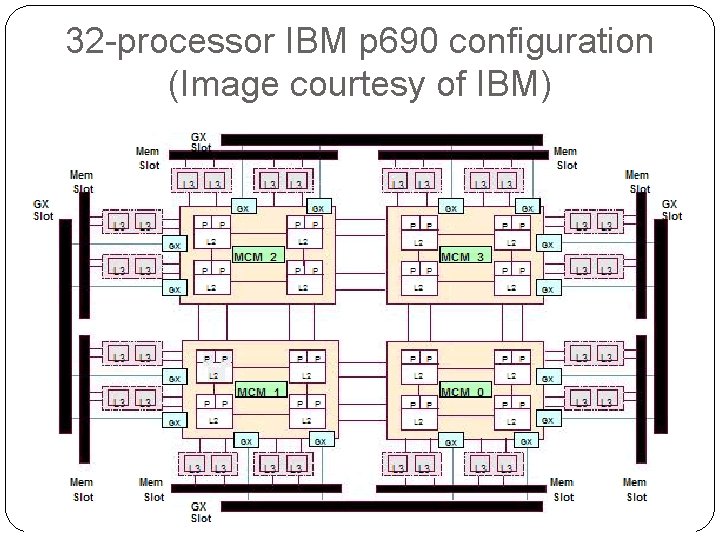

32 -processor IBM p 690 configuration (Image courtesy of IBM)

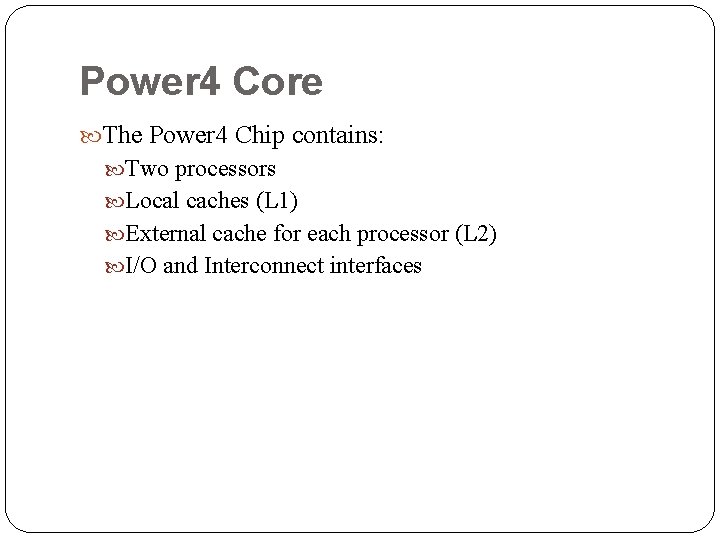

Power 4 Core The Power 4 Chip contains: Two processors Local caches (L 1) External cache for each processor (L 2) I/O and Interconnect interfaces

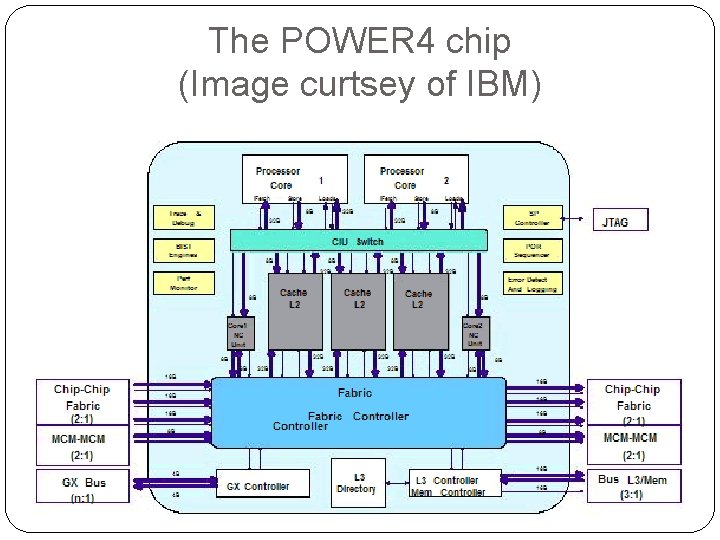

The POWER 4 chip (Image curtsey of IBM)

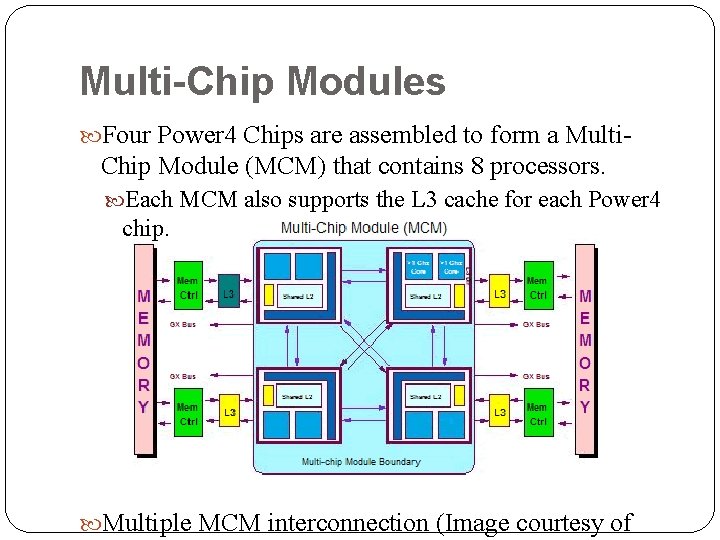

Multi-Chip Modules Four Power 4 Chips are assembled to form a Multi- Chip Module (MCM) that contains 8 processors. Each MCM also supports the L 3 cache for each Power 4 chip. Multiple MCM interconnection (Image courtesy of

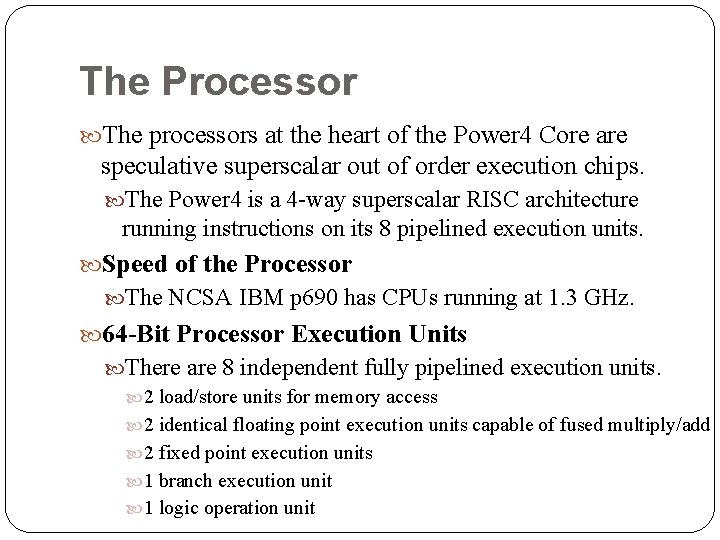

The Processor The processors at the heart of the Power 4 Core are speculative superscalar out of order execution chips. The Power 4 is a 4 -way superscalar RISC architecture running instructions on its 8 pipelined execution units. Speed of the Processor The NCSA IBM p 690 has CPUs running at 1. 3 GHz. 64 -Bit Processor Execution Units There are 8 independent fully pipelined execution units. 2 load/store units for memory access 2 identical floating point execution units capable of fused multiply/add 2 fixed point execution units 1 branch execution unit 1 logic operation unit

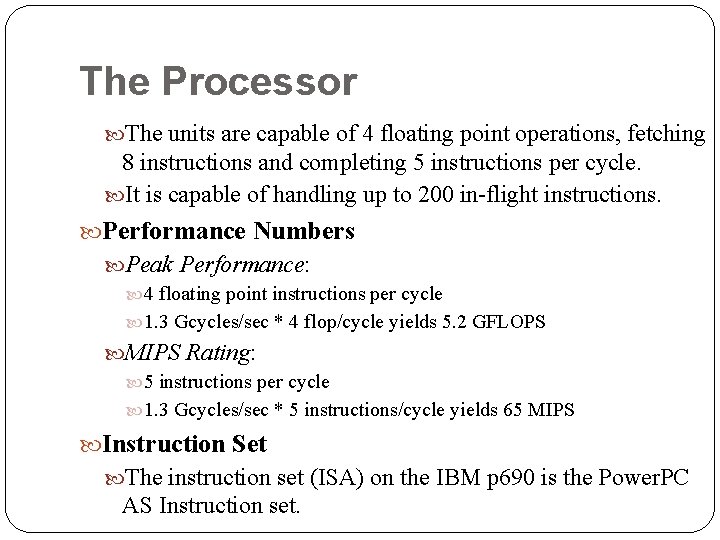

The Processor The units are capable of 4 floating point operations, fetching 8 instructions and completing 5 instructions per cycle. It is capable of handling up to 200 in-flight instructions. Performance Numbers Peak Performance: 4 floating point instructions per cycle 1. 3 Gcycles/sec * 4 flop/cycle yields 5. 2 GFLOPS MIPS Rating: 5 instructions per cycle 1. 3 Gcycles/sec * 5 instructions/cycle yields 65 MIPS Instruction Set The instruction set (ISA) on the IBM p 690 is the Power. PC AS Instruction set.

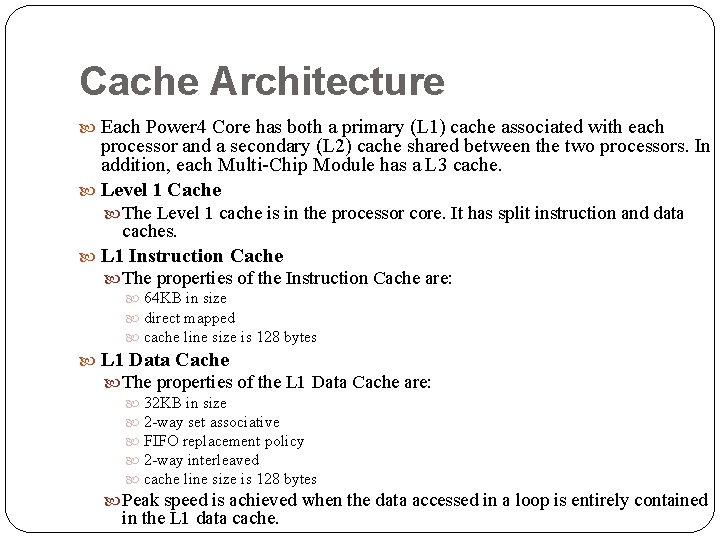

Cache Architecture Each Power 4 Core has both a primary (L 1) cache associated with each processor and a secondary (L 2) cache shared between the two processors. In addition, each Multi-Chip Module has a L 3 cache. Level 1 Cache The Level 1 cache is in the processor core. It has split instruction and data caches. L 1 Instruction Cache The properties of the Instruction Cache are: 64 KB in size direct mapped cache line size is 128 bytes L 1 Data Cache The properties of the L 1 Data Cache are: 32 KB in size 2 -way set associative FIFO replacement policy 2 -way interleaved cache line size is 128 bytes Peak speed is achieved when the data accessed in a loop is entirely contained in the L 1 data cache.

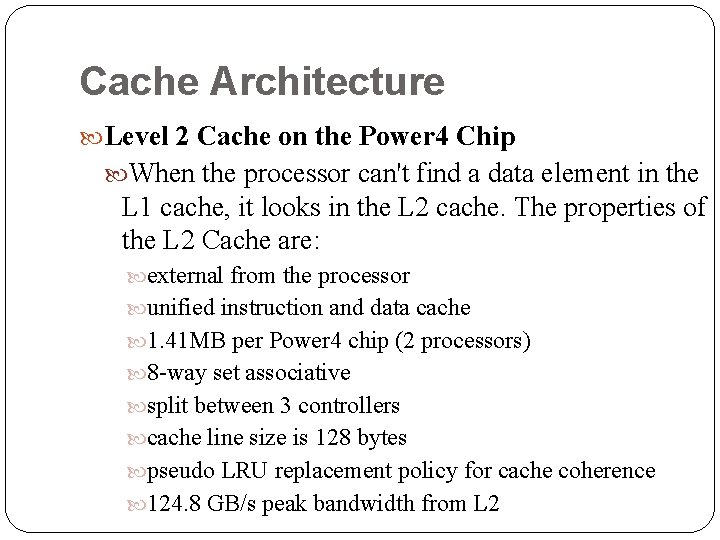

Cache Architecture Level 2 Cache on the Power 4 Chip When the processor can't find a data element in the L 1 cache, it looks in the L 2 cache. The properties of the L 2 Cache are: external from the processor unified instruction and data cache 1. 41 MB per Power 4 chip (2 processors) 8 -way set associative split between 3 controllers cache line size is 128 bytes pseudo LRU replacement policy for cache coherence 124. 8 GB/s peak bandwidth from L 2

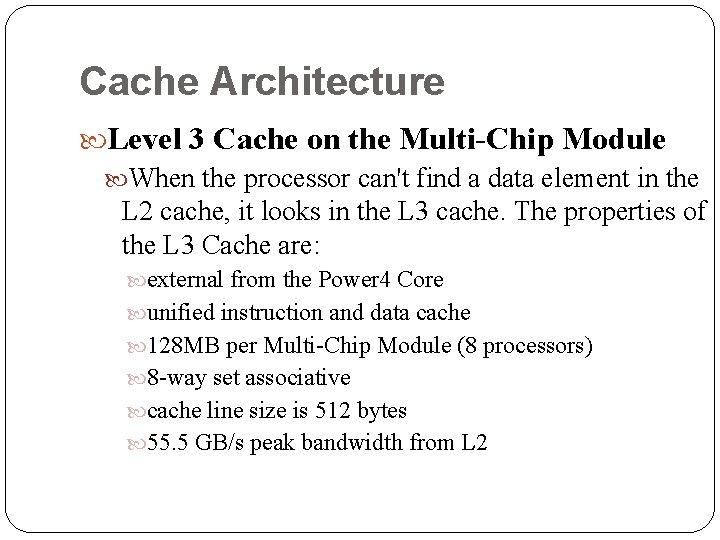

Cache Architecture Level 3 Cache on the Multi-Chip Module When the processor can't find a data element in the L 2 cache, it looks in the L 3 cache. The properties of the L 3 Cache are: external from the Power 4 Core unified instruction and data cache 128 MB per Multi-Chip Module (8 processors) 8 -way set associative cache line size is 512 bytes 55. 5 GB/s peak bandwidth from L 2

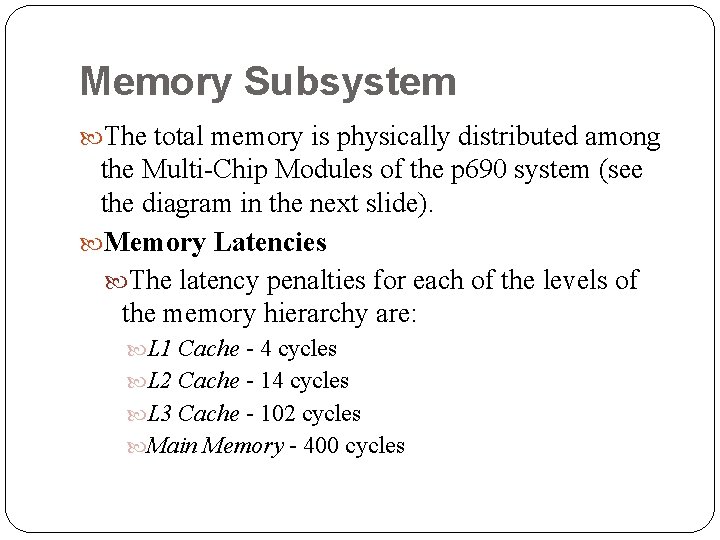

Memory Subsystem The total memory is physically distributed among the Multi-Chip Modules of the p 690 system (see the diagram in the next slide). Memory Latencies The latency penalties for each of the levels of the memory hierarchy are: L 1 Cache - 4 cycles L 2 Cache - 14 cycles L 3 Cache - 102 cycles Main Memory - 400 cycles

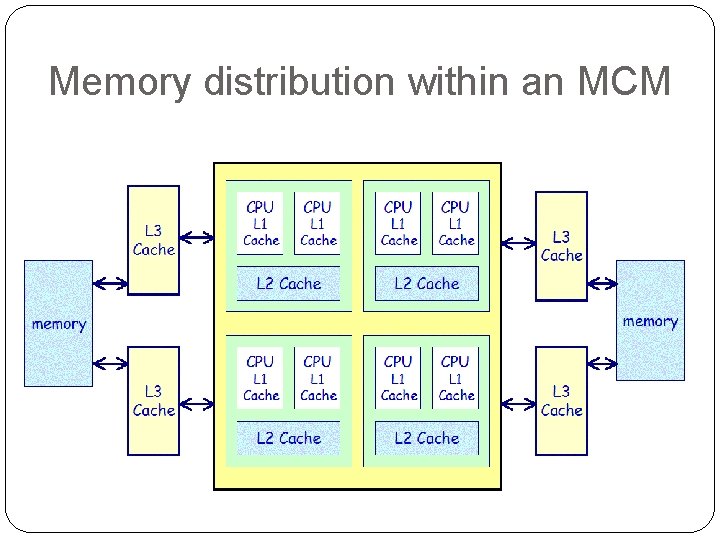

Memory distribution within an MCM

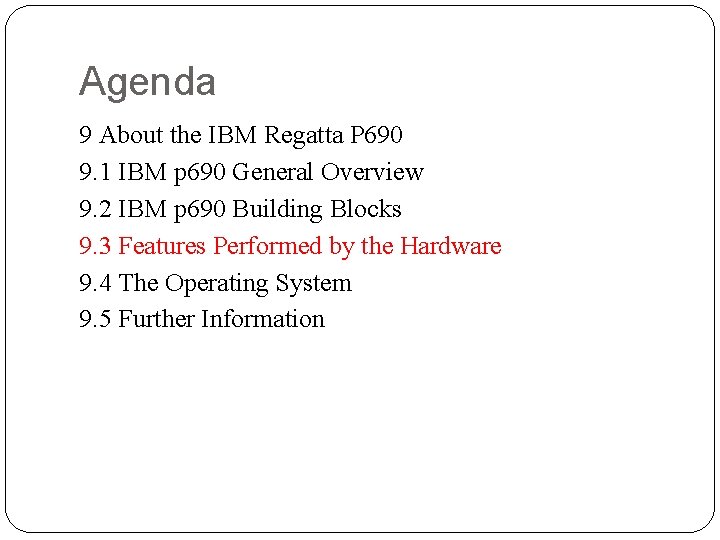

Agenda 9 About the IBM Regatta P 690 9. 1 IBM p 690 General Overview 9. 2 IBM p 690 Building Blocks 9. 3 Features Performed by the Hardware 9. 4 The Operating System 9. 5 Further Information

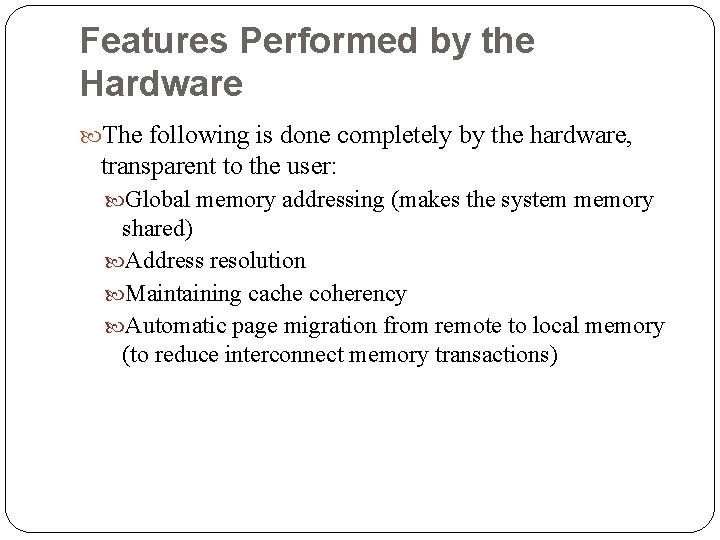

Features Performed by the Hardware The following is done completely by the hardware, transparent to the user: Global memory addressing (makes the system memory shared) Address resolution Maintaining cache coherency Automatic page migration from remote to local memory (to reduce interconnect memory transactions)

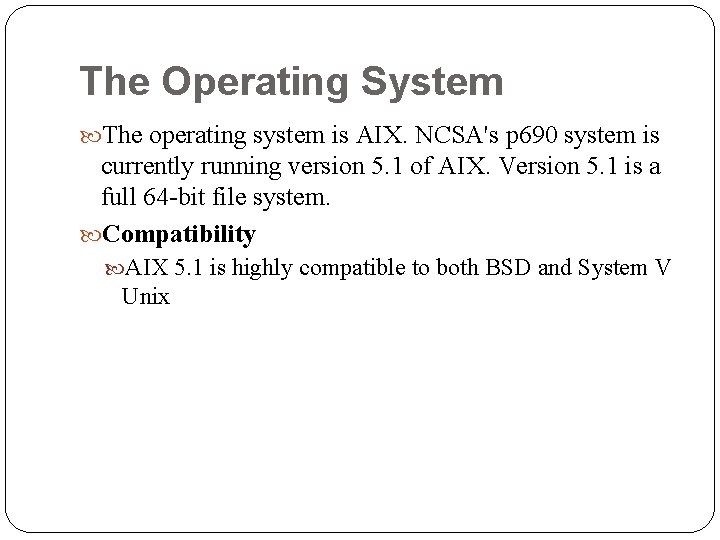

The Operating System The operating system is AIX. NCSA's p 690 system is currently running version 5. 1 of AIX. Version 5. 1 is a full 64 -bit file system. Compatibility AIX 5. 1 is highly compatible to both BSD and System V Unix

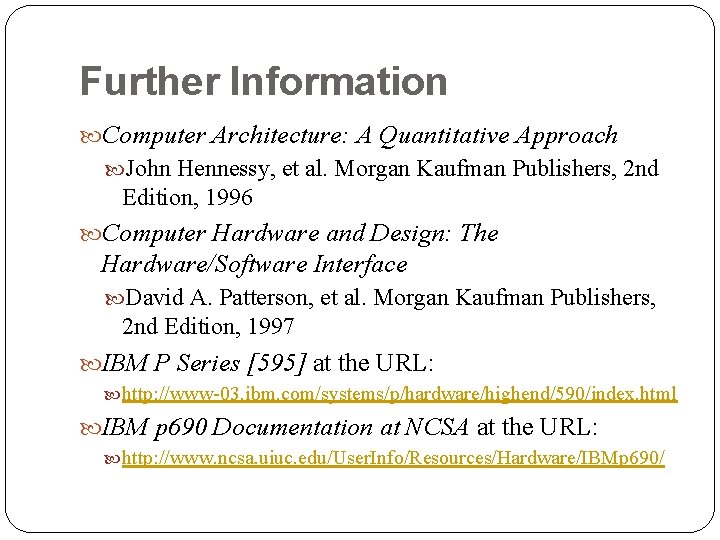

Further Information Computer Architecture: A Quantitative Approach John Hennessy, et al. Morgan Kaufman Publishers, 2 nd Edition, 1996 Computer Hardware and Design: The Hardware/Software Interface David A. Patterson, et al. Morgan Kaufman Publishers, 2 nd Edition, 1997 IBM P Series [595] at the URL: http: //www-03. ibm. com/systems/p/hardware/highend/590/index. html IBM p 690 Documentation at NCSA at the URL: http: //www. ncsa. uiuc. edu/User. Info/Resources/Hardware/IBMp 690/
