Paper Chromatography Lab Technique Materials Whats Needed Chromatography

Paper Chromatography Lab Technique

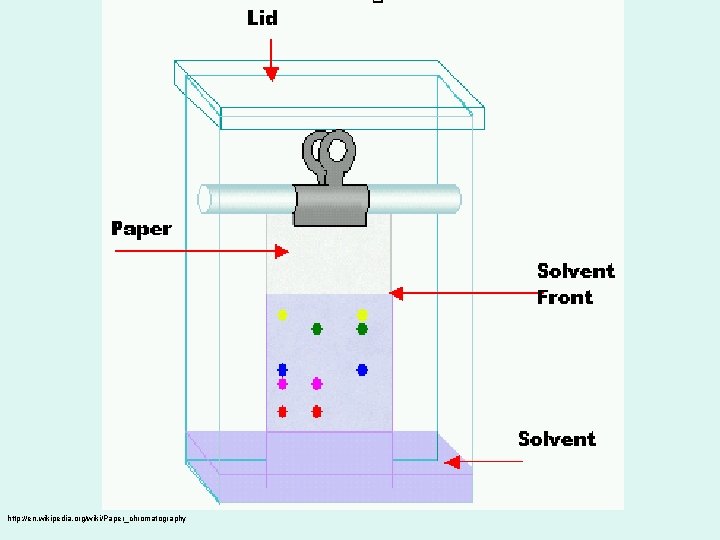

Materials • What’s Needed: – Chromatography Paper – Solvent (Petroleum Ether / Acetone) – Substance (concentrated solution) – Closed container

http: //en. wikipedia. org/wiki/Paper_chromatography

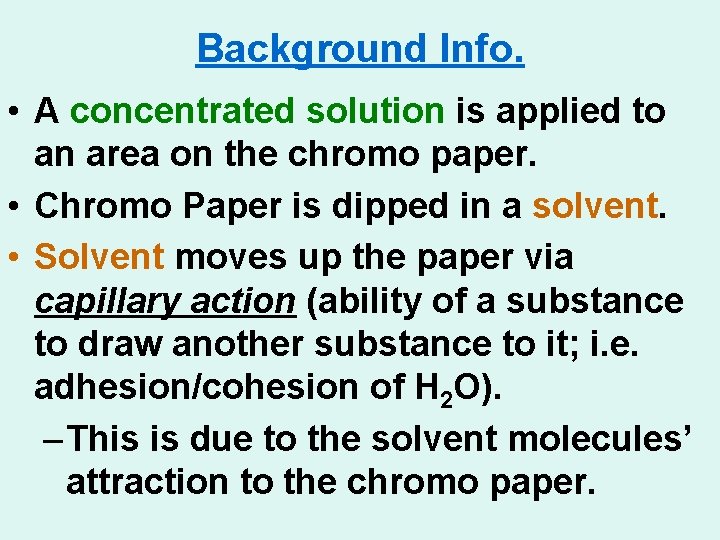

Background Info. • A concentrated solution is applied to an area on the chromo paper. • Chromo Paper is dipped in a solvent. • Solvent moves up the paper via capillary action (ability of a substance to draw another substance to it; i. e. adhesion/cohesion of H 2 O). – This is due to the solvent molecules’ attraction to the chromo paper.

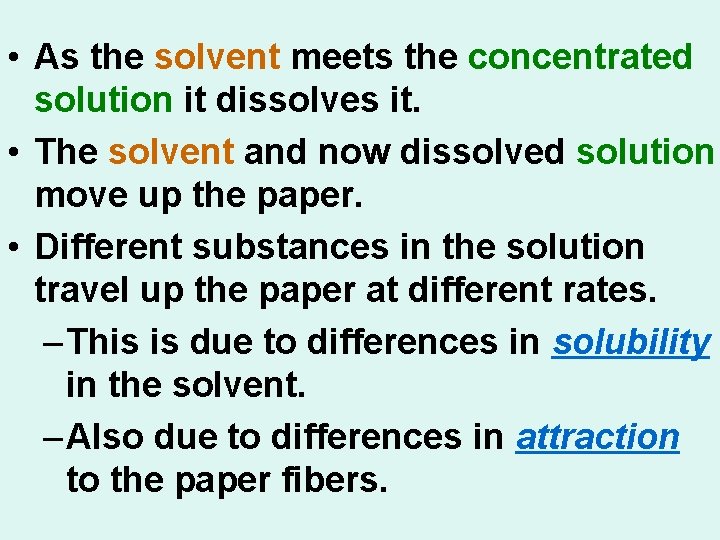

• As the solvent meets the concentrated solution it dissolves it. • The solvent and now dissolved solution move up the paper. • Different substances in the solution travel up the paper at different rates. – This is due to differences in solubility in the solvent. – Also due to differences in attraction to the paper fibers.

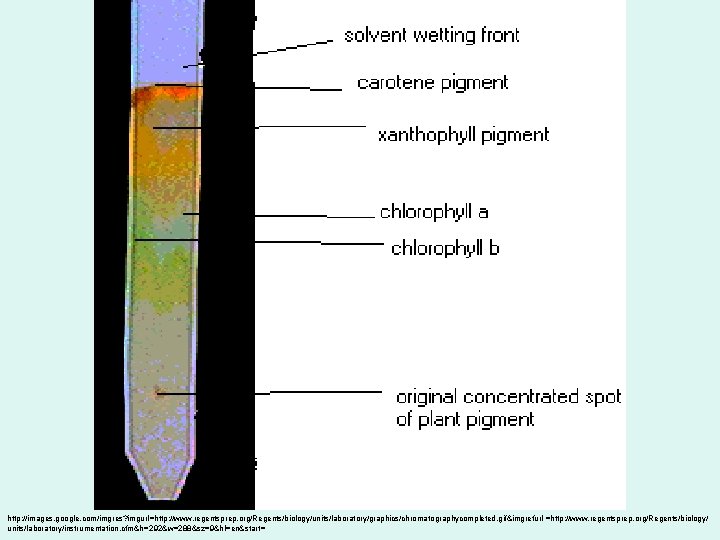

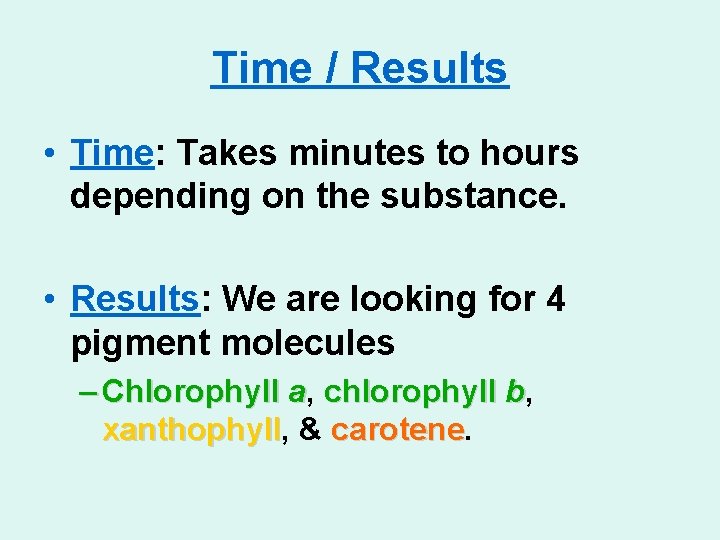

Time / Results • Time: Takes minutes to hours depending on the substance. • Results: We are looking for 4 pigment molecules – Chlorophyll a, chlorophyll b, xanthophyll & carotene

http: //images. google. com/imgres? imgurl=http: //www. regentsprep. org/Regents/biology/units/laboratory/graphics/chromatographycompleted. gif&imgrefurl =http: //www. regentsprep. org/Regents/biology/ units/laboratory/instrumentation. cfm&h =292&w=288&sz=9&hl=en&start=

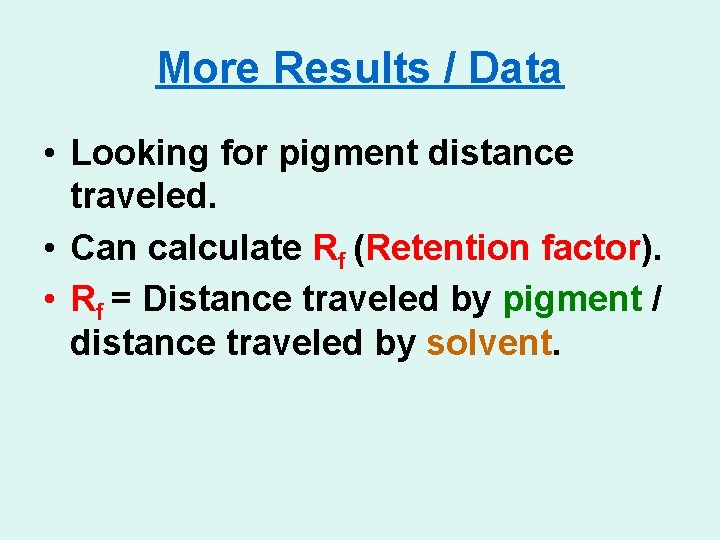

More Results / Data • Looking for pigment distance traveled. • Can calculate Rf (Retention factor). • Rf = Distance traveled by pigment / distance traveled by solvent.
