Pano. Map® Radiation Management Create Radiation Surveys & Estimate Dose Exposure for Project Activities CSA 3 D Laser Scanning for the Nuclear Industry

Pano. Map Radiation Management Tool Provides a user-friendly application to create radiation survey data, simulate work activities and calculate expected dose. Creates a photorealistic format; an excellent background for job briefings. The 3 D laser scans, with labels, are available to be viewed on a standard Windows PC, or on an Android phone or tablet. Pano. Map Radiation Management

CSA’s Radiation Management tool allows a facility to represent the plant area in photorealistic 3 D format created from scans Pano. Map Radiation Management

Collect and apply radiation surveys to a specific location (viewable from a keyplan) Pano. Map Radiation Management

Collect and apply radiation surveys to a specific location (viewable in a laser scan) Pano. Map Radiation Management

Identify and model radiation sources For example: A pump or a pipeline Pano. Map Radiation Management

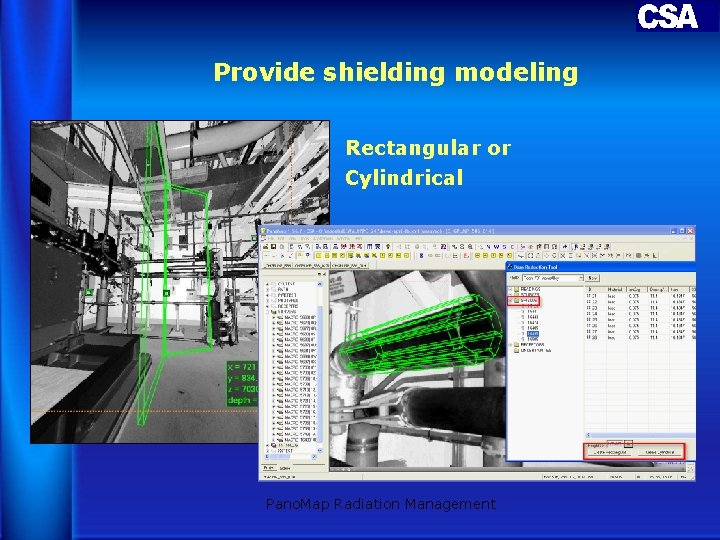

Provide shielding modeling Rectangular or Cylindrical Pano. Map Radiation Management

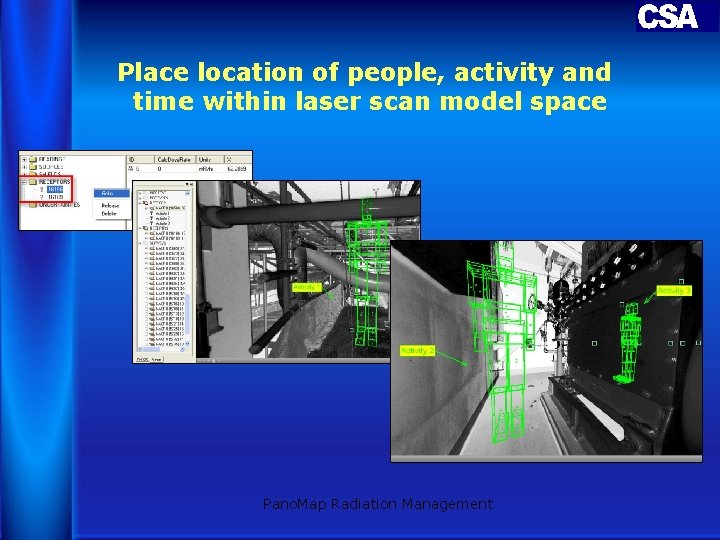

Place location of people, activity and time within laser scan model space Pano. Map Radiation Management

Calculate expected dose for each activity, using EPRI-supplied dose algorithm providing an effective display of results against the scan model. Pano. Map Radiation Management

Benefits of Radiation Management Tool Place work activities in the exact space and time to calculate expected dose. Conduct job briefings with user-friendly software, displaying scan/simulations in photorealistic format. View scans on a standard Windows PC or on an Android phone or tablet. 770 -955 -3518 Presented by Amadeus Burger www. csaatl. com
