Pannoramic DESK II The perfect choice for teleconsultation
- Slides: 19
Pannoramic DESK II The perfect choice for teleconsultation and frozen section double wide slide scanning Dr Pál Szijártó - Senior Sales Manager CIS China
Pannoramic DESK II
Single and double wide glass slide scan High speed scan Compact design High Resolution Semi automatic 1 slide 3 min.
• Double-width or standard glass slide / fresh frozen tissue scan • Multilayer Z-stack scan with extended focus 5 MP High Resolution Camera, high native resolution image 80 x • Live Image Navigation (Live view digital microscopy) Software version: Pannoramic Scanner 1. 23 or higher
Normal and large slides Preparing Slides You can use all large slides and cover slips that meet the following specifications: Slides Cover slips Length 75. 0 to 76. 0 mm max. 50 mm Width 25. 0 to 26. 0 and 51. 0 to 52. 0 mm max. 24 mm (recommended: 22 mm) max. 50 mm Thickness 0. 90 to 1. 2 mm No. 1 and No. 1. 5 (0. 13 to 0. 16 mm and 0. 16 to 0. 19 mm) Corners 45° beveled corners Edges Ground or cut
Scanners Pannoramic DESK • 1 slide • • Brightfield only • • Single and double width Stop-and-go 1 objective • 40 x or 80 x resolution • Frozen section, Teleconsultation, Education
Digital „NICHE” application Fresh frozen section Surgery getting samples Fresh frozen Specimen No sample No pathologist movement Immediate access diagnostic Pathology fresh frozen diagnostic Digital Case Center
40 X DE 2 BGHM 0001011000 1 Pannoramic DESK II DW P-DESK II DW-BF-Grasshopper 3 51 S 5 M-1. 0 -ext-foc-range-40 X 20 X DE 2 BGHM 0002010000 1 Pannoramic DESK II DW P-DESK II DW-BF-Grasshopper 3 51 S 5 M-0. 63 -ext-foc-range-20 X 40 X DE 2 BGHM 0002011000 1 Pannoramic DESK II DW P-DESK II DW-BF-Grasshopper 3 51 S 5 M-0. 63 -ext-foc-range-40 X Detailed name Short name Article number in system Objective Camerachanger Camera adatpter FL light source Pannoramic DESK II DW P-DESK II DW-BF-Grasshopper 3 51 S 5 M-1. 0 -ext-foc-range-20 X 1. 0 DE 2 BGHM 0001010000 1 0. 63 2. camera option 1. camera option Grasshopper 3 51 S 5 M BF / FL option Brightfield Hardware type Pannoramic DESK II DW 20 X
N/A 1. 0 40 X DESBADC 000 A 011 0001 Pannoramic DESK BF P-DESK-BF-Grasshopper 3 51 S 5 C-1. 0 -ext-foc-range-40 X 20 X DESBGHC 0001010 Pannoramic DESK BF P-DESK-BF-Grasshopper 3 51 S 5 C-1. 0 -ext-foc-range-20 X 0001 40 X DESBGHC 0001011 Pannoramic DESK BF P-DESK-BF-Grasshopper 3 51 S 5 C-1. 0 -ext-foc-range-40 X 0001 20 X DESBGHC 0002010 Pannoramic DESK BF P-DESK-BF-Grasshopper 3 51 S 5 C-0. 63 -ext-foc-range-20 X 0001 40 X DESBGHC 0002011 0001 Pannoramic DESK BF P-DESK-BF-Grasshopper 3 51 S 5 C-0. 63 -ext-foc-range-40 X 0. 63 N/A 1. 6 Adimec 12 MP 12 A 180 Grasshopper 3 51 S 5 C Brightfield Pannoramic DESK 20 X DESBADC 000 A 010 0001 Pannoramic DESK BF P-DESK-BF-Grasshopper 3 51 S 5 C-1. 0 -ext-foc-range-20 X
The Pannoramic DESK can digitize 1 slide at once in brightfield. The sample on the slide is detected and scanned automatically in constant high quality.
Motic
Scanner Comparison Pannoramic Philips Leica Hamamatsu Roche Huron Sakura Motic Zeiss
Point Grey Grasshopper 3 (GS 3 -U 3 -51 S 5 M-C) Global Shutter Type CMOS (Sony IMX 250) Pixel size 3. 45µm × 3. 45µm Camera resolution 2448 (H) × 2048 (W) pixel Frames rates 75 fps Bit-depth camera 10 -bit / 12 -bit Pixel resolution with 20 x objective and 0. 63 x C-mount adapter 0. 27µm Pixel resolution with 20 x objective and 1 x C-mount adapter 0. 17µm Pixel resolution with 40 x objective and 0. 63 x C-mount adapter 0. 14µm Pixel resolution with 40 x objective and 1 x C-mount adapter 0. 09µm Connection type USB 3. 0
Pannoramic Scanners MIDI II (12) MIDI CONF (12) SCAN II (150) FLASH III (250) P 1000 (1000) 4 options DW slides 4 options 2 options 4 options DW slides 8 options 2 options 8 options Fluorescent Bright Field DESK II (1)
Pannoramic Scanners MIDI II (12) MIDI CONF (12) SCAN II (150) FLASH III (250) P 1000 (1000) 4 options DW slides 4 options 2 options 4 options DW slides 8 options 2 options 8 options Fluorescent Bright Field DESK II (1)

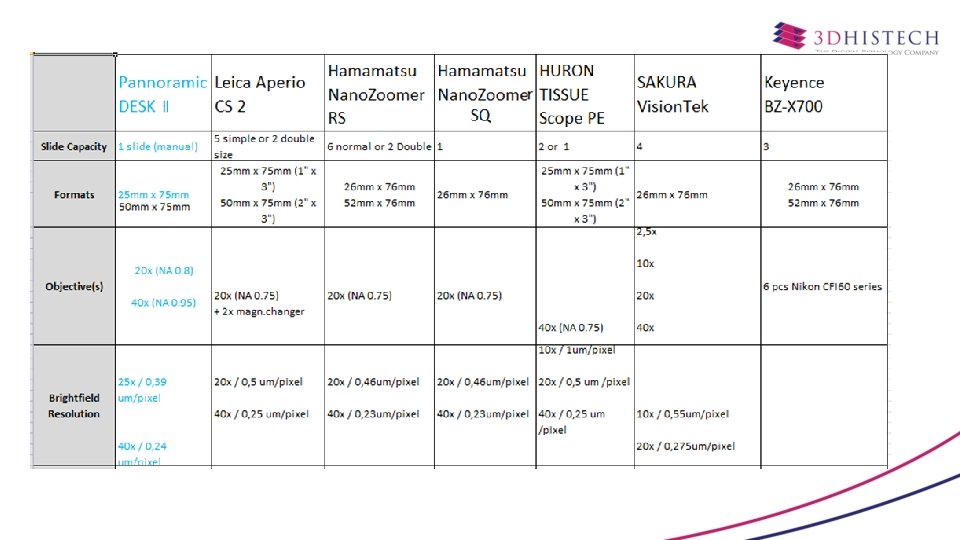

Company Slide Capacity Formats Leica Aperio CS 2 5 simple or 2 double size 25 mm x 75 mm (1" x 3") 50 mm x 75 mm (2" x 3") Hamamatsu Nano. Zoomer SQ Hamamatsu Nano. Zoomer RS 6 normal or 2 Double 26 mm x 76 mm 52 mm x 76 mm 1 26 mm x 76 mm HURON TISSUE Scope PE 2 or 1 SAKURA Vision. Tek 4 25 mm x 75 mm (1" x 3") 26 mm x 76 mm 50 mm x 75 mm (2" x 3") Keyence BZ-X 700 3 26 mm x 76 mm 52 mm x 76 mm 2, 5 x 10 x Objective(s) 20 x (NA 0. 75) + 2 x magn. changer 20 x (NA 0. 75) 20 x 40 x (NA 0. 75) 40 x 10 x / 1 um/pixel 20 x / 0, 5 um /pixel 40 x / 0, 25 um /pixel Brightfield Resolution 20 x / 0, 5 um/pixel 20 x / 0, 46 um/pixel 40 x / 0, 25 um/pixel 40 x / 0, 23 um/pixel 10 x / 0, 55 um/pixel 20 x / 0, 275 um/pixel 6 pcs Nikon CFI 60 series
Thank you for your attention!
