Palm OS 5 Training Basic Skills 2006 Palm

Palm OS 5 Training Basic Skills © 2006 Palm, Inc. All worldwide rights reserved.

To facilitate the group environment, please turn off all cell phones and pagers during our session. Thank you! © 2006 Palm, Inc.

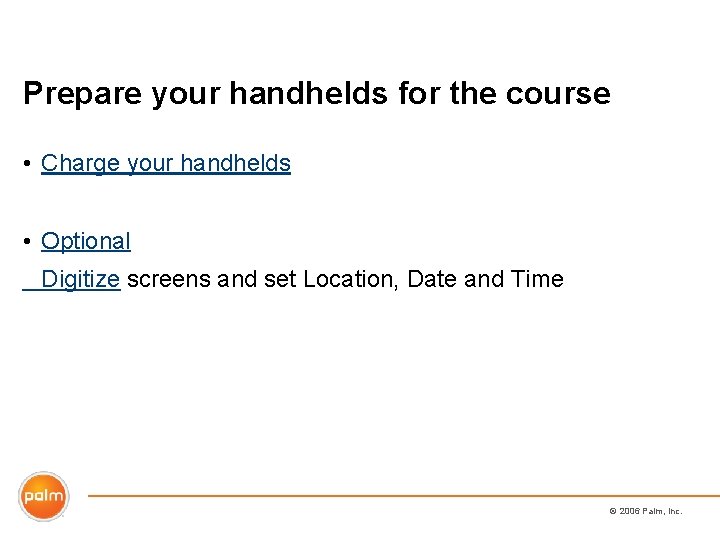

Prepare your handhelds for the course • Charge your handhelds • Optional Digitize screens and set Location, Date and Time © 2006 Palm, Inc.

Agenda for Basic Skills • Educational Relevance • Handheld orientation • Memos • Contacts • Calendar • Tasks • Note Pad • Test your knowledge! © 2006 Palm, Inc.

Today’s Objectives • Understand place and benefits of handheld computers in the continuum of computer technology • Glimpse the capabilities of handheld computers for supporting teaching and learning • Learn the basic skills necessary to start using the built–in applications of a Palm™ handheld computer © 2006 Palm, Inc.

Educational Relevance? Palm™ handheld computer Palm Pilot PDA © 2006 Palm, Inc.

Challenges of desktop computers? • Cost • Size • Access • Simplicity © 2006 Palm, Inc.

Why handhelds makes sense Challenges of the desktop computer • Cost • Size • Equity • Simplicity = Benefits of the handheld computer! • Cost • Size • Equity • Simplicity © 2006 Palm, Inc.

Beyond the PDA to the handheld & smartphone Hardware and software that extend the power of your handheld! Function Software Application Word processing Palm wireless keyboard, Docs to Go Spreadsheet Sheet to Go, Quick. Sheet Database Mobile. DB, Schedule. Finder, e. Principal Presentation Pitch Duo Digital Photography Zire™ 72, SD, Media, Treo™ 650 Internet Connectivity Wi. Fi (802. 11), Blue. Tooth, Treo™ 650 Printing Print. Boy, Teal. Print Calculators Imagi. Math, power. One Graph Drawing & Painting Teal. Paint, Diddlebug, Sketchy Scientific Probes Imagi. Probe, Vernier Stories, Texts, & Authoring e. Reader, Palm e. Book Studio, Classics Collection Email & Telephony Outlook, Versa. Mail, Treo™ 650, Send. Word. Now Assessment Making the Grade, m. Class: Reading, Tango © 2006 Palm, Inc.

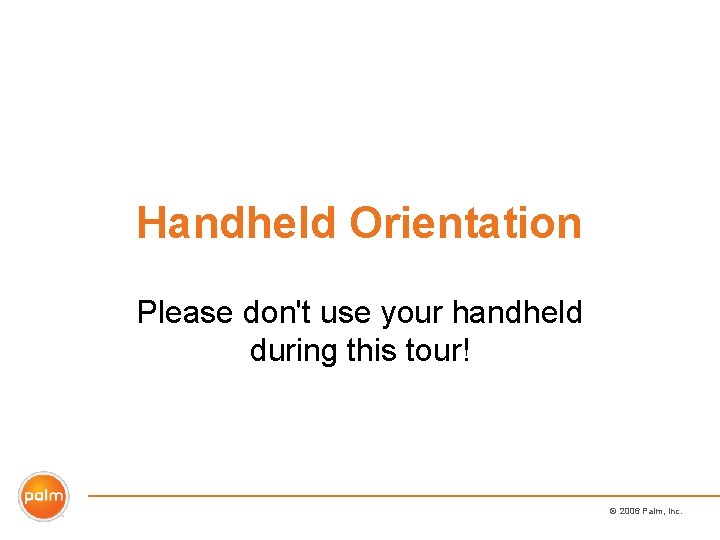

Handheld Orientation Please don't use your handheld during this tour! © 2006 Palm, Inc.

Handhelds are like your (other) computers Menu area Menus Home/Launcher Hard drive/Desktop Categories Folders Stylus Mouse Soft Buttons Shortcuts/alias Hard Buttons Function Keys 5 -Way Navigator Mouse wheel © 2006 Palm, Inc.

A lot alike (and a little bit different) Tungsten E 2 T|X Life. Drive Treo Common applications across all models: • • Calendar Contacts Memos Tasks © 2006 Palm, Inc.

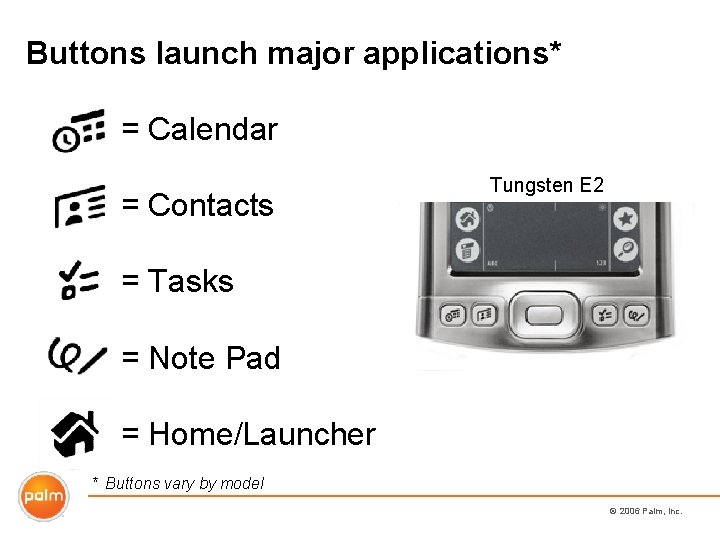

Buttons launch major applications* = Calendar = Contacts Tungsten E 2 = Tasks = Note Pad = Home/Launcher * Buttons vary by model © 2006 Palm, Inc.

Get around with the 5 -way Navigator Up Left Push Center to open or select Right Down © 2006 Palm, Inc.

Soft Buttons* quickly open key functions You'll learn what these mean as you go through the course * For the Tungsten E 2 handheld © 2006 Palm, Inc.

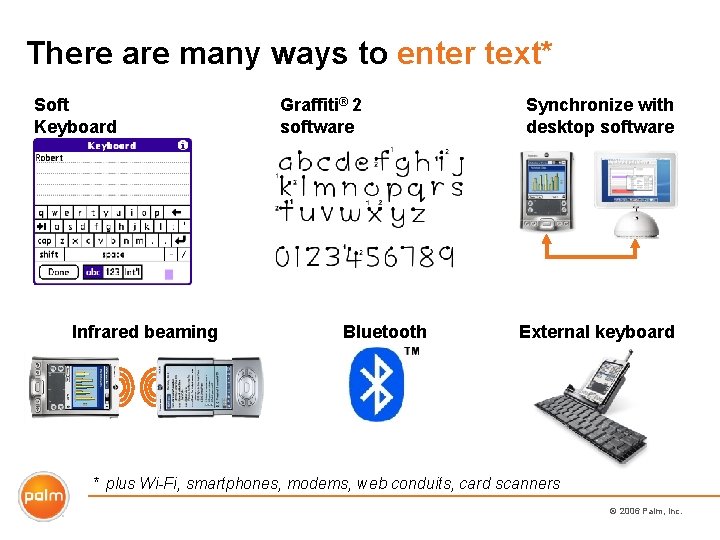

There are many ways to enter text* Soft Keyboard Infrared beaming Graffiti® 2 software Bluetooth Synchronize with desktop software External keyboard * plus Wi-Fi, smartphones, modems, web conduits, card scanners © 2006 Palm, Inc.

The Writing Area is for entering text Tungsten E 2 T|X Life. Drive © 2006 Palm, Inc.

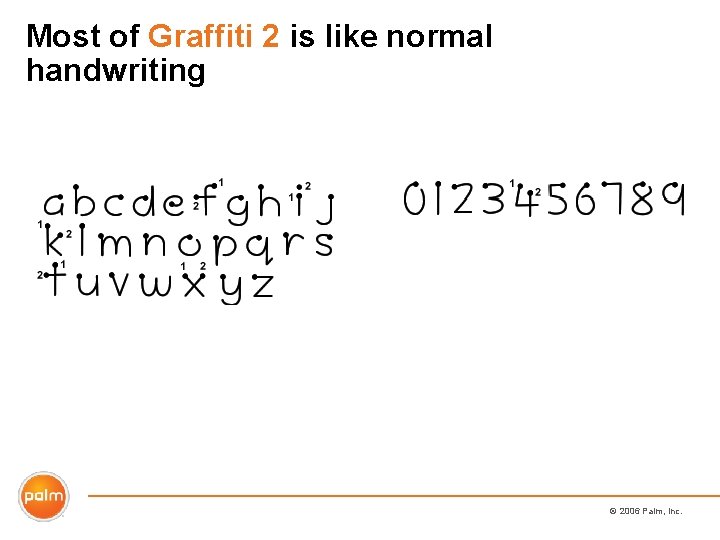

Most of Graffiti 2 is like normal handwriting © 2006 Palm, Inc.

Location makes the difference! Letters on left Numbers on right Capital letters must cross the center line © 2006 Palm, Inc.

Test your knowledge! 1. Categories B A 2. Soft buttons 3. Writing Area C 4. 5 -way Navigator 5. Hard buttons 6. Menus D D E E F © 2006 Palm, Inc.

Please press the Power button Tungsten E 2 Tungsten T|X Life. Drive © 2006 Palm, Inc.

Find the application called Prefs Tap Prefs icon Select Touchscreen © 2006 Palm, Inc.

Digitize the screen © 2006 Palm, Inc.

Set the Location, Date and Time Tap to make changes © 2006 Palm, Inc.

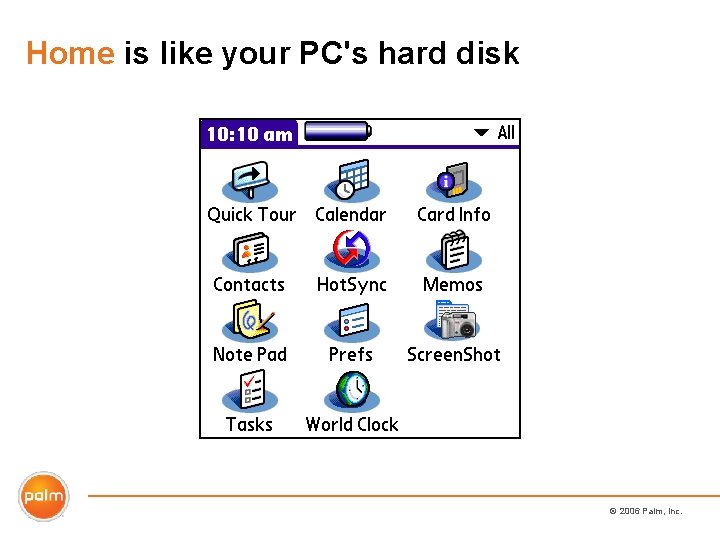

Home is like your PC's hard disk © 2006 Palm, Inc.

To open it, tap the Launcher* button Tungsten E 2 T|X Life. Drive * Also called Home or Applications © 2006 Palm, Inc.

Tap the Home button to switch categories… All Main System Each tap rotates to the next named category © 2006 Palm, Inc.

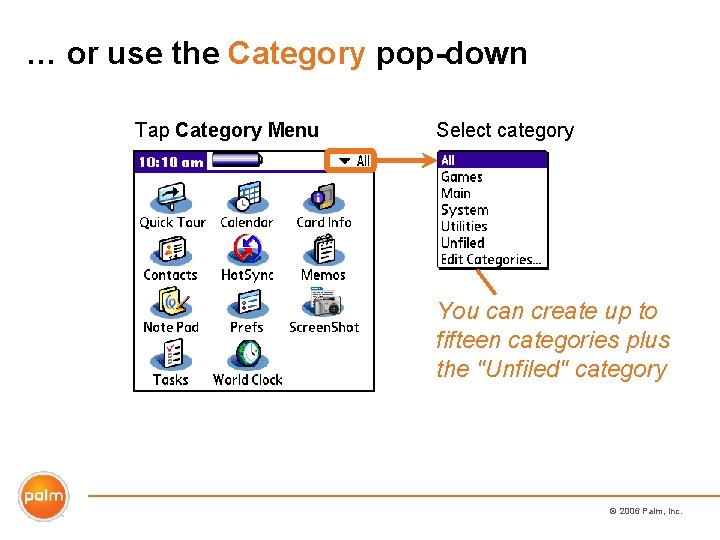

… or use the Category pop-down Tap Category Menu Select category You can create up to fifteen categories plus the "Unfiled" category © 2006 Palm, Inc.

Memos Create a new memo. Enter text using the Soft Keyboard. Enter text using Graffiti 2. Learn how to use the menu system. © 2006 Palm, Inc.

Open Memos and create a new memo Tap Memos Tap New © 2006 Palm, Inc.

Letters and numbers either side © 2006 Palm, Inc.

Capital letters must cross the center line © 2006 Palm, Inc.

Location is everything! =b =B Capital letters must cross the center line! © 2006 Palm, Inc.

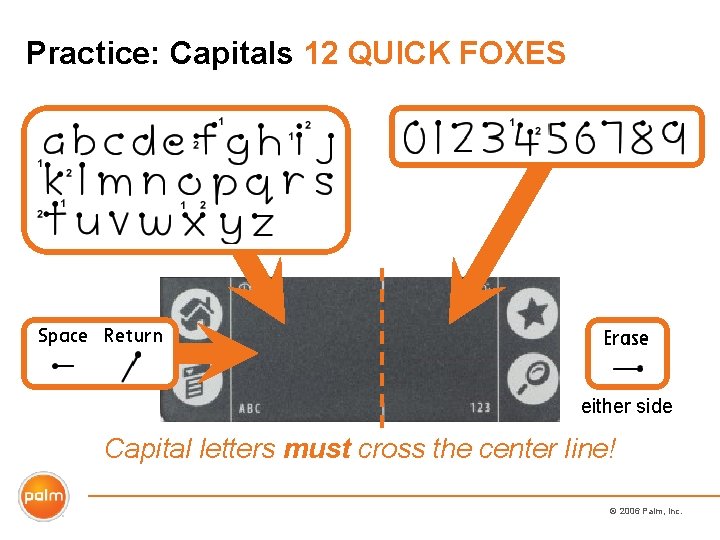

Practice: Capitals 12 QUICK FOXES either side Capital letters must cross the center line! © 2006 Palm, Inc.

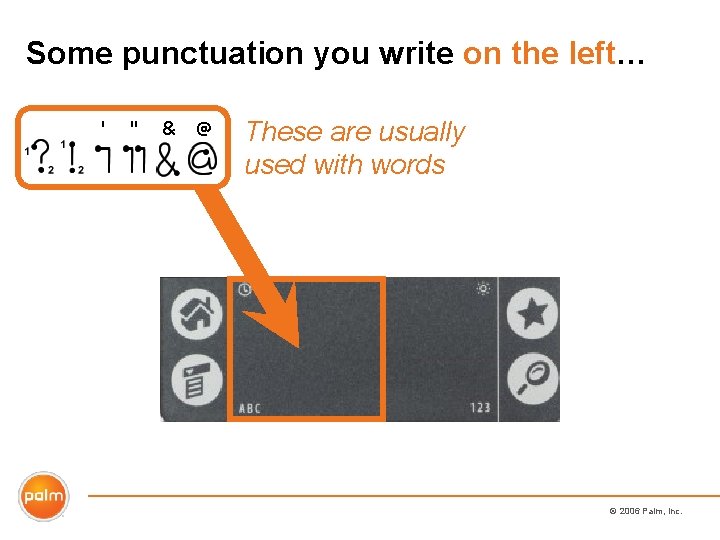

Some punctuation you write on the left… These are usually used with words © 2006 Palm, Inc.

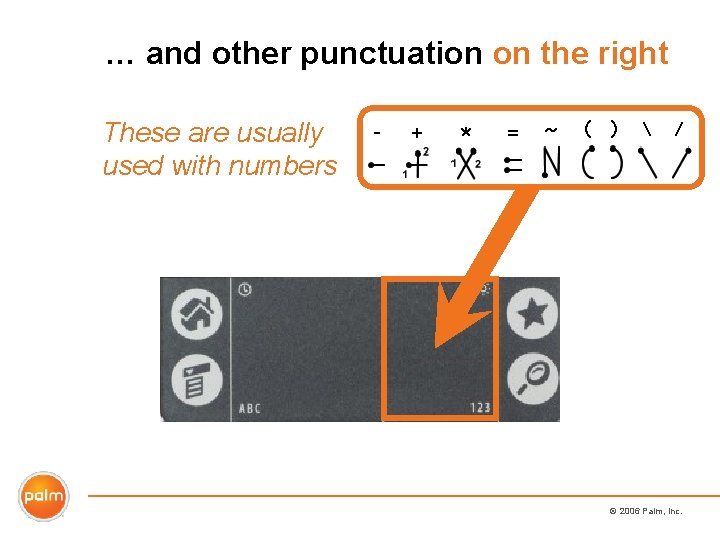

… and other punctuation on the right These are usually used with numbers © 2006 Palm, Inc.

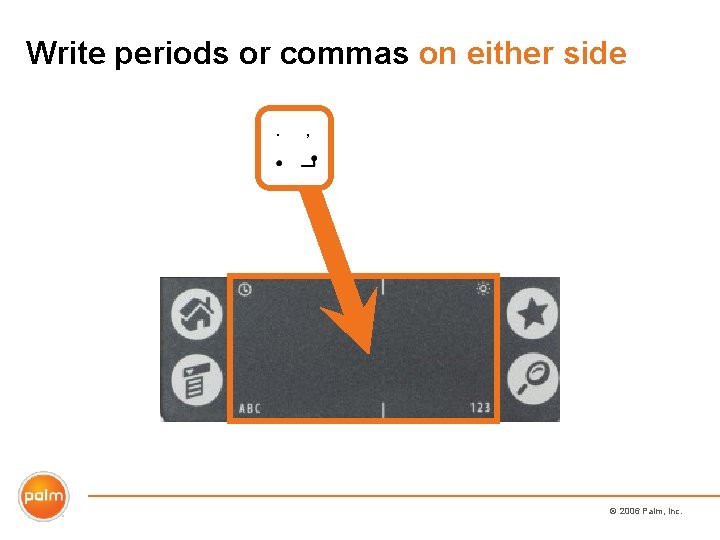

Write periods or commas on either side © 2006 Palm, Inc.

Practice: Write 3+4=7 john@aol. com © 2006 Palm, Inc.

Selecting text is similar to your desktop Drag selects letters Double-Tap selects a word Triple-Tap selects a line © 2006 Palm, Inc.

Make the Soft Keyboard visible Tungsten E 2 Tap ABC Tungsten T|X and Life. Drive Tap Writing Area Tap 123 to see number view © 2006 Palm, Inc.

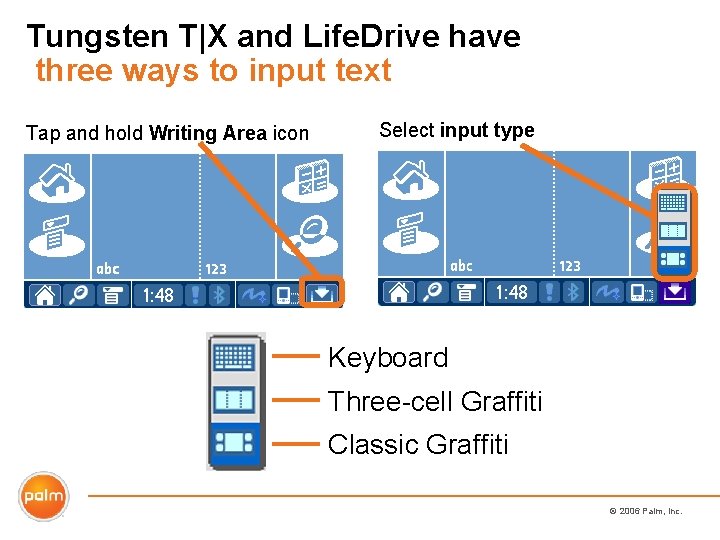

Tungsten T|X and Life. Drive have three ways to input text Tap and hold Writing Area icon Select input type Keyboard Three-cell Graffiti Classic Graffiti © 2006 Palm, Inc.

Explore three views of the keyboard Text Numbers International Tap buttons to switch views © 2006 Palm, Inc.

Tap Done to close the keyboard* Text Numbers International Tap Done * Tungsten T|X and Life. Drive : Tap the Writing Area button © 2006 Palm, Inc.

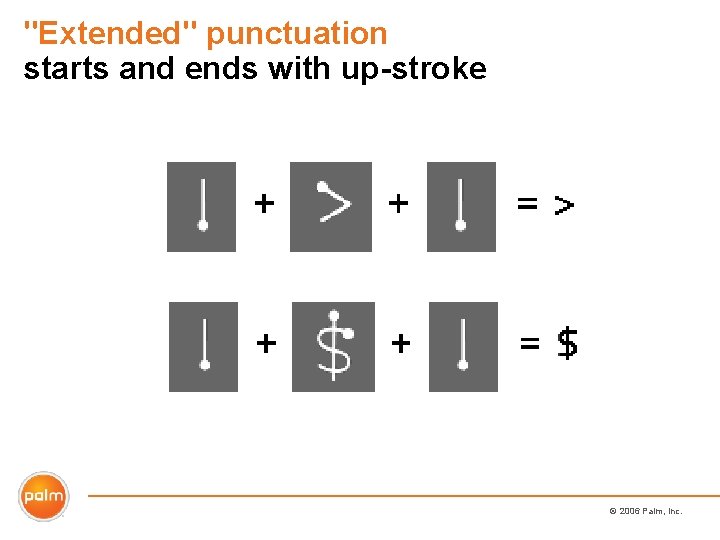

"Extended" punctuation starts and ends with up-stroke © 2006 Palm, Inc.

Practice: Write > $ # ; : • © 2006 Palm, Inc.

Tap here to open the menus… © 2006 Palm, Inc.

… or use the Menu button Tungsten E 2 T|X Life. Drive © 2006 Palm, Inc.

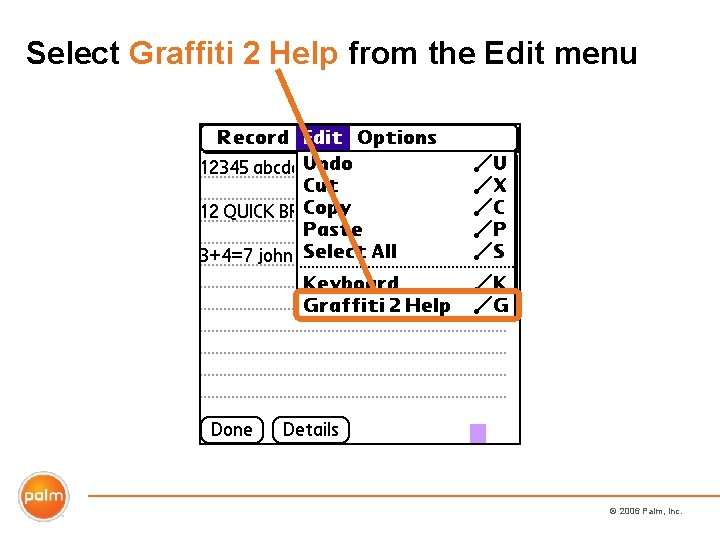

Select Graffiti 2 Help from the Edit menu © 2006 Palm, Inc.

There are six screens inside Graffiti 2 Help © 2006 Palm, Inc.

Contacts Enter your name and address. Beam it to someone. © 2006 Palm, Inc.

Launch Contacts with a button… Tungsten E 2 T|X Life. Drive © 2006 Palm, Inc.

… or use and tap the Contacts icon © 2006 Palm, Inc.

Add your name Tap New Enter text Tap these scroll buttons to move up and down the page © 2006 Palm, Inc.

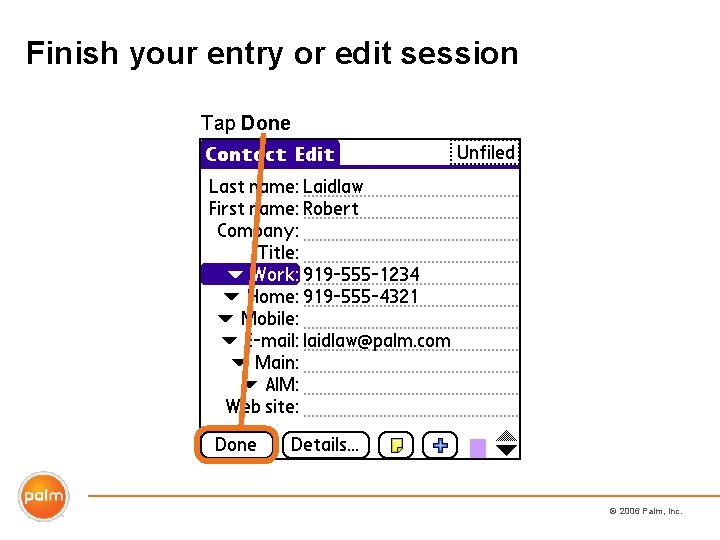

Finish your entry or edit session Tap Done © 2006 Palm, Inc.

You can beam data to other handhelds © 2006 Palm, Inc.

Receiver: Make certain your handheld is on! © 2006 Palm, Inc.

Sender: Open your name Tap your name Record opens © 2006 Palm, Inc.

Sender: Select Beam Contact command © 2006 Palm, Inc.

Beam data! Point towards the top of the other handheld. Stay within about three feet. © 2006 Palm, Inc.

During beaming you'll see these dialogs Sender Receiver © 2006 Palm, Inc.

Receiver: Tap Yes (or don't) You can edit the address after receiving it © 2006 Palm, Inc.

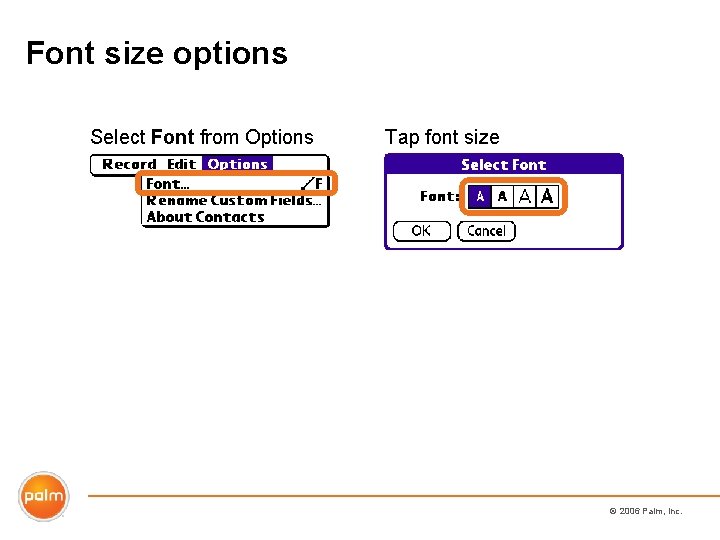

Font size options Select Font from Options Tap font size © 2006 Palm, Inc.

Calendar Switch between views. Create and reschedule an event. © 2006 Palm, Inc.

Launch Calendar with a button… Tungsten E 2 T|X Life. Drive © 2006 Palm, Inc.

… or use and tap the Calendar icon © 2006 Palm, Inc.

You'll see today's Agenda view Most Palm handhelds open to the Agenda View © 2006 Palm, Inc.

Tap to switch between these four views… Agenda Day Week Month © 2006 Palm, Inc.

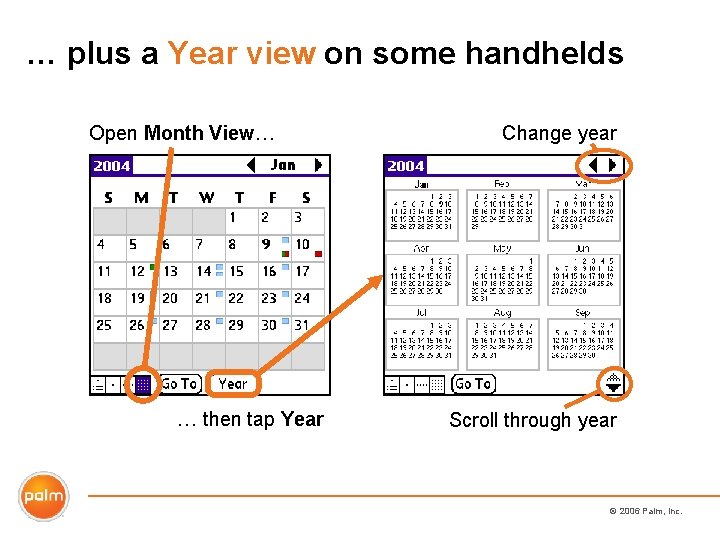

… plus a Year view on some handhelds Open Month View… … then tap Year Change year Scroll through year © 2006 Palm, Inc.

See next day, week, or month Tungsten E 2 T|X Life. Drive © 2006 Palm, Inc.

Quickly open any date Open Day view… … then tap Go To Tap year and month… … then tap day © 2006 Palm, Inc.

Make an appointment Tap New Select times Enter text © 2006 Palm, Inc.

Use Details to reschedule date and time Tap on appointment… Tap dotted boxes and… … make changes … then tap Details Dotted boxes open dialog boxes © 2006 Palm, Inc.

Many dialog boxes include Tips Tap "i" in top-right corner Read tips Tap these scroll buttons to move up and down the page © 2006 Palm, Inc.

Tasks Create a new task. Set its priority and due date. © 2006 Palm, Inc.

Launch Tasks with a button… Tungsten E 2 © 2006 Palm, Inc.

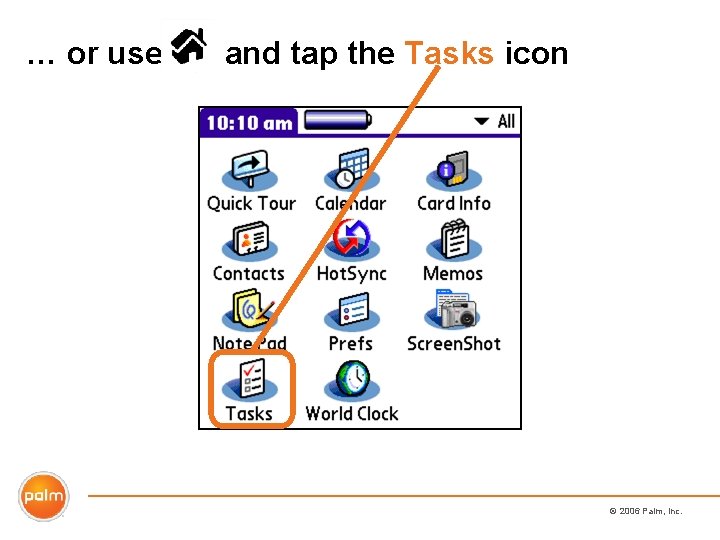

… or use and tap the Tasks icon © 2006 Palm, Inc.

Create a new task Tap New Enter text © 2006 Palm, Inc.

Set priority if desired Tap number Select priority © 2006 Palm, Inc.

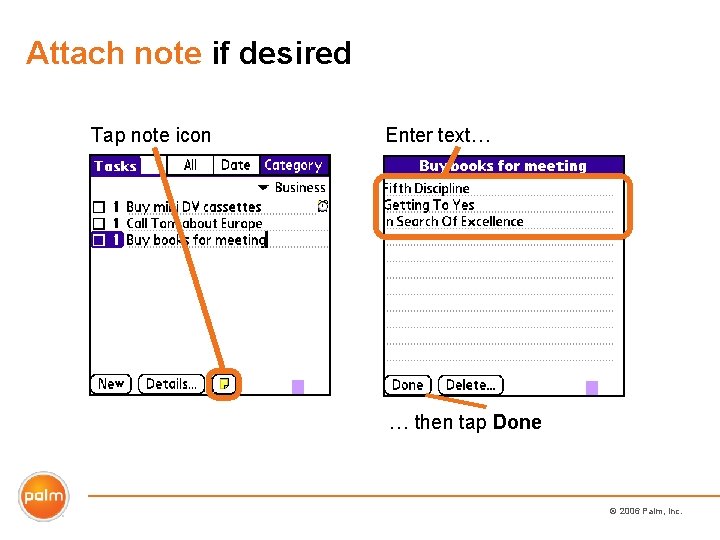

Attach note if desired Tap note icon Enter text… … then tap Done © 2006 Palm, Inc.

Note Pad Draw, label & categorize a note. View previous notes. © 2006 Palm, Inc.

Launch Note Pad with a button… Tungsten E 2 © 2006 Palm, Inc.

… or use and tap the Note Pad icon © 2006 Palm, Inc.

Note Pad automatically creates a new note Automatic time stamp Automatic date stamp © 2006 Palm, Inc.

Make certain on-screen Graffiti 2 is OFF! If this box is filled, then tap on it © 2006 Palm, Inc.

Just draw on the screen Three pens and an eraser © 2006 Palm, Inc.

Use the Scroll Bar to see more of your note Scroll up slightly Drag black box to scroll through note Tap gray strip to page down Scroll down slightly © 2006 Palm, Inc.

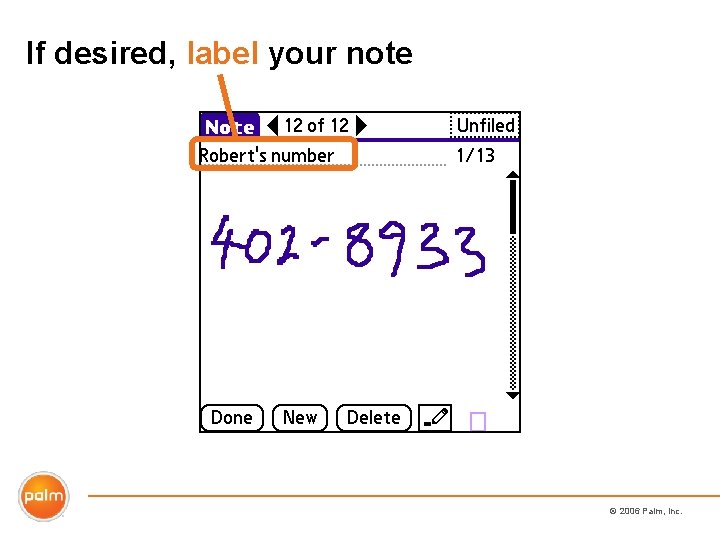

If desired, label your note © 2006 Palm, Inc.

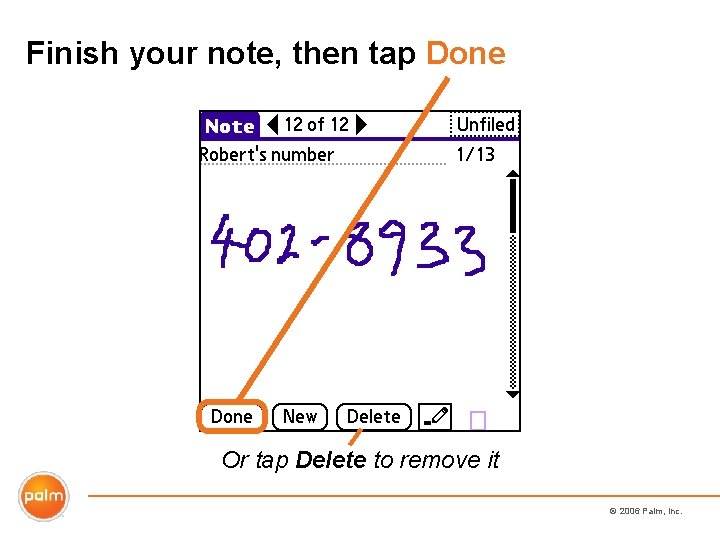

Finish your note, then tap Done Or tap Delete to remove it © 2006 Palm, Inc.

Test your knowledge! 1. Where do you find the Memos application? 2. What are the divisions of the Graffiti area? 3. What do you need to do to make certain special punctuation characters? 4. Where do you find Graffiti Help on your handheld? © 2006 Palm, Inc.

Homework © 2006 Palm, Inc.

Giraffe Graffiti Practice © 2006 Palm, Inc.

Tips • Don’t write on the screen with sharp object such as a pen or a paper clip! • If your batteries run out and you cannot turn on your Palm device, you have at least one week to recharge your batteries. • Use screen cleaners designed for handhelds rather than cleaners designed for computer monitors. • If your stylus seems to be missing what you are tapping on, try redigitizing the screen. © 2006 Palm, Inc.

This was just a glimpse of the possibilities! With a Palm handheld or smartphone, educators and students can do amazing things! 2 E Power! E 2= Everyone • Everywhere © 2006 Palm, Inc.

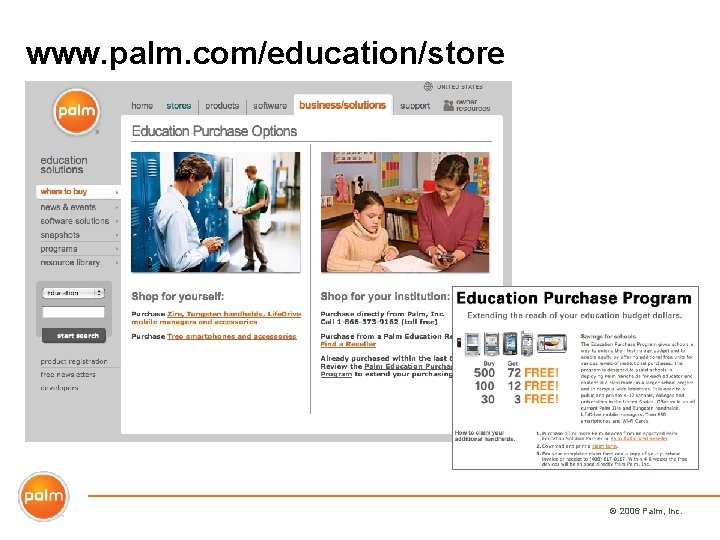

www. palm. com/education/store © 2006 Palm, Inc.

www. palm. com/education • Stories of schools using handhelds in education today • Sign up for “Education in Sync” electronic newsletter • Read the education “Quick Guides” for software solutions • Sign up to attend free education Webinars • Learn about the Education Purchase Program for additional free handhelds © 2006 Palm, Inc.
