Pairwise Constraint Propagation by Semidefinite Programming for Semi-Supervised Classification Zhenguo Li (Joint work with Jianzhuang Liu and Xiaoou Tang) Department of Information Engineering The Chinese University of Hong Kong

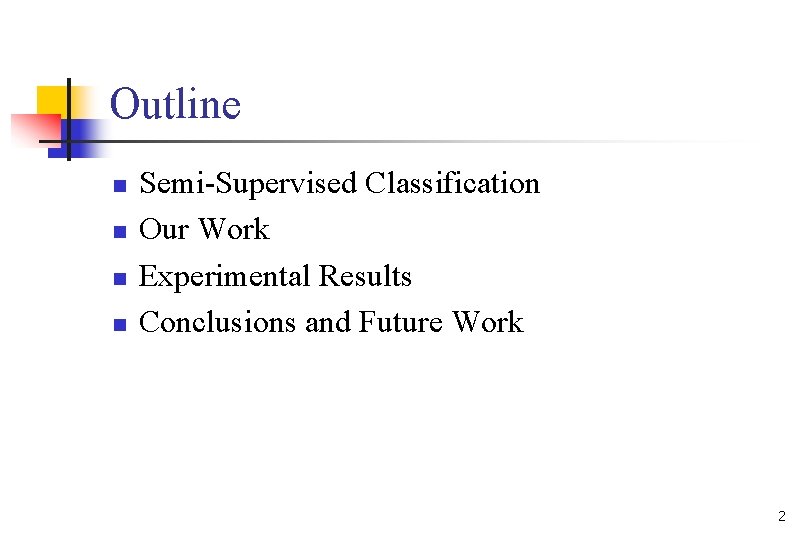

Outline n n Semi-Supervised Classification Our Work Experimental Results Conclusions and Future Work 2

Traditional Semi-Supervised Classification n n Learning from labeled and unlabeled data. Assumption n n Nearby objects tend to be in the same class (cluster assumption). Idea n The known class labels are propagated smoothly to unlabeled data (label propagation). 3

Challenges n The distributions of real-world data are often more complex than expected where n n a class may consist of multiple separate groups. different classes may be close or overlapped. Pairwise constraints are natural in these circumstances, which specify whether two objects are in the same class or not (must-link and cannot-link). Techniques for label propagation are not readily extended to handle pairwise constraints. 4

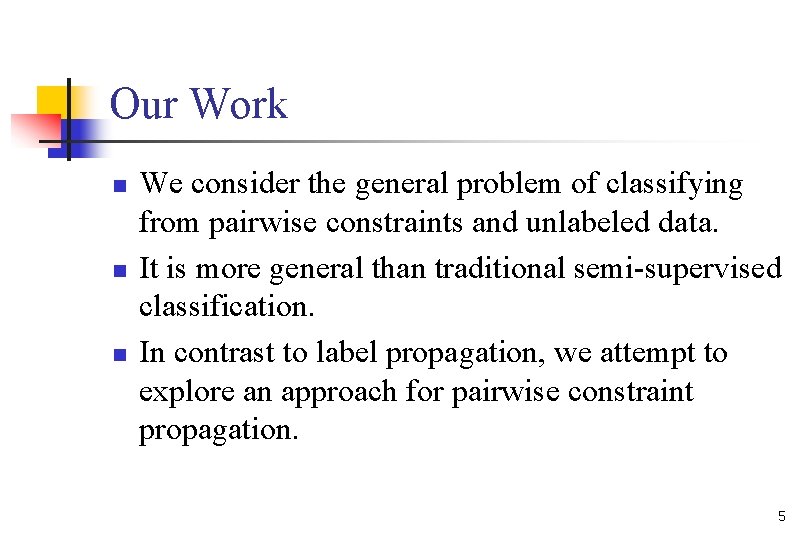

Our Work n n n We consider the general problem of classifying from pairwise constraints and unlabeled data. It is more general than traditional semi-supervised classification. In contrast to label propagation, we attempt to explore an approach for pairwise constraint propagation. 5

A Toy Classification Example 6

The Global Viewpoint n n The must-link constraint asks to merge the outer and inner circles into one class; The cannot-link constraint asks to keep the middle and outer circles into different classes. 7

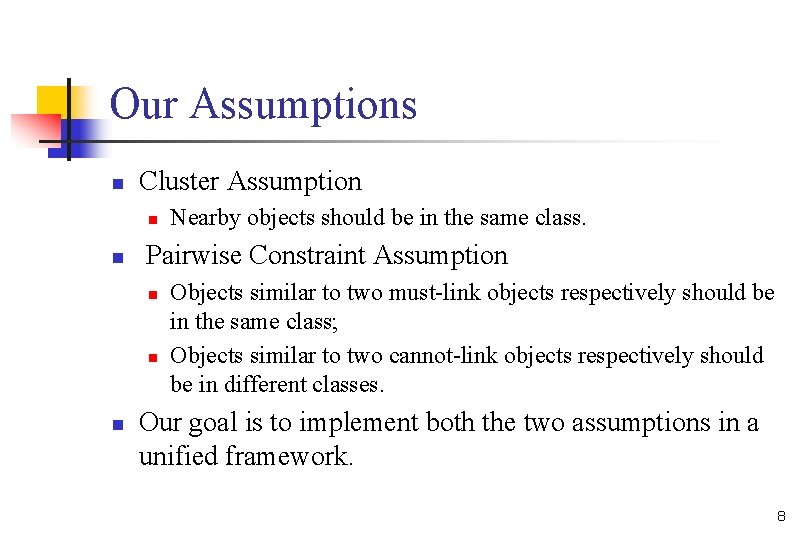

Our Assumptions n Cluster Assumption n n Pairwise Constraint Assumption n Nearby objects should be in the same class. Objects similar to two must-link objects respectively should be in the same class; Objects similar to two cannot-link objects respectively should be in different classes. Our goal is to implement both the two assumptions in a unified framework. 8

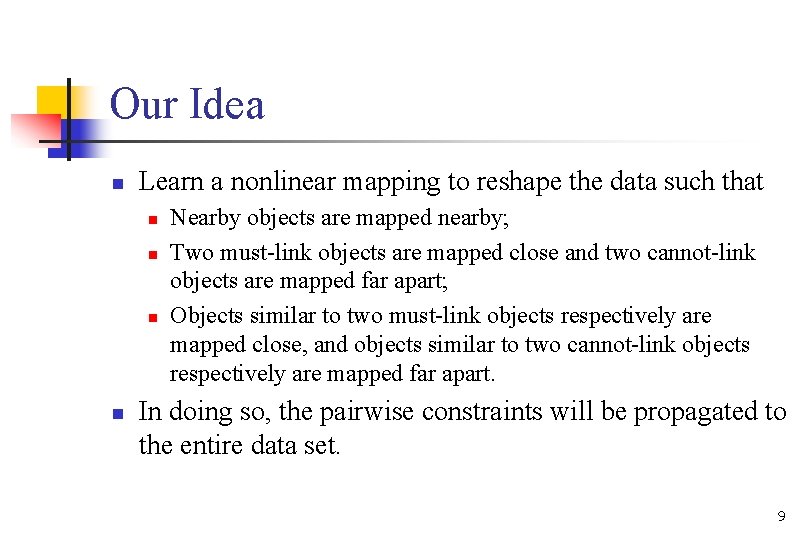

Our Idea n Learn a nonlinear mapping to reshape the data such that n n Nearby objects are mapped nearby; Two must-link objects are mapped close and two cannot-link objects are mapped far apart; Objects similar to two must-link objects respectively are mapped close, and objects similar to two cannot-link objects respectively are mapped far apart. In doing so, the pairwise constraints will be propagated to the entire data set. 9

The General Framework 10

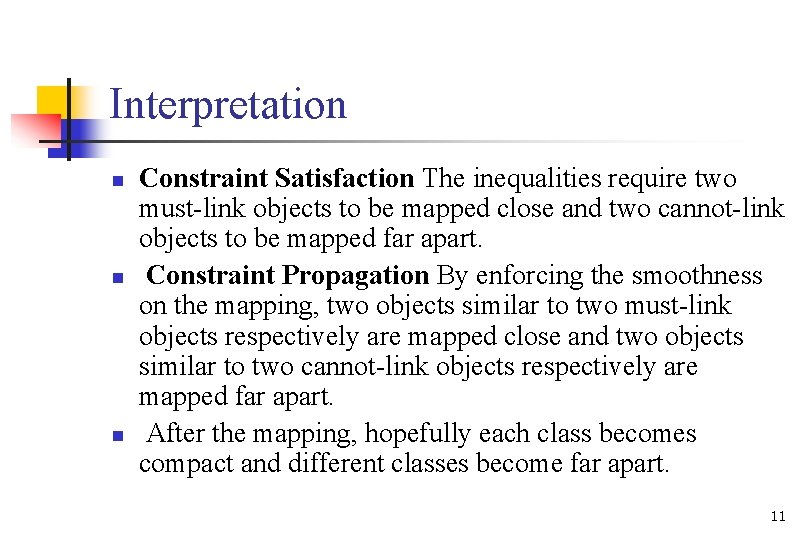

Interpretation n Constraint Satisfaction The inequalities require two must-link objects to be mapped close and two cannot-link objects to be mapped far apart. Constraint Propagation By enforcing the smoothness on the mapping, two objects similar to two must-link objects respectively are mapped close and two objects similar to two cannot-link objects respectively are mapped far apart. After the mapping, hopefully each class becomes compact and different classes become far apart. 11

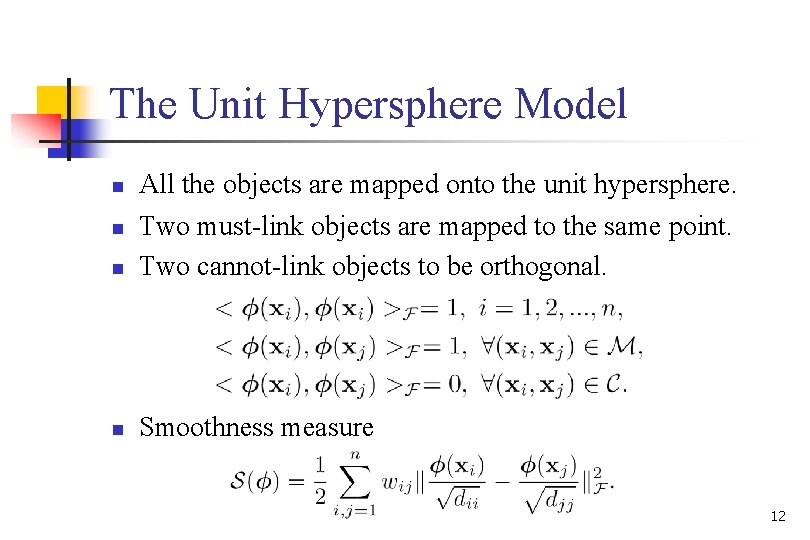

The Unit Hypersphere Model n All the objects are mapped onto the unit hypersphere. Two must-link objects are mapped to the same point. Two cannot-link objects to be orthogonal. n Smoothness measure n n 12

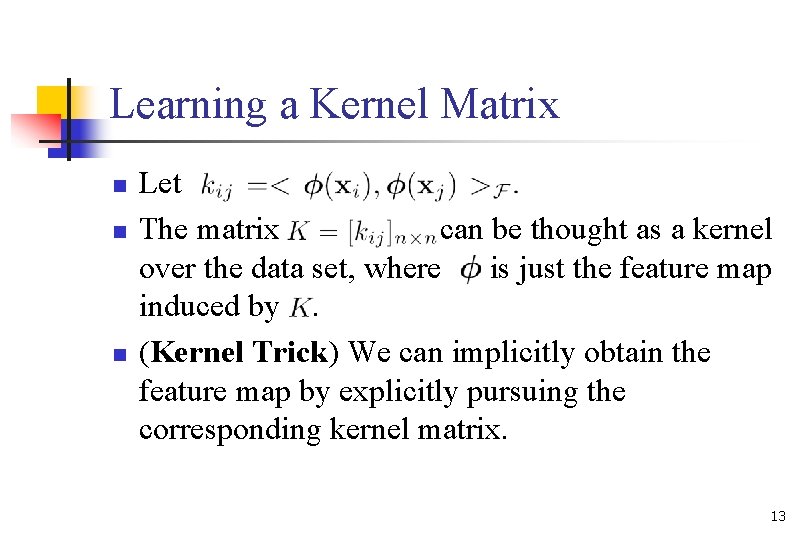

Learning a Kernel Matrix n n n Let The matrix can be thought as a kernel over the data set, where is just the feature map induced by . (Kernel Trick) We can implicitly obtain the feature map by explicitly pursuing the corresponding kernel matrix. 13

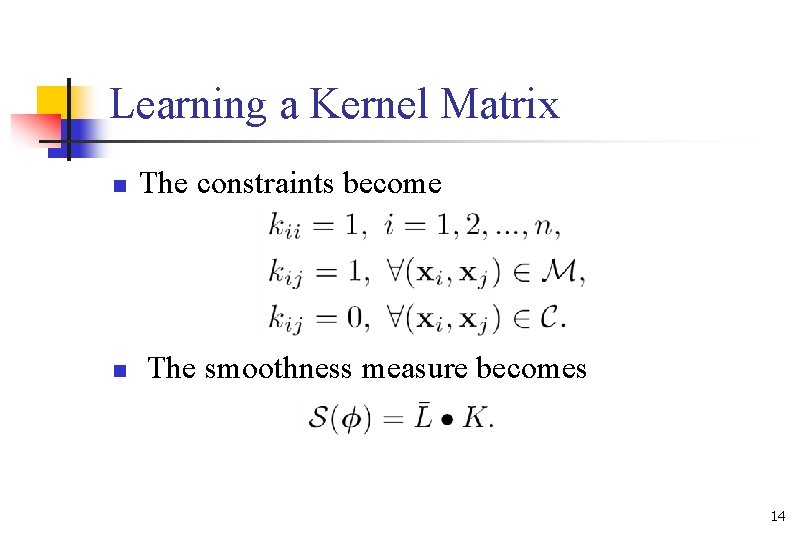

Learning a Kernel Matrix n The constraints become n The smoothness measure becomes 14

The SDP Problem 15

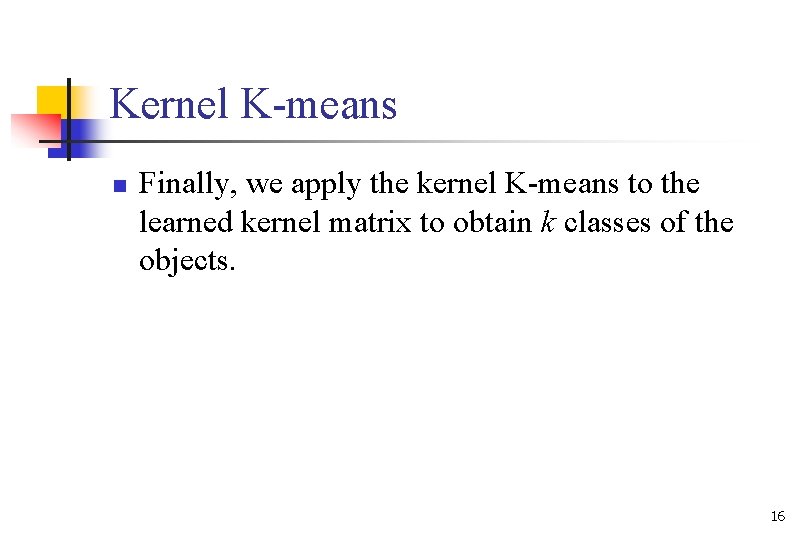

Kernel K-means n Finally, we apply the kernel K-means to the learned kernel matrix to obtain k classes of the objects. 16

Experimental Results: Toy Data n Distance matrices before and after the mapping 17

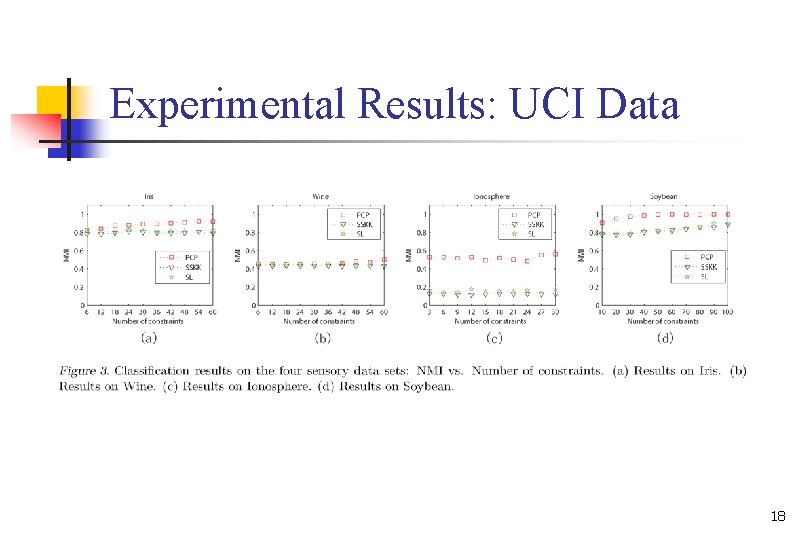

Experimental Results: UCI Data 18

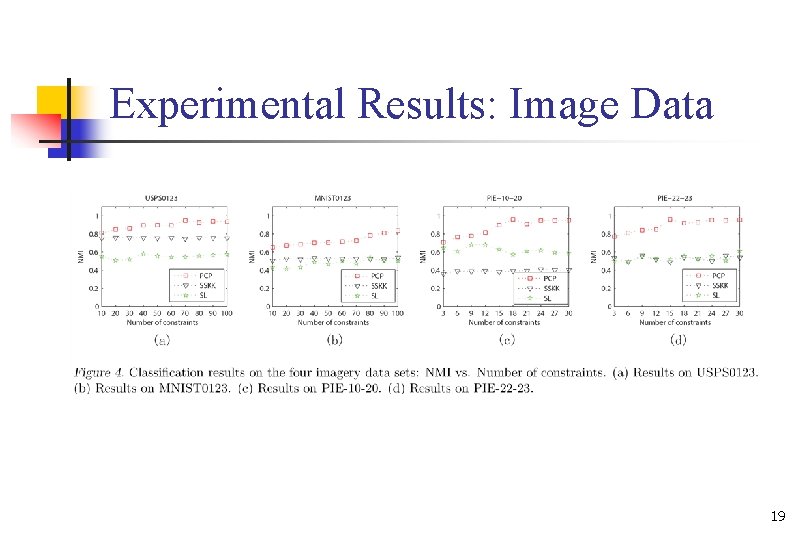

Experimental Results: Image Data 19

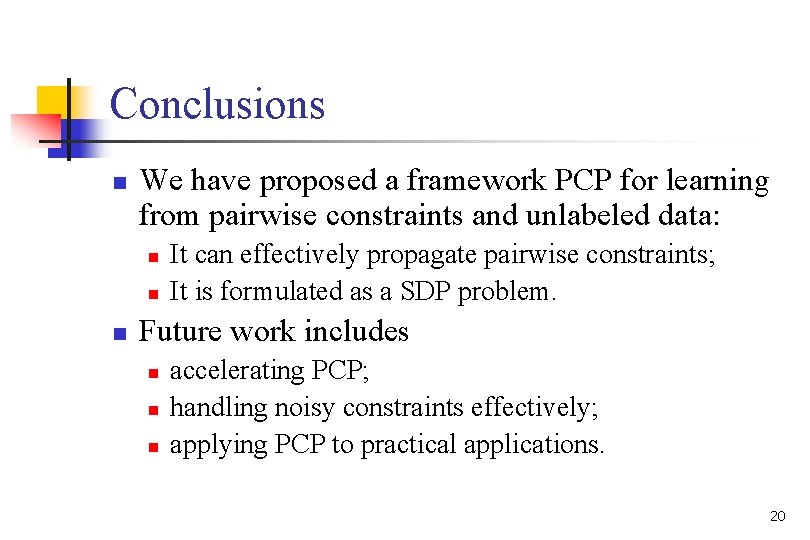

Conclusions n We have proposed a framework PCP for learning from pairwise constraints and unlabeled data: n n n It can effectively propagate pairwise constraints; It is formulated as a SDP problem. Future work includes n n n accelerating PCP; handling noisy constraints effectively; applying PCP to practical applications. 20
