PACEMAKER BASICS Frijo jose a Cathode negative Electrode

PACEMAKER BASICS Frijo jose a

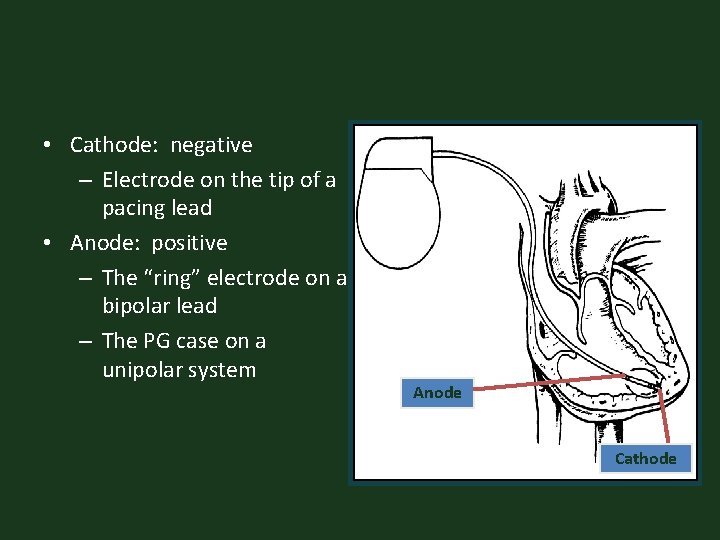

• Cathode: negative – Electrode on the tip of a pacing lead • Anode: positive – The “ring” electrode on a bipolar lead – The PG case on a unipolar system Anode Cathode

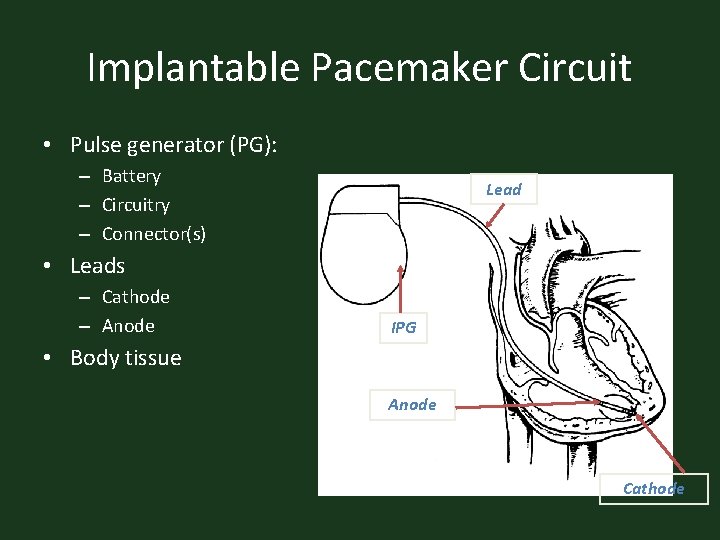

Implantable Pacemaker Circuit • Pulse generator (PG): – Battery – Circuitry – Connector(s) Lead • Leads – Cathode – Anode IPG • Body tissue Anode Cathode

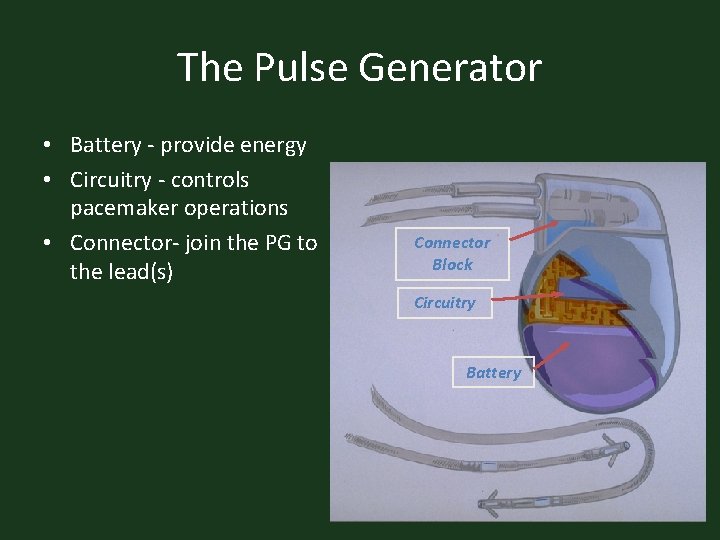

The Pulse Generator • Battery - provide energy • Circuitry - controls pacemaker operations • Connector- join the PG to the lead(s) Connector Block Circuitry Battery

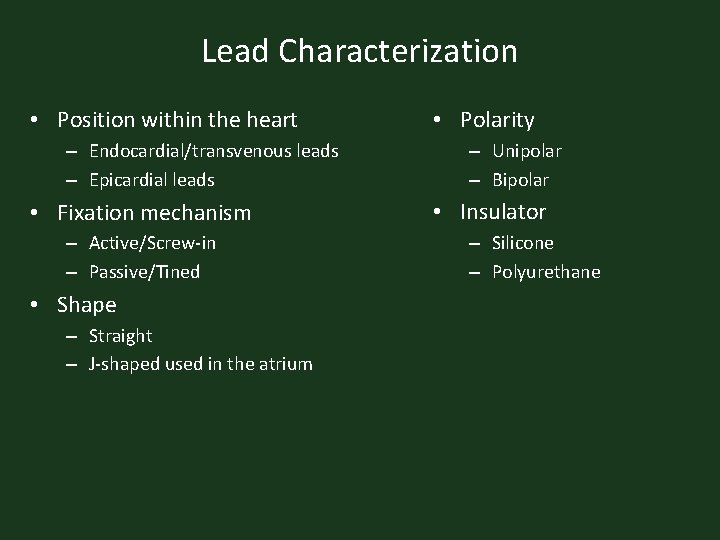

Lead Characterization • Position within the heart – Endocardial/transvenous leads – Epicardial leads • Fixation mechanism – Active/Screw-in – Passive/Tined • Shape – Straight – J-shaped used in the atrium • Polarity – Unipolar – Bipolar • Insulator – Silicone – Polyurethane

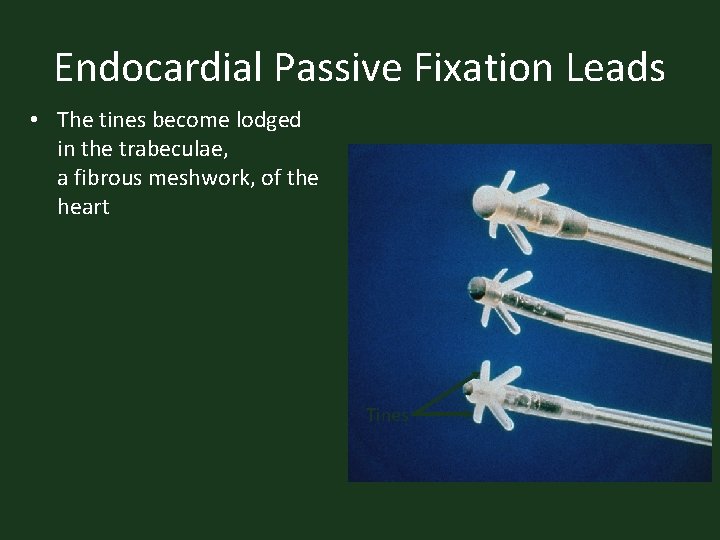

Endocardial Passive Fixation Leads • The tines become lodged in the trabeculae, a fibrous meshwork, of the heart Tines

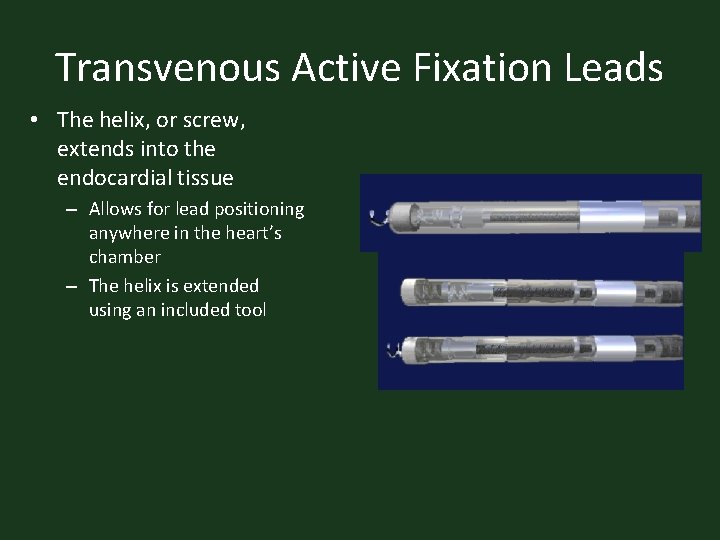

Transvenous Active Fixation Leads • The helix, or screw, extends into the endocardial tissue – Allows for lead positioning anywhere in the heart’s chamber – The helix is extended using an included tool

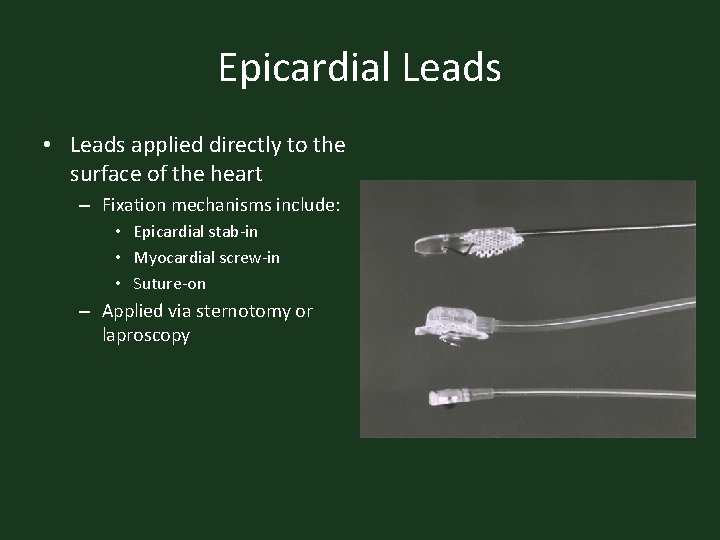

Epicardial Leads • Leads applied directly to the surface of the heart – Fixation mechanisms include: • Epicardial stab-in • Myocardial screw-in • Suture-on – Applied via sternotomy or laproscopy

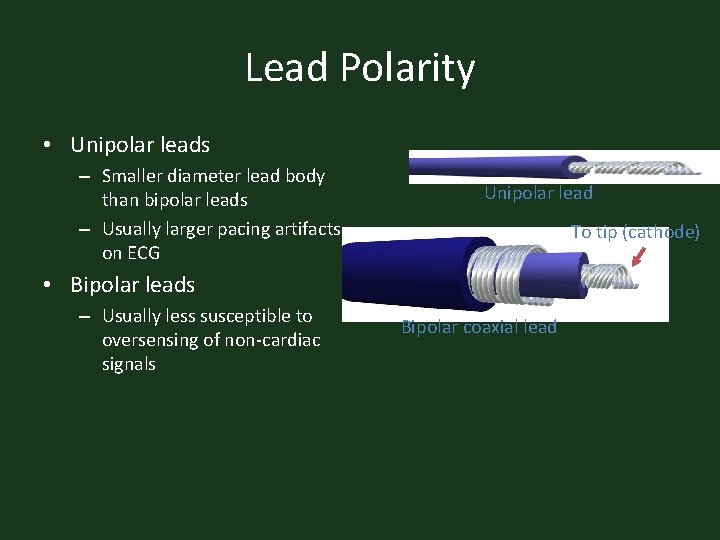

Lead Polarity • Unipolar leads – Smaller diameter lead body than bipolar leads – Usually larger pacing artifacts on ECG Unipolar lead To tip (cathode) • Bipolar leads – Usually less susceptible to oversensing of non-cardiac signals Bipolar coaxial lead

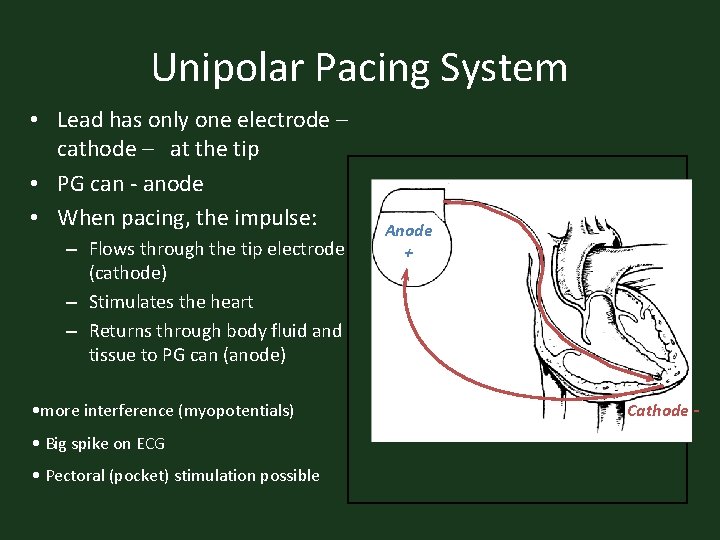

Unipolar Pacing System • Lead has only one electrode – cathode – at the tip • PG can - anode • When pacing, the impulse: – Flows through the tip electrode (cathode) – Stimulates the heart – Returns through body fluid and tissue to PG can (anode) • more interference (myopotentials) • Big spike on ECG • Pectoral (pocket) stimulation possible Anode + Cathode -

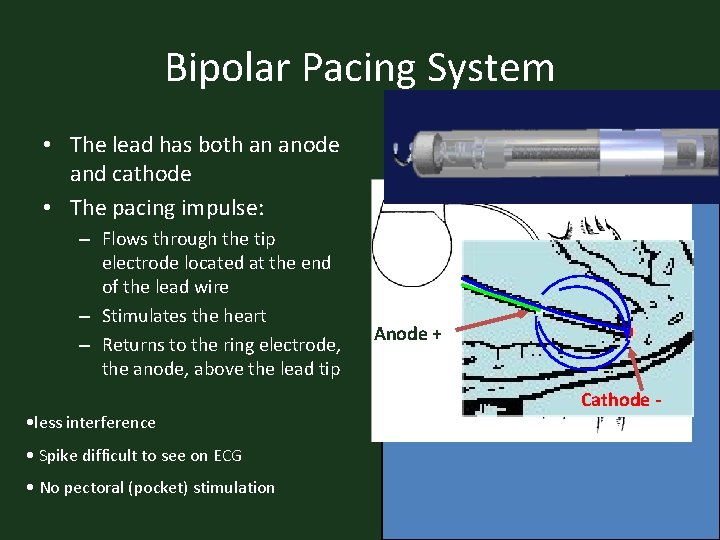

Bipolar Pacing System • The lead has both an anode and cathode • The pacing impulse: – Flows through the tip electrode located at the end of the lead wire – Stimulates the heart – Returns to the ring electrode, the anode, above the lead tip • less interference Anode + Anode Cathode - • Spike difficult to see on ECG • No pectoral (pocket) stimulation Cathode

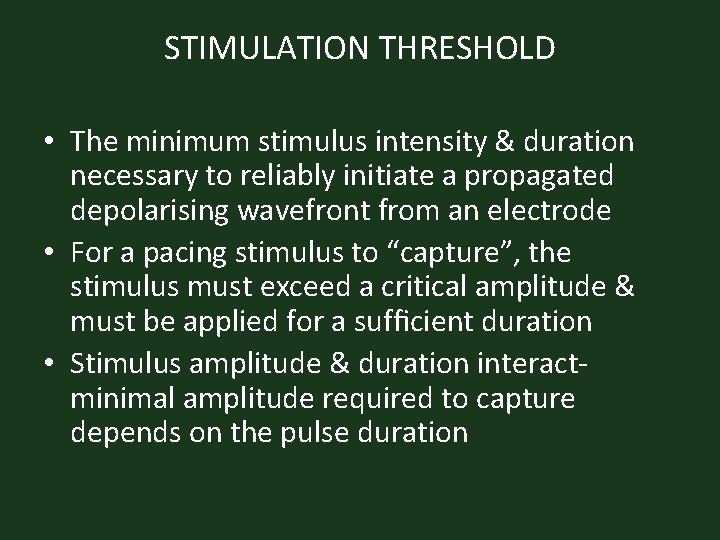

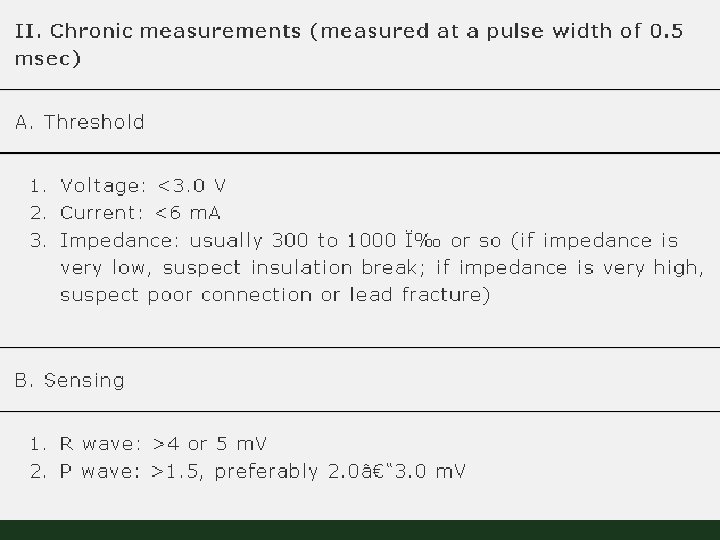

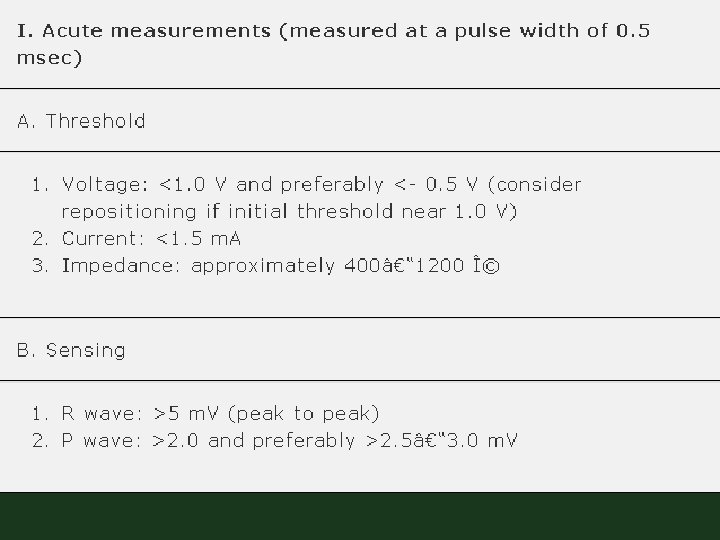

STIMULATION THRESHOLD • The minimum stimulus intensity & duration necessary to reliably initiate a propagated depolarising wavefront from an electrode • For a pacing stimulus to “capture”, the stimulus must exceed a critical amplitude & must be applied for a sufficient duration • Stimulus amplitude & duration interactminimal amplitude required to capture depends on the pulse duration

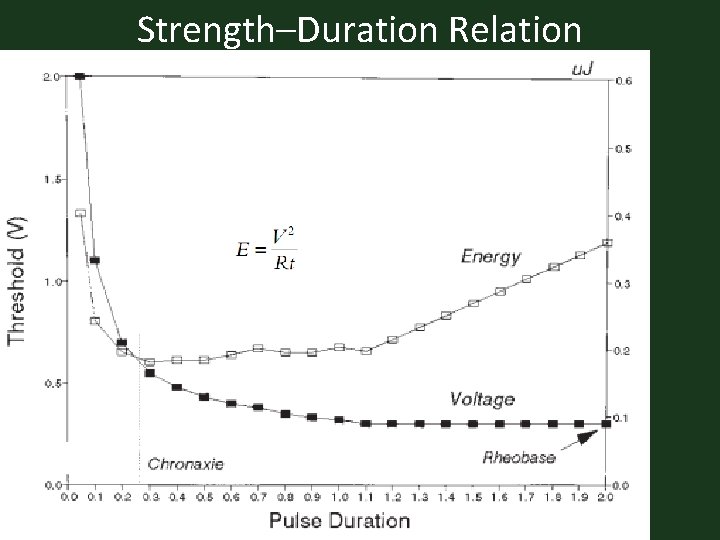

Strength–Duration Relation Stimulus amplitude for endocardial stimulation has an exponential relation to duration of the pulse- rapidly rising strength–duration curve at pulse durations <0. 25 ms and a relatively flat curve at pulse durations > 1. 0 ms

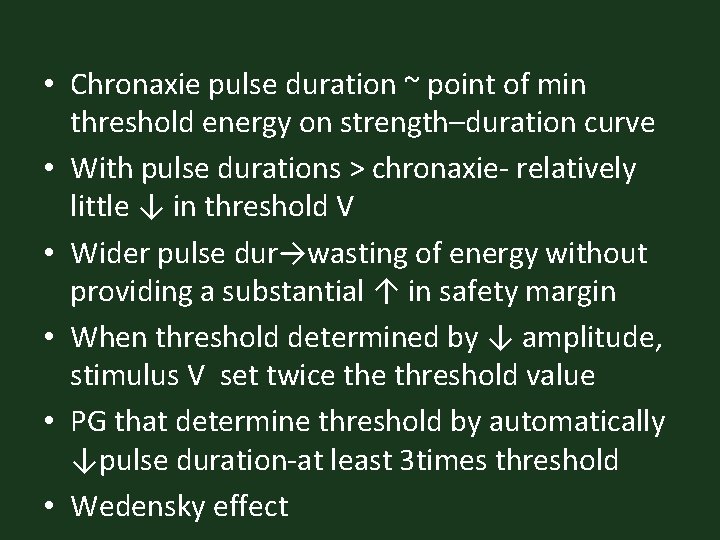

• Chronaxie pulse duration ~ point of min threshold energy on strength–duration curve • With pulse durations > chronaxie- relatively little ↓ in threshold V • Wider pulse dur→wasting of energy without providing a substantial ↑ in safety margin • When threshold determined by ↓ amplitude, stimulus V set twice threshold value • PG that determine threshold by automatically ↓pulse duration-at least 3 times threshold • Wedensky effect

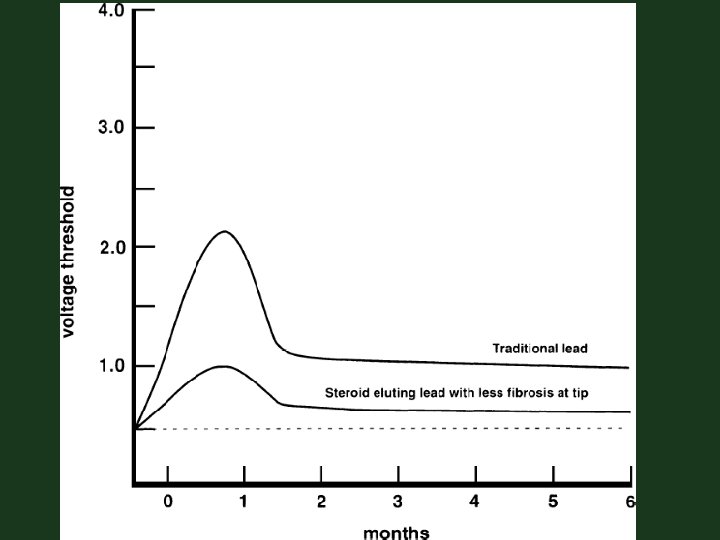

Hyperacute phase of threshold evolution- active fixation electrodes may produce, immediately following implantation, an ↑ stimulation threshold that ↓over the next 20 -30 min- transient high threshold – a/c injury at myocardial–electrode interface

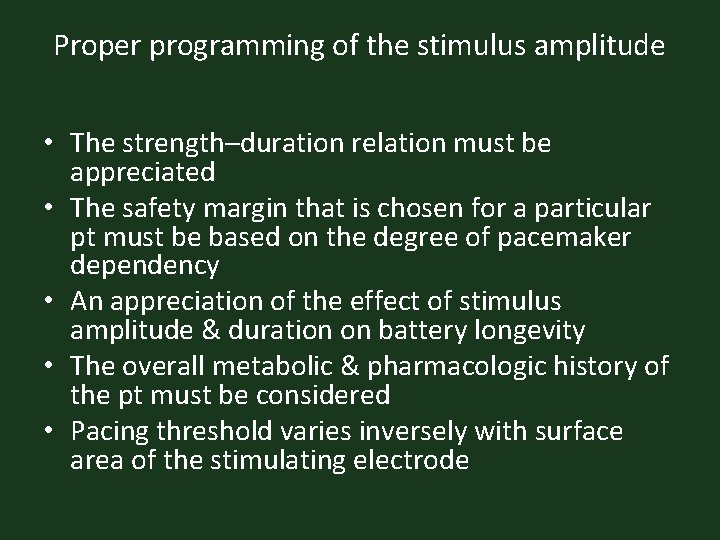

Proper programming of the stimulus amplitude • The strength–duration relation must be appreciated • The safety margin that is chosen for a particular pt must be based on the degree of pacemaker dependency • An appreciation of the effect of stimulus amplitude & duration on battery longevity • The overall metabolic & pharmacologic history of the pt must be considered • Pacing threshold varies inversely with surface area of the stimulating electrode

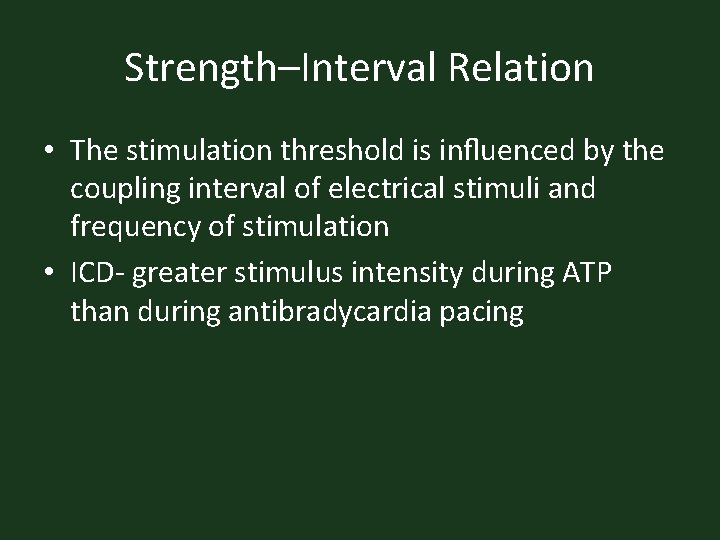

Strength–Interval Relation • The stimulation threshold is influenced by the coupling interval of electrical stimuli and frequency of stimulation • ICD- greater stimulus intensity during ATP than during antibradycardia pacing

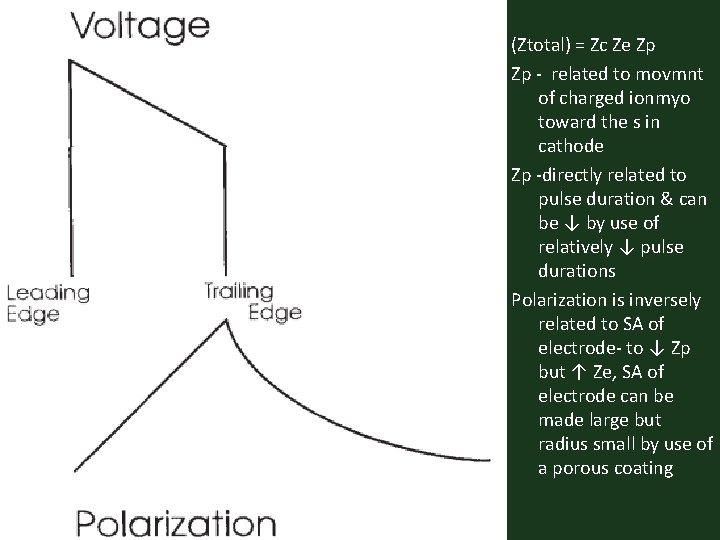

(Ztotal) = Zc Ze Zp Zp - related to movmnt of charged ionmyo toward the s in cathode Zp -directly related to pulse duration & can be ↓ by use of relatively ↓ pulse durations Polarization is inversely related to SA of electrode- to ↓ Zp but ↑ Ze, SA of electrode can be made large but radius small by use of a porous coating

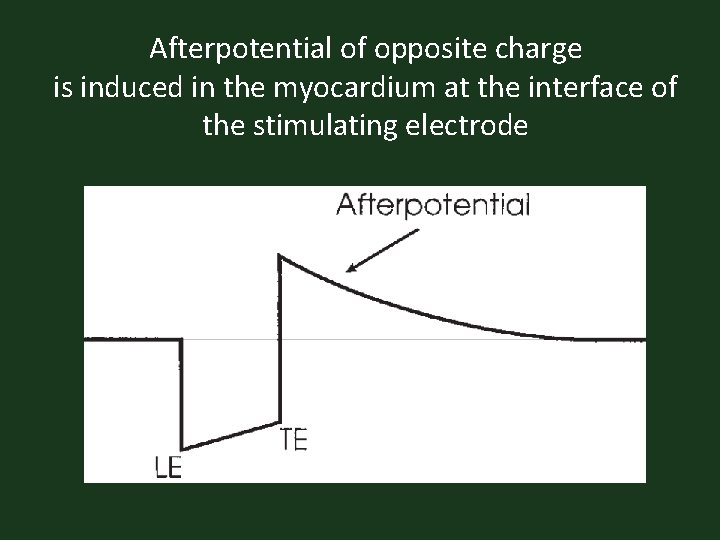

Afterpotential of opposite charge is induced in the myocardium at the interface of the stimulating electrode

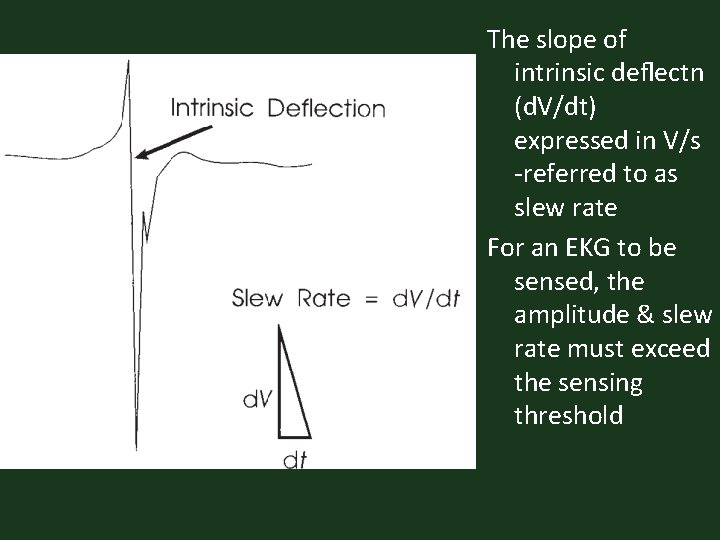

The slope of intrinsic deflectn (d. V/dt) expressed in V/s -referred to as slew rate For an EKG to be sensed, the amplitude & slew rate must exceed the sensing threshold

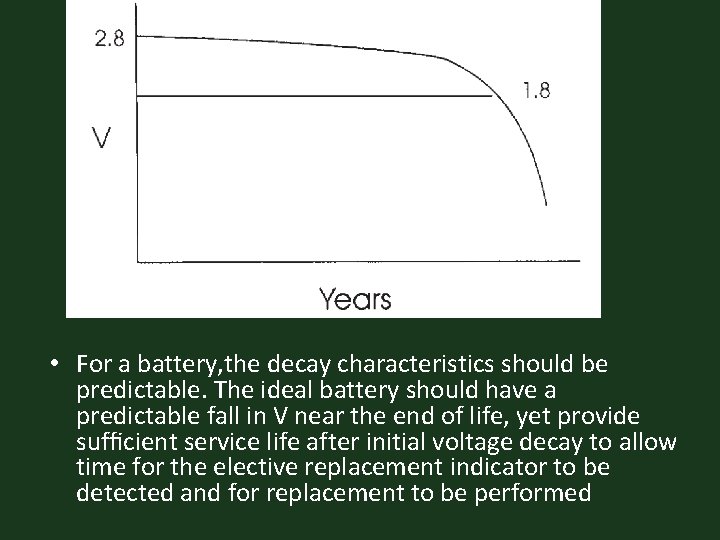

• For a battery, the decay characteristics should be predictable. The ideal battery should have a predictable fall in V near the end of life, yet provide sufficient service life after initial voltage decay to allow time for the elective replacement indicator to be detected and for replacement to be performed

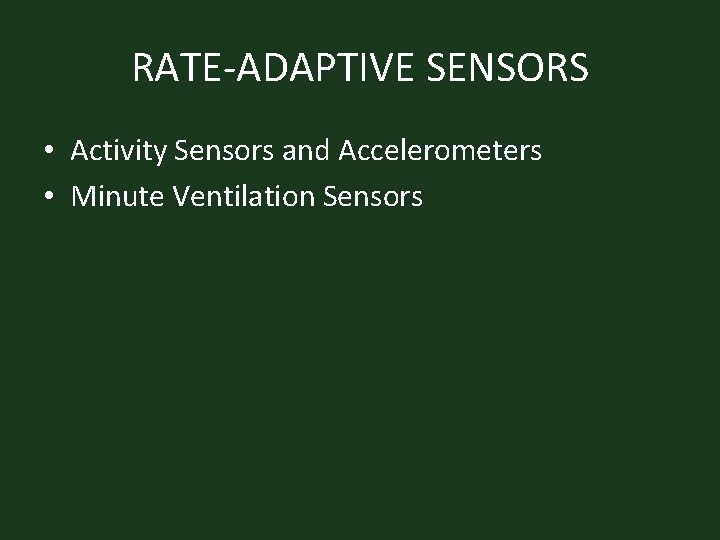

RATE-ADAPTIVE SENSORS • Activity Sensors and Accelerometers • Minute Ventilation Sensors

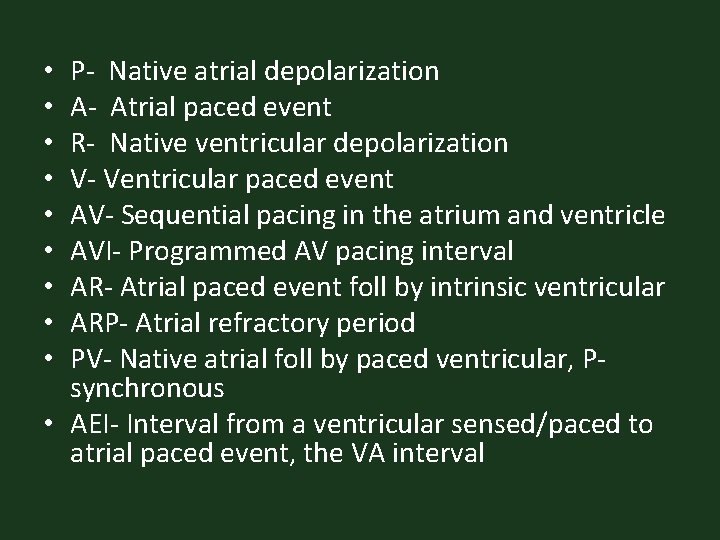

P- Native atrial depolarization A- Atrial paced event R- Native ventricular depolarization V- Ventricular paced event AV- Sequential pacing in the atrium and ventricle AVI- Programmed AV pacing interval AR- Atrial paced event foll by intrinsic ventricular ARP- Atrial refractory period PV- Native atrial foll by paced ventricular, Psynchronous • AEI- Interval from a ventricular sensed/paced to atrial paced event, the VA interval • • •

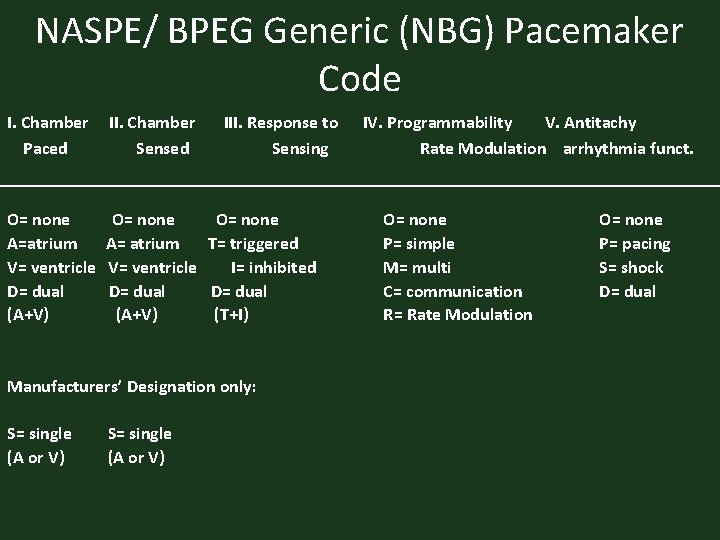

NASPE/ BPEG Generic (NBG) Pacemaker Code I. Chamber Paced II. Chamber Sensed III. Response to Sensing O= none A=atrium V= ventricle D= dual (A+V) O= none A= atrium T= triggered V= ventricle I= inhibited D= dual (A+V) (T+I) Manufacturers’ Designation only: S= single (A or V) IV. Programmability V. Antitachy Rate Modulation arrhythmia funct. O= none P= simple M= multi C= communication R= Rate Modulation O= none P= pacing S= shock D= dual

PACING MODES

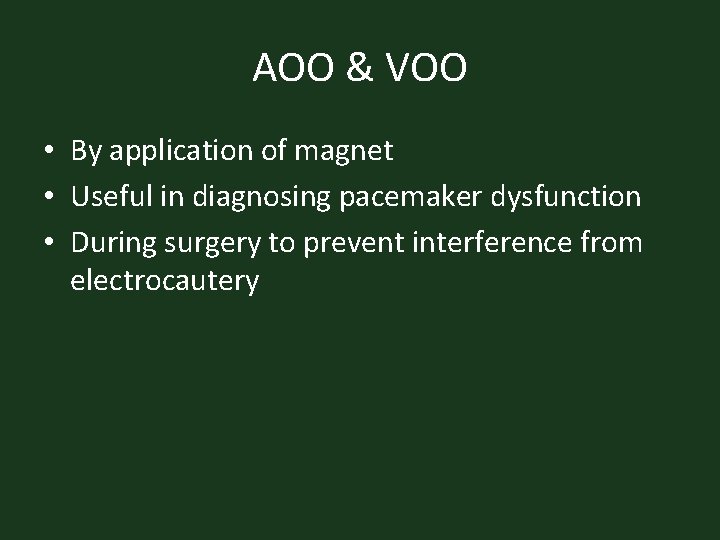

AOO & VOO • By application of magnet • Useful in diagnosing pacemaker dysfunction • During surgery to prevent interference from electrocautery

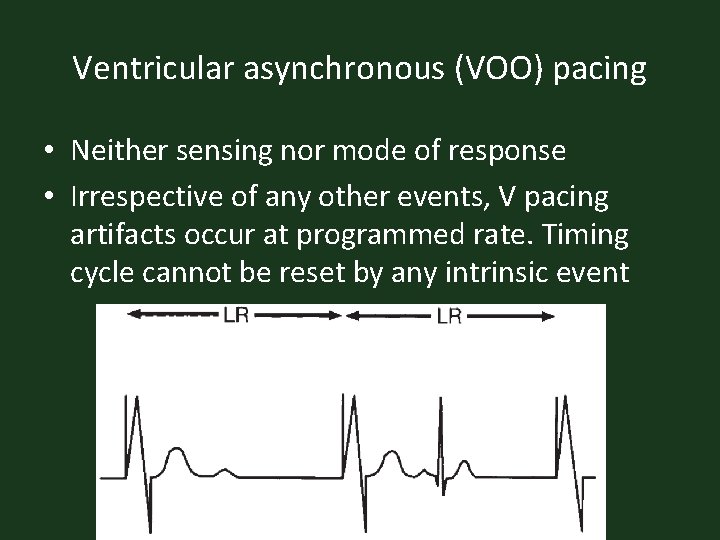

Ventricular asynchronous (VOO) pacing • Neither sensing nor mode of response • Irrespective of any other events, V pacing artifacts occur at programmed rate. Timing cycle cannot be reset by any intrinsic event

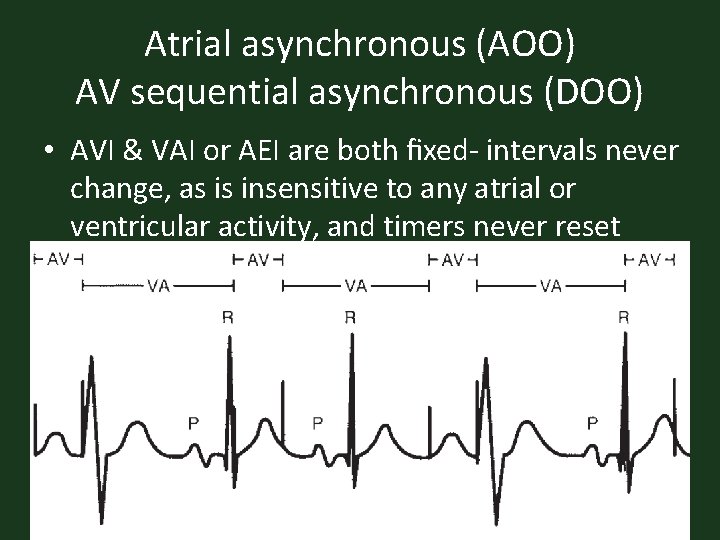

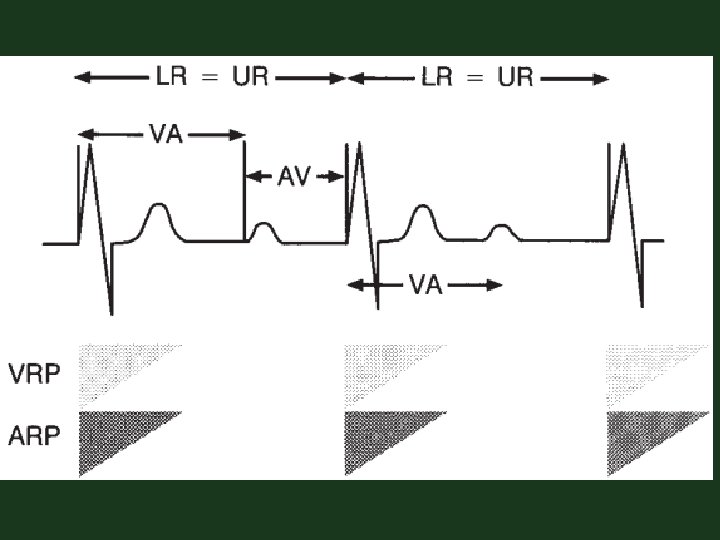

Atrial asynchronous (AOO) AV sequential asynchronous (DOO) • AVI & VAI or AEI are both fixed- intervals never change, as is insensitive to any atrial or ventricular activity, and timers never reset

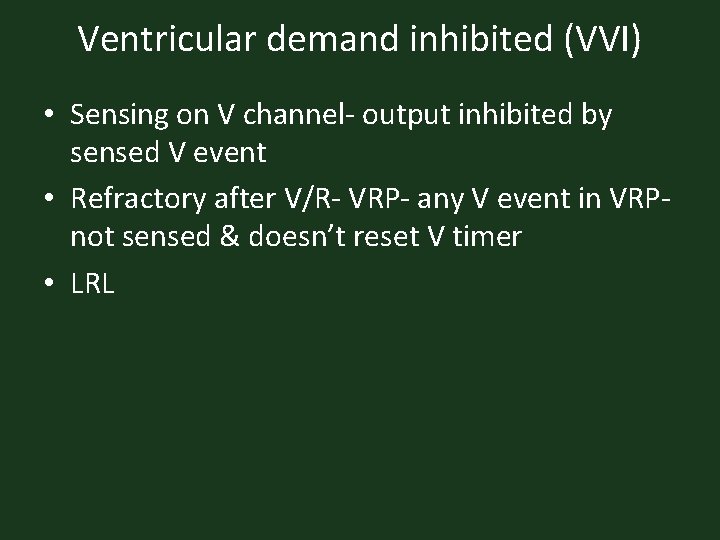

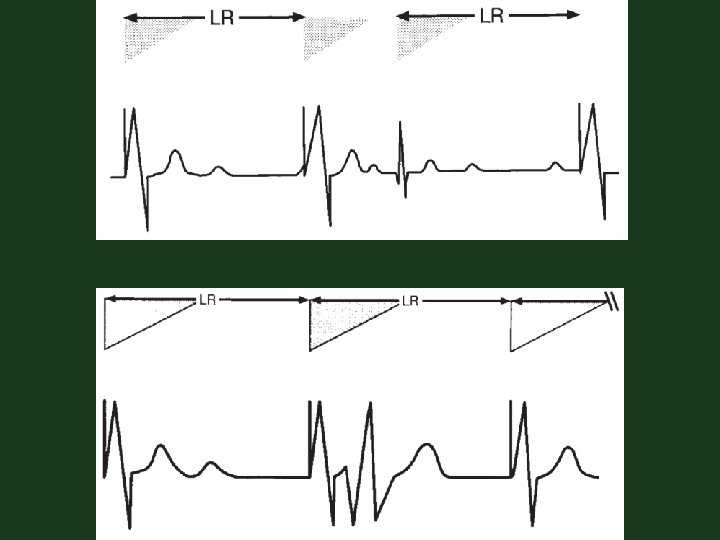

Ventricular demand inhibited (VVI) • Sensing on V channel- output inhibited by sensed V event • Refractory after V/R- VRP- any V event in VRPnot sensed & doesn’t reset V timer • LRL

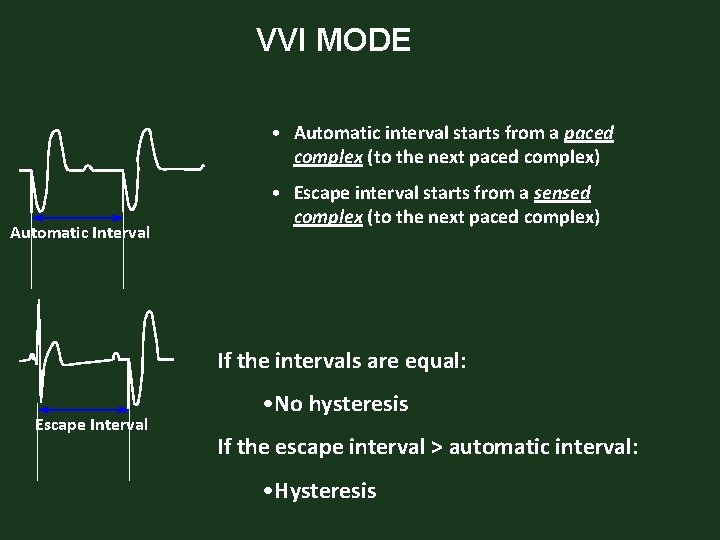

VVI MODE • Automatic interval starts from a paced complex (to the next paced complex) Automatic Interval • Escape interval starts from a sensed complex (to the next paced complex) If the intervals are equal: Escape Interval • No hysteresis If the escape interval > automatic interval: • Hysteresis

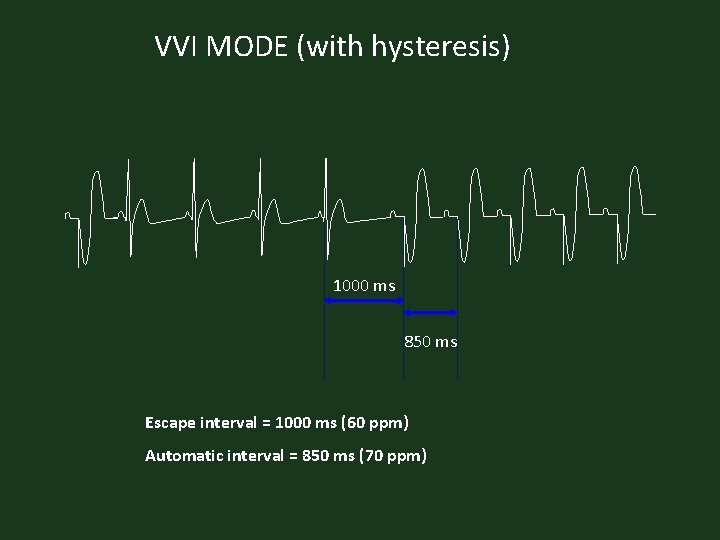

VVI MODE (with hysteresis) 1000 ms 850 ms Escape interval = 1000 ms (60 ppm) Automatic interval = 850 ms (70 ppm)

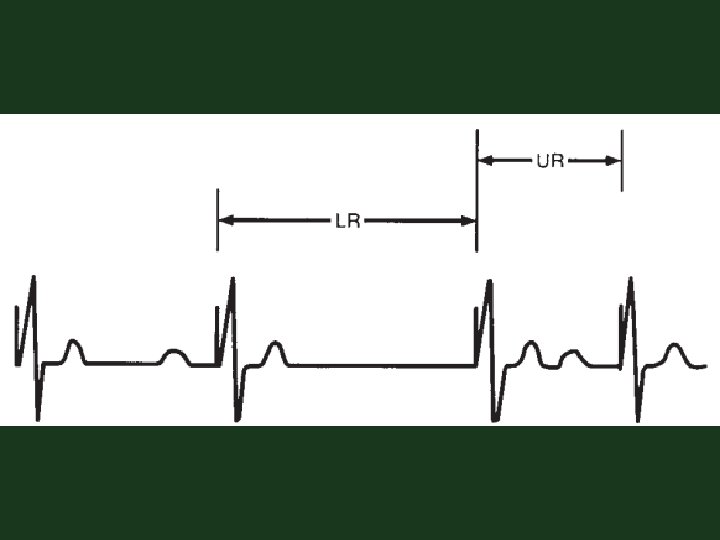

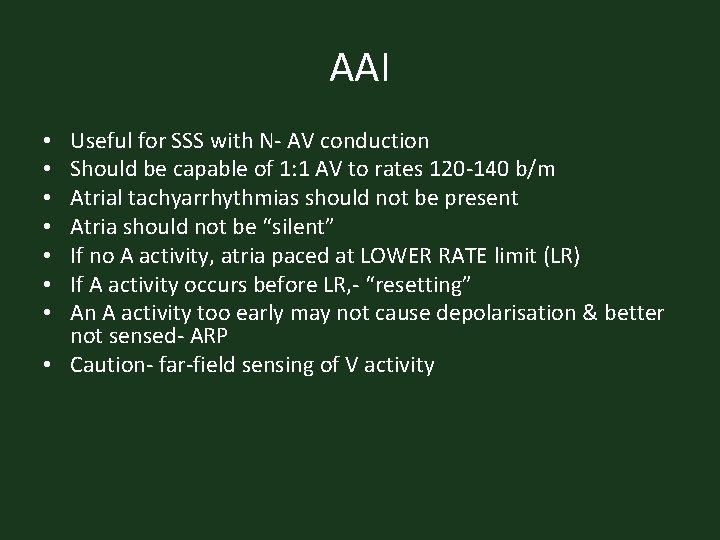

AAI Useful for SSS with N- AV conduction Should be capable of 1: 1 AV to rates 120 -140 b/m Atrial tachyarrhythmias should not be present Atria should not be “silent” If no A activity, atria paced at LOWER RATE limit (LR) If A activity occurs before LR, - “resetting” An A activity too early may not cause depolarisation & better not sensed- ARP • Caution- far-field sensing of V activity • •

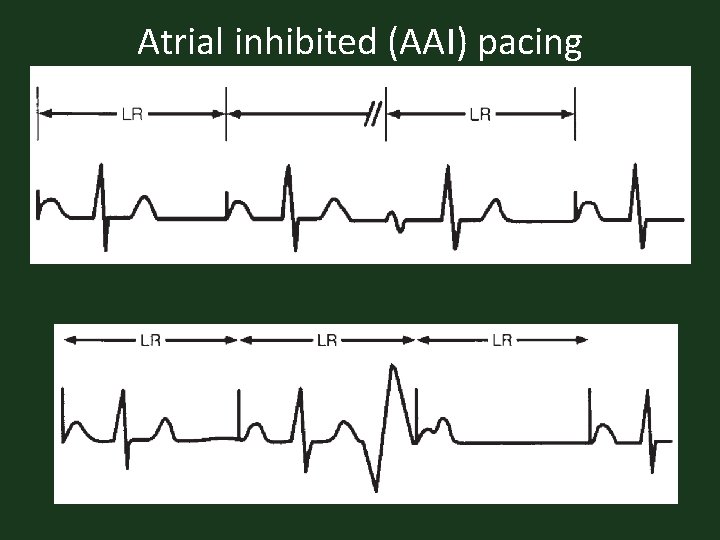

Atrial inhibited (AAI) pacing

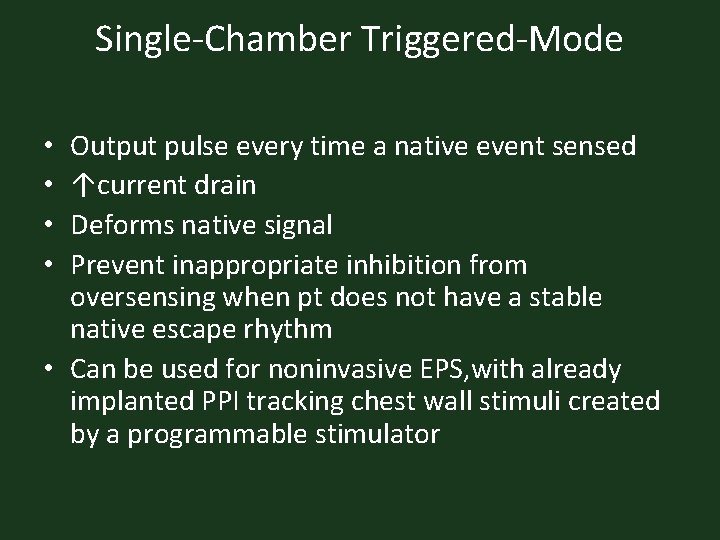

Single-Chamber Triggered-Mode Output pulse every time a native event sensed ↑current drain Deforms native signal Prevent inappropriate inhibition from oversensing when pt does not have a stable native escape rhythm • Can be used for noninvasive EPS, with already implanted PPI tracking chest wall stimuli created by a programmable stimulator • •

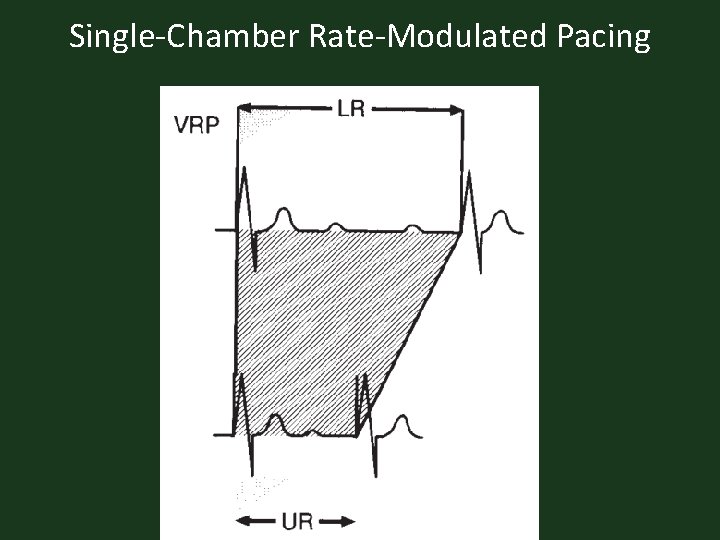

Single-Chamber Rate-Modulated Pacing

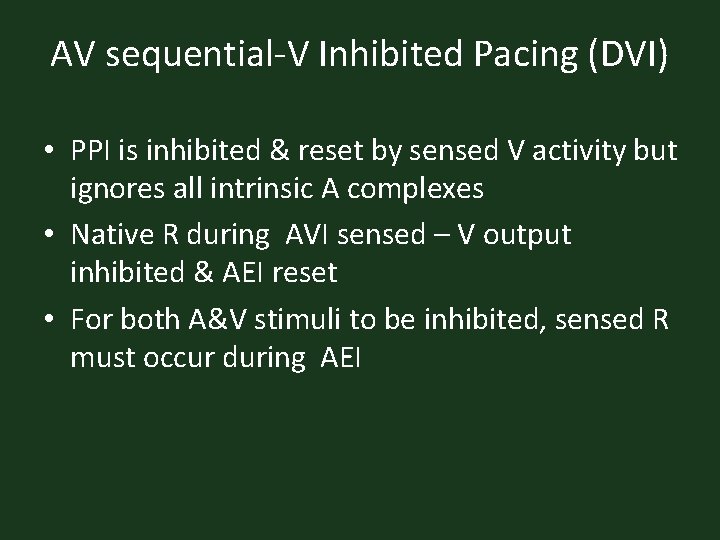

AV sequential-V Inhibited Pacing (DVI) • PPI is inhibited & reset by sensed V activity but ignores all intrinsic A complexes • Native R during AVI sensed – V output inhibited & AEI reset • For both A&V stimuli to be inhibited, sensed R must occur during AEI

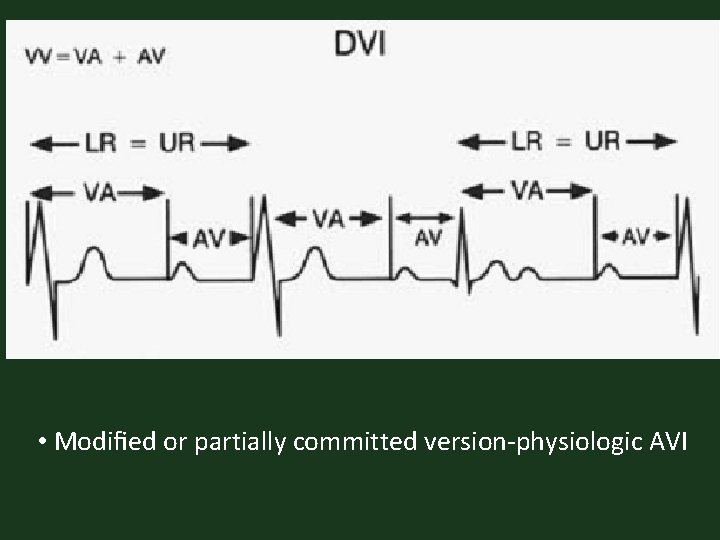

• Modified or partially committed version-physiologic AVI

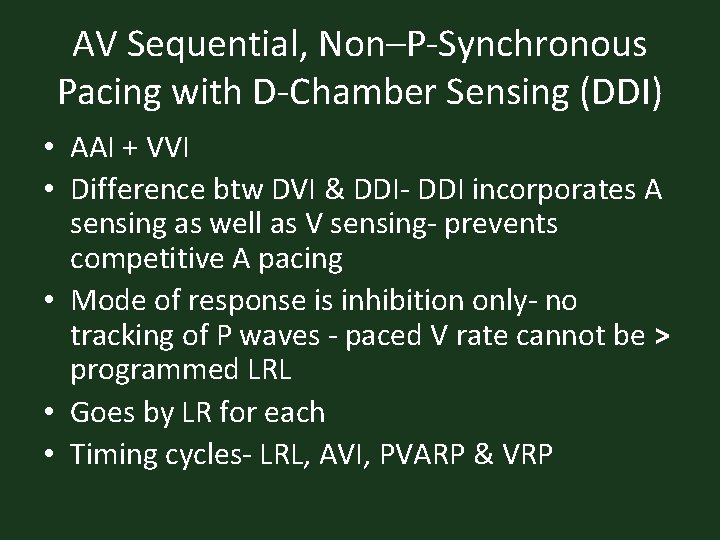

AV Sequential, Non–P-Synchronous Pacing with D-Chamber Sensing (DDI) • AAI + VVI • Difference btw DVI & DDI- DDI incorporates A sensing as well as V sensing- prevents competitive A pacing • Mode of response is inhibition only- no tracking of P waves - paced V rate cannot be > programmed LRL • Goes by LR for each • Timing cycles- LRL, AVI, PVARP & VRP

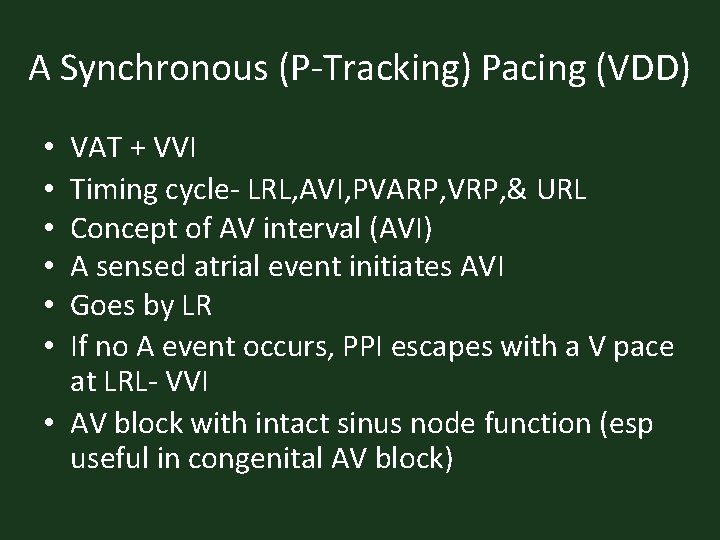

A Synchronous (P-Tracking) Pacing (VDD) VAT + VVI Timing cycle- LRL, AVI, PVARP, VRP, & URL Concept of AV interval (AVI) A sensed atrial event initiates AVI Goes by LR If no A event occurs, PPI escapes with a V pace at LRL- VVI • AV block with intact sinus node function (esp useful in congenital AV block) • • •

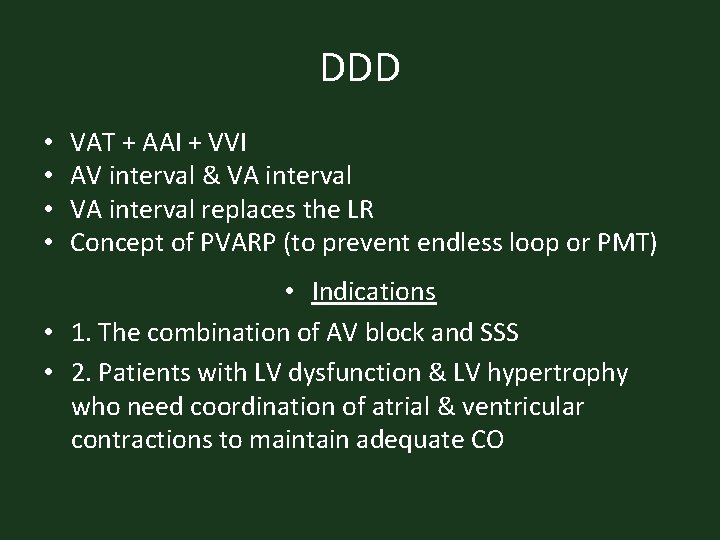

DDD • • VAT + AAI + VVI AV interval & VA interval replaces the LR Concept of PVARP (to prevent endless loop or PMT) • Indications • 1. The combination of AV block and SSS • 2. Patients with LV dysfunction & LV hypertrophy who need coordination of atrial & ventricular contractions to maintain adequate CO

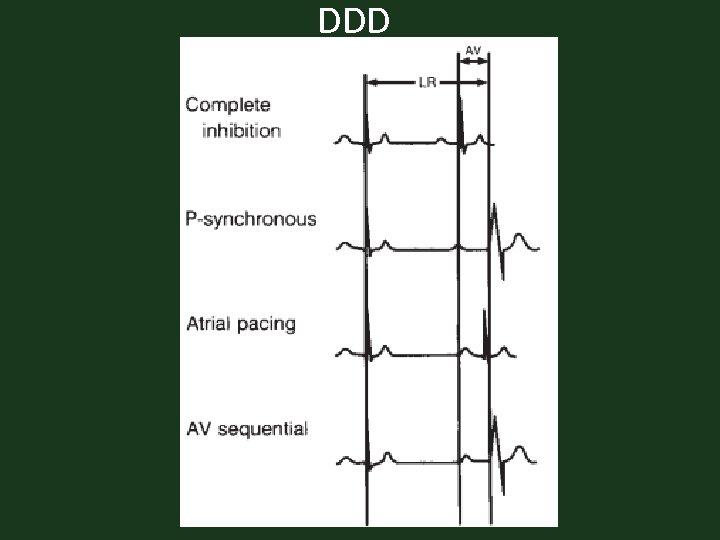

DDD

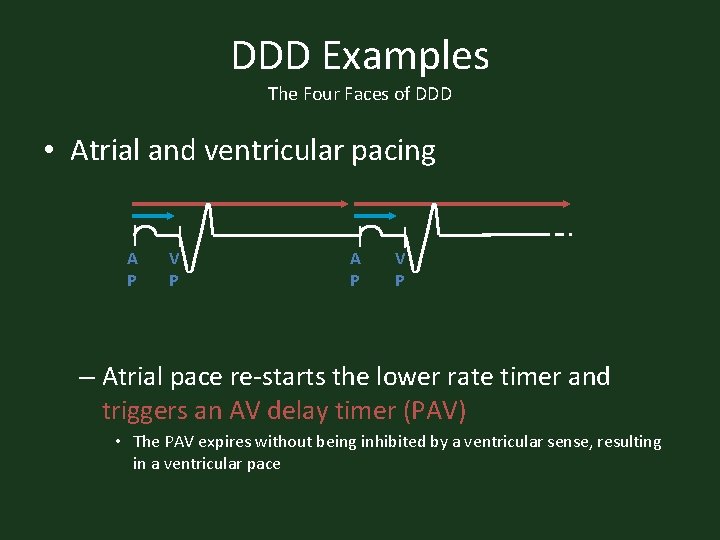

DDD Examples The Four Faces of DDD • Atrial and ventricular pacing A P V P – Atrial pace re-starts the lower rate timer and triggers an AV delay timer (PAV) • The PAV expires without being inhibited by a ventricular sense, resulting in a ventricular pace

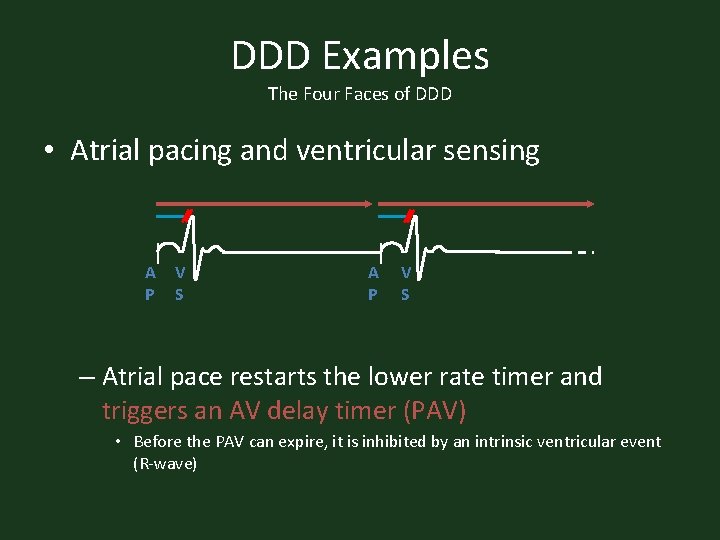

DDD Examples The Four Faces of DDD • Atrial pacing and ventricular sensing A P V S – Atrial pace restarts the lower rate timer and triggers an AV delay timer (PAV) • Before the PAV can expire, it is inhibited by an intrinsic ventricular event (R-wave)

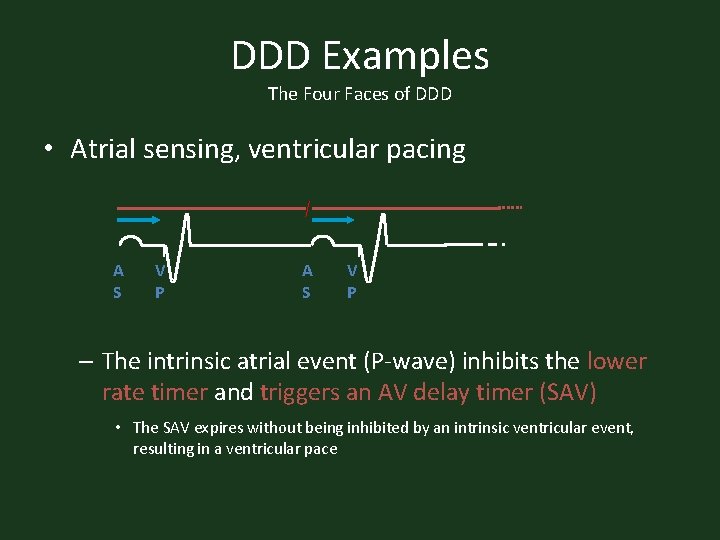

DDD Examples The Four Faces of DDD • Atrial sensing, ventricular pacing A S V P – The intrinsic atrial event (P-wave) inhibits the lower rate timer and triggers an AV delay timer (SAV) • The SAV expires without being inhibited by an intrinsic ventricular event, resulting in a ventricular pace

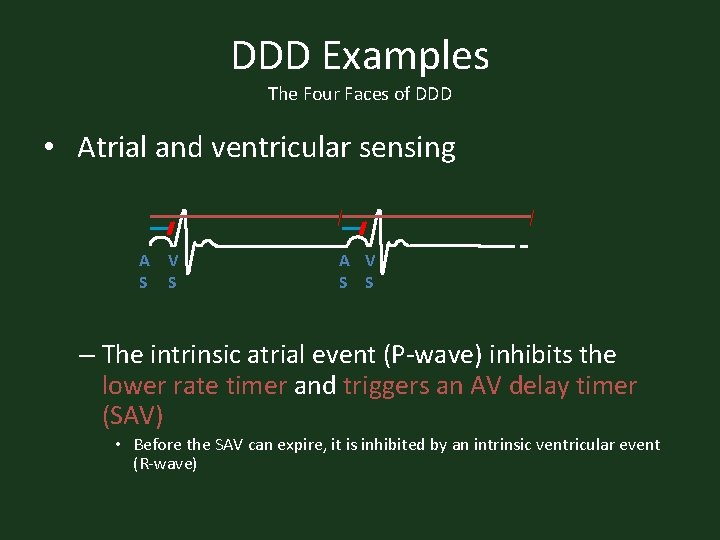

DDD Examples The Four Faces of DDD • Atrial and ventricular sensing A V S S – The intrinsic atrial event (P-wave) inhibits the lower rate timer and triggers an AV delay timer (SAV) • Before the SAV can expire, it is inhibited by an intrinsic ventricular event (R-wave)

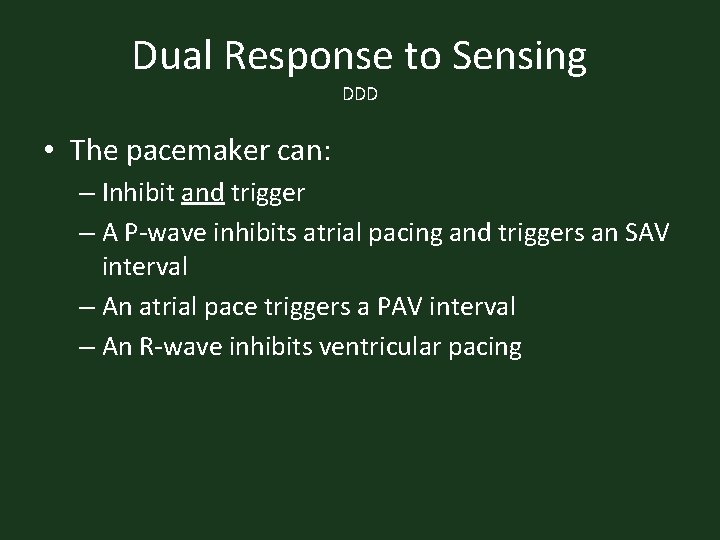

Dual Response to Sensing DDD • The pacemaker can: – Inhibit and trigger – A P-wave inhibits atrial pacing and triggers an SAV interval – An atrial pace triggers a PAV interval – An R-wave inhibits ventricular pacing

Single-Chamber Timing

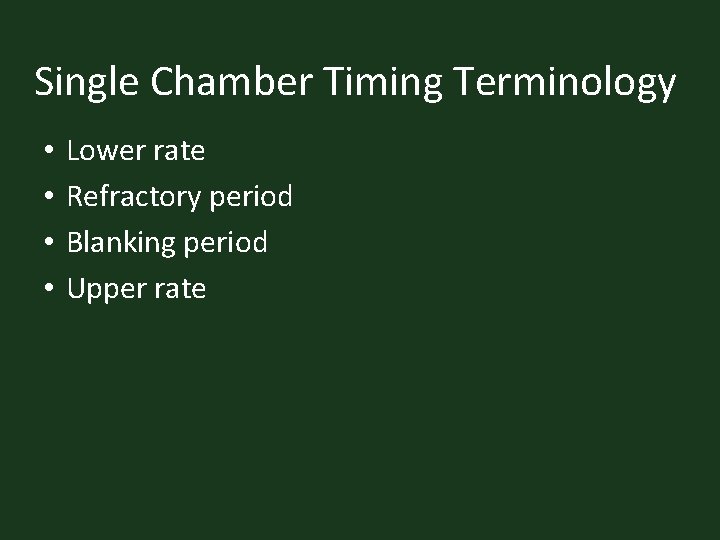

Single Chamber Timing Terminology • • Lower rate Refractory period Blanking period Upper rate

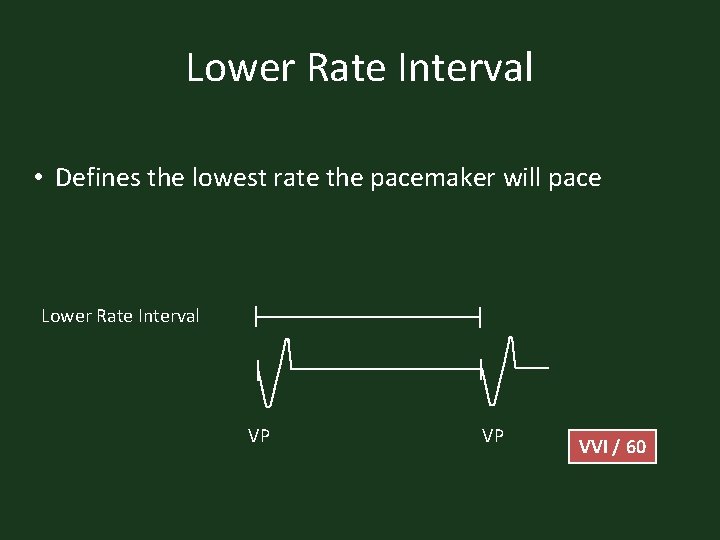

Lower Rate Interval • Defines the lowest rate the pacemaker will pace Lower Rate Interval VP VP VVI / 60

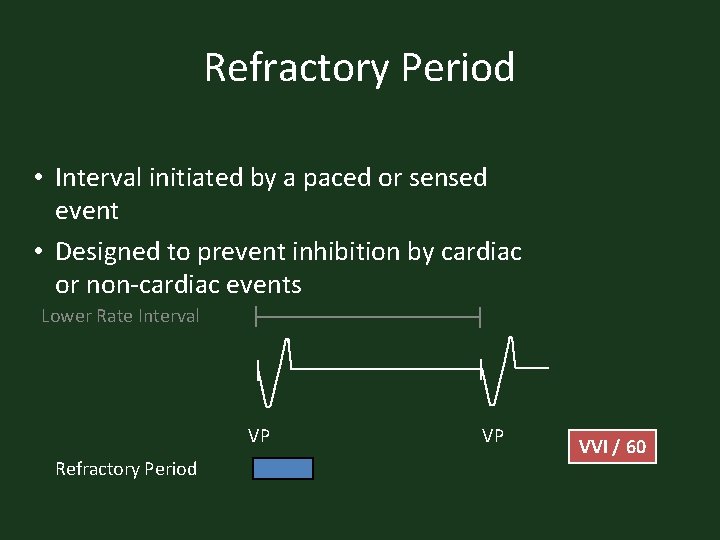

Refractory Period • Interval initiated by a paced or sensed event • Designed to prevent inhibition by cardiac or non-cardiac events Lower Rate Interval VP Refractory Period VP VVI / 60

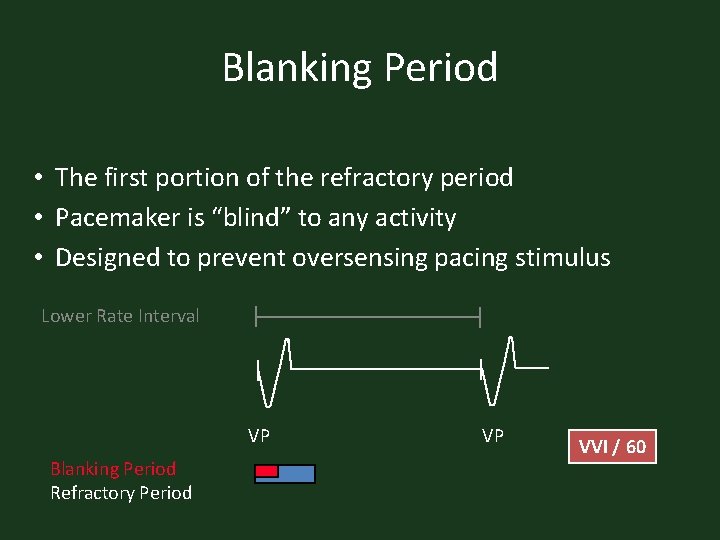

Blanking Period • The first portion of the refractory period • Pacemaker is “blind” to any activity • Designed to prevent oversensing pacing stimulus Lower Rate Interval VP Blanking Period Refractory Period VP VVI / 60

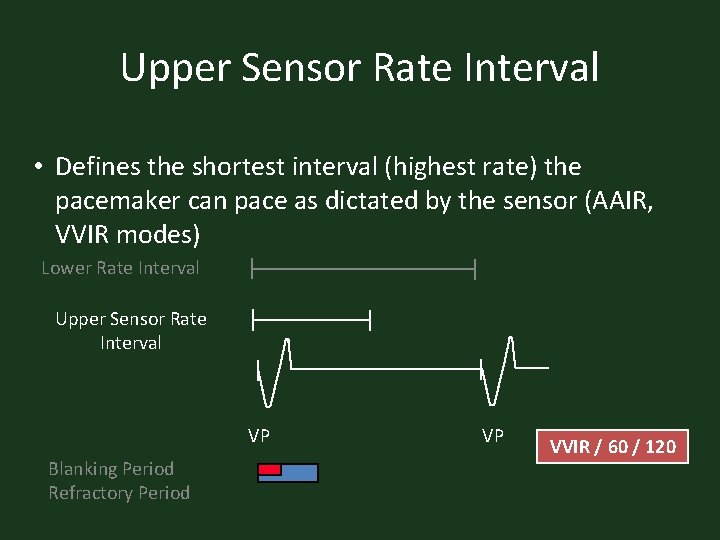

Upper Sensor Rate Interval • Defines the shortest interval (highest rate) the pacemaker can pace as dictated by the sensor (AAIR, VVIR modes) Lower Rate Interval Upper Sensor Rate Interval VP Blanking Period Refractory Period VP VVIR / 60 / 120

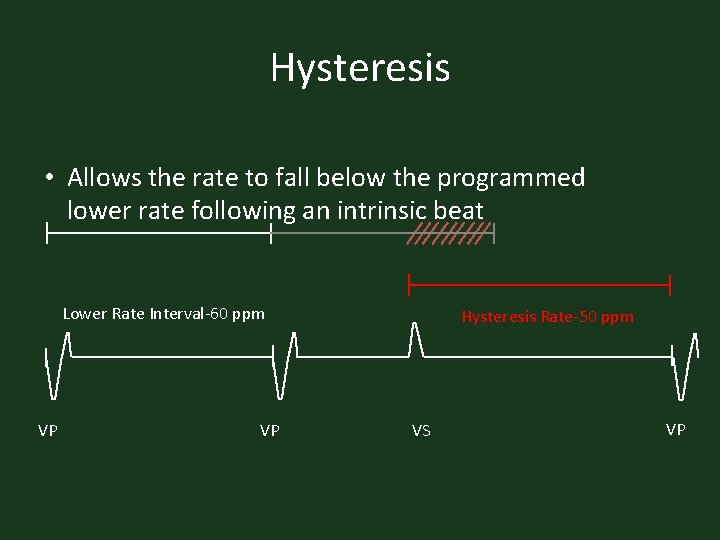

Hysteresis • Allows the rate to fall below the programmed lower rate following an intrinsic beat Lower Rate Interval-60 ppm VP VP Hysteresis Rate-50 ppm VS VP

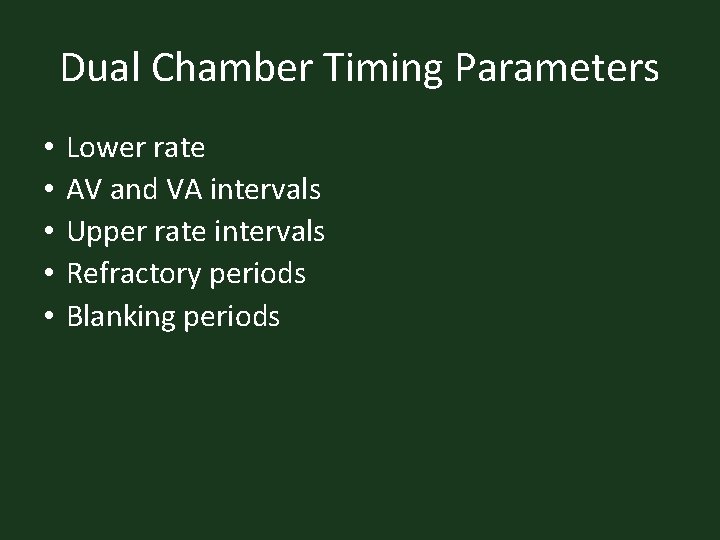

Dual Chamber Timing Parameters • • • Lower rate AV and VA intervals Upper rate intervals Refractory periods Blanking periods

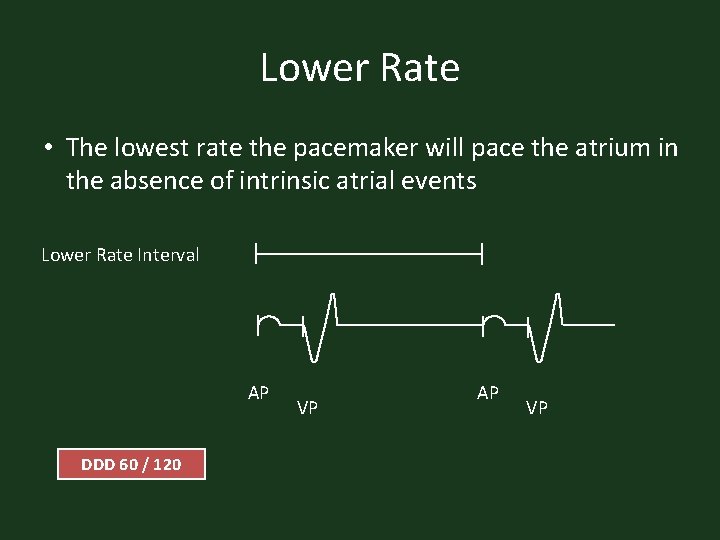

Lower Rate • The lowest rate the pacemaker will pace the atrium in the absence of intrinsic atrial events Lower Rate Interval AP DDD 60 / 120 VP AP VP

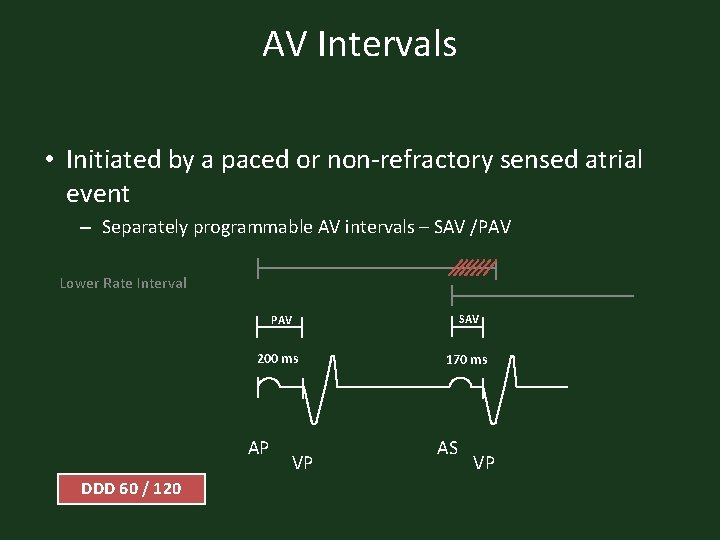

AV Intervals • Initiated by a paced or non-refractory sensed atrial event – Separately programmable AV intervals – SAV /PAV Lower Rate Interval SAV PAV 200 ms AP DDD 60 / 120 VP 170 ms AS VP

Atrial Escape Interval (V-A Interval) • The interval initiated by a paced or sensed ventricular event to the next atrial event Lower Rate Interval 200 ms AV Interval AP DDD 60 / 120 PAV 200 ms; V-A 800 ms VP 800 ms VA Interval AP VP

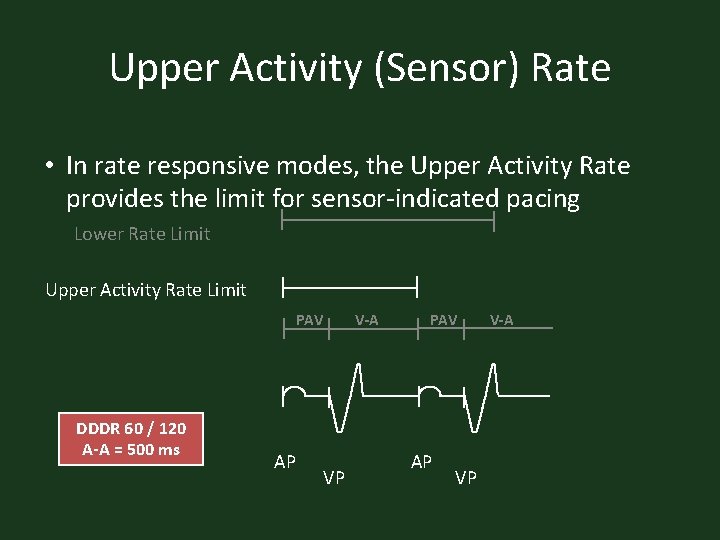

Upper Activity (Sensor) Rate • In rate responsive modes, the Upper Activity Rate provides the limit for sensor-indicated pacing Lower Rate Limit Upper Activity Rate Limit PAV DDDR 60 / 120 A-A = 500 ms AP V-A VP PAV AP VP V-A

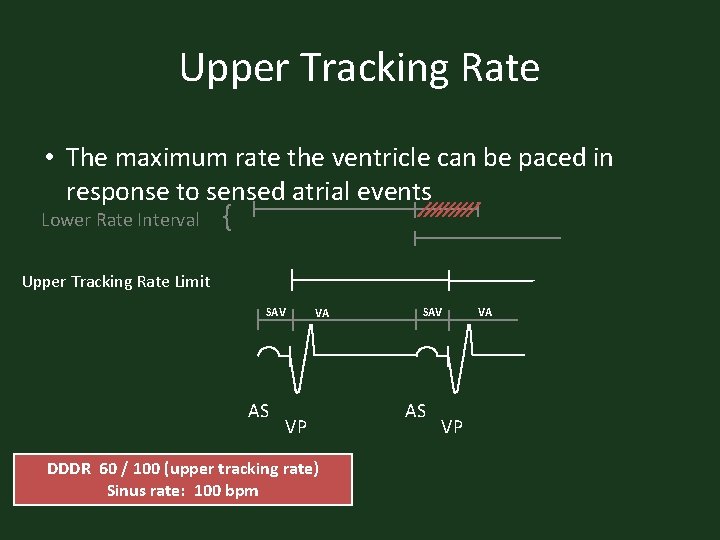

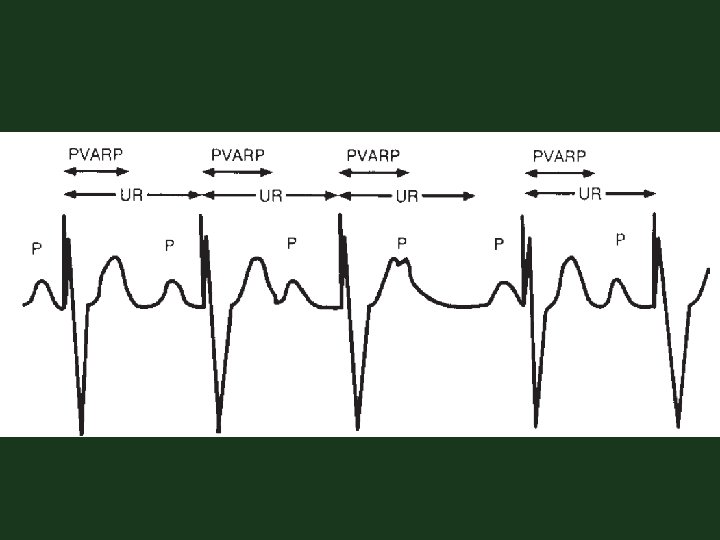

Upper Tracking Rate • The maximum rate the ventricle can be paced in response to sensed atrial events Lower Rate Interval { Upper Tracking Rate Limit SAV AS VA VP DDDR 60 / 100 (upper tracking rate) Sinus rate: 100 bpm SAV AS VP VA

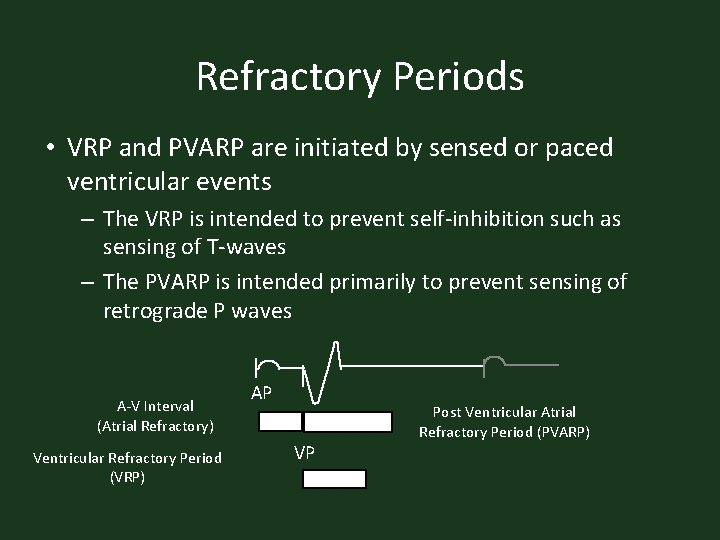

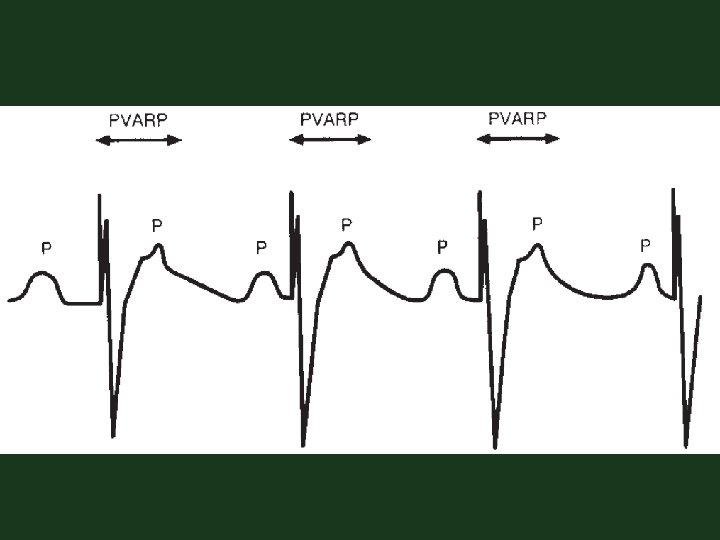

Refractory Periods • VRP and PVARP are initiated by sensed or paced ventricular events – The VRP is intended to prevent self-inhibition such as sensing of T-waves – The PVARP is intended primarily to prevent sensing of retrograde P waves A-V Interval (Atrial Refractory) Ventricular Refractory Period (VRP) AP VP Post Ventricular Atrial Refractory Period (PVARP)

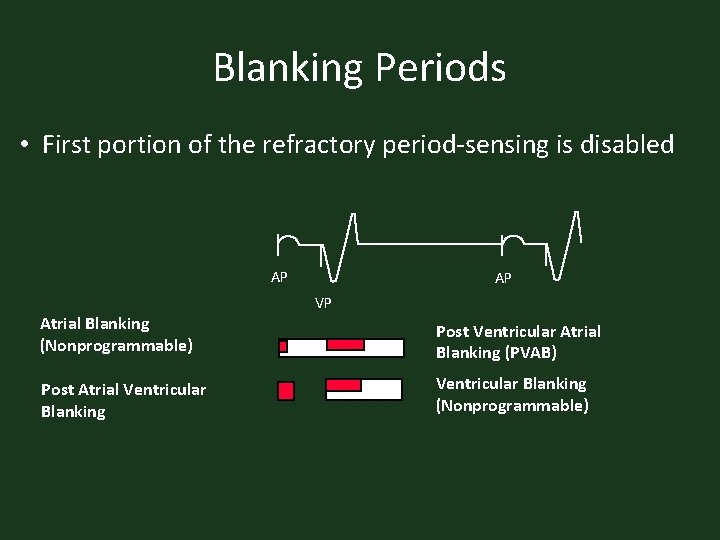

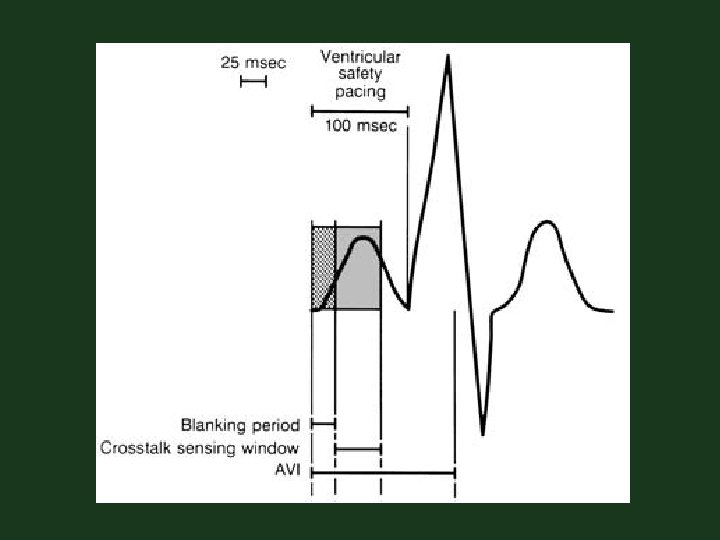

Blanking Periods • First portion of the refractory period-sensing is disabled AP Atrial Blanking (Nonprogrammable) Post Atrial Ventricular Blanking AP VP Post Ventricular Atrial Blanking (PVAB) Ventricular Blanking (Nonprogrammable)

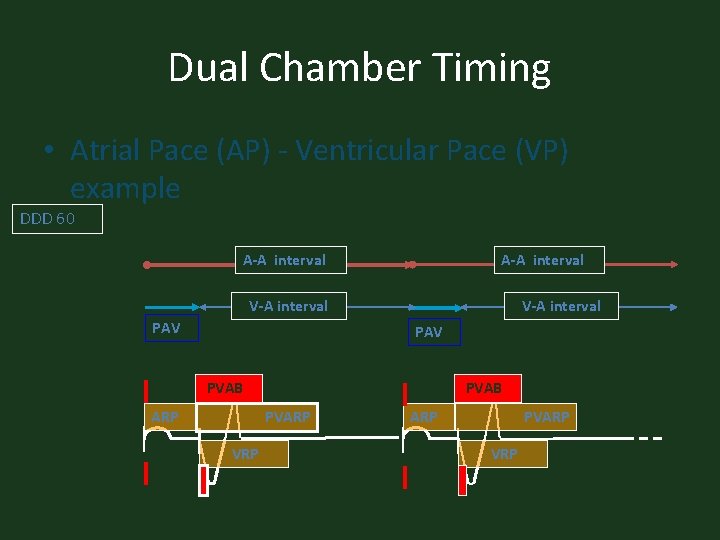

Dual Chamber Timing • Atrial Pace (AP) - Ventricular Pace (VP) example DDD 60 A-A interval V-A interval PAV PVAB ARP PVAB PVARP VRP ARP PVARP VRP

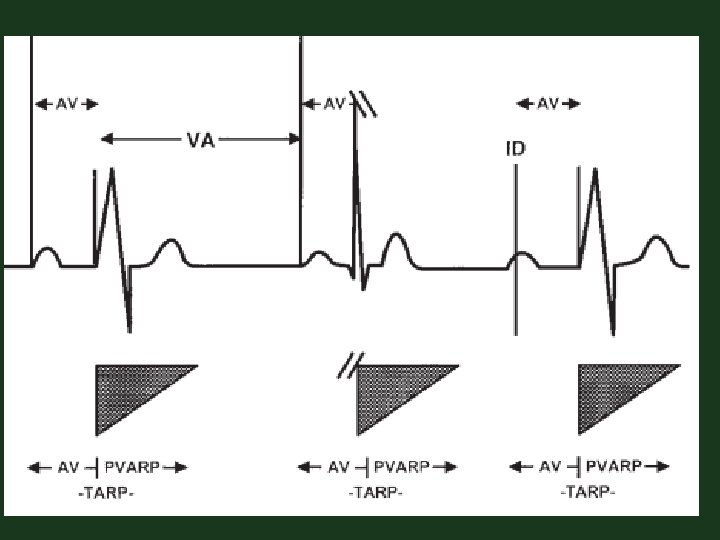

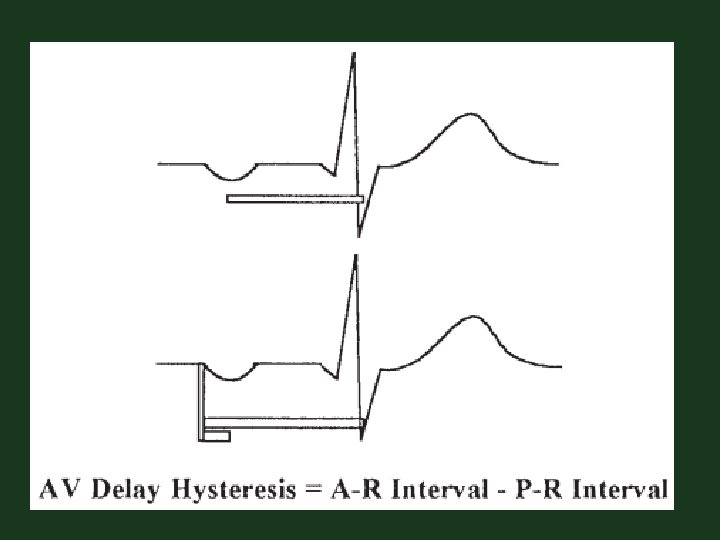

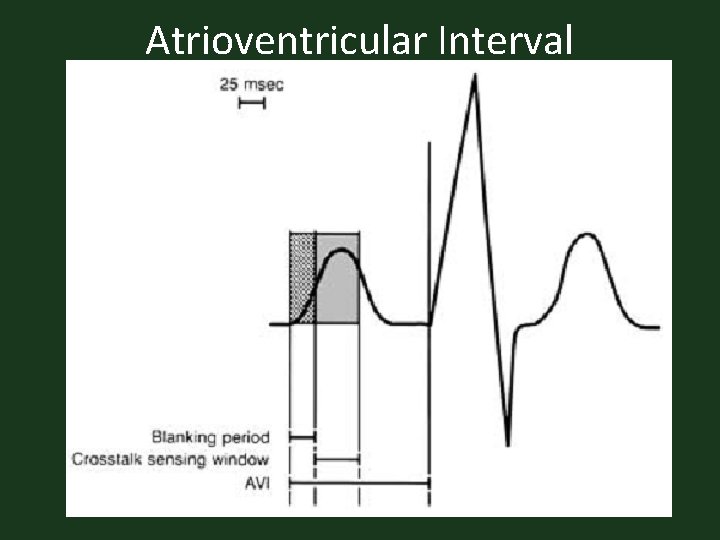

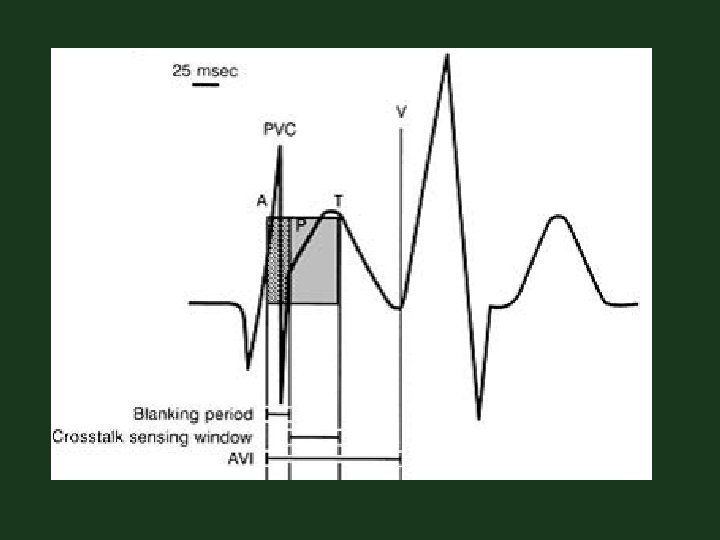

Atrioventricular Interval
