PACCAR TRANSMISSION 12 Speed Automated 1 850 lb

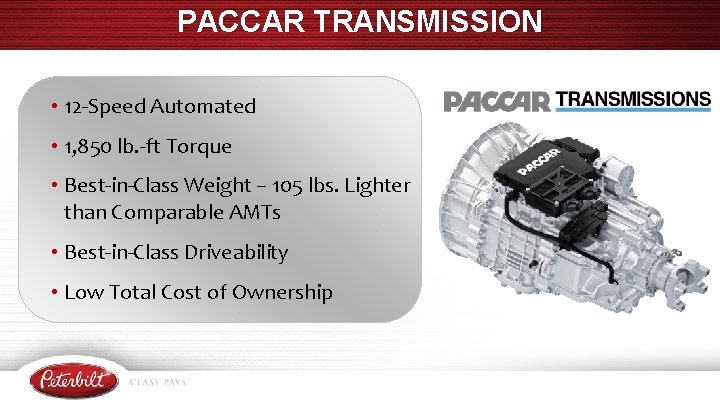

PACCAR TRANSMISSION • 12 -Speed Automated • 1, 850 lb. -ft Torque • Best-in-Class Weight – 105 lbs. Lighter than Comparable AMTs • Best-in-Class Driveability • Low Total Cost of Ownership

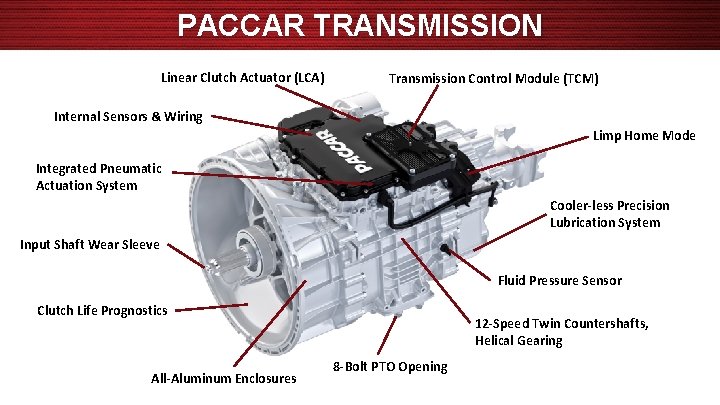

PACCAR TRANSMISSION Linear Clutch Actuator (LCA) Transmission Control Module (TCM) Internal Sensors & Wiring Limp Home Mode Integrated Pneumatic Actuation System Cooler-less Precision Lubrication System Input Shaft Wear Sleeve Fluid Pressure Sensor Clutch Life Prognostics All-Aluminum Enclosures 12 -Speed Twin Countershafts, Helical Gearing 8 -Bolt PTO Opening

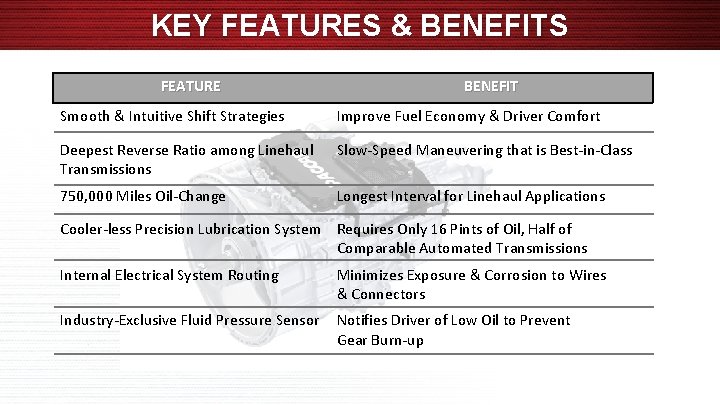

KEY FEATURES & BENEFITS FEATURE BENEFIT Smooth & Intuitive Shift Strategies Improve Fuel Economy & Driver Comfort Deepest Reverse Ratio among Linehaul Transmissions Slow-Speed Maneuvering that is Best-in-Class 750, 000 Miles Oil-Change Longest Interval for Linehaul Applications Cooler-less Precision Lubrication System Requires Only 16 Pints of Oil, Half of Comparable Automated Transmissions Internal Electrical System Routing Minimizes Exposure & Corrosion to Wires & Connectors Industry-Exclusive Fluid Pressure Sensor Notifies Driver of Low Oil to Prevent Gear Burn-up

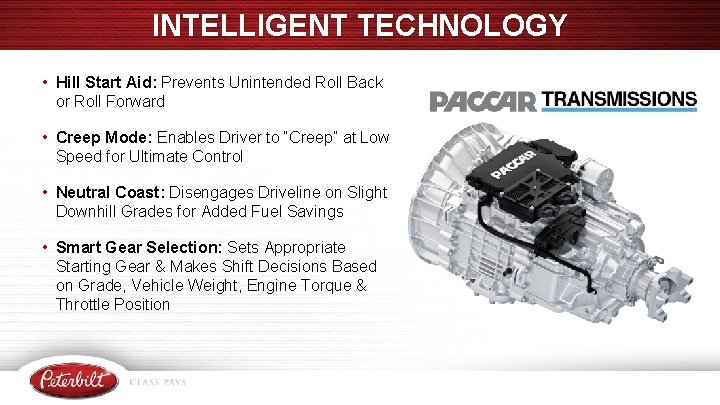

INTELLIGENT TECHNOLOGY • Hill Start Aid: Prevents Unintended Roll Back or Roll Forward • Creep Mode: Enables Driver to “Creep” at Low Speed for Ultimate Control • Neutral Coast: Disengages Driveline on Slight Downhill Grades for Added Fuel Savings • Smart Gear Selection: Sets Appropriate Starting Gear & Makes Shift Decisions Based on Grade, Vehicle Weight, Engine Torque & Throttle Position
