P Shahir Ali Khan Asst. Prof. GEP Unit-1 Thermal Power Generating Systems AITS EEE Dept. 1

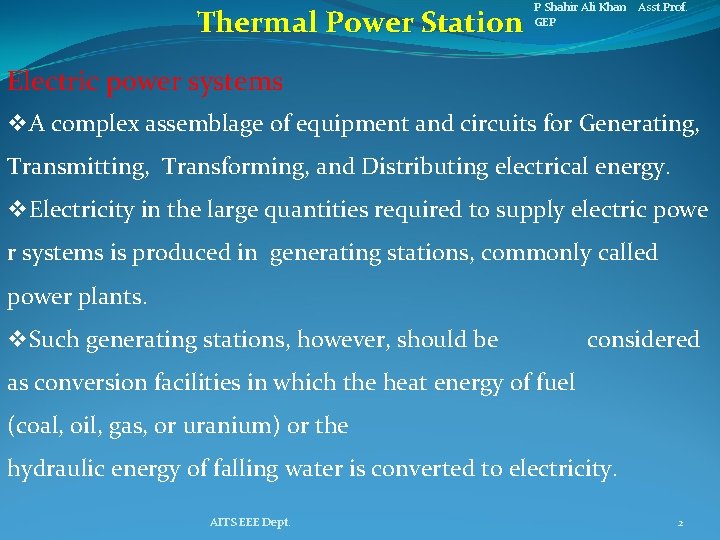

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Electric power systems v. A complex assemblage of equipment and circuits for Generating, Transmitting, Transforming, and Distributing electrical energy. v. Electricity in the large quantities required to supply electric powe r systems is produced in generating stations, commonly called power plants. v. Such generating stations, however, should be considered as conversion facilities in which the heat energy of fuel (coal, oil, gas, or uranium) or the hydraulic energy of falling water is converted to electricity. AITS EEE Dept. 2

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Sources of Energy: Sources of Energy can be categorized into 2 types 1. Renewable Sources of Energy 2. Non- Renewable Sources of Energy AITS EEE Dept. 3

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Definition of Power Plant: v. A power station also referred as generating station, power plant, power house is an industrial facility for the generation of electric power. Classification of Power Plants: Power plants are classified by the type of fuel and the type of prime mover installed. On the basis of primary fuel v. In Thermal power stations, mechanical power is produced by a heat engine, which transforms thermal energy, often from combustion of a fuel, into rotational energy. AITS EEE Dept. 4

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP v. Nuclear power plants use a nuclear reactor's heat to operate a steam turbine generator. v. Fossil fuel powered plants may also use a steam turbine generator or in the case of Natural gas fired plants may use a combustion turbine. v. Geothermal power plants use steam extracted from hot underground rocks. v. Renewable energy plants may be fuelled by waste from sugar cane, municipal solid waste, landfill methane, or other forms of biomass. AITS EEE Dept. 5

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP On the basis of prime mover installed. v. Steam turbine plants use the pressure generated by expanding steam to turn the blades of a turbine. v. Gas turbine plants use the heat from gases to directly operate the turbine. Natural-gas fuelled turbine plants can start rapidly and so are used to supply "peak" energy during periods of high demand, though at higher cost than base-loaded plants. AITS EEE Dept. 6

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP v. Hydro turbine plants capture the energy of falling water to generate electricity. A turbine converts the kinetic energy of falling water into mechanical energy. Then a generator converts the mechanical energy from the turbine into electrical energy. v. Combined cycle plants have both a gas turbine fired by natural gas, and a steam boiler and steam turbine which use the exhaust gas from the gas turbine to produce electricity. This greatly increases the overall efficiency of the plant, and most new base load power plants are combined cycle plants fired by natural gas. AITS EEE Dept. 7

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Coal-fired Power Stations in Andhra Pradesh 1. Dr Narla Tata Rao Thermal Power Station-Vijayawada 2. Rayalaseema Thermal Power Station-Kadapa 3. Sri Damodaram Sanjeevaiah Thermal Power Station- Krishnapatnam 4. Simhadri Super Thermal Power Station-Visakhapatnam District AITS EEE Dept. 8

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Dr Narla Tata Rao Thermal Power Station-Vijayawada v Dr. Narla Tata Rao Thermal Power Station (Vijayawada Thermal Power Station) is a unique one in the country, unique in its layout and numerous facilities provided for easy operation and maintenance. v. Dr. Narla Tata Rao Thermal Power Station (Vijayawada Thermal Power Station) complex consists of four stages. For Stage-I, II & III each stage consists of 2 x 210 MW Units and for Stage-IV the unit is of 500 MW rating. The total capacity of the station is 1760 MW. AITS EEE Dept. 9

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP v. The large reservoir created by the PRAKASAM Barrage provides an efficient Direct Circulation Cooling Water System and also other requirements of the plant. v Originally the Dr. Narla Tata Rao Thermal Power Station (Vijayawada Thermal Power Station) is linked to Singareni Collieries Company Limited (S. C. C. L. ) Khammam District for supply of coal. Dr. NTTPS, Stage-II, III & IV are linked to Talcher Coal Fields in Orissa to meet the increased demand. AITS EEE Dept. 10

Thermal Power Station AITS EEE Dept. P Shahir Ali Khan Asst. Prof. GEP 11

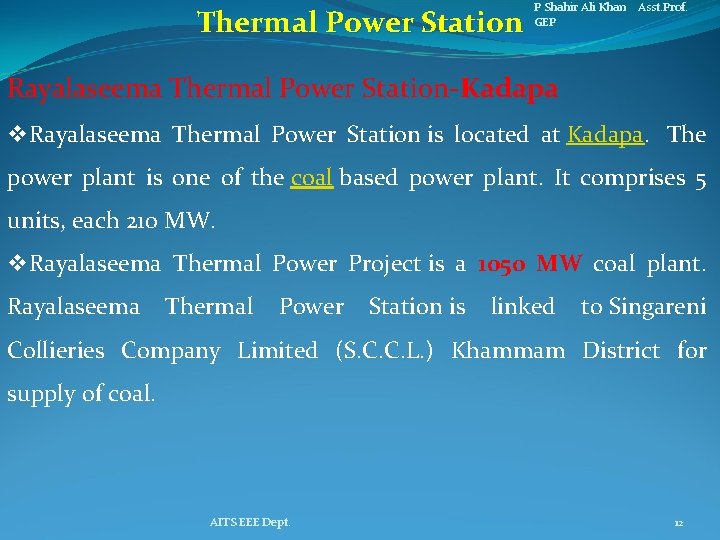

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Rayalaseema Thermal Power Station-Kadapa v. Rayalaseema Thermal Power Station is located at Kadapa. The power plant is one of the coal based power plant. It comprises 5 units, each 210 MW. v. Rayalaseema Thermal Power Project is a 1050 MW coal plant. Rayalaseema Thermal Power Station is linked to Singareni Collieries Company Limited (S. C. C. L. ) Khammam District for supply of coal. AITS EEE Dept. 12

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 3. Sri Damodaram Sanjeevaiah Thermal Power Station. Krishnapatnam v. Sri Damodaram Sanjeevaiah Thermal Power Station is located in Nelatur Village, near Krishnapatnam. v. The power plant is one of the coal-based power plants. The proposed capacity of plant is 1600 MW. v. The Power station is designed for blended coal in the ratio of 70% washed domestic coal from Talcher Coalfield to 30% imported coal. v Sea water is proposed for cooling purpose and potable water by desalination. AITS EEE Dept. 13

Thermal Power Station 4. Simhadri Super Thermal P Shahir Ali Khan Asst. Prof. GEP Power Station- Visakhapatnam District v. Simhadri Super Thermal Power Plant is a coal-fired power plant located in the Visakhapatnam district. v. The power plant is one of the coal fired power plants of NTPC, a Government of India enterprise. v. The coal for the power plant is sourced from Kalinga Block of Talcher Coal fields in Odisha. v. The plant is a national asset, and power generated is shared between multiple states, as the operator is national. AITS EEE Dept. 14

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP v. Power generated by units 1 and 2, making up for 1, 000 MW, is dedicated to power distribution companies owned by the Government of Andhra Pradesh. The remainder 1, 000 MW, generated by units 3 and 4, is allocated to the states of Odisha, Tamil Nadu, and Karnataka. v. Coal for NTPC Simhadri is sourced from Talcher Coal Fields, Odisha, and transported by East Coast Railway (ECo. R), over the Kolkata-Chennai trunk line, with a spur heading towards the plant at Duvvada. It uses fresh water sourced from the Yeluru Canal as working fluid (steam which turns the turbines). AITS EEE Dept. 15

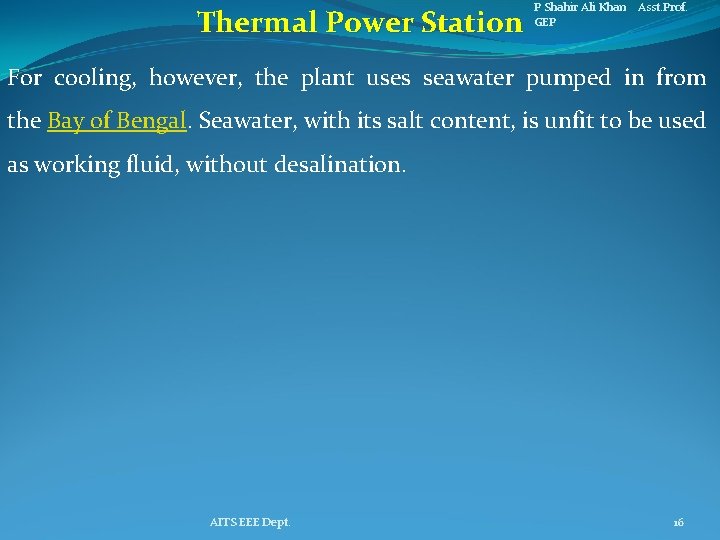

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP For cooling, however, the plant uses seawater pumped in from the Bay of Bengal. Seawater, with its salt content, is unfit to be used as working fluid, without desalination. AITS EEE Dept. 16

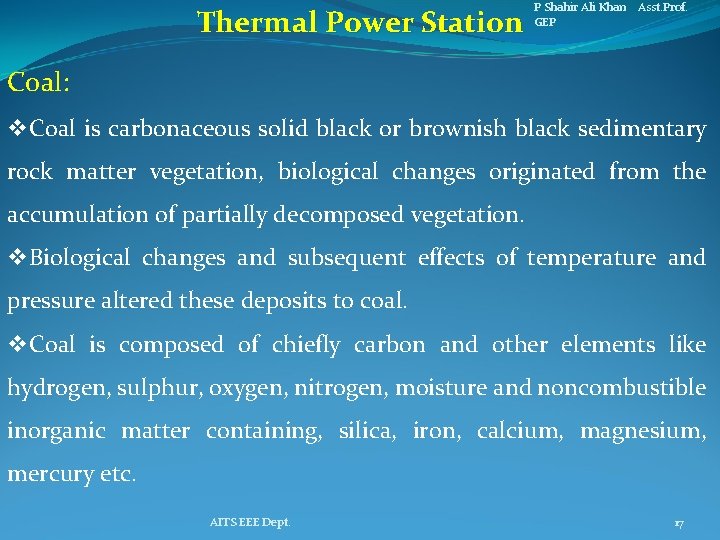

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Coal: v. Coal is carbonaceous solid black or brownish black sedimentary rock matter vegetation, biological changes originated from the accumulation of partially decomposed vegetation. v. Biological changes and subsequent effects of temperature and pressure altered these deposits to coal. v. Coal is composed of chiefly carbon and other elements like hydrogen, sulphur, oxygen, nitrogen, moisture and noncombustible inorganic matter containing, silica, iron, calcium, magnesium, mercury etc. AITS EEE Dept. 17

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP v. Coal has a wide range of composition. v. Calorific value of the coal vary widely from one coal reserve to another coal reserve. Coal may be hard or slightly softer depending on the source. v. Coal quality plays an important role in its efficient utilization as fuel and for gasification. It should have high calorific value, high carbon content with low ash content, low sulphur, low moisture, low cost. The quality of coal depends upon it rank. The coal rank is arranged in ascending order, Lignite Sub-bituminous coal anthracite AITS EEE Dept. 18

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Calorific Value: v. The calorific value is the measurement of heat or energy produced, and is measured either as gross calorific value or net calorific value. v. Fuels should be compared based on the net calorific value. v. The calorific value of coal varies considerably depending on the ash, moisture content and the type of coal. AITS EEE Dept. 19

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Composition of Indian Coal and Other Countries Details Indian coal Coal in other countries Ash content 40 -50% 1 -16% Sulphur 0. 5% As high as 1. 8% Carbon 25 -30% 53 -57% Hydrogen Less than 3% 4 -6% Calorific value 2450 -3000 5000 -6400 AITS EEE Dept. 20

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Classification of Coal: PEAT: v. Peat is not a coal truly speaking but it is the first stage of coal series. Dry peat contains 62 to 64% Carbon, and around 30% of oxygen. v. Dry peat also contains a moisture content of 0. 33%, Hydrogen 5. 7 to 6. 3%, Nitrogen 1. 3 to 2. 7%, and Sulphur 1%. v. The calorific value of the peat (dry) varies between 5000 to 5500 kcal/kg. Applications: v. It is mainly used as a fuel for domestic purpose. AITS EEE Dept. 21

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Classification of Coal: LIGNITE: v. The composition of lignites vary according to metamorphosis, which the lignin of the plant has undergone. v. Lignites may be black or brown and earthy having woody structure. They readily break or disintegrate when air dried. v. The dried material contains 60 to 75% of carbon and 20 to 25% oxygen with moisture content of 15 to 20% . Their calorific value ranges widely from 6000 to 7000 kcal/kg. v. Applications: v. Lignite is used in the production of town gas and as pulverized AITS EEE Dept. fuel in steam locomotives. 22

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Classification of Coal: BITUMINOUS COAL: v. The bituminous coal is formed from lignitous coal. They contain 84 to 91. 2% of carbon. v. The calorific value is about 8000 to 8500 kcal/kg. Applications: v. It has a variety of uses and is a general purpose coal of house hold and industrial purposes. They are of Two Types: 1. Sub-Bituminous Coal 2. Semi-Bituminous Coal AITS EEE Dept. 23

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Classification of Coal: BITUMINOUS COAL: 1. Sub-Bituminous Coal: v The carbon content in them is 75 to 83% and 10 to 20% of oxygen, but contains high moisture. v They are black in color and have a calorific value of about 7000 kcal/kg. 2. Semi-Bituminous Coal: The carbon content in them is 90 to 93% and 2 to 4% of oxygen. Applications: v They are used in steam raising, domestic stoves, etc. , AITS EEE Dept. 24

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Classification of Coal: ANTHRACITE COAL: v It is the highest rank coal, containing over 93% carbon. v It is one of the most valuable coal and least widely distributed. v It is a valuable fuel for use in stones because of its high density. v It burns almost without smoke. v They have a calorific value of about 8700 kcal/kg. AITS EEE Dept. 25

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Classification of Coal: ANTHRACITE COAL: Applications: The chief industrial uses of anthracite are steam raising, domestic stoves and central heating etc. , AITS EEE Dept. 26

Thermal Power Station Type of coal P Shahir Ali Khan Asst. Prof. GEP Description Peat is the precursor of coal formed Lignite With further increase in temperature during coal formation peat is converted to lignite. Lignite is considered as immature coal. Lignite are brown colored, soft, low calorific value coal. Subbituminous Sub-bituminous coals are black colored and are more homogeneous in appearance and their properties range from lignite to that bituminous coal. Bituminous coal is usually black, with higher carbon content and calorific value Anthracite is highest rank coal is a harder, glassy black coal with highest content of carbon and calorific value. Anthracite coal is best suited for making metallurgical coke, for combustion as fuel for power generation. The ash content is low. Graphite is the highest rank and is difficult to ignite AITS EEE Dept. 27

P Shahir Ali Khan Asst. Prof. GEP Layout of Thermal Power Station AITS EEE Dept. 28

Thermal Power Station AITS EEE Dept. P Shahir Ali Khan Asst. Prof. GEP 29

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Main parts of the plant are 1. Coal conveyor 8. Smoke stack 2. Stoker 9. Turbine 3. Pulverizer 10. Condenser 4. Boiler 11. Transformers 5. Coal ash 12. Generator 6. Air Preheater 13. Cooling towers 7. Electrostatic Precipitator 14. High Voltage Power lines AITS EEE Dept. 30

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Basic Operation: A thermal power plant basically works on Rankine cycle. 1. Coal conveyor: This is a belt type of arrangement. With this coal is transported from coal storage place in power plant to the place near by boiler. 2. Stoker: The coal which is brought near by boiler has to put in boiler furnace for combustion. This stoker is a mechanical device for feeding coal to a furnace. AITS EEE Dept. 31

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 3. Pulverizer: The coal is put in the boiler after pulverization. For this pulverizer is used. v. A pulverizer is a device for grinding coal for combustion in a furnace in a power plant. Types of pulverizer a. Ball and Tube Mill The tube mills are low speed machines that grind the coal with steel balls in a rotating horizontal cylinder. AITS EEE Dept. 32

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Due to its shape only, people call it as Tube Mill and due to use of grinding balls for crushing, it is called Ball Mill. Hence, is the name Ball Tube Mill. b. Vertical Spindle Mill These are medium speed machines that include bowls mills, ring roll mills , ring and ball mills. c. Impact Mill These are High speed impact machines that use beater wheels to crush the coal AITS EEE Dept. 33

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 4. Boiler: v. Boiler is an enclosed vessel in which water is heated and circulated until the water is turned in to steam at the required temperature and Pressure. v. Coal is burned inside the combustion chamber of boiler. v. The products of combustion are nothing but gases. v. These gases which are at high temperature vaporize the water inside the boiler to steam. AITS EEE Dept. 34

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP v. Some times this steam is further heated in a superheater as higher the steam pressure and temperature the greater efficiency the engine will have in converting the heat in steam in to mechanical work. v. This steam at high pressure and temperature is used directly as a heating medium, or as the working fluid in a prime mover to convert thermal energy to mechanical work, which in turn may be converted to electrical energy. AITS EEE Dept. 35

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Classification of Boilers: Boilers are classified as 1. Fire tube boilers 2. Water tube boilers AITS EEE Dept. 36

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Fire tube boilers AITS EEE Dept. 37

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Fire tube boilers: v In fire tube boilers hot gases are passed through the tubes and water surrounds these tubes. v These are simple, compact and rugged in construction. v Depending on whether the tubes are vertical or horizontal these are further classified as vertical and horizontal tube boilers. v In this, since the water volume is more, circulation will be poor. AITS EEE Dept. 38

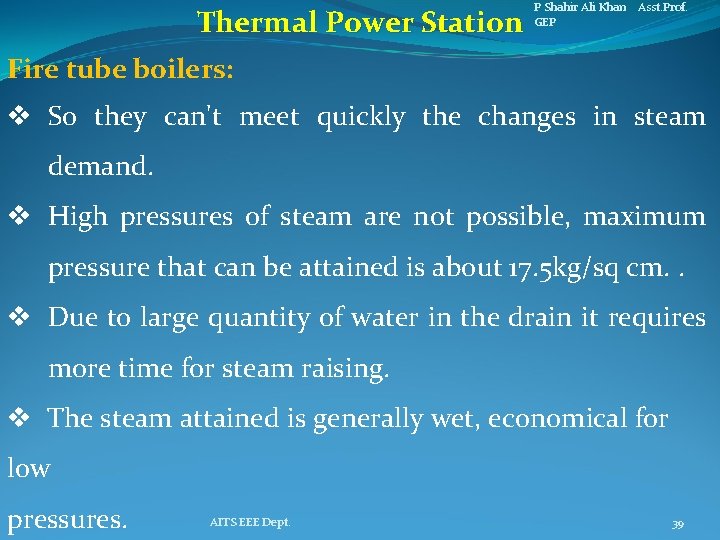

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Fire tube boilers: v So they can't meet quickly the changes in steam demand. v High pressures of steam are not possible, maximum pressure that can be attained is about 17. 5 kg/sq cm. . v Due to large quantity of water in the drain it requires more time for steam raising. v The steam attained is generally wet, economical for low pressures. AITS EEE Dept. 39

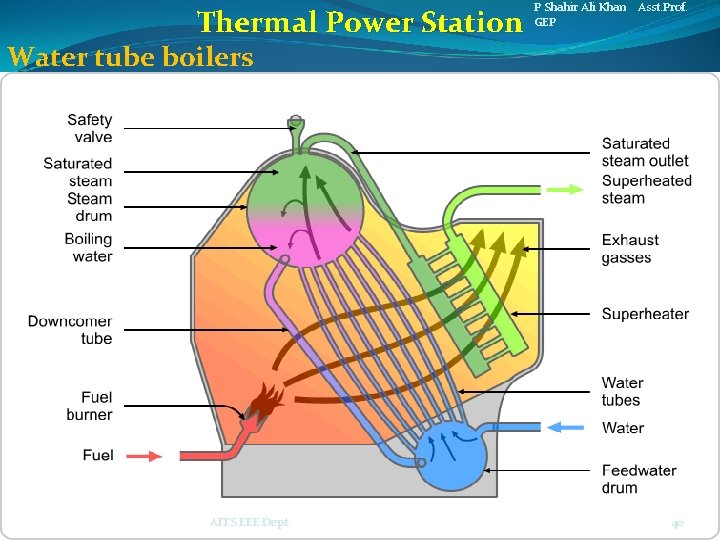

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Water tube boilers AITS EEE Dept. 40

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Water tube boilers: v In these boilers water is inside the tubes and hot gases are outside the tubes. v Feed water enters the boiler to one drum (here it is drum below the boiler). v This water circulates through the tubes connected external to drums. Hot gases which surrounds these tubes will convert the water in tubes in to steam. AITS EEE Dept. 41

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Water tube boilers: v This steam is passed through tubes and collected at the top of the drum since it is of light weight. v The entire steam is collected in one drum and it is taken out from there. v As the movement of water in the water tubes is high, so rate of heat transfer also becomes high resulting in greater efficiency. v They produce high pressure, easily accessible and can respond quickly to changes in steam demand. AITS EEE Dept. 42

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Water tube boilers: v These are also classified as vertical, horizontal and inclined tube depending on the arrangement of the tubes. v These are of less weight and less liable to explosion. v Large heating surfaces can be obtained by use of large number of tubes. v We can attain pressure as high as 125 kg/sq cm and temperatures from AITS EEE Dept. 315 to 575 centigrade. 43

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 5. Superheater: AITS EEE Dept. 44

5. Superheater: P Shahir Ali Khan Asst. Prof. GEP v. Most of the modern boilers are having superheater and reheater arrangement. v. Superheater is a component of a steam-generating unit in which steam, after it has left the boiler drum, is heated above its saturation temperature. v. The superheater may consist of one or more stages of tube banks arranged to effectively transfer heat from the products of combustion. Super heaters raise the temperature of the steam which is coming out from the AITS EEE Dept. boiler above its boiling point. 45

P Shahir Ali Khan Asst. Prof. GEP 6. Condenser: AITS EEE Dept. 46

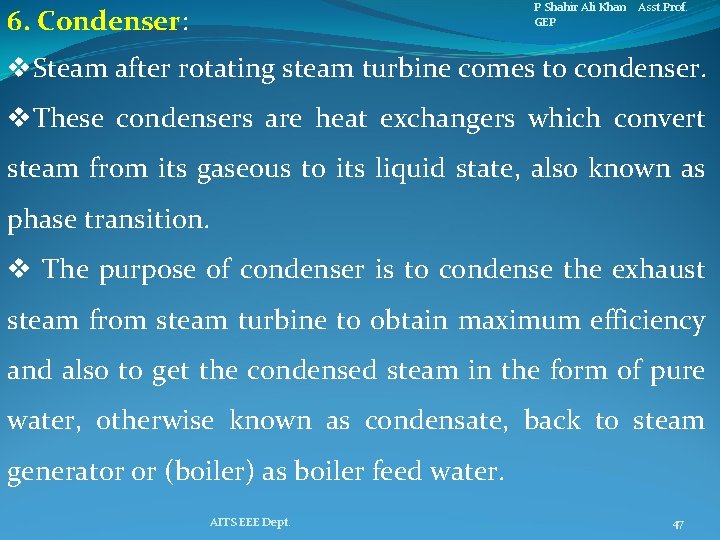

P Shahir Ali Khan Asst. Prof. GEP 6. Condenser: v. Steam after rotating steam turbine comes to condenser. v. These condensers are heat exchangers which convert steam from its gaseous to its liquid state, also known as phase transition. v The purpose of condenser is to condense the exhaust steam from steam turbine to obtain maximum efficiency and also to get the condensed steam in the form of pure water, otherwise known as condensate, back to steam generator or (boiler) as boiler feed water. AITS EEE Dept. 47

P Shahir Ali Khan Asst. Prof. GEP 6. Condenser: Condensers are classified as (i)Jet condensers or contact condensers (ii) Surface condensers. In jet condensers the steam to be condensed mixes with the cooling water and the temperature of the condensate and the cooling water is same when leaving the condenser; and the condensate can't be recovered for use as feed water to the boiler; heat transfer is by direct conduction. AITS EEE Dept. 48

Thermal Power Station AITS EEE Dept. P Shahir Ali Khan Asst. Prof. GEP 49

P Shahir Ali Khan Asst. Prof. GEP 6. Condenser: In surface condensers there is no direct contact between the steam to be condensed and the circulating cooling water. v There is a wall interposed between them through heat must be convectively transferred. v The temperature of the condensate may be higher than the temperature of the cooling water at outlet and the condensate is recovered as feed water to the boiler. AITS EEE Dept. 50

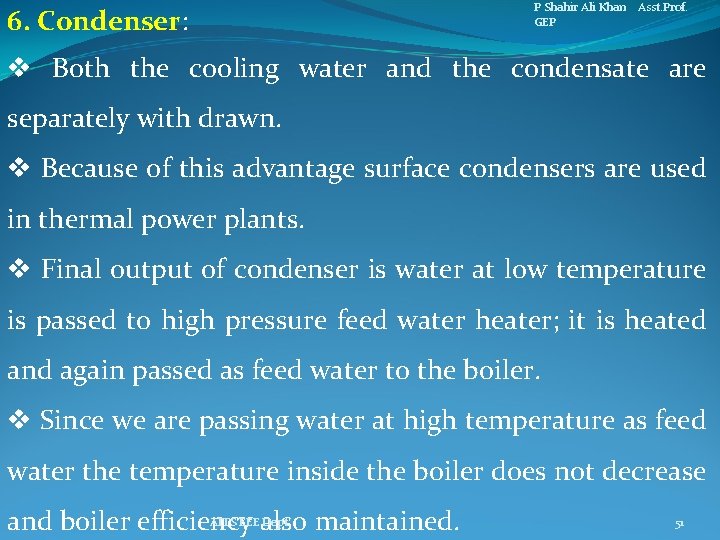

6. Condenser: P Shahir Ali Khan Asst. Prof. GEP v Both the cooling water and the condensate are separately with drawn. v Because of this advantage surface condensers are used in thermal power plants. v Final output of condenser is water at low temperature is passed to high pressure feed water heater; it is heated and again passed as feed water to the boiler. v Since we are passing water at high temperature as feed water the temperature inside the boiler does not decrease AITS EEE Dept. and boiler efficiency also maintained. 51

P Shahir Ali Khan Asst. Prof. GEP 7. Economizer: AITS EEE Dept. 52

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 7. Economizer: v. Flue gases coming out of the boiler carry lot of heat. v. Function of economizer is to recover some of the heat from the heat carried away in the flue gases up the chimney and utilize for heating the feed water to the boiler. v. It is placed in the passage of flue gases in between the exit from the boiler and the entry to the chimney AITS EEE Dept. 53

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 7. Economizer: v. The use of economizer results in saving in coal consumption, increase in steaming rate and high boiler efficiency but needs extra investment and increase in maintenance costs and floor area required for the plant. v. In this a large number of small diameter thin walled tubes are placed between two headers. v. Feed water enters the tube through one header and leaves through the other. The flue gases flow out side the tubes usually in counter flow. AITS EEE Dept. 54

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 8. Airpreheater: AITS EEE Dept. 55

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 8. Airpreheater: v. The remaining heat of flue gases is utilised by air preheater. v. It is a device used in steam boilers to transfer heat from the flue gases to the combustion air before the air enters the furnace. v. The purpose of the air preheater is to recover the heat from the flue gas from the boiler to improve boiler efficiency by burning warm air which increases combustion efficiency, and reducing useful heat lost from the flue. AITS EEE Dept. 56

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 9. Electrostatic Precipitator: AITS EEE Dept. 57

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 9. Electrostatic Precipitator: v. It is a device which removes dust or other finely divided particles from flue gases by charging the particles inductively with an electric field, then attracting them to highly charged collector plates. v. The suspension passes through an electric discharge (corona discharge) area where ionization of the gas occurs. v. The ions produced, collide with the suspended particles and confer on them an electric charge. AITS EEE Dept. 58

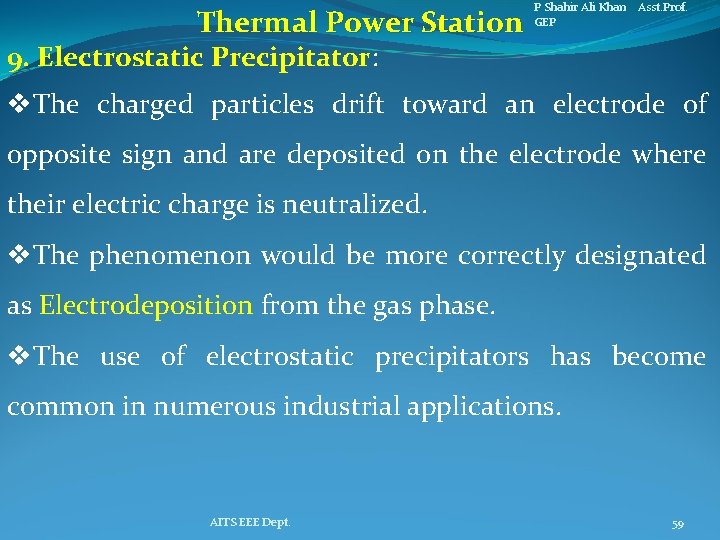

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 9. Electrostatic Precipitator: v. The charged particles drift toward an electrode of opposite sign and are deposited on the electrode where their electric charge is neutralized. v. The phenomenon would be more correctly designated as Electrodeposition from the gas phase. v. The use of electrostatic precipitators has become common in numerous industrial applications. AITS EEE Dept. 59

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 9. Electrostatic Precipitator: Applications: 1. Removal of dirt from flue gases in steam plants. 2. Cleaning of air to remove fungi and bacteria in establishments producing antibiotics and other drugs, and in operating rooms. 3. Cleaning of air in ventilation and air conditioning systems. 4. Removal of oil mists in machine shops and acid mists in chemical process plants. AITS EEE Dept. 5. Cleaning of blast furnace gases. 60

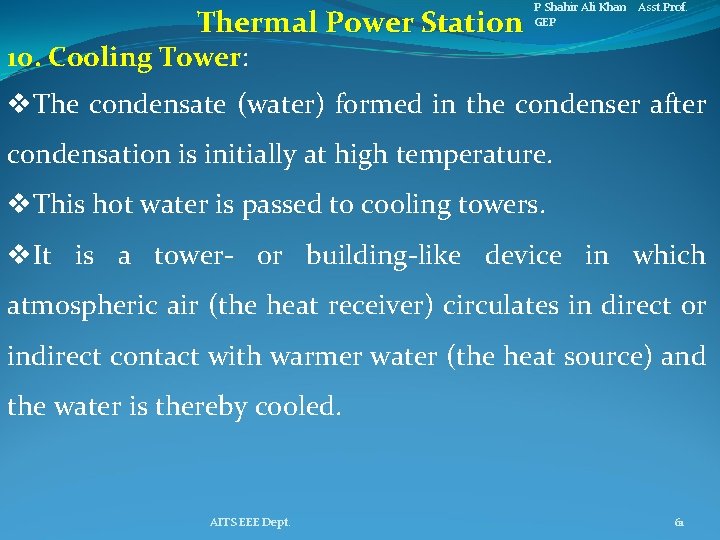

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 10. Cooling Tower: v. The condensate (water) formed in the condenser after condensation is initially at high temperature. v. This hot water is passed to cooling towers. v. It is a tower- or building-like device in which atmospheric air (the heat receiver) circulates in direct or indirect contact with warmer water (the heat source) and the water is thereby cooled. AITS EEE Dept. 61

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 10. Cooling Tower: AITS EEE Dept. 62

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 10. Cooling Tower: AITS EEE Dept. 63

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 11. Smoke Stack: AITS EEE Dept. 64

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 11. Smoke Stack: v. A chimney is a system for venting hot flue gases or smoke from a boiler, stove, furnace or fireplace to the outside atmosphere. v. They are typically almost vertical to ensure that the hot gases flow smoothly, drawing air into the combustion through the chimney effect. v. The space inside a chimney is called a flue. AITS EEE Dept. 65

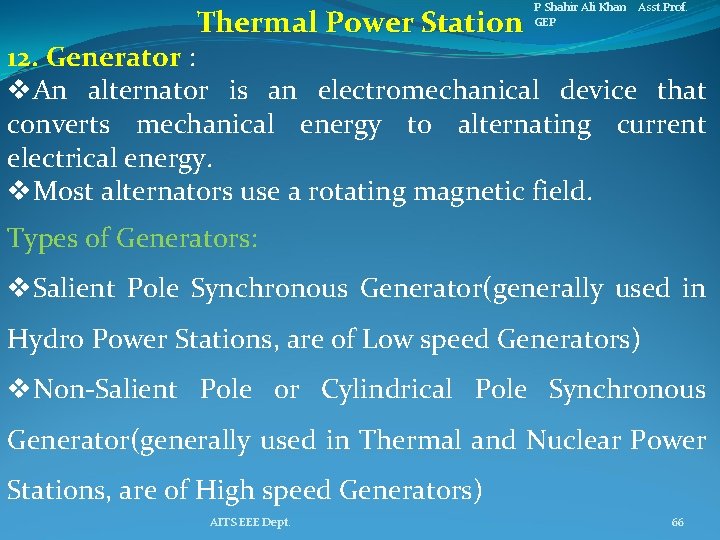

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 12. Generator : v. An alternator is an electromechanical device that converts mechanical energy to alternating current electrical energy. v. Most alternators use a rotating magnetic field. Types of Generators: v. Salient Pole Synchronous Generator(generally used in Hydro Power Stations, are of Low speed Generators) v. Non-Salient Pole or Cylindrical Pole Synchronous Generator(generally used in Thermal and Nuclear Power Stations, are of High speed Generators) AITS EEE Dept. 66

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP 13. Transformers: v. It is a device that transfers electric energy from one alternating-current circuit to one or more other circuits, either increasing (stepping up) or reducing (stepping down) the voltage. AITS EEE Dept. 67

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Advantages of Thermal Power Stations 1) Economical for low initial cost other than any generating plant. 2) Land required is less than hydro power plant. 3) Since coal is main fuel & its cost is quite cheap than petrol/diesel so generation cost is economical. 4) There are easier maintenance. 5) Thermal power plant can be installed in any location where transportation & bulk of water are available. AITS EEE Dept. 68

Thermal Power Station P Shahir Ali Khan Asst. Prof. GEP Disadvantages: 1. Huge production of Carbon-di-oxide (CO 2) in the atmosphere. 2. Exhausted gases harms outside environment badly. 3. Low overall efficiency. 4. Thermal engines requires huge amount of lubricating oil that is very expensive. 5. Nuclear thermal power plant demands excessive amount of water for cooling purpose. AITS EEE Dept. 69
