P 4 Tagging Software and MRR Data Model

P 4 Tagging Software and MRR Data Model Preview John Tenney, Nicole Tancreto and Craig White Pacific States Marine Fisheries Commission A Presentation for the 2015 PIT Tag Workshop

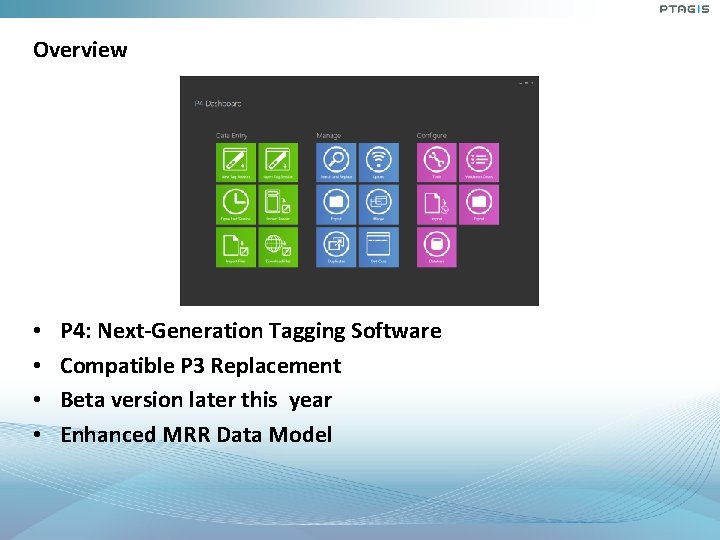

Overview • • P 4: Next-Generation Tagging Software Compatible P 3 Replacement Beta version later this year Enhanced MRR Data Model

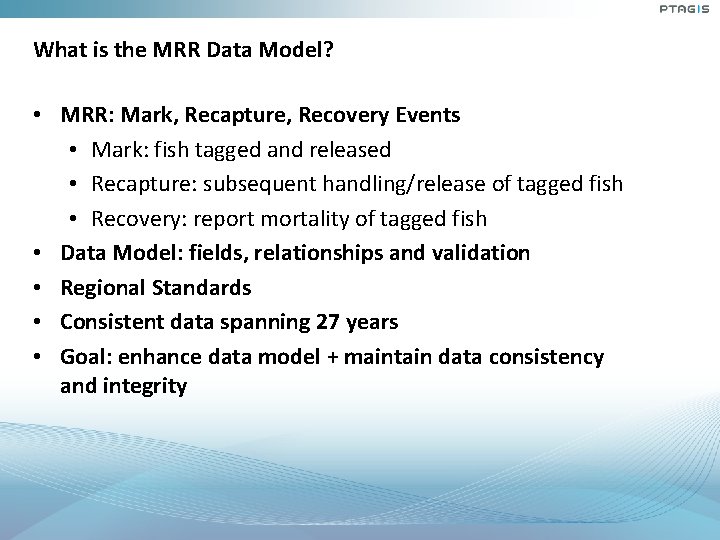

What is the MRR Data Model? • MRR: Mark, Recapture, Recovery Events • Mark: fish tagged and released • Recapture: subsequent handling/release of tagged fish • Recovery: report mortality of tagged fish • Data Model: fields, relationships and validation • Regional Standards • Consistent data spanning 27 years • Goal: enhance data model + maintain data consistency and integrity

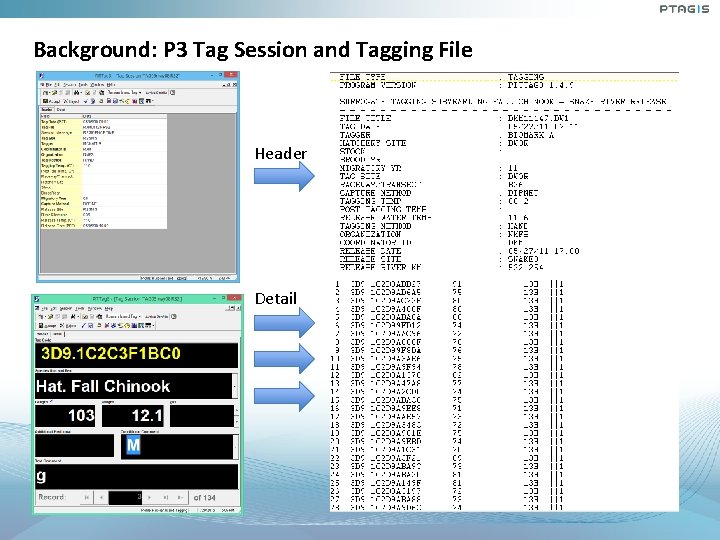

Background: P 3 Tag Session and Tagging File Header Detail

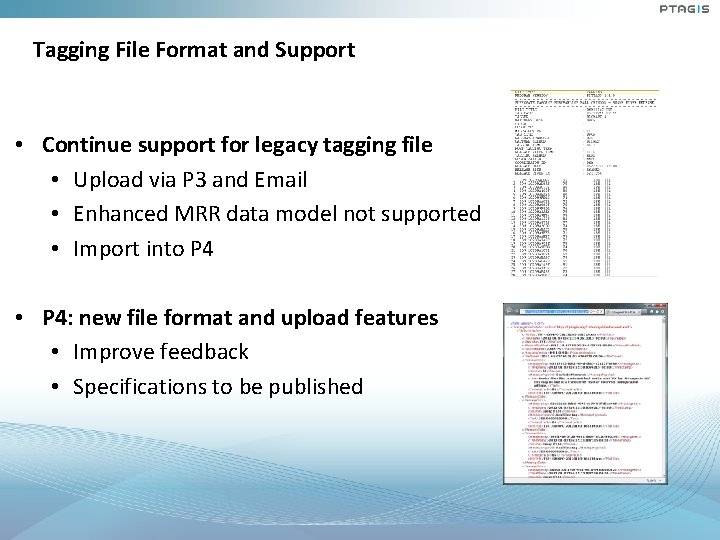

Tagging File Format and Support • Continue support for legacy tagging file • Upload via P 3 and Email • Enhanced MRR data model not supported • Import into P 4 • P 4: new file format and upload features • Improve feedback • Specifications to be published

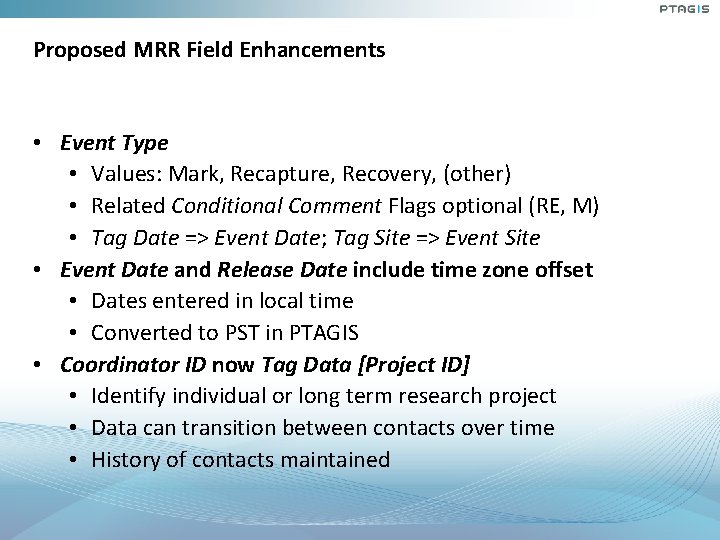

Proposed MRR Field Enhancements • Event Type • Values: Mark, Recapture, Recovery, (other) • Related Conditional Comment Flags optional (RE, M) • Tag Date => Event Date; Tag Site => Event Site • Event Date and Release Date include time zone offset • Dates entered in local time • Converted to PST in PTAGIS • Coordinator ID now Tag Data [Project ID] • Identify individual or long term research project • Data can transition between contacts over time • History of contacts maintained

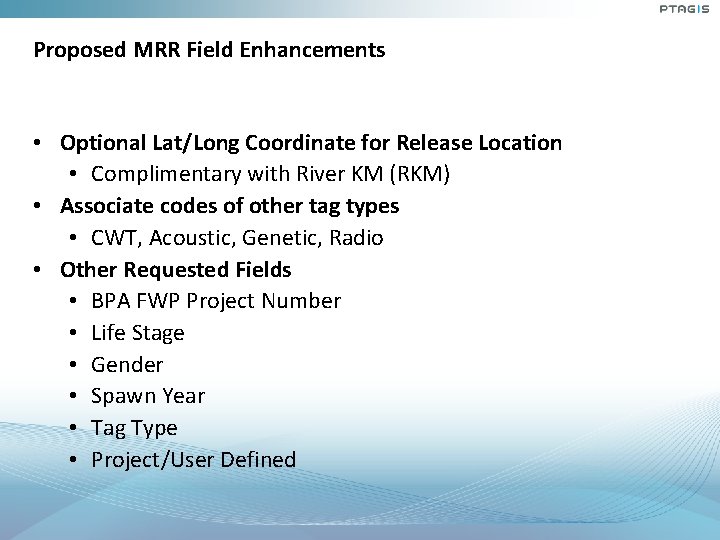

Proposed MRR Field Enhancements • Optional Lat/Long Coordinate for Release Location • Complimentary with River KM (RKM) • Associate codes of other tag types • CWT, Acoustic, Genetic, Radio • Other Requested Fields • BPA FWP Project Number • Life Stage • Gender • Spawn Year • Tag Type • Project/User Defined

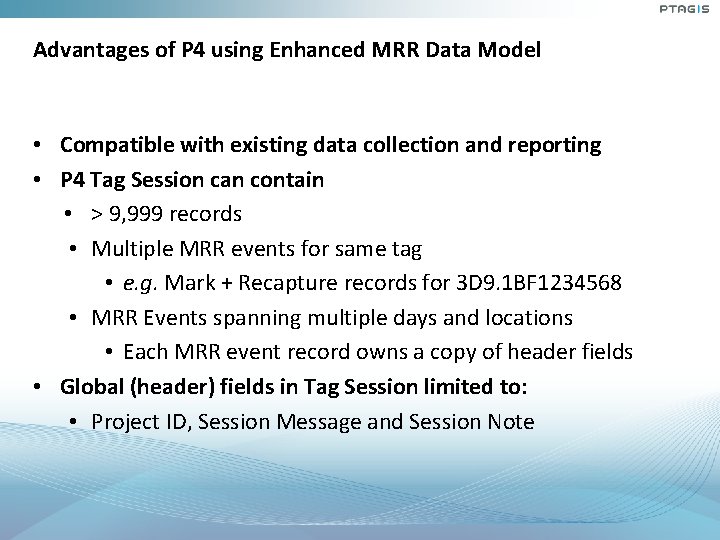

Advantages of P 4 using Enhanced MRR Data Model • Compatible with existing data collection and reporting • P 4 Tag Session can contain • > 9, 999 records • Multiple MRR events for same tag • e. g. Mark + Recapture records for 3 D 9. 1 BF 1234568 • MRR Events spanning multiple days and locations • Each MRR event record owns a copy of header fields • Global (header) fields in Tag Session limited to: • Project ID, Session Message and Session Note

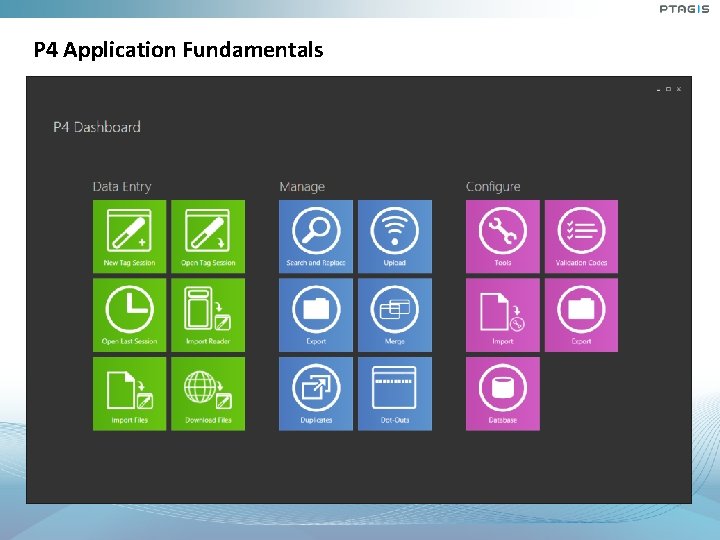

P 4 Application Fundamentals

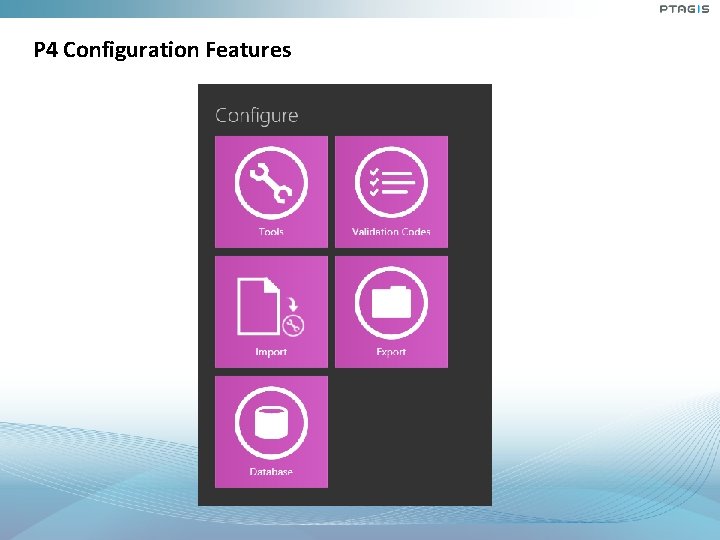

P 4 Configuration Features

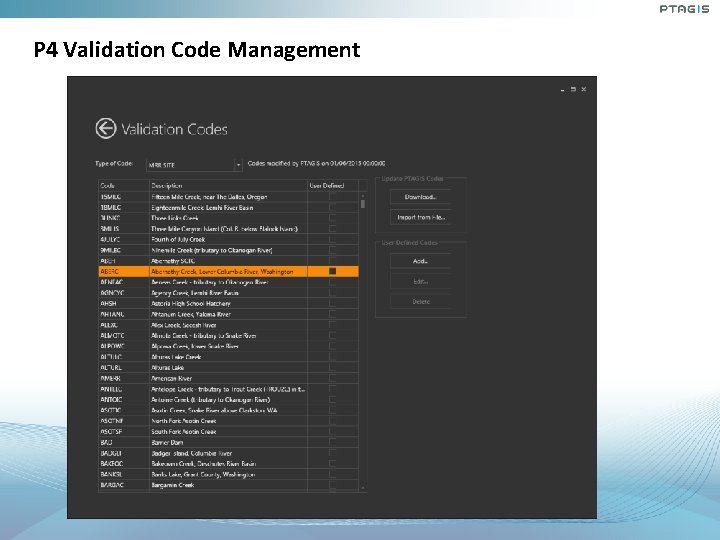

P 4 Validation Code Management

P 4 Configuration Features

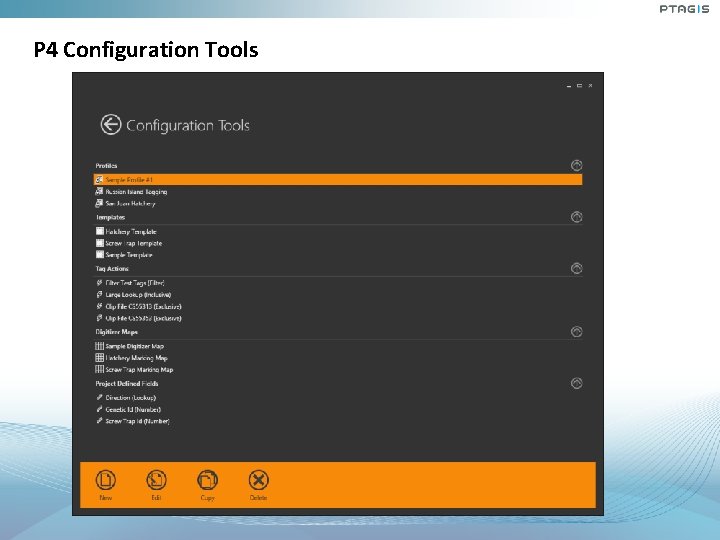

P 4 Configuration Tools

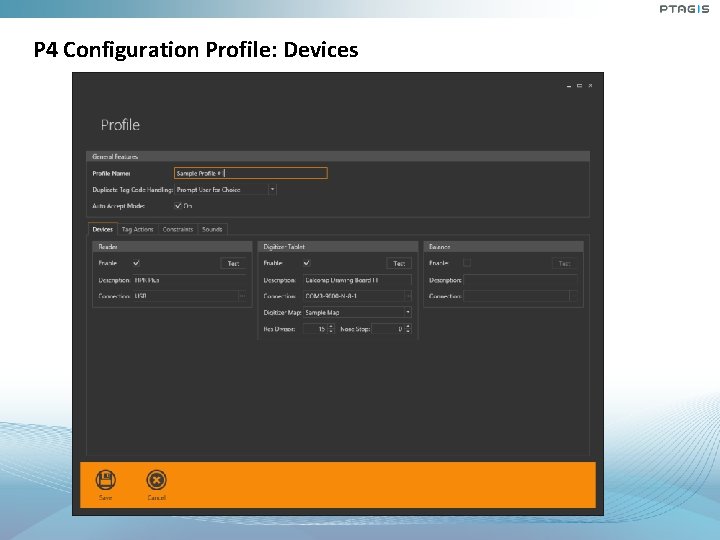

P 4 Configuration Profile: Devices

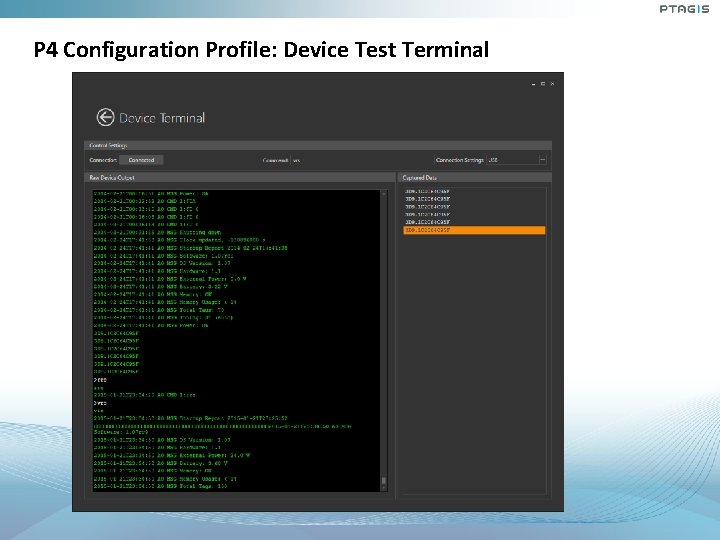

P 4 Configuration Profile: Device Test Terminal

P 4 Configuration Profile: Devices

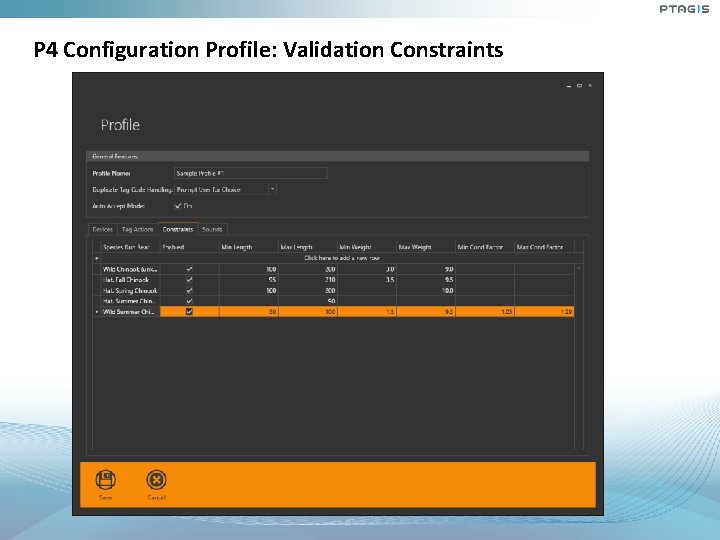

P 4 Configuration Profile: Validation Constraints

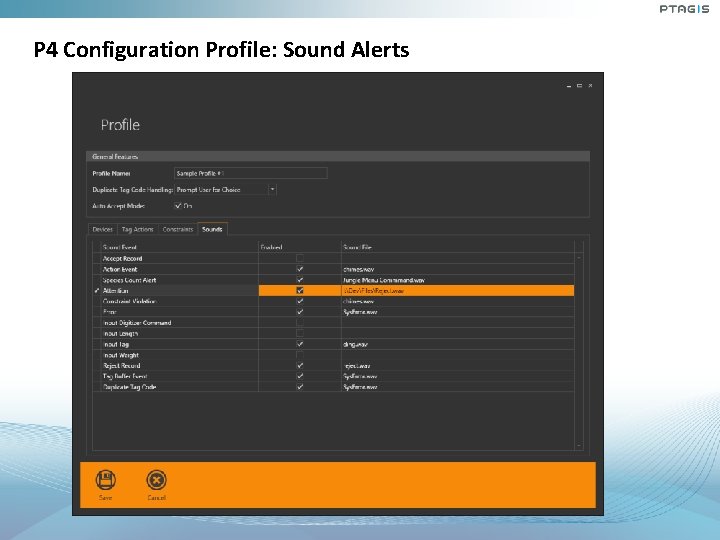

P 4 Configuration Profile: Sound Alerts

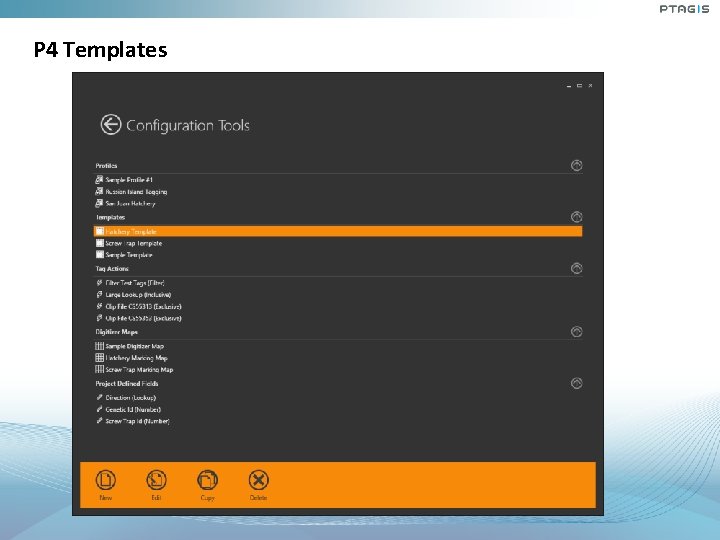

P 4 Templates

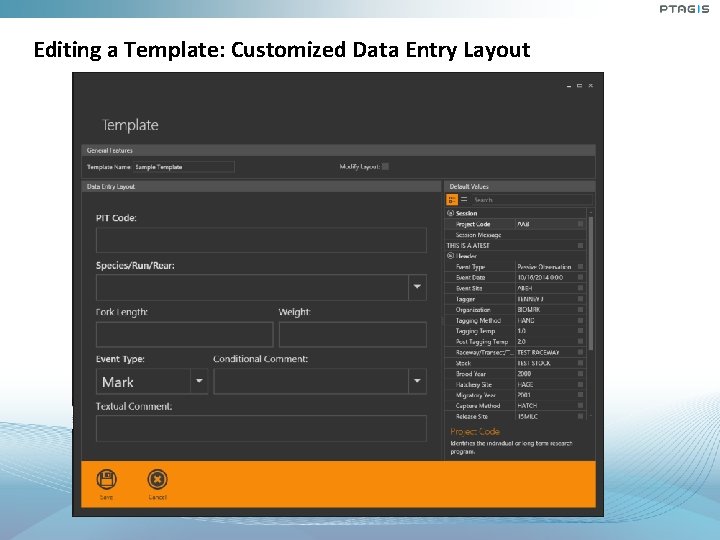

Editing a Template: Customized Data Entry Layout

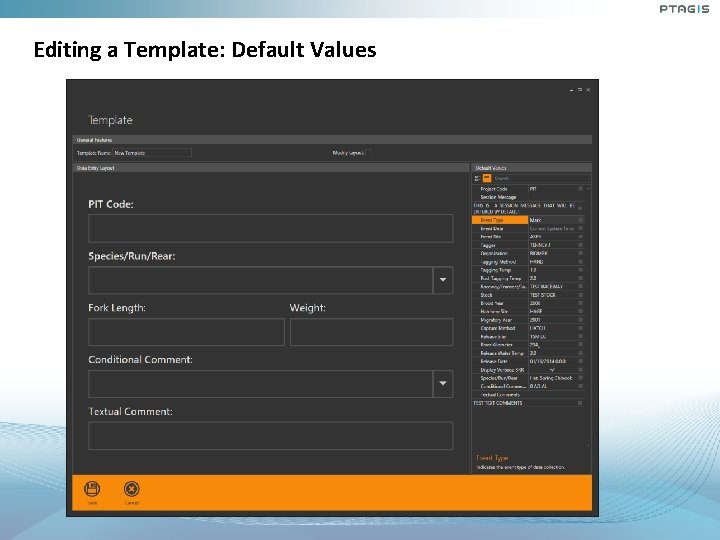

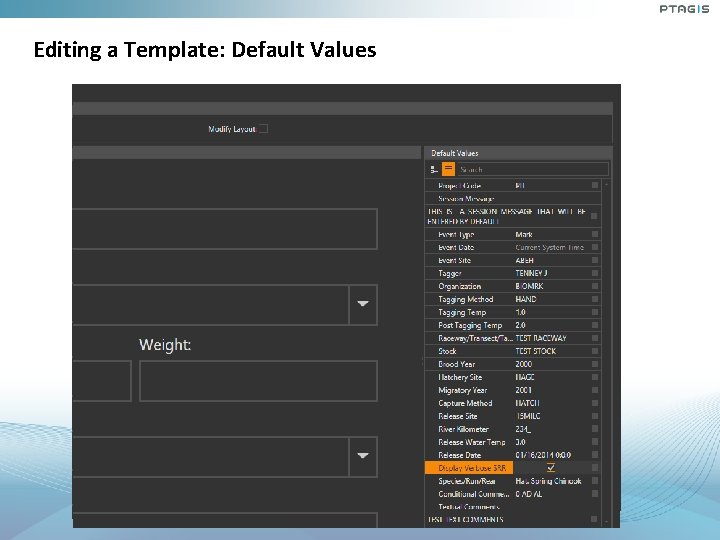

Editing a Template: Default Values

Editing a Template: Default Values

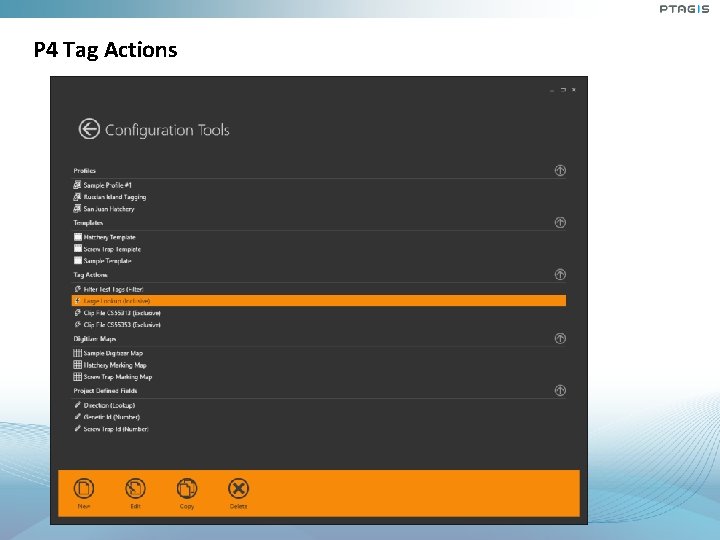

P 4 Tag Actions

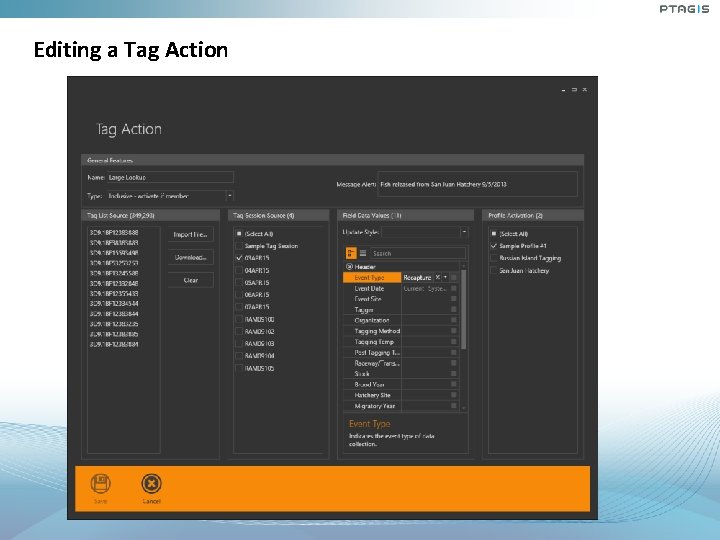

Editing a Tag Action

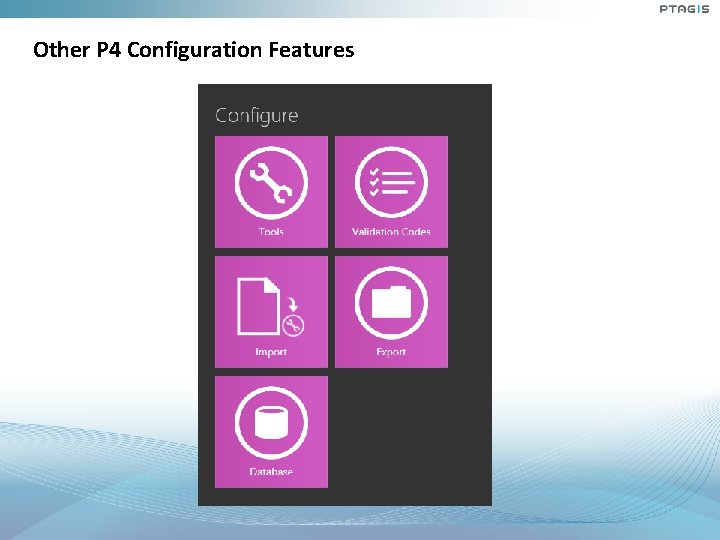

Other P 4 Configuration Features

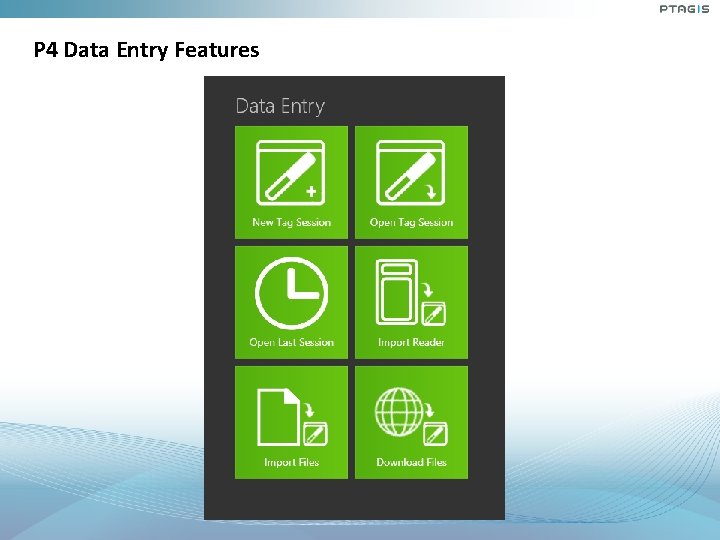

P 4 Data Entry Features

P 4 Data Entry Features

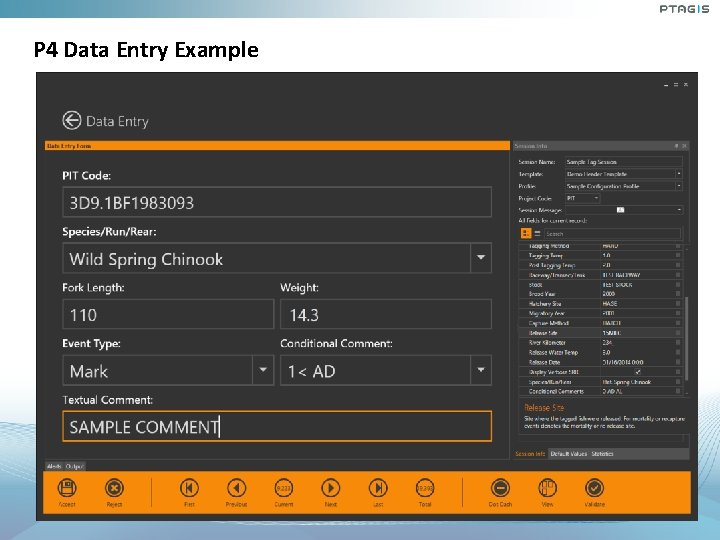

P 4 Data Entry Example

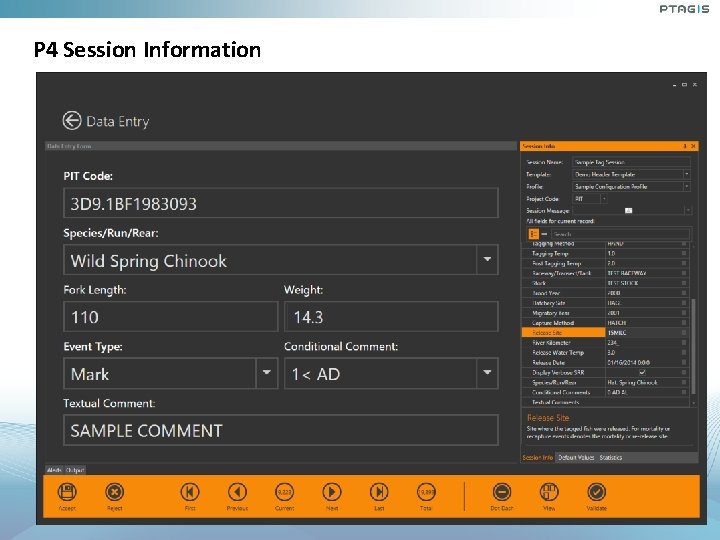

P 4 Session Information

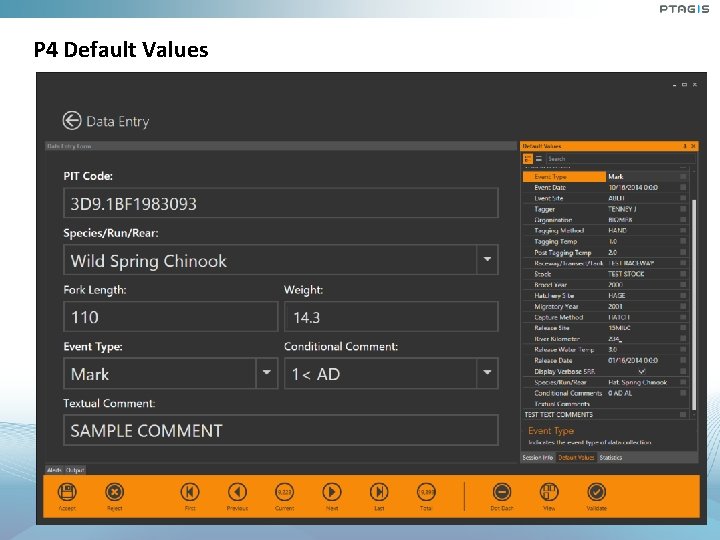

P 4 Default Values

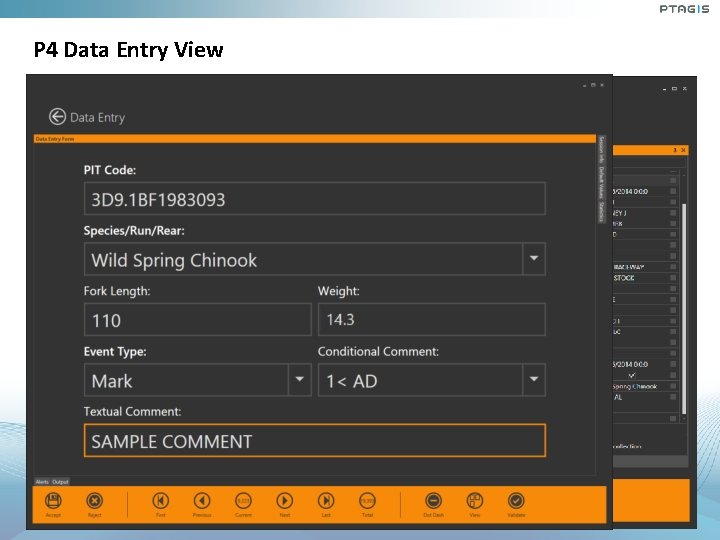

P 4 Data Entry View

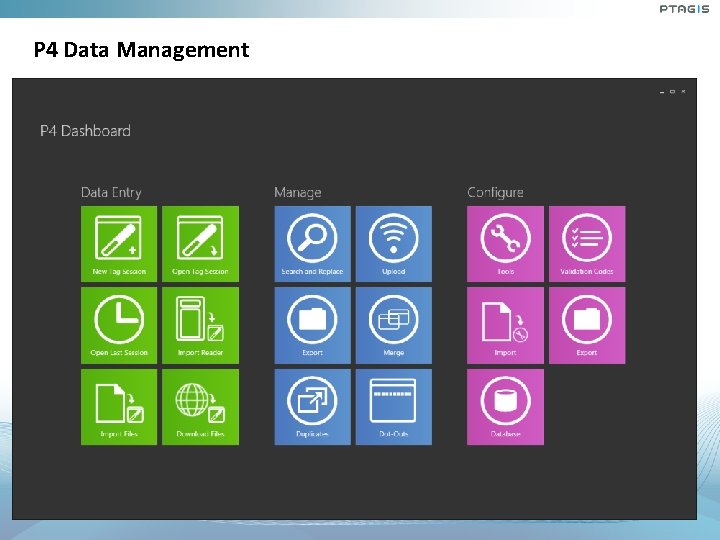

P 4 Data Management

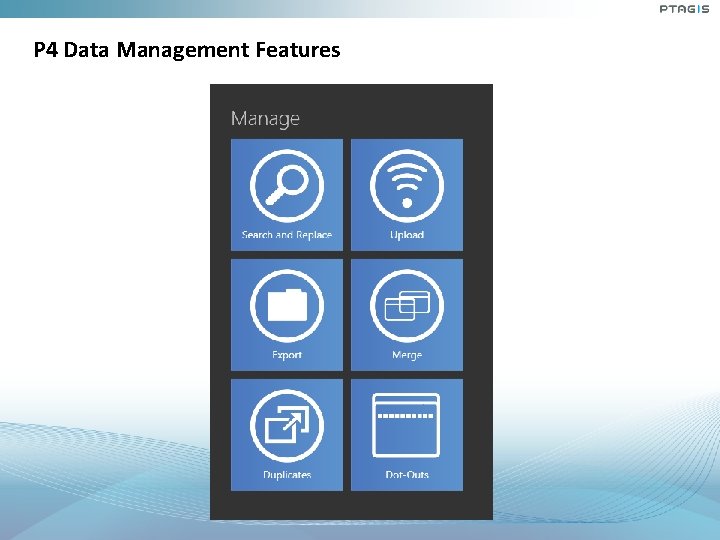

P 4 Data Management Features

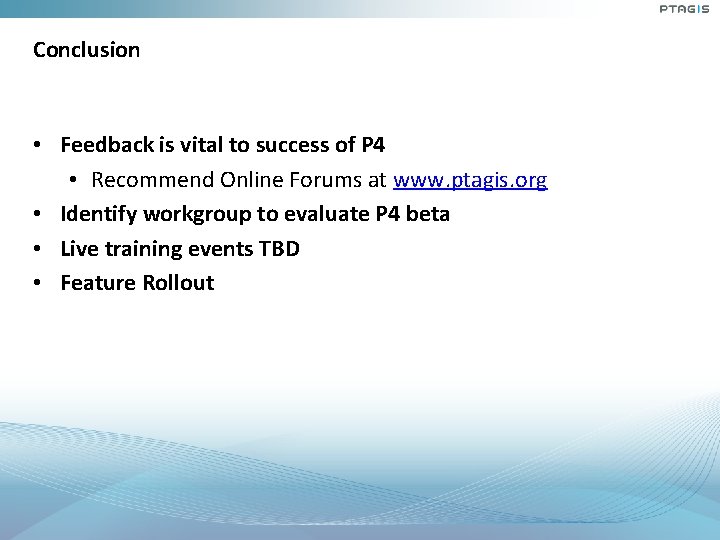

Conclusion • Feedback is vital to success of P 4 • Recommend Online Forums at www. ptagis. org • Identify workgroup to evaluate P 4 beta • Live training events TBD • Feature Rollout

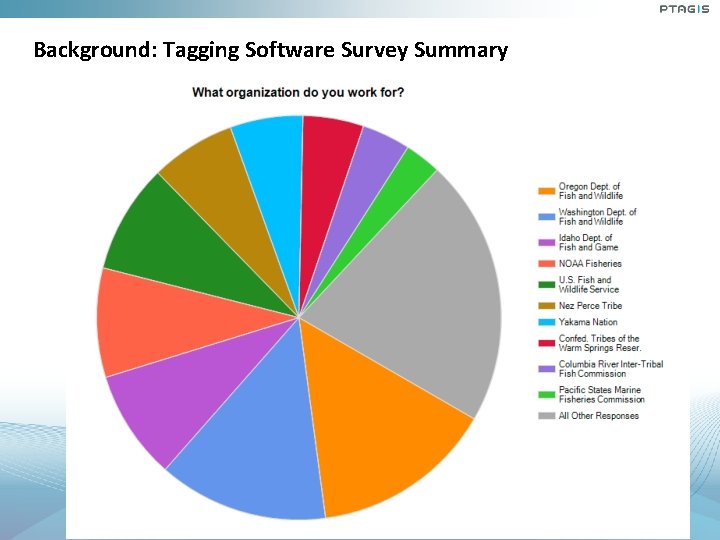

Background: Tagging Software Survey Summary

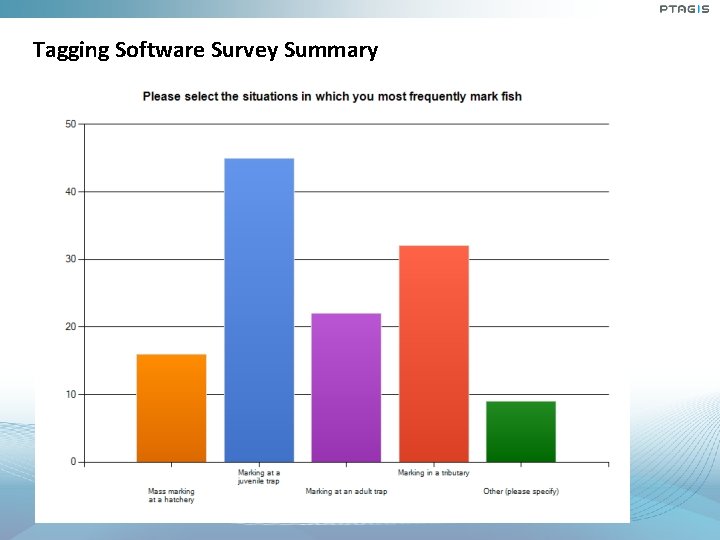

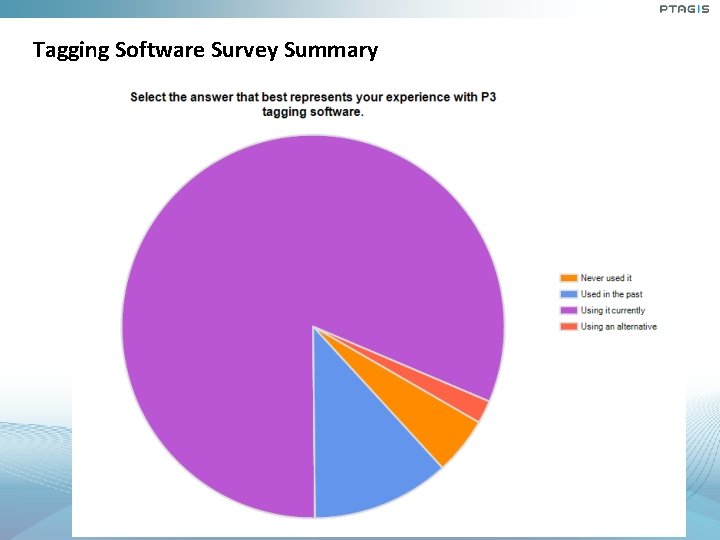

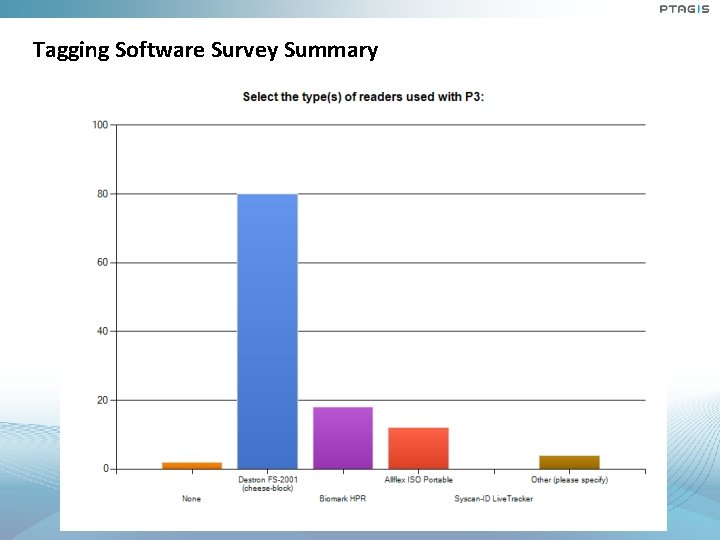

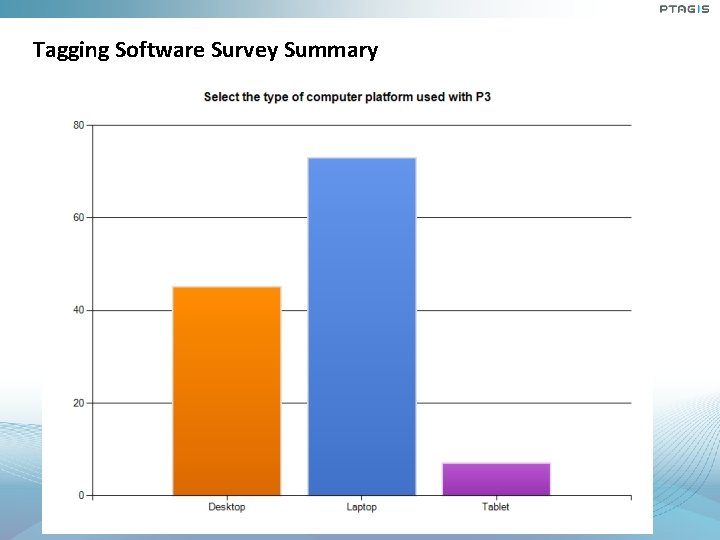

Tagging Software Survey Summary

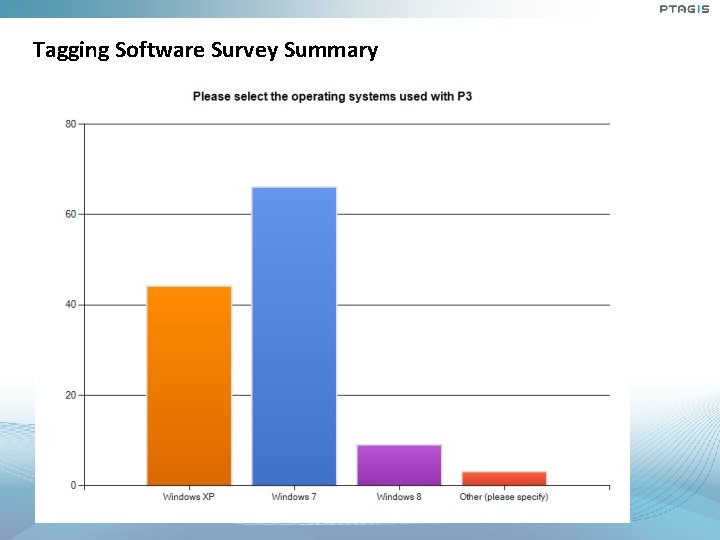

Tagging Software Survey Summary

Tagging Software Survey Summary

Tagging Software Survey Summary

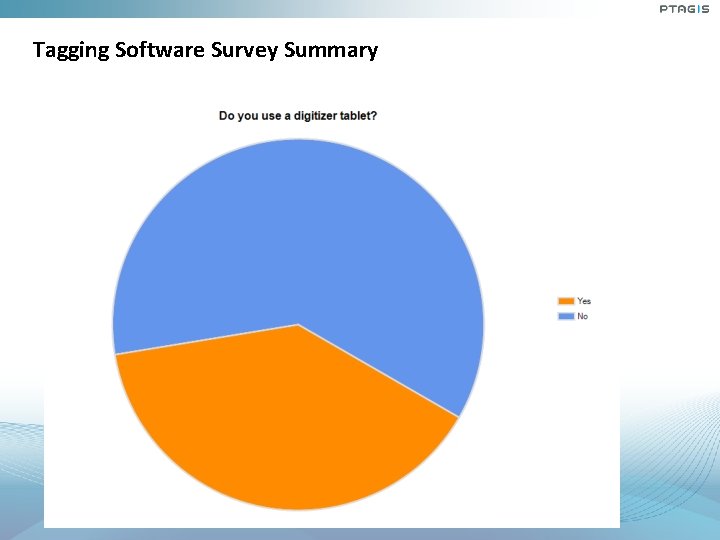

Tagging Software Survey Summary

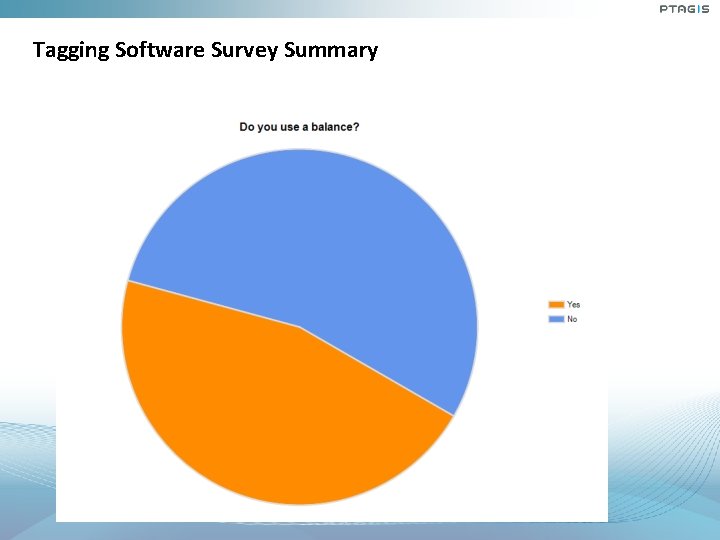

Tagging Software Survey Summary

Tagging Software Survey Summary

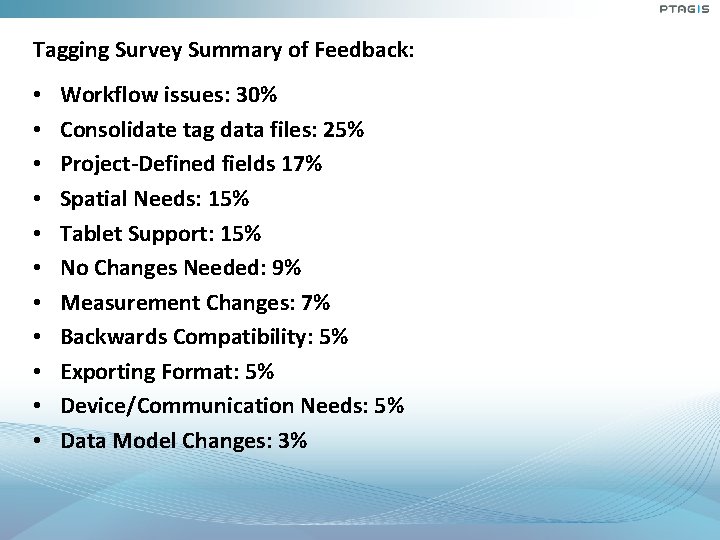

Tagging Survey Summary of Feedback: • • • Workflow issues: 30% Consolidate tag data files: 25% Project-Defined fields 17% Spatial Needs: 15% Tablet Support: 15% No Changes Needed: 9% Measurement Changes: 7% Backwards Compatibility: 5% Exporting Format: 5% Device/Communication Needs: 5% Data Model Changes: 3%
