OZONE TECH SIA www ozonalietas lv October 2017
“OZONE TECH” SIA www. ozonalietas. lv October, 2017
Ozone in nature Ozone is naturally produced by ultra-violet rays from the Sun and lightning-based corona discharge. These two methods account for nearly all natural ozone creation on Earth. Why sky looks blue?
Ozone Formation via Corona Discharge An electrical discharge (a spark) splits an oxygen molecule into two oxygen atoms. (Electrical discharge is also referred to as corona discharge. ) These unstable oxygen atoms combine with other oxygen molecules. This combination forms ozone.
Ozone Generators use the Same Methods Oxygen is forced between high voltage plates to simulate corona discharge. The oxygen is broken apart and recombines into ozone
Ozone Generator construction Scheme
Ozone and Oxygen Properties Property Ozone Oxygen Molecular Weight 48 32 Color light blue colorless Smell smell after lightning storms odorless Solubility in water(0 o. C) 0. 64 0. 049 Density (g/l) 2. 144 1. 429 Oxidizing Potential (Volts) 2. 07 1. 23 Ozone is one of the most powerful oxidants used in water & air applications.
Typical Ozone half-life Dissolved in Water Gaseous Temperature (C) Half-life -50 3 months -35 18 days -25 8 days 20 3 days 120 250 Temperature (C) Half-life 15 30 minutes 20 20 minutes 25 15 minutes 1. 5 hours 30 12 minutes 1. 5 seconds 35 8 minutes
Oxidizing Potential of Various Reagent Oxidizing Potential Ozone Hydrogen Peroxide 2. 07 1. 77 Permanganate Chlore Oxygen 1. 67 1. 36 1. 23
Effect of Ozone on Bacteria 1. A healthy bacillus bacterial cell 4. A newly created hole in the cell wall has injured the bacterium. 2. An ozone molecule (blue) comes into contact with the cell wall 5. The bacterium begins to loose its shape while ozone molecules continue creating holes in the cell wall. 3. As ozone molecules make contact with the cell wall, a reaction called an oxidative burst occurs which literally creates a tiny hole in the cell wall. 6. After thousands of ozone collisions over only a few seconds, the bacterial wall can no longer maintain its shape and the cell dies
Ozone Compatible Materials Stainless steel Theoretical rating (Cole Parmer) Excelent Aluminum Good Bronze Good Nitrila Not recommended Cooper Excelent Metal Not recommended Natural rubber Not recommended Neilone Not recommended Polycarbonate Excelent Polypropelene Good Teflon PVC Silicone Zinc Excelent Good Excelent Not recommended
Ozone Odor Destruction Ozone reacts with a foreign odor to change is composition so it is no longer the same odor. A new molecule is formed but this new molecule is typically less odorous that the original one. When ozone makes contact with the odor molecule, the odor is destroyed, but so is the ozone molecule. Stronger odors mean more odor molecules present therefore more ozone is also needed.
Application Scope Air Used for Hospital disinfection, the family clean air, industrial waste gas treatment, recycling of plastic, leather and textile industries, livestock breeding grounds, chemical and pharmaceutical industries Clear water Drinking water treatment, swimming pool water treatment, ultra-pure water, cooling water treatment, water treatment process Waste water Wastewater pollutants oxidation, decomposition, purification, discoloring, in addition to taste deodorant, sterilization kill algae kill the virus, reducing BOD / COD, the elimination of surfactant bubble Food Fish meal feed industry deodorant, vegetables and fruit preservation, removal of pesticide residues in fruits and vegetables, meat in the elimination of the fungus Industry Man-made fibre production, pesticides and insecticides, cracking pulp, paper and plastic surface, creating musical instruments of wood processing, the semiconductor industry TEOS system and wet cleaning, the rubber industry of ozone weathering tests, the medical technology industries.

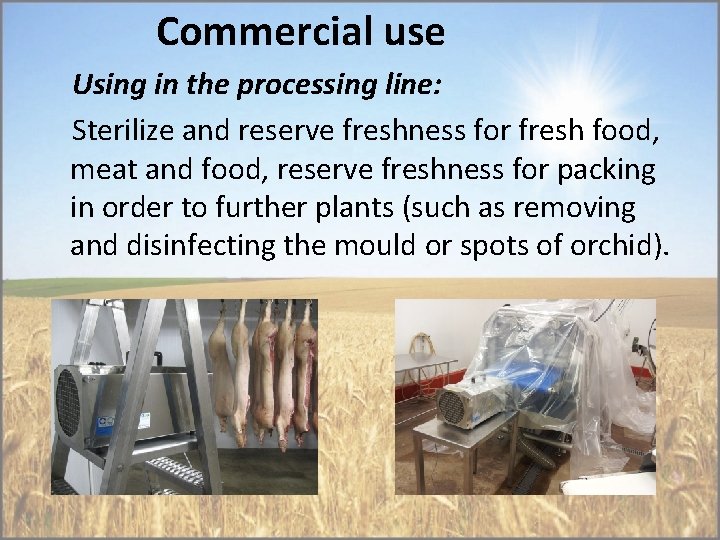

Commercial use Using in the processing line: Sterilize and reserve freshness for fresh food, meat and food, reserve freshness for packing in order to further plants (such as removing and disinfecting the mould or spots of orchid).
Commercial use Livestock farming: The cleaning site area to achieve sterilizing, disinfecting, to reach the effect of cleaning, sterilizing and disinfecting for source of contamination, the excrement or dirt objects.
Commercial use Ozonated water use in seafood product processing factories: • Shelf life benefits • Inprovement in product quality • Ozonated Ice production • In addition to killing bacteria on the fish, these microorganisma are killed on floors, in drains, on latex gloves, on workers shoes
Commercial use Microbiological pollution in wastewater treatment plants, agriculture, medicine Drinking water treatment in poultry farms, animal farms Groundwater treatment of chemical pollution. Improving agriculture soil quality from mineral remains
Advantages of Ozone • Ozone is the strongest oxidant and disinfectant available for the treatment of aqueous solutions and gaseous mixtures. • Although ozone is only partially soluble in water, it is sufficiently soluble and stable such that its oxidation or disinfectant properties can be fully utilized. • After ozone oxidizes or disinfects, it decomposes into oxygen. • Ozone reacts with a large variety of organic compounds resulting in oxygencontaining organic by-products. • Although ozone is the strongest oxidizing agent commercially available, it is safe to handle. The primary reason is that it cannot be stored and, therefore must be generated and used on-site. • Ozone in its gaseous phase is a proven deodorizer for a variety of odorous materials. • In treating potable water, wastewater, and landfill leachate, ozone has the proven ability to convert biorefractory organic materials to biodegradable materials. As a result, combining ozone oxidation with subsequent biological treatment can produce water or wastewater with lower concentrations of problematic organic compounds more cost-effectively than either process used individually. • Applying ozone to any medium (liquid or gaseous) does not add other chemicals. • Ozone, by itself, does not affect p. H (ozone can oxidize the contaminants which are causing a p. H adjustment)
Chemical free solutions for Green Life Ltd. “OZONE TECH” www. ozonalietas. lv Juris Brūveris - Member of Board E-mail: juris. bruveris@ozonalietas. lv Phone: +371 29223654
