Oxygenblown Gasification for Efficient Conversion of Woody Biomass

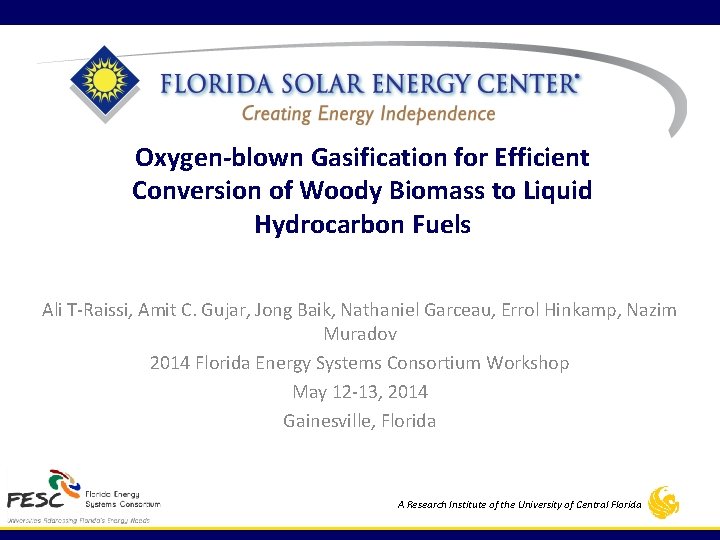

Oxygen-blown Gasification for Efficient Conversion of Woody Biomass to Liquid Hydrocarbon Fuels Ali T-Raissi, Amit C. Gujar, Jong Baik, Nathaniel Garceau, Errol Hinkamp, Nazim Muradov 2014 Florida Energy Systems Consortium Workshop May 12 -13, 2014 Gainesville, Florida A Research Institute of the University of Central Florida
Rational & Overall Goal The goal of this ongoing activity is to convert solar energy (directly and in combination with that stored in the form of lignocellulosic biomass) to liquid hydrocarbon fuels – as substitutes for petroleum-based fuels (gasoline, jet, diesel). H 2 PV conditioner water electrolyzer scrubber water raw product gasoline raw syngas H 2 O diesel H 2 O biomass waste gasifier O 2 Fischer-Tropsch fuel refining reactor

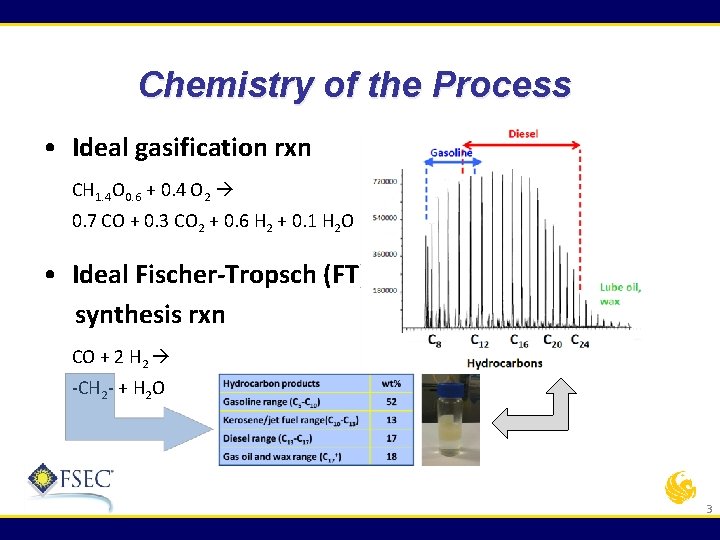

Chemistry of the Process • Ideal gasification rxn CH 1. 4 O 0. 6 + 0. 4 O 2 0. 7 CO + 0. 3 CO 2 + 0. 6 H 2 + 0. 1 H 2 O • Ideal Fischer-Tropsch (FT) synthesis rxn CO + 2 H 2 -CH 2 - + H 2 O 3

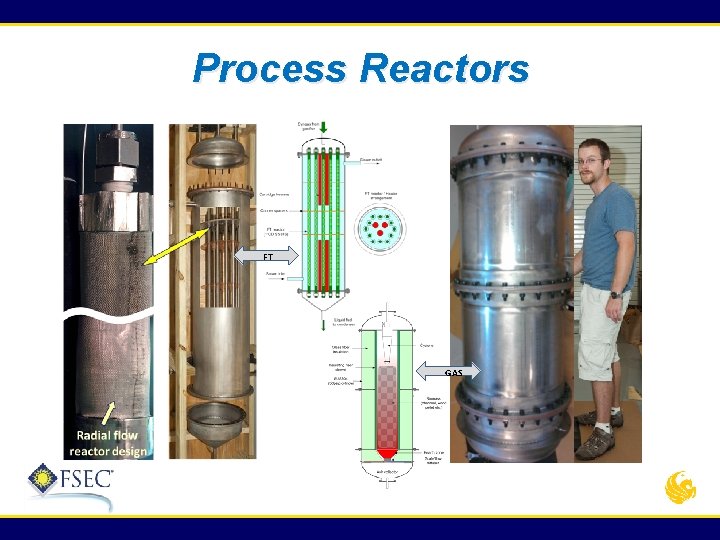

Process Reactors FT GAS

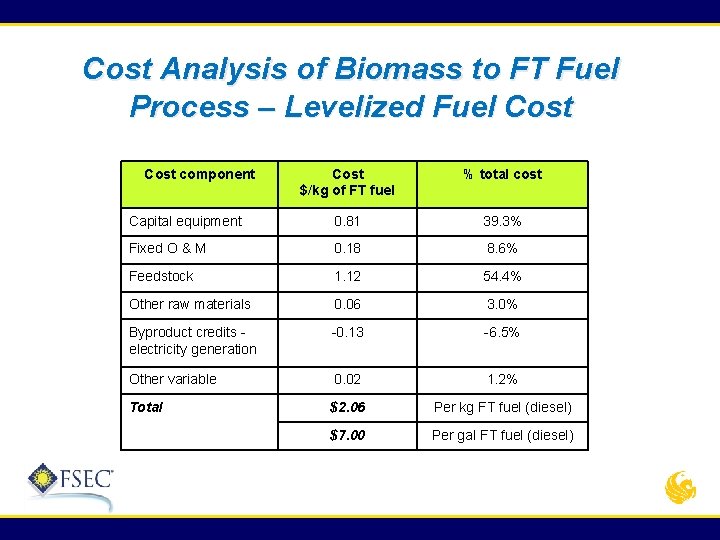

Cost Analysis of Biomass to FT Fuel Process – Levelized Fuel Cost component Cost $/kg of FT fuel % total cost Capital equipment 0. 81 39. 3% Fixed O & M 0. 18 8. 6% Feedstock 1. 12 54. 4% Other raw materials 0. 06 3. 0% Byproduct credits electricity generation -0. 13 -6. 5% Other variable 0. 02 1. 2% Total $2. 06 Per kg FT fuel (diesel) $7. 00 Per gal FT fuel (diesel)
